Xerox 3120 User Manual

Design © 2014 Xerox Corporation. All rights reserved. Xerox®, Xerox and Design® and DocuMate® are registered trademarks of Xerox Corporation in the United States and/or other countries and are used under license from Xerox Corporation. Visioneer is a trademark licensee of Xerox®. BR9772

Reproduction, adaptation, or translation without prior written permission is prohibited, except as allowed under the copyright laws. Copyright protection claimed includes all forms of matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted, including without limitation, material generated from the software programs which are displayed on the screen such as styles, templates, icons, screen displays, looks, etc.

Document Version: 05-0891-000a (September 2014)

The PaperPort® and OmniPage® brand name and logo are registered trademarks of Nuance Communications, Inc.

ISIS® is a registered trademark of EMC

® Corporation in the United States and/or other

countries.

Adobe®, Adobe® Acrobat®, Adobe® Reader®, and the Adobe® PDF logo are registered trademarks of Adobe Systems Incorporated in the United States and/or other countries.

Post-It® is a registered trademark of 3M in the United States and/or other countries.

Microsoft is a U.S. registered trademark of Microsoft Corporation. Windows™ is a trademark and SharePoint® is a registered trademark of Microsoft Corporation.

All other products mentioned herein may be trademarks of their respective companies and are hereby acknowledged.

Changes are periodically made to this document. Changes, technical inaccuracies, and typographic errors will be corrected in subsequent editions. Information is subject to change without notice and does not represent a commitment on the part of Visioneer.

The software described is furnished under a licensing agreement. The software may be used or copied only in accordance with the terms of such an agreement. It is against the law to copy the software on any medium except as specifically allowed in the licensing agreement. No part of this document may be reproduced or transmitted in any form or by any means, electronic or mechanical, including photocopying, recording, or information storage and retrieval systems, or translated to another language, for any purpose other than the licensee's personal use and as specifically allowed in the licensing agreement, without the express written permission of Visioneer.

Restricted Rights Legend

Use, duplication, or disclosure is subject to restrictions as set forth in contract subdivision (c)(1)(ii) of the Rights in Technical Data and Computer Software Clause 52.227-FAR14. Material scanned

by this product may be protected by governmental laws and other regulations, such as copyright laws. The customer is solely responsible for complying with all such laws and regulations.

Safety ...............................................................................................................................vi

Safety Introduction .............................................................................................................................. vi

Operational Safety Information..................................................................................................... vi

Electrical Information.........................................................................................................................vii

Warning - Electrical Safety Information........................................................................ vii

Electrical Supply.......................................................................................................................viii

Disconnect Device ..................................................................................................................viii

Emergency Power Off........................................................................................................................viii

Maintenance Information...............................................................................................................viii

Product Safety Certification .............................................................................................................ix

Environmental Health and Safety Contacts.............................................................................. ix

Welcome .........................................................................................................................1

What’s in the Box....................................................................................................................................1

System Requirements...........................................................................................................................2

Documentation .......................................................................................................................................2

Xerox® DocuMate 3120 Scanner...................................................................................................3

Scanner Setup............................................................................................................... 5

Unpack and Assemble the Scanner................................................................................................5

Connect the Power Cord......................................................................................................................6

Installation..................................................................................................................... 7

Install the Software and Connect the Scanner.........................................................................8

Installing the Scanner Driver..............................................................................................10

Connect the USB Cable and Turn on the Power........................................................ 11

Installing Visioneer OneTouch.......................................................................................... 13

Installing Additional Applications................................................................................................14

View the User Guides......................................................................................................................... 15

Register Your Scanner........................................................................................................................ 16

Loading Documents to Scan................................................................................17

Supported Document Types...........................................................................................................17

Documents to Avoid Scanning......................................................................................................17

Unsupported Document Types.....................................................................................................18

Scanning from the Automatic Document Feeder (ADF) ...................................................19

Preparing Documents for Scanning................................................................................19

Loading Documents...............................................................................................................20

User Guide iv

Xerox® DocuMate® 3120 Table of Contents

Scanning Interfaces ........................................................................................................................... 21

Maintenance...............................................................................................................23

Safety Precautions .............................................................................................................................. 23

Clearing Paper Jams...........................................................................................................................24

Cleaning the Scanner.........................................................................................................................24

Replacing the ADF Pad Assembly.................................................................................................27

Replacing the Roller Assembly.......................................................................................................28

Troubleshooting...................................................................................................................................31

Error Light Troubleshooting Codes.................................................................................. 34

Uninstalling Your Scanner ...............................................................................................................35

Xerox® DocuMate 3120 Specifications....................................................................................36

Xerox® DocuMate 3120 Parts List .............................................................................................. 38

Regulatory Information .........................................................................................39

Basic Regulations................................................................................................................................. 39

United States (FCC Regulations)......................................................................................39

European Union.......................................................................................................................39

Turkey (RoHS Regulation) ...................................................................................................40

Copy Regulations................................................................................................................................. 40

United States ............................................................................................................................ 40

Canada ........................................................................................................................................41

Other Countries........................................................................................................................ 42

Compliance Information .......................................................................................43

Product Recycling & Disposal.........................................................................................................43

USA & Canada.......................................................................................................................... 43

European Union....................................................................................................................... 43

Energy Star for the USA.................................................................................................................... 44

v User Guide

Safety

Safety Introduction

Notices and Safety

Please read the following instructions carefully before operating the machine and refer to them as needed to ensure the continued safe operation of your machine.

You r Xer o x requirements. These include safety agency evaluation and certification, and compliance with electromagnetic regulations and established environmental standards.

The safety and environment testing and performance of this product have been verified using Xerox functions or connection of external devices, may impact the product certification. Please contact your Xerox representative for more information.

product and supplies have been designed and tested to meet strict safety

WARNING:

materials only. Unauthorized alterations, which may include the addition of new

Operational Safety Information

You r Xer o x® equipment and supplies have been designed and tested to meet strict safety requirements. These include safety agency examination, approval, and compliance with established environmental standards.

To ensure the continued safe operation of your Xerox at all times:

Do these:

• Always follow all warnings and instructions that are marked on or supplied with the equipment.

• Always use materials specifically designated for this product, the use of other materials may result in poor performance and create a hazardous situation. Do not use aerosol cleaners, they may be explosive and flammable under certain conditions.

• Always exercise care when moving or relocating equipment.

• Always locate the machine on a solid support surface that has adequate strength to support the weight of the machine.

• Always locate the machine in an area that has adequate ventilation and room for servicing.

• Always unplug this equipment from the electrical outlet before cleaning.

equipment, follow these safety guidelines

User Guide vi

Xerox® DocuMate® 3120 Safety

Note: You r Xe r ox® machine is equipped with an energy saving device to conserve power when the machine is not in use. The machine may be left on continuously.

Do not do these:

• Never use a ground adapter plug to connect the equipment to a power outlet that lacks a ground connection terminal.

• Never attempt any maintenance function that is not specifically described in this documentation.

• Never remove covers or guards that are fastened with screws. There are no operator serviceable areas within these covers.

• Never locate the machine near a radiator or any other heat source.

• Never override or “cheat” any of the electrical or mechanical interlock devices.

• Never place this equipment where people might step on or trip on the power cord.

Caution: This device is not intended for use in the direct field of view at visual display

workplaces

To avoid incommoding reflections at visual display workplaces this device must not be placed in the direct field of view.

Electrical Information

Warning - Electrical Safety Information

1. The power receptacle for the machine must meet the requirements stated on the data plate on the rear of the machine. If you are not sure that your electrical supply meets the requirements, please consult your local power company or an electrician for advice.

2. The socket outlet shall be installed near the equipment and shall be easily accessible.

3. Use the power cable that is supplied with your machine. Do not use an extension cord or remove or modify the power cord plug.

4. Plug the power cable directly into a correctly grounded electrical outlet. If you are not sure whether or not an outlet is correctly grounded, consult an electrician.

5. Do not use an adapter to connect any Xerox ground connection terminal.

6. Do not place this equipment where people might step or trip on the power cable.

equipment to an electrical outlet that lacks a

7. Do not place objects on the power cable.

8. Do not override or disable electrical or mechanical interlock devices.

9. Do not push objects into slots or openings on the machine. Electrical shock or fire may result.

vii User Guide

Safety Xerox® DocuMate® 3120

Electrical Supply

• This product shall be operated from the type of electrical supply indicted on the product’s data plate label. If you are not sure that your electrical supply meets the requirements, please consult your local power company for advice.

• Always connect equipment to a correctly grounded power outlet. If in doubt, have the outlet checked by a qualified electrician.

WARNING: This equipment must be connected to a protective earth circuit

This equipment is supplied with a plug that has a protective earth pin. This plug will only fit into an earthed electrical outlet. This is a safety feature. If you are unable to insert the plug into the outlet, contact your electrician to replace the outlet.

Disconnect Device

The power cable is the disconnect device for this equipment. It is attached to the back of the machine as a plug-in device. To remove all electrical power from the equipment, disconnect the power cable from the electrical outlet.

Emergency Power Off

If any of the following conditions occur, turn off the machine immediately and disconnect the power cable(s) from the electrical outlet(s).

• The equipment emits unusual odors or makes unusual noises.

• The power cable is damaged or frayed.

• A wall panel circuit breaker, fuse, or other safety device has been tripped.

• Liquid is spilled into the machine.

• The machine is exposed to water.

• Any part of the machine is damaged.

Maintenance Information

1. Any operator product maintenance procedures will be described in the user documentation supplied with the product.

2. Do not carry out any maintenance on this product which is not described in the customer documentation.

User Guide viii

Xerox® DocuMate® 3120 Safety

3. Do not use aerosol cleaners. The use of cleaners that are not approved may cause poor performance of the equipment, and could cause a dangerous condition.

4. Use supplies and cleaning materials only as directed in this manual.

5. Do not remove covers or guards that are fastened with screws. There are no parts behind these covers that you can maintain or service.

6. Do not perform any maintenance procedures unless you have been trained to do them by an authorized local dealer or unless a procedure is specifically described in the user manuals.

Product Safety Certification

This product is certified by the following Agency using the Safety standards listed:

Standard

UL60950-1 (USA)

CSA 22.2 No. 60950-1 (Canada)

IEC 60950-1

Environmental Health and Safety Contacts

Contact Information

For more information on Environment, Health, and Safety in relation to this Xerox supplies, please contact the following customer help lines:

USA & Canada: 1-800-828-6571

Europe: +44 1707 353 434

product and

ix User Guide

Welcome

You r ne w Xe r ox® scanner can quickly scan stacks of single-sided or double-sided pages and place their electronic images on your computer.

What’s in the Box

Before proceeding, check the contents of the box. If items are missing or damaged, contact the dealer where you purchased the scanner.

Xerox® DocuMate 3120 Quick Install Guide Technical Support Card

Warranty Card USB Cable Power Supply

Power Cord Replacement ADF Pad Windows™ Installation Disc

User Guide 1

Xerox® DocuMate® 3120 Welcome

System Requirements

Pentium 4 PC or AMD equivalent with:

•A DVD-ROM drive

• An available Universal Serial Bus (USB) port

•Microsoft

– 32-bit Windows XP (Service Pack 2)

– 32-bit or 64-bit Windows Vista (Service Pack 1)

– 32-bit or 64-bit Windows 7

– 32-bit or 64-bit Windows 8 / 8.1

The scanner is compatible with Service Pack 3 for Windows XP, Service Pack 2 for Windows Vista, and Service Pack 1 for Windows 7.

• Minimum of 2 gigabyte (GB) of internal memory (RAM)

• 350 MB minimum of free hard disk space

A VGA or SVGA Monitor:

• The recommended settings for your monitor are:

– Color quality of 16-bit or 32-bit

– Resolution set to at least 800 x 600 pixels

Refer to your Windows documentation for instructions on setting the color quality and resolution for the monitor.

Windows® operating system:

Documentation

The following printed documentation is provided in the box:

• Installation guide—abbreviated scanner setup and installation instructions.

• Technical support card—contact information for technical support and customer service, and a brief overview of our standard product warranty.

• Warranty card—the warranty card is provided for users in Russia and should be filled in as described on the card. For all other users, please dispose of this card in paper recycling.

The following soft-copy documentation is available on the installation disc:

• Scanner user guide—instructions for scanner setup, installation, operation, maintenance, safety, and warranty

• OneTouch scanning guide—instructions for configuring and scanning using OneTouch

• TWAIN scanning guide—instructions for accessing and scanning using the TWAIN interface

• Nuance PaperPort user’s guide—contains detailed information using the application and managing your scanned documents.

2 User Guide

Welcome Xerox® DocuMate® 3120

6 7

• Nuance OmniPage user’s guide—contains detailed instructions on using the software, including information on using Optical Character Recognition to create editable text files from the scanned documents.

• Nuance PDF Converter user’s guide—contains detailed information on using the application to create and modify PDF files.

Xerox® DocuMate 3120 Scanner

1. Input Tray—Holds the documents in the Automatic Document Feeder for scanning.

2. Paper Guides—Guides adjust to support various document widths.

3. Automatic Document Feeder—Feeds documents through the scanner during scanning. Pull to open the Automatic Document Feeder.

4. Control panel—OneTouch scanning controls.

– LED Number—Shows the current scan setting for the Simplex and Duplex buttons.

– Function buttons—Selects the scan setting for the OneTouch buttons. Press the up or

down arrow to cycle through the settings.

– Duplex button—Press to scan double-sided documents.

– Simplex button—Press to scan single-sided documents.

– Status light / Power Button—Turns the scanner’s power off and shows the scanner’s

5. Output Tray—Holds documents after being scanned. Unfolds to support various document

6. Universal Serial Bus (USB) port—Connects the scanner to the computer.

7. Power jack—Connects the power cord to the scanner.

status.

lengths.

User Guide 3

Xerox® DocuMate® 3120 Welcome

4 User Guide

Scanner Setup

Unpack and Assemble the Scanner

1. Remove the scanner from its protective foam and plastic bag.

2. Remove any shipping tape from the scanner, input tray and output tray.

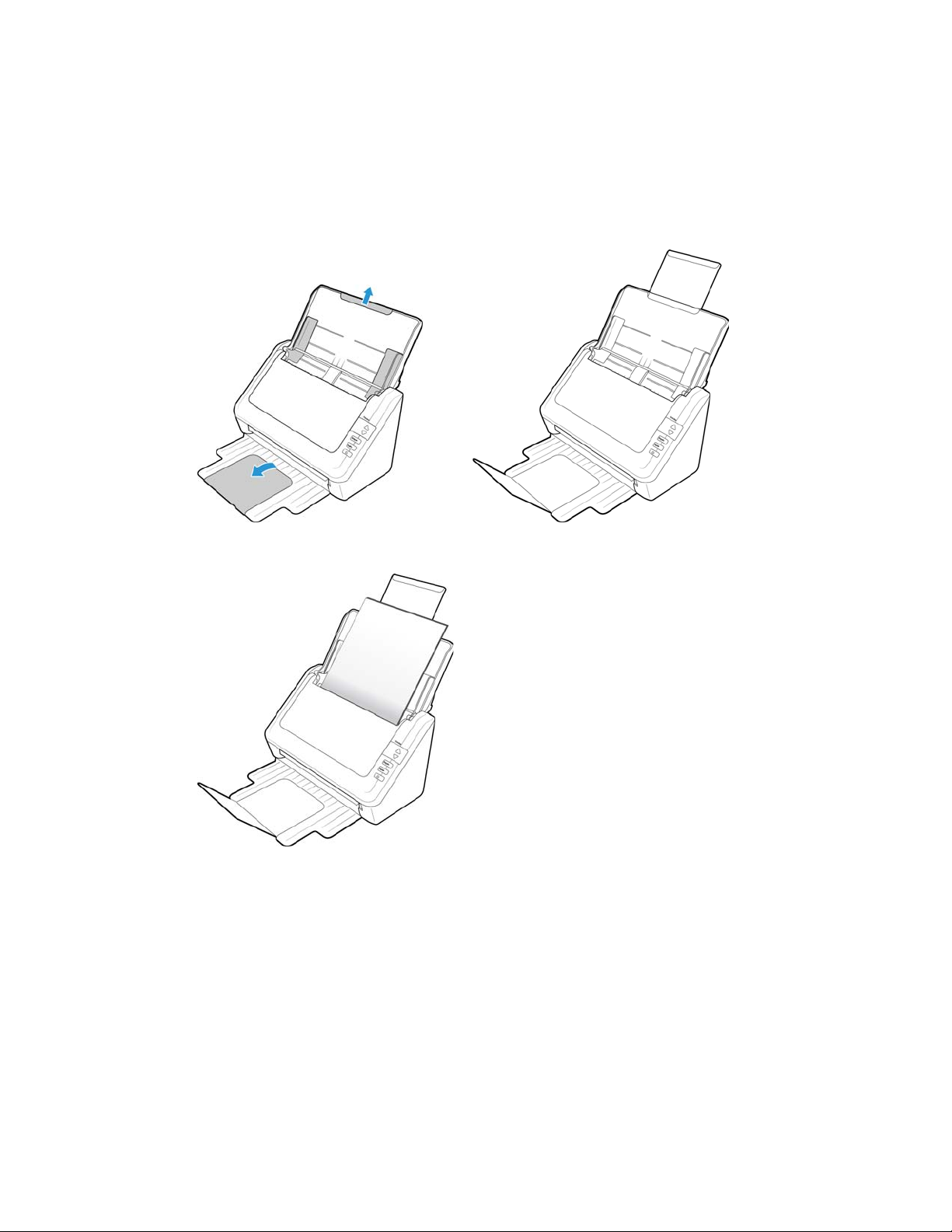

3. Lift the input tray up from the scanner. Pull the output tray down from the scanner body. It will snap in place when it is down all the way.

User Guide 5

Xerox® DocuMate® 3120 Scanner Setup

4. Open the automatic document feeder cover and remove any tape or protective foam from inside the feeder. Close the feeder cover when you are finished.

Connect the Power Cord

Note: Only use the power supply (DA-24C24 made by APD) included with your scanner. Connecting any other type of power supply may damage your scanner, and will void its warranty.

1. Plug the power supply into the power port on the scanner.

2. Plug the power cord into the power supply and into a wall outlet.

6 User Guide

Installation

Please make sure of the following before you begin installation:

• If you are prompted to reboot during installation, please select "No". Finish installing the rest of the software, then close all open windows and reboot your computer.

• The information in this guide may cover software not provided with the scanner you purchased. Please disregard any information about the software not applicable to your scanner.

• If your computer has AntiVirus or AntiSpyware software running, you may encounter alerts or messages during installation asking you to allow the installation to proceed. Although the messages will differ based on the software your computer is running, in each case you should allow the installation to proceed if that option is available. Alternatively, you can turn off the AntiVirus or AntiSpyware software before installing your scanner, but if you do, make sure to turn it back on again when installation is finished.

• If you already have a scanner connected to your computer, it is recommended that you remove that scanner’s driver program prior to installing your Xerox these programs from the Windows Control Panel. Please refer to the user manual provided with your other scanner hardware for instructions about removing the driver and software for that unit.

scanner. You can remove

• If your computer is running Windows Vista or later, you may see the Windows User Account Control screen asking you to confirm system changes. Click the Yes button to allow the installation to proceed.

User Guide 7

Xerox® DocuMate® 3120 Installation

Install the Software and Connect the Scanner

1. Start Microsoft Windows and make sure that no other applications are running.

2. Insert the installation disc into your computer’s DVD-ROM drive.

The disc automatically starts.

3. The Select Language window opens. Click the drop-down menu arrow and select the language to use. Click OK.

The disc’s Main menu window opens.

Note: If the disc does not start, check the following:

– Make sure the disc drive’s door is completely shut.

– Make sure the disc was inserted in the drive in the proper direction (label side up).

To l a u nc h t h e di sc m a nu al ly :

– Open the Windows options for your computer’s disc drives.

– Double-click the icon for your DVD-ROM drive.

– The Installation menu for the disc should now open.

If the menu does not open:

• From the list of files on the disc, double-click the file named setup.exe.

8 User Guide

+ 37 hidden pages
