Worx WX739, WX739.X User guide

SAFETY AND OPERATING MANUAL

ORIGINAL INSTRUCTIONS

20V Cordless Rotary Tool

WX739

WX739.X

PRODUCT SAFETY
GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and instructions.

Failure to follow the

warnings and instructions may result in electr ic shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or
battery-operated (cordless) power tool.

1) Work area safety
a) Keep work area clean and well lit.
b) Do not operate power tools in explosive atmospheres, such as in the presence

of flammable liquids, gases or dust.

Cluttered or dark areas invite accidents.

Power tools create sparks which may ignite the

dust or fumes.

c) Keep children and bystanders away while operating a power tool.

Distractions

can cause you to lose control.

2) Electrical safety
a) Power tool plugs must match the outlet. Never modify the plug in any way. Do

not use any adapter plugs with earthed (grounded) power tools.

Unmodified

plugs and matching outlets will reduce risk of electric shock.

b) Avoid body contact with earthed or grounded surfaces such as pipes, radiators,

ranges and refrigerators.

There is an increased risk of electric shock if your body is

earthed or grounded.

c) Do not expose power tools to rain or wet conditions.

Water entering a power tool

will increase the risk of electric shock.

d) Do not abuse the cord. Never use the cord for carrying, pulling or unplugging

the power tool. Keep cord away from heat, oil, sharp edges or moving parts.

Damaged or entangled cords increase the risk of electric shock.

e) When operating a power tool outdoors, use an extension cord suitable for

outdoor use.

f) If operating a power tool in a damp location is unavoidable, use a residual

current device (RCD) protected supply.

Use of a cord suitable for outdoor use reduces the risk of electric shock.

Use of an RCD reduces the risk of electric

shock.

3) Personal safety
a) Stay alert, watch what you are doing and use common sense when operating a

power tool. Do not use a power tool while you are tired or under the influence of
drugs, alcohol or medication.

A moment of inattention while operating power tools

may result in serious personal injury.

b) Use personal protective equipment. Always wear eye protection.

Protective
equipment such as dust mask, non-skid safety shoes, hard hat, or hearing protec tion
used for appropriate conditions will reduce personal injuries.

c) Prevent unintentional starting. Ensure the switch is in the off-position before

connecting to power source and/or battery pack, picking up or carrying the

3

tool.

Carrying power tools with your finger on t he switch or energising power tools that

have the switch on invites accidents.

d) Remove any adjusting key or wrench before turning the power tool on. A

wrench or a key left attached to a rotating part of the power tool may result in
personal injury.

e) Do not overreach. Keep proper footing and balance at all times.

better control of the power tool in unexpected situations.

f) Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing

and gloves away from moving parts.

Loose clothes, jewelry or long hair can be

This enables

caught in moving parts.

g) If devices are provided for the connection of dust extraction and collection

facilities, ensure these are connected and properly used.

Use of dust collection

can reduce dust-related hazards.

4) Power tool use and care
a) Do not force the power tool. Use the correct power tool for your application.

correct power tool will do the job better and safer at the rate for which it was designed.

b) Do not use the power tool if the switch does not turn it on and off.

that cannot be controlled with the switch is dangerous and must be repaired.

c) Disconnect the plug from the power source and/or the battery pack from the

power tool before making any adjustments, changing accessories, or storing
power tools.

tool accidentally.

4

d) Store idle power tools out of the reach of children and do not allow persons

unfamiliar with the power tool or these instructions to operate the power tool.

Such preventive safety measures reduce the risk of star ting the power

Power tools are dangerous in the hands of untrained users.

e) Maintain power tools. Check for misalignment or binding of moving parts,

breakage of parts and any other condition that may affect the power tools
operation. If damaged, have the power tool repaired before use.

Many accidents

are caused by poorly maintained power tools.

f) Keep cutting tools sharp and clean.

Properly maintained cutting tools with shar p

cutting edges are less likely to bind and are easier to control.

g) Use the power tool, accessories and tool bits etc., in accordance with these

instructions and in the manner intended for the particular type of power tool,
taking into account the working conditions and the work to be performed.

Use of the power tool for operations different from those intended could result in a
hazardous situation.

5) Battery tool use and care
a) Recharge only with the charger specified by the manufacturer.

A charger that
is suitable for one type of batter y pack may create a risk of fire when used with another
battery pack.

b) Use power tools only with specifically designated battery packs.

Use of any

other battery packs may create a risk of injur y and fire.

c) When battery pack is not in use, keep it away from other metal objects, like

The

Any power tool

paper clips, coins, keys, nails, screws or other small metal objects, that can
make a connection from one terminal to another.

Shorting the batter y terminals

together may cause burns or a fire.

d) Under abusive conditions, liquid may be ejected from the battery; avoid

contact. If contact accidentally occurs, flush with water. If liquid contacts eyes,
additionally seek medical help.

or burns.

6) Service
a) Have your power tool serviced by a qualified repair person using only identical

replacement parts.

SAFETY INSTRUCTIONS FOR ALL OPERATIONS 
Safety warnings common for grinding, sanding, wire brushing, polishing, carving or
abrasive cutting-off operations:

a) This power tool is intended to function as a grinder, sander, wire brush,

polisher, carving or cut-off tool. Read all safety warnings, instructions,
illustrations and specifications provided with this power tool.

This will ensure that the safety of the power tool is maintained.

Liquid ejected from the batter y may cause irritation

Failure to follow all

instructions listed below may result in electric shock, fire and/or serious injury.

b) Do not use accessories which are not specifically designed and recommended

by the tool manufacturer.

Just because the accessory can be attached to your power

tool, it does not assure safe operation.

c) The rated speed of the accessories must be at least equal to the maximum

speed setting marked on the power tool.

Grinding accessories running faster than

their rated speed can break and fly apart.

d) The outside diameter and the thickness of your accessory must be within

the capacity rating of your power tool.

Incorrectly sized accessories cannot be

adequately controlled.

e) The arbour size of wheels, sanding drums or any other accessory must properly

fit the spindle or collet of the power tool.

Accessories that do not match the
mounting hardware of the power tool will run out of balance, vibrate excessively and
may cause loss of control.

f) Mandrel mounted wheels, sanding drums, cutters or other accessories must

be fully inserted into the collet or chuck.

If the mandrel is insufficiently held and/
or the overhang of the wheel is too long, the mounted wheel may become loose and be
ejected at high velocity.

g) Do not use a damaged accessory. Before each use inspect the accessory such

as abrasive wheels for chips and cracks, sanding drum for cracks, tear or
excess wear, wire brush for loose or cracked wires. If power tool or accessory
is dropped, inspect for damage or install an undamaged accessory. After
inspecting and installing an accessory, position yourself and bystanders away
from the plane of the rotating accessory and run the power tool at maximum
no-load speed for one minute.

Damaged accessories will normally break apart during

this test time.

5

h) Wear personal protective equipment. Depending on application, use face

shield, safety goggles or safety glasses. As appropriate, wear dust mask,
hearing protectors, gloves and workshop apron capable of stopping small
abrasive or workpiece fragments.

The eye protection must be capable of stopping
flying debris generated by various operations. The dust mask or respirator must be
capable of filtrating particles generated by your operation. Prolonged exposure to high
intensity noise may cause hearing loss.

i) Keep bystanders a safe distance away from work area. Anyone entering the

work area must wear personal protective equipment.

Fragments of workpiece
or of a broken accessory may fly away and cause injury beyond immediate area of
operation.

j) Hold power tool by insulated gripping surfaces only, when performing an

operation where the cutting accessory may contact hidden wiring.

accessory contacting a “live” wire may make exposed metal parts of the power tool
“live” and could give the operator an electric shock.

k) Always hold the tool firmly in your hand(s) during the start-up.

The reaction

torque of the motor, as it accelerates to full speed, can cause the tool to twist.

l) Use clamps to support workpiece whenever practical. Never hold a small

workpiece in one hand and the tool in the other hand while in use.

Clamping a
small workpiece allows you to use your hand(s) to control the tool. Round material such
as dowel rods, pipes or tubing have a tendency to roll while being cut, and may cause
the bit to bind or jump toward you.

m) Position the cord clear of the spinning accessory.

6

be cut or snagged and your hand or arm may be pulled into the spinning accessory.

n) Never lay the power tool down until the accessory has come to a complete stop.

If you lose control, the cord may

The spinning accessory may grab the surface and pull the power tool out of your control.

o) After changing the bits or making any adjustments, make sure the collet

nut, chuck or any other adjustment devices are securely tightened.

adjustment devices can unexpectedly shift, causing loss of control, loose rotating
components will be violently thrown.

p) Do not run the power tool while carrying it at your side.

Accidental contact with

the spinning accessory could snag your clothing, pulling the accessory into your body.

q) Regularly clean the power tool’s air vents.

The motor’s fan will draw the dust inside
the housing and excessive accumulation of powdered metal may cause electrical
hazards.

r) Do not operate the power tool near flammable materials.

Sparks could ignite

these materials.

s) Do not use accessories that require liquid coolants.

coolants may result in electrocution or shock.

Using water or other liquid

Cutting

Loose

FURTHER SAFETY INSTRUCTIONS FOR ALL OPERATIONS
Kickback and related warnings

Kickback is a sudden reaction to a pinched or snagged rotating wheel, sanding band, brush
or any other accessory. Pinching or snagging causes rapid stalling of the rotating accessory

which in turn causes the uncontrolled power tool to be forced in the direction opposite of the
accessory’s rotation.
For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the
wheel that is entering into the pinch point can dig into the surface of the material causing the
wheel to climb out or kick out. The wheel may either jump toward or away from the operator,
depending on direction of the wheel’s movement at the point of pinching. Abrasive wheels
may also break under these conditions.
Kickback is the result of power tool misuse and/or incorrect operating procedures or
conditions and can be avoided by taking proper precautions as given below.

a) Maintain a firm grip on the power tool and position your body and arm to allow

you to resist kickback forces.

The operator can control kickback forces, if proper

precautions are taken.

b) Use special care when working corners, sharp edges etc. Avoid bouncing and

snagging the accessory.

Corners, sharp edges or bouncing have a tendency to snag

the rotating accessory and cause loss of control or kickback.

c) Do not attach a toothed saw blade.

Such blades create frequent kickback and loss of

control.

d) Always feed the bit into the material in the same direction as the cutting

edge is exiting from the material (which is the same direction as the chips are
thrown).

Feeding the tool in the wrong direction causes the cutting edge of the bit to

climb out of the work and pull the tool in the direction of this feed.

e) When using rotary files, cut-off wheels, high-speed cutters or tungsten carbide

cutters, always have the work securely clamped.

These wheels will grab if they
become slightly canted in the groove, and can kickback. When a cut-off wheel grabs,
the wheel itself usually breaks. When a rotary file, high-speed cutter or tungsten carbide
cutter grabs, it may jump from the groove and you could lose control of the tool .

SAFETY WARNINGS SPECIFIC FOR GRINDING AND ABRASIVE CUTTINGOFF OPERATIONS
a) Use only wheel types that are recommended for your power tool and only for

recommended applications. For example: do not grind with the side of a cut-off
wheel.

Abrasive cut-off wheels are intended for peripheral grinding, side forces applied

to these wheels may cause them to shatter.

b) For threaded abrasive cones and plugs use only undamaged wheel mandrels

with an unrelieved shoulder flange that are of correct size and length.

Proper

mandrels will reduce the possibility of breakage.

c) Do not “jam” a cut-off wheel or apply excessive pressure. Do not attempt to

make an excessive depth of cut.

Overstressing the wheel increases the loading
and susceptibility to twisting or snagging of the wheel in the cut and the possibility of
kickback or wheel breakage.

d) Do not position your hand in line with and behind the rotating wheel.

When the
wheel, at the point of operation, is moving away from your hand, the possible kickback
may propel the spinning wheel and the power tool directly at you.

e) When wheel is pinched, snagged or when interrupting a cut for any reason,

switch off the power tool and hold the power tool motionless until the wheel

7

comes to a complete stop. Never attempt to remove the cut-off wheel from the
cut while the wheel is in motion otherwise kickback may occur.

Investigate and

take corrective action to eliminate the cause of wheel pinching or snagging.

f) Do not restart the cutting operation in the workpiece. Let the wheel reach full

speed and carefully re-enter the cut.

The wheel may bind, walk up or kickback if the

power tool is restarted in the workpiece.

g) Support panels or any oversized workpiece to minimize the risk of wheel

pinching and kickback.

Large workpieces tend to sag under their own weight.
Supports must be placed under the workpiece near the line of cut and near the edge of
the workpiece on both sides of the wheel.

h) Use extra caution when making a “pocket cut” into existing walls or other blind

areas.

The protruding wheel may cut gas or water pipes, electrical wiring or objects that

can cause kickback.

SAFETY WARNINGS SPECIFIC FOR WIRE BRUSHING OPERATIONS
a) Be aware that wire bristles are thrown by the brush even during ordinary

operation. Do not overstress the wires by applying excessive load to the brush.

The wire bristles can easily penetrate light clothing and/or skin.

b) Allow brushes to run at operating speed for at least one minute before using

them. During this time no one is to stand in front or in line with the brush.

bristles or wires will be discharged during the run-in time.

8

c) Direct the discharge of the spinning wire brush away from you.

Small particles
and tiny wire fragments may be discharged at high velocity during the use of these
brushes and may become imbedded in your skin.

SAFETY WARNINGS FOR BATTERY PACK
a) Do not dismantle, open or shred cells or battery pack.

b) Do not short-circuit a battery pack. Do not store battery packs

haphazardly in a box or drawer where they may short-circuit each other
or be short-circuited by conductive materials. When battery pack is not

in use, keep it away from other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals toget her may cause burns or
a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct

sunlight.

d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into

contact with the skin or eyes. If contact has been made, wash the
affected area with copious amounts of water and seek medical advice.

f) Seek medical advice immediately if a cell or battery pack has been

swallowed.

Loose

g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become

dirty.

i) Battery pack needs to be charged before use. Always refer to this

instruction and use the correct charging procedure.

j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge

and discharge the battery pack several times to obtain maximum
performance.

l) Recharge only with the charger specified by Worx. Do not use

any charger other than that specifically provided for use with the
equipment.

m) Do not use any battery pack which is not designed for use with the

equipment.

n) Keep battery pack out of the reach of children.
o) Retain the original product literature for future reference.
p) Remove the battery from the equipment when not in use.
q) Dispose of properly.
r) Do not mix cells of different manufacture, capacity, size or type within a

device.

s) Do not remove battery pack from its original packaging until required for

use.

t) Observe the plus (+) and minus (–) marks on the battery and ensure

correct use.

SYMBOLS

To reduce the risk of injury, user must read instruction manual

Warning

Wear eye protection

9

Wear ear protection

Wear dust mask

Wear protective gloves

10

Do not burn

Batteries may enter water cycle if disposed improperly, which can be
hazardous for ecosystem. Do not dispose of waste batteries as unsorted
municipal waste.

Li-Ion battery. This product has been marked with a symbol relating
to ‘separate collection’ for all battery packs and battery pack. It will

Li-I on

then be recycled or dismantled in order to reduce the impact on the
environment. Battery packs can be hazardous for the environment and
for human health since they contain hazardous substances.

Waste electrical products must not be disposed of with household
waste. Please recycle where facilities exist. Check with your local
authorities or retailer for recycling advice

1

32 4

11

5

COMPONENT LISTS

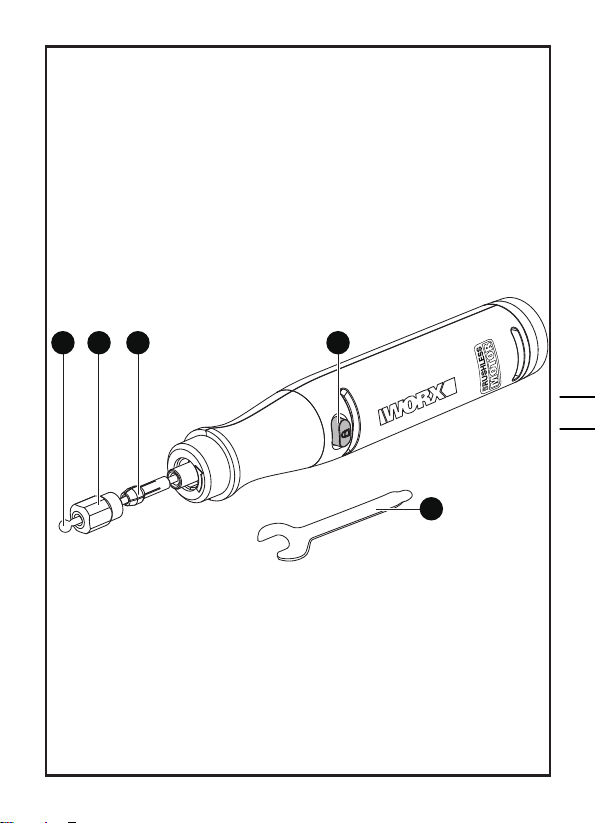

1. CARVING BIT

2. CHUCK

3. COLLET

4. SPINDLE LOCK BUTTON

5. SPANNER

Not all the accessories illustrated or described are included in standard
delivery.

TECHNICAL DATA
Type Designation WX739 WX739.X (739-designation of machinery,

representative of rotary tool)

WX739 WX739.X*
Voltage
Motor type Brushless
Collet size 3.2 mm
Rated capacity 38 mm

12

Spindle thread M7
Rated speed 5000-35000 rpm
Machine weight (bare tool) 145 g

20 V Max

**

* X=1-99, A-Z, M1-M9 there are only used for different customers, there are no safe
relevant changes between these models.

** Voltage measured without workload. Initial battery voltage reaches maximum of
20 volts. Nominal voltage is 18 volts.

NOISE INFORMATION

A weighted sound pressure LpA: 70.3 dB(A)
A weighted sound power LwA: 81.3 dB(A)
KpA&K

wA

Wear ear protection.

3 dB(A)

VIBRATION INFORMATION

Vibration total values (triax vector sum) deter mined according to EN 60745:

Vibration emission value ah =2.162 m/s

2

Uncertainty K = 1.5 m/s²

The declared vibration total value may be used for comparing one tool with another, and
may also be used in a preliminary assessment of exposure.

WARNING: The vibration emission value during actual use of the power tool can

differ from the declared value depending on the ways in which the tool is used
dependant on the following examples and other variations on how the tool is used:
How the tool is used and the materials being cut or drilled.
The tool being in good condition and well maintained
The use the correct accessory for t he tool and ensuring it is sharp and in good condition.
The tightness of the grip on the handles and if any anti vibration accessories are used.
And the tool is being used as intended by its design and these instructions.

This tool may cause hand-arm vibration syndrome if its use is not adequately
managed.

WARNING! To be accurate, an estimation of exposure level in the actual

conditions of use should also take account of all parts of the operating cycle such
as the times when the tool is switched off and when it is running idle but not actually
doing the job. This may significantly reduce the exposure level over the total work ing
period.
Helping to minimise your vibration exposure risk.
ALWAYS use sharp chisels, drills and blades
Maintain this tool in accordance with these instructions and keep well lubr icated (where
appropriate)
If the tool is to be used regularly then invest in anti vibration accessories.
Plan your work schedule to spread any high vibration tool use across a number of days.

Category Model Capacity

WA7160

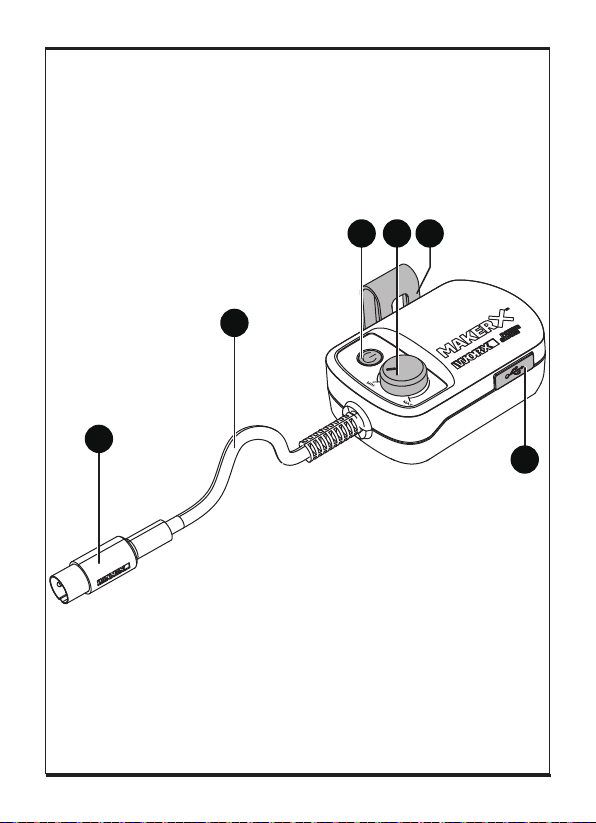

20V Hub/HubX

WA7161

Input: 20 V 10 A Max.

Output: 20 V 10 A Max.

Input: 20 V 10 A Max.

Output: 20 V 10 A Max.

Or Output: 5 V 2 A (USB port)

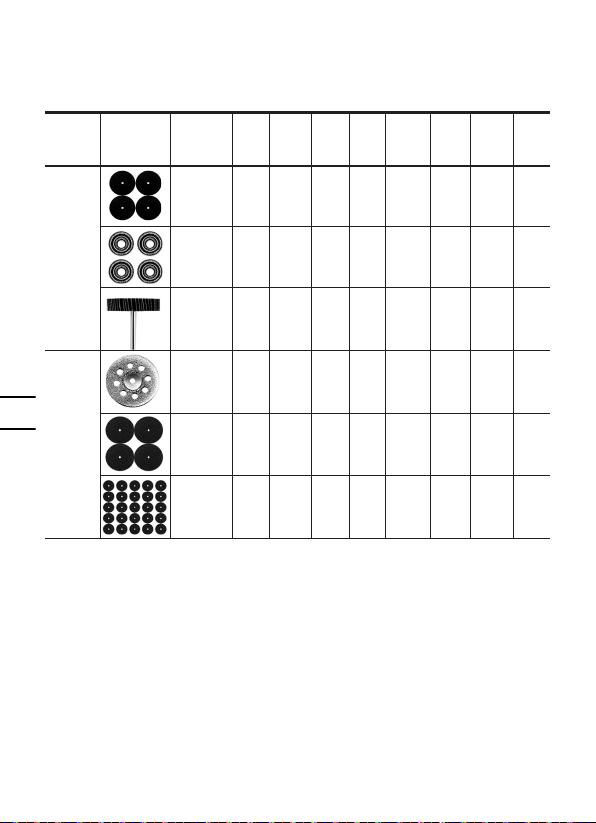

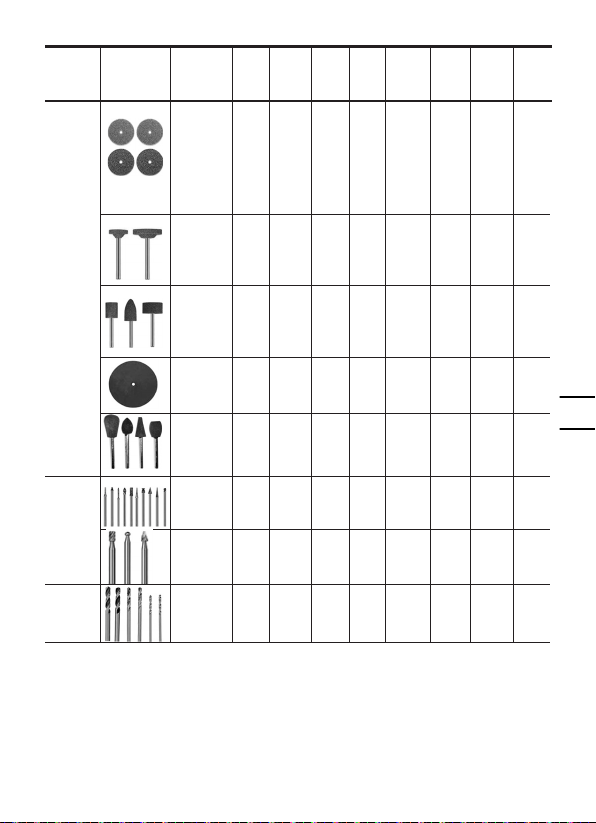

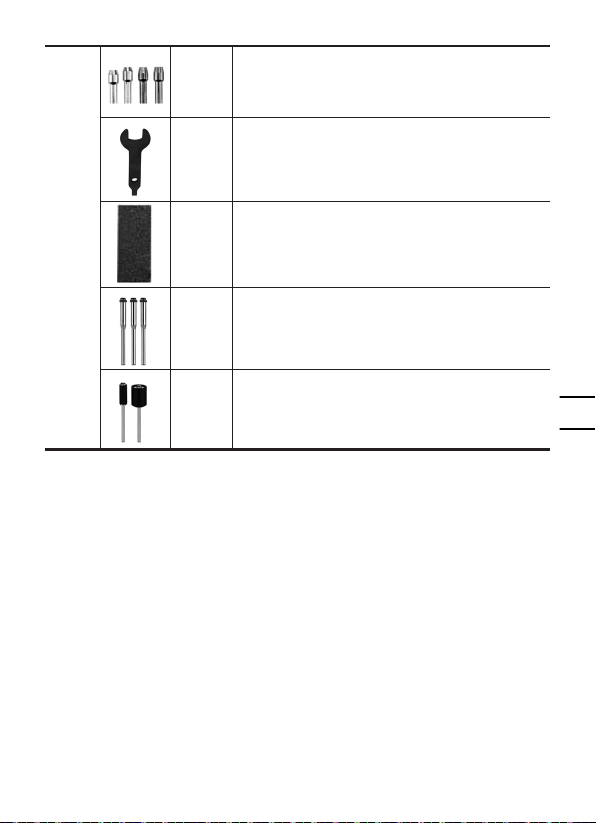

We recommend that you purchase your accessories from the same store that sold you
the tool. Refer to the accessory packaging for furt her details. Store personnel can assist
you and offer advice.
MakerX series tools and 20V Hub/HubX are specially designed to work together, so do
not attempt to use any other devices.

13

A1 A2

Tighten

Loosen

A3 A4

14

A5 B

h h

h

=45mm

max

MAX
1/2h

MAX

A5 B

C D

E F

L

15

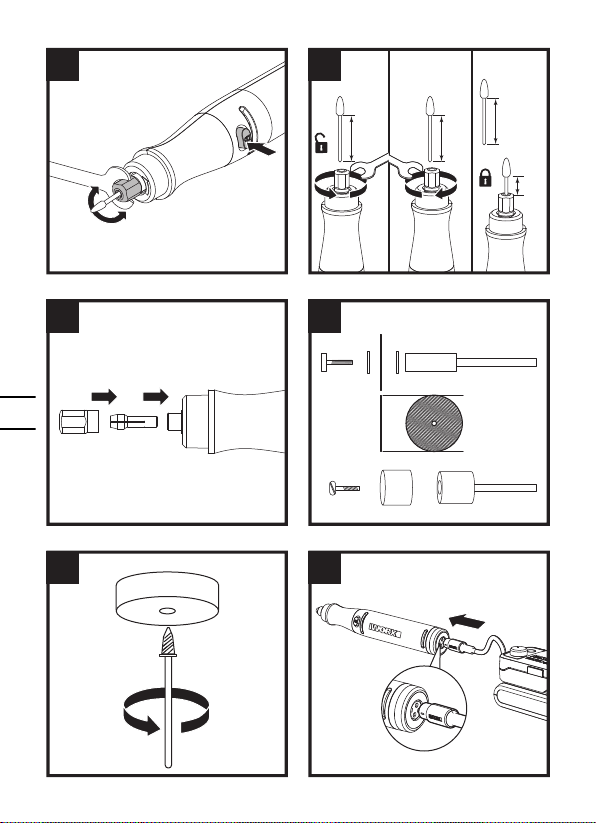

OPERATING INSTRUCTIONS

NOTE Before using the tool, read the instruction book carefully.

Intended use

This tool is intended for drilling, cutting, sanding, carving, polishing and gr inding.

ASSEMBLY

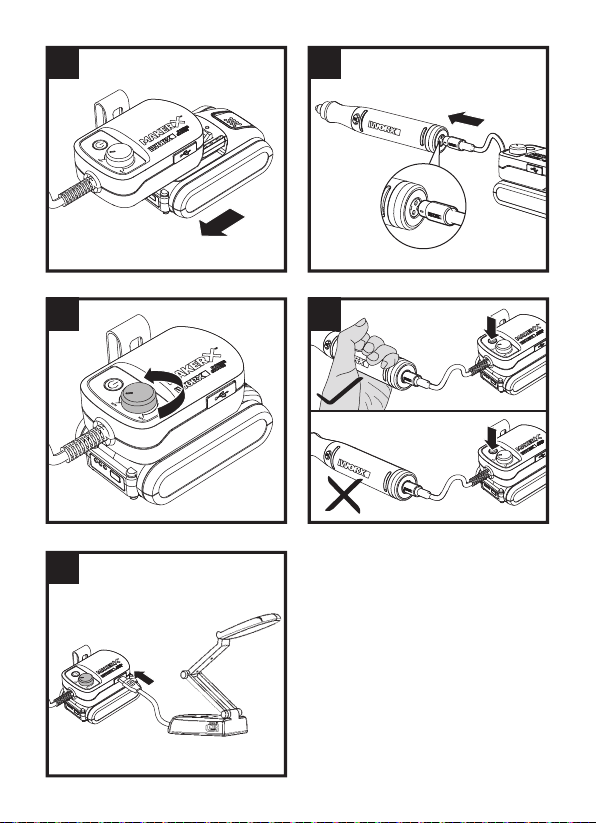

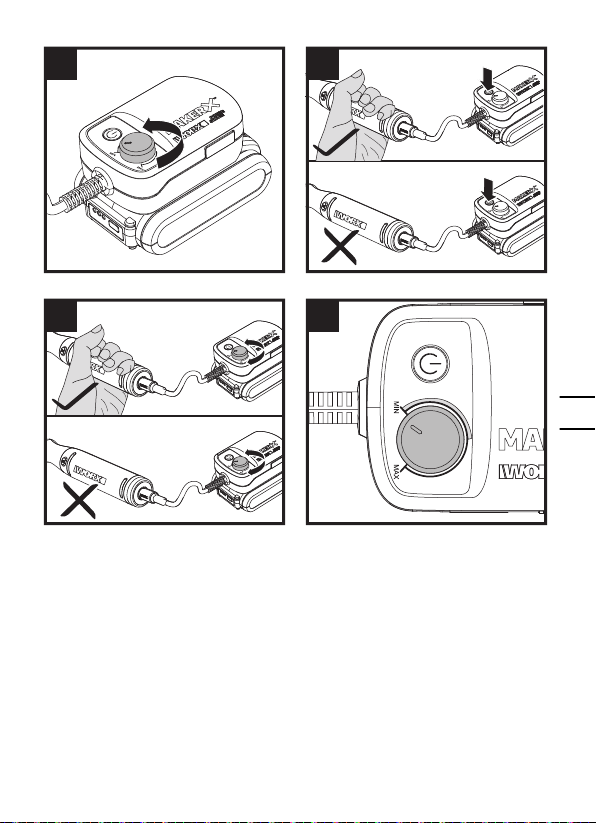

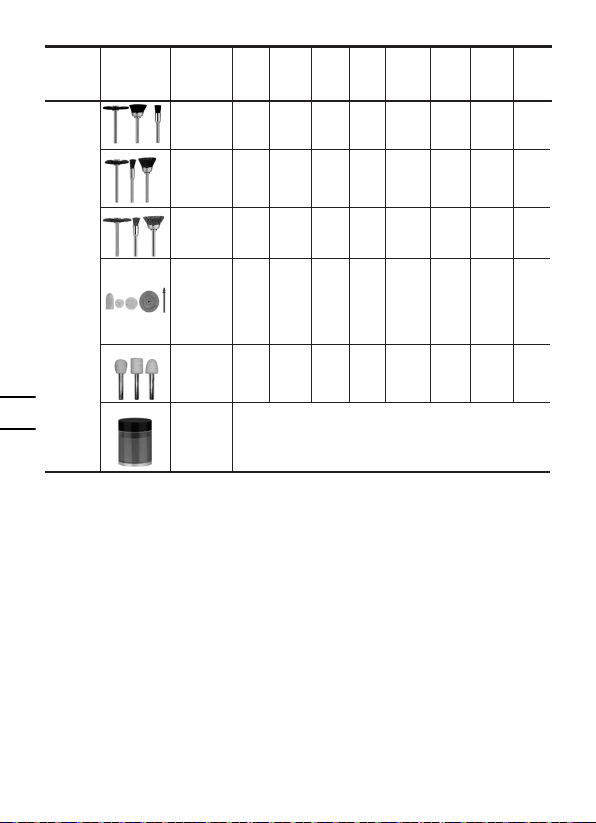

1. Press and hold the spindle lock button. Loosen the chuck first to insert the
accessory into the collet. Then use the spanner to tighten. (See Fig. A1, A2, A3, A4, A5)

More information about accessories, please check the table below.
NOTE Before changing the accessories, make sure your machine is turned off and

disconnected from the hub.

WARNING: To reduce the risk of injury, use only accessories rated for the

operating speed setting of the tool.

2. Connect the rotary tool to the hub . (See Fig. B)

WARN ING: Before operation, make sure the speed control button on the hub
is at the“Min“ position. (See Fig. C)

OPERATION

1. Confirm the speed control button is set to “Min”. Grasp the tool by the grip. Press
the on/off switch on the hub to start the machine. (See Fig. D)
NOTE Always start at no load to achieve maximum speed then start work ing. Do
not use excessive contact pressure! A correct and uniform speed enables better

16

performance.

2. Adjust speed as needed. (See Fig. E)

3. Press the on/off switch on the hub to turn off after use.
NOTE For sake of safety, disconnect from the hub and adjust the speed control

button to “Min” position once completing the operation.

MAINTENANCE
Remove the battery pack from the machine before carrying out any
adjustment, servicing or maintenance.
Please do not disassemble the machine by yourself, contact service agent for
maintenance.

Your power tool requires no additional lubrication or maintenance.
There are no user serviceable parts in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your
power tool in a dry place. Keep the motor ventilation slots clean. Keep all working
controls free of dust. Occasionally you may see sparks through the vent ilation slots.

This is normal and will not damage your power tool.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste.

Please recycle where facilities exist. Check with your local authorities or

retailer for recycling advice.

TROUBLE SHOOTING

Rotation seems to stop or slow for no reason:

1. Do not subject the tool or accessory to heavy load. Use light, constant pressure.

2. Allow the tool to reach target speed before engaging the workpiece. Use the
fastest rotation possible while still achieving desired results. Typically, tougher
materials require faster rotation speeds.

3. Clamp the workpiece whenever possible.

4. When using a cutting wheel, keep the wheel straight in the cut. Keep your forearm
and hand lining up with the blade and tool when you hold the tool.

5. If the tool does stop suddenly, press the power button to turn it off and remove the
accessory from the work piece. Turn the tool back on and allow the rotation to build
to target speed which may take 1.5 to 3s. Then, resume the work gradually. If cutting,
take care to follow the cut path already established. Do not twist or bind the blade.

17

DECLARATION OF CONFORMITY

We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product
Description Battery operated die grinder
Type WX739 WX739.X (739-designation of machinery, representative of

grinder, polisher and sander)

Function Grinding, drilling, sanding, polishing, cutting

Complies with the following Directives:

2006/42/EC
2011/65/EU&(EU)2015/863
2014/30/EU

Standards conform to

EN 55014-1
EN 55014-2
EN 60745-1
EN 60745-2-3

18

The person authorized to compile the technical file,

Name Marcel Filz
Address Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany

2021/12/31
Allen Ding
Deputy Chief Engineer,Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,
Positec (UK & Ireland) Ltd.
PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product
Description Battery operated die grinder
Type WX739 WX739.X (739-designation of machinery, representative of

grinder, polisher and sander)

Function Grinding, drilling, sanding, polishing, cutting

Complies with the following Directives:

Supply of Machinery (Safety) Regulations 2008
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations

Standards conform to

BS EN 55014-1
BS EN 55014-2
BS EN 60745-1
BS EN 60745-2-23

The person authorized to compile the technical file,

Name Jim Kirkwood
Address Positec (UK & Ireland) Ltd.
PO Box 6242, Newbury, RG14 9LT, UK

19

2021/12/31
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

ACCESORIES

“L” represents low speed, and is recommended to maximize accessory performance
and life. (See Fig. F)

Aluminum

,

Pic

Description

Cork Wood

Plastic

Steel

brass, etc.

Shell,
stone

Ceramic

Glass

20

Sanding

Cutting

Sanding

paper

Sanding

bands

Flap wheel

Diamond

wheel

Cut off
wheels

fiberglass

Cut off
wheels

✓ ✓ ✓ ✗ ✓ ✗ ✗ ✗

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✗

✓

(L)✓(L)

✗ ✗ ✗ ✗ ✗ ✓ ✓ ✓

✗ ✗ ✗ ✓ ✓ ✗ ✗ ✗

✗ ✗ ✗ ✓ ✓ ✗ ✗ ✗

✗ ✗ ✗ ✗ ✗ ✗

Aluminum

,

Pic

Description

Aluminum

Grinding/

Sharpening

Carving/

Engraving

Drilling HSS drill ✓ ✓ ✓ ✗ ✗ ✗ ✗ ✗

wheels with

Aluminum

with shank

with shank

HSS cutter ✓ ✓ ✓ ✗ ✗ ✗ ✗ ✗

oxide

Grinding

wheels/

silicon

carbide

Grinding

wheels

Silicon

carbide

Grinding

shank

oxide

Grinding

wheels

Rubber

emery

wheel

Rubber
grinder

Diamond

grinding

needle

Cork Wood

✗ ✗ ✓ ✓ ✓ ✓ ✓ ✗

✗ ✗ ✓ ✓ ✓ ✓ ✓ ✗

✗ ✗ ✓ ✓ ✓ ✓ ✓ ✗

✗ ✗ ✗ ✓ ✓ ✗ ✗ ✓

✗ ✗ ✗ ✓ ✓ ✗ ✗ ✓

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

Plastic

Steel

brass, etc.

Shell,
stone

Ceramic

Glass

21

22

Cleaning/
Polishing

Pic

Description

Felt wheel

with shank

compound

Cork Wood

Bristle

brushes✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)

Stainless

brushes

brushes✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)

pointed/

wheels/

polishing

Polishing

✓

steel

(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)

Brass

Felt

✓

(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)✓(L)
Cloth
wheel

Wool

✓ ✓ ✓ ✓ ✓ ✓ ✓ ✓

Plastic

Use with Felt wheel pointed/Felt wheels/Cloth wheel

Steel

Aluminum
brass, etc.

,

Shell,
stone

Ceramic

Glass

Collets Suitable for size 1/8, 3/32, 1/16 accessories

Wrench Fixing the attachments

Accessories

Whetstone

Mandrel
for cut off
wheel

Sanding
Drum

Adjust the concentricity of Grinding Wheels to keep them in
good condition

To link Rubber emery wheel/Sanding paper/Diamond wheel/
Cut off wheels/Grinding wheels

Use to mount sanding sleeves

23

After-sales Service and Application

At www.worx.com you can order spare parts or arrange
the collection of a product in need of servicing or repair.
Tel. Service: 0345 202 9679
E-Mail: [e-mail]

www.worx.com

Copyright © 2021, Positec. All Rights Reserved.
AR01537903

SAFETY AND OPERATING MANUAL

ORIGINAL INSTRUCTIONS

WX744 WX744.X

PRODUCT SAFETY
GENERAL SAFETY WARNINGS

WARNING: Read all safety warnings and
instructions.

Failure to follow all instructions
listed below may result in electric shock, fire and/
or serious injury.

Save all warnings and instructions for future
reference.

This appliance can be used by children aged from
8 years and above and persons with reduced
physical, sensory or mental capabilities or lack
of experience and knowledge if they have been

2

given supervision or instruction concerning use
of the appliance in a safe way and understand the
hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall
not be made by children without supervision.
WARNING: For the purposes of recharging the
battery, only use the detachable supply unit
provided with this appliance.

ADDITIONAL SAFETY RULES FOR CRAFTER

WARNING: This tool must be placed on its stand
when not in use.
A fire may result if the appliance is not used with

care, therefore
– be careful when using the appliance in places
where there are combustible materials;
– do not apply to the same place for a long time;
– do not use in presence of an explosive
atmosphere;
– be aware that heat may be conducted to
combustible materials that are out of sight;
– place the appliance on its stand after use and
allow it to cool down before storage;
– do not leave the appliance unattended when it is
switched on.

SAFETY WARNINGS FOR BATTERY PACK
a)Do not dismantle, open or shred cells or

battery pack.

b)Do not short-circuit a battery pack. Do

not store battery packs haphazardly in
a box or drawer where they may short­circuit each other or be short-circuited
by conductive materials.

When battery

pack is not in use, keep it away from other
metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may

3

cause burns or a fire.

c)Do not expose battery pack to heat or

fire. Avoid storage in direct sunlight.

d)Do not subject battery pack to

mechanical shock.

e)In the event of battery leaking, do not

allow the liquid to come into contact
with the skin or eyes. If contact has
been made, wash the affected area
with copious amounts of water and
seek medical advice.

f) Seek medical advice immediately

if a cell or battery pack has been

4

swallowed.
g)Keep battery pack clean and dry.
h)Wipe the battery pack terminals with a

clean dry cloth if they become dirty.
i) Battery pack needs to be charged

before use. Always refer to this

instruction and use the correct

charging procedure.
j) Do not maintain battery pack on charge

when not in use.
k)After extended periods of storage,

it may be necessary to charge and

discharge the battery pack several

times to obtain maximum performance.

l) Battery pack gives its best

performance when it is operated at

normal room temperature (20°C ± 5°C).
m)When disposing of battery packs,

keep battery packs of different

electrochemical systems separate

from each other.
n)Recharge only with the charger

specified by Worx. Do not use any

charger other than that specifically

provided for use with the equipment.

A charger that is suitable for one type of battery

pack may create a risk of fire when used with

another battery pack.

o)Do not use any battery pack which

is not designed for use with the

equipment.
p)Keep battery pack out of the reach of

children.
q)Retain the original product literature

for future reference.
r) Remove the battery from the

equipment when not in use.
s)Dispose of properly.
t) Do not mix cells of different

manufacture, capacity, size or type

within a device.

5

u)Do not remove battery pack from its

original packaging until required for

use.
v)Observe the plus (+) and minus (–)

marks on the battery and ensure

correct use.

SYMBOLS

Read operator’s manual

Warning

Wear eye protection

6

Wear protective gloves

Do not burn

Batteries may enter water cycle if disposed improperly, which can be
hazardous for ecosystem. Do not dispose of waste batteries as unsorted
municipal waste.

Li-Ion battery. This product has been marked with a symbol relating
to ‘separate collection’ for all battery packs and battery pack. It will

Li-I on

then be recycled or dismantled in order to reduce the impact on the
environment. Battery packs can be hazardous for the environment and
for human health since they contain hazardous substances.

Waste electrical products must not be disposed of with household
waste. Please recycle where facilities exist. Check with your local
authorities or retailer for recycling advice.

5

1234

6

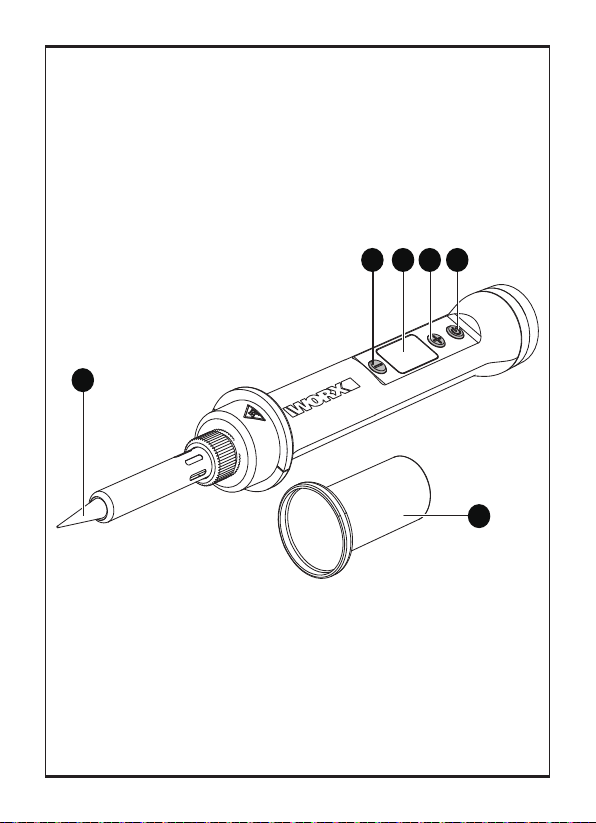

COMPONENT LIST

1. POWER BUTTON

2. “” BUTTON

3. LCD DISPLAY

4. “” BUTTON

5. CRAFTER TIP

6. COMFORT SLEEVE OPTIONAL

Not all the accessories illustrated or described are included in standard
delivery.

TECHNICAL DATA
Type WX744 WX744.X (744 - designation of machinery, representative of

crafter)

WX744 WX744.X *

Rated voltage
Power input 45 W

8

Max temperature 200 °C-480 °C

20 V Max. **

Battery ty pe Lithium battery
Machine weight (bare tool)

54 g

* X=1-999, A-Z, M1-M9 there are only used for different customers, there are no safe
relevant changes between these models.
** Voltage measured without workload. Initial battery voltage reaches maximum of 20
volts. Nominal voltage is 18 volts.

Category Model Capacity

WA7160

20V Hub/HubX

WA7161

Input: 20 V 10 A Max.

Output: 20 V 10 A Max.

Input: 20 V 10 A Max.

Output 1: 20 V 10 A Max.

Output 2: 5 V 2 A (USB port)

We recommend that you purchase your accessories from the same store that sold you
the tool. Refer to the accessory packaging for furt her details. Store personnel can assist
you and offer advice.
MakerX series tools and 20V Hub/HubX are specially designed to work together, so do
not attempt to use any other devices.

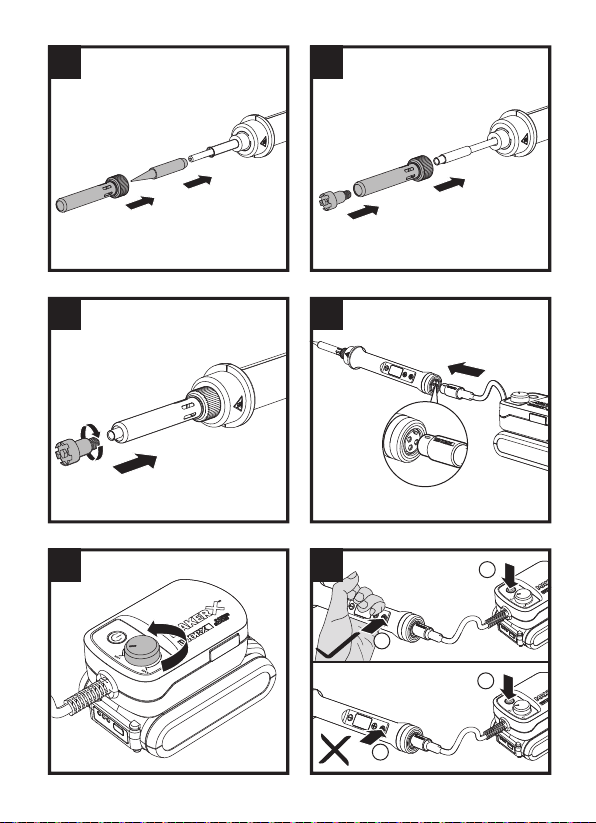

A1 A2

A3 B

C D

1

2

1

2

1

2

1

2

A3 B

C D

E1 E2

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ASSEMBLY

1. Ass emble the cr after tips a s shown in Fig . A1-A3.

2. Conn ect the cra fter and the h ub. (See Fig. B)

WARN ING: Before operation, make sure the speed control button on the
hub is at the“Min“ position. (See Fig. C)

OPERATION

1. Confirm the speed control button is set to “Min”. Grasp the tool by the gr ip.Press
on/of f switch on the h ub. Then pr ess and hol d the power bu tton on the cr after to sta rt
work ing. (See Fi g. D)
NOTE: The speed is fixed, and can not be adjusted by the speed control but ton on the
hub.
Duri ng operati on, the craf ter will ent er into auto sle ep with no mo vement for
appro ximately 5 m inutes or mor e. The tempe rature wi ll drop to 200 ° C and the cra fter
autom atically t urns off 10 mi nutes later. It w ill displa y “OFF”.

WARNING : During initi al use, the craf ter may genera te a light smoke

due to elements heating, which is normal.
While t he crafter is he ating, DO NOT to uch the metal lic parts nea r the tip
and DO NO T remove or repl ace the tip.
Never operate the crafter while people, especially young children are nearby.
Be careful. The crafter remains hot after the work is concluded.

2. Pres s the on/off s witch on the h ub to turn off a fter use.
NOTE: Us e the trestl e to place the c rafter wh en not in use.

3. Adjust temperature as needed.
Pres s on/off swi tch on the hub. U se “+” or”-” butto n to adjust tem peratur e (the
tempe rature wil l increase / d ecrease b y 10 °C ea ch time the “+” or “-” b utton is
pressed).
NOTE: Th e temperat ure cannot b e adjusted d uring the he ating or coo ling proc ess.

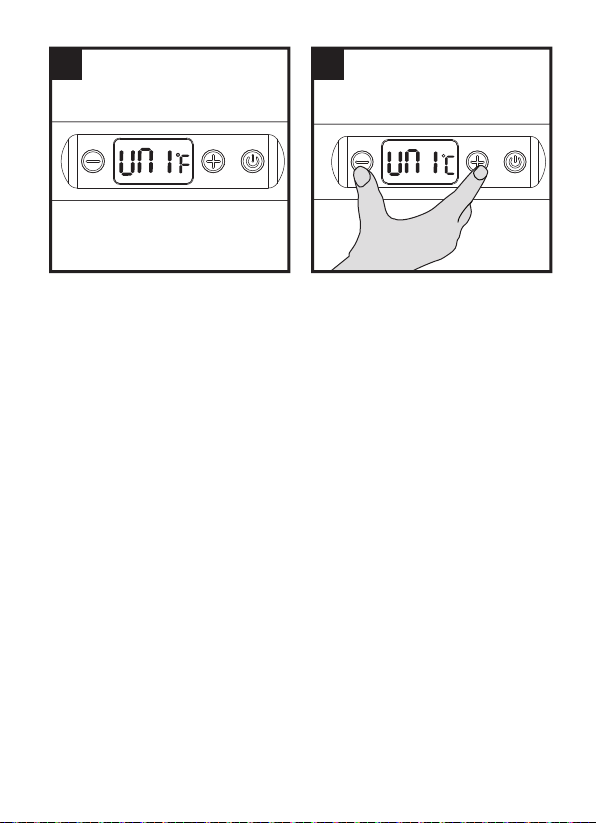

4. Swi tch °F and °C as n eeded. (Se e Fig. E1, E2)
Pres s on/off swi tch on the hub. W ith the craf ter turne d off, press b oth “+” and ”-”
butto n and “UNI” wi ll be shown o n the LCD displ ay. Then pre ss both “+” and ”-” but ton
to switc h the temper ature mode . After sele ction, wa it for 3 secon ds and then it w ill
display “OFF”.

5. Your Wood & Me tal Craft er comes wit h an optiona l silicon Com fort Slee ve. To

11

enhan ce the grip, s imply sli de the sleev e over the nos e of the tool.

MAINTENANCE
Remove the battery before carrying out any adjustment, servicing or mainte-

nance.

There are no user serviceable parts in your power tool. Never use water or chemical
cleaners to clean your power tool. Wipe clean with a dry cloth. Always store your power
tool in a dry place. Keep the motor ventilation slots clean. Keep all working controls free
of dust. Occasionally you may see sparks through the ventilation slots. This is nor mal
and will not damage your power tool. Store the accessories in a dry place.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authorities or



retailer for recycling advice.

12

DECLARATION OF CONFORMITY

We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product
Description
Type
Function

Wood & Metal Crafter

WX744 WX744.X (744 - designation of machinery, representative of crafter)

Wire joining, wood burning

Complies with the following Directives:

2014/30/EU,
2011/65/EU & (EU)2015/863

Standards conform to

EN 60335-1,
EN 60335-2-45,
EN 62233,
EN 55014-1,
EN 55014-2

2020/11/24
Allen Ding
Deputy Chief Engineer,Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

13

DECLARATION OF CONFORMITY

We,
Positec (UK & Ireland) Ltd.
PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product
Description
Type
Function

Wood & Metal Crafter

WX744 WX744.X (744 - designation of machinery, representative of crafter)

Wire joining, wood burning

Complies with the following Directives:

Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations

Standards conform to

BS EN 60335-1,
BS EN 60335-2-45,
BS EN 62233,
BS EN 55014-1,
BS EN 55014-2

14

2020/11/24
Allen Ding
Deputy Chief Engineer,Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

After-sales Service and Application

At www.worx.com you can order spare parts or arrange the
collection of a product in need of servicing or repair.
Tel. Service: 0345 202 9679
E-Mail: [e-mail]

www.worx.com

Copyright © 2021, Positec. All Rights Reserved.
AR01539502

SAFETY AND OPERATING MANUAL

ORIGINAL INSTRUCTIONS

20V Hub/HubX

WA7160 WA7161

PRODUCT SAFETY
GENERAL POWER TOOL SAFETY WARNINGS

WARNING Read all safety warnings and instructions.

Failure to follow the

warnings and instructions may result in electr ic shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

This appliance can be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and k nowledge
if they have been given supervision or instruc tion concerning use of the appliance
in a safe way and understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by children without
supervision.

ADDITIONAL SAFETY INSTRUCTIONS FOR YOUR CHARGER

1. Before charging, read the inst ructions.

2. Do not use chargers for works other than t hose for which they are designed.

3. The charging device must be protected from moisture.

4. Do not use the charging device outdoors.

5. Do not open the unit and keep it out of the reach of children.

6. Ensure that the connection bet ween the charger and your equipment is correctly

positioned.

7. Keep charger’s slots free of foreign objects and protect against dirt and humidit y. Store

in a dry and frost-free place.

8. When charging your equipment, ensure that the charger is in a well-ventilated area and

away from inflammable materials. Ensure that your equipment and charger are not left
unsupervised during charging.

9. Longer life and better perfor mance can be obtained if your equipment is charged when

the air temperature is between 15°C and 25°C. Do not charge your equipment in air
temperatures below 0°C, or above 45°C.

10. Disconnect from your equipment when not charging or the charging is over.

20V Hub/HubX is specially designed to work with 20V MakerX series tools
BELOW, so do not attempt to use any other devices.

3

Category Model

20V Cordless Rotary Tool WX739 WX739.X
20V Cordless Angle Grinder WX741 WX741.X
20V Cordless Air Brush WX742 WX742. X
20V Cordless Mini Heat Gun WX743 WX743.X
20V Cordless Wood & Metal Crafter WX744 WX744. X

20V Cordless Rotary Cutter WX745 WX745.X
20V Cordless Glue Gun WX746 WX746.X
20V Cordless Mini Blower WX747 WX747.X

SAFETY WARNINGS FOR BATTERY PACK
a) Do not dismantle, open or shred cells or battery pack.

b) Do not short-circuit a battery pack. Do not store battery packs

haphazardly in a box or drawer where they may short-circuit each other
or be short-circuited by conductive materials. When battery pack is not

in use, keep it away from other metal objects, like paper clips, coins, keys, nails,
screws or other small metal objects, that can make a connection from one
terminal to another. Shorting the battery terminals toget her may cause burns or
a fire.

c) Do not expose battery pack to heat or fire. Avoid storage in direct

sunlight.
d) Do not subject battery pack to mechanical shock.
e) In the event of battery leaking, do not allow the liquid to come into

contact with the skin or eyes. If contact has been made, wash the

affected area with copious amounts of water and seek medical advice.
f) Seek medical advice immediately if a cell or battery pack has been

swallowed.

4

g) Keep battery pack clean and dry.
h) Wipe the battery pack terminals with a clean dry cloth if they become

dirty.
i) Battery pack needs to be charged before use. Always refer to this

instruction and use the correct charging procedure.
j) Do not maintain battery pack on charge when not in use.
k) After extended periods of storage, it may be necessary to charge

and discharge the battery pack several times to obtain maximum

performance.
l) Recharge only with the charger specified by Worx. Do not use

any charger other than that specifically provided for use with the

equipment.
m) Do not use any battery pack which is not designed for use with the

equipment.
n) Keep battery pack out of the reach of children.
o) Retain the original product literature for future reference.
p) Remove the battery from the equipment when not in use.
q) Dispose of properly.
r) Do not mix cells of different manufacture, capacity, size or type within a

device.
s) Do not remove battery pack from its original packaging until required for

use.

t) Observe the plus (+) and minus (–) marks on the battery and ensure

correct use.

SYMBOLS

Read the operator’s manual.

Caution

For indoor use only

Do not burn

Batteries may enter water cycle if disposed improperly, which can
be hazardous for ecosystem. Do not dispose of waste batteries as
unsorted municipal waste.

Li-I on

Li-Ion battery. This product has been marked with a symbol relating
to ‘separate collection’ for all battery packs and battery pack. It will
then be recycled or dismantled in order to reduce the impact on the
environment. Battery packs can be hazardous for the environment
and for human health since they contain hazardous substances.

Waste electrical products must not be disposed of with household
waste. Please recycle where facilities exist. Check with your local
authorities or retailer for recycling advice

5

31

4

5

6

2

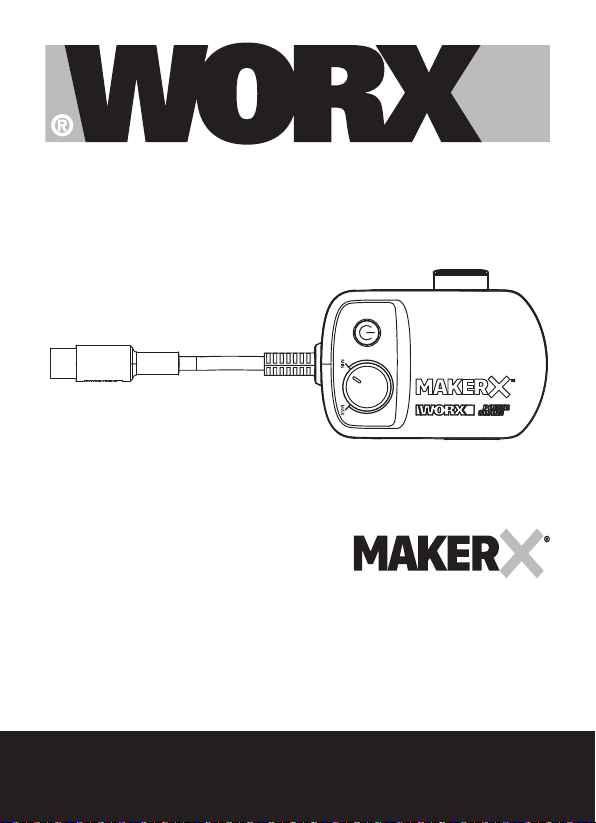

COMPONENT LIST

1. ONOFF SWITCH

2. USB PORT 

3. SPEED CONTROL BUTTON

4. BELT CLIP 

5. FLEXIBLE POWER CORD

6. POWER CONNECTOR

* Not all the accessories illustrated or described are included in standard
delivery.

TECHNICAL DATA

WA7160 WA7161

Output 20 V 10 A , Max.

Output: 20 V 10 A, Max.

Or Output: 5 V 2 A (USB port )
Input 20 V 10 A, Max.
Battery ty pe Lithium battery

Battery pack voltage 20 V
Weight 80 g

Category Model Capacity

WA3551 2.0Ah

20V Battery

WA3551.1 2.0Ah

WA3014 4.0Ah
WA3556 5.0Ah

We recommend that you purchase your accessories listed in the above list from
the same store that sold you the tool. Refer to the accessory packaging for further
details. Store personnel can assist you and offer advice.

7

A B

C D

E

OPERATING INSTRUCTIONS

NOTE: Before using the tool, read the instruction book carefully.

ASSEMBLY

1. Insert battery pack into the hub. (See Fig. A)

2. Connect the hub and MakerX series tools. (See Fig. B)

WARN ING: Before operation, make sure the speed control button on the

hub is at the“Min“ position. (See Fig. C)

OPERATION

1. Confirm the speed control button is set to “Min”. Grasp the tool by the grip.P ress
the on/off switch to start. (See Fig. D)

2. Adjust the variable speed as needed for the tool and application.

3. Press the on/off switch on the hub to turn off after use.
NOTE For sake of safety, disconnect from the hub and adjust the speed control to
“Min” position once completing the operation.

4. With a USB port (output: 5 V, 2 A) (only for specific models), your hub can be
connected to a LED light, or used to charge small electronics or tools such as cell
phones, cordless screwdrivers, tablets, etc.. (See Fig. E)

MAINTENANCE

There are no repairable parts in your hub.
For adjustment, repair or maintenance, please leave it to the professional. Do not try
to repair the hub yourself.
Your hub does not need to be lubricated or otherwise maintained. Don’t clean the
hub with water or chemical cleaning agent, just wipe it with a dr y cloth. Store in a dry
environment.

ENVIRONMENTAL PROTECTION

Waste electrical products must not be disposed of with household waste.
Please recycle where facilities exist. Check with your local authorities or

retailer for recycling advice.

9

DECLARATION OF CONFORMITY

We,
Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product
Description 20V Hub/HubX
Type WA7160 WA7161

Complies with the following Directives:

2011/65/EU&(EU)2015/863
2014/30/EU

Standards conform to

EN 55014-1
EN 55014-2
EN 62368-1 (Only for WA7161)

10

2021/12/31
Allen Ding
Deputy Chief Engineer,Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

DECLARATION OF CONFORMITY

We,
Positec (UK & Ireland) Ltd.
PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product
Description 20V Hub/HubX
Type WA7160 WA7161

Complies with the following Directives:

Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous Substances in Electrical and
Electronic Equipment Regulations

Standards conform to

BS EN 62368-1 (Only for WA7161)
BS EN 55014-1
BS EN 55014-2

2021/12/31
Allen Ding
Deputy Chief Engineer,Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

11

After-sales Service and Application

At www.worx.com you can order spare parts or arrange
the collection of a product in need of servicing or repair.

Tel. Service: 0345 202 9679

E-Mail: [e-mail]

www.worx.com

Copyright © 2021, Positec. All Rights Reserved.

AR01538002

SAFETY AND OPERATING MANUAL

ORIGINAL INSTRUCTIONS

Battery Charger WA3880

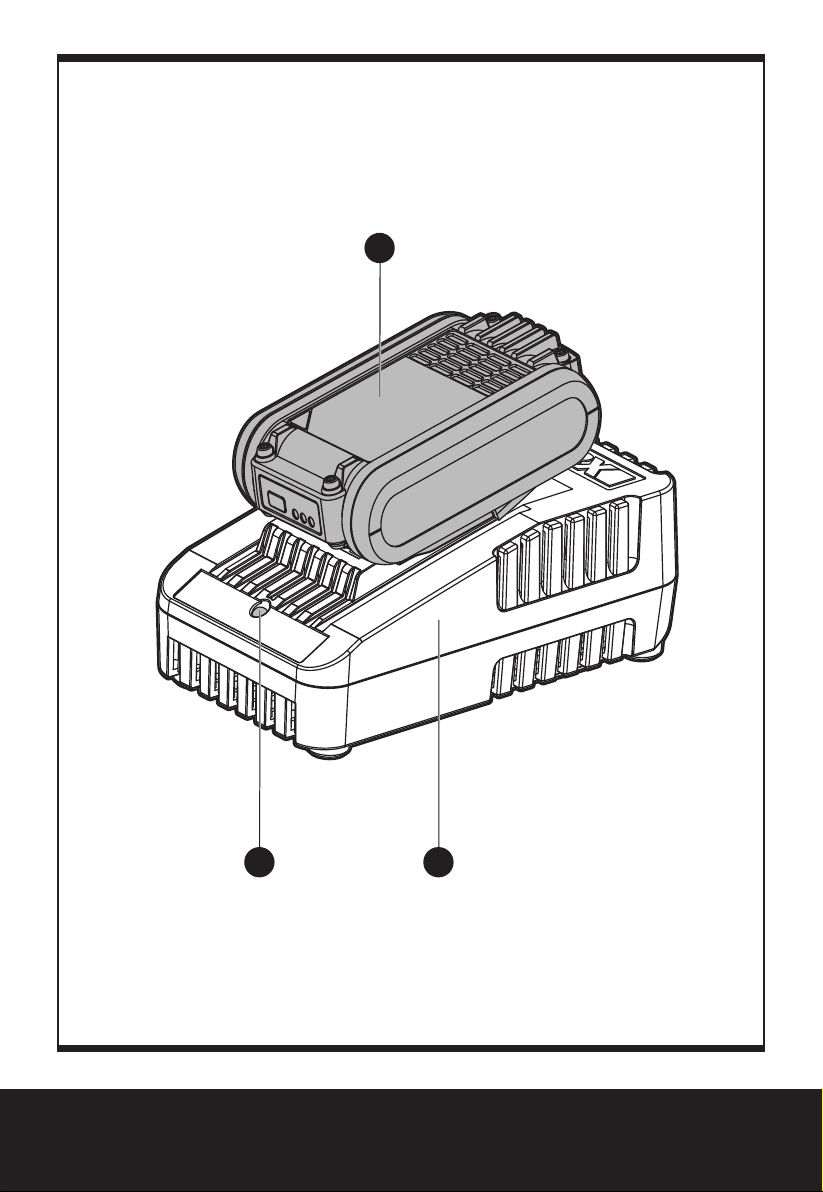

1

3 2

PRODUCT SAFETY
GENERAL SAFETY
WARNINGS

WARNING: Read all
safety warnings and all
instructions.

Failure to follow
the warnings and instructions
may result in electric shock,
fire and/or serious injury.

Save all warnings and
instructions for future
reference.

This appliance can be used
by children aged from 8 years
and above and persons with
reduced physical, sensory
or mental capabilities or

6

lack of experience and
knowledge if they have
been given supervision or
instruction concerning use
of the appliance in a safe
way and understand the
hazards involved. Children
shall not play with the
appliance. Cleaning and user
maintenance shall not be
made by children without
supervision.
This appliance is not
intended for use by persons
(including children) with
reduced physical, sensory
or mental capabilities, or
lack of experience and

knowledge, unless they have
been given supervision or
instruction concerning use
of the appliance by a person
responsible for their safety.
Children should be supervised
to ensure that they do not play
with the appliance.
If the supply cord is damaged,
it must be replaced by the
manufacturer, its service agent
or similarly qualified persons
in order to avoid a hazard.

ADDITIONAL SAFETY
INSTRUCTIONS FOR YOUR
BATTERY CHARGER

1. Before charging, read the
instructions.

2. Do not charge a leaking
battery.

3. Do not use chargers for
works other than those for
which they are designed.

4. Before charging, ensure
your charger is matching
the local AC supply.

5. For indoor use, or do not
expose to rain.

6. The charging device
must be protected from
moisture.

7.

Do not use the charging
device in the open.

8. Do not short out the
contacts of battery or

Battery Charger WA3880

charger.

9. Respect the polarity “+/-“
when charging.

10. Do not open the unit and
keep out of the reach of
children.

11. Do not charge the batteries
of other manufactures or
ill-suited models .

12. Ensure that the connection
between the battery
charger and battery is
correctly positioned and is
not obstructed by foreign
bodies.

13.Keep battery charger’s slots
are free of foreign objects
and protect against dirt and
humidity. Store in a dry and
frost-free place.

14.When charging batteries,
ensure that the battery
charger is in a well­ventilated area and
away from inflammable
materials. Batteries can get
hot during charging. Do not
overcharge any batteries.
Ensure that batteries
and chargers are not left
unsupervised during
charging.

15.Do not recharge non­rechargeable batteries,
as they can overheat and
break.

16.Longer life and better

performance can be
obtained if the battery pack
is charged when the air
temperature is between
18oC and 24oC. Do not
charge the battery pack
in air temperatures below
0oC, or above 40oC. This is
important as it can prevent
serious damage to the
battery pack.

17. Charge only battery pack of
the same model provided
by Worx and of models
recommended by Worx.

18. For charge Li-ion battery
pack only.

7

Battery Charger WA3880

SYMBOLS

Read the operator’s manual.

Warning

For indoor use only

Double insulation

1. BATTERY PACK *

2. CHARGER

3. CHARGE INDICATOR LIGHT

* Not all the accessories illustrated or described
are included in standard delivery.

We recommend that you purchase your accessories
listed in the above list from the same store that
sold you the battery charger. Refer to the accessory
packaging for further details. Store personnel can
assist you and offer advice.

TECHNICAL DATA

Fuse

Positive terminal

Negative terminal

8

ABN: Australian Business Number. By this number,

busin ess inform ation such as en tity ty pe, status ,
busin ess locati on etc. can be fo und at website
http://abr.business.gov.au.
ABN of Po sitec Austr alia Pty L imited is 14 101 68 2
357

Waste electrical products must
not be di sposed of wit h househol d
waste. Please recycle where
facili ties exist. C heck with yo ur local
authorities or retailer for recycling
advice.

RCM marking

Rated input voltage

Output voltage 20V

Charging current 2A

Rated Input power 50W

Charge battery Li-Ion

Number of cells 4/5/10

Charging time (approx.)

Battery pack -- 1.3Ah 42mins

Protection class

Machine weight 0.45kg

For the technical data of the types, the number of
cells and the rated capacity of the batteries that can
be charged, please refer the nameplate of the battery
pack supplied by Worx.

100-240V~50/60Hz

-- 1.5Ah 45mins

-- 2.0Ah 58mins

-- 2.5Ah 77mins

-- 3.0Ah 95mins

-- 4.0Ah 125mins

-- 5.0Ah 145mins

-- 6.0Ah 183mins

/II

Battery Charger WA3880

CHARGING PROCEDURE

NOTE: Before using the tool, read the

instruction book carefully.

CHARGING INSTRUCTIONS

1. CHARGING YOUR BATTERY PACK
WARNING The charger and battery pack are

specifically designed to work together so do

not attempt to use any other devices. Never insert
or allow metallic objects into your charger or battery
pack connections because an electrical failure and
hazard will occur.

2. BEFORE USING YOUR CORDLESS TOOL

Your battery pack is UNCHARGED and you must
charge once before use.

3. HOW TO CHARGE YOUR BATTERY

CHARGING PROCEDURE

1) Plug the charger into an appropriate outlet.

2) Slide the battery pack into the charger. The

LIGHT (3) will become green and flash to show
charging has started.

3) After charging approx 1-2 hours, the light will stay

green without flashing, which means the battery
is full, and charging is completed.

WARNING When battery charge runs out
after continuous use or exposure to direct

sunlight or heat, allow time for the battery to
cool down before re-charging to achieve the full
charge.

CHARGING INDICATOR

This charger is designed to detect some problems
that can arise with batter y packs. Indicator lights
indicate problems (see table below). If this occurs,
insert a new battery pack to determine if the charger
is OK. If the new battery charges correctly, then the
original pack is defective and should be returned
to a service center or recycling service center. If the
new battery pack displays the same problem as the
original Battery Pack, have the charger tested at an
authorized service center.

Light ON/ Flash Status

Red on

Red flash

- - - - -

Defective Battery

Battery Temperature
Protection
The temperature of
battery pack is less
than 0oC or more than
45oC.

Green on

Green flash

BATTERY TEMPERATURE PROTECTION

This charger has a battery temperature protection
feature. When the charger detects a battery pack
that is too hot or cold (the light will be red and flash),
it automatically activates the protection circuit , and
suspends charging until the battery pack has reached
the correct temperature. The charging process will
then automatically begin (the light will be green and
flash). This feature ensures maximum battery life.

LEAVING THE BATTERY PACK IN THE CHARGER

If a fully charged battery pack is left in the charger,
the Light will remain green. The battery pack will
remain charging with a maintenance trickle current .

DEFECTIVE BATTERY PACKS

This charger will detect a defective batter y pack.
When a defective battery pack is inserted into the
charger, the charger will try to repair it. This process
will last about 30mins (the light will be green and
flash). If the repair is successful, the charger will
automatically begin to charge the battery pack to the
highest capacity possible (the light will be green and
flash). If the light becomes solid red, the battery pack
is dead.
NOTE: Repaired battery packs are still usable but
should not be expected to perform as much work as
new battery packs.

IMPORTANT CHARGING NOTES:

1. For a new battery or a batter y that has been
in storage for sometime, please recharge the
battery before use. If you want to store the
battery for a long time, please fully charge the
battery pack to ensure maximum batter y life.

2.

Longer life and better performance can be
obtained if the battery pack is charged when the
air temperature is between (180C-240C). Do not
charge the battery pack in air temperatures below
00C, or above 400C. This is important as it can
prevent serious damage to the battery pack.

3. Never freeze your charger or immerse charger in
water or any other liquid.

4. When the batter y pack fails to produce sufficient
power on jobs that were previously done easily,
please recharge your battery, do not continue
to use under this condition. You may charge a
partially used pack whenever you desire with no
adverse affect on the batter y pack.

5. When charging it is normal that the charger and

- - - - - - Charging

Fully Charged

9

Battery Charger WA3880

battery pack may become warm to touch.

6. If the batter y pack does not charge properly:
a. Check current at power outlet by plugging in

another appliance.

b. Plug and unplug to check whether the charger is

ok
c. Check whether the battery has been damaged
d. Move the charger and batter y pack to a location

where the surrounding air temperature is

approximately 180-240C.
e. If the charging problem persists, take the tool,

battery pack and charger to an authorized

service center.
f. Under certain conditions, when the charger is

plugged into the power supply, the exposed

charging contacts inside the charger can be

shorted by foreign material. Foreign materials of

a conductive nature such as metallic particles

should be kept away from charger cavities.

Always unplug the charger from the power

supply when there is no battery pack in the

charger or before attempting to clean.

PROBLEM SOLUTION

I CANNOT FIT THE BATTERY INTO THE BATTERY
CHARGER. WHY?

a) Check if the charger and the batter y pack are

10

specifically designed for working together.
b) The battery can be inserted into the charger only

in one direction. Turn the battery around until it

can be inserted into the slot, the indicator light

should be green and flash when the battery is

charging.

REASONS FOR DIFFERENT
CHARGING TIMES

The charging time can be affected by many reasons
which are not defects in your product.
a) If the battery pack is only partly discharged it

may be re-charged in less than rated charging

time.
b) If the batter y pack and ambient temperature are

very cold/ hot, it may take longer to re-charge.

Please find an appropriate environment with

proper air temperature to start charging.
c) If the battery pack is ver y hot, remove battery

pack from the charger and allow battery pack

to cool first to ambient temperature and then

recharging can be started.

MAINTENANCE

Remove the plug from the socket before
carrying out any adjustment, servicing or
maintenance.

Your battery charger requires no additional lubrication
or maintenance. Never use water or chemical cleaners
to clean your charger. Wipe clean with a dry cloth.
Always store your charger in a dry place.
If the supply cord is damaged, it must be replaced
by the manufacturer, its service agent or similarly
qualified persons in order to avoid a hazard.

Positec Australia Pty Limited
10 Corporate Blvd Bayswater , VIC 3153, Australia

ENVIRONMENTAL
PROTECTION

Waste electrical products must not be
disposed of with household waste. Please
recycle where facilities exist. Check with your

local authorities or retailer for recycling advice.

PLUG REPLACEMENT
(ONLY FOR REWIRABLE PLUG
OF UK & IRELAND)

If you need to replace the fitted plug then follow the
instructions below.

IMPORTANT

The wires in the mains lead are colored in accordance
with the following code:

Blue = Neutral
Brown = Live

As the colors of the wires in the mains lead of this
appliance may not correspond with the colored
markings identifying the terminals in your plug, proceed
as follows. The wire which is colored blue must be
connected to the terminal which is marked with N. The
wire which is colored brown must be connected to the
terminal which is marked with L .

WARNING!

Never connect live or neutral wires to the earth
terminal of the plug. Only fit an approved BS1363/A
plug and the correct rated current fuse which is used
in the plug.
NOTE If a moulded plug is fitted and has to be
removed take great care in disposing of the plug
and severed cable, it must be destroyed to prevent
engaging into a socket.

Battery Charger WA3880

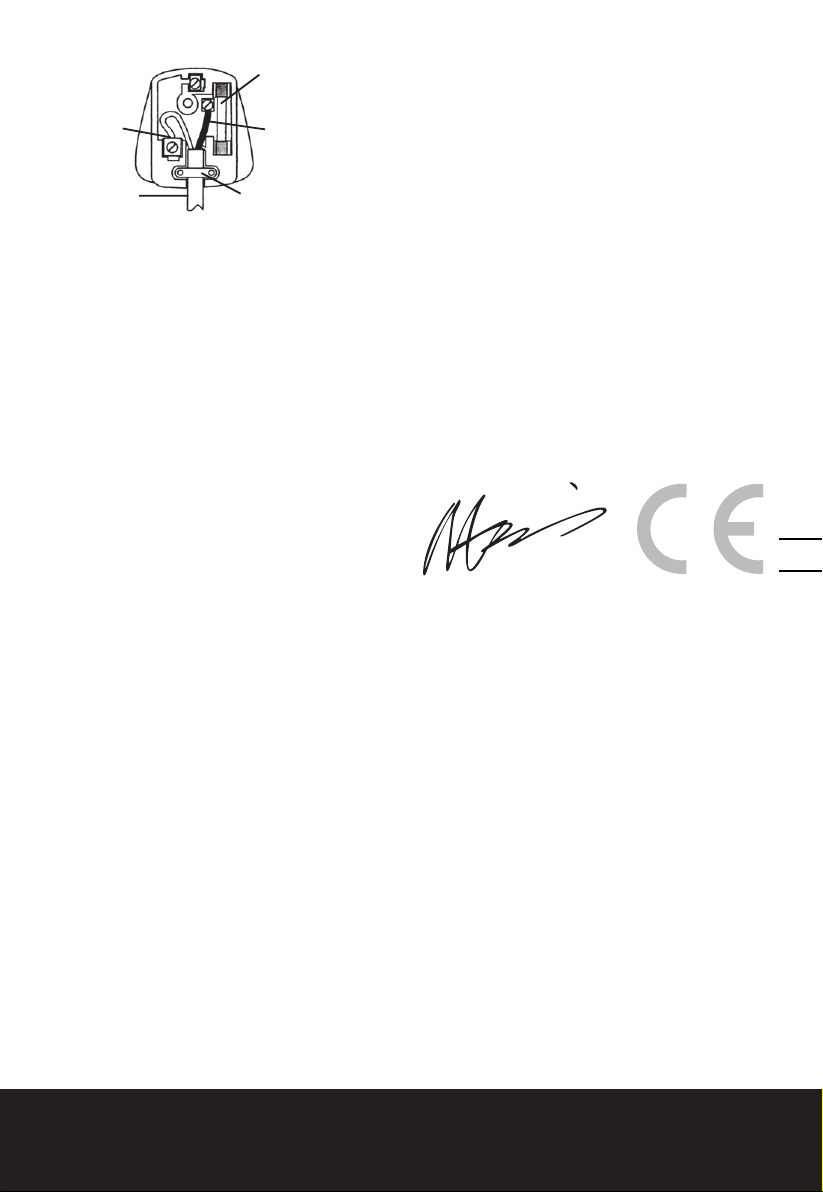

C

onnec t

Blue to
(

Outer sleeve
firmly clamped

neutral)

Fuse

DECLARATION OF
CONFORMITY

N

Brown L (live)

Cable grip

We,

Positec Germany GmbH
Postfach 32 02 16, 50796 Cologne, Germany

On behalf of Positec declare that the product,
Description Worx Battery Charger
Type WA3880

Complies with the following Directives,

2014/35/EU
2014/30/EU
2011/65/EU&(EU)2015/863

Standards conform to

EN 60335-1
EN 60335-2-29
EN 62233,
EN 55014-1
EN 55014-2
EN IEC 61000-3-2
EN 61000-3-3

11

2022/01/28
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

Battery Charger WA3880

DECLARATION OF
CONFORMITY

We,
Positec (UK & Ireland) Ltd
PO Box 6242, Newbury, RG14 9LT, UK

On behalf of Positec declare that the product,
Description Worx Battery Charger
Type WA3880

Complies with the following regulations,

Electrical Equipment (Safety) Regulations 2016
Electromagnetic Compatibility Regulations 2016
The Restriction of the Use of Certain Hazardous
Substances in Electrical and Electronic
Equipment Regulations

Standards conform to

BS EN 60335-1,BS EN 60335-2-29, BS EN 62233,
BS EN 55014-1, BS EN 55014-2, BS EN IEC 61000-3­2, BS EN 61000-3-3,

12

2022/01/28
Allen Ding
Deputy Chief Engineer, Testing & Certification
Positec Technology (China) Co., Ltd
18, Dongwang Road, Suzhou Industrial
Park, Jiangsu 215123, P. R. China

After-sales Service and Application

At www.worx.com you can order spare parts or arrange the
collection of a product in need of servicing or repair.
Tel. Service: 0345 202 9679
E-Mail: [e-mail]

www.worx.com

Copyright © 2022, Positec. All Rights Reserved.
AR03030406

Battery Charger WA3880
