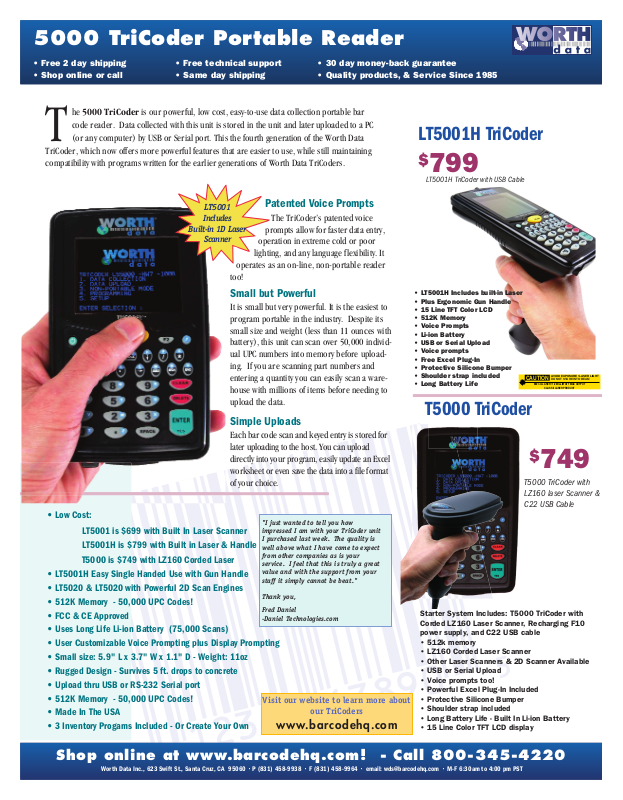

5000 TriCoder Portable Reader

• Free 2 day shipping • Free technical support • 30 day money-back guarantee

• Shop online or call • Same day shipping • Quality products, & Service Since 1985

he 5000 TriCoder is our powerful, low cost, easy-to-use data collection portable bar
code reader. Data collected with this unit is stored in the unit and later uploaded to a PC

T

(or any computer) by USB or Serial port. This the fourth generation of the Worth Data
TriCoder, which now offers more powerful features that are easier to use, while still maintaining
compatibility with programs written for the earlier generations of Worth Data TriCoders.

LT5001H TriCoder

$

799

LT5001H TriCoder with USB Cable

LT5001

Includes

Built-in 1D Laser

Scanner

Patented Voice Prompts

prompts allow for faster data entry,

operation in extreme cold or poor

lighting, and any language flexibility. It

operates as an on-line, non-portable reader

too!

Small but Powerful

It is small but very powerful. It is the easiest to
program portable in the industry. Despite its
small size and weight (less than 11 ounces with
battery), this unit can scan over 50,000 individ­ual UPC numbers into memory before upload­ing. If you are scanning part numbers and
entering a quantity you can easily scan a ware­house with millions of items before needing to
upload the data.

Simple Uploads

Each bar code scan and keyed entry is stored for
later uploading to the host. You can upload
directly into your program, easily update an Excel
worksheet or even save the data into a file format
of your choice.

• Low Cost:

LT5001 is $699 with Built In Laser Scanner

LT5001H is $799 with Built in Laser & Handle

T5000 is $749 with LZ160 Corded Laser

• LT5001H Easy Single Handed Use with Gun Handle

• LT5020 & LT5020 with Powerful 2D Scan Engines

• 512K Memory - 50,000 UPC Codes!

• FCC & CE Approved

• Uses Long Life Li-ion Battery (75,000 Scans)

• User Customizable Voice Prompting plus Display Prompting

• Small size: 5.9" L x 3.7" W x 1.1" D - Weight: 11oz

• Rugged Design - Survives 5 ft. drops to concrete

• Upload thru USB or RS-232 Serial port

• 512K Memory - 50,000 UPC Codes!

• Made In The USA

• 3 Inventory Progams Included - Or Create Your Own

"I just wanted to tell you how
impressed I am with your TriCoder unit
I purchased last week. The quality is
well above what I have come to expect
from other companies as is your
service. I feel that this is truly a great
value and with the support from your
staff it simply cannot be beat."

Thank you,

Fred Daniel

-Daniel Technologies.com

Visit our website to learn more about

The TriCoder’s patented voice

our TriCoders

www.barcodehq.com

• LT5001H Includes built-in Laser

• Plus Ergonomic Gun Handle
15 Line TFT Color LCD

•

• 512K Memory

• Voice Prompts
Li-ion Battery

•
USB or Serial Upload

•

• Voice prompts

• Free Excel Plug-In

• Protective Silicone Bumper

• Shoulder strap included

• Long Battery Life

T5000 TriCoder

$

749

T5000 TriCoder with
LZ160 laser Scanner &
C22 USB Cable

Starter System Includes: T5000 TriCoder with
Corded LZ160 Laser Scanner, Recharging F10
power supply, and C22 USB cable

• 512k memory

• LZ160 Corded Laser Scanner

• Other Laser Scanners & 2D Scanner Available

• USB or Serial Upload

• Voice prompts too!

• Powerful Excel Plug-In Included

• Protective Silicone Bumper

• Shoulder strap included

• Long Battery Life - Built In Li-ion Battery

• 15 Line Color TFT LCD display

Shop online at www.barcodehq.com! - Call 800-345-4220

Worth Data Inc., 623 Swift St., Santa Cruz, CA 95060 • P [phone] • F [phone] • email: [e-mail] • M-F 6:30am to 4:00 pm PST

The Industry’s only Portab le Batch Reader with Voice Prompts

5000 TriCoder Features

512K Memory

All 512K of the quoted memory is available for user
data storage (This is 50,000 individual 10 digit bar
codes); no memory is taken up for programs or
voice messages.

USB Interface Standard

All models of the TriCoder have USB built-in. The
TriCoder can be defined as a USB HID keyboard,
uploading data as though the data had been keyed
directly into any application as keyed data. The
TriCoder can also operate in full speed USB mode
for data upload to a file, table downloads, program
uploads & downloads, voice downloads and
firmware updates, (the latest firmware is always
available on our website) on a PC with Windows® 7,
Vista, XP, ME, 2000 and 98SE.

Serial Interface

In addition to the standard USB interface on all
models of the TriCoder, Serial RS-232 interface is
also available - all you need to do is order the
TriCoder with a C24 Serial Cable.

Your Choice of 1D or 2D Scanners

The TriCoder is available with your choice of bar
code scanners: Choice of tethered laser scanners for
the T5000, or the high speed Integrated 1D Laser
built right into the top for both the LT5001 &
LT5001H. The LT5000 model offers a more powerful
1D laser scan engine with increased range along with
an optional aiming dot for ease in scanning. For 2D
bar code reading you can choose the LT5020 or the
LT5020H with a omni-directional 2D scan engine.

Easy Uploading

Windows® program are furnished with each TriCoder
at no charge for lightning fast uploading of data. With
the TriCoder in USB keyboard mode, data can be also
uploaded directly into any application program or into
“notepad” using Windows or Mac. Simply plug the
TriCoder into the appropriate interface cable and
select data upload from the TriCoder menu.

No Programming Necessary

Most users don’t have to do any programming on the
TriCoder because there are 3 default programs built­in. The default programs are for typical inventory
data collections and provide the following:

Default Program 0: Records all bar codes read.
Sample Program 1: Records item numbers

scanned and quantities keyed in.
Sample Program 3: Records item numbers
scanned and quantities keyed in - Entering Qty1
automatically for single items scanned.

Easily Created Custom Programs

The TriCoder comes with its own built-in program
generator. You just describe the text and sequence
of prompts plus the input data characteristics. The
TriCoder then generates a working program with
the custom prompts and editing included.
Programming is so easy with the TriCoder, even a
novice programmer can master TriCoder
programming in 10 minutes. Up to 4 programs,
(3 user written) can reside within. It’s powerful
too! Each program can have up to 97 steps.
Statements possible include: Data Entry, Yes/No
Branching, Branching based on data entered,
Looping, Time Stamping, and Date Stamping. For
more details download the Manual from our
website.

Other features supported are:
Automatic Incrementing, Automatic Entry of
Quantity One with Physical Inventory, Duplicate
Data Prevention, Validation Tables, Tables for
Updating, and output to a serial mobile printers.
Output data formats are very flexible, allowing
almost any format including CR separated data
items, comma delimited files, and TXT CSV flat
files.

Virtual Tricoder

Complicated programs can be developed with a
Windows program, the Virtual TriCoder, that
allows you to develop a program on your PC.
You can also test the program on the PC,
making any necessary changes, before down­loading the finished program via the serial or
usb port to the TriCoder. This program is
shipped standard with all model TriCoders and
is also available at our Website in the “TriCoder
Downloads” section.

Voice Prompting in Addition to the
LCD Display

You can pre-record up to 100 seconds of
custom audible messages in addition to the
standard displayable prompts on the 15 line
color LCD.

Voice Prompts are an exclusive and patented
feature only available on the TriCoder. Your
pre-recorded messages play at the times you
have specified in any language or sequence.

Voice messages are not required but they can be
very beneficial in dimly lit or extreme cold areas,
can facilitate faster scanning, and can be in any
language.

Double Duty

The TriCoder can also function as a stationary
on-line reader, performing double duty. For
example, the retailer can use the TriCoder as a
Point of Sale reader (from wall power) with an
optional laser stand, and it can be used as a
portable to take a physical inventory after hours.

TriCoder Utilities

A Utilities CD ROM is shipped with every
TriCoder at no additional charge. The
included Integrated Hardware Utility
support serial and USB providing support to:

1) Upload data to a file on the host computer

2) Download “Lookup Tables” to the TriCoder

3) Develop and test custom programs before
downloading to the TriCoder

4) Download new Firmware upgrades

5) Record & Manage Voice Files.

The Utility is also available for download from
our Website.

TriCoder Pricing

Model Description Price

T5000 TriCoder (no scanner) $ 550
LT5001 TriCoder with 1D Laser Built In $ 679
LT5001HTriCoder with 1D Laser & Handle $ 779
LT5000 TriCoder with 1D Laser & Handle $ 979
LT5020 TriCoder with 2D Scanner $ 979
LT5020HTriCoder with 2D Scanner & Handle $ 1079

Cables & Laser Scanners& Accessories

C22 USB I/O Adaptor Cable $ 20
C24 DB9 Serial I/O Adaptor Cable $ 30
LZ160 Laser Scanner $ 179
LZ360 Laser Scanner $ 249
LZ400 Industrial Laser Scanner $ 499
5202D 2D Digital Scanner Omnidirectional $ 599
ELRL Extra Long Range Laser Scanner $ 699
F42 Leather Carrying Case $ 69
C13 QLxxx/Cameo Printer Cable $ 75
L03 Replacement - Li-ion Battery 1800mAh $ 25
F10 5V Power Supply $ 25

One F10 isincluded with eachLT5001, LT5001H, LT5000 orT5000

C23 Replacement Recharging Adaptor Cable $ 15

Here isanexampleofwhat you might order

TriCoder with Built In 1D Laser Scanner USB Cable

1 LT5001 TriCoder $ 679
1 C22 USB I/O Adaptor Cable $ 20
Total $ 699

TriCoder with LZ160 Laser Scanner USB Cable

1 T5000 TriCoder $ 550
1 LZ160 Laser Scanner $ 170
1 C22 USB I/O Adaptor Cable $ 20
Total $ 749

TriCoder with 2D Scanner with Gun Handle USB

1 LT5020H TriCoder with 2D Scanner & Handle $ 1079
1 C22 USB I/O Adaptor Cable $ 20
Total $ 1099
