Wolf SO30PMSPH Quick Start manual

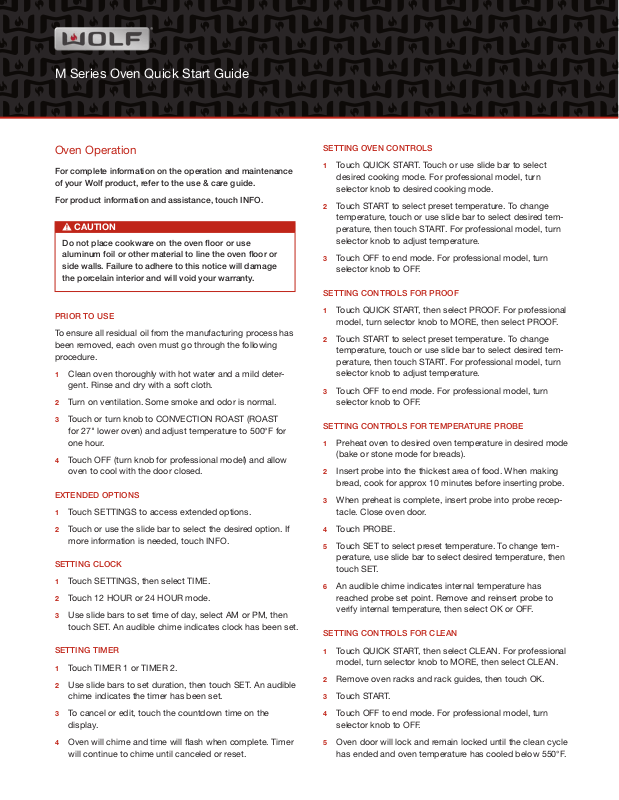

M Series Oven Quick Start Guide
Oven Operation
For complete information on the operation and maintenance
of your Wolf product, refer to the use & care guide.
For product information and assistance, touch INFO.
CAUTION
Do not place cookware on the oven oor or use
aluminum foil or other material to line the oven oor or
side walls. Failure to adhere to this notice will damage
the porcelain interior and will void your warranty.
PRIOR TO USE
To ensure all residual oil from the manufacturing process has
been removed, each oven must go through the following
procedure.
1 Clean oven thoroughly with hot water and a mild deter-
gent. Rinse and dry with a soft cloth.
2 Turn on ventilation. Some smoke and odor is normal.
3 Touch or turn knob to CONVECTION ROAST (ROAST
for 27" lower oven) and adjust temperature to 500°F for
one hour.
4 Touch OFF (turn knob for professional model) and allow
oven to cool with the door closed.
EXTENDED OPTIONS
1 Touch SETTINGS to access extended options.
2 Touch or use the slide bar to select the desired option. If
more information is needed, touch INFO.
SETTING CLOCK
1 Touch SETTINGS, then select TIME.
2 Touch 12 HOUR or 24 HOUR mode.
3 Use slide bars to set time of day, select AM or PM, then
touch SET. An audible chime indicates clock has been set.
SETTING TIMER
1 Touch TIMER 1 or TIMER 2.
2 Use slide bars to set duration, then touch SET. An audible
chime indicates the timer has been set.
3 To cancel or edit, touch the countdown time on the
display.
4 Oven will chime and time will ash when complete. Timer
will continue to chime until canceled or reset.
SETTING OVEN CONTROLS
1 Touch QUICK START. Touch or use slide bar to select
desired cooking mode. For professional model, turn
selector knob to desired cooking mode.
2 Touch START to select preset temperature. To change
temperature, touch or use slide bar to select desired temperature, then touch START. For professional model, turn
selector knob to adjust temperature.
3 Touch OFF to end mode. For professional model, turn
selector knob to OFF.
SETTING CONTROLS FOR PROOF
1 Touch QUICK START, then select PROOF. For professional
model, turn selector knob to MORE, then select PROOF.
2 Touch START to select preset temperature. To change
temperature, touch or use slide bar to select desired temperature, then touch START. For professional model, turn
selector knob to adjust temperature.
3 Touch OFF to end mode. For professional model, turn
selector knob to OFF.
SETTING CONTROLS FOR TEMPERATURE PROBE
1 Preheat oven to desired oven temperature in desired mode
(bake or stone mode for breads).
2 Insert probe into the thickest area of food. When making
bread, cook for approx 10 minutes before inserting probe.
3 When preheat is complete, insert probe into probe recep-
tacle. Close oven door.
4 Touch PROBE.
5 Touch SET to select preset temperature. To change tem-
perature, use slide bar to select desired temperature, then
touch SET.
6 An audible chime indicates internal temperature has
reached probe set point. Remove and reinsert probe to
verify internal temperature, then select OK or OFF.
SETTING CONTROLS FOR CLEAN
1 Touch QUICK START, then select CLEAN. For professional
model, turn selector knob to MORE, then select CLEAN.
2 Remove oven racks and rack guides, then touch OK.
3 Touch START.
4 Touch OFF to end mode. For professional model, turn
selector knob to OFF.
5 Oven door will lock and remain locked until the clean cycle
has ended and oven temperature has cooled below 550°F.
M Series Oven Quick Start Guide
SETTING CONTROLS FOR TIMED COOK / DELAYED START
1 Touch QUICK START, then select desired cooking mode
and temperature. For professional model, turn selector
knobs to desired mode and temperature.
2 Touch TIMED COOK, then select cooking duration.
3 Touch SET to conrm stop time or use the slide bars to
select desired stop time, then touch SET. Cooking dura-
GOURMET
Gourmet provides a variety of quick and convenient meal
preparations. Gourmet also provides recommendations for
ideal rack positions and tips to ensure cooking condence.
Choose from six categories—meat, sh, baked goods, pizza,
vegetables and one dish meals. Each category can be rened
to ensure the most effective cooking mode and rack position
to create a cooking masterpiece.
tion and stop time will appear on the display. Oven will
chime with one minute remaining. Oven will chime when
complete and will continue to chime until canceled or
reset.
4 To cancel, reset or turn oven off, touch TIMED COOK.
5 Oven will automatically turn off when cook time is com-
plete. Touch OK to clear display.
Cooking Modes
MODE PRESET RANGE PROBE USES
BAKE 350°F
(175°C)
ROAST 350°F
(175°C)
200 – 550°F
(95 – 290°C)
200 – 550°F
(95 – 290°C)
Best for single-rack cooking, primarily baked foods. Use for
•
standard recipes.
Best for roasting less tender cuts of meat, such as chuck roasts
•
and stew meat that should be covered.
BROIL High
CONVECTION
ROAST
CONVECTION 325°F
Med
Low
325°F
(165°C)
(165°C)
550°F (290°C)
450°F (230°C)
350°F (175°C)
200 – 550°F
(95 – 290°C)
200 – 550°F
(95 – 290°C)
GOURMET — —
PROOF 85°F
STONE 450°F
DEHYDRATE 135°F
WARM 180°F
(30°C)
(230°C)
(60°C)
(80°C)
85 – 110°F
(30 – 45°C)
200 – 550°F
(95 – 290°C)
110 – 170°F
(45 – 75°C)
140 – 200°F
(60 – 95°C)
Best for broiling meats, sh and poultry pieces up to 1" thick.
Utilize two-piece broiler pan and always broil with oven door
closed.
Gently browns exterior and seals in juices. Perfect for roasting
•
tender cuts of beef, lamb, pork and poultry.
Uniform air movement makes it possible to multi-level rack cook
•
with even browning.
Gourmet provides quick and convenient meal preparations with
•
recommendations for cooking mode and rack position. Preset
temperature and range are dependent on food and desired
doneness.
Ideal for proong, or rising bread dough.
Baking on a ceramic stone. Great for pizza and bread. Stone
•
accessory required.
Dry a variety of fruits, vegetables, herbs and meat strips.
Accessory racks required.
Designed to keep foods at serving temperature.
•
WOLF APPLIANCE, INC. P.O. BOX 44848 MADISON, WI 53744 WOLFAPPLIANCE.COM 800.222.7820
9005943 REV-A 6/2015
