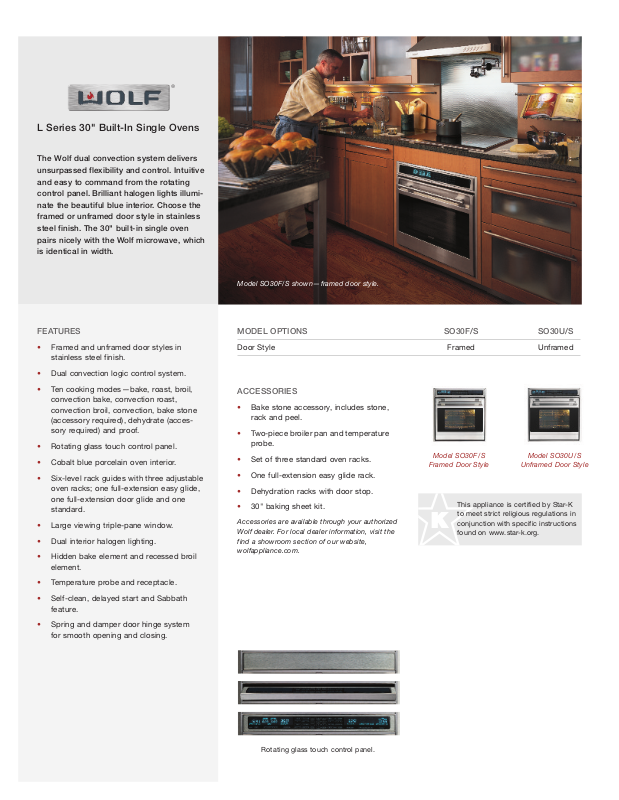

Wolf SO30F User Manual
Series 30" Built-In Single Ovens
L
The Wolf dual convection system delivers
unsurpassed flexibility and control. Intuitive
and easy to command from the rotating
control panel. Brilliant halogen lights illuminate the beautiful blue interior. Choose the
framed or unframed door style in stainless
steel finish. The 30" built-in single oven
pairs nicely with the Wolf microwave, which
is identical in width.
odel SO30F/ S shown— framed door style.
M
FEATURES
• Framed and unframed door styles in
stainless steel finish.
• Dual convection logic control system.
• Ten cooking modes—bake, roast, broil,
convection bake, convection roast,
convection broil, convection, bake stone
(accessory required), dehydrate (accessory required) and proof.
• Rotating glass touch control panel.
• Cobalt blue porcelain oven interior.
• Six-level rack guides with three adjustable
oven racks; one full-extension easy glide,
one full-extension door glide and one
standard.
• Large viewing triple-pane window.
• Dual interior halogen lighting.
• Hidden bake element and recessed broil
element.
• Temperature probe and receptacle.
• Self-clean, delayed start and Sabbath
feature.
• Spring and damper door hinge system
for smooth opening and closing.
MODEL OPTIONS SO30F/S SO30U/S
Door Style Framed Unframed
ACCESSORIES
• Bake stone accessory, includes stone,
rack and peel.
• Two-piece broiler pan and temperature
probe.
• Set of three standard oven racks.
Model SO30F/ S
Framed Door Style
Model SO30U/ S
Unframed Door Style
• One full-extension easy glide rack.
• Dehydration racks with door stop.
• 30" baking sheet kit.
Accessories are available through your authorized
Wolf dealer. For local dealer information, visit the
find a showroom section of our website,
wolfappliance.com.
This appliance is certified by Star-K
to meet strict religious regulations in
conjunction with specific instructions
found on www.star-k.org.
Rotating glass touch control panel.
273/16"
(691)
OPENING
HEIGHT
281/2" (724)
OPEN ING WID TH
5"
(127)
4"
(
102)
24"m in (6 10)
OPENING DEPTH
E E
E
E
33"
(838)
RECOMMENDED CABINET WIDTH
30"m in (7 62)
ELECTRICAL LOCATION
WITHIN OPENING
APPLIES ONLY TO
C
ABINETS DEEPER
THAN 24" (610)
DIMENSION WILL VARY*
43/4" (121) TYPICAL*
36" (914)
FLOOR TO
COUNTERTOP
E
281/2" (724)
OPENING WIDTH
273/16"
(691)
OPENING
HEIGHT
24" (610) min
OPENING DEPTH
E
5"
(127)
4"
(102)
FRONT VIEWSIDE VIEW
L Series 30" Built-In Single Ovens
24" (610)
BEHIND FRAME
271/2"
(699)
283/16"
(
716)
28"
(711)
297/8"
(759)
24"
(610)
3"
(76)
203/4"
(527)
261/16"
(662)
INSIDE
S
IDE TRIM
TOP VIEW
OPEN OVEN DOOR
FRONT VIEW RIGHT SIDE VIEW
C
ONDUIT
CHANNEL
95/8"
(244)
87/8"
(225)
3"
(76)
OVERALL DIMENSIONS
Unit dimensions may vary by ±1/8".
imensions in parentheses are in
D
millimeters unless otherwise specified.
SPECIFICATIONS
Overall Width 297/8"
Overall Height 271/2"
Overall Depth 24"
Oven Door Clearance 203/4"
Overall Oven Interior Capacity 4.5 cu ft
Oven Interior Dimensions
25" W x 161/2" H x 19" D
Minimum Cabinet Width 30"
Minimum Cabinet Depth 24"
Minimum Base Support 250 lbs
Opening Width 281/2"
Opening Height 273/16"
Electrical Requirements 240/208 V AC
60 Hz, 30 amp circuit
Conduit 4' flexible 4-wire
Electrical Rating 5.1 kW at 240 V
3.8 kW at 208 V
Total Amps 21
Shipping Weight 273 lbs
INSTALLATION SPECIFICATIONS
Wall Application
Undercounter Installation
INSTALLATION NOTES
Complete installation specifications can be
found on our website, wolfappliance.com.
*Dimension must accommodate height of oven trim.
IMPORTANT NOTE: Unless you are using cabinets deeper than 24", it is recommended that the
electrical supply be placed in an adjacent cabinet within reach of the conduit. Choose the
location shown in the illustrations that best suits your installation.
©Wolf Appliance, Inc. all rights reserved. Features and specifications are subject to change at any time without no tice. 2/ 12
