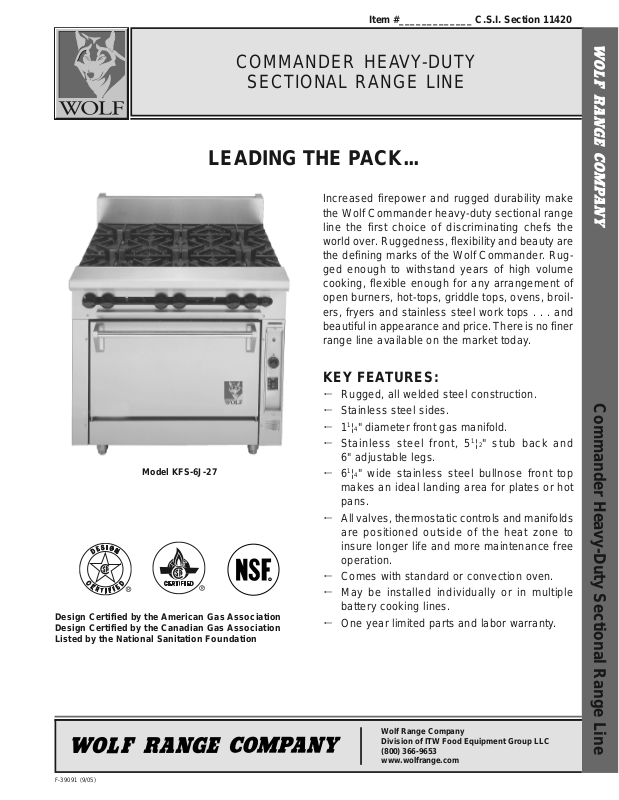

Item #_____________ C.S.I. Section 11420
COMMANDER HEAVY-DUTY
SECTIONAL RANGE LINE
LEADING THE PACK...
Increased firepower and rugged durability make
the Wolf Commander heavy-duty sectional range
line the first choice of discriminating chefs the
world over. Ruggedness, flexibility and beauty are
the defining marks of the Wolf Commander. Rugged enough to withstand years of high volume
cooking, flexible enough for any arrangement of
open burners, hot-tops, griddle tops, ovens, broilers, fryers and stainless steel work tops . . . and
beautiful in appearance and price. There is no finer
range line available on the market today.
Model KFS-6J-27
Design Certified by the American Gas Association
Design Certified by the Canadian Gas Association
Listed by the National Sanitation Foundation
KEY FEATURES:
k Rugged, all welded steel construction.
k Stainless steel sides.
1
k 1
¦4" diameter front gas manifold.
1
k Stainless steel front, 5
6" adjustable legs.
1
k 6
¦4" wide stainless steel bullnose front top
makes an ideal landing area for plates or hot
pans.
k All valves, thermostatic controls and manifolds
are positioned outside of the heat zone to
insure longer life and more maintenance free
operation.
k Comes with standard or convection oven.
k May be installed individually or in multiple
battery cooking lines.
k One year limited parts and labor warranty.
¦2" stub back and
Commander Heavy-Duty Sectional Range Line
F-39091 (9/05)
Wolf Range Company
Division of ITW Food Equipment Group LLC
(800) 366-9653
www.wolfrange.com
Commander Heavy-Duty
DESCRIPTION WIDTH DEPTH HEIGHT
36" Range 36" 38" 36"
Standard Oven 271¦2"28
1
¦2"14
Convection Oven 261¦2" 23" 14"
Universal Manifold 11/4" I.D. Gas Pipe
BURNER RATINGS
Open Burner 30,000 BTU/hr.
Half Hot Top 17,500 BTU/hr.
Full Hot Top 35,000 BTU/hr.
French Graduated Hot Top 50,000 BTU/hr.
Griddle Top (per 12" section) 30,000 BTU/hr.
Oven Burner 40,000 BTU/hr.
Convection Oven Burner 30,000 BTU/hr.
1
Sectional Range Line
¦2"
k
k
Here is a convenient
schematic layout for
use in the designing
of your Commander
battery. The scale is
1
¦4" = One foot.
INSTALLATION REQUIREMENTS:
1. In order for this equipment to operate as designed, an adequate
gas supply (volume and pressure) must be delivered to the
installation.
2. A properly sized gas pressure regulator must be installed with
this equipment.
3. An adequate ventilation system is required for commercial cook-
ing equipment. Information may be obtained by writing to the
National Fire Protection Association, 1 Batterymarch Park,
Quincy , MA 02269, www .NFP A.org. When writing, refer to NFP A
No. 96.
4. These units are manufactured for installation in accordance with
ANSZ223.1A (latest edition), National Fuel Gas Code. Copies
may be obtained from The American Gas Association, 400 N
Capitol St. NW, Washington, DC 20001, www.AGA.org.
5. Clearances:
St. Oven Conv. Oven
Combustible Non-Combustible Non-Combustible
Rear 2" 0" 2"
Sides 20" 2" 2"
6. For proper combustion, install equipment on adjustable legs
or casters. On curb or platform, allow 3
1
¦2" front overhang (see
diagram). Leveling bolts are required for curb installation.
Specify when ordering.
F-39091 (9/05)
NOTE: In line with its policy to continually improve its product, Wolf Range Company
reserves the right to change materials and specifications without notice.
This appliance is manufactured for commercial use only and is not intended for home use.
