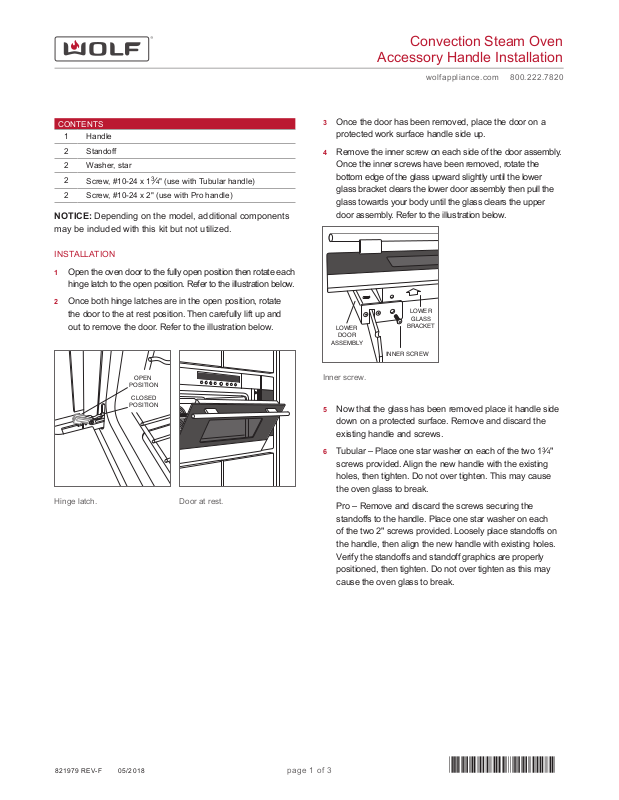

Wolf 826668 Installation manual

Convection Steam Oven

Accessory Handle Installation

wolfappliance.com 800.222.7820

CONTENTS

1 Handle

2 Standoff

2 Washer, star

2

Screw, #10-24 x 1

3

⁄4" (use with Tubular handle)

2 Screw, #10-24 x 2" (use with Pro handle)

NOTICE: Depending on the model, additional components
may be included with this kit but not utilized.

INSTALLATION

1 Open the oven door to the fully open position then rotate each

hinge latch to the open position. Refer to the illustration below.

2 Once both hinge latches are in the open position, rotate

the door to the at rest position. Then carefully lift up and
out to remove the door. Refer to the illustration below.

Hinge latch.

OPEN

POSITION

CLOSED

POSITION

WATER

LIGHT

T
EMP

MODE

Door at rest.

ON

POWER

TIME

OFF

3 Once the door has been removed, place the door on a

protected work surface handle side up.

4 Remove the inner screw on each side of the door assembly.

Once the inner screws have been removed, rotate the
bottom edge of the glass upward slightly until the lower
glass bracket clears the lower door assembly then pull the
glass towards your body until the glass clears the upper
door assembly. Refer to the illustration below.

LOWER

GLASS

LOWER

DOOR

ASSEMBLY

BRACKET

INNER SCREW

Inner screw.

5 Now that the glass has been removed place it handle side

down on a protected surface. Remove and discard the
existing handle and screws.

6 Tubular – Place one star washer on each of the two 1

3

⁄4"

screws provided. Align the new handle with the existing
holes, then tighten. Do not over tighten. This may cause
the oven glass to break.

Pro – Remove and discard the screws securing the

standoffs to the handle. Place one star washer on each
of the two 2" screws provided. Loosely place standoffs on
the handle, then align the new handle with existing holes.
Verify the standoffs and standoff graphics are properly
positioned, then tighten. Do not over tighten as this may
cause the oven glass to break.

821979 REV-F 05/2018

page 1 of 3

7 Before placing the door glass back on the door assembly,

verify the gaskets are properly positioned. Refer to the
illustrations below.

8 Gently slide the oven glass under the upper door

assembly. Once the lower glass ange clears the lower

assembly, rotate downward. Verify the gaskets remained in
the proper position before moving on to the next step.

9 With the oven glass in position, reinstall two inner screws.

10 Place the oven door hinges back into the hinge receivers.

When hinges are properly position, the door should open
and close without resistance.

11 Once the hinges are properly positioned, open the door

fully and rotate the hinge clips back into the closed
position. Open and close the door multiple times to ensure
proper placement.

Convection Steam Oven

Accessory Handle Installation

wolfappliance.com 800.222.7820

UPPER

GASKET

Gasket placement.

LOWER

GASKET

page 2 of 3
