Withings WBP01 User Manual

Smart Baby Monitor

User manual
Manuel utilisateur
Bedienungsanleitung
Manual del usuario
Manuale dell’utente

EN

FR

DE

ES

IT

2

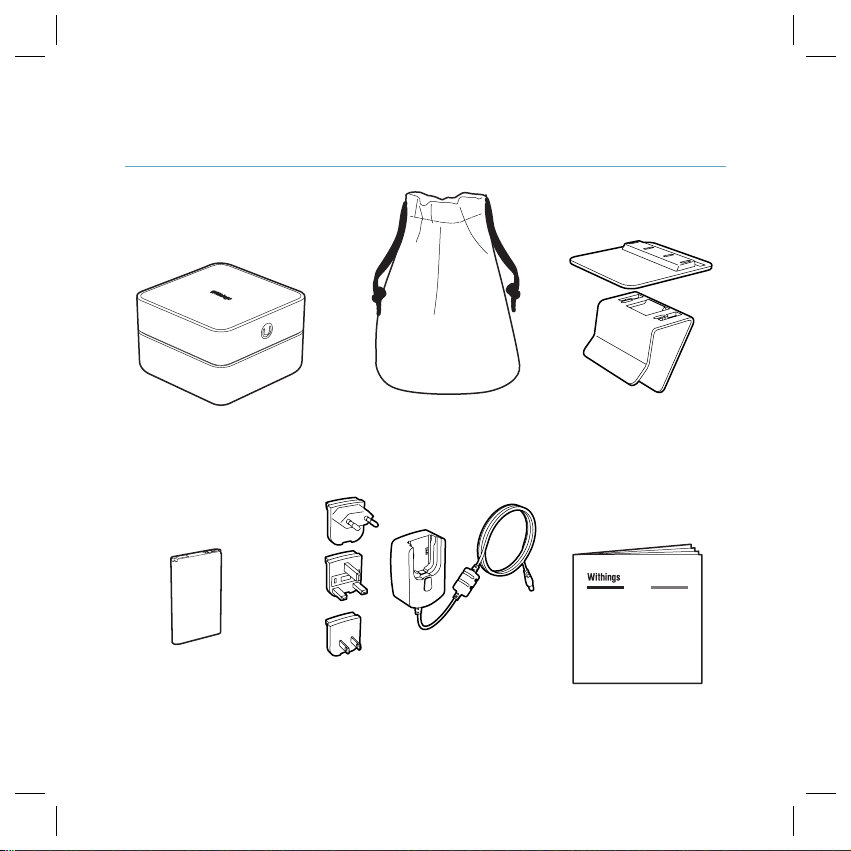

Inside the box

Smart Baby MonitorCarry bag Bedside stand

Li-ion battery

Power supply

+ 3 local adaptors

User manual

3

EN

Thank you for choosing the Smart Baby Monitor

The Smart Baby Monitor is a revolutionary baby monitor with the allure of an
elegant white music box.

Watch over your child. Interact with him/her. Ensure your baby’s comfort from
your iPhone, iPad or iPod touch, from anywhere and any time.

From home or a friend's house

At home or away

Before you start, you need:

iPhone, iPad or iPod touch

Internet access, via Wi-Fi

or an Ethernet cable

4

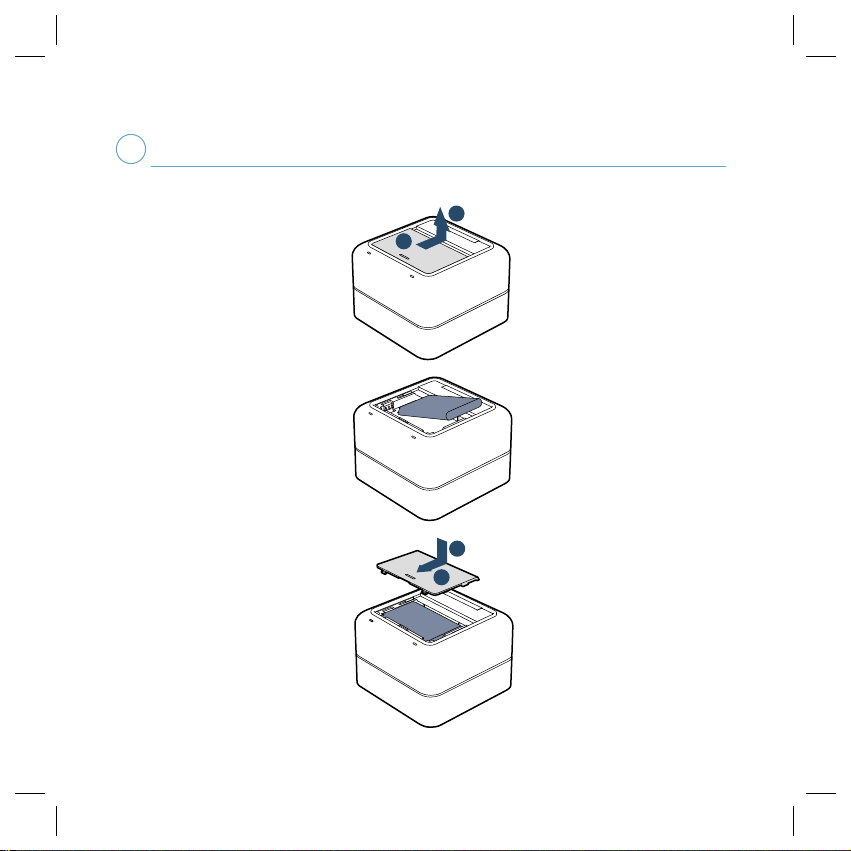

1 Installing the battery

1. Slide open the battery compartment door.

1

2. Insert the battery.

3. Close the door.

2

1

2

5

2 Plugging in the monitor

EN

1. Insert the local adaptor on the power supply unit.

2. Plug your Smart Baby Monitor into a power socket.

2

1

3. The night light turns blue, indicating the monitor
is starting up.

6

3 Connecting the monitor to your iPhone, iPad or iPod touch

Before you begin, check that the light on the back of the monitor is blinking (start­up complete, waiting to be connected).

1. Be sure that your iPhone, iPad or iPod touch is connected to your home Wi-Fi
network.

2. On your iPhone, iPad or iPod touch, go to «Settings», represented by the
following icon:

3. Select «General» and then «Bluetooth».

4. Activate Bluetooth by sliding the switch button like this:

Bluetooth

5. Select the Smart Baby Monitor from the list; its name starts with «SBM-...»

SBM-....

connected

7

4 Installing the WithBaby application

EN

1. Accept the automatic installation request by clicking on «Yes».

2. Wait until installation is complete.

Loading ...

3. Launch the WithBaby app and follow the instructions.

WithBaby

8

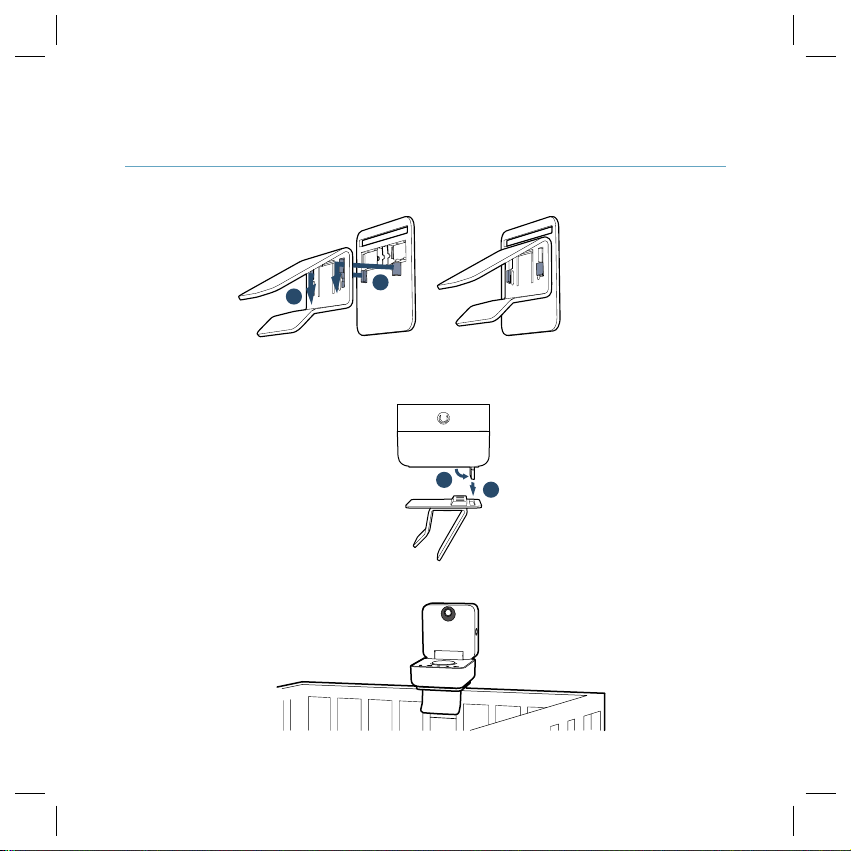

Installing the bedside stand (optional)

1. Attach the two parts together.

2

1

2. Attach your Smart Baby Monitor to the stand.

1

3. Place the stand on the side of the baby’s bed.

2

9

Your Smart Baby Monitor

EN

High resolution
wide angle
video sensor

Multicolor
night light

Microphones

Temperature and
humidity sensor

Loudspeaker (lullabies
and parents' voices)

Touch screen

Start / Stop

Smart Baby Monitor

Start night light Reduce

lullaby volume

Increase

lullaby volume

Start / Stop lullaby

10

Your Smart Baby Monitor: rear view

Ethernet port

Micro-usb port

Indicator light

11

Back color codes

EN

range:

Fixed o

start-up in p

rogress

no one can

conne

Orange / G

no ne

ct

reen

slow pulse:

twork conne

ctivi

ty

Fixed

conne

green:

cted

Red, rapid blin

battery low

king:

12

Tips

Connecting my iPhone, iPad or iPod Touch via Wi-Fi.

When you’re using your monitor at home, we suggest you connect your iPhone
via Wi-Fi in order to enjoy better video quality.

Get alerts whenever I want.

Each parent can choose, individually, which alerts they want to receive (noise,
movement, temperature and humidity) via the WithBaby app.

Closing my Smart Baby Monitor.

When you close your Smart Baby Monitor, only the video is turned o. You can
still receive alerts or listen in on your baby.

Using my Smart Baby Monitor at a friend’s.

Once outside your home, your baby monitor automatically connects to your
iPhone via Bluetooth so that you can monitor your baby without any Internet
connection.

For other tips visit http://baby.withings.com

Safety instructions

This product cannot replace adult supervision. Ensure your baby’s health by checking on him/her regularly.
The temperature and humidity sensor only measures the temperature and humidity of the room your baby is in.
It cannot be used to adjust the temperature or humidity of the room. Place the product at least 50 centimetres away from
the baby.
This product is not a toy. Do not allow children to play with it. Only use the power supply unit supplied with the product.
Store the product in a clean, dry place at 0° to 50° C. Use the product exclusively at temperatures between 10°C and
35°C.
This device is designed for indoor use only. Never use the product for extended periods in direct sunlight.

13

Troubleshooting

EN

The Smart Baby Monitor does not start.

Make sure the power supply unit is plugged into a wall socket and connected to
the back of the Smart Baby Monitor.

The Smart Baby Monitor is on, I’ve activated Bluetooth, but I don’t see my device
in the list.

For safety reasons, you only can pair with Bluetooth during the rst 30 minutes
after turning on the baby monitor. All you need to do is restart your monitor to
see it in the list.
If the problem persists, make sure you are at least 15 metres from your Smart
Baby Monitor before trying again.

I’m connected via Bluetooth, but the iPhone app does not install automatically.

Install the application manually:

- Go to the App Store by clicking on the icon:

- Search for: WithBaby.

- Install the WithBaby app, launch it and follow the instructions.

Having problems?

We’re here to help! Visit us at http://baby.withings.com. You’ll nd all the answers
to the most frequently asked questions.

14

Contenu de la boîte

Smart Baby MonitorSac de transport Support lit de bébé

Batterie Li-ion

Bloc d'alimentation

+ 3 adaptateurs locaux

Manuel utilisateur

15

FR

Merci d’avoir choisi le Smart Baby Monitor

Le Smart Baby Monitor est un babyphone révolutionnaire se présentant sous la
forme d’une élégante boîte à musique blanche.

Surveillez votre enfant. Interagissez avec lui. Veillez au confort de bébé depuis
votre iPhone, iPad ou iPod touch, partout et tout le temps.

A la maison ou chez des amis

Chez vous ou à l'extérieur

Avant de commencer, vous devez avoir à disposition :

iPhone, iPad ou iPod touch

Accès internet en Wi-Fi

ou par câble Ethernet

16

1 Installer la batterie

1. Ouvrez la trappe du compartiment batterie en la faisant glisser.

2

1

2. Insérez la batterie.

3. Fermez la trappe.

1

2

17

2 Brancher

FR

1. Insérez l’adaptateur local sur le bloc d’alimentation.

2. Branchez votre Smart Baby Monitor à une prise murale.

2

1

3. La veilleuse devient bleue pour indiquer un démarrage
en cours.

18

3 Connecter à votre iPhone, iPad ou iPod touch

Avant toute chose, vériez que le voyant à l’arrière du produit clignote
(démarrage terminé, en attente de connexion).

1. Assurez-vous que votre iPhone, iPad ou iPod touch est bien connecté à votre
réseau Wi-Fi domestique.

2. Sur votre iPhone, iPad ou iPod touch, rendez-vous dans la partie «Réglages»,
symbolisée par l’icône :

3. Choisissez « Général », puis « Bluetooth ».

4. Activez le Bluetooth en faisant glisser le bouton interrupteur comme ceci :

5. Sélectionnez le Smart Baby Monitor dans la liste, son nom commence par
«SBM-...».

Bluetooth

SBM-....

connecté

19

4 Installer l’application WithBaby

FR

1. Acceptez la demande d’installation automatique en appuyant sur «Oui».

2. Patientez jusqu’à la n de l’installation.

Chargement...

3. Lancez l’application WithBaby et laissez-vous guider.

WithBaby

20

Installation du support sur le lit de bébé (optionnel)

1. Attachez les deux parties.

2

1

2. Fixez votre Smart Baby Monitor au support.

1

2

3. Positionnez le support sur le rebord du lit de votre enfant.
