Aura Smart Sleep System
Sleep assistant - Sleep analyser
Installation and Operating Instructions
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
Safety Instructions
If the product falls avoid looking directly at the
LED source and disconnect the power supply.
Reconnect the Aura to power after setting it back
in place. If it fails to turn on or does not seem
to be functioning properly, contact the Withings
support team by going to: http://support.
withings.com/.
Do not cover the bedside device
Do not allow the device to come into contact with
liquids.
This device is designed for indoor use only.
This product is not a medical device and should
not be used to diagnose, treat, cure, or prevent
any medical conditions.
This product is not a toy. Do not allow children to play with it.
The environmental sensors cannot be used to adjust the environmental
parameters in the rooms.
Only use the power supply supplied with the product.
The socket-outlet shall be installed near the equipment and shall be easily
accessible.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 2
Store the product in a clean, dry place at 5°C to 40°C.
Use the product at temperatures between 10°C and 35° C and at altitude
between 0m and 2000m.
Never use the product for extended periods in direct sunlight.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 3
Table of Contents
Safety Instructions .................................................................................... 2
Box Contents .............................................................................................. 6
Minimum Requirements ..........................................................................7
Wi-Fi router ......................................................................................................................7
iOS Device ........................................................................................................................ 7
iOS Version ......................................................................................................................7
Product Overview ......................................................................................8
Short description of the Aura Smart Sleep System ......................................................... 8
Light and sound programs ...............................................................................................8
Sleep tracking .................................................................................................................. 9
Functions .........................................................................................................................9
System update ................................................................................................................. 9
Overview of the Aura Smart Sleep System Setup ............................10
Set up the Aura Smart Sleep System in Your Room ........................11
Sleep Sensor ..................................................................................................................11
Bedside Device ..............................................................................................................12
Health Mate App ......................................................................................14
Install the Health Mate App on your iOS Device ............................................................14
Launch the Health Mate App .........................................................................................14
Setup using the Health Mate App ........................................................15
Bluetooth pairing ...........................................................................................................15
Quick Wi-Fi network conguration ................................................................................17
Manual Wi-Fi Network Conguration ............................................................................18
Conguring the Aura Bedside Device and Sleep Sensor in the Health Mate App .........19
Creating a new user using the Health Mate App ...........................................................23
Update the Aura Firmware .............................................................................................24
Display the rmware version .........................................................................................24
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 4
Main functions of the Aura Bedside Device .......................................25
Switch the reading light on and off ...............................................................................25
Turn the alarm on or off .................................................................................................25
Start the sleep program ................................................................................................. 26
Adjust the volume ..........................................................................................................26
Snooze ...........................................................................................................................26
Stop Any Program .........................................................................................................27
Specic Functions Using the Health Mate App ................................28
Time settings .................................................................................................................28
Wake-Up Program (Alarm) and Smart Wake-Up Time Settings .....................................28
Select and setup the wake-up program .........................................................................32
Start and stop the sleep program .................................................................................. 34
Select a sleep program ..................................................................................................35
Start and select a nap program .....................................................................................36
Sleep Tracking ..........................................................................................37
Display of sleep stages ..................................................................................................38
About sleep stages ........................................................................................................38
Dissociate a Withings Device ................................................................39
Access the Tutorial using the Health Mate App ................................40
Care and Cleaning Instruction ..............................................................41
Specications ...........................................................................................42
Document Release Overview ................................................................43
Warranty ....................................................................................................44
Regulatory Statements ..........................................................................45
Federal Communications Commission (FCC) Statements ............................................45
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 5
Box Contents
(3A)
(3B)
(3C)
(3)
(4)
(2)
(1).Sleep sensor (2).Bedside device (3).AC power adapter
(3A).Plug adapter for European Union countries
(3B).Plug adapter for United Kingdom
(3C).Plug adapter for United States of America (4).Quick start guide
(1)
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 6
Minimum Requirements
Wi-Fi router
A personal home Wi-Fi router connected to the Internet is required to:
• Set up the Aura Smart Sleep System,
• Upgrade the rmware,
• Upload sleep data.
For more details about Wi-Fi router compatibility, refer to “Specications” on page 42.
iOS Device
An iOS device1 (with operational Bluetooth and Wi-Fi) is required to:
• Set up the Aura Smart Sleep System,
• Access to the specic functions,
• Track sleep data.
For iOS device compatibility, refer to “Specications” on page 42.
iOS Version
The latest iOS2 is required to install and run the Withings Health Mate App.
1 iOS Device refer to any mobile electronic devices marketed by Apple Inc, such as iPod Touch, iPhone and
iPad (see the full compatibility list in “Specications” on page 42
2 iOS (previously iPhone OS) is a mobile operating system developed by Apple Inc. and distributed
exclusively for Apple hardware.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 7
Product Overview
Short description of the Aura Smart Sleep System
Short description of the Aura Smart Sleep System
The Aura Smart Sleep System helps you to track, improve, and understand your sleep
patterns.
From dusk until dawn, thanks to the programs of natural light and high quality sound,
the Aura assists you in falling asleep more quickly and makes for an energized wakeup experience. During the day time, the system offers dedicated programs for relaxing
sessions.
The Aura Smart Sleep System also tracks your sleep stages. The Aura records data using
the sleep sensor under the mattress, and uses the data to ne tune the programs.
The Health Mate App on mobile and web enable you to visualize your sleep cycles. You can
use these to better understand your sleep prole and compare your data night by night.
Main functions can be performed using the touch interface on the Bedside device. The
Health Mate App allows you to set up the system and to access the functions of the Aura.
The Aura Smart Sleep System is dynamic and is always getting better. The automatic
rmware updates will bring improvements, additional functions, and innovations to enhance
the system.
Light and sound programs
The system uses scientically-validated light and sound programs which act on the release
of melatonin, the natural sleep-inducing hormone. It thereby facilitates transitions into sleep
and creates an energizing wake-up experience.
For your falling-asleep experience, the light spectrum changes and fades out continuously.
Meanwhile, the sound intensity decreases slowly until switching off after about twenty
minutes.
The wake-up sequence starts gradually with light spectrum changes and sound. It lasts
from 0 to 20 minutes depending on the conguration prior to wake-up time. Light and sound
sequences are replayed in a loop.
Naps and relaxing sessions dedicated programs help to recharge the body and the mind.
The system is pre-loaded with one default program for smooth fall asleep, energizing wake-
up and relaxing sessions. Up to three other programs can be selected and loaded into
the system using the Health Mate App. The application facilitate the selection of wake-up
programs by playing a preview.
When you activate a program, the touch interface on the bedside device allows you to
adjust the sound volume.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 8
Sleep tracking
Using the sleep sensor, the Aura is able to track your movement, respiration and heart rate
while you sleep. By analyzing this data, the Aura can provide you with your sleep cycles
and quality. Every morning, the system allows you to visualize this data in the Health Mate
mobile and web apps, building a telling image of your nights.
Functions
Main functions are covered by the touch interface on the Bedside device. These functions
are accessible from multiple touch gestures such as tap, swipe, short ,and long press.
These simple touch gestures allow you to:
• increase or decrease sound and light intensity
• activate or deactivate alarm
• launch sleep program, stop any program
• snooze a wake-up program
Other functions, such as setting the wake-up time and changing the sleep program can be
performed in the Health Mate App.
System update
The Aura Smart Sleep System includes separate rmware for the Bedside Device and the
Sleep Sensor.
During the setup, the rmware for each device is automatically updated to the latest
version.
After the setup, whenever the system is connected to the Internet (via a personal Wi-Fi
router), rmware is kept up to date automatically.
The automatic rmware update can bring additional functionality to the system. To keep
you informed, new functions are listed in the chapter “Document release overview” for each
new release of this user guide.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 9
Overview of the Aura Smart Sleep System Setup
To easily install and set up the Aura Smart Sleep System, follow the steps below, which will
be detailed in the following pages:
1. Place the Bedside Device on a table next to your bed.
2. Connect the Sleep Sensor’s USB plug to the one of the dedicated USB ports on the
Bedside Device. Refer to page 12.
3. Plug the AC power adapter to a power outlet. Refer to page 13.
4. Install the Health Mate App on your iOS Device. Refer to page 14.
5. Enable Bluetooth on your iOS Device: Settings>Bluetooth.
6. Launch the Healt Mate App. Refer to page 14.
7. Pair the Aura Smart Sleep System and your iOS Device. Refer to page 15.
8. Setup using the Health Mate App. Refer to page 15.
9. Load Wi-Fi settings from your iOS Device, using the Withings Health Mate App. Refer to
page 17.
10. Install Aura bedside device and sleep sensor using the Withings Health Mate App. Refer
to page 19.
11. If you do not have already a Withings user account, create one using the Withings Health
Mate App. Refer to page 23.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 10
Set up the Aura Smart Sleep System in Your Room
(1)
(1)
(1)
(2)
Sleep Sensor
(1)
g - 01
The Sleep Sensor detects body movements, respiration, and heart rate. Correctly positioning
the sensor under the mattress allows for the most accurate measurements.
Keep sharp objects away from the sleep sensor (1) !
Place the Sleep Sensor underneath the mattress as follow::
g - 02
1. Completely unroll the Sleep Sensor, as in “g - 01”.
2. With the label (1A) facing up, place the Sleep Sensor
between the mattress and the box spring or bed
platform. It can also be placed between the mattress and
mattress topper or pad. The sensor should be placed
horizontally at chest level, as in “g - 02”.
3. When placing the Sleep Sensor, ensure that it is not
folded.
(1A)
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 03
EN - 11
Bedside Device
(2)
(2B) (2C)
(2A)
(2F)
(2E) (2D)
(2H)
(2G)
(2)
g - 04
(2).Bedside Device
(2C).iOS Device USB port (only)
(2E).Alarm Indicator
(2A).Power Jack
(2D).Clock Display, Volume
level Display
(2G).Touch Interface (Top)
This product is for indoor use only
1. Place the Bedside Device (2) on a table near the bed at
same height as you head when laying on the bed. Make
sure that the Bedside Device is approximately one meter
(about 39 inches) from your head.
1m
(2B).Sleep Sensor USB ports
(only)
(2F).Startup Indicator
(2H). Touch Interface (Side)
g - 05
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
(2)
g - 06
EN - 12
2. Connect the Sleep Sensor’s USB plug (1C) to the one of
(3A)
the USB ports (2B) on the Bedside Device.
Only use USB ports (2B) for plugging in the Sleep
Sensor. Do not use USB port (2C).
(1C)
g - 07
(2A)
(2B) (2C)
g - 08
3. Connect the AC power adapter (3) to the power jack (2A)
on the Bedside Device.
4. Select the correct plug adapter from the travel adapter
plug set: (3A) for European Union countries, (3B) for
the United Kingdom and (3C) for the United States of
America.
5. Follow the arrow in “g - 10” to connect the plug adapter
to the AC power adapter using the blue matching dots.
6. Push the lower side of the plug adapter down until a click
sound is heard.
7. Ensure that the plug adapter is properly seated into the
AC power adapter slot.
8. If the plug adapter is not properly seated, pull down
the release button to disengage the plug adapter, and
connect it again
9. Plug the AC power adapter to a power outlet.
10. The Aura will start up and the startup indicator will turn
ON, as in “g - 04” on page 12. The startup indicator
will turn off and the clock display will turn on when the
startup is complete.
(3B)
(3C)
(3)
g - 09
g - 10
g - 11
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 13
Health Mate App
Install the Health Mate App on your iOS Device
1. Type go.withings.com in your iOS Device’s web browser.
2. Tap “Download on App Store” as in “g - 12”.
3. Tap “FREE” as in “g - 13”.
g - 12
Launch the Health Mate App
Tap on the Withings Health Mate App icon
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 13
g - 14
EN - 14
Setup using the Health Mate App
Bluetooth pairing
Prerequisite:
• Withings Health Mate App has been installed on the iOS device. Refer to. Refer to “Install
the Health Mate App on your iOS Device” on page 14.
• The Bedside Device is plugged into power.
• The Sleep sensor has been placed correctly underneath your mattress and has been
plugged in to the Bedside Device, refer to “Set up the Aura Smart Sleep System in Your
Room” on page 11.
• Before Bluetooth pairing, it would be more appropriate to connect the iOS Device to the
personal Wi-Fi network.
1. Enable Bluetooth connection on your iOS Device: Settings>Bluetooth.
2. Type go.withings.com in your iOS Device’s web browser and tap “Start” as in “g - 12” on
page 14.
3. Scroll down to the Aura and tap the image as in “g - 15”.
4. The Health Mate App starts to search for Aura device in the Bluetooth range. An activity
indicator shows that the current task is in progress. This step can take up to 1 minute.
5. An alert will appear prompting you to select your device from the accessory list, select
Withings Aura as in “g - 18”.
g - 15
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 16
g - 17
EN - 15
6. If the Aura does not appear on the list after waiting for about one minute as in “g - 18”,
you will need to go to the Bluetooth Devices menu on your iOS device and select the
Withings Aura to pair manually. Then, return to the Health Mate App and return to step 3
above.
7. Tap “Next” to pair Aura Smart Sleep System to your iOS device as in “g - 20”.
g - 18 g - 19 g - 20
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 16
Quick Wi-Fi network conguration
Aura Smart Sleep System is able to load Wi-Fi settings (network name, password) stored on
your iOS Device using the Health Mate App and Bluetooth technology.
Prerequisite:
• Health Mate App already installed on the device. Refer to “Install the Health Mate App on
your iOS Device” on page 14
• A compatible Wi-Fi router. Refer to “Specications” on page 42
• The Aura Smart Sleep System paired with your iOS Device, refer to “Bluetooth pairing” on
page 15.
• iOS Device connected to tour personal home Wi-Fi network.
1. Tap “Quick setup”.
2. Once the personal Wi-Fi network is displayed, tap to
select “Quick setup”
3. An alert appears, tap “Allow” to share Wi-Fi settings with
the Health Mate App.
g - 21
g - 22
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 17
Manual Wi-Fi Network Conguration
Free Wi-Fi
For most users, the Quick Wi-Fi Conguration is the best choice. However, the Health Mate
App allows to manually select a Wi-Fi network. This function is especially helpful when
multiple personal Wi-Fi network are in the range. For example a home-ofce equipped with a
personal and professional network.
1. Tap “Setup another network”, as in “g - 21” on page 17
2. Select your desired Wi-Fi network to set up your device as in “g - 23”.
3. If your network doesn’t appear, swipe down from the top of the screen to refresh Wi-Fi
network list.
4. Select your preferred Wi-Fi network. If you have a hidden SSID, tap “Manual
conguration” and enter your SSID.
5. Enter the password and tap “OK”
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 23
g - 24
EN - 18
Conguring the Aura Bedside Device and Sleep Sensor in the
Health Mate App
Prerequisite:
• A Withings user account is required to install the Bedside Device and the Sleep Sensor.
If a user account is not registered in the Withings Health Mate App, the app will prompt you
to create one automatically. Refer to “Creating a new user using the Health Mate App” on
page 23.
During the conguration, the Withings Health Mate App will ensure that the Bedside Device
and the Sleep Sensor are upgraded to the last rmware version. This step might takes few
minutes.
g - 25 g - 26 g - 27
Congure Aura Sleep Sensor
During the conguration, the Aura calibrates the sleep sensor. This step may take up to
ten minutes. During the these 10 minutes the Sleep Sensor emits a low audible sound and
illuminates a LED.
Note : Do not sit on the bed while the LED is ON.
The LED switches off to indicate that you can now use the product.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 19
After the conguration:
• If a unique user is registered on a same iOS device, the rst name (set during the user
account creation) appears automatically on the installed device, “g - 28” and “g - 29”.
• If several users are registered on a same iOS device, the sensor must be assigned
manually “g - 30”. A tap on the screen, opens the list of registered users.
g - 28
g - 29
g - 30
A screen as “g - 31” indicates that the installation has been
carried out.
All installed devices are listed in the “My Devices” screen, by
going to. From the main menu => Devices.
g - 31
As described before, the Withings Health Mate App searches and nds Withings devices
automatically.
In the event that the install screen for the Bedside Device does not appear on your iOS
Device, the Withings Health Mate App allows to manually install it a device from the main
menu.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 20

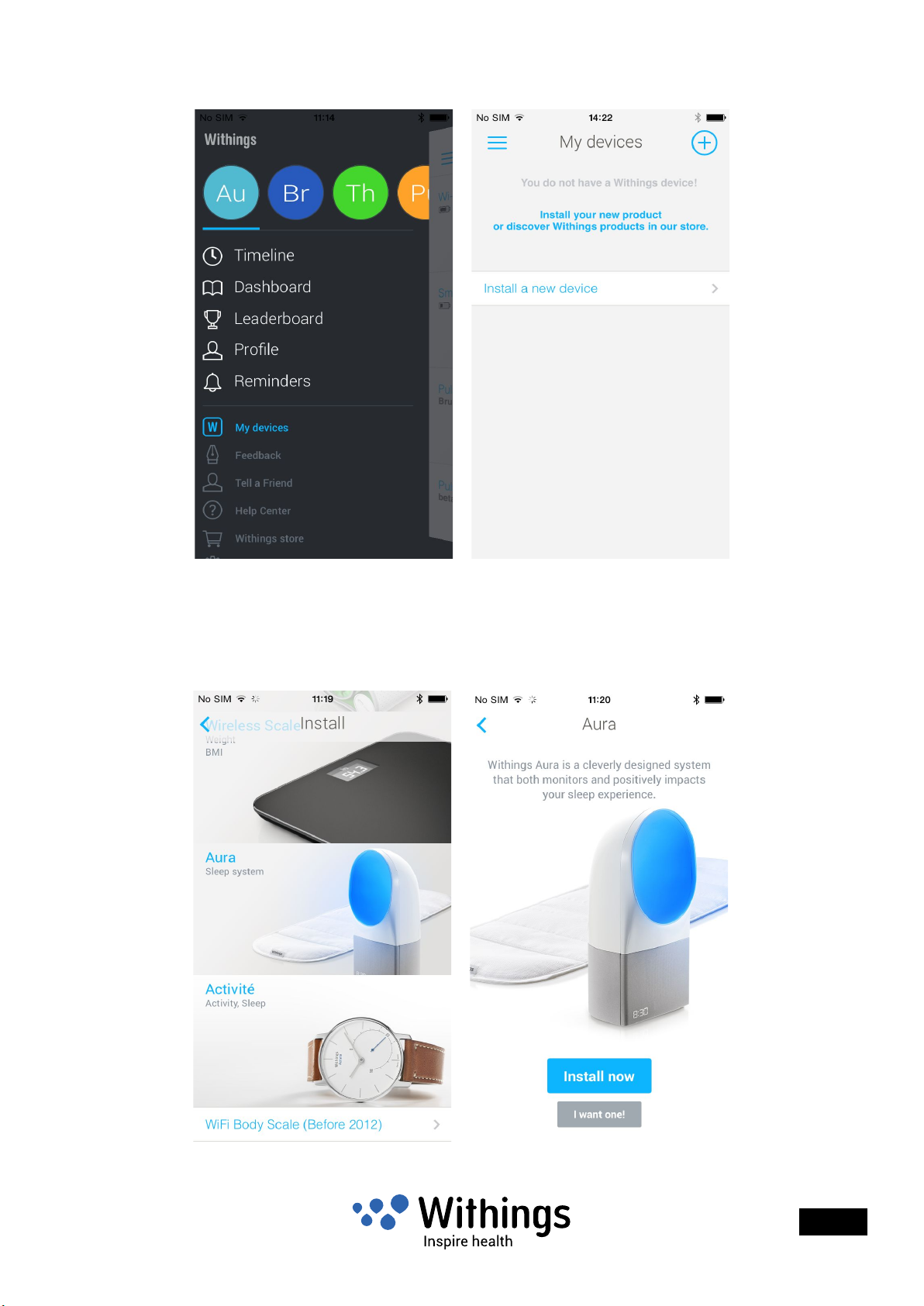

Go to My Devices. Tap the plus sign in the upper right. Tap “Install a new device”
g - 32 g - 33
Scroll down to the Aura and tap the image, then tap “Install Now”.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 34 g - 35
EN - 21
All installed devices are listed in the “My Devices” screen, by going to. From the main menu
=> Devices.
g - 37
g - 36
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 22
Creating a new user using the Health Mate App
An user can be created from the “Prole” tab in the main menu, “g - 38”. If an user is not
created, before installing the Aura, the Withings Health Mate App prompts you to create a
user automatically before the install process continues.
Follow the steps in the Withings Health Mate App and ll all required elds to create a user,
“g - 39”.
g - 38 g - 39 g - 40
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 23
Update the Aura Firmware
During the installation, the Health Mate App automatically checks that the rmware of the
Bedside Device and Sleep Sensor are up to date.
After the installation, the Aura will automatically download and install new updates as they
become available. There is no action required on your part.
Note : During an update, the startup indicator turns on, as in “g - 04” on page 12.
Display the rmware version
To see what version of the rmware your Bedside Device and Sleep Sensor are currently
running, go to My Devices in the main menu, and tap the device you wish to check..
g - 41 g - 42 g - 43
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 24
Main functions of the Aura Bedside Device
x2
The Aura Bedside Device can be controlled directly using the following touch gestures..
Switch the reading light on and off
Tap the top gently switch the reading light on and off
g - 44
Turn the alarm on or off
Long press the right side of the Bedside Device for 3 seconds
to turn the alarm on or off. You will see the Alarm Indicator
appear or disappear respectively as in “g - 04” on page
12.
3 sec.
g - 45
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 25
Start the sleep program
Long press the top of the Bedside Device for 2-3 seconds to
start the sleep program.
Adjust the volume
Swipe your hand up on the right side of the Bedside Device
to turn the volume up. Swipe down to turn the volume down.
During the volume adjustment, the Volume Level Display
(from 0 to 100) replaces the Clock Display.
3 sec.
g - 46
Snooze
Tap to the top of the Bedside Device once to snooze for 9
minutes.
g - 47
g - 48
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 26
Stop Any Program
Double-tap the top of the Bedside Device to stop any
program (sleep, wake-up, etc.)
Connect and charge an iOS Device using a USB port
The Aura is able to charge your iOS Device.
x2
g - 49
Plug your iOS Device into the USB port (2C) using its
charging cable.
Do not connect your iOS Device USB to the USB
ports (2B).
(2A)
(2B) (2C)
g - 50
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 27
Specic Functions Using the Health Mate App
Time settings
Your Aura’s time is set and synced automatically with your iOS device’s settings or Withings web
service.
In the event of a power failure in your home the Withings Aura will reboot once power has
returned. The Aura will then retrieve the current time via Wi-Fi. The Aura can also retrieve the
time from your iOS device if it is connected to the Bedside Device via USB or Bluetooth. Your
set alarm time should not be lost as a result of a power failure.
Wake-Up Program (Alarm) and Smart Wake-Up Time Settings
The Aura will wake you by bringing you to your light sleep phase, using the selected light
and sound program.
Withings Aura offers a Smart Wake-Up function to make sure you emerge from sleep during
a light sleep stage. The light sleep stage is indeed proven to be the optimal phase during
which to be awaken in order to start the day feeling revivied. To achieve this, the Smart
Wake-Up function leverages a progressive light and sound program, to gently bring you out
from deeper sleep stages to a light sleep stage in order to be awaken.
Before setting the wake up time, you must complete the initial setup. For more information on
setting up your Aura, refer to “Overview of the Aura Smart Sleep System Setup” on page 10.
Prerequisites:
• The Aura is set up and connected to your personal home Wi-Fi network,
• Your iOS device is connected to your personal home Wi-Fi network or its Bluetooth
connection is switched on.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 28
To set the Wake-Up Program (alarm) and Smart Wake-Up time:
1. Launch the Health Mate App.
2. Tap on the “Timeline” in the Health Mate App main menu.
3. Swipe the widget (higher area of the Timeline) to go to the “Set your alarm” screen.
g - 51
g - 52
4. Tap on “Set your alarm” and switch the alarm from OFF to ON.
g - 53 g - 54
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 55
EN - 29
5. Tap and drag the displayed time on the screen up or down to set the alarm time.
Note : The alarm is automatically activated by dragging the displayed time.
g - 56
g - 57
g - 58
Note : The display of the alarm time is grayed out if the Bedside Device is out of range.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 59 g - 60
EN - 30
6. After setting the alarm time, tap and drag the Smart Wake-Up Time Picker on the screen
up or down to set the pre-wake-up duration. You can set the Smart Wake-Up time
between 1 to 20 minutes.
g - 61 g - 62
Note : If you are left handed, it is possible to move the Time Picker to the left side of the
screen.
Tap and drag the Time Picker from the right to the left side of the screen.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 63 g - 64
EN - 31
Select and setup the wake-up program
• To access the list of wake-up programs, press on the currently displayed program as in
“g - 65”.
• To play a preview of the wake-up program, press on the corresponding play icon on the
right side of the screen as in “g - 66”.
• To stop the preview of the wake-up program, press on the corresponding stop icon on
the right side of the screen as in “g - 67”.
• Tapping the back arrow < in the upper left hand corner of the screen will conrm your
choices.
g - 65 g - 66 g - 67
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 32
• To adjust the wake-up program sound volume, move the volume slider as in “g - 68”.
• To adjust the wake-up program light intensity, move the brightness slider as in “g - 69”.
• To change the program, select a program from the list. A progress view indicates the
loading progress as in “g - 70”.
g - 68 g - 69 g - 70
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 33
Start and stop the sleep program
• To start the sleep program, press “SLEEP” as in “g - 71”.
• To stop the sleep program, press “Stop” as in “g - 72”.
g - 71 g - 72
• To adjust the sleep program sound volume, move the volume slider as in “g - 73”.
• To adjust the sleep program light intensity, move the brightness slider as in “g - 74”.
g - 73 g - 74
From this screen, you can also:
• Set the alarm time as in “g - 75”.
• Set the pre-wake-up duration as in “g - 76”.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 75 g - 76
EN - 34
Select a sleep program
• To access the list of sleep programs, press on the currently displayed program as in “g
- 77”.
• To change the program, select a program from the list. A progress view indicates the
loading progress as in “g - 78”.
g - 77 g - 78 g - 79
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 35
Start and select a nap program
• To start the nap program, press “NAP” as in.”g - 80”.
• To stop the nap program, press “Stop” as in “g - 81”.
• To access the list of nap programs, press on the currently displayed program as in “g -
82”.
• To change the program, select a program from the list. A progress view indicates the
loading progress as in “g - 84”.
• To adjust the nap program sound volume, move the volume slider as in “g - 85”.
• To adjust the nap program light intensity, move the brightness slider as in “g - 86”.
• Tapping the back arrow < in the upper left hand corner of the screen will conrm your
choices.
g - 80 g - 81 g - 82
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
g - 85
g - 83 g - 84
g - 86
EN - 36
Sleep Tracking
For more information about the Sleep Tracking, refer to “Sleep tracking” on page 9.
The sleep tracking requires a complete setup of Aura Smart Sleep System. Main steps are
listed in “Overview of the Aura Smart Sleep System Setup” on page 10.
Every morning, the system correlates data and build a telling
image of your night. A notication appears on the main
menu of the Withings Health Mate App. Tap on “Timeline” to
display the sleep activity.
g - 87
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 37
Display of sleep stages
In the “Timeline”, separate daily and weekly sleep tracking are displayed. Sleep stages are
highlighted with different colors:
• REM
• LIGHT
• DEEP
• AWAKE
g - 88 g - 89 g - 90
About sleep stages
During sleep, the body and mind go through different sleep stages in order to maximize
both mental and physical recovery. In phases of deep sleep, the body repairs muscles and
tissues, boosts the immune system and stimulates physical growth and development. REM
(rapid eye movement) sleep is viewed by sleep experts to be an essential phase to fortify
memories, to boost mood, and to consolidate information received during the day. Light
sleep represents a phase of transition when falling asleep and between deep sleep and
REM sleep.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 38
Dissociate a Withings Device
Dissociate a device removes it from your account. You may
want to do this if you will be giving the Aura to someone else
after setting it up and using it yourself.
1. To dissociate a Withings device, select “My Devices” in
the Health Mate App’s main menu.
2. Choose the device you want to dissociate.
3. Select “Remove from my account” or “Remove from all
other accounts”.
g - 91
g - 92 g - 93 g - 94
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 39
Access the Tutorial using the Health Mate App
In the Health Mate App, 7 steps video tutorial shows the main functions of the Aura.
To access this tutorial, go to the Health Mate App’s main menu. From here select ‘My Devices.’
Select the ‘Aura Bedside Device’ and then select ‘Walkthrough.’
g - 95
g - 96
g - 97
g - 98 g - 99 g - 100
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 40
Care and Cleaning Instruction
The sleep sensor is equipped with a washable cover.
Carefully remove the sensor assembly from the cloth cover.
The cloth cover can be washed in a washing machine. Washing temperature must not
exceed 30°C or 86°F.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 41
Specications
Bedside Device
• Friendly and elegant design to t diverse room styles
• Touch interface to control light/sound levels and key functions
• High-power multi-color LED technology
• High-quality audio speaker
• Paint-free white casing and fabric audio speaker cover
• Dimensions: 288 x 128 x 135 mm (11.3 x 5 x 5.3 in.)
Sleep Sensor
• To be placed under the mattress at the chest level
• Washable cloth cover for perfect t in a bedding environment
• 4 meter (13.1 ft) USB cable with fabric nish
• Monitors sleep of one person (also works in a bed with two persons)
Display
• Smart time display (smoothly disappears during sleep time)
• Intensity adapts to user settings and ambient light levels
Connectivity
• Wi-Fi 802.11 b/g/n (2,4 Ghz only)
• Bluetooth / Bluetooth Low Energy (Bluetooth Smart Ready)
• Three USB ports: two ports for connecting up to two Withings Aura Sleep Sensor, one
port for iOS charger function
Sensors
• Sleep monitoring sensor
• Room light level measurement
Compatible iOS Devices
• iPhone 4s/5/5c/5s
• iPod Touch 5th Gen
Compatible iOS
• iOS 7.0 and above
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 42
Document Release Overview
Release date Modications
July 20th 2014 v1.0 First release
September 20th 2014 V1.1 Update:”Product Overview” on page 8.
Update: “Wake-Up Program (Alarm) and Smart Wake-Up
Time Settings” on page 28.
New subsection: “Select and setup the wake-up program”
on page 32.
New subsection: “Start and stop the sleep program” on
page 34.
New subsection: “Select a sleep program” on page 35.
New subsection: “Start and select a nap program” on page
36.
New subsection: “Display of sleep stages” on page 38
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 43
Warranty
Withings Inc. of 16192 Coastal Highway, Lewes, DE 19958 (“Withings”) warrants the
Withings-branded Aura hardware product and accessories contained in the original
packaging (“Withings Product”) against defects in materials and workmanship when used
normally in accordance with Withings’ published guidelines for a period of ONE (1) YEAR
from the date of original retail purchase by the end-user purchaser («Warranty Period»).
Withings’ published guidelines include but are not limited to information contained in
technical specications, safety instructions and quick start guide. Withings does not
warrant that the operation of the Withings Product will be uninterrupted or error-free.
Withings is not responsible for damage arising from failure to follow instructions relating to
the Withings Product’s use.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 44
Regulatory Statements
Federal Communications Commission (FCC) Statements
These instructions apply to equipment models FCC ID: XNAWSD01 and FCC ID: XNAWSM01
Federal Communications Commission (FCC) Statement
15.21 - You are cautioned that changes or modications not expressly approved by the part
responsible for compliance could void the user’s authority to operate the equipment.
CAUTION: These equipments may not be modied, altered, or changed in any way without
signed written permission from Withings Inc. Unauthorized modication may void the
equipments authorization from the FCC and will void the Withings Inc warranty.
15.105(b) - The equipments have been tested and found to comply with the limits for a
Class B digital device, pursuant to part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
These equipments generate, use and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If these equipments do cause harmful interference to radio
or television reception, which can be determined by turning the equipments off and on,
the user is encouraged to try to correct the interference by one or more of the following
measures: • Reorient or relocate the receiving antenna. / • Increase the separation between
the equipments and receiver. / • Connect the equipments into an outlet on a circuit different
from that to which the receiver is connected. / • Consult the dealer or an experienced radio/
TV technician for help.
The device Withings Aura Smart Sleep Sensor (FCC ID XNAWSM01) complies with Part 15
of the FCC Rules. Operation is subject to the following two conditions: 1) this device may
not cause harmful interference and 2) this device must accept any interference received,
including interference that may cause undesired operation of the device.
The device Withings Aura Bedside Device (Smart Sleep Dock - FCC ID XNAWSD01) complies
with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1) this
device may not cause harmful interference and 2) this device must accept any interference
received, including interference that may cause undesired operation of the device.
FCC RF Radiation Exposure Statement: These equipments comply with FCC radiation
exposure limits set forth for an uncontrolled environment. End users must follow the
specic operating instructions for satisfying RF exposure compliance. This transmitter
must not be co-located or operating in conjunction with any other antenna or transmitter.
The device model FCC ID XNAWSD01 must be installed to provide a separation distance of
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 45
at least 20cm from all persons.
These equipments comply with the R&TTE Directive.
A copy of the EU Declaration of Conformity is available online at www.withings.com/
compliance
• These appliance scan be used by children aged from 8 years and above and persons with
reduced physical, sensory or mental capabilities or lack of experience and knowledge if they
have been given supervision or instruction concerning use of the appliances in a safe way
and understand the hazards involved
• Children shall not play with the appliances
• Cleaning and user maintenance shall not be made by children without supervision
These devices comply with Industry Canada licence-exempt RSS standard(s). Operation
is subject to the following two conditions: (1) these devices may not cause interference,
and (2) these devices must accept any interference, including interference that may
cause undesired operation of the devices. Under Industry Canada regulations, this radio
transmitter may only operate using an antenna of a type and maximum (or lesser) gain
approved for the transmitter by Industry Canada. To reduce potential radio interference
to other users, the antenna type and its gain should be so chosen that the equivalent
isotropically radiated power (e.i.r.p.) is not more than that necessary for successful
communication. This device complies with Industry Canada RF radiation exposure limits
set forth for general population (uncontrolled exposure).
The device model FCC ID XNAWSD01 must be installed to provide a separation distance of
at least 20cm from all persons and must not be collocated or operating in conjunction with
any other antenna or transmitter.
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
EN - 46
Withings Aura Smart Sleep System
v1.1 | September 20th, 2014
©2014 Withings. All rights reserved.
withings.com/aura
Loading...
