HBB0D2

Job__________ Item # __________

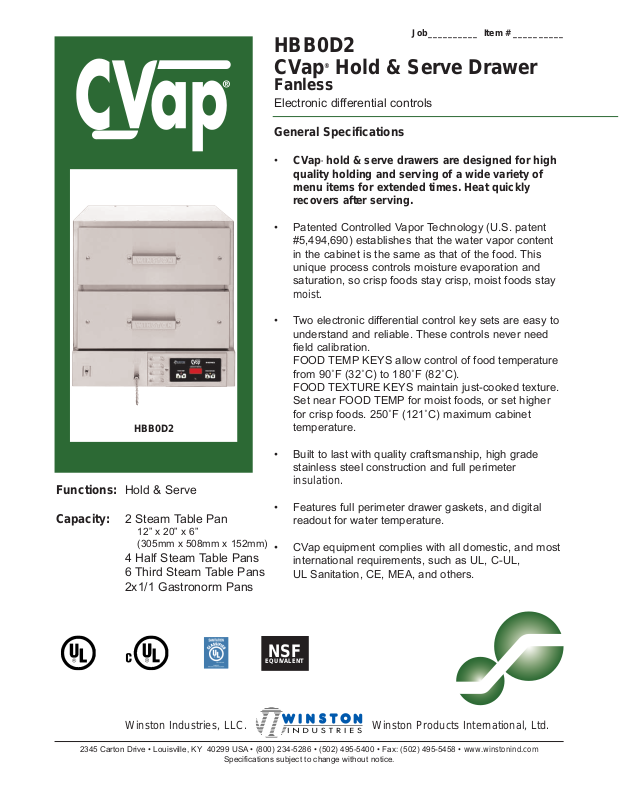

HBB0D2
CVap® Hold & Serve Drawer

Fanless

Electronic differential controls

General Specifications

• CVap® hold & serve drawers are designed for high
quality holding and serving of a wide variety of
menu items for extended times. Heat quickly
recovers after serving.

• Patented Controlled Vapor Technology (U.S. patent
#5,494,690) establishes that the water vapor content
in the cabinet is the same as that of the food. This

unique process controls moisture evaporation and

saturation, so crisp foods stay crisp, moist foods stay

moist.

• Two electronic differential control key sets are easy to
understand and reliable. These controls never need

field calibration.

FOOD TEMP KEYS allow control of food temperature

from 90˚F (32˚C) to 180˚F (82˚C).

FOOD TEXTURE KEYS maintain just-cooked texture.
Set near FOOD TEMP for moist foods, or set higher

for crisp foods. 250˚F (121˚C) maximum cabinet

temperature.

Functions: Hold & Serve
Capacity: 2 Steam Table Pan

12” x 20” x 6”
(305mm x 508mm x 152mm)

4 Half Steam Table Pans
6 Third Steam Table Pans
2x1/1 Gastronorm Pans

Winston Industries, LLC. Winston Products International, Ltd.

• Built to last with quality craftsmanship, high grade

stainless steel construction and full perimeter

insulation.

• Features full perimeter drawer gaskets, and digital
readout for water temperature.

• CVap equipment complies with all domestic, and most

international requirements, such as UL, C-UL,

UL Sanitation, CE, MEA, and others.

NSF

EQUIVALENT

2345 Carton Drive • Louisville, KY 40299 USA • [phone] • [phone] • Fax: [phone] • www.winstonind.com

Specifications subject to change without notice.

3.2”

(81mm)

HBB0D2
CVap® Hold & Serve Drawer

Fanless

Buy Winston Service Parts

Factory direct at

www.winstonind.com

Electronic differential controls

24.5”
(622)

30.5”
(775)

47.3”

H=25.5”
(648)

21.4”

Side Plan Front

2.6”

(66mm)

(1201)

Drawings not to scale

Online!

Capacity

Size

in (mm)

2 STP
4 half STP
6 third STP

H= 25.5” (648)
W= 24.5” (622)
D= 30.5” (775)

2 x 1/1 GP

Accepts up to
6” (152mm)
deep pans.

Short Form Specs

Shall be Winston CVap hold &
serve drawer, model HBB0D2 with
electronic differential controls.
Utilizes Controlled Vapor
Technology (U.S. Patent
#5,494,690) as a method and
apparatus for holding hot foods,
consisting of an air heater and
water heater to establish ideal
water vapor content that is in
relation with the moistness
characteristics for the food.

Construction

Materials: Interior to be stainless

steel to provide ease of cleaning
and long service life with
reasonable use and care.
Drawers: To accept 2 full steam
table pans (6” (152mm) deep), 4
half steam table pans, 6 third
steam table pans, or 2 1x1
gastronorm pans. Easy to remove
and replace.

Insulation: Full-perimeter.
Controller: Electronic differential

control allows precise control of
food temperature and food
texture.

Volts

Hertz PH Amps Watts Circuit

120

230*

Evaporator: Holds approximately

0.8 gallons (3L) of water.
Water fill: Operated manually.
Low mineral potable water is
recommended, otherwise use
deionizer/demineralizer to
minimize corrosive damage.
Ventilation: Allow space around
appliance for good air circulation.
Refer to use & care manual for
specific installation instructions.
Generally this appliance does not
need to be installed under a
mechanical ventilation system
(vent hood). Check local health
and fire codes for requirements
specific to your location.
Electrical: Supplied with 7’
(213cm) (minimum) power cord
and plug.
Load limit: 20 lbs. (9.07 kg) per

drawer.

60501112.0

6.3

STP=Steam Table Pan (12”x20”x6”) • GP=Gastronorm Pan

1440

1440

Warranty

Limited 1 year warranty (excluding
gaskets, lamps, hoses, power
cords, glass panels, and
evaporators). Warranty disclaimer
for failure to clean. Ask for
complete warranty disclosure.

Amps

Ship Wt

lb (kg)

Ship Cube

ft (M)

Class NEMA

Plug Type

US/Canada

US 15

115 (52)

11.7 (0.33)

100

CAN 20

5-15P

United States

International

N/A

w/skid

140(64)

w/skid

call factory

N/A

5-20P

Canada

Model Description

HBB0D2 CVap hold/serve, 2 drawers, wide

Customer should specify the following when ordering:

1. Leg or foot preference (no additional cost).

2. Any added options or accessories.

* Inquire about additional international voltages available.

Options

Leg or foot Choice of 1/2” (13mm) feet or 4” (102mm) legs
Extended Warranty Adds parts and labor warranty coverage for one

additional year.

Accessories

PS2192/12 ScaleKleen™ packets (12 pack)
PS2259 Water fill trough
PS2212 Perforated tray (for HBB models)

Options and accessories available for an additional cost.
