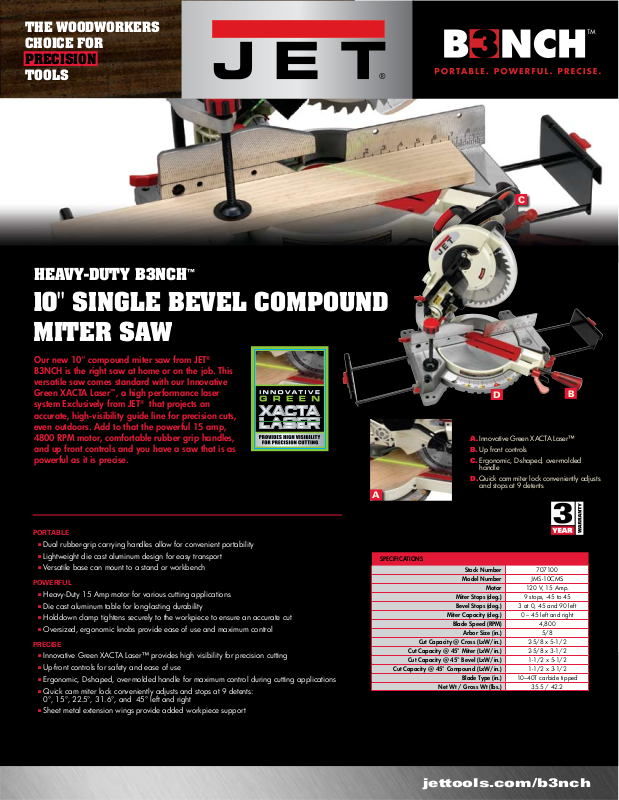

10" SINGLE BEVEL COMPOUND MITER SAW

Our new 10" compound miter saw from JET®

B3NCH is the right saw at home or on the job. This versatile saw comes standard with our Innovative Green XACTA Laser

system Exclusively from JET accurate, high-visibility guide line for precision cuts, even outdoors. Add to that the powerful 15 amp, 4800 RPM motor, comfortable rubber grip handles, and up front controls and you have a saw that is as powerful as it is precise.

Large aluminum extruded fencea.

Features

Sheet metal outfeed table with b. height adjustment

PORTABLE

■

•

Dual rubber-grip carrying handles allow for convenient portability

Features

■

•

Lightweight die cast aluminum design for easy transport

■

•

Versatile base can mount to a stand or workbench

PORTABLE

■

•

Combination benchtop jointer & planer provides a 2 in 1 machine to maximize workspace

POWERFUL

■

•

Compact benchtop design ts conveniently in smallshop environments

Heavy-Duty 15 Amp motor for various cutting applications

■

•

Integrated cord wrap makes transporting easy and ensures workshop safety

Die cast aluminum table for long-lasting durability

■

•

Holddown clamp tightens securely to the workpiece to ensure an accurate cut

■

•

POWERFUL

Oversized, ergonomic knobs provide ease of use and maximum control

■

•

Heavy-Duty 13 Amp motor for various cutting applications

PRECISE

■

•

Two high speed steel knives for precise, smooth cuts

■

•

Innovative Green XACTA Laser™ provides high visibility for precision cutting

■

•

Oversized, ergonomic knobs provide ease of use andmaximum control

■

•

Up-front controls for safety and ease of use

■

•

Ergonomic, D-shaped, over-molded handle for maximum control during cutting applications

PRECISE

■

•

Quick cam miter lock conveniently adjusts and stops at 9 detents:

■

•

0°, 15°, 22.5°, 31.6°, and 45° left and right

Large aluminum extruded fence makes joining stable and precise

■

•

Sheet metal extension wings provide added workpiece support

Sheet metal outfeed table with height adjustment supports long workpieces and helps

reduce snipe

•

Easy-slide fence extends further to support the workpiece

■

•

Planing and joining tables lock to ensure precision cutting

■

•

Precision machined table top ensures a smooth, straight cut

™

, a high performance laser

that projects an

C FB

Planing and joining tables lockc.

Precision ground table topd.

Oversized, ergonomic knobse.

Integrated cord wrapf.

SPECIFICATIONS

Innovative Green XACTA Laser™a. Up front controlsb. Ergonomic, D-shaped, over-molded c.

handle

Quick cam miter lock conveniently adjusts d.

and stops at 9 detents

Stock Number 707400

Stock Number 707100

Model Number JJP-8BT

Model Number JMS-10CMS

Motor 120V, 60Hz, 13Amp

Motor 120 V, 15 Amp.

Knife Size (in.) 8.25 x .65 x .06

Miter Stops (deg.) 9 stops, -45 to 45

Number of Knives (RPM) 2

Bevel Stops (deg.) 3 at 0, 45 and 90 left

Cutting Speed 9,000

Miter Capacity (deg.) 0 – 45 left and right

Blade Speed (RPM) 4,800

Cuts Per Minute CPM 18,000

Arbor Size (in.) 5/8

Cut Capacity @ Cross (LxW/in.) 2-5/8 x 5-1/2 Cut Capacity @ 45° Miter (LxW/in.) 2-5/8 x 3-1/2 Cut Capacity @ 45° Bevel (LxW/in.) 1-1/2 x 5-1/2

Cut Capacity @ 45° Compound (LxW/in.) 1-1/2 x 3-1/2

Planer Table with Out feed (LxW/in.) 17-3/4 x 8-1/2

Feed Speed FPM 19.5

Max. Cutting Width (in.) 8

Jointer Max. Cut Depth (in.) 1/8

Planer Max. Cut Depth (in.) .08

Cutting Thickness (in.) .20 - 4.92

Jointer Table Size (LxW/in.) 29 x 8-1/4

Planer Table Size (LxW/in.) 10-5/8 x 8-1/2

Gross Wt. / Net Wt. (lbs.) 68.3 / 58.4

Blade Type (in.) 10 –40T carbide tipped

Net Wt / Gross Wt (lbs.) 35.5 / 42.2

Fence Size (LxW/in.) 4-1/8 x 21

Fence Tilt (deg.) 0-45
