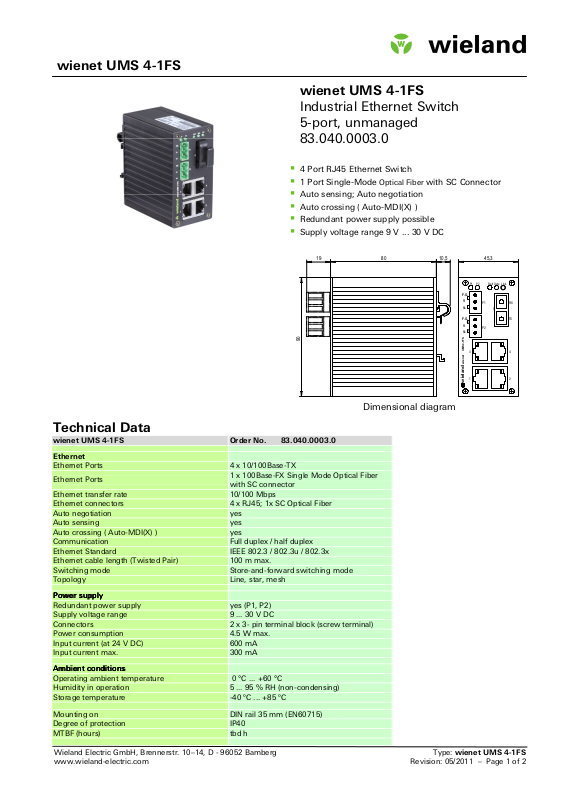

wienet UMS 4-1FS

wienet UMS 4-1FS

Industrial Ethernet Switch
5-port, unmanaged

83.040.0003.0



4 Port RJ45 Ethernet Switch



1 Port Single-Mode



Auto sensing; Auto negotiation



Auto crossing ( Auto-MDI(X) )



Redundant power supply possible



Supply voltage range 9 V ... 30 V DC

19

90

Optical Fiber

with SC Connector

45,380 10,5

P1 P2 Fault

Data Link

F.G.

V-

P1

V+

F.G.

V-

V+

5

P2

UMS 4-1FS

3

wienet

RX

TX

4

1

wieland

w

w

w

w

2

Dimensional diagram

Technical Data

wienet UMS 4-1FS Order No. 83.040.0003.0

Ethernet

Ethernet Ports 4 x 10/100Base-TX

Ethernet Ports

Ethernet transfer rate 10/100 Mbps
Ethernet connectors 4 x RJ45; 1x SC Optical Fiber
Auto negotiation yes
Auto sensing yes
Auto crossing ( Auto-MDI(X) ) yes
Communication Full duplex / half duplex
Ethernet Standard IEEE 802.3 / 802.3u / 802.3x
Ethernet cable length (Twisted Pair) 100 m max.
Switching mode Store-and-forward switching mode
Topology Line, star, mesh

Power supply

Power supply

Power supplyPower supply
Redundant power supply yes (P1, P2)
Supply voltage range 9 ... 30 V DC
Connectors 2 x 3- pin terminal block (screw terminal)
Power consumption 4.5 W max.
Input current (at 24 V DC) 600 mA
Input current max. 300 mA

Ambient conditions

Ambient conditions

Ambient conditionsAmbient conditions
Operating ambient temperature 0 °C ... +60 °C
Humidity in operation 5 ... 95 % RH (non-condensing)
Storage temperature -40 ºC ... +85 ºC

Mounting on DIN rail 35 mm (EN60715)
Degree of protection IP40
MTBF (hours) tbd h

Wieland Electric GmbH, Brennerstr. 10–14, D - 96052 Bamberg Type: wienet UMS 4-1FS
www.wieland-electric.com Revision: 05/2011 – Page 1 of 2

1 x 100Base-FX Single Mode Optical Fiber
with SC connector

wienet UMS 4-1FS

Technical Data

wienet UMS 4-1FS Order No. 83.040.0003.0

Optical Fiber

Fiber type Single-Mode
Connection type SC connector
Typ. distance 15 km (max.)
Cable dimensions core / cladding 9 / 125 µm
Wave length 1263 (Min) ... 1360 (Max) nm
TX Power max / min -8 dBm / -15 dBm
RX sensibility max. -32 dBm

Dimensions

B x H x T (see dimensional diagram) 45.3 mm x 90 mm x 80 mm

Weight

Housing material

Shock und Vibration

Shock IEC60068-2-27
Vibration IEC60068-2-6
Free Fall IEC60068-2-32

Connectors cross section

min. solid / stranded 0.2 mm² (AWG28)
max. solid / stranded 1.5 mm² (AWG12)
Strip length 7 mm
Torque 0.4 Nm max.

Approvals und Standards

EMV

Safety cULus (UL 60950-1; CSA C22.2 No. 60950-1)

Display elements (LED's)

Name LED color LED- status Description

P1, P2 green

Fault green

Data green

Link green

RJ45

= LED off, = LED on, = LED flashes

Terminal

Terminal connections

TerminalTerminal
1, ..., 4 (Ethernet / Fast Ethernet ports) 4 x Ethernet (RJ45)
5 (Fiber Ethernet Port) RX; TX Optical fiber, SC connector
P1, P2
(Redundant power supply)

connections

connections connections

green

yellow

ca. 255 g

Aluminum

Emission: EN55022, EN61000-3-2, EN61000­3-3
Immunity: EN55024, EN61000-4-2, EN6000­4-3, EN61000-4-4, EN61000-4-5, EN61000-4­6, EN6000-4-8, EN61000-4-11

power input 1/2 disconnected or unsupplied
power input 1/2 o.k.
Both P1 and P2 are supplied or both P1 and
P2 are not supplied
P1 is missing or P2 is missing
no data transfer
data transfer
no medium available
medium is available
link broken or no cable plugged
data transfer
10 M bit rate active
100 M bit rate active

P1/V+ Supply voltage P1, positive terminal
P1/V- Supply voltage P1, negative term.

P2/V+ Supply voltage P2, positive terminal
P2/V- Supply voltage P2, negative term.
F.G. Ground
