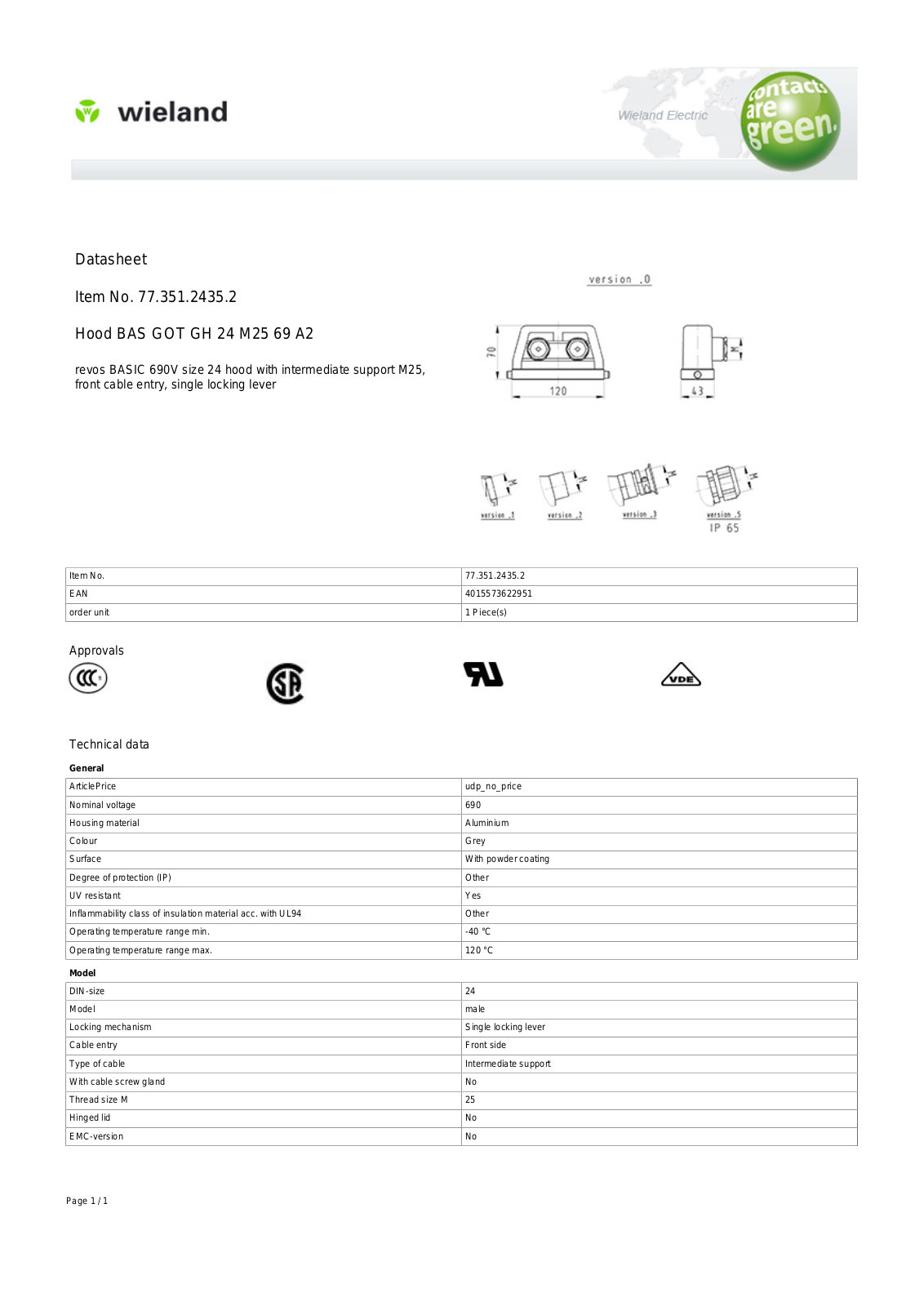

Datasheet
Item No. 77.351.2435.2
Hood BAS GOT GH 24 M25 69 A2
revos BASIC 690V size 24 hood with intermediate support M25, front cable entry, single locking lever
Item No. |
77.351.2435.2 |
|
|
EAN |
4015573622951 |
|
|
order unit |
1 Piece(s) |
|
|
Approvals
Technical data
General
ArticlePrice |
udp_no_price |
|
|
Nominal voltage |
690 |
|
|
Housing material |
Aluminium |
|
|
Colour |
Grey |
|
|
Surface |
With powder coating |
|
|
Degree of protection (IP) |
Other |
|
|
UV resistant |
Yes |
|
|
Inflammability class of insulation material acc. with UL94 |
Other |
|
|
Operating temperature range min. |
-40 °C |
|
|
Operating temperature range max. |
120 °C |
|
|
Model |
|
|
|
DIN-size |
24 |
|
|
Model |
male |
|
|
Locking mechanism |
Single locking lever |
|
|
Cable entry |
Front side |
|
|
Type of cable |
Intermediate support |
|
|
With cable screw gland |
No |
|
|
Thread size M |
25 |
|
|
Hinged lid |
No |
|
|
EMC-version |
No |
|
|
Page 1 / 1
