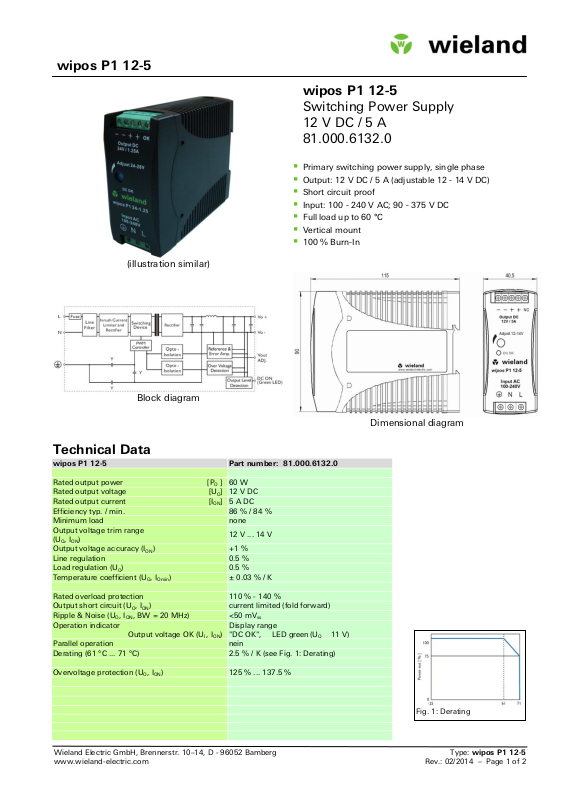

Wieland 81.000.6132.0 Data Sheet
wipos P1 12-5
(illustration similar)
wipos P1 12-5
Switching Power Supply
12 V DC / 5 A
81.000.6132.0
Primary switching power supply, single phase
Output: 12 V DC / 5 A (adjustable 12 - 14 V DC)
Short circuit proof
Input: 100 - 240 V AC; 90 - 375 V DC
Full load up to 60 °C
Vertical mount
100 % Burn-In
Block diagram
Dimensional diagram
Technical Data
wipos P1 12-5 Part number: 81.000.6132.0
Rated output power [PO ] 60 W
Rated output voltage [UO] 12 V DC
Rated output current [ION] 5 A DC
Efficiency typ. / min. 86 % / 84 %
Minimum load none
Output voltage trim range
(UO, ION)
Output voltage accuracy (ION) +1 %
Line regulation 0.5 %
Load regulation (UO) 0.5 %
Temperature coefficient (UO, I
Rated overload protection 110 % - 140 %
Output short circuit (UO, ION) current limited (fold forward)
Ripple & Noise (UO, ION, BW = 20 MHz) <50 mVss
Operation indicator
Output voltage OK (UI , ION)
Parallel operation nein
Derating (61 °C ... 71 °C) 2.5 % / K (see Fig. 1: Derating)
Overvoltage protection (UO, ION) 125 % ... 137.5 %
) ± 0.03 % / K
Omin
12 V ... 14 V
Display range
"DC OK", LED green (UO 11 V)
Fig. 1: Derating
Wieland Electric GmbH, Brennerstr. 10–14, D - 96052 Bamberg Type: wipos P1 12-5
www.wieland-electric.com Rev.: 02/2014 – Page 1 of 2
wipos P1 12-5
Technical Data
wipos P1 12-5 Part number: 81.000.6132.0
Rated input voltage AC [U
Line frequency AC 47 – 63 Hz
Power correction factor (PFC) not required
Rated input voltage DC [U
Rated input current 1.5 A
Inrush current 115 V AC / 230 V AC 20 A / 40 A max.
Input fuse T2 A / 250 V (intern)
Hold up time (at ION) U
U
Isolation voltage (Input/Output) 3000 V AC / 4242 V DC
Isolation resistance (Input/Output) 100 MOhm
Cooling / Ventilation free convection
Mounding conditions (free space) 25 mm free space on all sides recommended
Operating temperature range [TU] -40 °C ... +71 °C (UL: max. 50 °C)
Humidity in operation 20 – 95 % RH
Storage temperature [TU] -40 °C ... +85 °C
Mounting on DIN rail, 35 mm Hutschiene (EN60715)
Degree of protection IP 20
MTBF (Bellcore issue 6 @ 40 °C, GB) 504.000 h
Dimensions (W x H x D) 40.5 x 88.5 x 115 mm
Weight ca. 340 g
Housing material Polycarbonate (PC)
Connector cross section (min.) eindrähtig
feindrähtig
Connector cross section (max.) eindrähtig
feindrähtig
Strip length 4 ... 5 mm
Torque 0.6 Nm max.
Approvals
UL / cULus UL 508 Listed, UL60950-1 Recognized
TUV / Safety EN60950-1, EN61558-1, EN61558-2-17
CE EN55022 & EN61000-6-3, EN61000-3-2,
Terminal connections
- 2 x output voltage 12 V, negative pole
+ 2 x output voltage 12 V, positive pole
NC Not connected
L AC: Phase, DC: without polarity
N AC: Neutral, DC: without polarity
(PE)
I_AC
I_AC
] 100-240 V AC (85 ... 264 V AC)
IN_AC
] 90 – 375 V DC
IN_DC
= 115 V
= 230 V
> 20 ms
> 30 ms
for cooling / up to 50 °C no horizontal space
required
0.2 mm² (AWG26)
0.2 mm² (AWG26)
2.5 mm² (AWG12)
2.5 mm² (AWG12)
(follow EN60204) , IRAM
EN61000-3-3, EN55024 & EN61000-6-2,
EN61000-4-2, EN61000-4-3, EN61000-4-4,
EN61000-4-5, EN61000-4-6, EN61000-4-8,
EN61000-4-11, EN60204-1, EN61204-3
(internally connected)
(internally connected)
PE (Ground), always connect
Wieland Electric GmbH, Brennerstr. 10–14, D - 96052 Bamberg Type: wipos P1 12-5
www.wieland-electric.com Rev.: 02/2014 – Page 2 of 2
