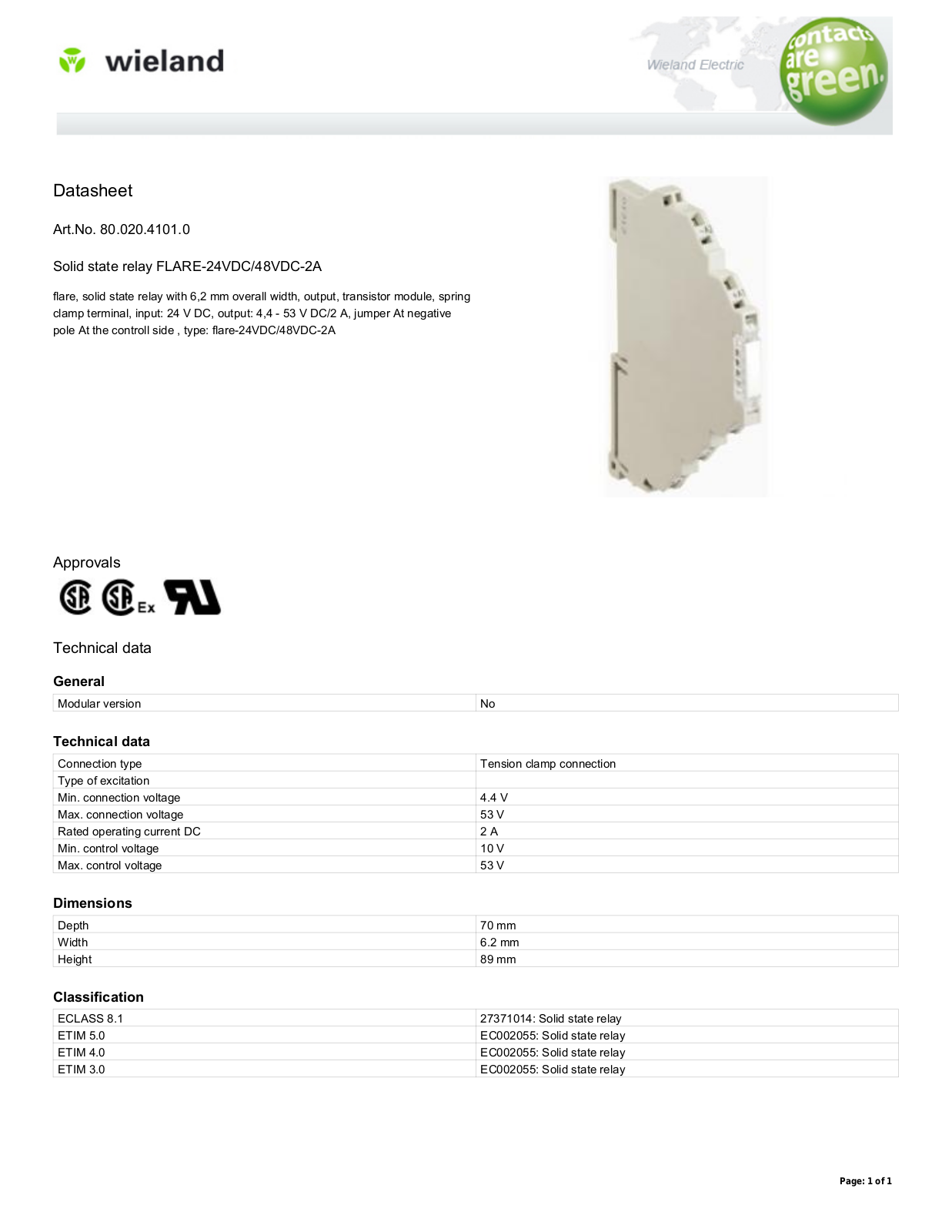

Wieland 80.020.4101.0 Data Sheet

Datasheet

Art.No. 80.020.4101.0

Solid state relay FLARE-24VDC/48VDC-2A

flare, solid state relay with 6,2 mm overall width, output, transistor module, spring
clamp terminal, input: 24 V DC, output: 4,4 - 53 V DC/2 A, jumper At negative
pole At the controll side , type: flare-24VDC/48VDC-2A

Approvals

Technical data

General

Modular version No

Technical data

Connection type Tension clamp connection
Type of excitation
Min. connection voltage 4.4 V
Max. connection voltage 53 V
Rated operating current DC 2 A
Min. control voltage 10 V
Max. control voltage 53 V

Dimensions

Depth 70 mm
Width 6.2 mm
Height 89 mm

Classification

ECLASS 8.1 27371014: Solid state relay
ETIM 5.0 EC002055: Solid state relay
ETIM 4.0 EC002055: Solid state relay
ETIM 3.0 EC002055: Solid state relay

Page: 1 of 1
