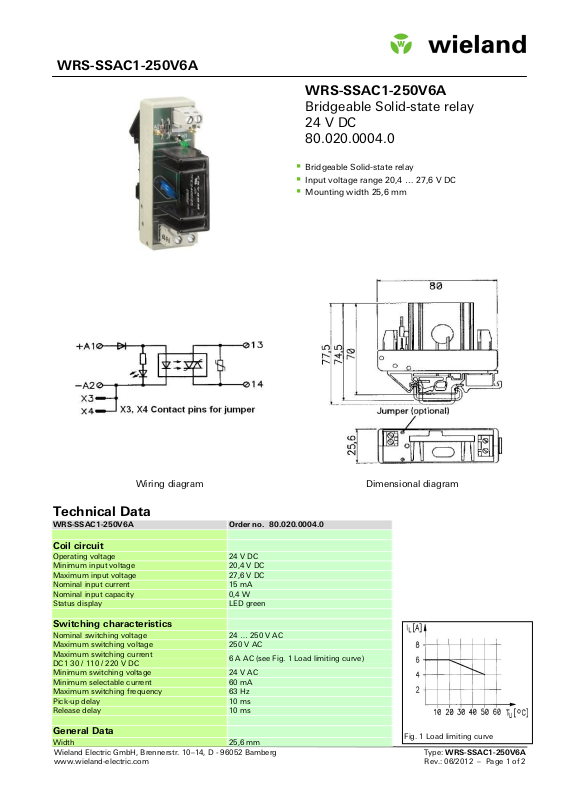

Wieland 80.020.0004.0 Data Sheet

WRS-SSAC1-250V6A

WRS-SSAC1-250V6A

Bridgeable Solid-state relay
24 V DC

80.020.0004.0



Bridgeable Solid-state relay



Input voltage range 20,4 … 27,6 V DC



Mounting width 25,6 mm

Wiring diagram

Dimensional diagram

Technical Data

WRS-SSAC1-250V6A Order no. 80.020.0004.0

Coil circuit

Operating voltage 24 V DC
Minimum input voltage 20,4 V DC
Maximum input voltage 27,6 V DC
Nominal input current 15 mA
Nominal input capacity 0,4 W
Status display LED green

Switching characteristics

Nominal switching voltage 24 … 250 V AC
Maximum switching voltage 250 V AC
Maximum switching current
DC1 30 / 110 / 220 V DC
Minimum switching voltage 24 V AC
Minimum selectable current 60 mA
Maximum switching frequency 63 Hz
Pick-up delay 10 ms
Release delay 10 ms

General Data

Width 25,6 mm

Wieland Electric GmbH, Brennerstr. 10–14, D - 96052 Bamberg Type: WRS-SSAC1-250V6A
www.wieland-electric.com Rev.: 06/2012 – Page 1 of 2

6 A AC (see Fig. 1 Load limiting curve)

Fig. 1 Load limiting curve

WRS-SSAC1-250V6A

Technical Data

WRS-SSAC1-250V6A Order no. 80.020.0004.0

Height 80 mm
Depth 70 mm
Isolation voltage of input/output 4 kV eff.
Ambient temperature -25 … +50° C (see Fig. 1 Load limiting curve)
Storage temperature -25 … +55° C

Mounting rail

Connection Data

Connection type Screw terminals
Wire range fine-stranded min 0,5 mm2
Wire range fine-stranded max 2,5 mm2
Wire range solid min 0,5 mm2

Wire range solid max 4 mm2
Torque 0,6 Nm
Connectable via pluggable jumper 20

Approvals

Approvals and Standards cULus, CSA

TS35 acc. EN 60715
TS32 acc. EN 60715
