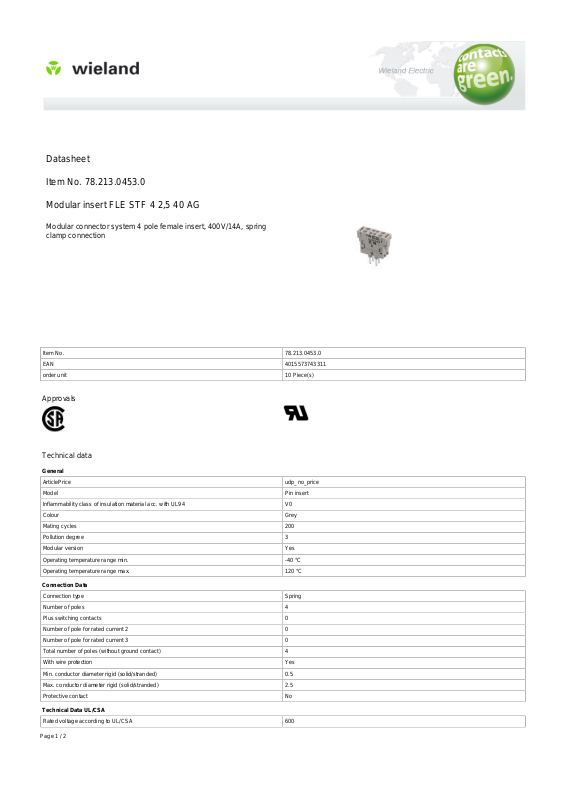

Wieland 78.213.0453.0 Data Sheet

Datasheet
Item No. 78.213.0453.0
Modular insert FLE STF 4 2,5 40 AG

Modular connector system 4 pole female insert, 400V/14A, spring
clamp connection

Item No. 78.213.0453.0
EAN 4015573743311
order unit 10 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Model Pin insert
Inflammability class of insulation material acc. with UL94 V0
Colour Grey
Mating cycles 200
Pollution degree 3
Modular version Yes
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Connection Data

Connection type Spring
Number of poles 4
Plus switching contacts 0
Number of pole for rated current 2 0
Number of pole for rated current 3 0
Total number of poles (without ground contact) 4
With wire protection Yes
Min. conductor diameter rigid (solid/stranded) 0.5
Max. conductor diameter rigid (solid/stranded) 2.5
Protective contact No

Technical Data UL/CSA

Rated voltage according to UL/CSA 600

Page 1 / 2

Rated current according UL 14
Rated current according CSA 14
Min. conductor cross section flexible wire 0.5
Max. conductor cross section flexible wire 2.5
Conductor cross section flexible AWG wire 26-14 AWG

Model

With housing No

Contacts

Contact material Copper alloy
Surface Silver-plated
Contact resistance 5 mOhm
Wire strip length 10 mm

Technical Data DIN EN 61984

Nominal voltage 400
Rated voltage face/ground 400
Nominal current 14
Rated impulse voltage 6 kV

Drawings

Page 2 / 2
