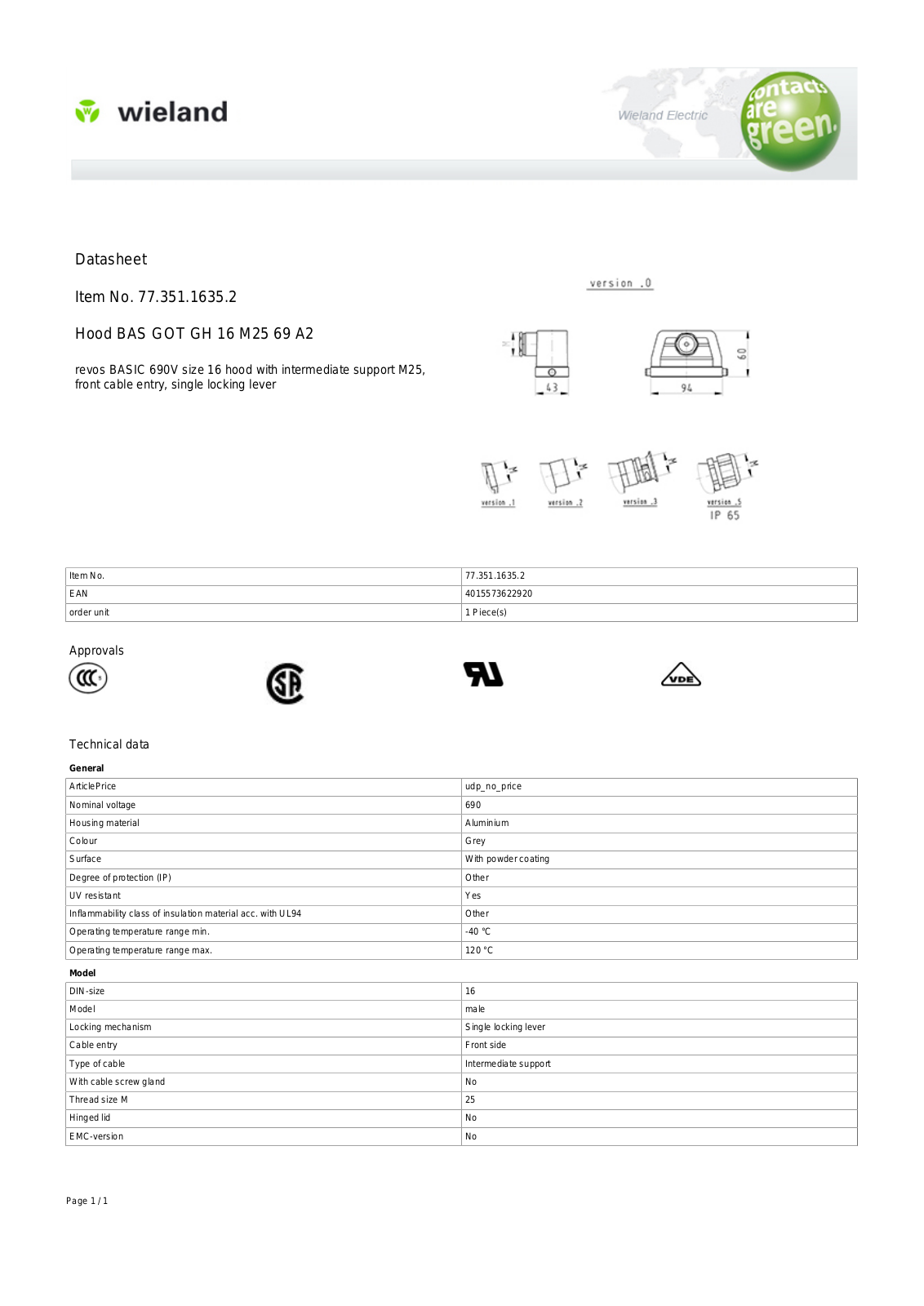

Datasheet
Item No. 77.351.1635.2
Hood BAS GOT GH 16 M25 69 A2

revos BASIC 690V size 16 hood with intermediate support M25,
front cable entry, single locking lever

Item No. 77.351.1635.2
EAN 4015573622920
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 690
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) Other
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 16
Model male
Locking mechanism Single locking lever
Cable entry Front side
Type of cable Intermediate support
With cable screw gland No
Thread size M 25
Hinged lid No
EMC-version No

Page 1 / 1
