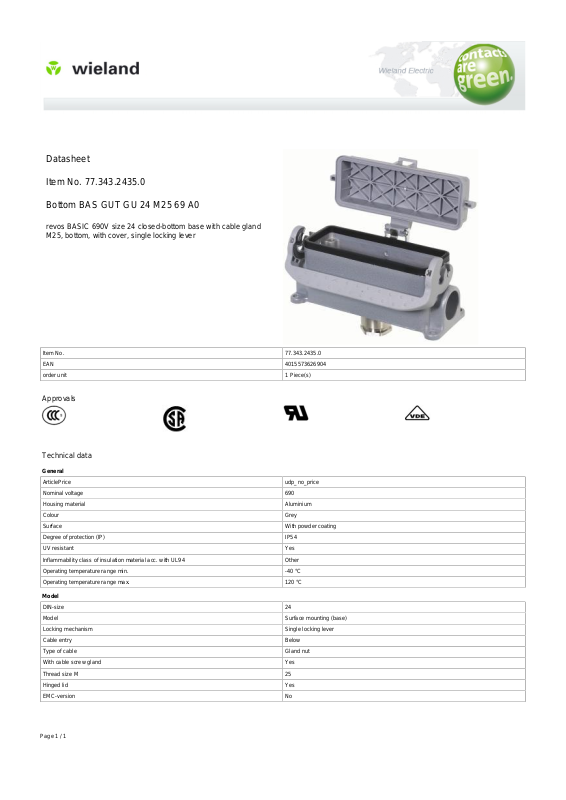

Wieland 77.343.2435.0 Data Sheet

Datasheet
Item No. 77.343.2435.0
Bottom BAS GUT GU 24 M25 69 A0

revos BASIC 690V size 24 closed-bottom base with cable gland
M25, bottom, with cover, single locking lever

Item No. 77.343.2435.0
EAN 4015573626904
order unit 1 Piece(s)

Approvals

Technical data

General

ArticlePrice udp_no_price
Nominal voltage 690
Housing material Aluminium
Colour Grey
Surface With powder coating
Degree of protection (IP) IP54
UV resistant Yes
Inflammability class of insulation material acc. with UL94 Other
Operating temperature range min. -40 °C
Operating temperature range max. 120 °C

Model

DIN-size 24
Model Surface mounting (base)
Locking mechanism Single locking lever
Cable entry Below
Type of cable Gland nut
With cable screw gland Yes
Thread size M 25
Hinged lid Yes
EMC-version No

Page 1 / 1
