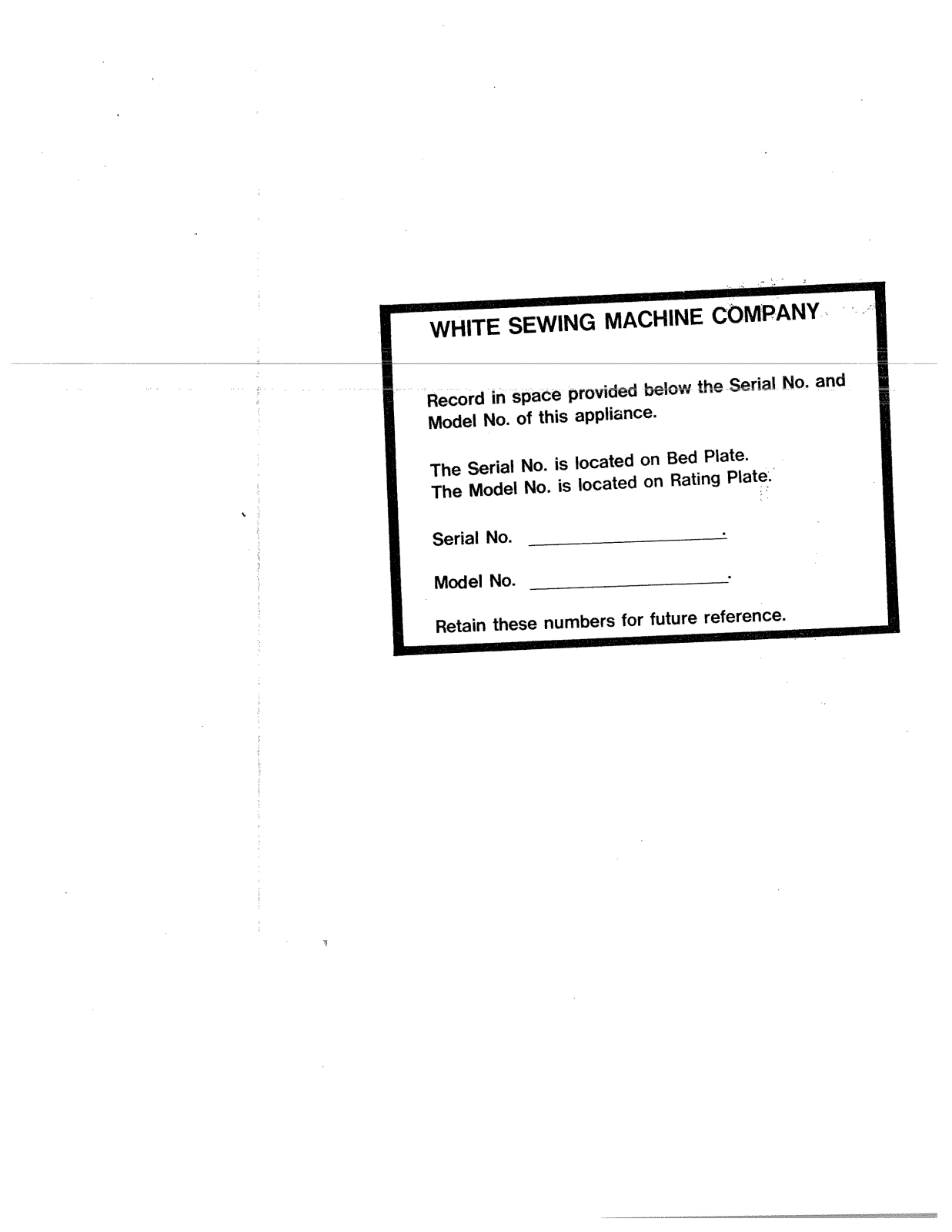

WHITE SEWING MACHINE COMPANY
Record in space provided below the Serial No arid Model No. of this appliance.
The Serial No. is located Ofl Bed Plate. The Model No. is located on Rating Plate.
Serial No.
Model No.
Retain these numbers for future reference.

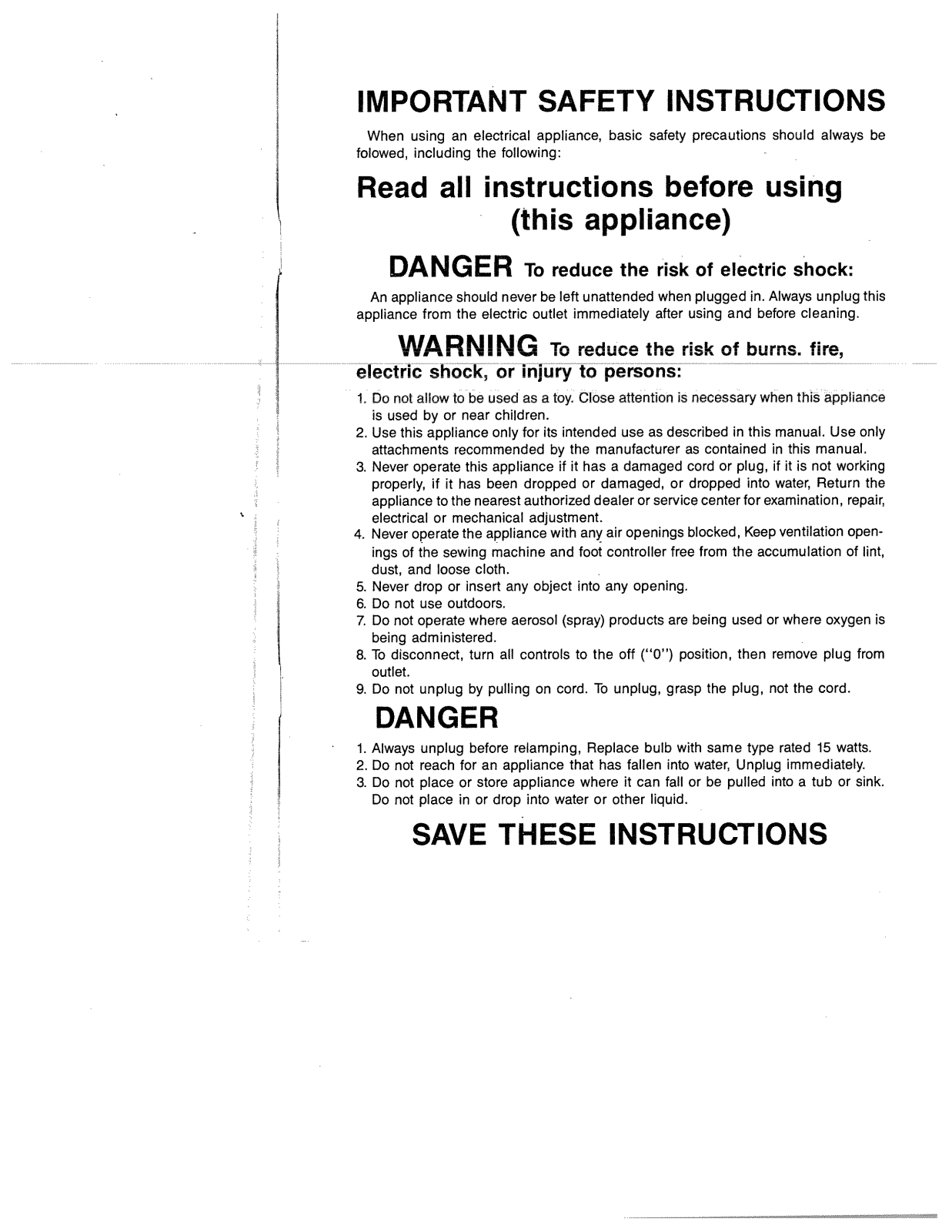

IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be folowed, including the following: -
Read all instructions before usiAg (this appliance)
DANGER To reduce the risk of electric shock:
An appliance should never be left unattended when plugged in. Always unplug this appliance from the electric outlet immediately after using and before cleaning.
WARNING To reduce the risk of burns, fire,
1Do not aliow to be used as a toy Close attention is necessary when this appliance is used by or near children.
2.Use this appliance only for its intended use as described in this manual. Use only attachments recommended by the manufacturer as contained in this manual.
3.Never operate this appliance if it has a damaged cord or plug, if it is not working properly, if it has been dropped or damaged, or dropped into water, Return the appliance to the nearest authorized dealer or service center for examination, repair, electrical or mechanical adjustment.
4.Never operate the appliance with any air openings blocked, Keep ventilation open ings of the sewing machine and foot controller free from the accumulation of lint, dust, and loose cloth.
5.Never drop or insert any object into any opening.
6.Do not use outdoors.
7.Do not operate where aerosol (spray) products are being used or where oxygen is being administered.
8.To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.
9.Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
DANGER
1.Always unplug before relamping, Replace bulb with same type rated 15 watts.
2.Do not reach for an appliance that has fallen into water, Unplug immediately.
3.Do not place or store appliance where it can fall or be pulled into a tub or sink. Do not place in or drop into water or other liquid.
SAVE THESE INSTRUCTIONS

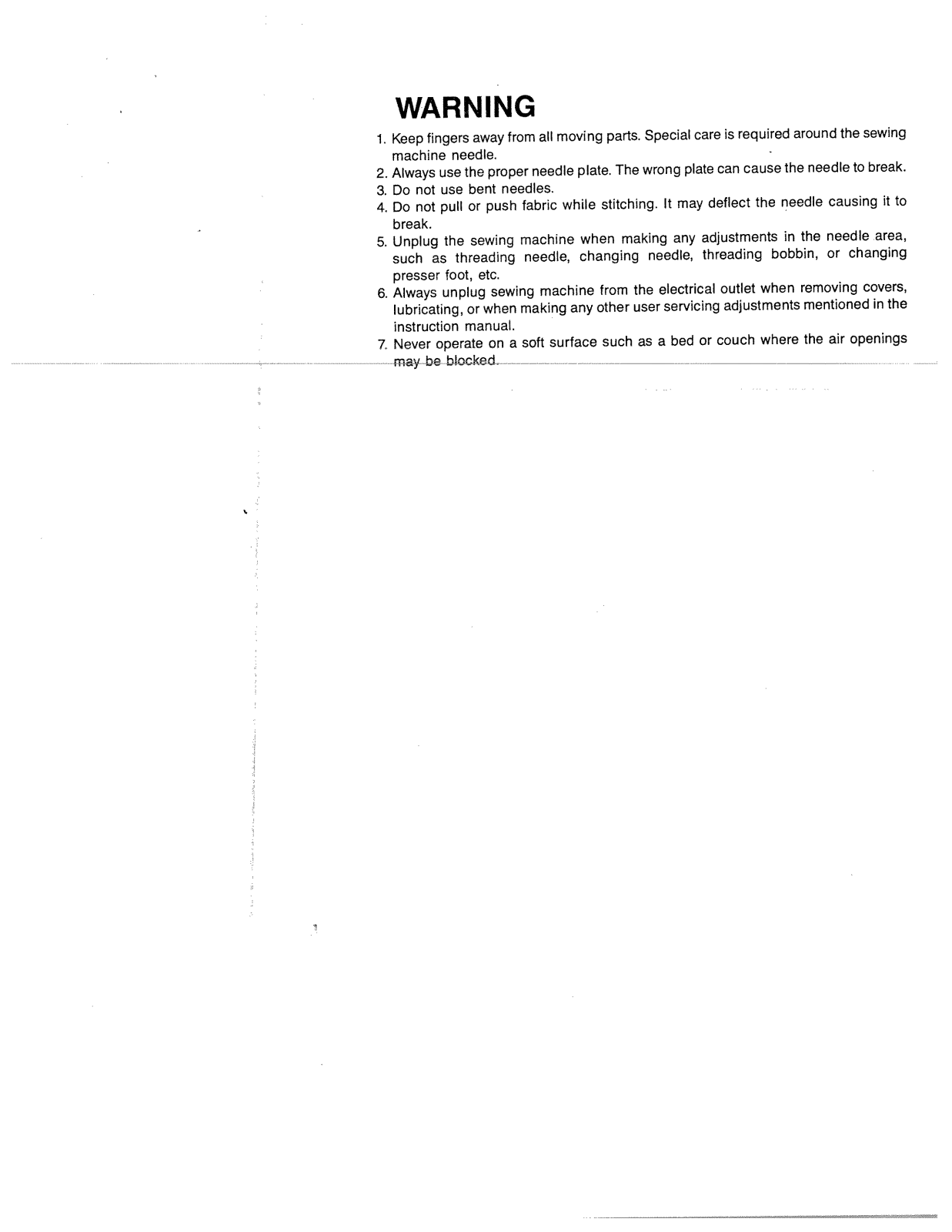

WARNING
1.Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
2.Always use the proper needle plate. The wrong plate can cause the needle to break.
3.Do not use bent needles.
4.Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
5.Unplug the sewing machine when making any adjustments in the needle area, such as threading needle, changing needle, threading bobbin, or changing presser foot, etc.
6.Always unplug sewing machine from the electrical outlet when removing covers, lubricating, or when making any other user servicing adjustments mentioned in the instruction manual.
7.Never operate on a soft surface such as a bed or couch where the air openings
may be blockedL- |
- - |

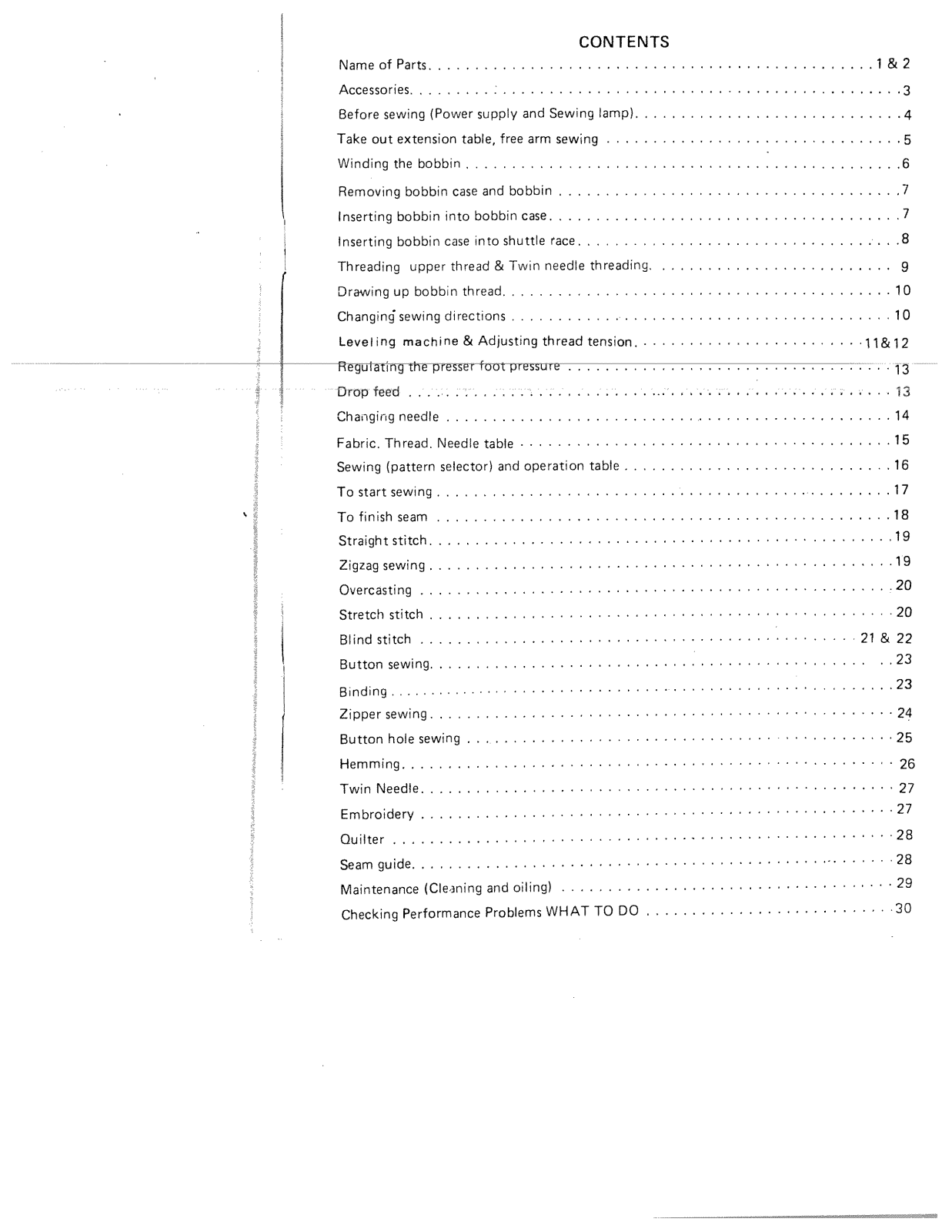

CONTENTS
Name of Parts .1 & 2

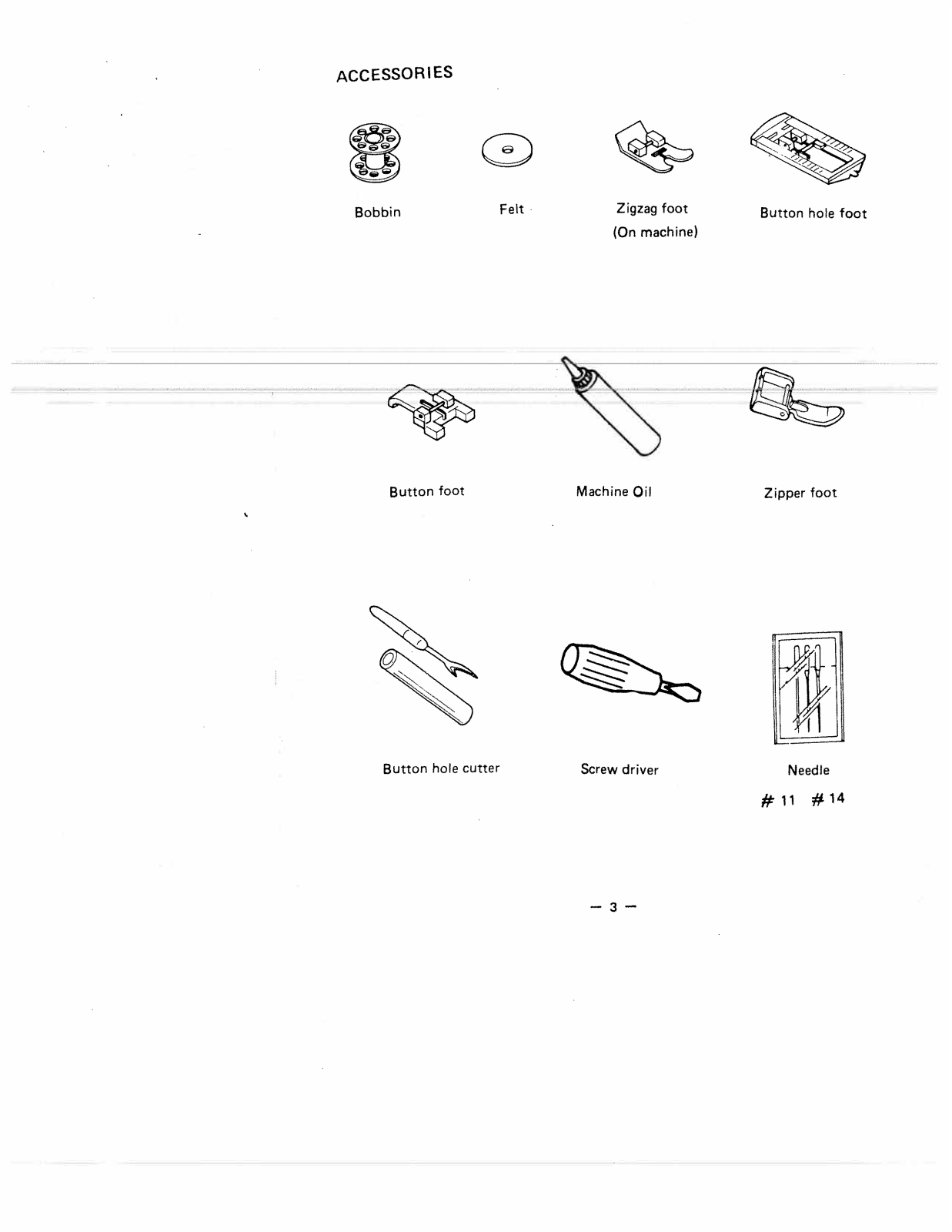

Accessories |
3 |
|
Before sewing (Power supply and Sewing lamp) |
4 |
|
Take out extension table, free arm sewing |
5 |
|
Winding the bobbin |
6 |
|

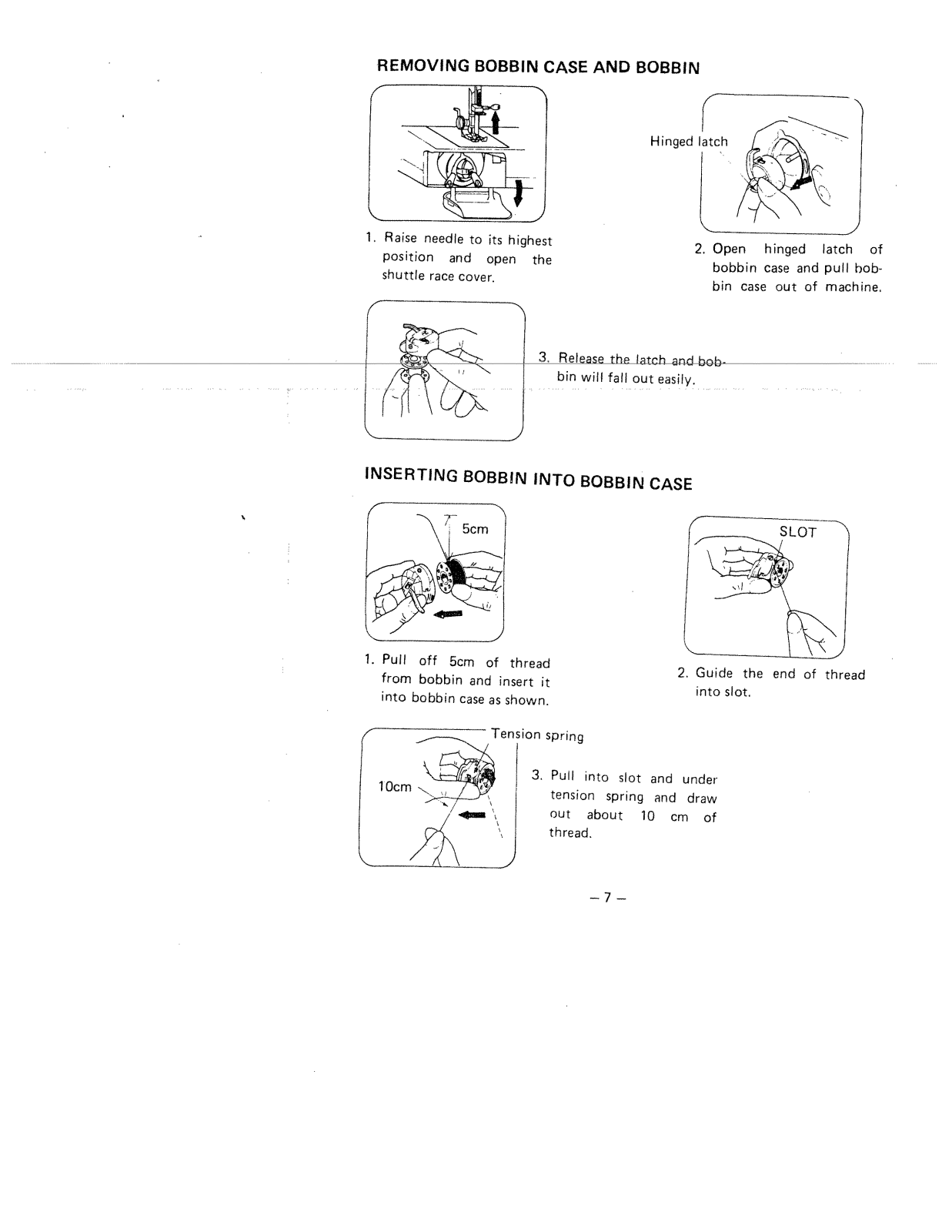

Removing bobbin case and bobbin |
7 |
|
Inserting bobbin into bobbin case |
7 |
|

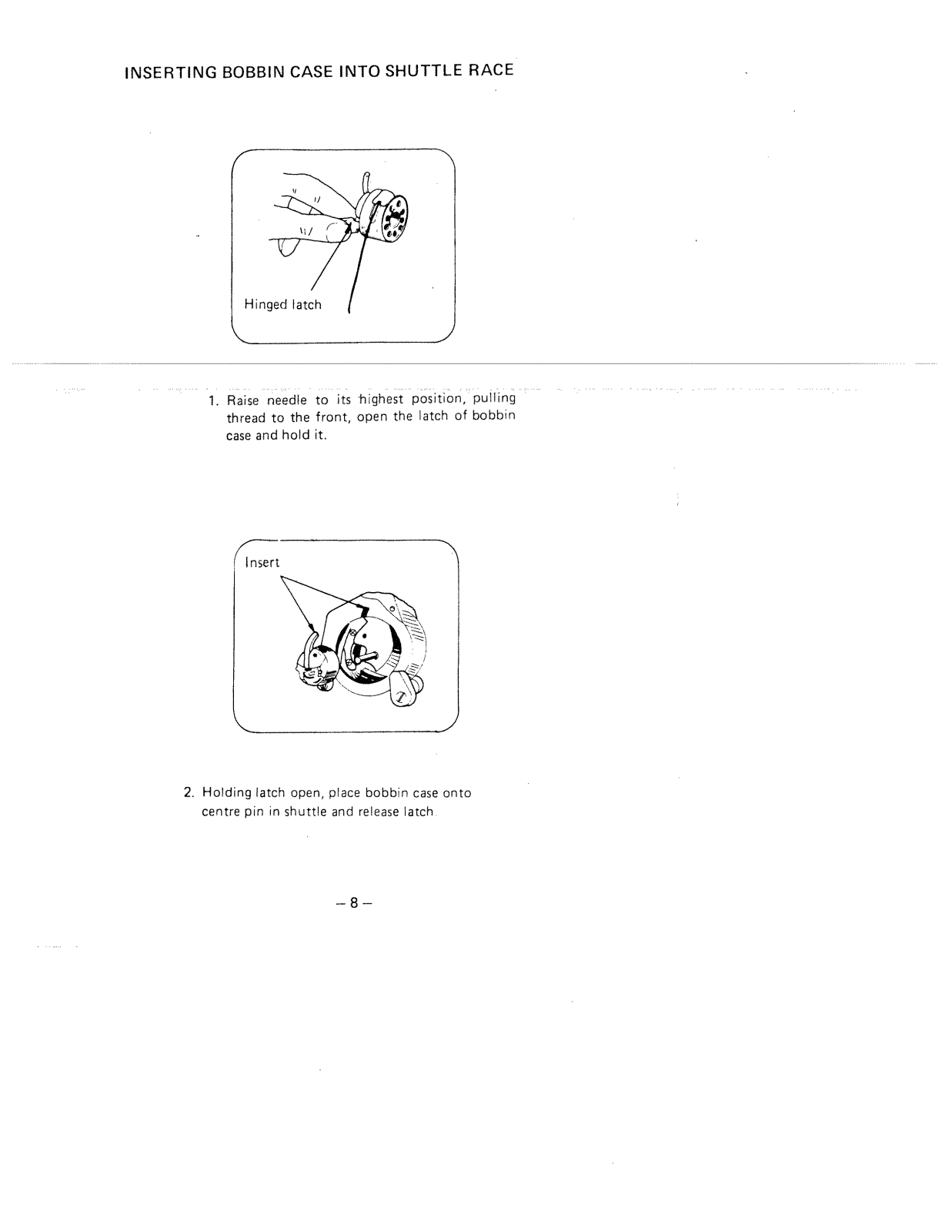

Inserting bobbin case nto shuttle race |
8 |
|
Threading |
upper thread & Twin needle threading |
9 |

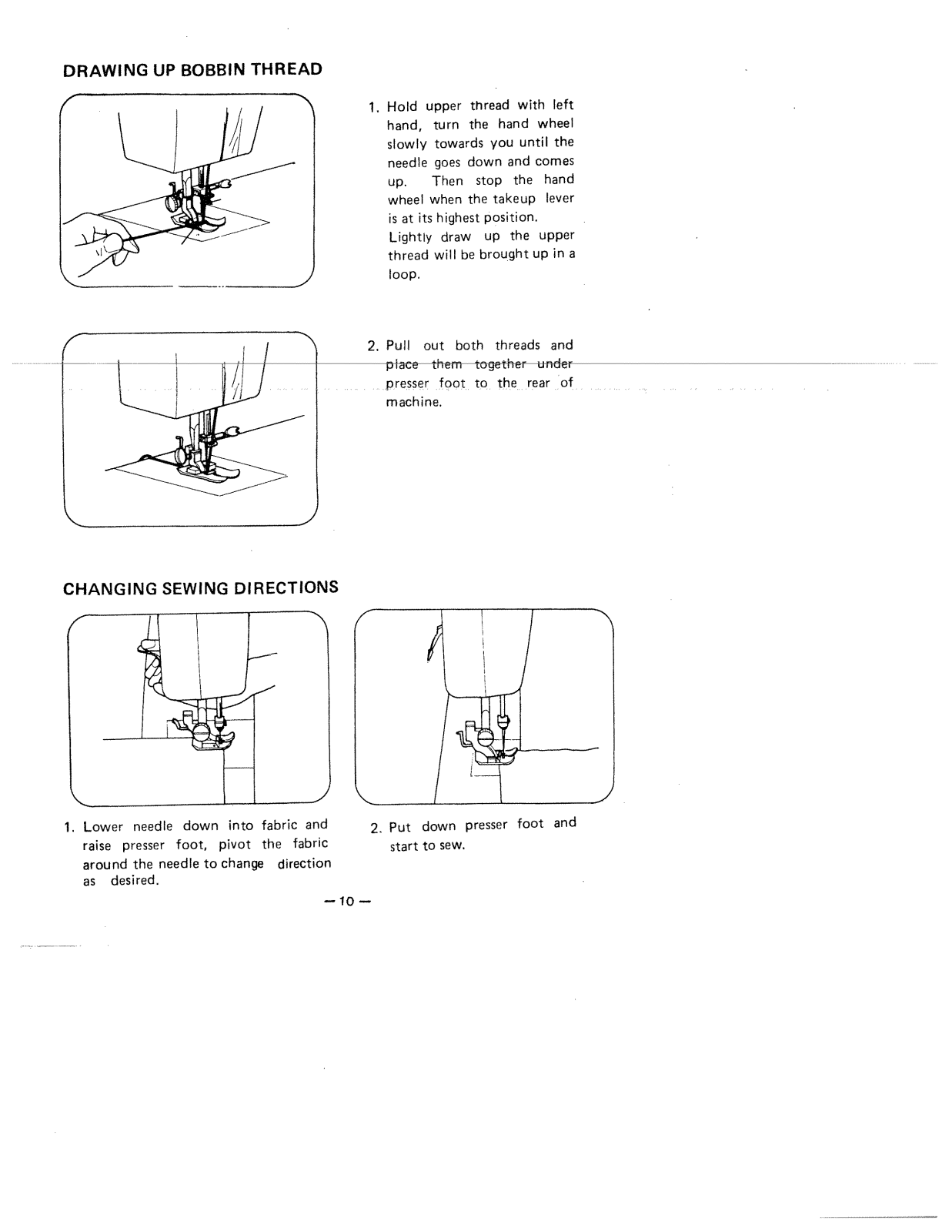

Drawing up bobbin thread |
10 |
|
Changing sewing cirections |
10 |
|

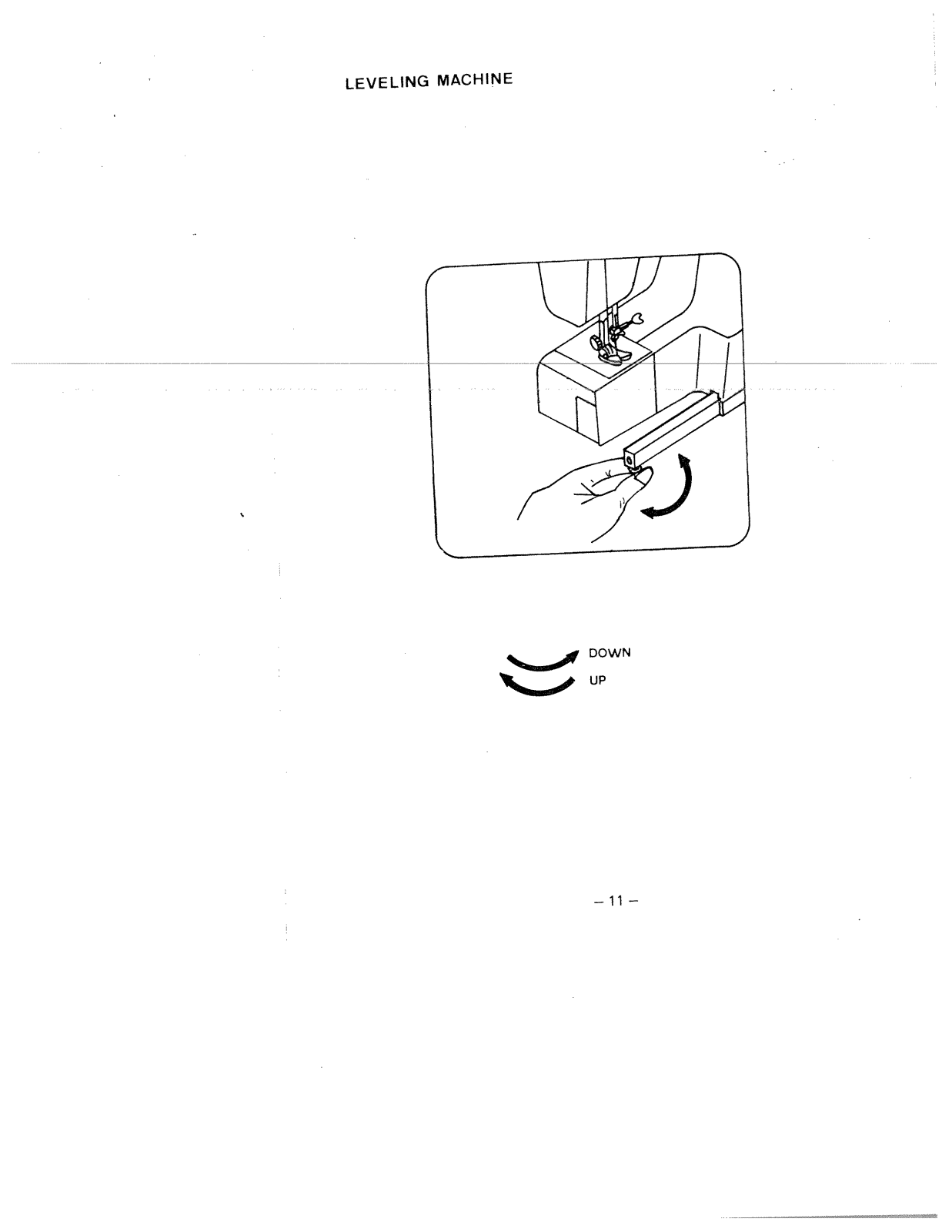

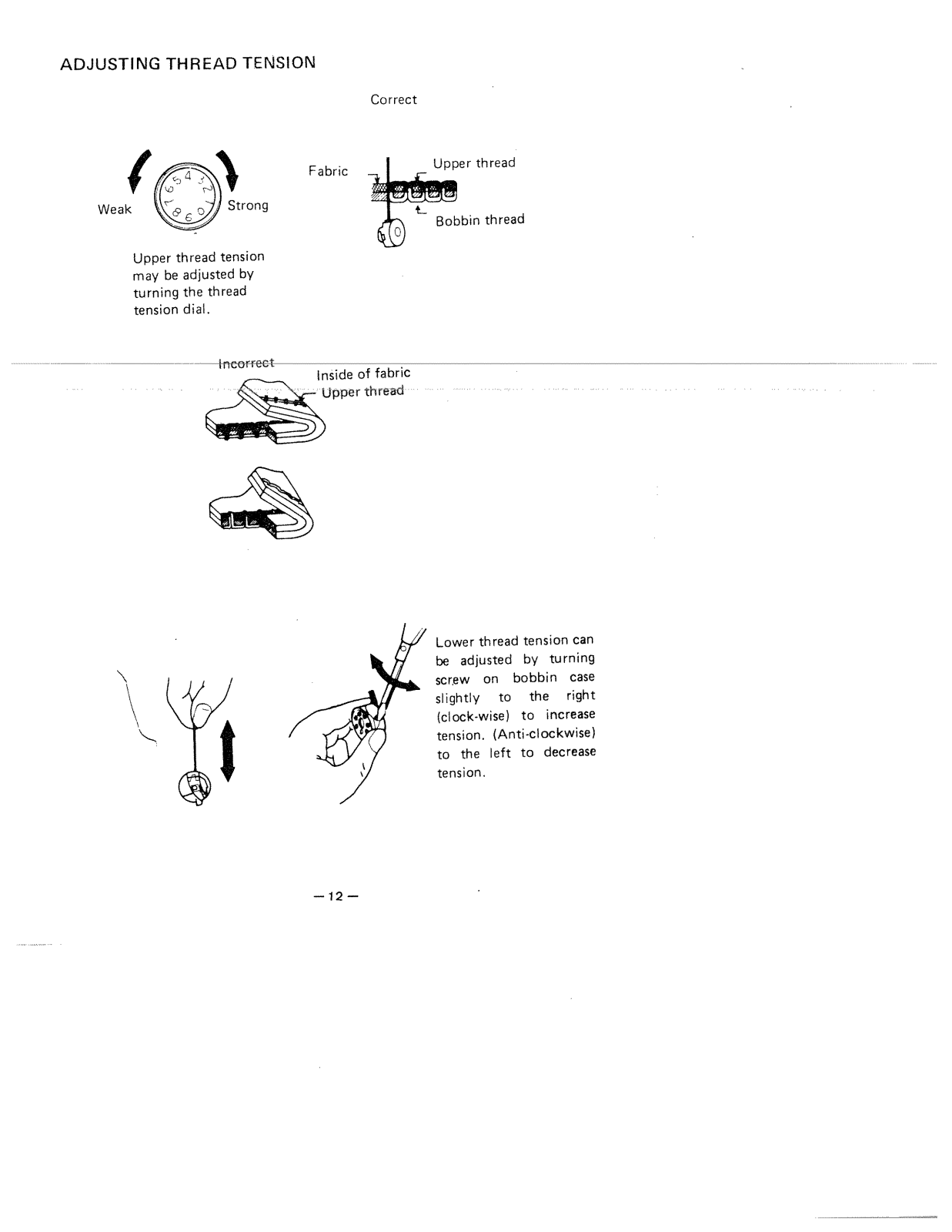

Leveling |
machine & Adjusting thread tension |
11&12 |

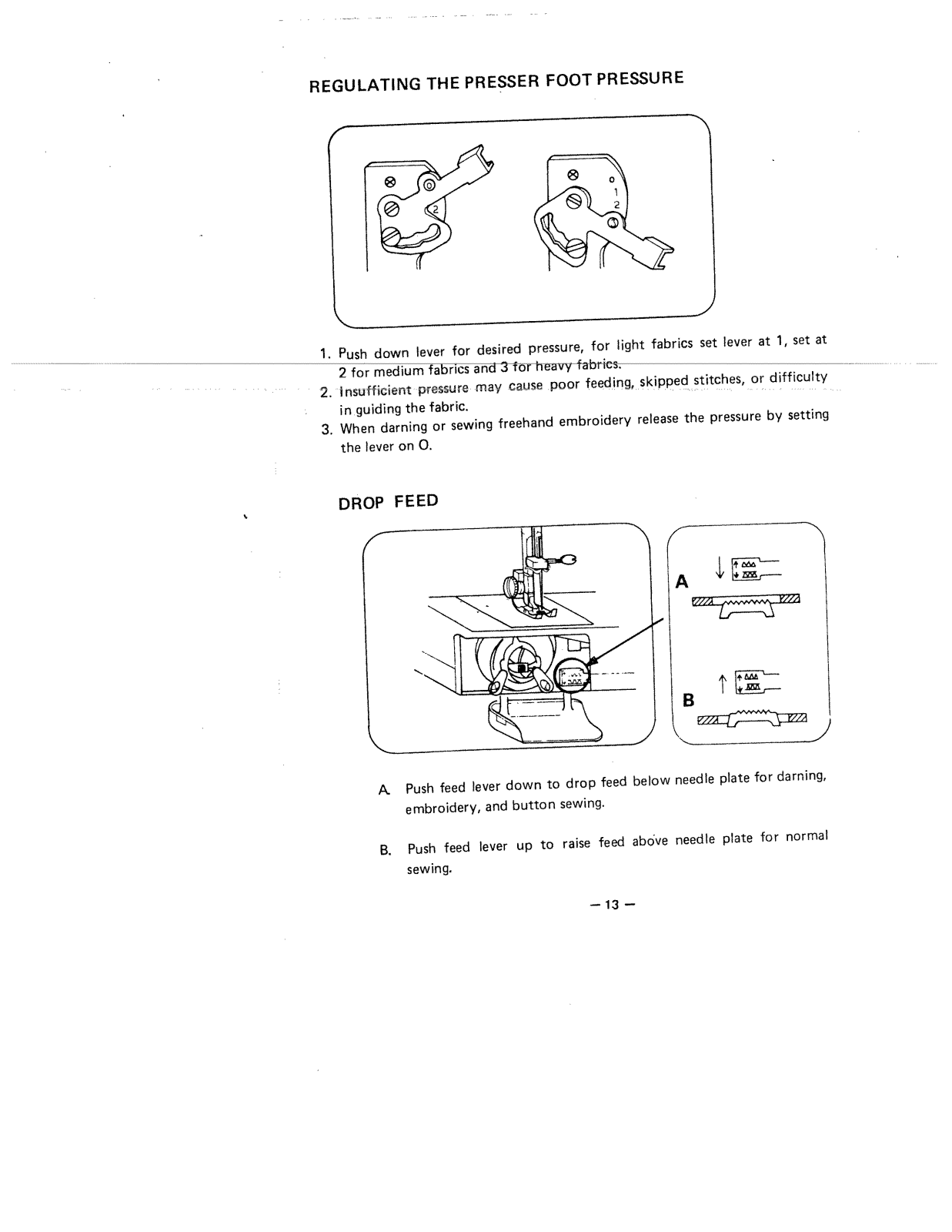

Regu1gheprertootpresure |
13 |
|
Drop feed |
|
13 |

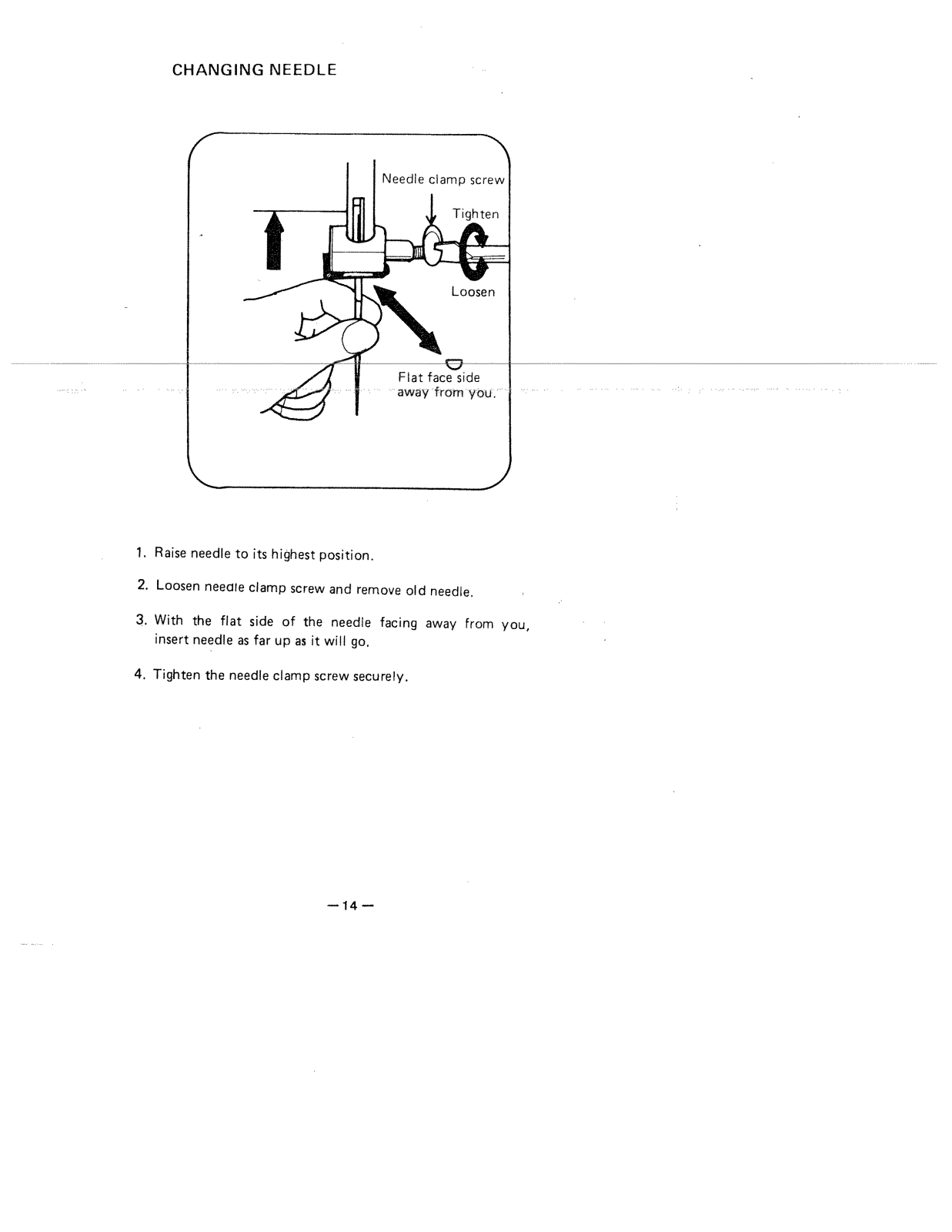

Changing needle |
14 |
|

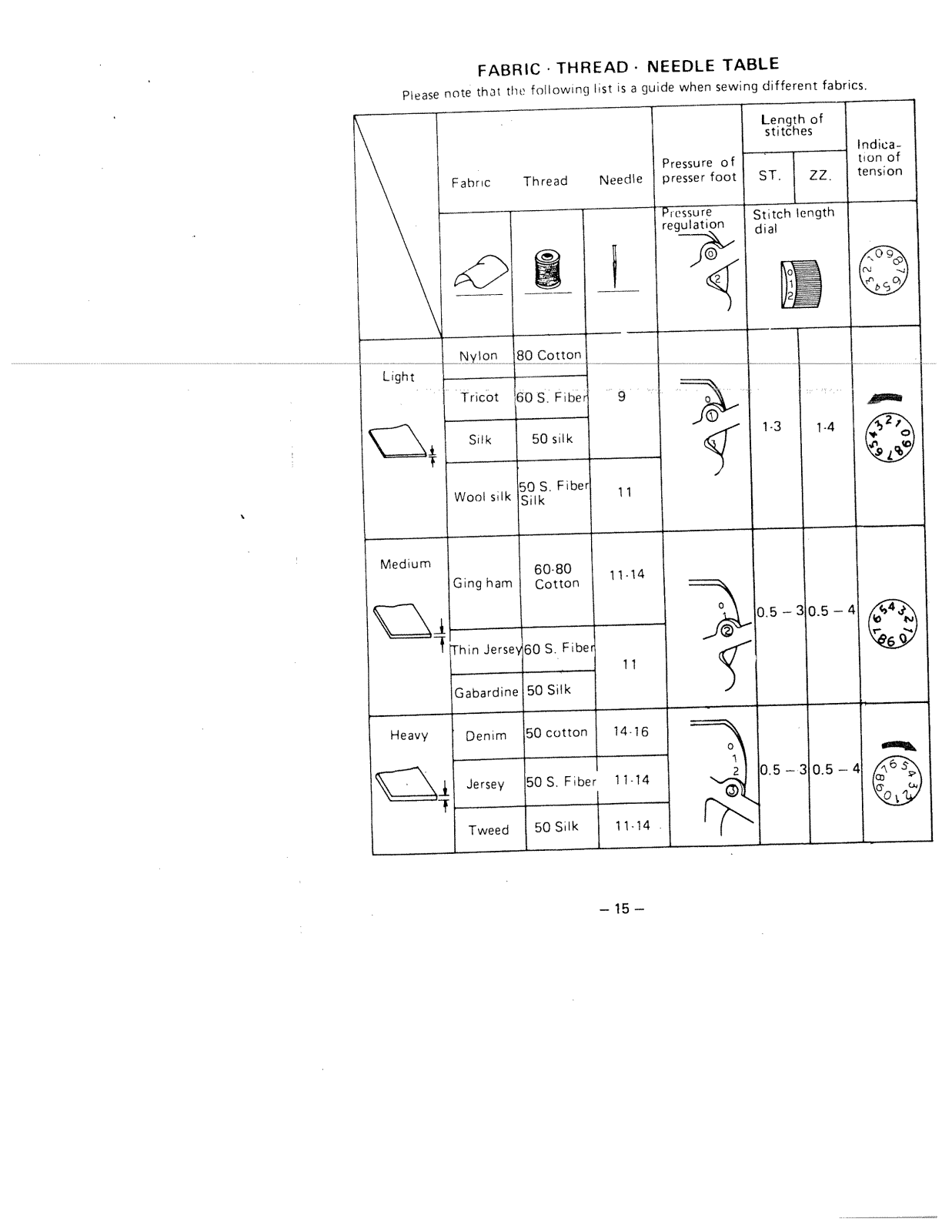

Fabric. Thread. Needle table |
15 |
|

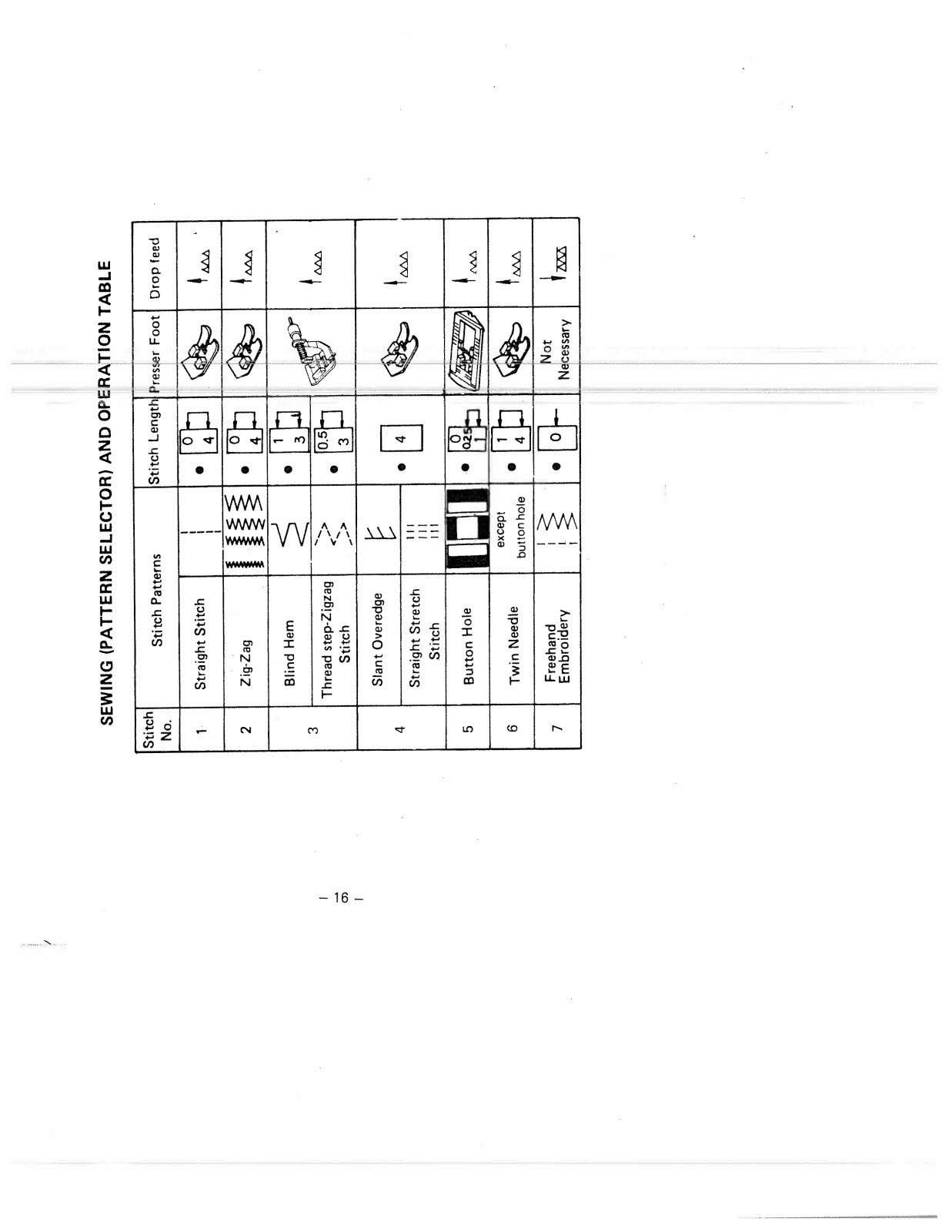

Sewing (pattern selector) and operation table |
16 |
|

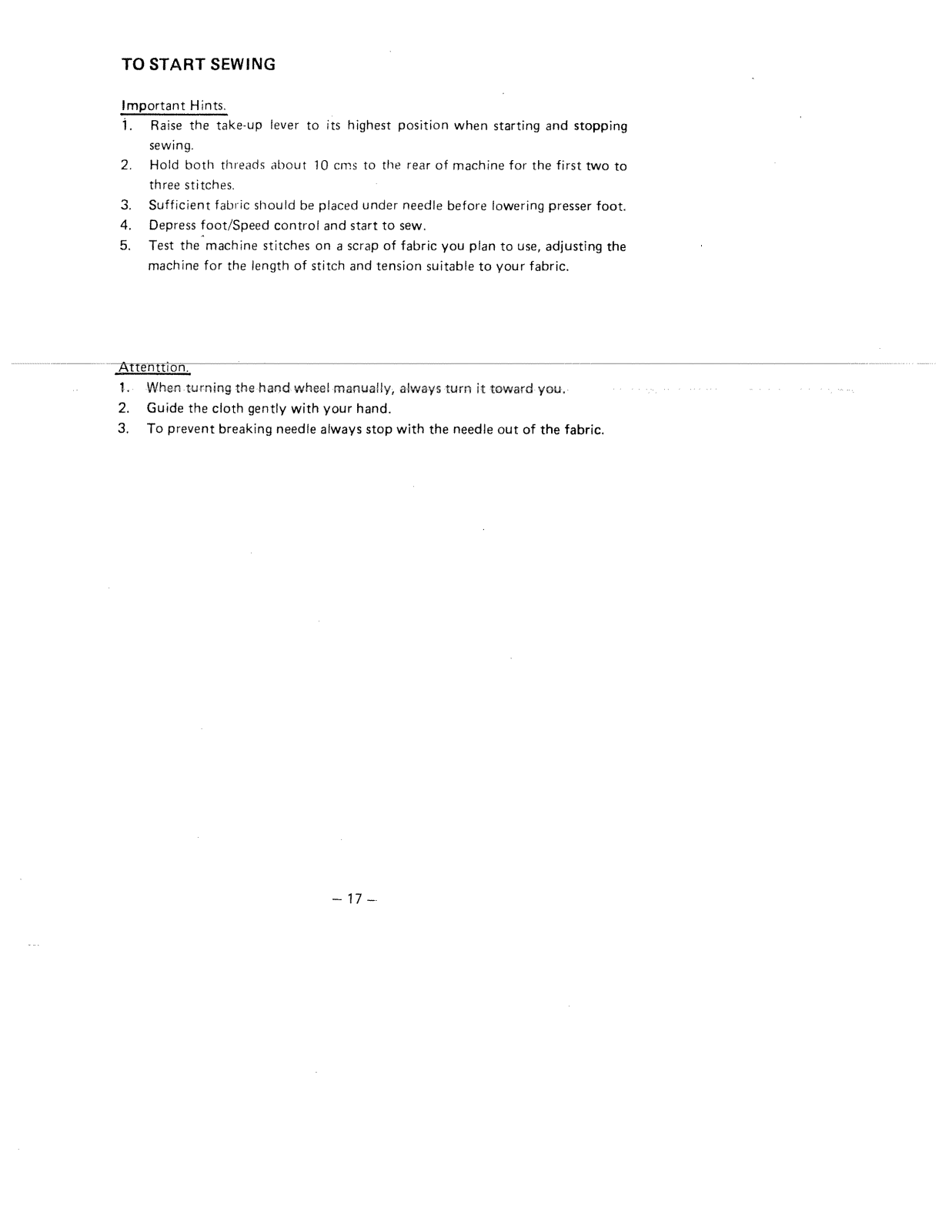

To start sewing |
17 |
|

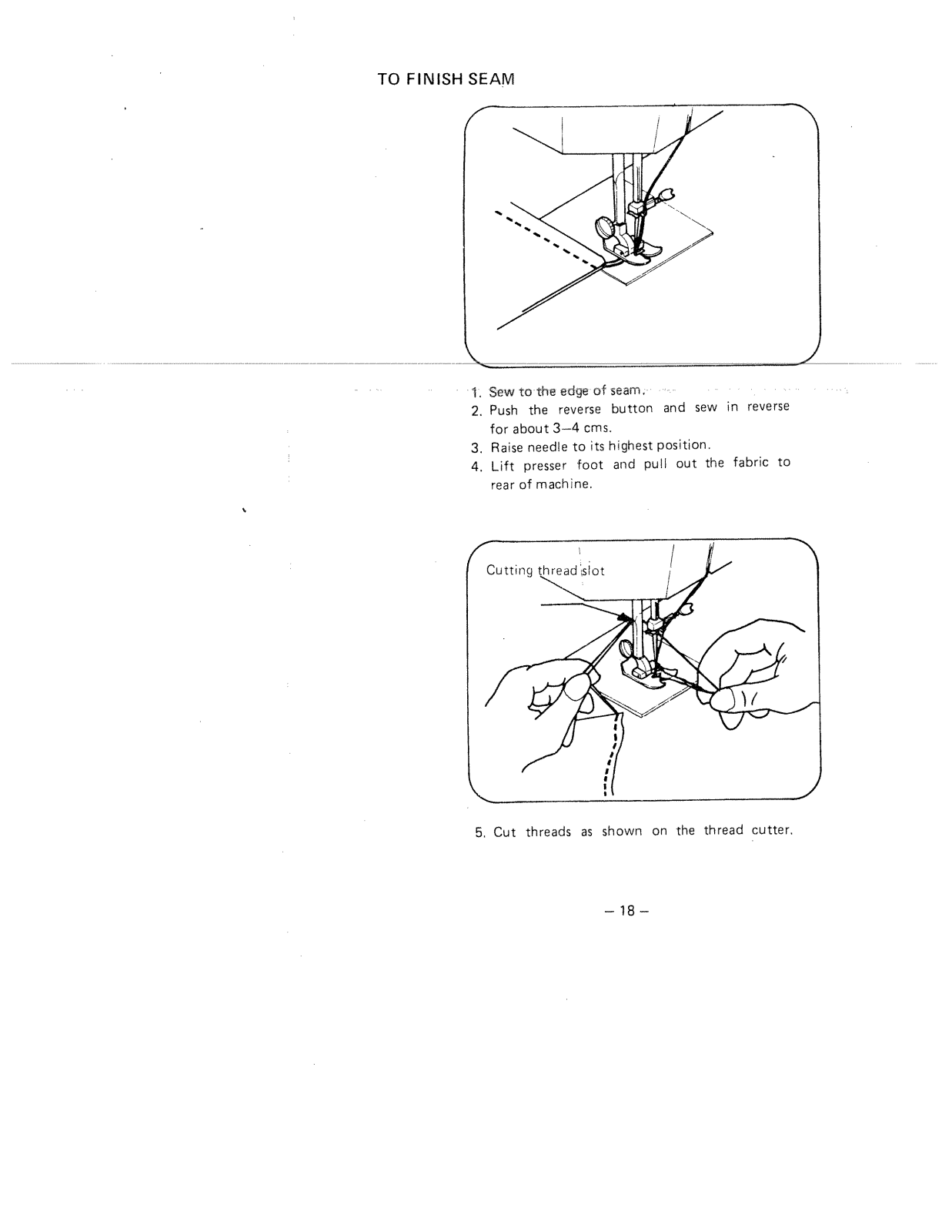

To finish seam |
18 |
|
Straight stitch |
19 |
|
|
||
Zigzag sewing |
19 |
|

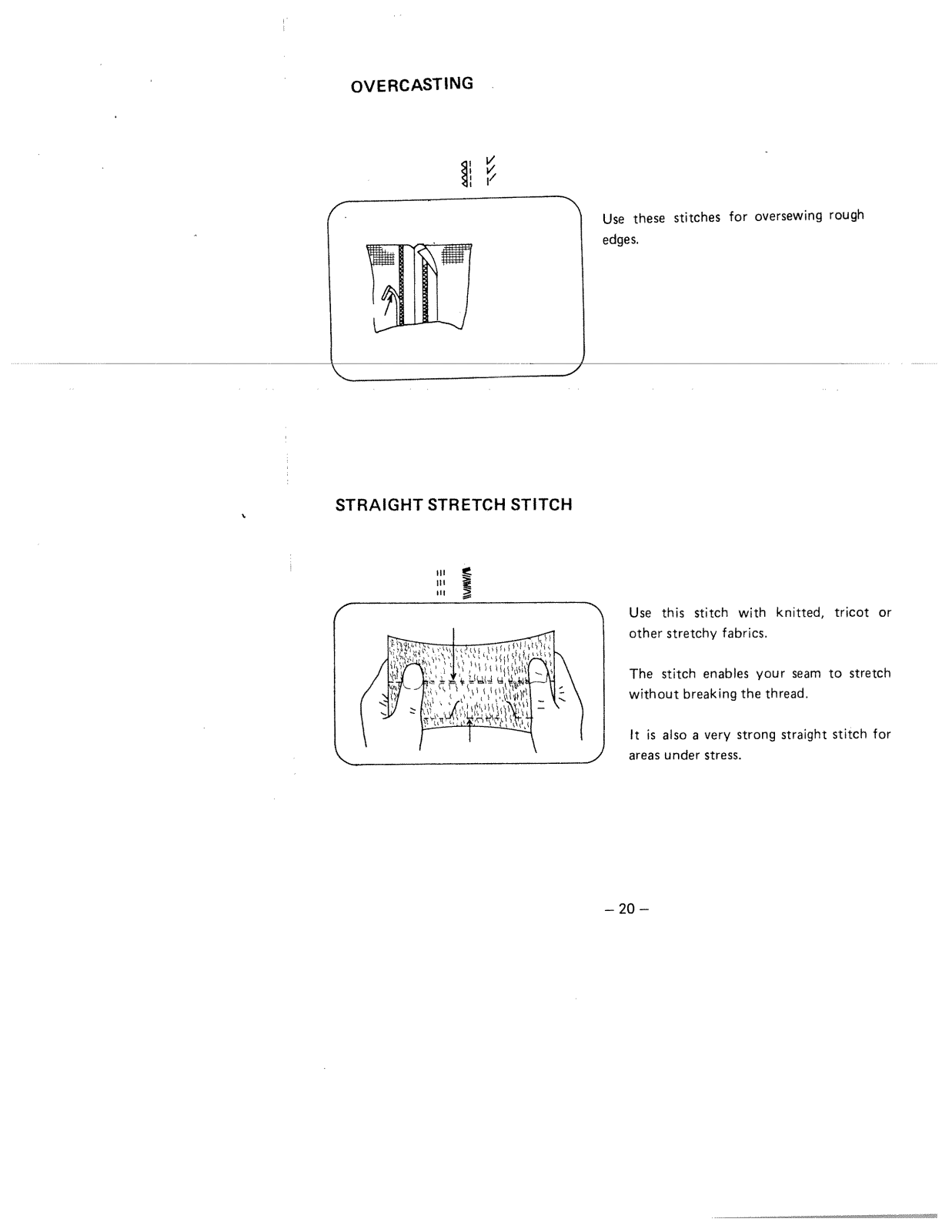

Overcasting |
20 |
|
|
||
Stretch stitch |
20 |
|

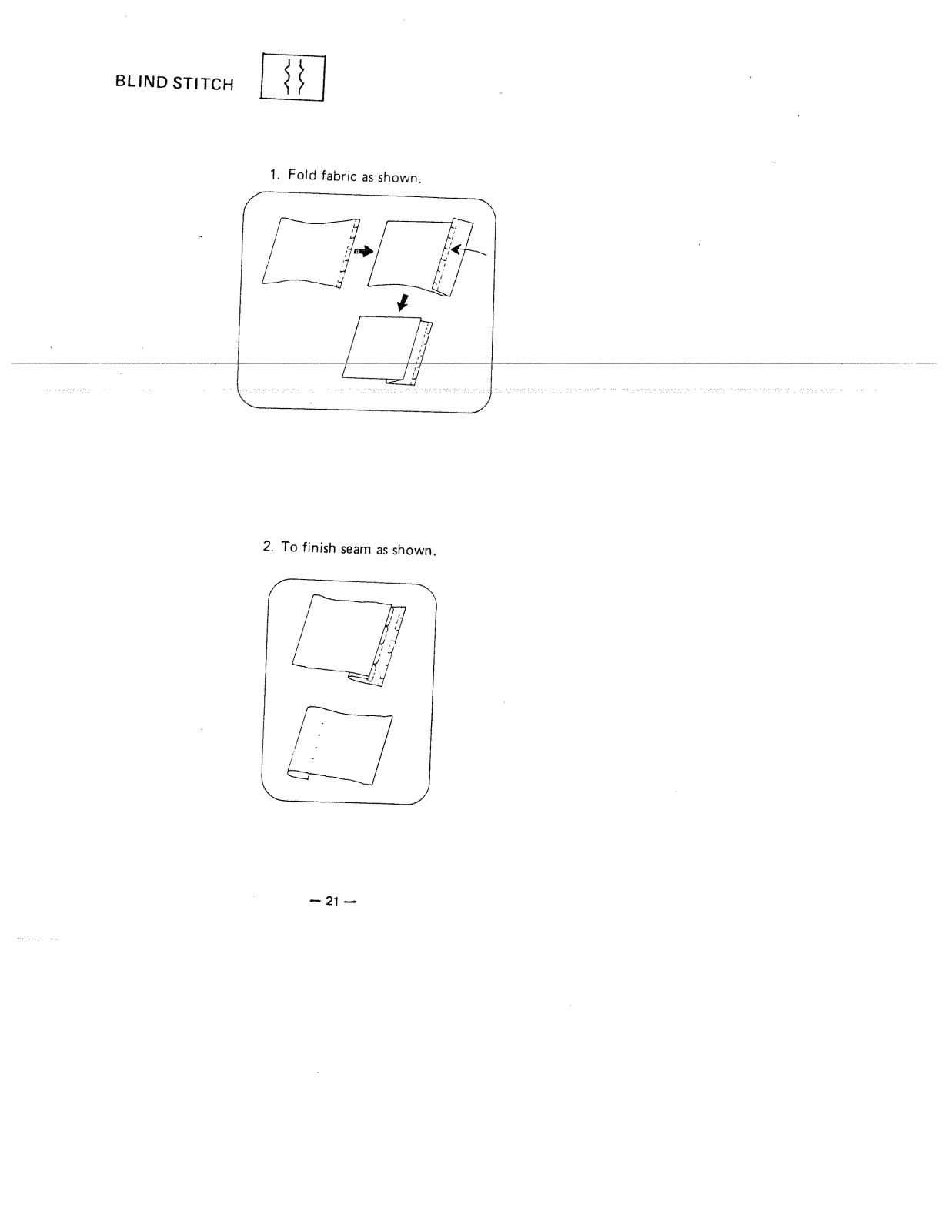

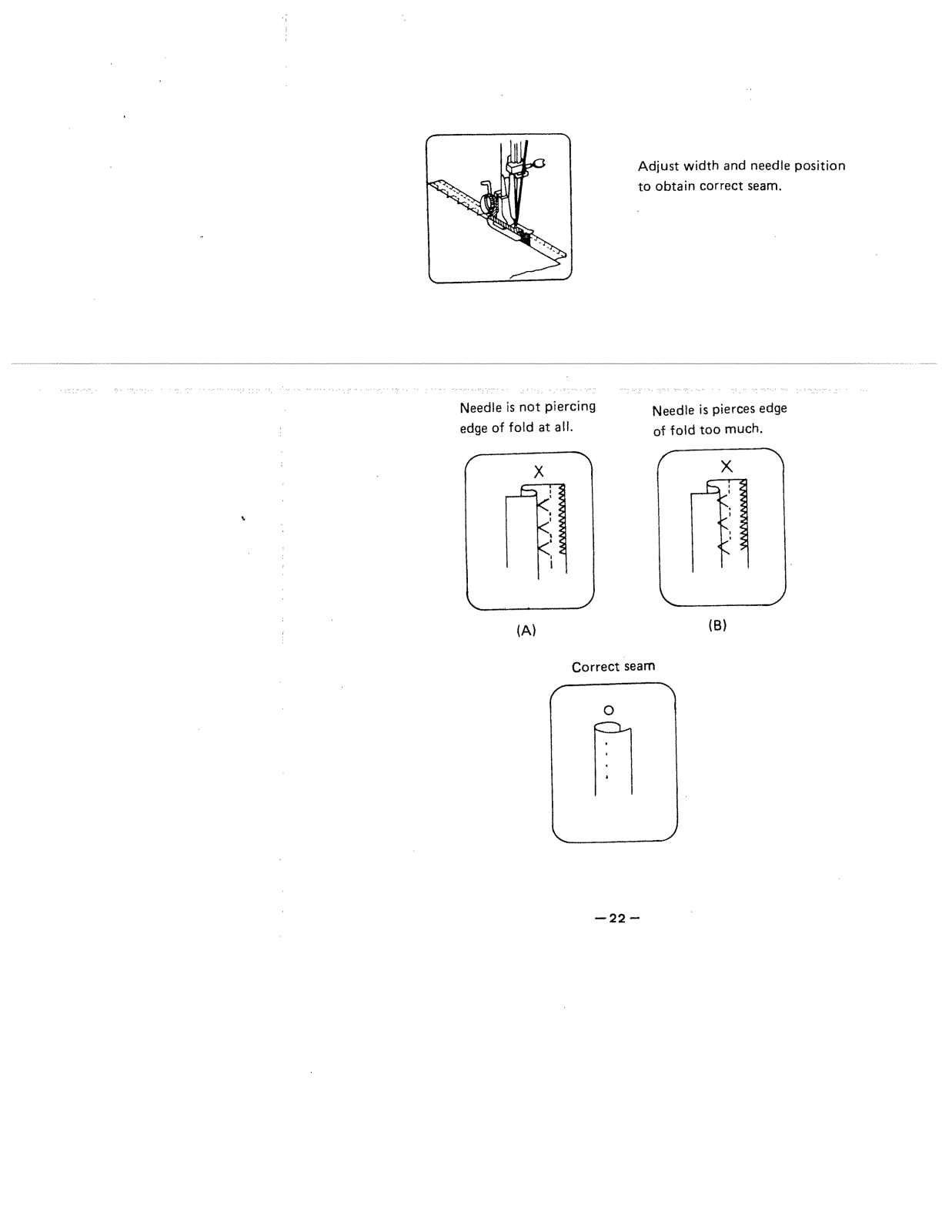

Blind stitch |
21 & 22 |
|

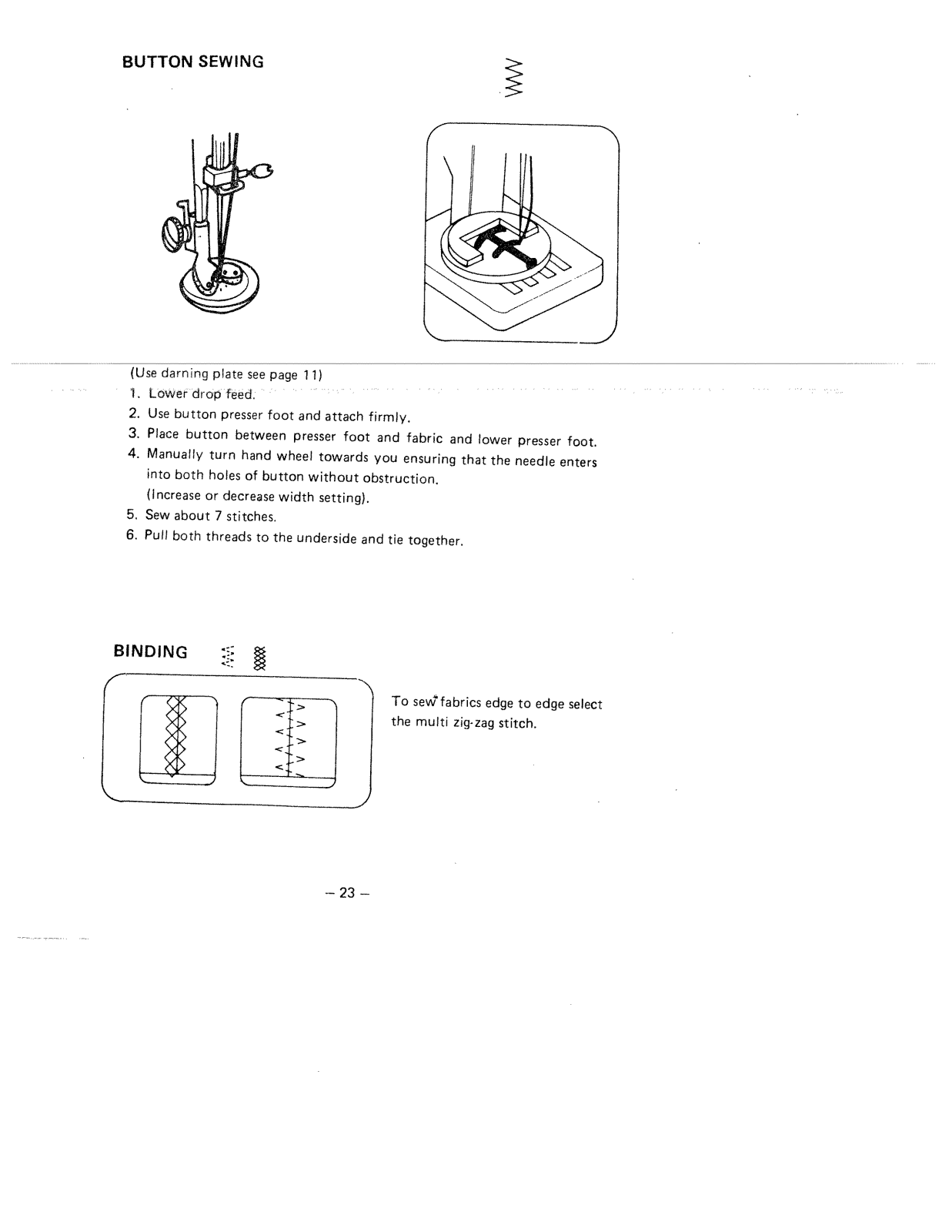

Button sewing |
23 |
|
|
||
Binding |
|
23 |
|
|
|

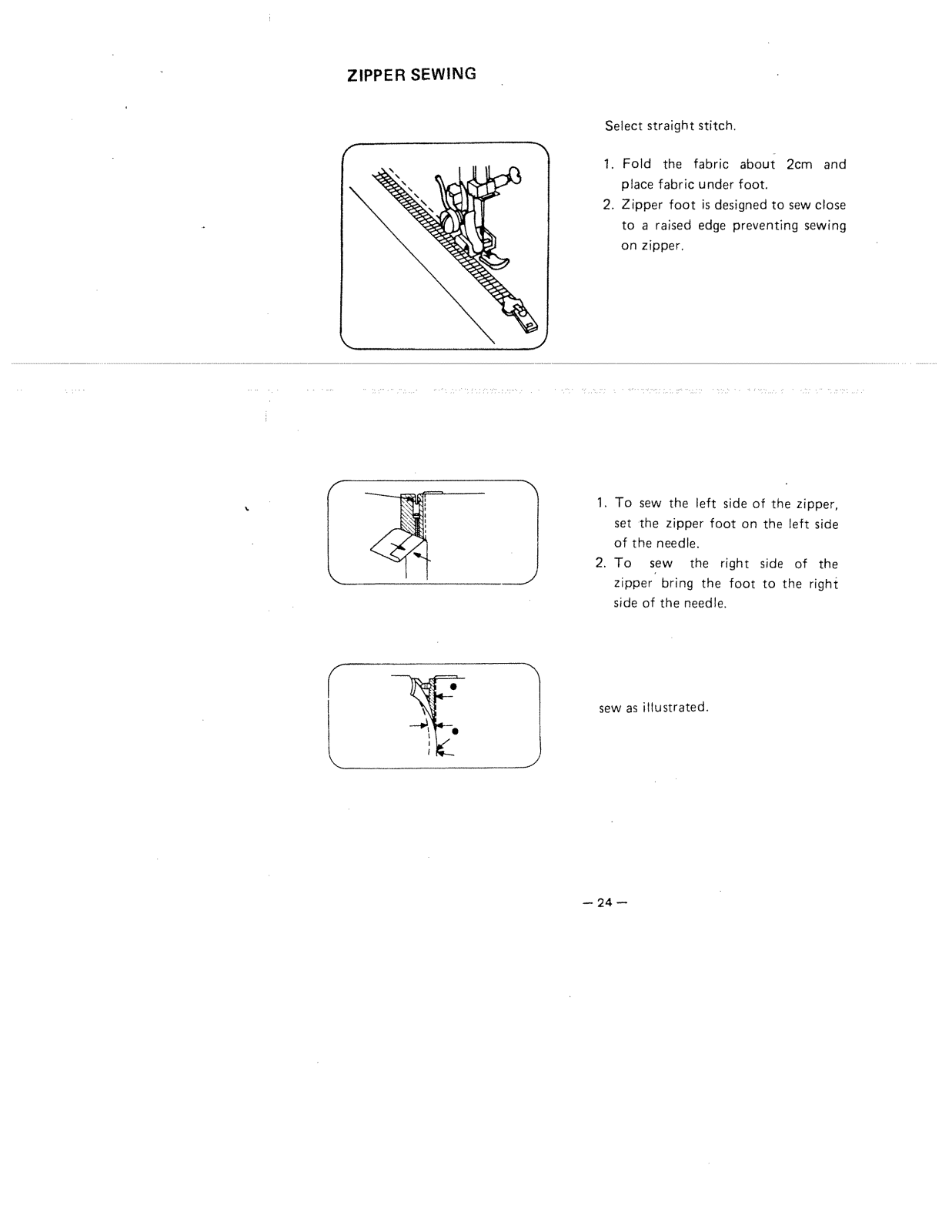

Zippersewing |
24 |
|

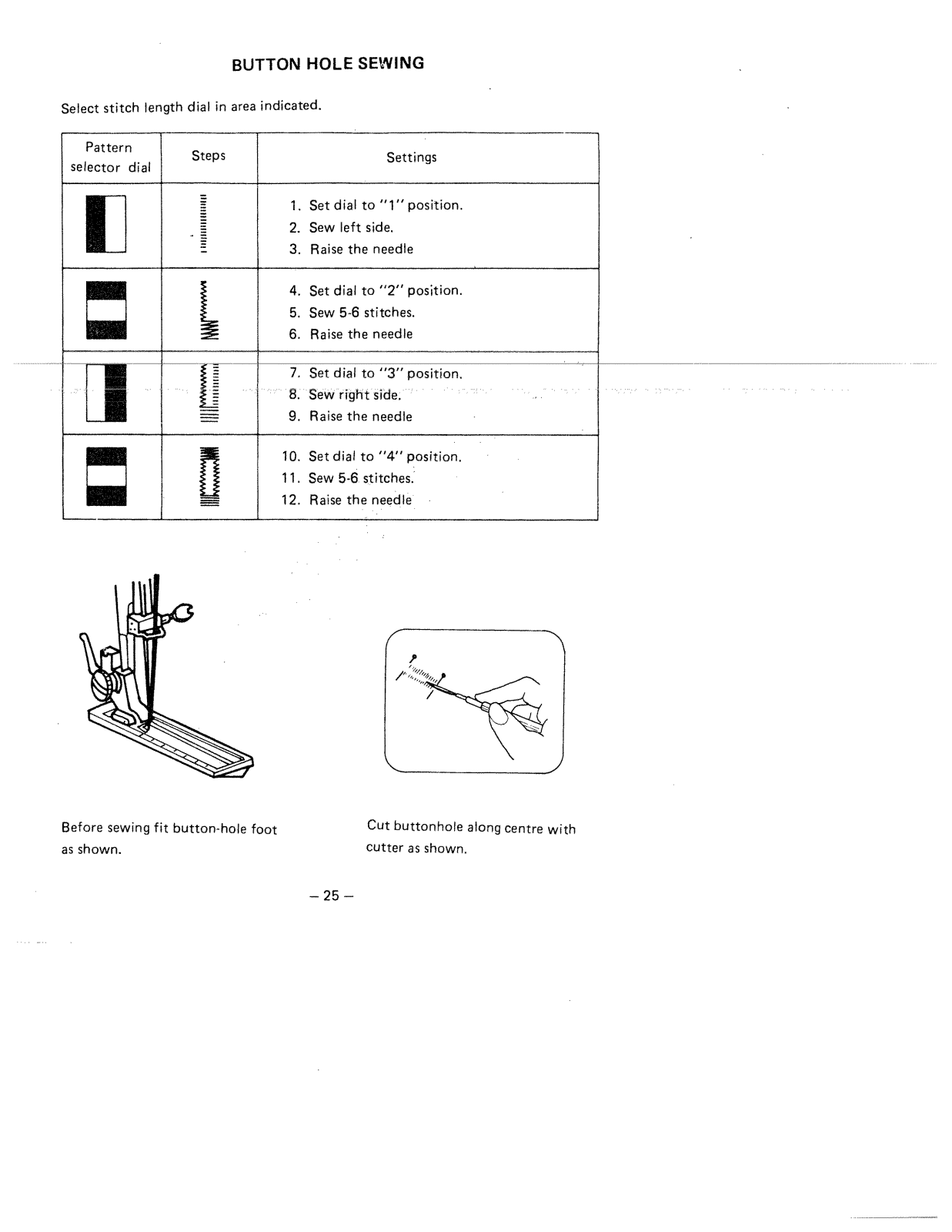

Button hole sewing |
25 |
|

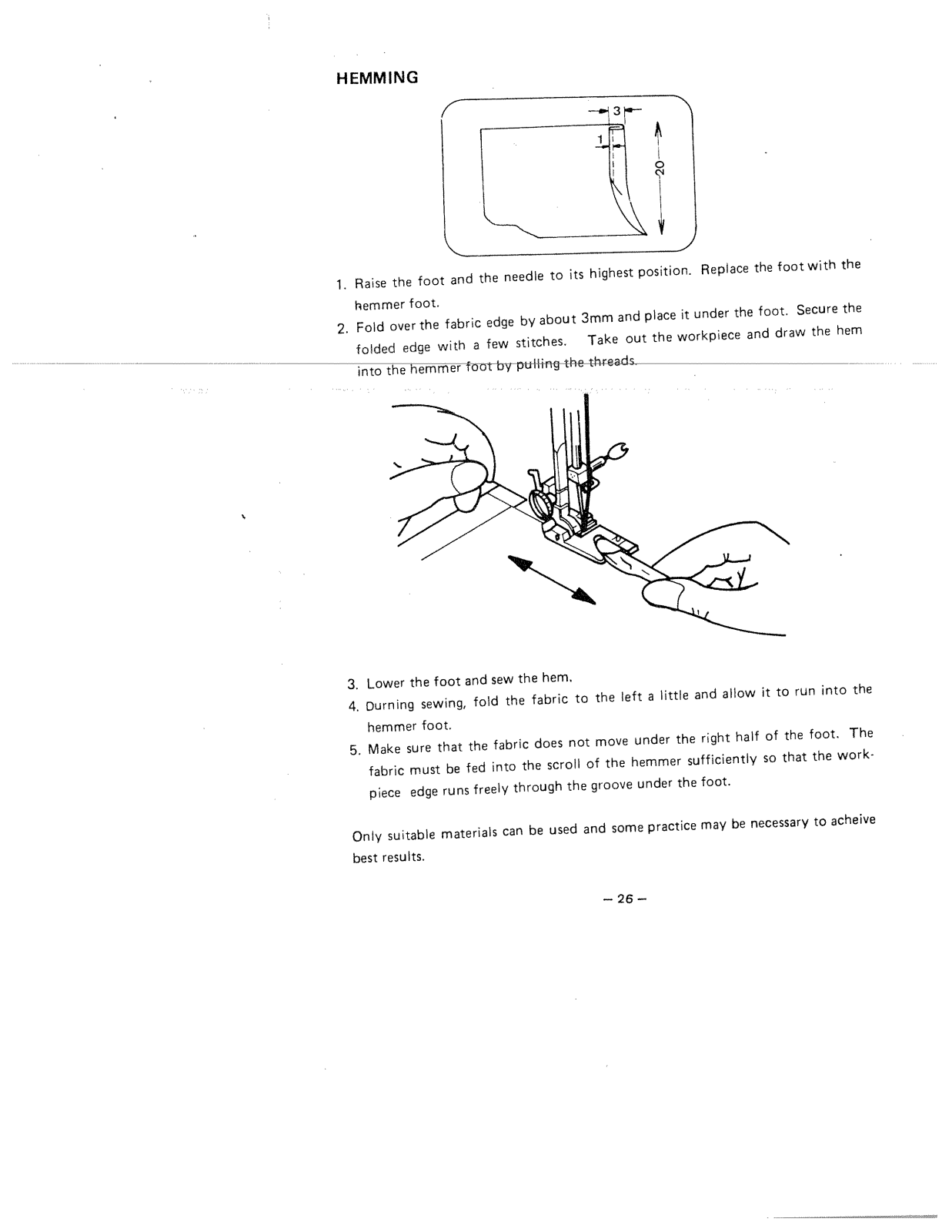

Hemming |
|
26 |

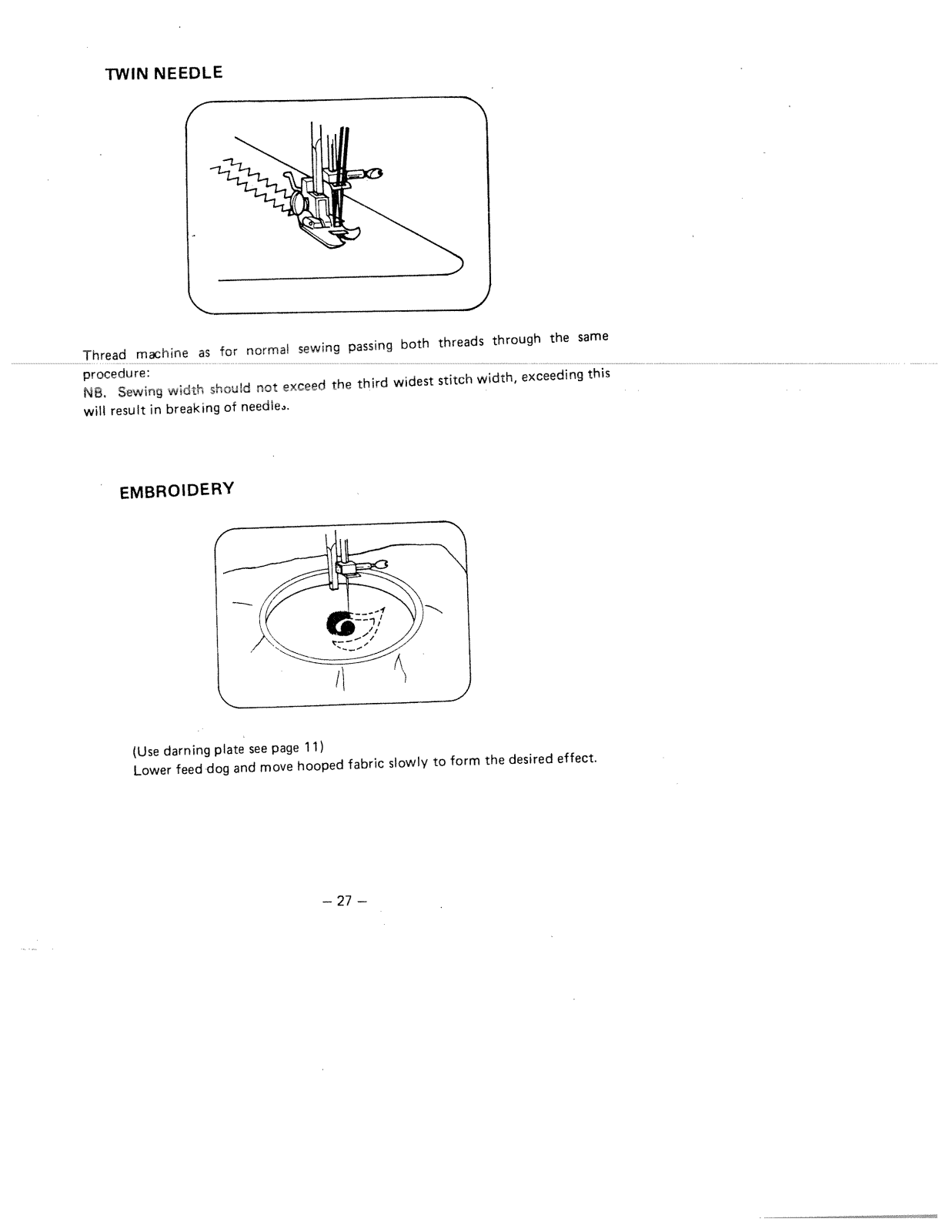

Twin Needle |
27 |
|
Embroidery |
27 |
|
|
||

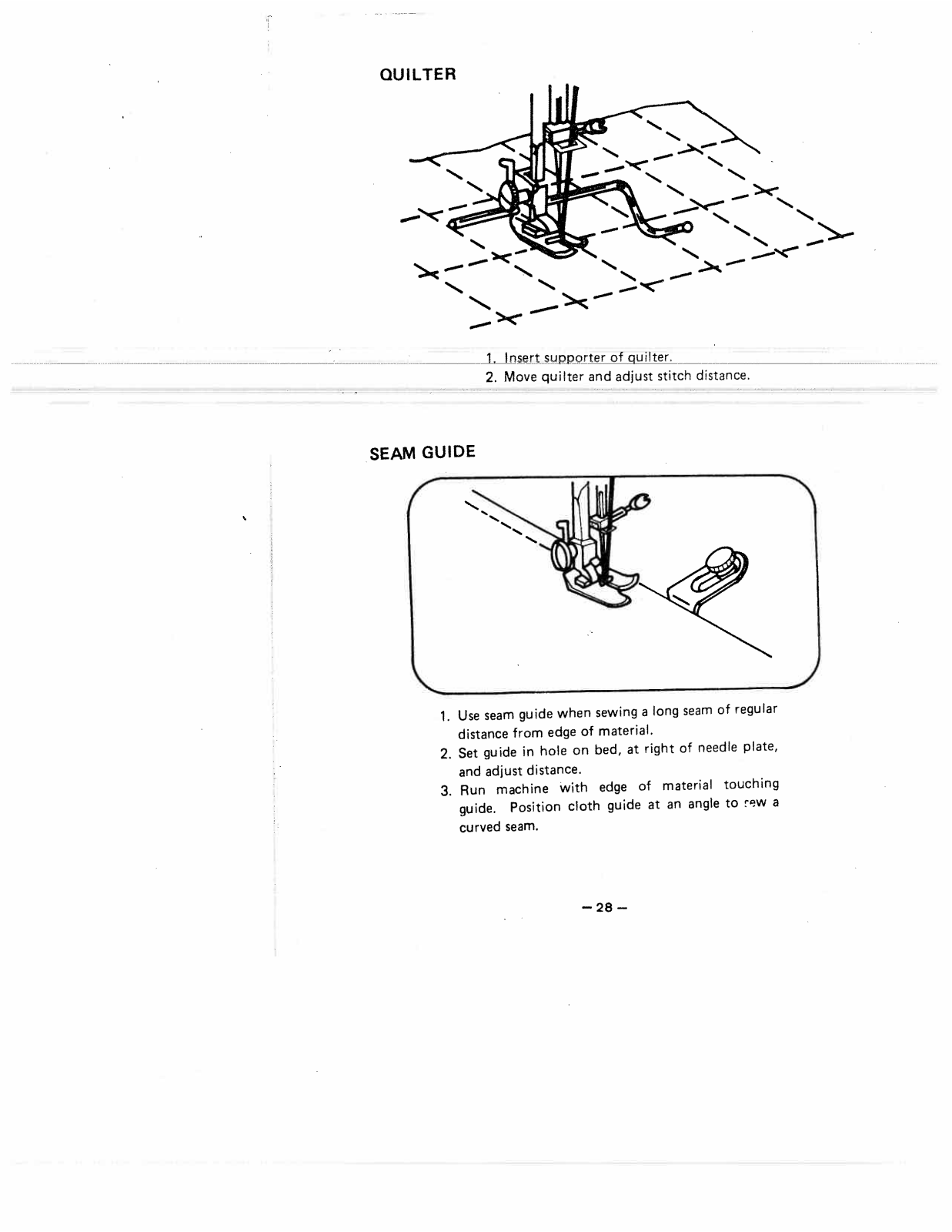

Quilter |
|
28 |
|
|
|
Seam guide |
28 |
|
|
||

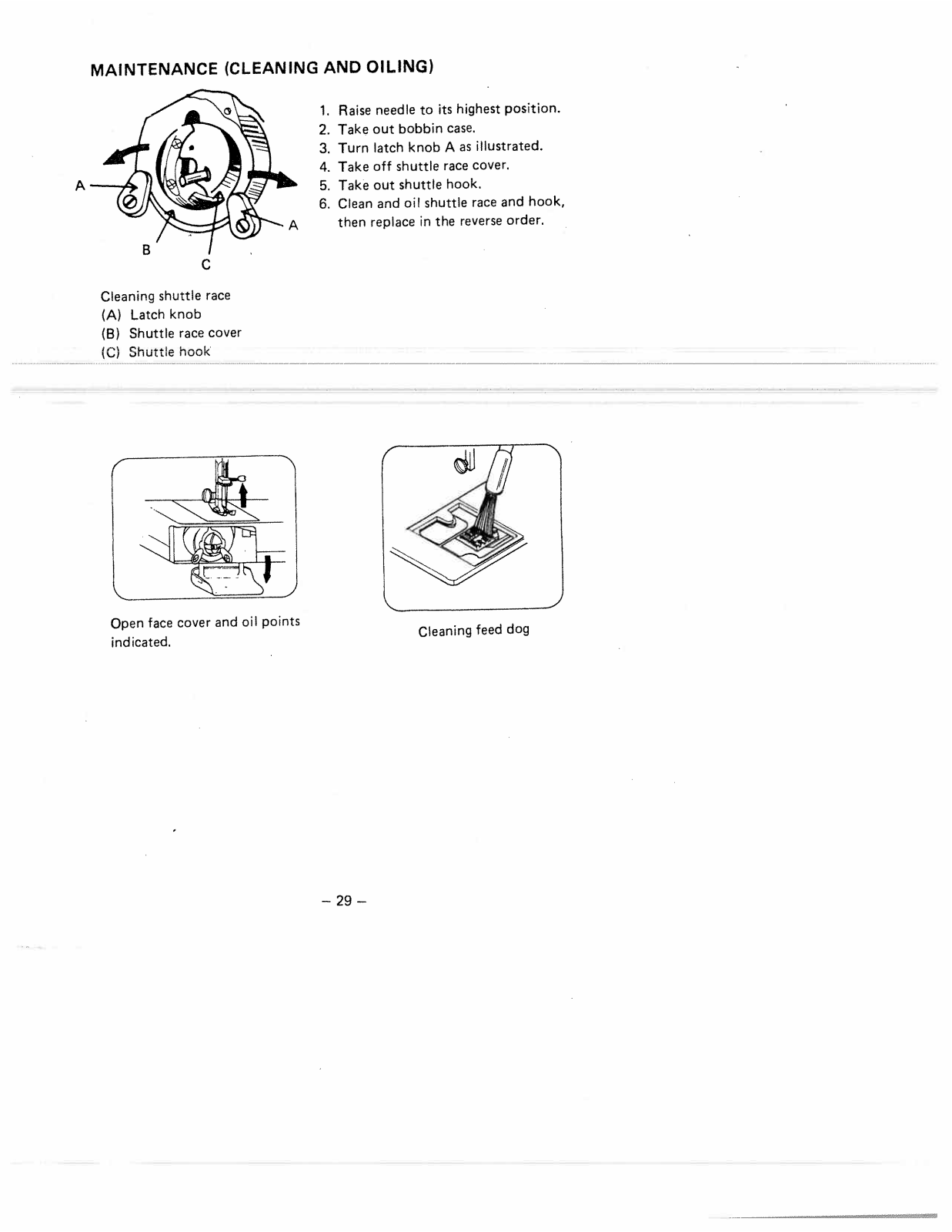

Maintenance (Cle.3ning and oiling) |
29 |
|
|
||

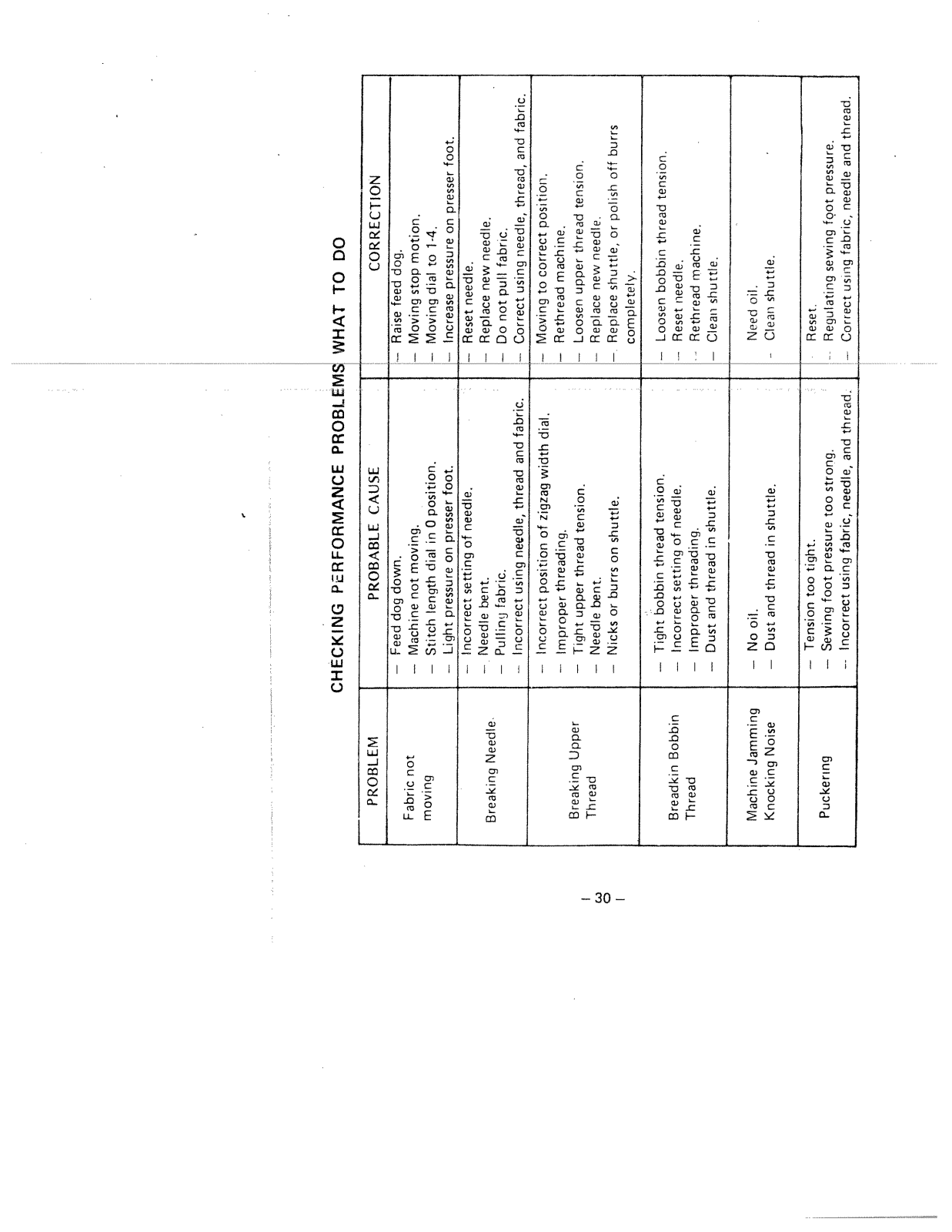

Checking Performance Problems WHAT TO DO |
30 |

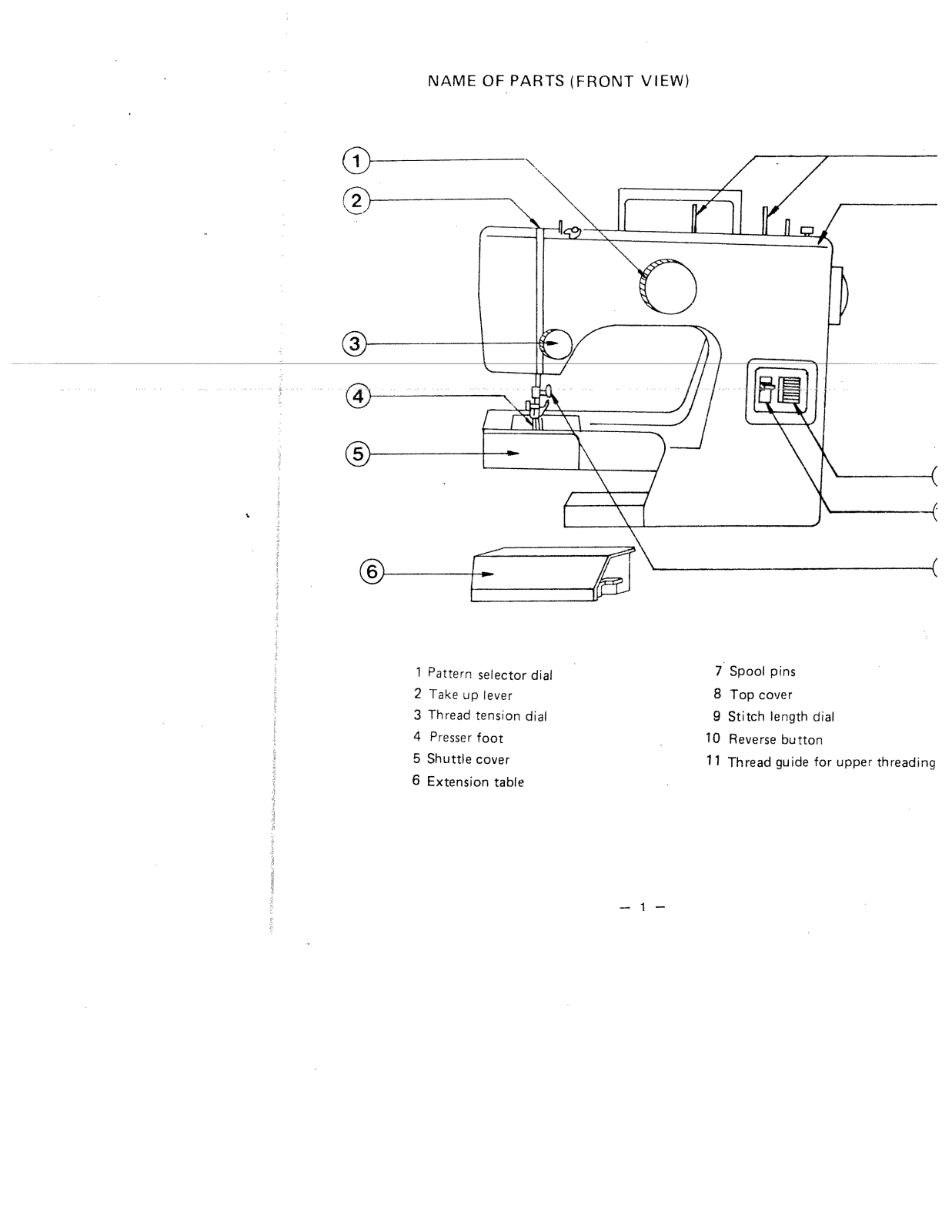

NAME OF PARTS (FRONT VIEW)
1 |
Pattern selector dial |
7 |
Spool pins |
2 |
Take up lever |
8 |
Top cover |
3 |
Thread tension dial |
9 |
Stitch length dial |
4 |
Presser foot |
10 |
Reverse button |
5 |
Shuttle cover |
11 |
Thread guide for upper threading |
6 |
Extension table |
|
|

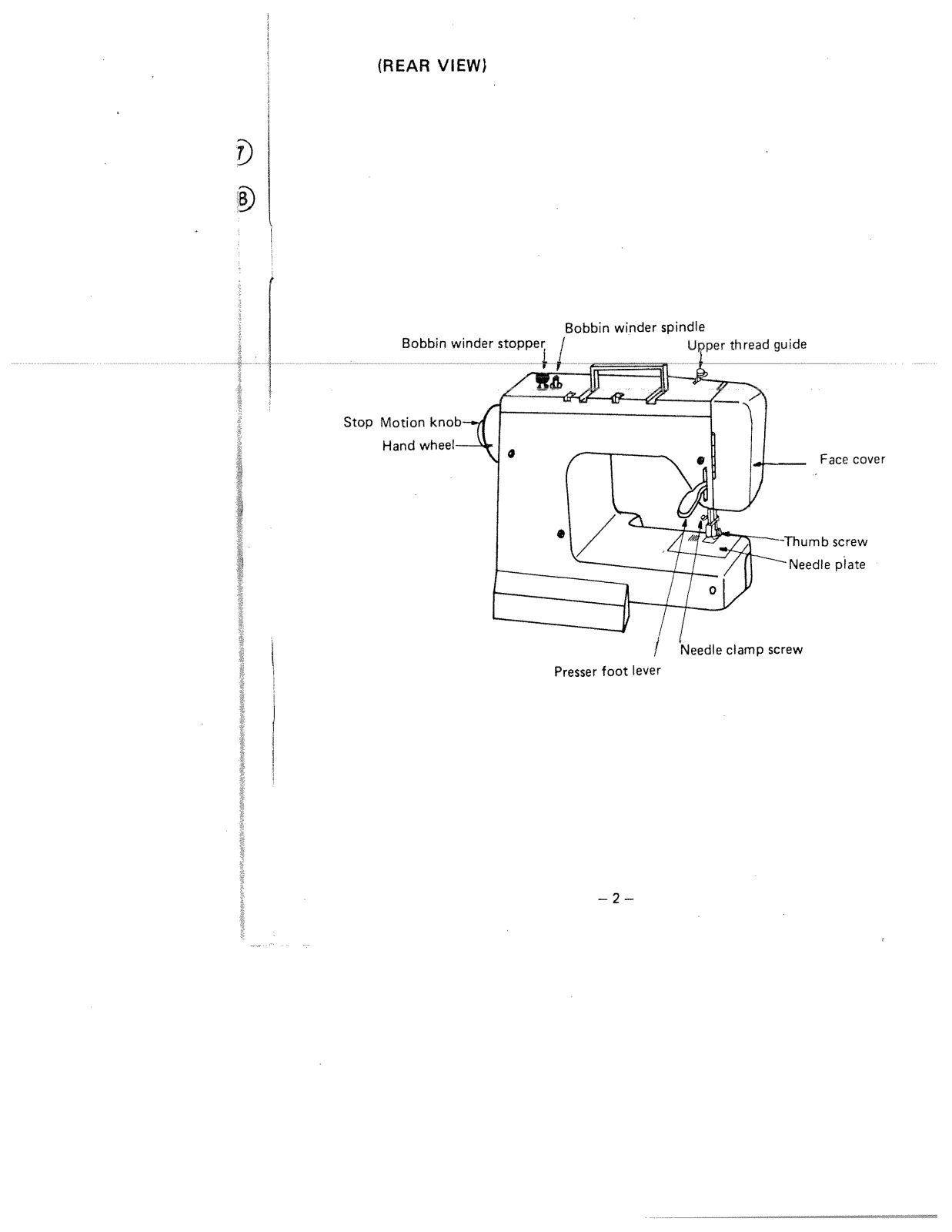

(REAR VIEW)
Bobbin winder spindle
Bobbin winder
Stop
Face cover
plate
eedle clamp screw
Presser foot lever
—2—

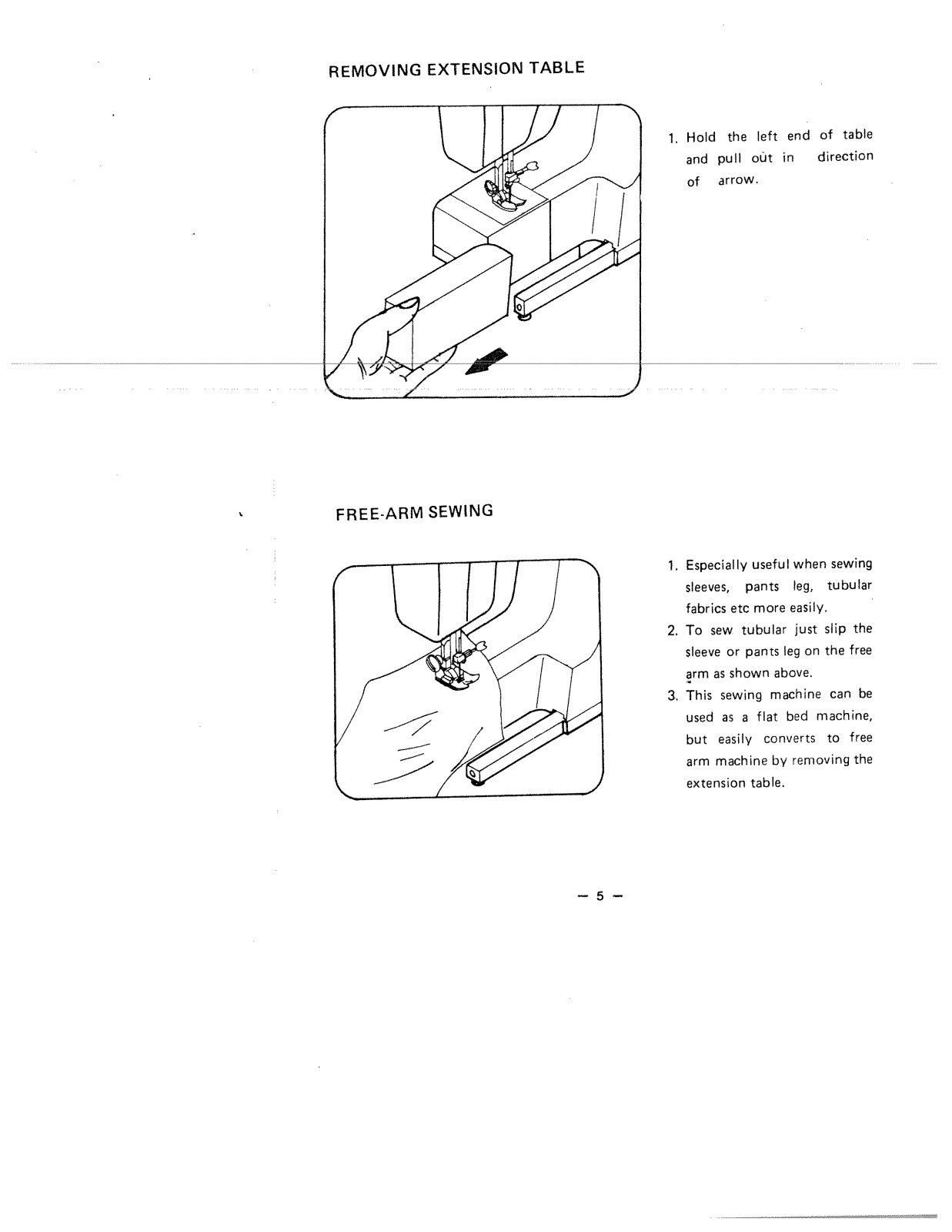

REMOVING EXTENSION TABLE
1. Hold |
the left end of table |
|
and |
pull out in |
direction |
of |
arrow. |
|
FREEARM SEWING
1. Especially useful when sewing sleeves, pants leg, tubular
fabrics etc more easily.
2. To sew tubular just slip the sleeve or pants leg on the free arm as shown above.
3. This sewing machine can be used as a flat bed machine, but easily converts to free
arm machine by removing the
extension table.

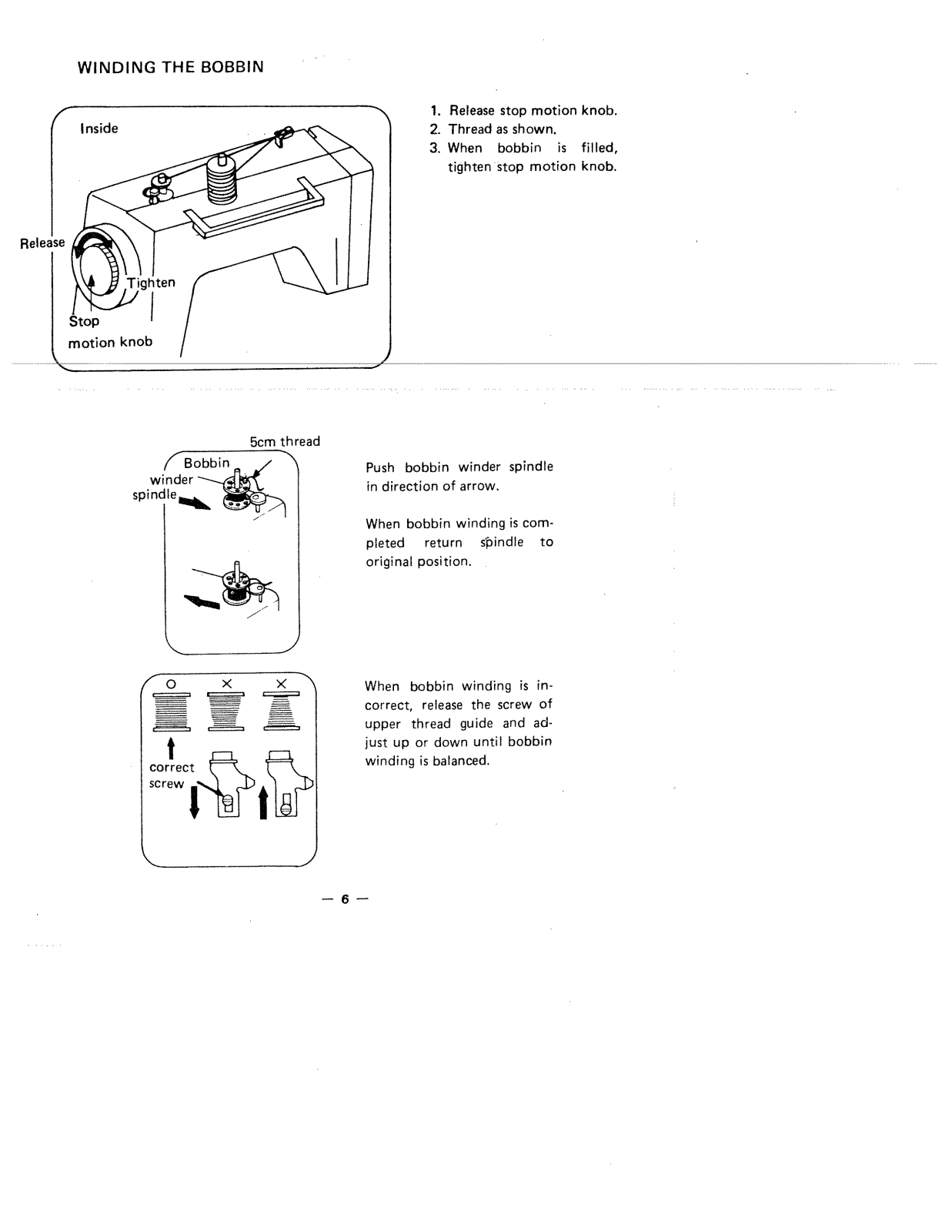

WINDING THE BOBBIN
1. Release stop motion knob.
2. Thread as shown.
3. When bobbin is filled, tighten stop motion knob.
Push bobbin winder spindle in direction of arrow.
When bobbin winding is com pleted return sindIe to original position.
When bobbin winding is in correct, release the screw of
=upper thread guide and ad just up or down until bobbin
1ff winding is balanced.
::m
—6—
