TOP AND CABINET PARTS

For Model: WTW5300SQ0

(White)

AUTOMATIC

WASHER

6−06 Litho in U.S.A. (drd)

1

Part No. 8181301

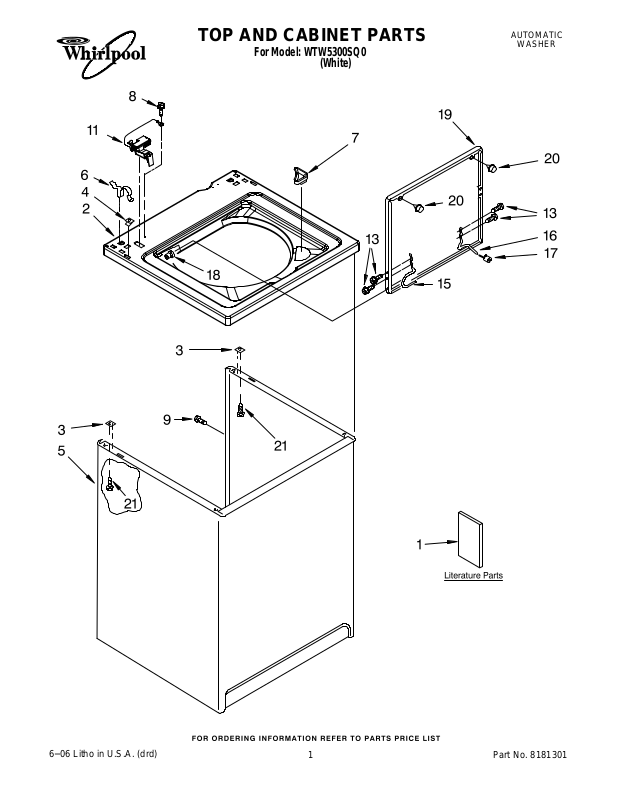

TOP AND CABINET PARTS

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

1 Literature Parts

W10044800

3957874 Feature Sheet
3955884 Use & Care Guide
8578910 Wiring Diagram

W10023640

Following May Be Purchased

DO−IT−YOURSELF
REPAIR MANUALS

4313896 Manual, Do−It

2 8318064 Top
3 62750 Spacer, Cabinet To

4 357213 Nut, Push−In (2)
5 63424 Cabinet
6 62780 Clip, Top & Cabinet

7 3362952 Dispenser, Bleach
8 3351614 Screw, Ground

9 3357011 Screw, 10−16 x 1/2
11 8318084 Switch, Lid
13 3351355 Screw, Lid Hinge

15 8318088 Hinge, Lid (L.H.)
16 54583 Hinge, Lid (R.H.)
17 19119 Bumper, Lid Hinge
18 21258 Bearing, Lid

19 8580061 Lid
20 9724509 Bumper, Lid (2)
21 3390631 Screw,

Installation
Instructions

Energy Guide

Yourself (Washer)

Top (4)

& Rear Panel (2)

Mounting (4)

Hinge (2)

10−16 x 3/8 (4)

2

8181301

CONTROLS AND REAR PANEL PARTS

For Model: WTW5300SQ0

(White)

8181301

3

CONTROLS AND REAR PANEL PARTS

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

1 3976300 Washer, Water

Inlet Hose (4)

(1−1/16 x 5/8)
2 9740848 Screw, 8−18 x 1/2
3 Hose, Water

Inlet (2)

8571377 Blue Coupler

8571378 Red Coupler
4 3400073 Screw, Ground
5 8568314 Strap, Console (2)
6 8318015 Panel, Rear
7 62747 Pad, Rear Panel
8 8559373 Drain Hose

Assembly (Includes

Items 17 & 27)

9 8546685 Timer, Control

(60 Hz.)
(Motor Not A

Service Part)
10 3351614 Screw, Ground
11 90767 Screw, 8−18 x 3/8
12 8577845 Switch, Water Level
13 8544893 Bracket, Control
14 3956162 Cord, Power

(Includes Item 15)

Illus. Part

No. No. DESCRIPTION

15 3952821 Strain Relief,

Power Cord
16 8271365 Cap, End (L.H.)
17 8541668 Clamp, Hose
18 8578341 Valve, Water Inlet

W/Bi−Metal
19 303294 Edge Protector
20 8318046 Clip, Capacitor
21 301958 Clamp, Hose
22 8317974 Hose, Vacuum

Break
23 370450 Clamp, Hose
24 387606 Break, Vacuum
25 8539874 Shield, Suds
26 8519200 Support, Rear

Panel
27 8541667 Clamp, Hose
28 8572717 Capacitor,

Motor Start
30 3363366 Clamp, Hose
31 8317496 Clamp, Hose
32 3951449 Hose, Pump To Tub

(Includes Item 30)

Illus. Part

No. No. DESCRIPTION

33 8055003 Clip, Harness

& Pressure Hose

35 8578337 Switch, Water

Temperature

36 3400818 Screw, Timer

Mounting

37 8541669 Bucket, Drain Hose

(Left Half)

38 8541658 Bucket, Drain Hose

(Right Half)
39 8578801 Panel, Console
44 8566022 Knob, Timer
45 8566018 Dial, Timer
46 8536939 Clip, Knob
47 8565944 Knob, Control
49 388326 Screw, 8−18 x 1.25

(Panel to Top)
50 62863 Screw, 10−16 x 3/8
51 8271359 Cap, End (R.H.)
52 8577378 U−Bend,

Drain Hose
53 3347868 Cable Tie
54 3958079 Wiring Harness

(For Detail See

Pages 9 & 10)

4

8181301

AGITATOR, BASKET AND TUB PARTS

For Model: WTW5300SQ0

(White)

8181301

5

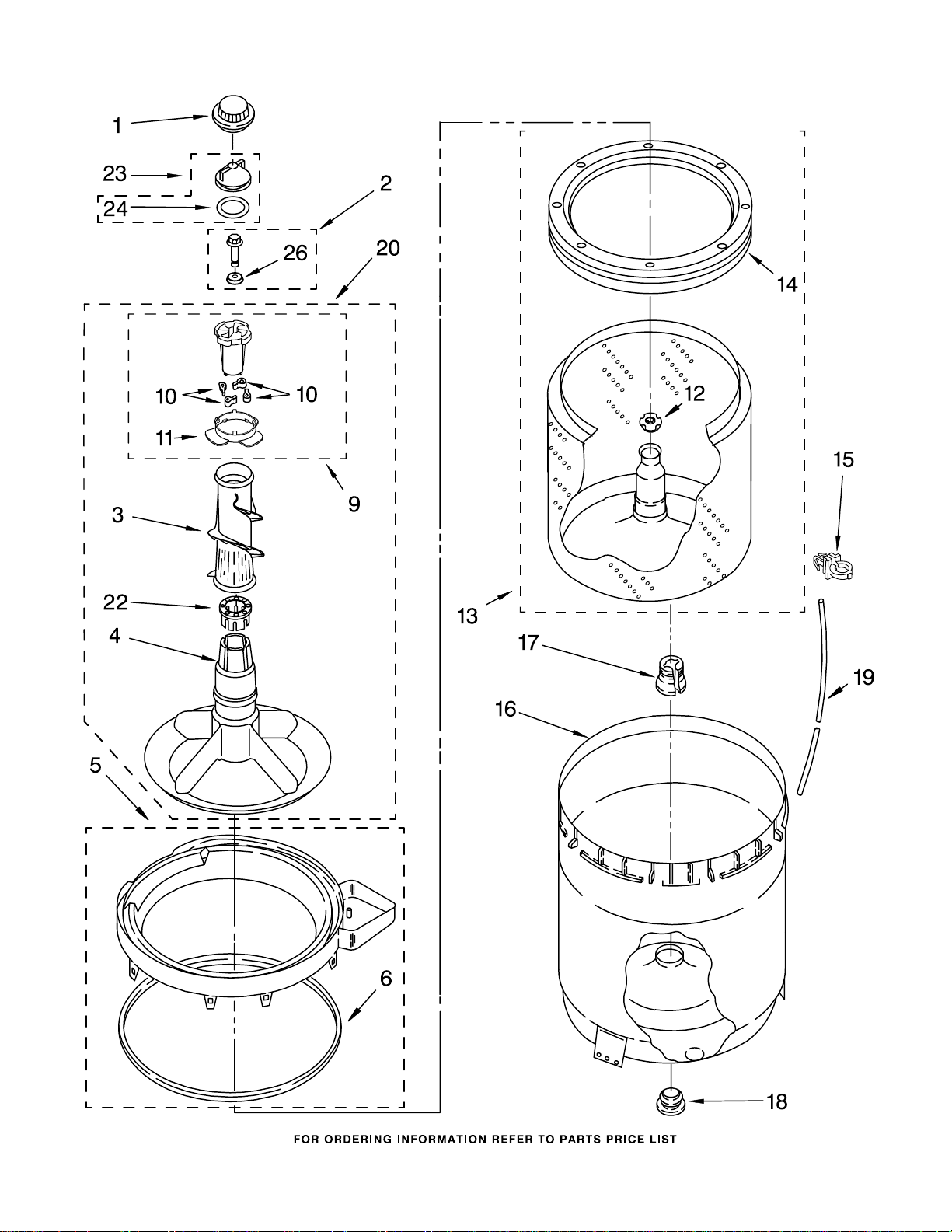

AGITATOR, BASKET AND TUB PARTS

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

1 3355758 Cap, Agitator
2 358237 Screw & Washer

(5/16−24 x 1)
3 3348752 Clothes Mover
4 3347288 Agitator
5 8528150 Tub Ring & Gasket
6 3976308 Gasket, Tub Ring
9 3363663 Cam, Driven

10 3366877 Dog, Agitator

Clutch (4)

11 3363661 Bearing, Cam

Driven
12 21366 Nut, Spanner
13 8526017 Basket & Balance

Ring
14 8519788 Balance Ring
15 2219077 Clip, Pressure

Switch Hose
16 63849 Tub
17 389140 Block, Basket

Drive
18 383727 Gasket, Centerpost
19 3347780 Hose, Pressure
20 3348117 Agitator

(Complete)
22 3350389 Spacer−Thrust
23 3354733 Cap, Barrier
24 3348855 Seal−Inner Cap
26 3949550 Washer

6

8181301

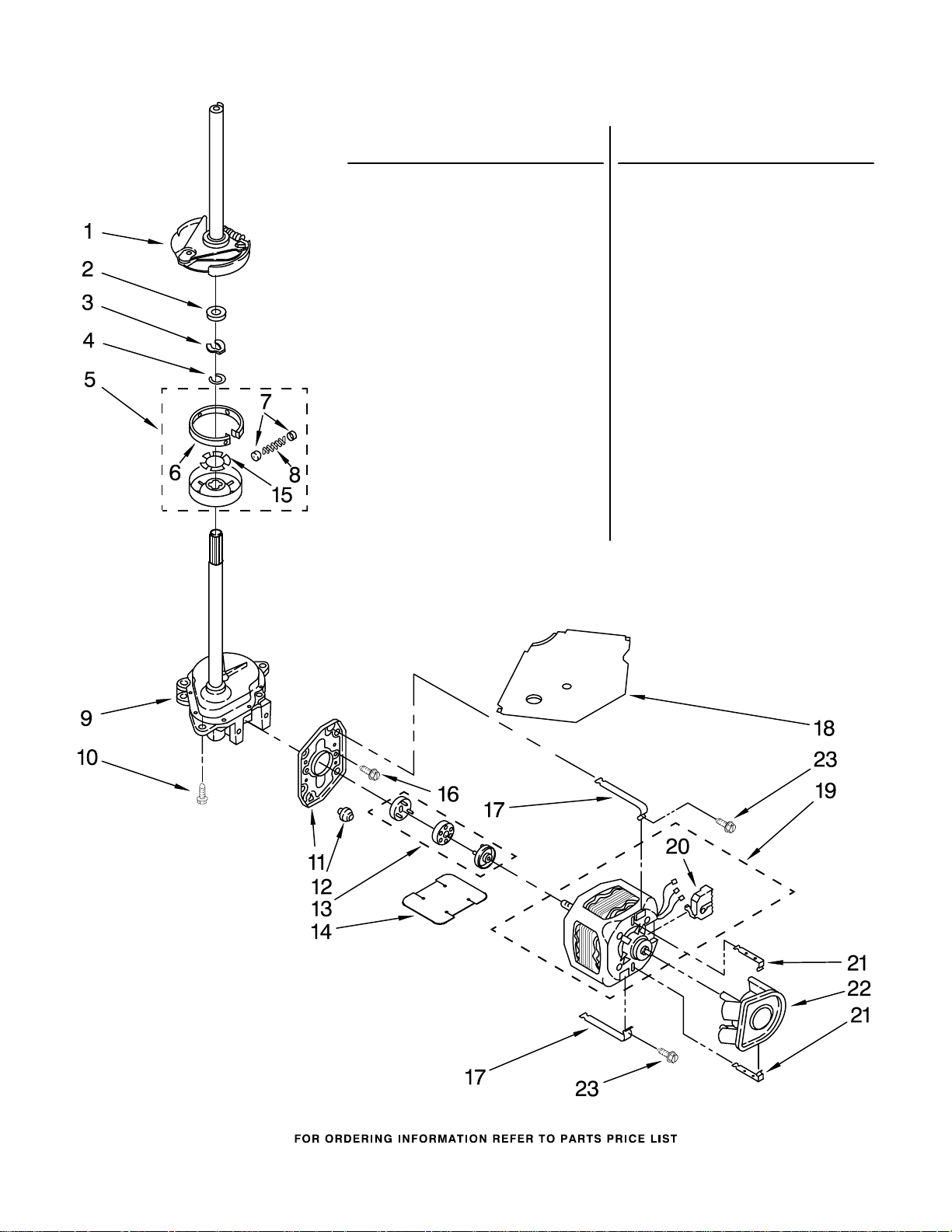

BRAKE, CLUTCH, GEARCASE, MOTOR AND PUMP PARTS

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

1 388952 Brake & Drive

Tube (Complete)
(Refer to Page 11
For Further

Breakdown)

2 63292 Washer, Spin

Tube Thrust

3 62697 Ring, Spin

Tube Support

4 63283 Ring, Retainer
5 3951311 Clutch (Complete)
6 3951308 Band & Lining,

Clutch (Includes
Items 7 & 8)

7 62646 Cap, Clutch

Spring (2)

8 3946792 Spring, Clutch
9 3360630 Gearcase

(Complete)
(Refer To Page 12
For Further

Breakdown)

Illus. Part

No. No. DESCRIPTION

10 3357334 Screw, Gearcase

To Base (3)

11 62611 Plate, Motor

Mount To

Gearcase
12 62691 Grommet, Motor (4)
13 285753 Coupling, Motor

& Isolation
14 3946532 Shield, Motor
15 3355454 Clip,

Anti−Rattle
16 3400516 Screw
17 3349637 Retainer, Motor (2)
18 3362089 Shield, Tub

To Motor
19 8528157 Motor, Main

Drive
20 3952056 Switch, Main

Drive Motor
21 8546127 Retainer, Pump (2)
22 3363394 Pump (Complete)
23 3387485 Screw, 10−16 x 5/8

8181301

7

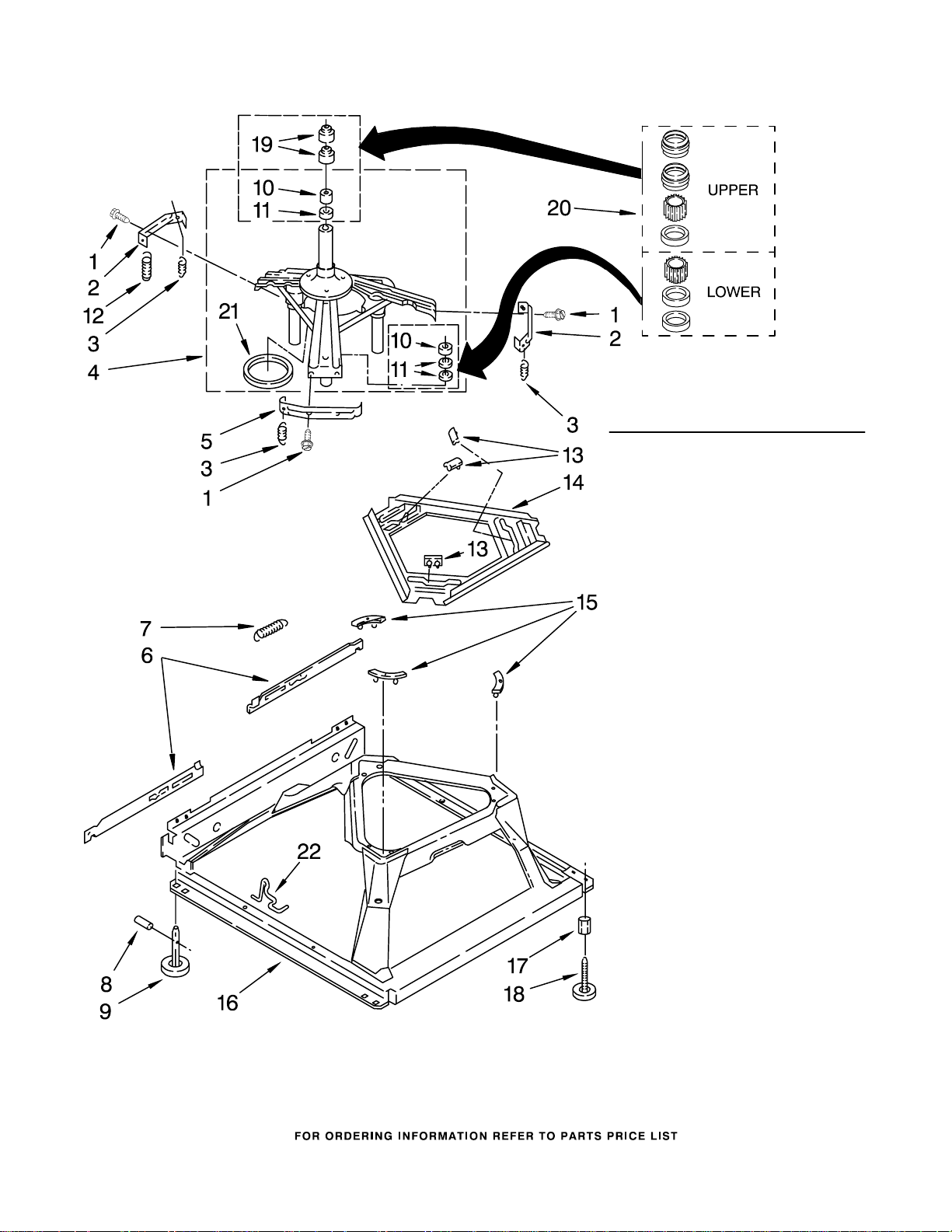

MACHINE BASE PARTS

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

1 3400076 Screw, Bracket

Mounting
(10−32 x 5/8)

2 64067 Bracket, Spring

Outer (2)

3 63907 Spring

Suspension,(3)

4 8575214 Support & Brake,

Tub

5 64065 Bracket, Spring

Outer (L.F.)

6 63466 Link, Leveling

Mechanism (2)

7 62597 Spring, Leveling

Mechanism
8 62837 Pin, Knurled
9 62596 Foot, Rear (2)

10 8546455 Bearing,

Centerpost (2)

11 357409 Seal, Centerpost (3)
12 388492 Spring,

Counterweight

13 62568 Pad, Plate
14 3946509 Plate, Suspension

(Includes Item 13)

15 3363660 Pad, Base
16 3946512 Base Assembly

(Includes Items 6,

7, 8, 9, 13, 14,

15 & 22)

17 3359452 Nut, Lock (2)

(3/8−16)

W10001130

18
19 356934 Seal, Centerpost
20 285203 Centerpost

21 63134 Ring, Sound
22 63806 Retainer,

Foot, Front (2)

Bearing Kit

(Includes Items

10, 11 & 19)

Deadening

Suspension Spring

8

8181301

WIRING HARNESS PARTS

For Model: WTW5300SQ0

(White)

8181301

9

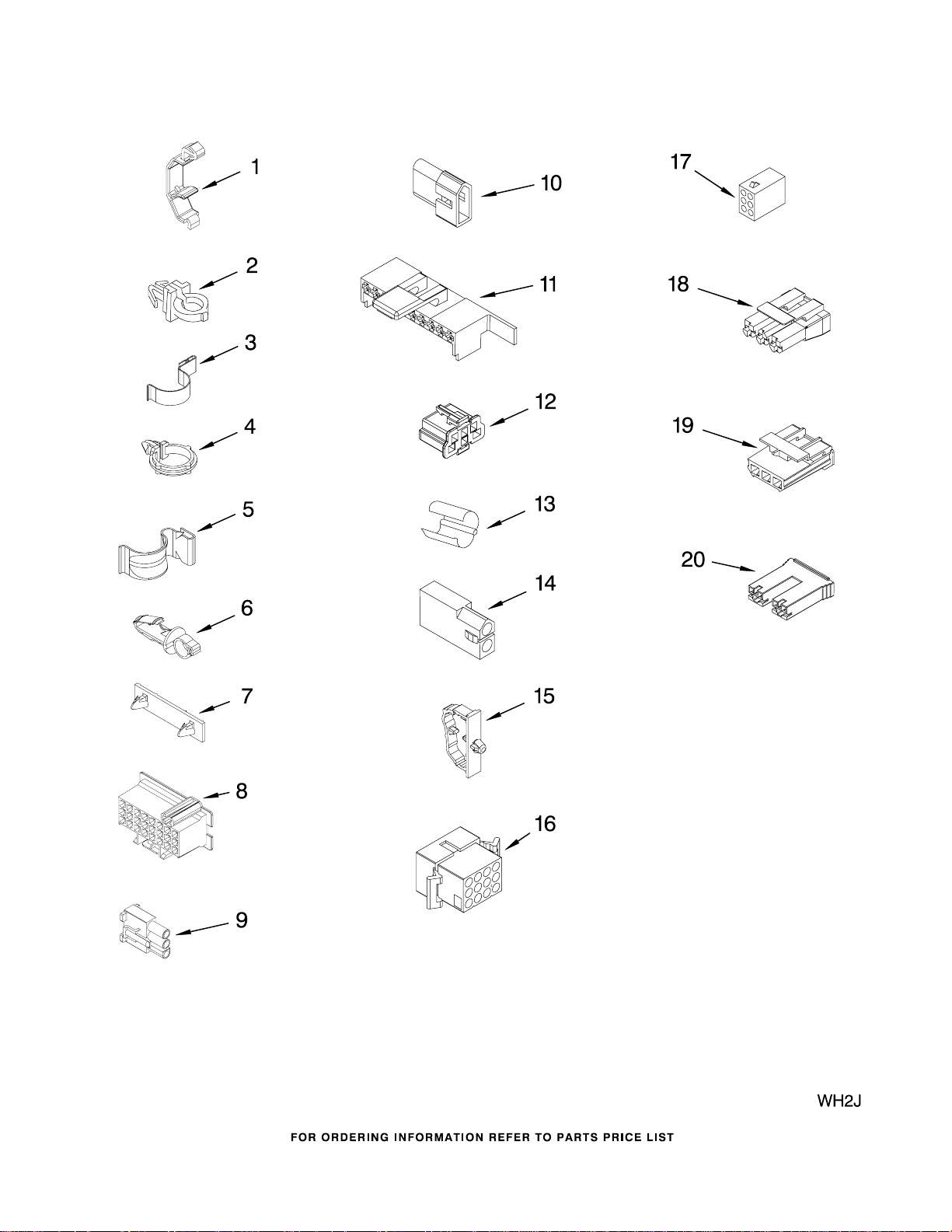

WIRING HARNESS PARTS

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

1 3349557 Retainer, Harness
2 388498 Clip, Harness
3 3347812 Clip, Harness
4 3352501 Clip, Harness

(Push−In)

5 90016 Clip, Harness

(Half−Harness)
6 3390496 Clip, Harness
7 389379 Retainer, Harness
8 Timer, Block

Disconnect

3948614 Natural

352089 Black

Illus. Part

No. No. DESCRIPTION

9 62889 Receptacle,

Terminal

(3−Way)

10 353424 Plug, Terminal

(3−Way)

11 62505 Block, Disconnect

(Motor 2 Speed)
12 3347243 Block, Disconnect
13 63523 Protector
14 717252 Connector

(2−Way)
15 3352944 Clip, Harness

Illus. Part

No. No. DESCRIPTION

16 3390423 Block, Disconnect

(12−Way)

17 3347730 Receptacle

(6−Way)

18 3948617 Connector (T.P.A.)

(3−Circuit)

19 3360056 Plug (T.P.A)

(3−Circuit)
(Pressure Switch)

20 Block, Connector

3354925 Natural
3354926 Red

FOR COMPLETE WIRING HARNESS REFER TO

CONTROL AND REAR PANEL PARTS PAGE

10

8181301

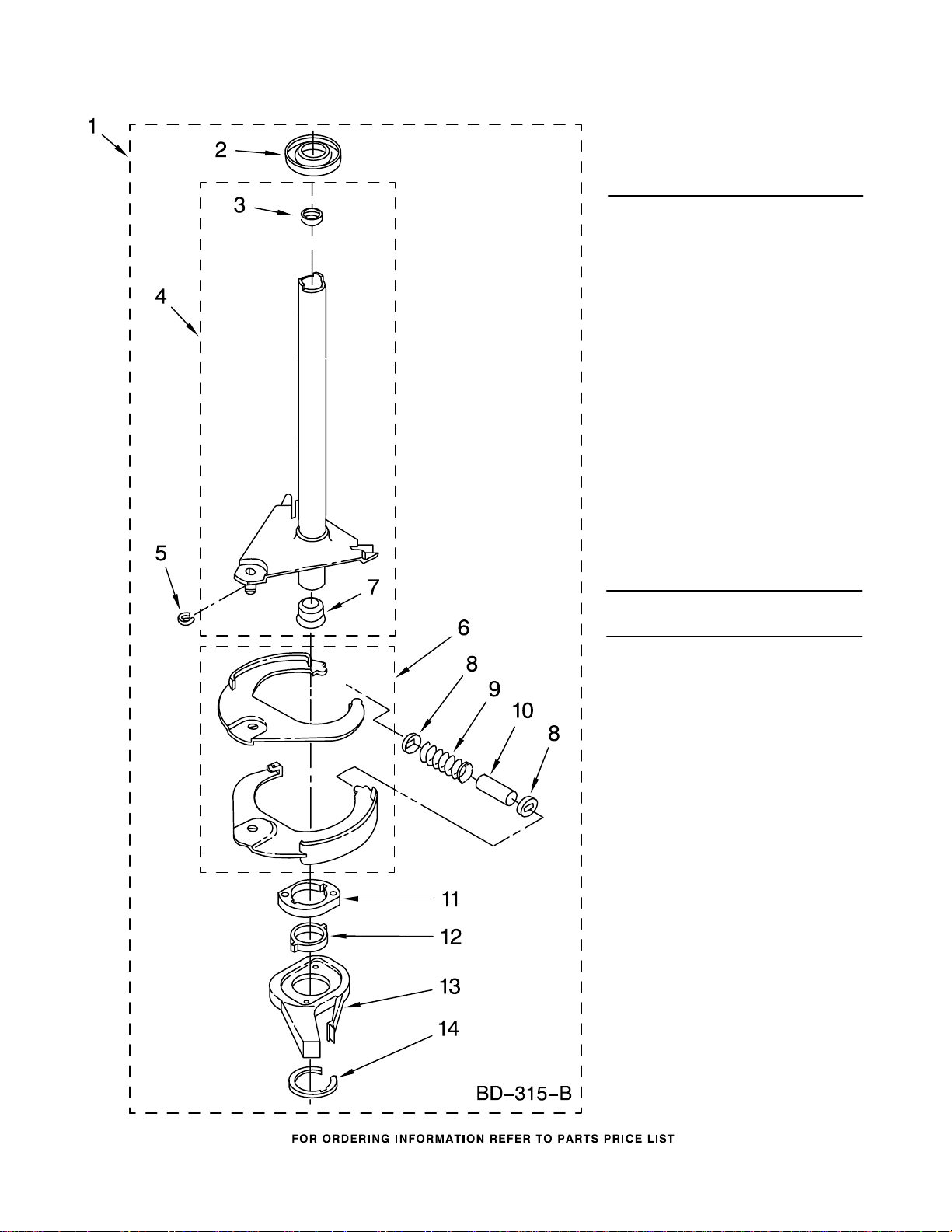

BRAKE AND DRIVE TUBE PARTS

For Model: WTW5300SQ0

(White)

Illus. Part
No. No. DESCRIPTION

1 388952 Brake And Drive

2 62658 Ring, Thrust
3 356427 Seal, Drive Tube

4 64027 Tube, Basket

5 64035 Ring, Retaining
6 64232 Shoe, Brake (2)
7 62703 "T" Bearing,

8 3353956 Cap, Brake

9 387806 Spring, Brake

10 3355360 Sleeve, Brake

11 661516 Cam, Brake

12 63022 Sleeve, Cam
13 64194 Driver, Brake

14 90368 Ring, Retaining

Tube (Complete)

Drive (Includes
Illus. 3, 4, 5 & 9)

Spin Tube
Spring (2)

Spring
Release

Cam

FOLLOWING PARTS

NOT ILLUSTRATED

285208 Lubricant

(Use Only In
Brake Shoe
Assembly On
Roller & Pin)

8181301

11

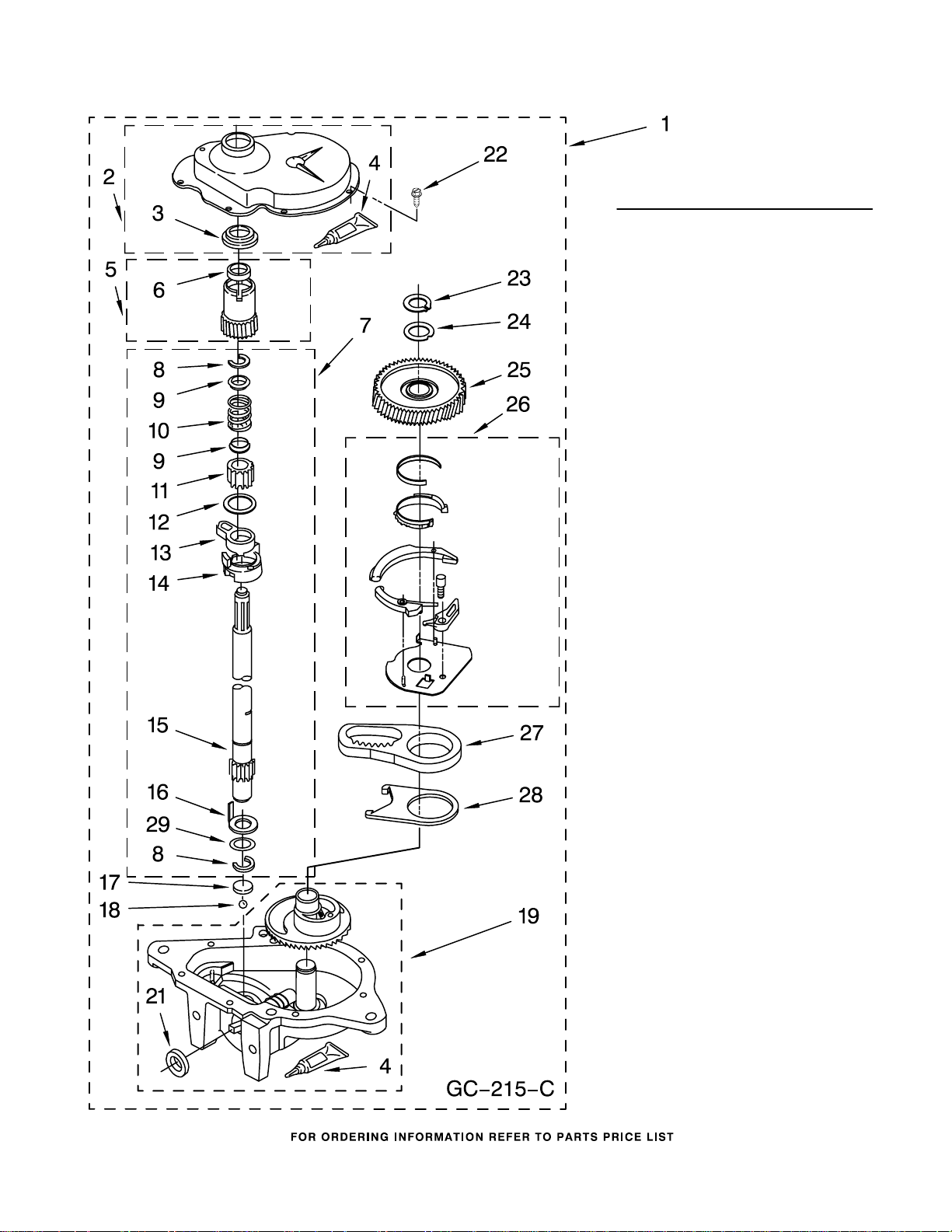

GEARCASE PARTS

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

1 3360630 Gearcase

(Complete)
2 285202 Cover, Gearcase
3 3349985 Seal, Gearcase

Cover
4 285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)
5 63320 Pinion, Spin

(Includes Illus. 25)
6 356427 Seal, Spin

Pinion
7 389387 Shaft, Agitator

(Complete)
8 90369 Ring, Retaining (2)
9 62677 Retainer, Spring

10 62676 Spring, Agitate

11 63273 Gear, Agitate

(Includes 15 and 29)

12 62619 Washer, Agitate

Gear

13 62580 Cam Follower

(Includes 14)

14 62581 Cam, Agitate

(Includes 13)

15 285509 Shaft, Agitator

(Includes 11 and 29)

16 62618 Washer, Cam Thrust
17 16018 Bearing, Thrust
18 85529 Ball, Bearing
19 389230 Bottom and Pinion,

Gearcase

21 285352 Seal, Thrust Plug

22 3351614 Screw, Gearcase

Cover, Mounting (8)

(10−24 x 3/8)

23 3362552 Ring, Retaining
24 285735 Washer Kit,

Thrust
25 62570 Gear, Spin
26 388253 Neutral Assembly
27 3349296 Rack, Connecting
28 62621 Actuator, Shift
29 388815 Washer,

Intermediate

12

8181301

OPTIONAL PARTS (NOT INCLUDED)

For Model: WTW5300SQ0

(White)

Illus. Part

No. No. DESCRIPTION

PAINT, TOUCH−UP (1/2oz.)

72017 White

PAINT, PRESSURIZED SPRAY
(12 oz.)

350938 Primer, Gray
350930 White

PAINT, BULK (1 qt.)

799344 White (Uncut)

OIL

350572 Oil, Gearcase

(16 Oz.)

LUBRICANT

285208 Lubricant (Use

Only in Brake
Shoe Assembly
On Roller and

Pin)

SEALER

285195 Sealer, Gasket

(.20 Fl. Oz.) (6 ml)

ACCESSORY PARTS

63580 Fabric Dispenser
367031 Drain Protector
280129 Siphon Break Kit
280130 Drain Hose

Adapter Kit

280131 Drain Hose

Extension Kit

8181301

13
