Whirlpool WRF560SEHZ User Manual

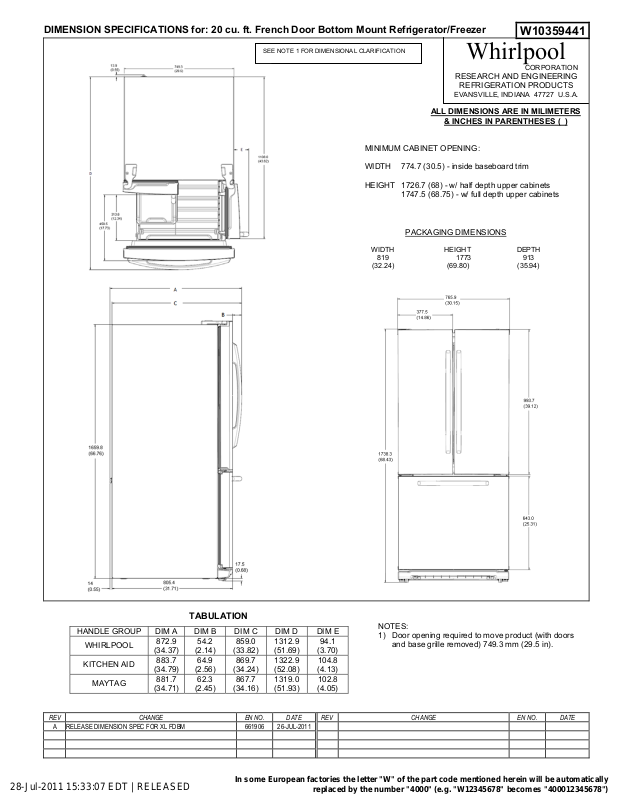

DIMENSION SPECIFICATIONS for: 20 cu. ft. French Door Bottom Mount Refrigerator/Freezer

SEE NOTE 1 FOR DIMENSIONAL CLARIFICATION

MINIMUM CABINET OPENING:

WIDTH 774.7 (30.5) - inside baseboard trim

HEIGHT 1726.7 (68) - w/ half depth upper cabinets

1747.5 (68.75) - w/ full depth upper cabinets

Whirlpool

CORPORATION

RESEARCH AND ENGINEERING

REFRIGERATION PRODUCTS

EVANSVILLE, INDIANA 47727 U.S.A.

ALL DIMENSIONS ARE IN MILIMETERS

& INCHES IN PARENTHESES ( )

W10359441

PACKAGING DIMENSIONS

WIDTH HEIGHT DEPTH

819 1773 913

(32.24) (69.80) (35.94)

HANDLE GROUP DIM A DIM B DIM C DIM D DIM E

WHIRLPOOL

KITCHEN AID

MAYTAG

REV CHANGE EN NO. DATE REV CHANGE EN NO. DATE

A RELEASE DIMENSION SPEC FOR XL FDBM 661906 26-JUL-2011

872.9

(34.37)

883.7

(34.79)

881.7

(34.71)

28-Jul-2011 15:33:07 EDT | RELEASED

TABULATION

54.2

(2.14)

64.9

(2.56)

62.3

(2.45)

859.0

(33.82)

869.7

(34.24)

867.7

(34.16)

In some European factories the letter "W" of the part code mentioned herein will be automatically

1312.9
(51.69)

1322.9
(52.08)

1319.0
(51.93)

NOTES:

94.1

(3.70)

104.8
(4.13)

1) Door opening required to move product (with doors
and base grille removed) 749.3 mm (29.5 in).

102.8
(4.05)

replaced by the number "4000" (e.g. "W12345678" becomes "400012345678")
