Whirlpool WA 4584 PROGRAM CHART
GB
WA 4584

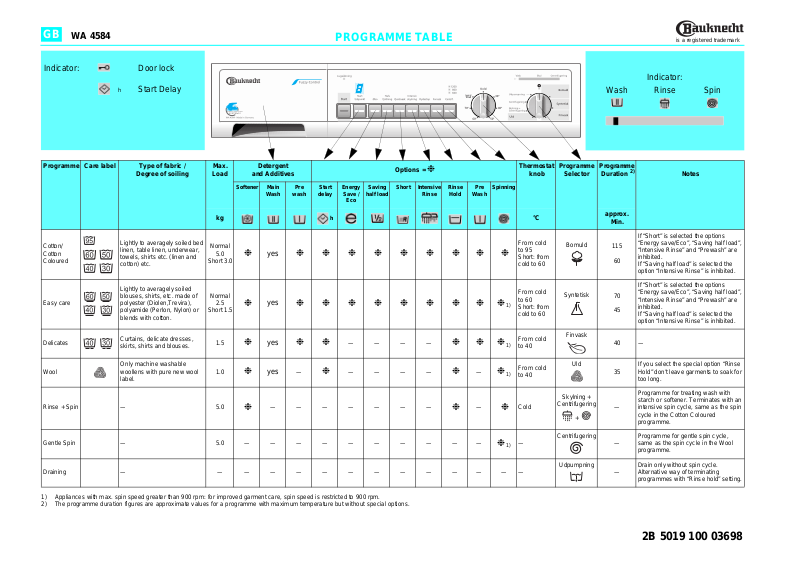

PROGRAMME TABLE
is a registered trademark
Indicator: Door lock
h
Start Delay
Programme Care label Type of fabric /
Cotton/
Cotton
Coloured
Easy care
Delicates
Degree of soiling
Lightly to averagely soiled bed
linen, table linen, underwear,
towels, shirts etc. (linen and
cotton) etc.
Lightly to averagely soiled
blouses, shirts, etc. made of
polyester (Diolen,Trevira),
polyamide (Perlon, Nylon) or
blends with cotton.
Curtains, delicate dresses,
skirts, shirts and blouses.
Max.
Load
kg
Normal
5.0
Short 3.0
Normal
2.5
Short 1.5
1.5
Detergent
and Additives
Softener Main
Wash
yes
❉
yes
❉
yes
❉
Options = ❉
Pre
Start
Energy
Saving
wash
delay
Save /
half load
Eco
h
Short Intensive
Rinse
Rinse
Hold
Pre
Wash
Spinning
❉❉❉❉❉❉❉❉❉
❉❉❉❉❉❉❉❉
❉❉
————
❉❉
❉
❉
1)
1)
Thermostat
knob
°C
From cold
to 95
Short: from
cold to 60
From cold
to 60
Short: from
cold to 60
From cold
to 40
Programme
Selector
Bomuld
Syntetisk
Finvask
Indicator:
Wash Rinse Spin
Programme
Duration
approx.
Min.
115
60
70
45
40 —
2)
If “Short” is selected the options
“Energy save/Eco”, “Saving half load”,
“Intensive Rinse” and “Prewash” are
inhibited.
If “Saving half load” is selected the
option “Intensive Rinse” is inhibited.
If “Short” is selected the options
“Energy save/Eco”, “Saving half load”,
“Intensive Rinse” and “Prewash” are
inhibited.
If “Saving half load” is selected the
option “Intensive Rinse” is inhibited.
Notes
Wool
Rinse + Spin — 5.0
Gentle Spin — 5.0——————————
Draining — —————————————
1) Appliances with max. spin speed greater than 900 rpm: for improved garment care, spin speed is restricted to 900 rpm.
2) The programme duration figures are approximate values for a programme with maximum temperature but without special options.
Only machine washable
woollens with pure new wool
label.
1.0
yes
❉
❉
—
———————
————
❉
—
❉
—
❉
❉
❉
❉
1)
1)
From cold
to 40
Cold
—
Uld
Skylning +
Centrifugering
+
Centrifugering
Udpumpning
If you select the special option “Rinse
35
Hold” don’t leave garments to soak for
too long.
Programme for treating wash with
starch or softener. Terminates with an
—
intensive spin cycle, same as the spin
cycle in the Cotton Coloured
programme.
Programme for gentle spin cycle,
—
same as the spin cycle in the Wool
programme.
Drain only without spin cycle.
—
Alternative way of terminating
programmes with “Rinse hold” setting.
2B 5019 100 03698
Power and water consumption data
GB
Programme
Cotton/Cotton Coloured 95 5.0 — 60 1.70 115
Cotton/Cotton Coloured 60 5.0 — 56 1.10 110
Cotton/Cotton Coloured 60 5.0
Cotton/Cotton Coloured 60 2.5
Cotton/Cotton Coloured 40 5.0 — 56 0.55 95
Cotton/Cotton Coloured 30 3.0 Short 35 0.30 40
Easy care 60 2.5 — 60 0.80 80
Easy care 40 2.5 — 54 0.40 70
Easy care 30 1.5 Short 25 0.20 35
Delicate 40 1.5 — 60 0.50 40
Wool 40 1.0 — 60 0.50 35
Prewash cycle increases programme duration by approx. 15 minutes.
Consumption data were measured in normali sed conditions in compliance with Standard IEC60 456.
Consumption data in the home may v ary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.
Thermostat
knob
(°C) (kg) (l) (kWh) (min.)
Maximum
load
Special
options
Energy save /
Eco
Saving half
load
Water Electricity
56 0.55 105
40 0.90 95
Programme
duration
TO INTERRUPT THE PROGRAMME:
To interrupt a programme that is already running and then continue later:
1. Set the programme selector knob to “0”.
2. After the required break, reselect the programme.
3. Hold down the “Start” button for about one second.
The programme will continue from where it was interrupted.
CHANGING PROGRAMME DURING A RUNNING PROGRAMME:
a) TO SELECT A NEW PROGRAMME OR A DIFFERENT TEMPERATURE AND
CONTINUE
1. Select a new programme and/or new temperature.
2. Hold down the “Start” button for about one second.
The new programme will continue from the same programme step where the running
programme was interrupted.
b) TO CANCEL A PROGRAMME THAT IS ALREADY RUNNING AND START A
DIFFERENT PROGRAMME FROM THE BEGINNING
There’s no need to add more detergent when you start the new programme, because
the appliance drains only just few water when you cancel the current programme.
1. Hold down the “Start” button for five seconds, or until the programme control
audibly restarts.
2. Wait until the programme sequence indicator returns to its initial position on the left
(no longer visible).
3. Set the programme selector to “0”.
4. Set the programme selector knob to the new programme, select the temperature
(if different) and any different special options you require.
5. Hold down the “Start” button for about one second.
ROUTINE WASHES:
1. Turn on the tap.
2. Sort the laundry according to fabric type and colour and load the machine.
3. Close the door.
4. Pour in detergent and additives.
5. Select the programme, the temperature and any special options you require.
6. Hold down the “Start” button for about one second.
NOTE:
During the first 15 minutes of Cotton and Easy Care programmes (ea ch without Prewash)
you can open the door to add it ems to t he was h. Thi s is no t po ssible when the special
function “Short” is selected.
TROUBLESHOOTING GUIDE:
The appliance is equipped with s af et y f un ct ion s ab le to identify and indicate the pre sen ce of
faults and react appropriately.
Most faults are minor problems that can be solved quic kly. The fo llowi ng list gives sev eral
examples:
• The appliance fails to start.
• The appliance stops in mid programme.
• No water or insufficient water supply.
• The appliance does not drain.
• The machine vibrates during the spin cycle.
• Final spin results are poor.
• Detergent and additive product residues in the detergent dispenser at end of wash.
The cause and action notes for the a bov e po int s are gi ven i n th e ins tru cti on f or use in t he
chapter “Troubleshooting g uid e”.
