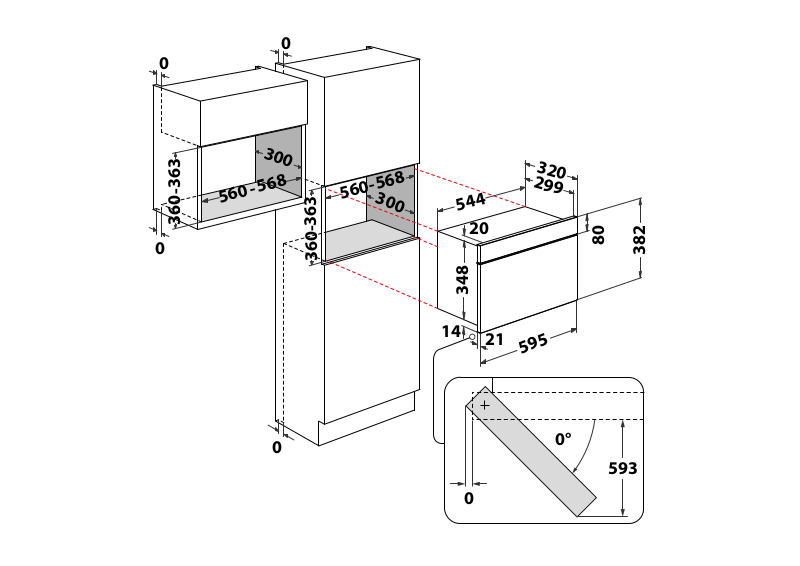

WHIRLPOOL W67 MN840 NB Extended Technical Drawing

593

0°

382

595

544

348

320

299

300

560-

568

363

360

363

560

568

360

W67 MN840 NB

12NC/Fx: 859991565560 GTIN (EAN) code:

8003437396274

DIMENSION MEASURE

OVERALL CABINET

MIN Height of the wall cabinet niche, including all required space for installation or ventilation 360 mm

MIN Height of the tall cabinet niche, including all required space for installation or ventilation 360 mm

MIN Height of the base cabinet niche, including all required space for installation or ventilation 0 mm

MAX Height of the wall cabinet niche, including all required space for installation or ventilation 363 mm

MAX Height of the tall cabinet niche, including all required space for installation or ventilation 363 mm

MAX Height of the base cabinet niche, including all required space for installation or ventilation 0 mm

MIN Width of the wall cabinet niche, including all required space for installation or ventilation 560 mm

MIN Width of the tall cabinet niche, including all required space for installation or ventilation 560 mm

MIN Width of the base cabinet niche, including all required space for installation or ventilation 0 mm

MAX Width of the wall cabinet niche, including all required space for installation or ventilation 568 mm

MAX Width of the tall cabinet niche, including all required space for installation or ventilation 568 mm

MAX Width of the base cabinet niche, including all required space for installation or ventilation 0 mm

MIN Depth of the wall cabinet niche, including all required space for installation or ventilation 300 mm

MIN Depth of the tall cabinet niche, including all required space for installation or ventilation 300 mm

MIN Depth of the base cabinet niche, including all required space for installation or ventilation 0 mm

Space in front, which is required to install bottom trim 0 mm

Indicates whether a ventilation opening is needed or not. Default is "N" No

WALL CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (wall cabinet) -

Minimum space or inbound ventilation (wall cabinet) 0 mm

Minimum area for inbound ventilation cavity (wall cabinet) 0 cm²

WALL CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (wall cabinet) -

Minimum space or outbound ventilation (wall cabinet) 0 mm

Minimum area for outbound ventilation cavity (wall cabinet) 0 cm²

TALL CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (tall cabinet) -

Minimum space for inbound ventilation (tall cabinet) 0 mm

Minimum area for inbound ventilation cavity (tall cabinet) 0 cm²

TALL CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (tall cabinet) -

Minimum space for outbound ventilation (tall cabinet) 0 mm

Minimum area for outbound ventilation cavity (tall cabinet) 0 cm²

BASE CABINET (vent-shaft incoming)

Indicates the position of the freespace for the inbound airflow (base cabinet) -

Minimum space for inbound ventilation (base cabinet) 0 mm

Minimum area for inbound ventilation cavity (base cabinet) 0 cm²

BASE CABINET (vent-shaft outgoing)

Indicates the position of the freespace for the outbound airflow (base cabinet) -

Minimum space for outbound ventilation (base cabinet) 0 mm

Minimum area for outbound ventilation cavity (base cabinet) 0 cm²

DIMENSION MEASURE

APPLIANCE

Height of the front 382 mm

Width of the front 595 mm

Depth of the front 21 mm

Maximum depth all protruding elements, e.g. handles, controls 0 mm

Lateral clearance between front edge and most protruding elements which avoid to open a neighbour front more than 90 degrees

Projection of front in relation to housing of appliance 20 mm

Projection of front in relation to bearing area of the appliance. Taken at minimum height of appliance, if height is adjustable

When product panel is missing, set to 0 80 mm

Space in front, which is required to guarantee full operability. The most protruding part gives this dimension

Height from bearing area of appliances and lower handle 0 mm

Frontal handle thickness 0 mm

Frontal handle width 0 mm

MIN Height of the product body 348 mm

MAX Height of the product body 348 mm

Width of the product body 544 mm

Depth of the product body 299 mm

Full depth of product excluding protruding interface elements 320 mm

Minimum height from bottom line hood to top line air outlet 0 mm

Maximum height from bottom line hood to top line air outlet 0 mm

Diameter minimum air outlet 0 mm

Diameter maximum air outlet 0 mm

Indicates measure between center of air outlet hole and rear wall 0 mm

Projection of the rear flap in relation to bearing area 0 mm

Height tube connection for air outlet 0 mm

Appliance can be used as base for other appliances from the same manufacturer. Default is "No" -

Appliance Flap door

Projection of the opened flap in relation to bearing area 0 mm

Maximum angle when flap door is opened totally 0 mm

Appliance Side swing door

Lateral projection of front incl. controls when door is opened totaly. At the side where the hinge is mounted

Lateral projection of opened front at the side where the hinge is fixed 2 mm

Maximum angle when door is opened totally 85 mm

Appliance other

Depth from front end of the niche to the front end of the freespace of the retrace 0 mm

Height from niche to bottom end of freespace for the retrace 0 mm

0 mm

14 mm

593 mm

0 mm
