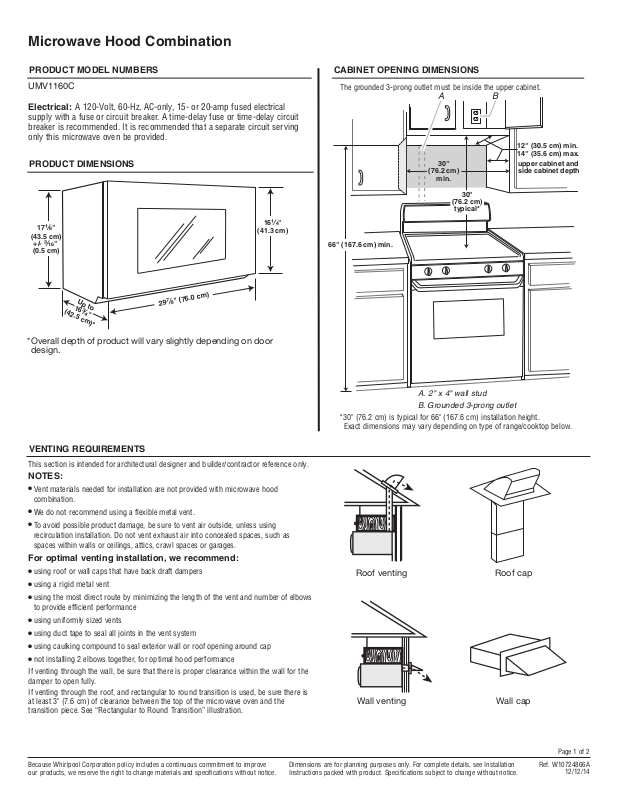

Whirlpool UMV1160CB, UMV1160CW, UMV1160CS, UMV1160CSW, UMV1160CB1 Dimension Guide

PRODUCT MODEL NUMBERS

PRODUCT DIMENSIONS

Electrical: A 120-Volt, 60-Hz, AC-only, 15- or 20-amp fused electrical

supply with a fuse or circuit breaker. A time-delay fuse or time-delay circuit breaker is recommended. It is recommended that a separate circuit serving only this microwave oven be provided.

Microwave Hood Combination

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.

Ref. W10724866A

12/12/14

CABINET OPENING DIMENSIONS

The grounded 3-prong outlet must be inside the upper cabinet.

A. 2" x 4" wall stud B. Grounded 3-prong outlet

*30" (76.2 cm) is typical for 66" (167.6 cm) installation height.

Exact dimensions may vary depending on type of range/cooktop below.

UMV1160C

VENTING REQUIREMENTS

This section is intended for architectural designer and builder/contractor reference only.

NOTES:

●

Vent materials needed for installation are not provided with microwave hood combination.

●

We do not recommend using a flexible metal vent.

●

To avoid possible product damage, be sure to vent air outside, unless using recirculation installation. Do not vent exhaust air into concealed spaces, such as spaces within walls or ceilings, attics, crawl spaces or garages.

For optimal venting installation, we recommend:

●

using roof or wall caps that have back draft dampers

●

using a rigid metal vent

●

using the most direct route by minimizing the length of the vent and number of elbows to provide efficient performance

●

using uniformly sized vents

●

using duct tape to seal all joints in the vent system

●

using caulking compound to seal exterior wall or roof opening around cap

●

not installing 2 elbows together, for optimal hood performance

If venting through the wall, be sure that there is proper clearance within the wall for the damper to open fully.

If venting through the roof, and rectangular to round transition is used, be sure there is at least 3" (7.6 cm) of clearance between the top of the microwave oven and the transition piece. See “Rectangular to Round Transition” illustration.

Page 1 of 2

¹⁄₄

(43

+/-

0.5 cm)

(

⁄₈

5 cm)

³⁄₁₆

Up to

(

³⁄₄

42.5 cm)*

" (76.0 cm)

⁷⁄₈

(41

3 cm)

*Overall depth of product will vary slightly depending on door

design.

A B

30"

(76.2 cm)

min.

30"

(76.2 cm)

typical*

66" (167.6 cm) min.

12" (30.5 cm) min. 14" (35.6 cm) max. upper cabinet and

side cabinet depth

Roof venting Roof cap

Wall venting Wall cap

VENTING REQUIREMENTS (cont.)

Rectangular to Round Transition NOTE:

The minimum 3" (7.6 cm) clearance must exist between the top of the microwave oven and the rectangular to round transition piece so that the damper can open freely and fully.

Recommended Standard Fittings

The following length equivalents are for use when figuring vent length. See the examples in “Recommended Vent Length.”

Recommended Vent Length

A 3¹⁄₄" x 10" (8.3 x 25.4 cm) rectangular or 6" (15.2 cm) round vent should be used.

The total length of the vent system including straight vent, elbow(s), transitions and wall or roof caps must not exceed the equivalent of 140 ft (42.7 m) for either type of vent. See “Recommended Standard Fittings” section for equivalent lengths.

For best performance, use no more than three 90° elbows. To calculate the length of the system you need, add the equivalent lengths of each

vent piece used in the system. See the following examples:

If the existing vent is round, a rectangular to round transition piece must be used. In addition, a rectangular 3" (7.6 cm) extension vent between the damper assembly and rectangular to round transition piece must be installed to keep the damper from sticking.

Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.

Dimensions are for planning purposes only. For complete details, see Installation Instructions packed with product. Specifications subject to change without notice.

Ref. W10724866A

12/12/14

Page 2 of 2

B C

3" (7.6 cm)

A. Roof cap B. 6" (15.2 cm) min. diameter round vent

C. Elbow (for wall venting only)

D. Wall cap E. 3

¹⁄₄

" x 10" to 6" (8.3 x 25.4 cm to 15.2 cm)

rectangular to round transition piece

F. Vent extension piece, at least 3" (7.6 cm) high

A B C

3¹⁄₄" x 10" (8.3 x 25.4 cm) vent system = 73 ft (22.2 m) total

A B

6 ft (1.8 m)

2 ft

(0.6 m)

A. One 3 B. 1 wall cap = 40 ft (12.2 m) C. 2 ft (0.6 m) + 6 ft (1.8 m) strai

¹⁄₄

" x 10" (8.3 x 25.4 cm) 90° elbow = 25 ft (7.6 m)

ht = 8 ft (2.4 m)

6" (15.2 cm) vent system = 73 ft (22.2 m) total

A B

6 ft (1.8 m)

D E F G

A. Rectangular to round transition piece: 3

(8.3 x 25.4 cm to 15.2 cm = 1.5 m) B. Roof cap: 3 C. 90° elbow: 3 D. 90° elbow: 6" = 10 ft (15.2 cm = 3 m) E. Wall cap: 3

F. 45° elbow: 6" = 5 ft (15.2 cm = 1.5 m)

G. 90° flat elbow: 3

" x 10" = 24 ft (8.3 x 25.4 cm = 7.3 m)

¹⁄₄

" x 10" = 25 ft (8.3 x 25.4 cm = 7.6 m)

" x 10" = 40 ft (8.3 x 25.4 cm = 12.2 m)

¹⁄₄

" x 10" = 10 ft (8.3 x 25.4 cm = 3 m)

¹⁄₄

" x 10" to 6" = 5 ft

2 ft

(0.6 m)

C D

A. Two 90° elbows = 20 ft (6.1 m) B. 1 wall cap = 40 ft (12.2 m) C. 1 rectangular to round transition piece = 5 ft (1.5 m) D. 2 ft (0.6 m) + 6 ft (1.8 m) straight = 8 ft (2.4 m)
