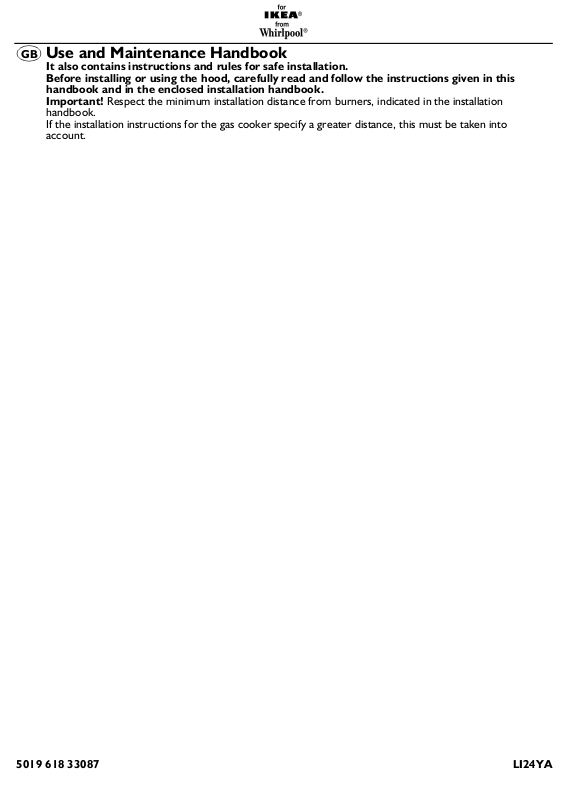

Use and Maintenance Handbook

GB

It also contains instructions and rules for safe installation.
Before installing or using the hood, carefully read and follow the instructions given in this

handbook and in the enclosed installation handbook.
Important! Respect the minimum installation distance from burners, indicated in the installation

handbook.
If the installation instructions for the gas cooker specify a greater distance, this must be taken into
account.

5019 618 33087

LI24YA

SAFEGUARDING THE ENVIRONMENT

1. Packing

The packing materials are 100% recyclable and are marked with the
recycling symbol . Comply with local regulations for disposal. The
packing materials (plastic bags, polystyrene parts, etc.) are a potential
source of danger and must be kept out of the reach of children.

2. Product

This appliance is marked in compliance with European Directive
2002/96/EC on Waste Electrical and Electronic Equipment (WEEE).
By ensuring that this appliance is correctly scrapped, the user can
help prevent potentially harmful consequences for the environment
and the health of persons.

The symbol on the product or the accompanying documentation
indicates that it should not be treated as domestic waste but must be
taken to a suitable collection centre for the recycling of electrical and
electronic equipment.
Disposal must be carried out in compliance with local regulations on
waste disposal.
For further information on the treatment, recovery and recycling of this
product, contact your competent local office, the household waste
collection service or the shop where you purchased the appliance.

PRECAUTIONS AND GENERAL
RECOMMENDATIONS

IMPORTANT!

• The appliance is not intended for use by children or
persons with limited physical, sensory or mental abilities
or without experience and knowledge of it, unless they
are under the supervision of or instructed in its use by a
person responsible for their safety.

• Children must be supervised so that they do not play with
the appliance.

1. Do not connect the appliance to the mains power supply until installation has been completed. Always disconnect the hood before any cleaning or maintenance, by unplugging it or turning off the main switch in the home.

2. Do not “flambé” food under the hood. Naked flames could cause a fire.

3. Do not leave pans unattended when frying, since the cooking oil could catch fire.

4. Regular cleaning and maintenance is essential for correct hood
operation and good performance. Regularly clean all deposits
from dirty surfaces. Regularly remove and clean or change the
filter. Do not use flammable materials to duct the extracted air.

5. If the hood is used together with other appliances operating on
gas or other fuels, the negative pressure in the room must not

exceed 4Pa (4 x 10
adequately ventilated.

6. The air extracted by the hood must not be removed through the flue of the heating system or other appliances that use gas or other fuels.

7. The room must be adequately ventilated when the hood is used together with appliances operating on gas or other fuels.

8. Make sure lamps are cold before touching them.

9. The discharge air must not be ducted in a flue used for removing fumes produced by appliances operating on gas or other fuels, but must have a separate outlet. All national regulations on air discha rge must be observed.

10. The hood is not a shelf, therefore do not overload or place objects on it.

Note: Always wear work gloves for all installation and maintenance
operations.

-5

bar). Therefore, make sure the room is

Electrical connection

The mains power supply must match the voltage given on the
appliance rating plate located inside the hood. If provided with a
plug, connect the hood to a power socket complying with current
regulations and located in an accessible area. If it does not have a plug
(direct connection to the power supply) or if the socket is not in an
accessible place, fit a suitable double-pole switch that ensures
complete disconnection from the power supply in category III
overvoltage conditions, complying with the installation rules.

IMPORTANT: Before reconnecting the hood circuit to the
power supply and checking correct operation, always make
sure the power cable is correctly fitted and that it was NOT
crushed in its housing during installation.

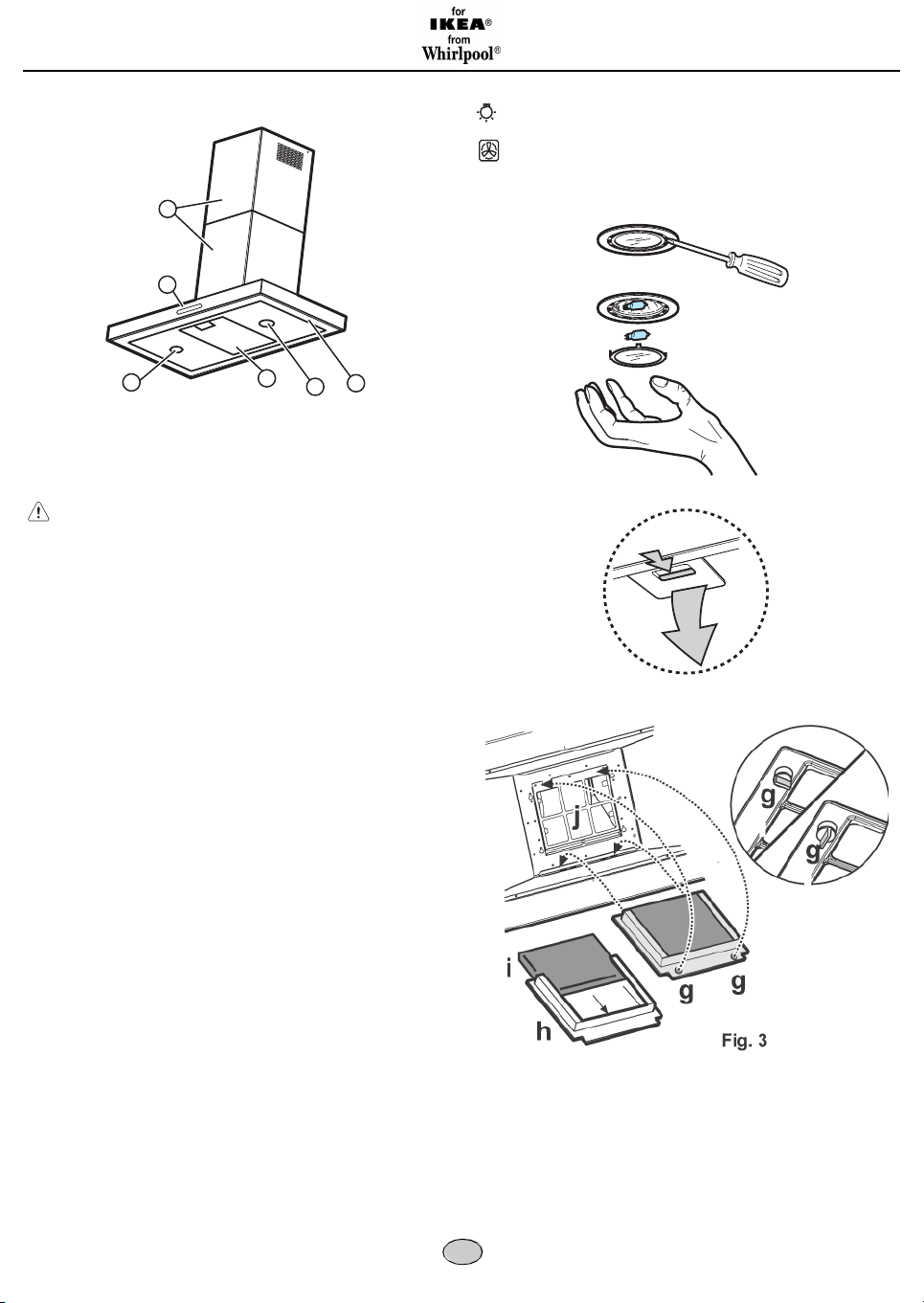

Cleaning the hood

Warning! Failure to remove oil/grease (at least once a month) could

result in fire.
Use a soft cloth with a neutral detergent. Never use abrasive
substances or alcohol.

Before using the hood

To ensure best use of your hood, please read these instructions
carefully and keep them for future reference.
The packing materials (plastic bags, polystyrene parts, etc.) are a
potential source of danger and must be kept out of the reach of
children.
Make sure the hood was not damaged during transport.

Declaration of conformity

This product has been designed, manufactured and put on the
market in conformity with the following:

- safety objectives of “Low Voltage” Directive 2006/95/EC
(which replaces 73/23/EEC as amended)

- protection requirements of “EMC” Directive 89/336/EEC
amended by Directive 93/68/EEC.

Troubleshooting guide

The hood does not work:

• Is the plug properly inserted in the power socket?

• Is there a power failure?

The hood is not extracting enough:

• Is the right speed selected?

• Do the filters need cleaning or changing?

• Are the air outlets blocked?

The light does not work:

• Does the lamp need replacing?

• Is the lamp correctly fitted?

AFTER-SALES SERVICE

Before calling the After-Sales Service

1. See if you can eliminate the problem on your own (see ”Troubleshooting guide”).

2. Switch the hood off and then on again to check if the problem has been eliminated.

3. If the problem persists, contact the After-Sales Service.

Specify:

• the type of problem,

• the product model given on the dataplate inside the hood, visible
on removing the grease filters.

• your full address,

• your telephone number and area code.

• the Service code (the number under the word SERVICE on the
dataplate inside the hood, behind the grease filter).

If any repairs are necessary, contact an authorised Service Centre
(to ensure the use of original spare parts and correct repair).
Failure to comply with these instructions can compromise the safety
and quality of the product.
