Whirlpool SHB 911 S, SHB 911 W PROGRAM CHART

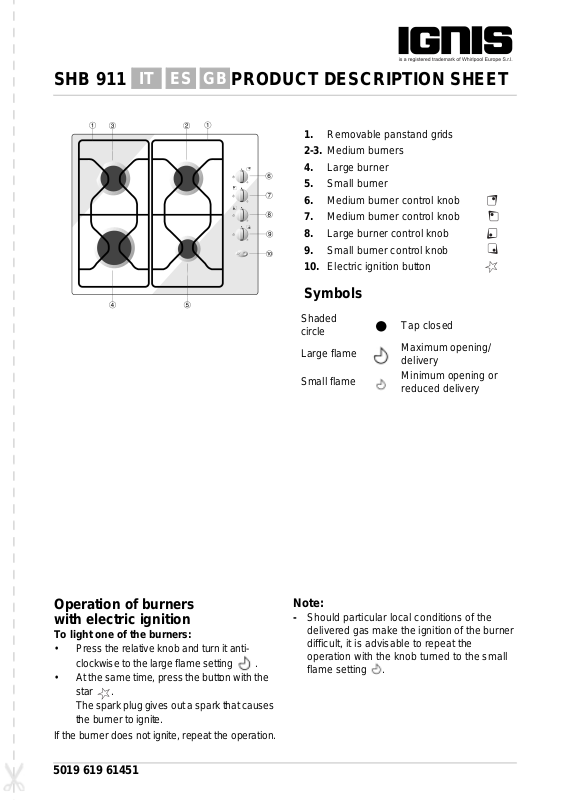

SHB 911 PRODUCT DESCRIPTION SHEET
IT ES GB
Removable panstand grids
1.
Medium burners
2-3.
Large burner
4.
Small burner
5.
Medium burner control knob
6.
Medium burner control knob
7.
Large burner control knob
8.
Small burner control knob
9.
Electric ignition button
10.
Symbols
Operation of burners
with electric ignition
To light one of the burners:
• Press the relative knob and turn it anticlockwise to the large flame setting .
• At the same time, press the button with the
star .
The spark plug gives out a spark that causes
the burner to ignite.
If the burner does not ignite, repeat the operation.
Shaded
circle
Large flame
Small flame
Tap closed
Maximum opening/
delivery
Minimum opening or
reduced delivery
Note:
Should particular local conditions of the
-
delivered gas make the ignition of the burner
difficult, it is advisable to repeat the
operation with the knob turned to the small
flame setting .
5019 619 61451
DIMENSIONS OF COOKING HOB AND WORKTOP
NOTE: In case of installation of a hood above the cooktop, please refer to the hood
instructions for the correct distance.
INJECTORS TABLE CATEGORY II2H3+
Type of gas
used
NATURAL GAS
(Methane) G 20
LIQUID
PETROLEUM GAS
(Cylinder) G 30
LIQUID
PETROLEUM GAS
(Cylinder) G 31
Type of
burner
large
medium
small
large
medium
small
large
medium
small
Injector
marking
128
94
76
85
65
50
85
65
50
Rated
heat
capacity
Pcs-kW
3.00
1.65
1.00
3.00
1.65
1.00
3.00
1.65
1.00
Rated
consumption
286 l/h
157 l/h
95 l/h
218 g/h
120 g/h
73 g/h
214 g/h
118 g/h
71 g/h
Reduced
heat
capacity
Pcs-kW
0.60
0.35
0.30
0.60
0.35
0.30
0.60
0.35
0.30
Gas pressure
min. rat. max.
17 20 25
20 28-30 35
25 37 45
Type of gas
used
G 20 20 mbar 4 gas 7.30 695 l/h 14.6
G 30 28-30 mbar 4 gas 7.30 531 g/h 14.6
G 31 37 mbar 4 gas 7.30 521 g/h 14.6
Appliance
model
Total rated
heat capacity
Pcs-kW
Total rated
consumption
Air required
for burning
3
m
/h
