A Note ToYou

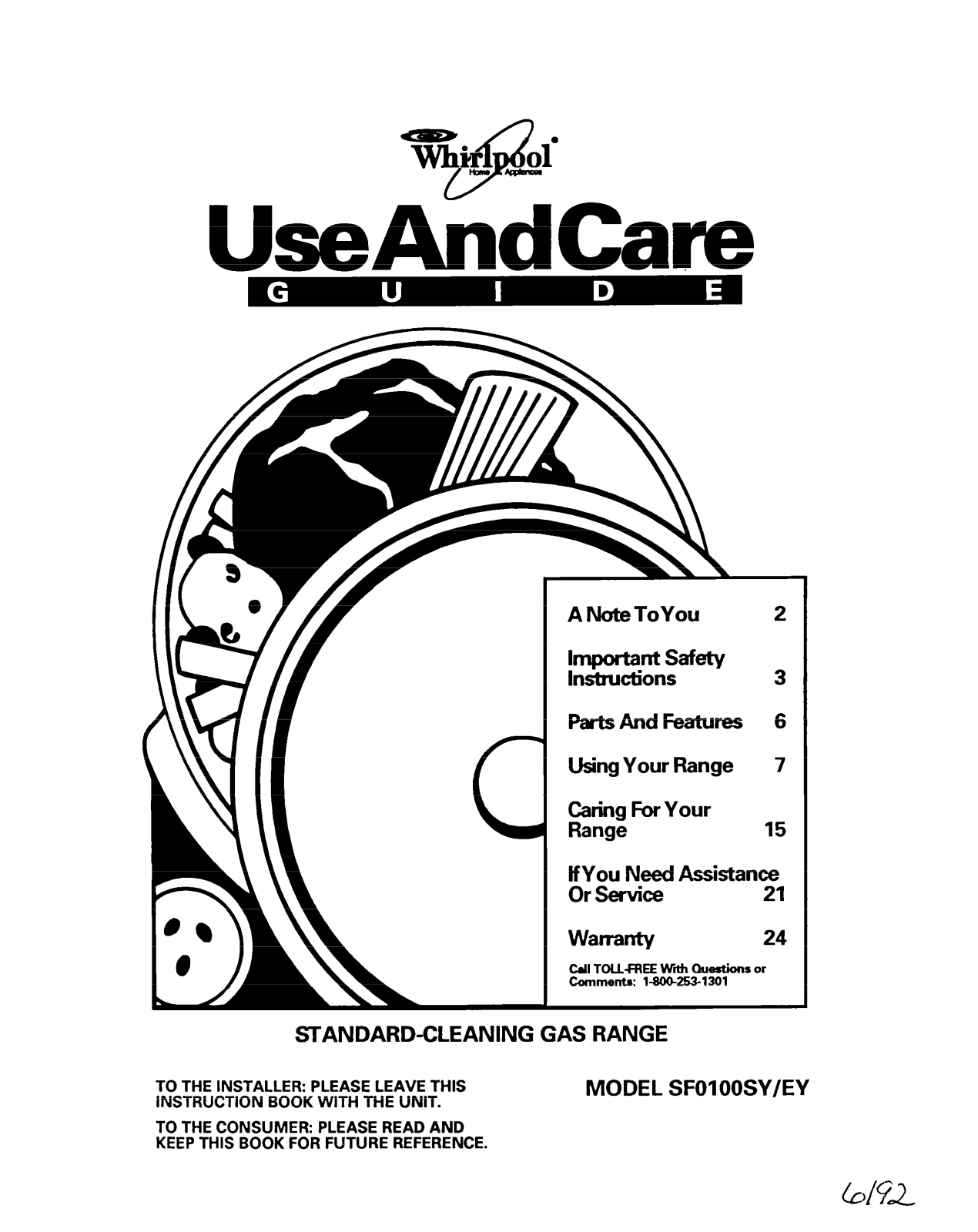

STANDARD-CLEANING GAS RANGE

TO THE INSTALLER: PLEASE LEAVE THIS INSTRUCTION BOOK WITH THE UNIT.

TO THE CONSUMER: PLEASE READ AND KEEP THIS BOOK FOR FUTURE REFERENCE.

kii!iE2%:dw

3 PartsAndFeahms 6 Using Your Range

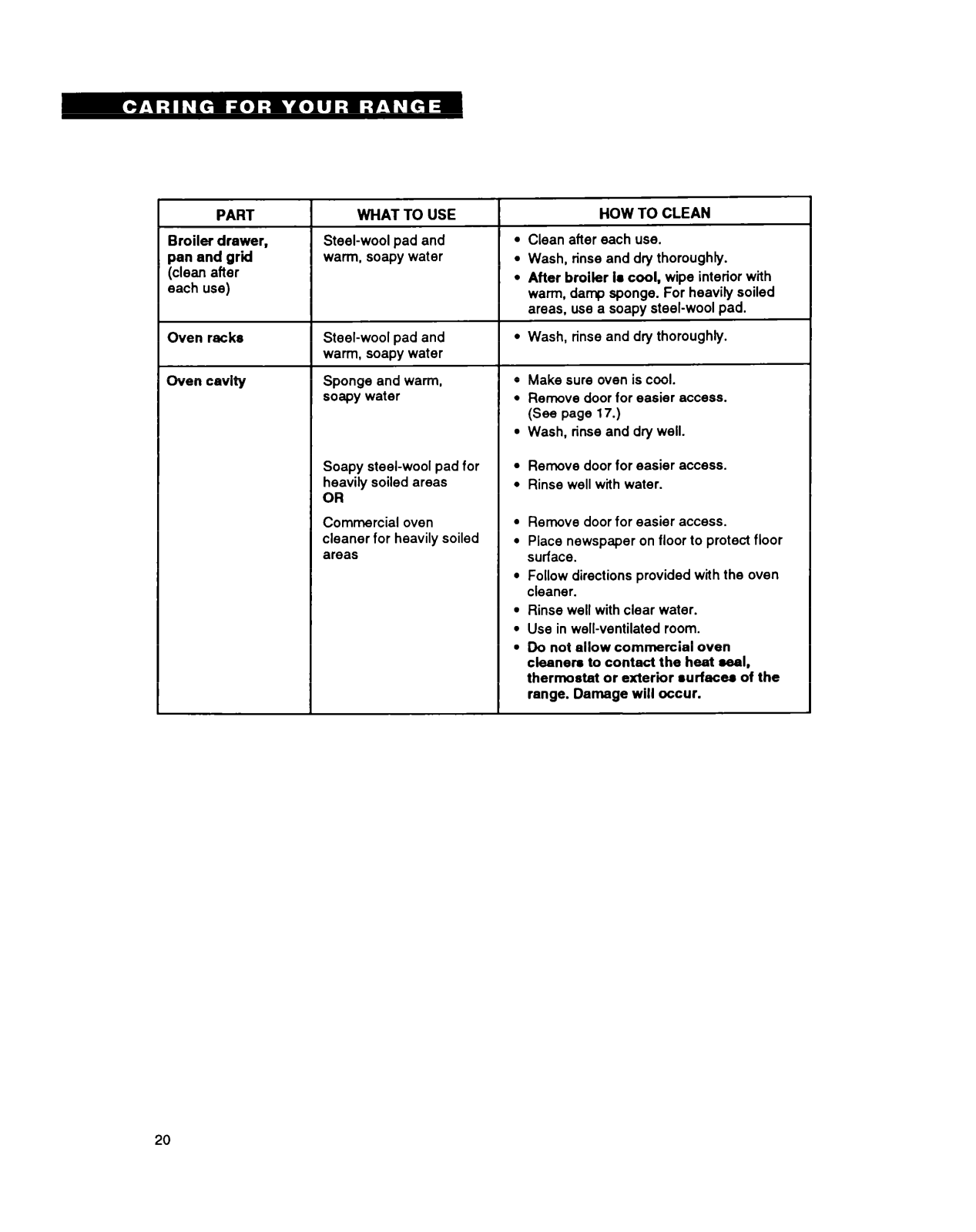

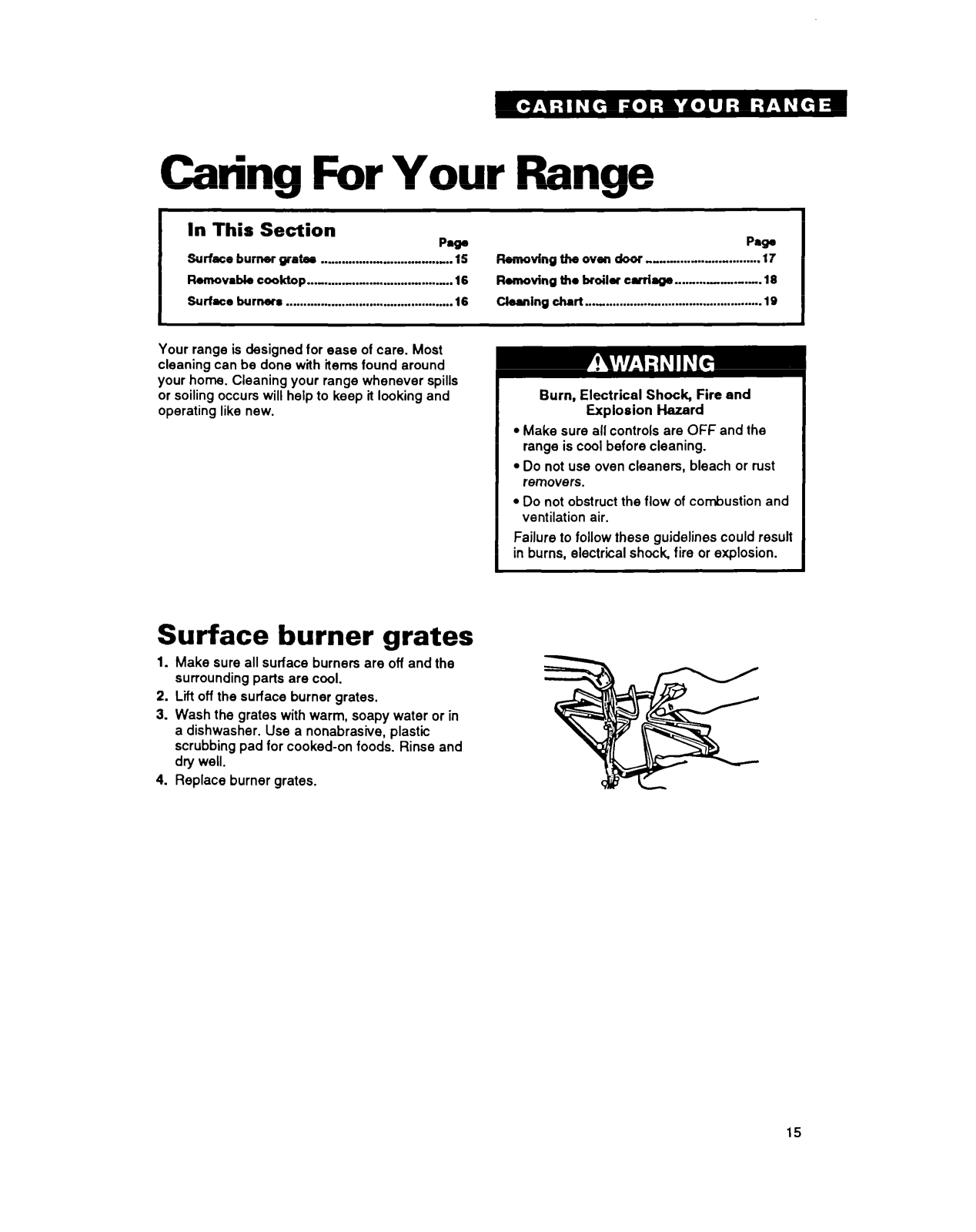

Case For Your

E!frftI Assistance

Warranty

Cdl TOLL-FREE With Quertions or cornmem: 14oM53-1301

21 24

MODEL SFOlOOSY/EY

A Now ToYou

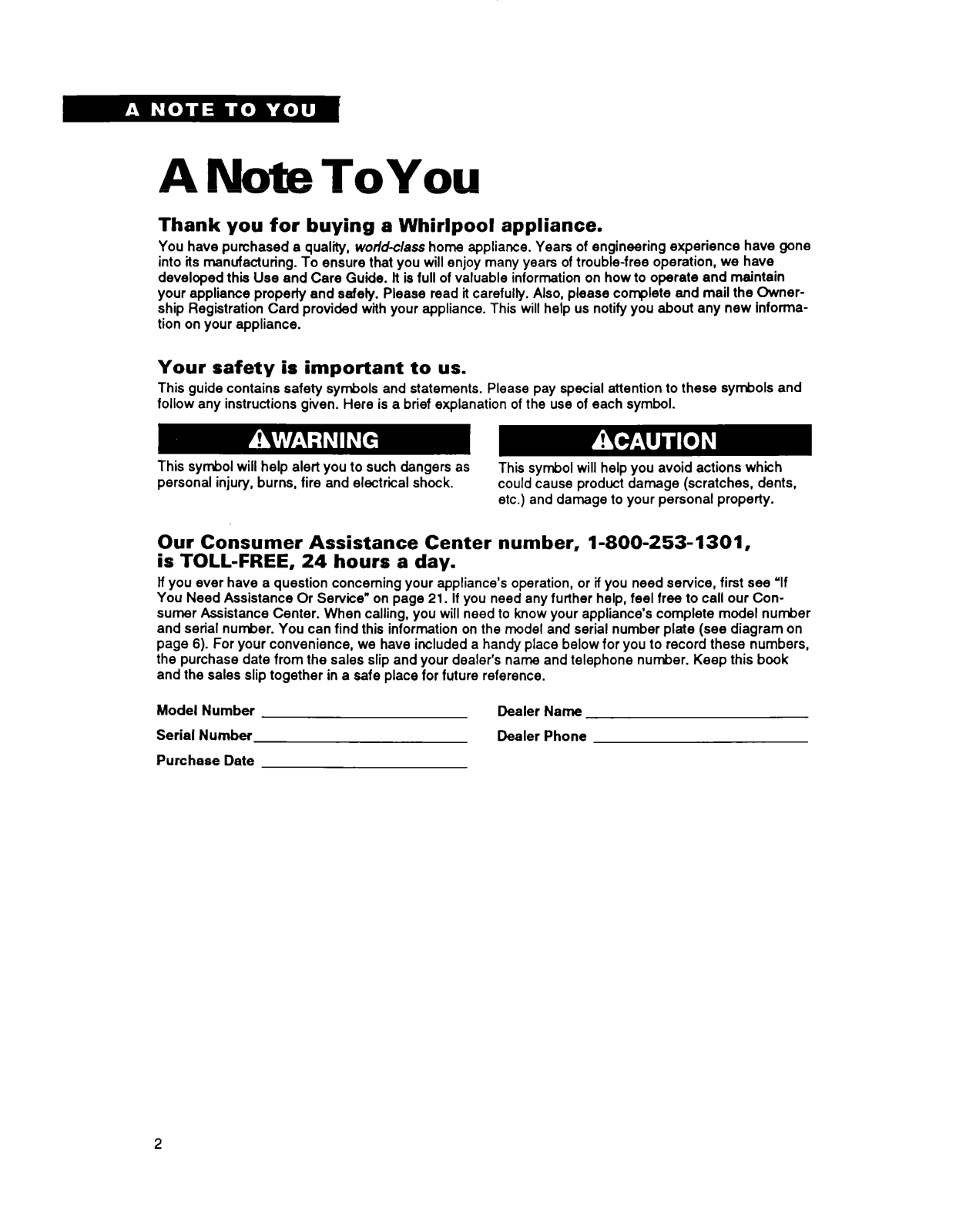

Thank you for buying a Whirlpool appliance.

You have purchased a quality, worfd-c/ass home appliance. Years of engineering experience have gone into its manufacturing. To ensure that you will enjoy many years of trouble-free operation, we have

developed this Use and your appliance properly and safely. Please read it carefully. Also, please complete and mail the Ownership Registration Card provided with your appliance. This will help tion on your appliance.

Your safety is important to us.

This guide contains safety symbols and statements. Please pay special attention to these symbols and follow any instructions given. Here is a brief explanation of the use of each symbol.

Care

Guide. lt is full of valuable information on how to

operate and maintain

notify you about any new informa-

This symbol will help alert you to such dangers as personal injury, burns, fire and electriial shock.

This symbol will help you avoid actions which could cause product damage (scratches, dents, etc.) and damage to your personal property.

Our Consumer Assistance Center number, l-800-253-1301, is TOLL-FREE, 24 hours a day.

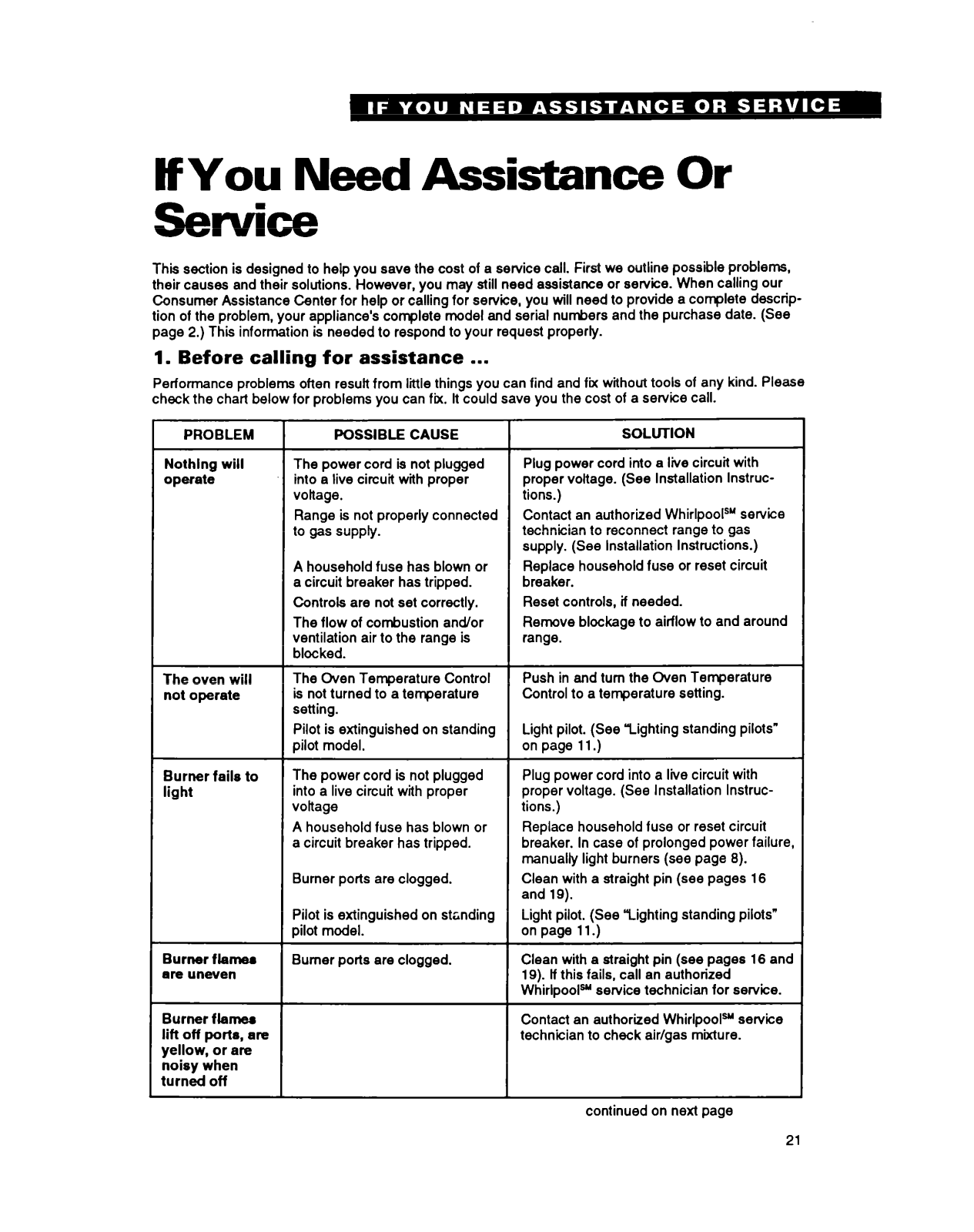

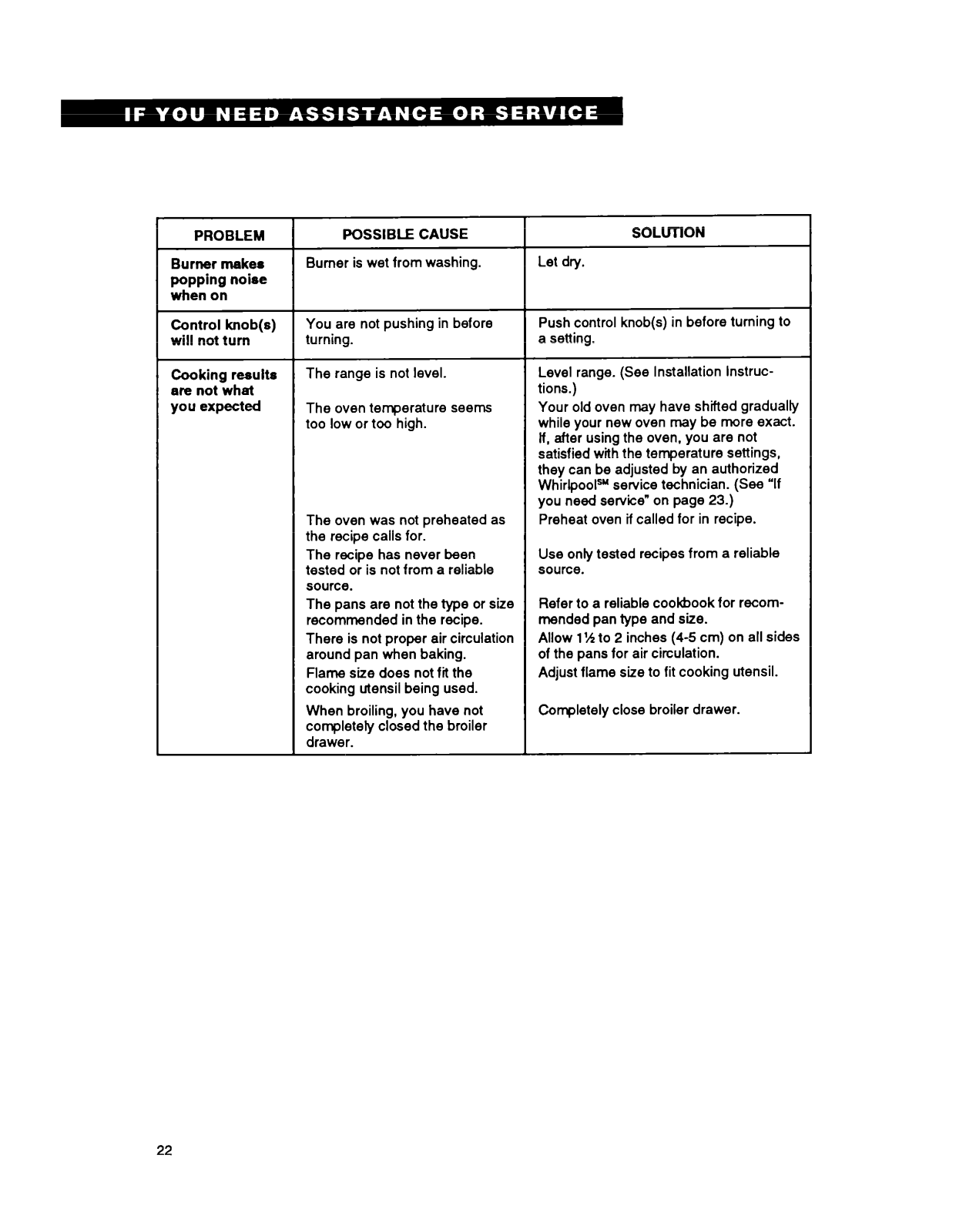

lf you ever have a question concerning your appliance’s operation, or if you need service, first see ‘If You Need Assistance Or Service” on page 21. If you need any further help, feel free to sumer Assistance Center. When calling, you will need to know your appliance’s complete model number

and

serial number. You can find this information on the model and serial number plate (see diagram on

page 6). For your convenience, we have included a handy place below for you to record these numbers,

the purchase date from the sales slip and your dealer’s name and telephone number. Keep this book

and the sales slip together in a safe place for future reference.

Model Number

Serial Number Purchase Date

Dealer Name Dealer Phone

call

our Con-

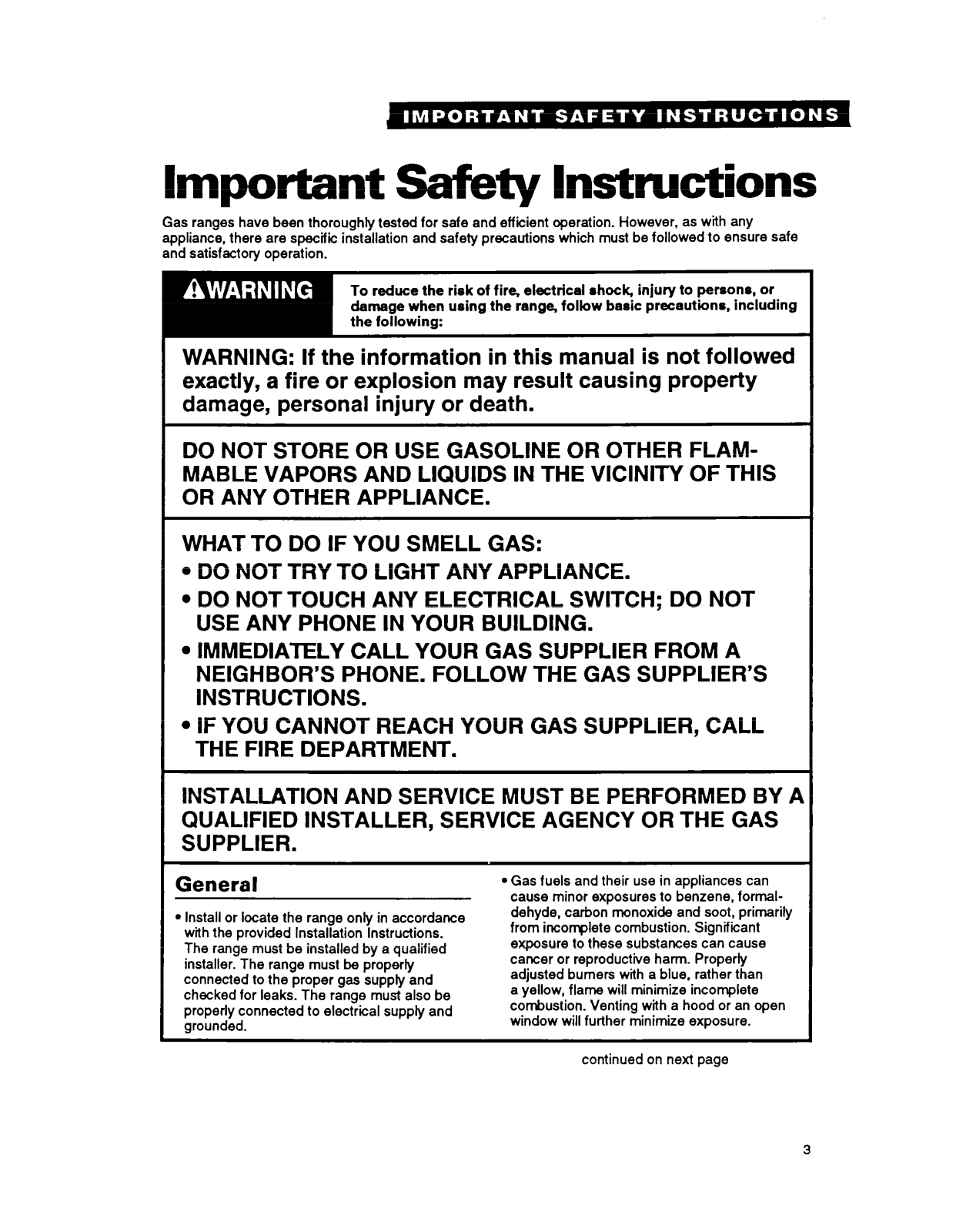

Important Safety Instructions

Gas ranges have been thoroughly tested for safe and efficient operation. However, as with any appliance, there are specific installation and satisfactory operation.

To reduce the risk of fire, electrical shock, injury to persons, or damage when

WARNING: If the information in this manual is not followed exactly, a fire or explosion may result causing property damage, personal injury or death.

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.

WHAT TO DO IF YOU SMELL GAS:

DO NOT TRY TO LIGHT ANY APPLIANCE.

DO NOT TOUCH ANY ELECTRICAL SWITCH; DO NOT

USE ANY PHONE IN YOUR BUILDING.

and safety precautions

using the

range, follow basic

which must be followed to ensure safe

precautions, including

IMMEDIATELY CALL YOUR GAS SUPPLIER FROM A NEIGHBOR’S PHONE. FOLLOW THE GAS SUPPLIER’S INSTRUCTIONS.

IF YOU CANNOT REACH YOUR GAS SUPPLIER, CALL

THE FIRE DEPARTMENT.

INSTALLATION AND SERVICE MUST BE PERFORMED BY A QUALIFIED INSTALLER, SERVICE AGENCY OR THE GAS SUPPLIER.

General

. Install or locate the range only in accordance

with the provided Installation Instructions. The range must be installed by a qualified installer. The range must be properly connected to the proper gas supply and checked for leaks. The range must also be properly connected to electrical supply and grounded.

Gas fuels and their use in appliances can cause minor exposures to benzene, formaldehyde, carbon monoxide and soot, primarily from incomplete combustion. Signtiicant exposure to these substances can cause cancer or reproductive harm. Properly adjusted burners with a blue, rather than a yellow, flame will minimize incomplete combustion. Venting with a hood or an open window will further minimize exposure.

continued on next page

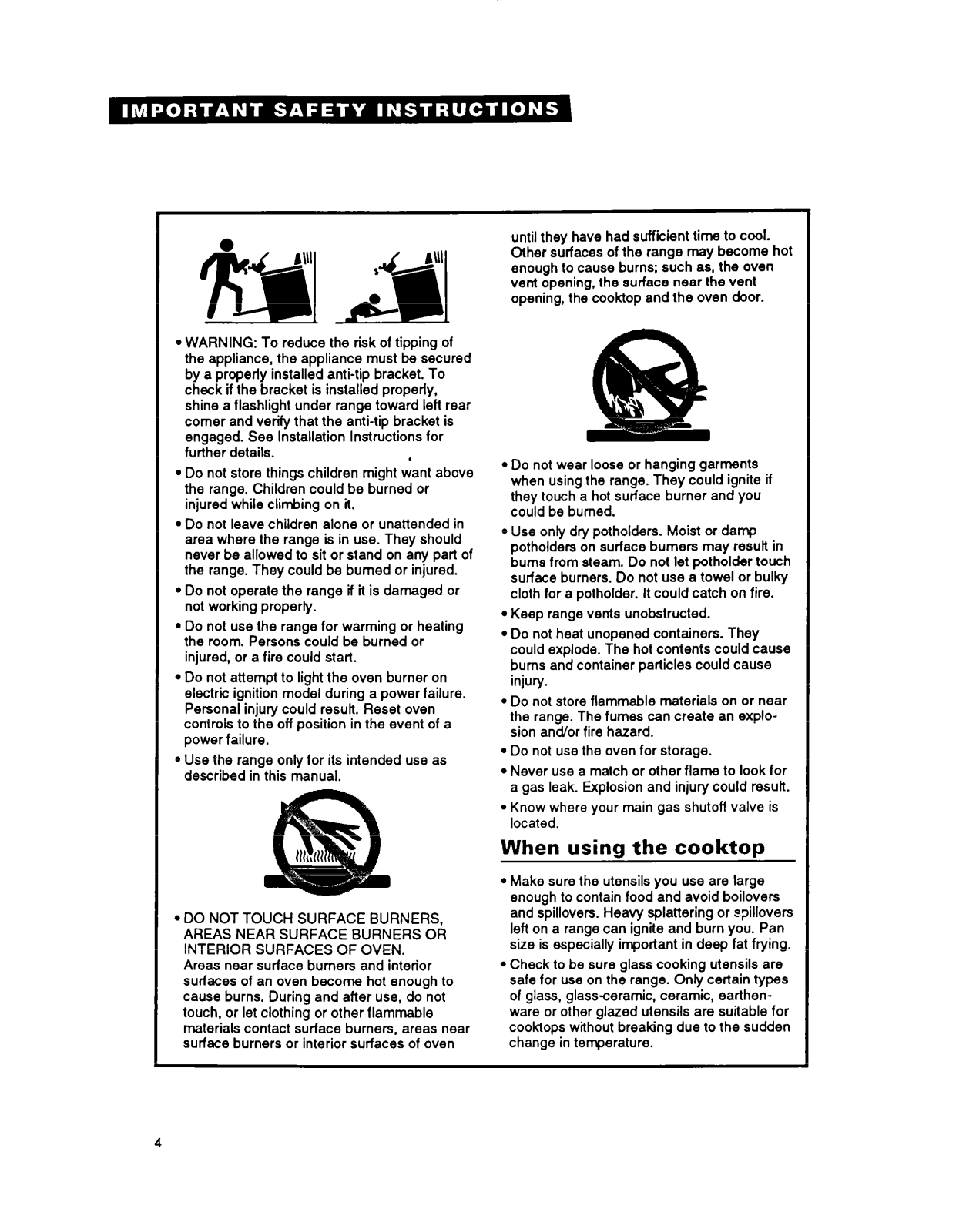

WARNING: To reduce the risk of tipping of the appliance, the appliance must be secured by a properly installed anti-tip bracket. To check if the bracket is installed properly, shine a flashlight under range toward left rear comer and verify that the anti-tip bracket is engaged. See Installation Instructions for further details.

Do not store things children might want above the range. Children could be burned or injured while climbing on it.

Do not leave children alone or unattended in area where the range is in use. They should never be allowed to sit or stand on any part of the range. They could be burned or injured.

Do not operate the range if it is damaged or not working properly.

Do not use the range for warming or heating the room. Persons could be burned or injured, or a fire could start.

Do not attempt to light the oven burner on electric ignition model during a power failure. Personal injury could resutt. Reset oven controls to the off position in the event of a power failure.

Use the range only for its intended use as described in this manual.

until they have had sufficient time to cool. Other surfaces of the range may become hot enough to cause burns; such as, the oven vent opening, the surface near the vent opening, the cooktop and the oven door.

Do not wear loose or hanging garments when using the range. They could ignite if they touch a hot surface burner and you could be burned.

Use only dry potholders. Moist or damp potholders on surface burners may resutt in bums from steam. Do not let potholder touch surface burners. Do not use a towel or bulky cloth for a potholder. It could catch on fire.

Keep range vents unobstructed.

Do not heat unopened containers. They could explode. The hot contents could cause bums and container particles could cause injury.

Do not store flammable materials on or near the range. The fumes can create an explosion and/or fire hazard.

Do not use the oven for storage.

Never use a match or other flame to look for a gas leak. Explosion and injury could resutt.

Know where your main gas shutoff valve is located.

When using the cooktop

DO NOT TOUCH SURFACE BURNERS,

AREAS NEAR SURFACE BURNERS OR

INTERIOR SURFACES OF OVEN. Areas near surface burners and interior surfaces of an oven become hot enough to cause burns. During and after use, do not touch, or let clothing or other flammable materials contact surface burners, areas near surface burners or interior surfaces of oven

Make sure the utensils you use are large enough to contain food and avoid boilovers and spillovers. Heavy splattering or spillovers left on a range can ignite and burn you. Pan size is especially important in deep fat frying.

Check to be sure glass cooking utensils are safe for use on the range. Only certain types of glass, glass-ceramic, ceramic, earthen-

ware or other glazed utensils are suitable for cooktops without breaking due to the sudden change in temperature.

Never leave surface burners unattended at high heat settings. A boilover could result and cause smoking and greasy spillovers that

may ignite.

Turn pan handles inward, but not over other surface burners. This will help reduce the chance of bums, igniting of flammable materials, and spills due to bumping of the pan.

Do not use decorative covers or trivets over the surface burners.

When usina the oven

Always position the oven rack(s) in desired location while oven is cool.

Use care when opening oven door. Let hot air or steam escape before removing or replacing food.

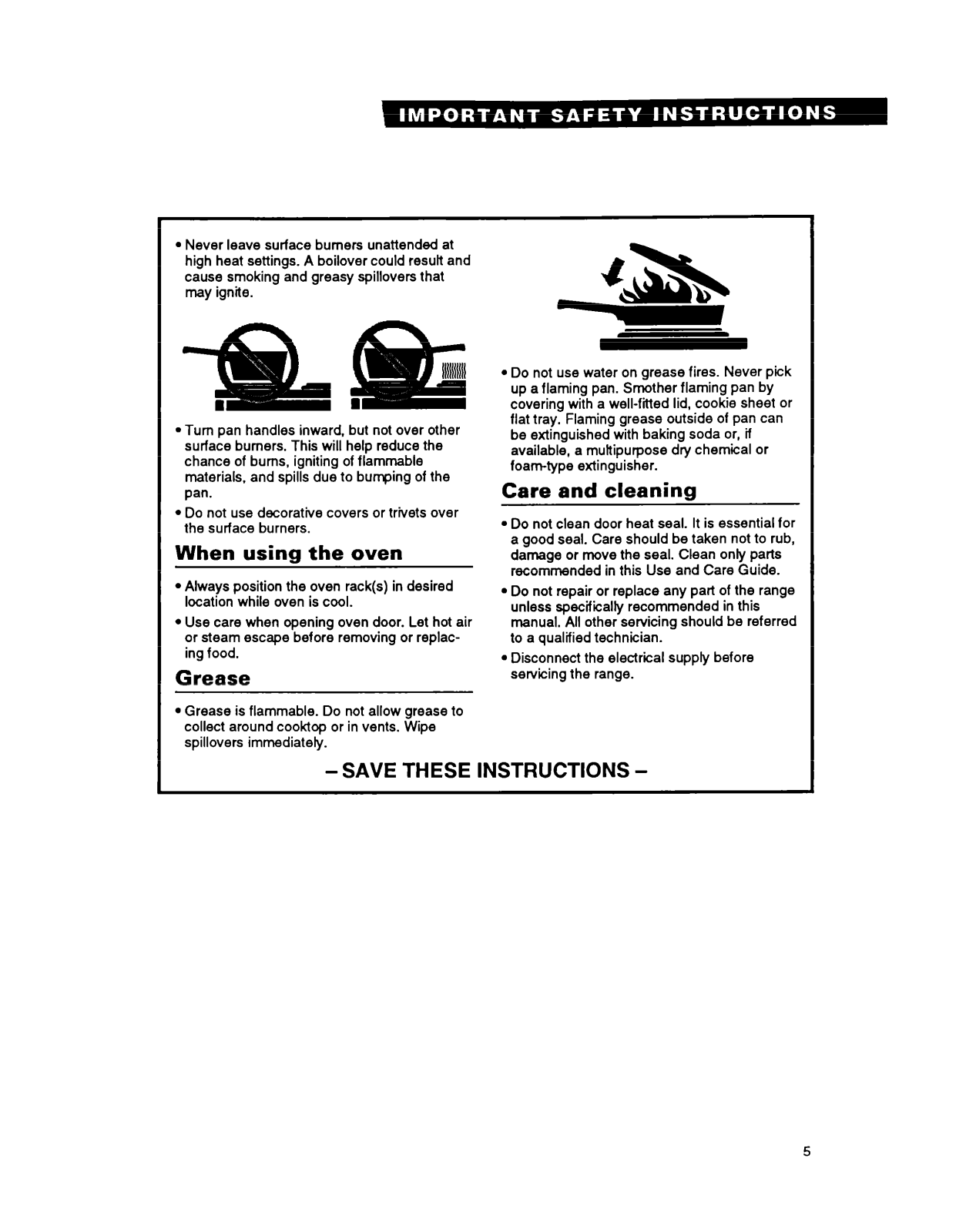

Grease

Do not use water on grease fires. Never pick up a flaming pan. Smother flaming pan by covering with a well-fitted lid, cookie sheet or flat tray. Flaming grease outside of pan can be extinguished with baking soda or, if available, a muttiputpose dry chemical or foam-type extinguisher.

Care and cleaning

Do not clean door heat seal. It is essential for a good seal. Care should be taken not to rub, damage or move the seal. Clean only parts recommended in this Use and Care Guide.

Do not repair or replace any part of the range unless specifically recommended in this manual. All other servicing should be referred to a qualified technician.

Disconnect the electrical supply before servicing the range.

Grease is flammable. Do not allow grease to collect around cooktop or in vents. Wipe spillovers immediately.

-SAVE THESE INSTRUCTIONS -

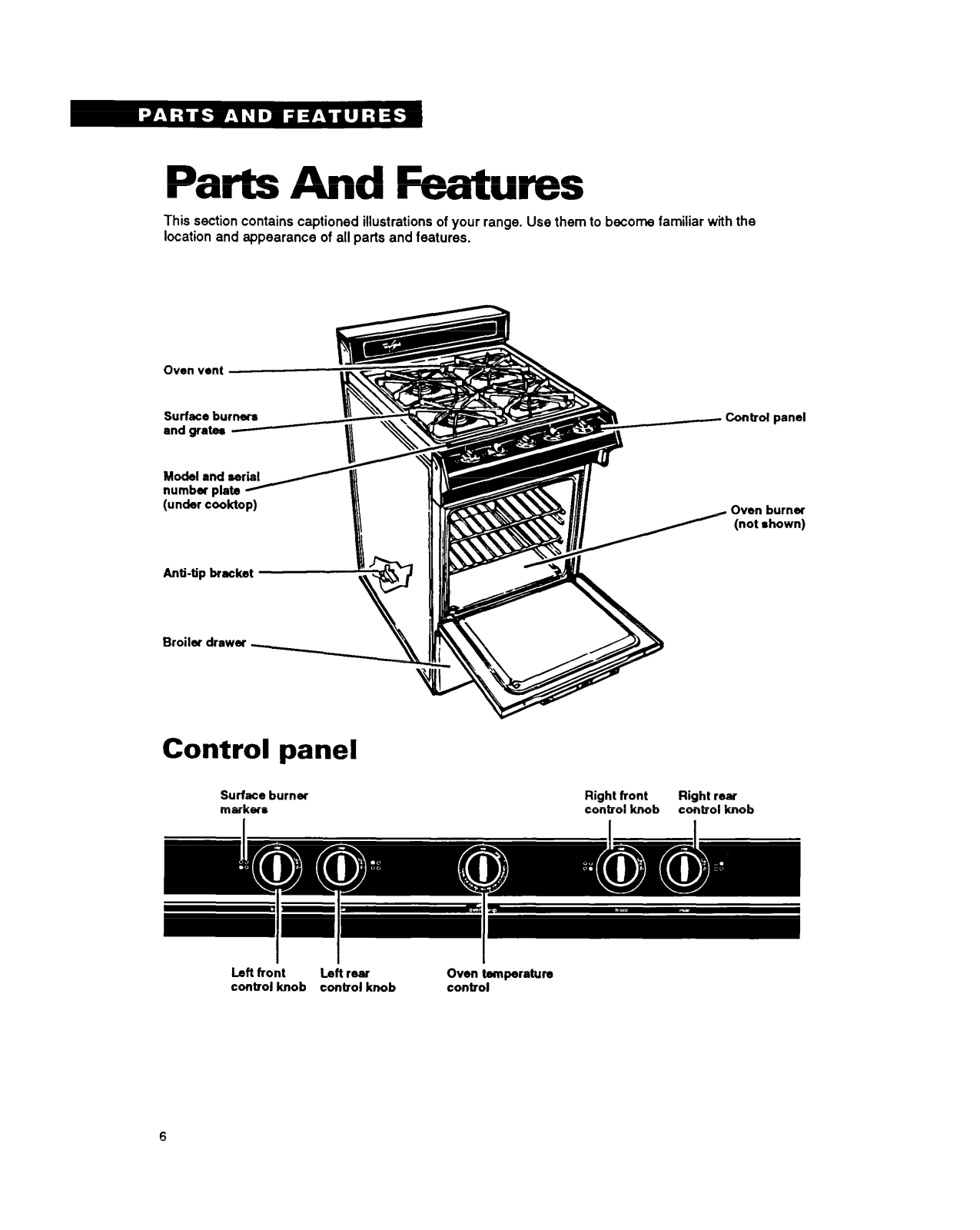

Parts And Features

This section contains captioned illustrations of your range. Use them to become familiar with the

location and appearance of all parts and features.

Oven vent

Surface burm

and grater -

Mocl4l and 8efv

number plate (under c&top)

Broiler drawer

Control panel

Surface burner merkere

Right front control knob

Conbol panel

c Oven burner

(not shown)

Right rear control knob

Ldt front control knob control knob

Left reer

Ova Lmperature conbol

Using Your Range

In This Section

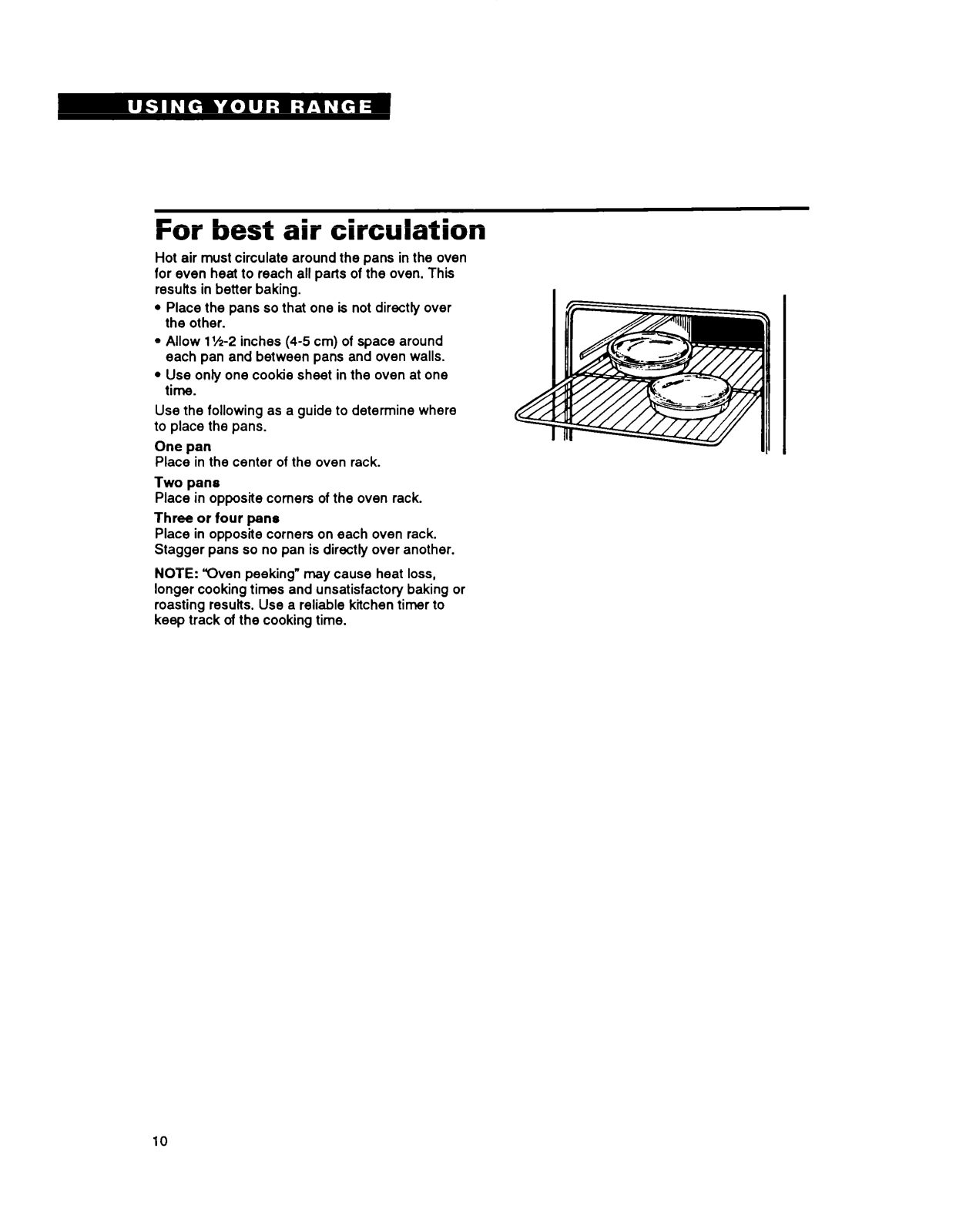

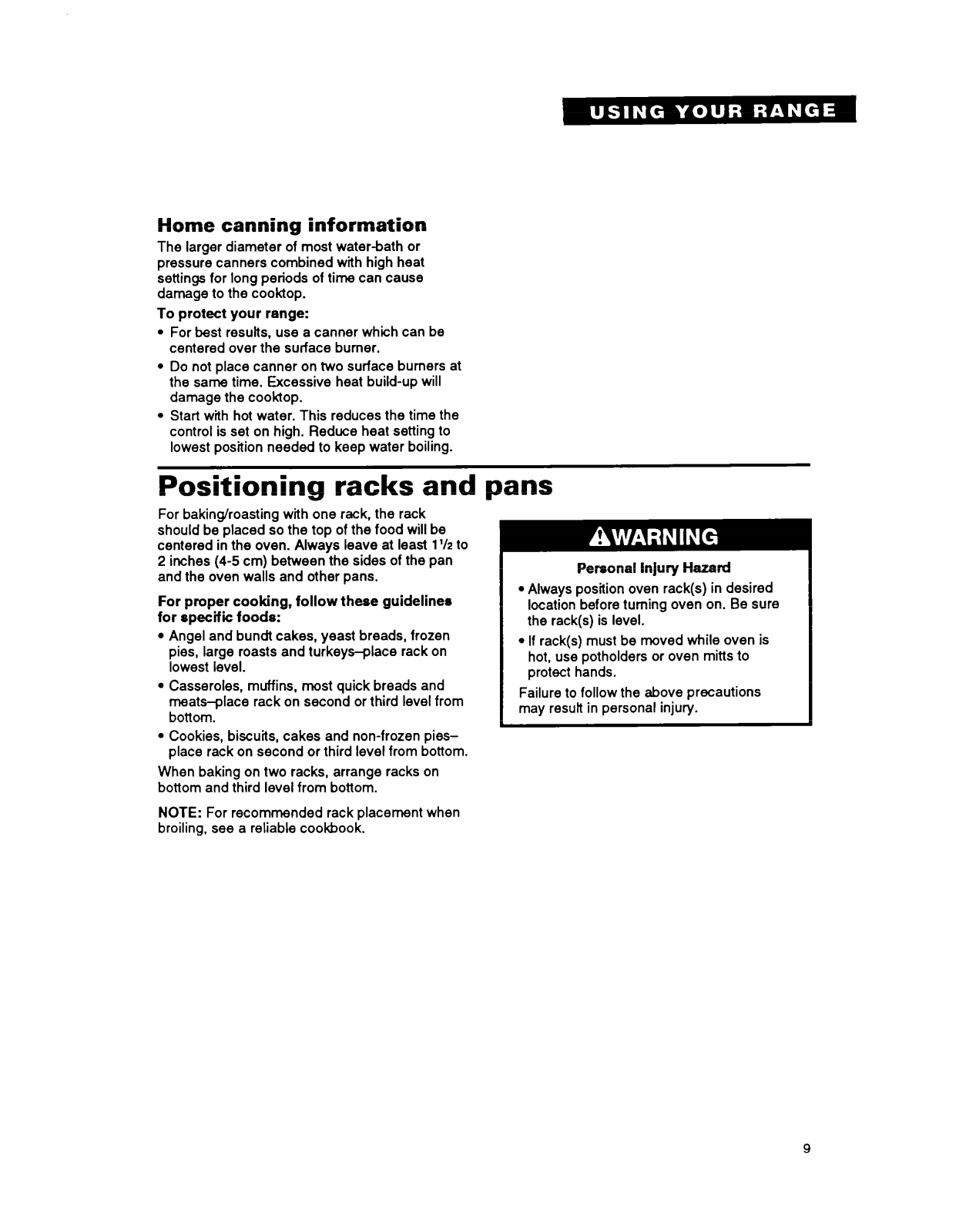

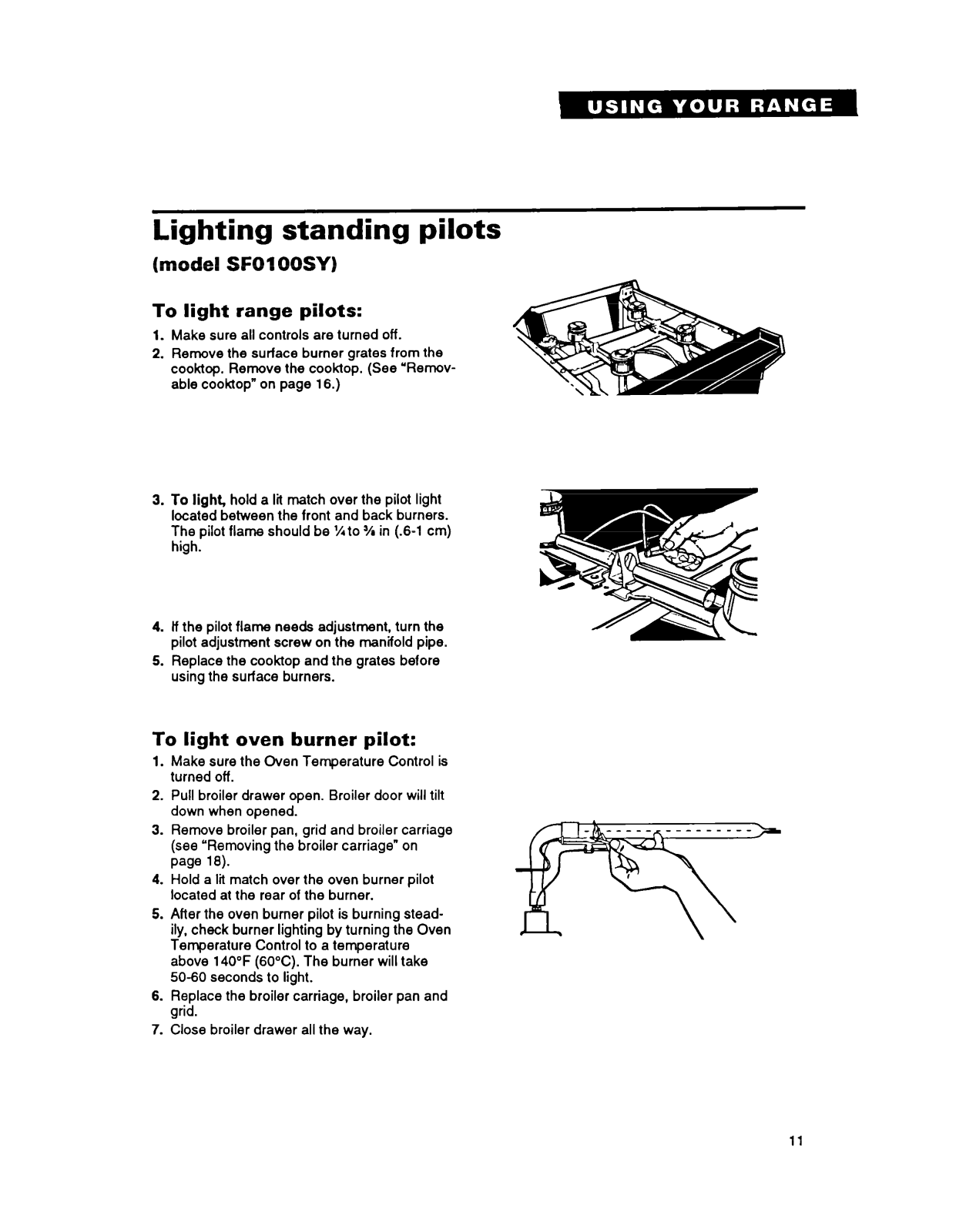

Using tha 8utfuca burner0 Pooitioning rack nd puu For best air circulation Lighting standing pilota

To obtain the best cooking results possible, you must operate your range properly. This section gives you important information for efficient and safe use of your range.

...... ..“. ......................

....... “..” . . ...... . .... I.

.................................. . .

...... . lll..l ..... -...-.ll

paw

7 9

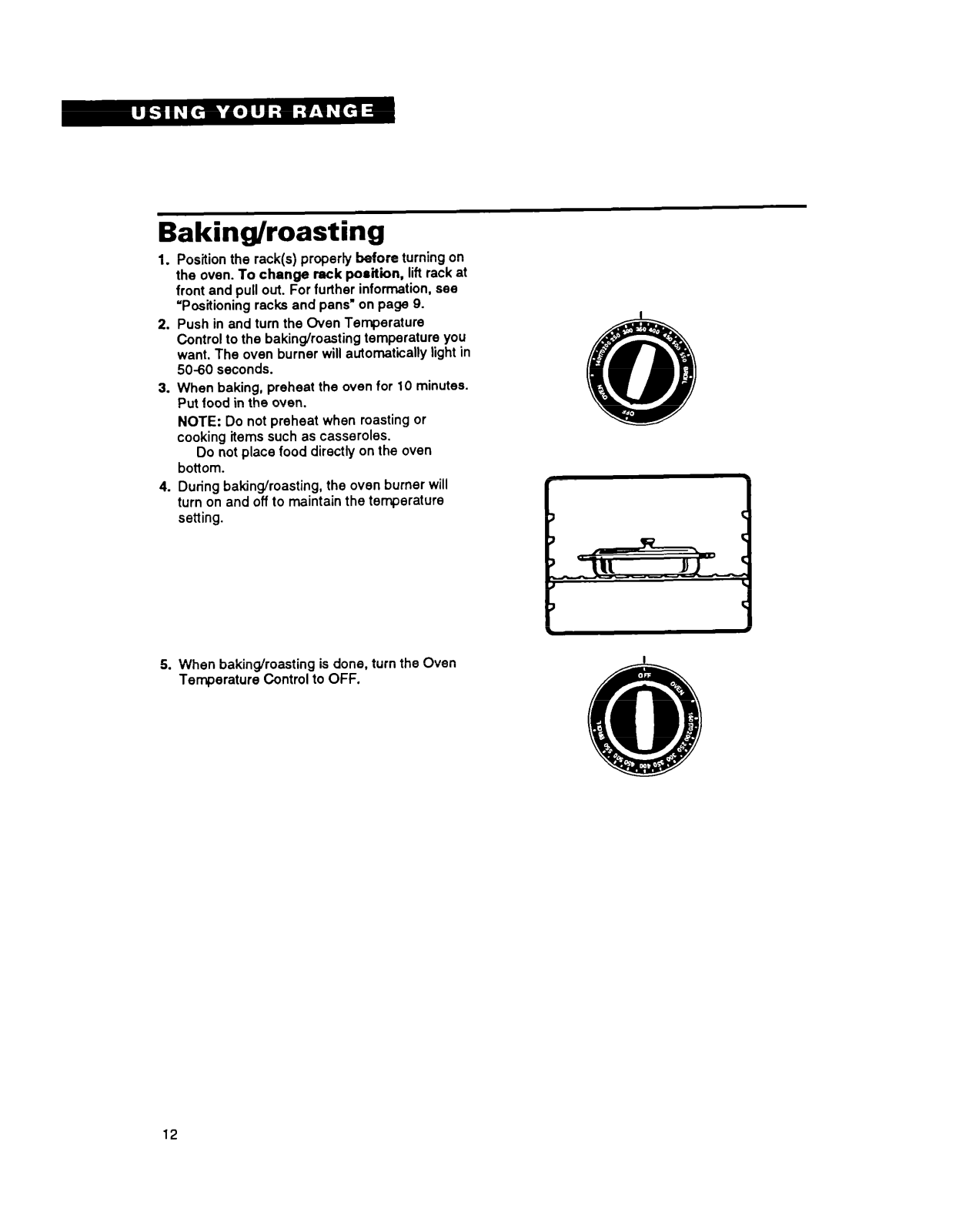

Bakhglrosoting ....... . .......................................

..__ I 111 ..-. _.

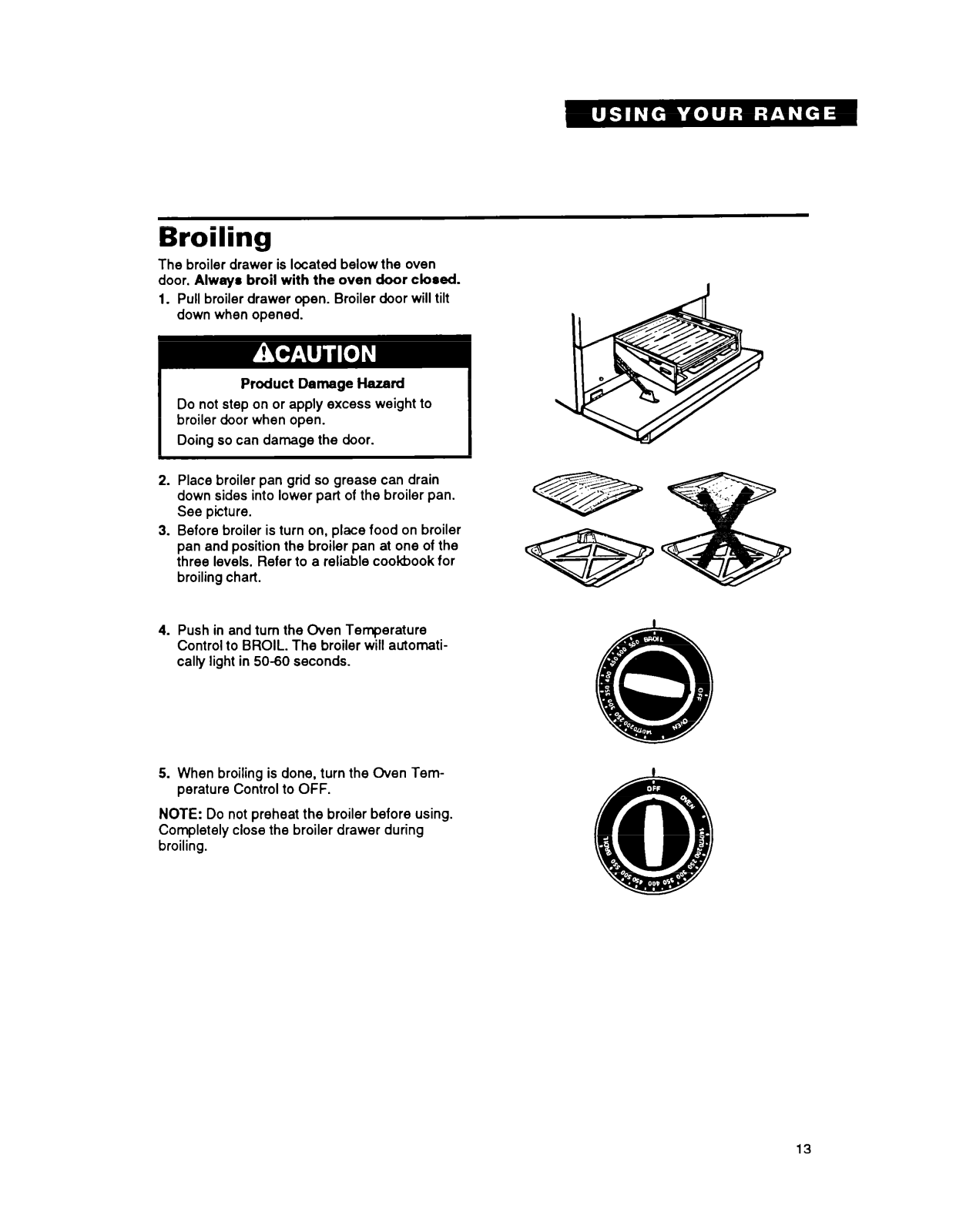

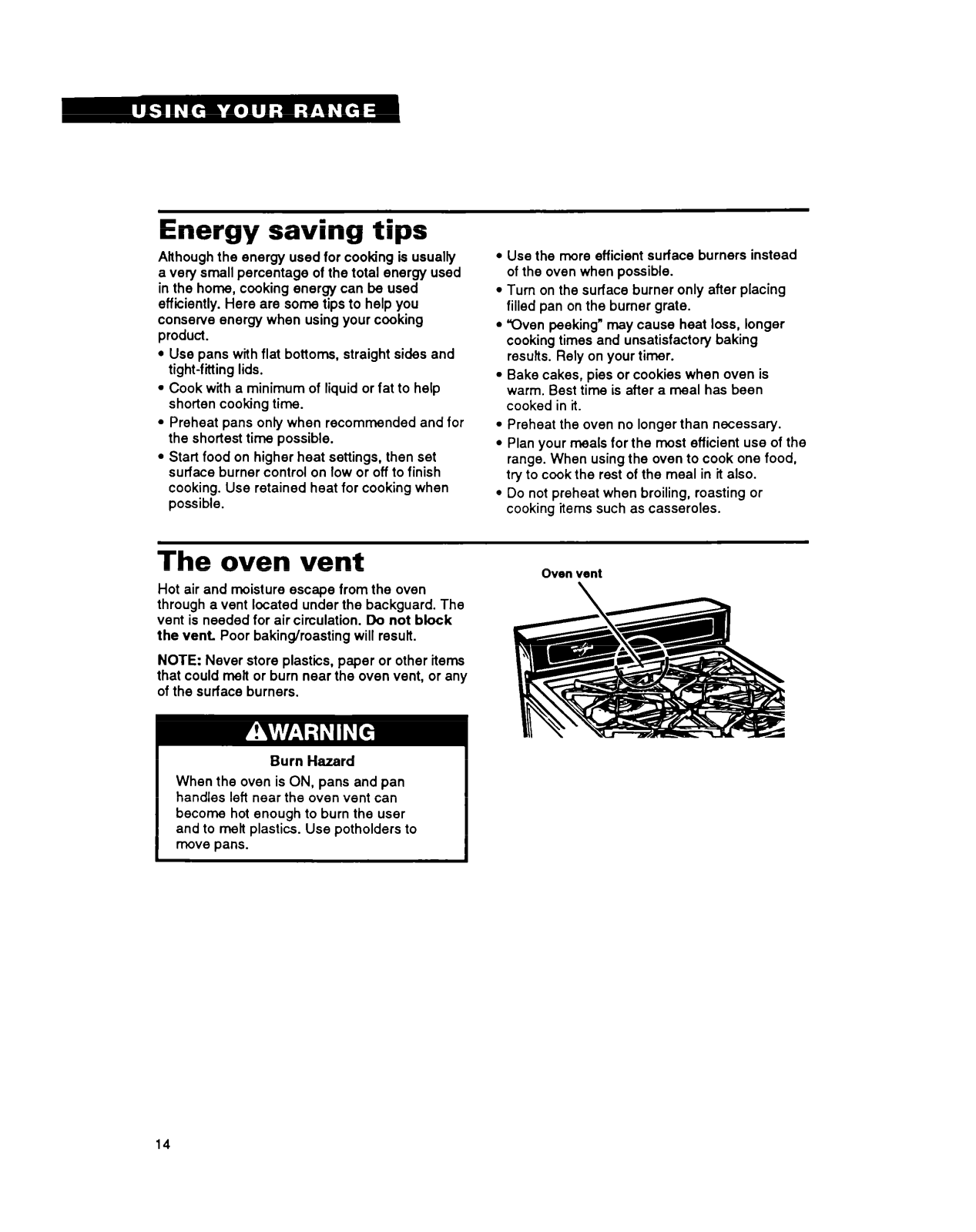

Broiling Energy saving tips

The oven vent “........ . ...... .

. . .......... . ........ I.

....

................................

..” .

...... . . . .

......

Page

.I .......

..-. 14

12 13 14

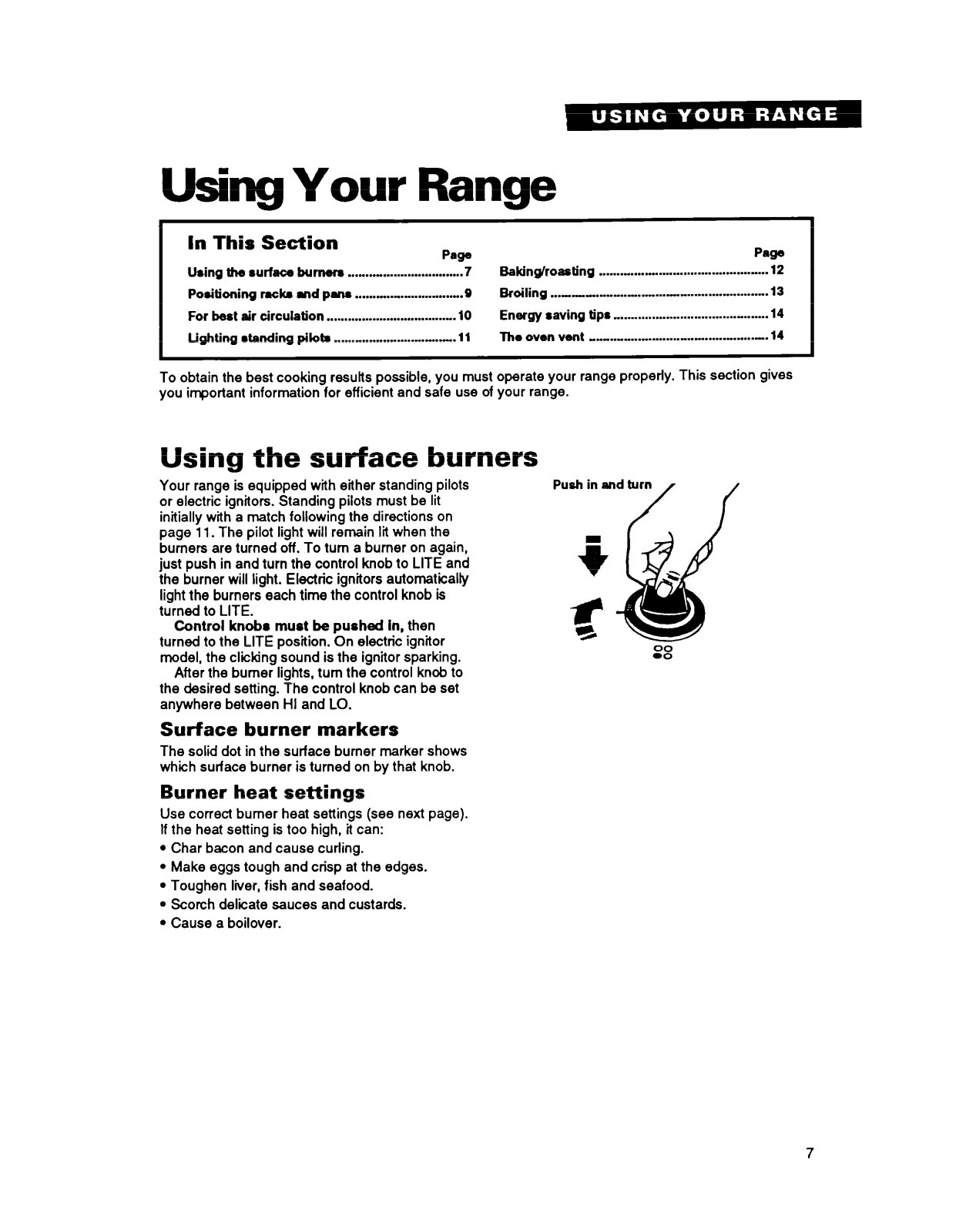

Using the surface burners

Your range is equipped with either standing pilots or electric ignitors. Standing pilots must be lit

initially with a match following the directions on page 11. The pilot light will remain lit when the burners are turned off. To turn a burner on again, just push in and turn the control knob to LITE and the burner will light. Electric ignitors automatically

light the burners each time the control knob is turned to LITE.

Control knob. must be pushed In,

turned to the LITE position. On electric ignitor

model, the clicking sound is the ignitor sparking.

After the burner lights, turn the control knob to

the desired setting. The control knob can be set

anywhere between HI and LO.

then

Push in and tur

Surface burner markers

The solid dot in the surface burner marker shows

which surface burner is turned on by that knob.

Burner heat settings

Use correct burner heat settings (see next page).

If the heat setting is too high, it can:

Char bacon and cause curling.

Make eggs tough and crisp at the edges.

Toughen liver, fish and seafood.

Scorch delicate sauces and custards.

Cause a boilover.

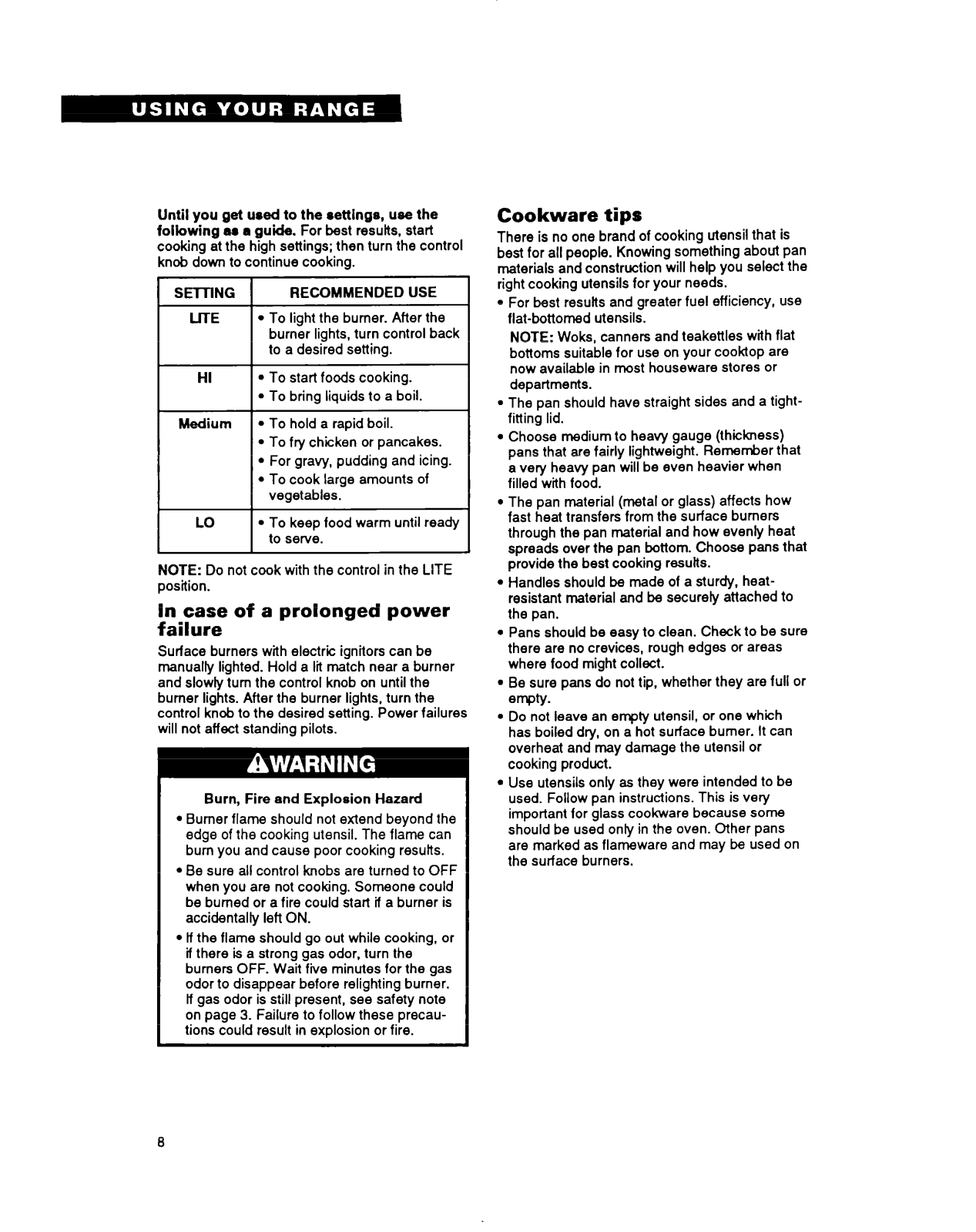

Until you get used to the settings, use the following as a guide.

cooking at the high settings; then turn the control knob down to continue cooking.

SElllNG

LITE

Medium

NOTE:

position.

Do not cook with the control in the LITE

For best results, start

RECOMMENDED USE

To light the burner. After the burner lights, turn control back to a desired setting.

To start foods cooking.

To bring liquids to a boil.

To hold a rapid boil.

To fry chicken or pancakes.

For gravy, pudding and icing.

To cook large amounts of vegetables.

To keep food warm until ready to serve.

In case of a prolonged power failure

Surface burners with electric ignitors can be manually lighted. Hold a lit match near a burner and slowly turn the control knob on until the burner lights. After the burner lights, turn the control knob to the desired settina. will not affect standing pilots.

Burn, Fire and Explosion Hazard

Burner flame should not extend beyond the edge of the cooking utensil. The flame can burn you and cause poor cooking results.

Be sure all control knobs are turned to OFF when you are not cooking. Someone could be burned or a fire could start if a burner is accidentally left ON.

lf the flame should go out while cooking, or if there is a strong gas odor, turn the burners OFF. Wait five minutes for the gas odor to disappear before relighting burner.

if gas odor is still present, see safety note on page 3. Failure to follow these precau-

tions could result in explosion or fire.

Power failures

Cookware tips

There is no one brand of cooking utensil that is best for all people. Knowing something about pan materials and construction will help you select the right cooking utensils for your needs.

For best results and greater fuel efficiency, use flat-bottomed utensils.

NOTE:

bottoms suitable for use on your cooktop are now available in most houseware stores or departments.

The pan should have straight sides and a tightfitting lid.

Choose medium to heavy gauge (thickness) pans that are fairly lightweight. Remember that a very heavy pan will be even heavier when filled with food.

The pan material (metal or glass) affects how fast heat transfers from the surface burners through the pan material and how evenly heat spreads over the pan bottom. Choose pans that provide the best cooking results.

Handles should be made of a sturdy, heatresistant material and be securely attached to the pan.

Pans should be easy to clean. Check to be sure there are no crevices, rough edges or areas where food might collect.

. Be sure pans do not tip, whether they are full or

empty.

Do not leave an empty utensil, or one which has boiled dry, on a hot surface burner. It can overheat and may damage the utensil or cooking product.

Use utensils only as they were intended to be used. Follow pan instructions. This is very important for glass cookware because some should be used only in the oven. Other pans are marked as flameware and may be used on the surface burners.

Woks, canners and teakettles with flat
