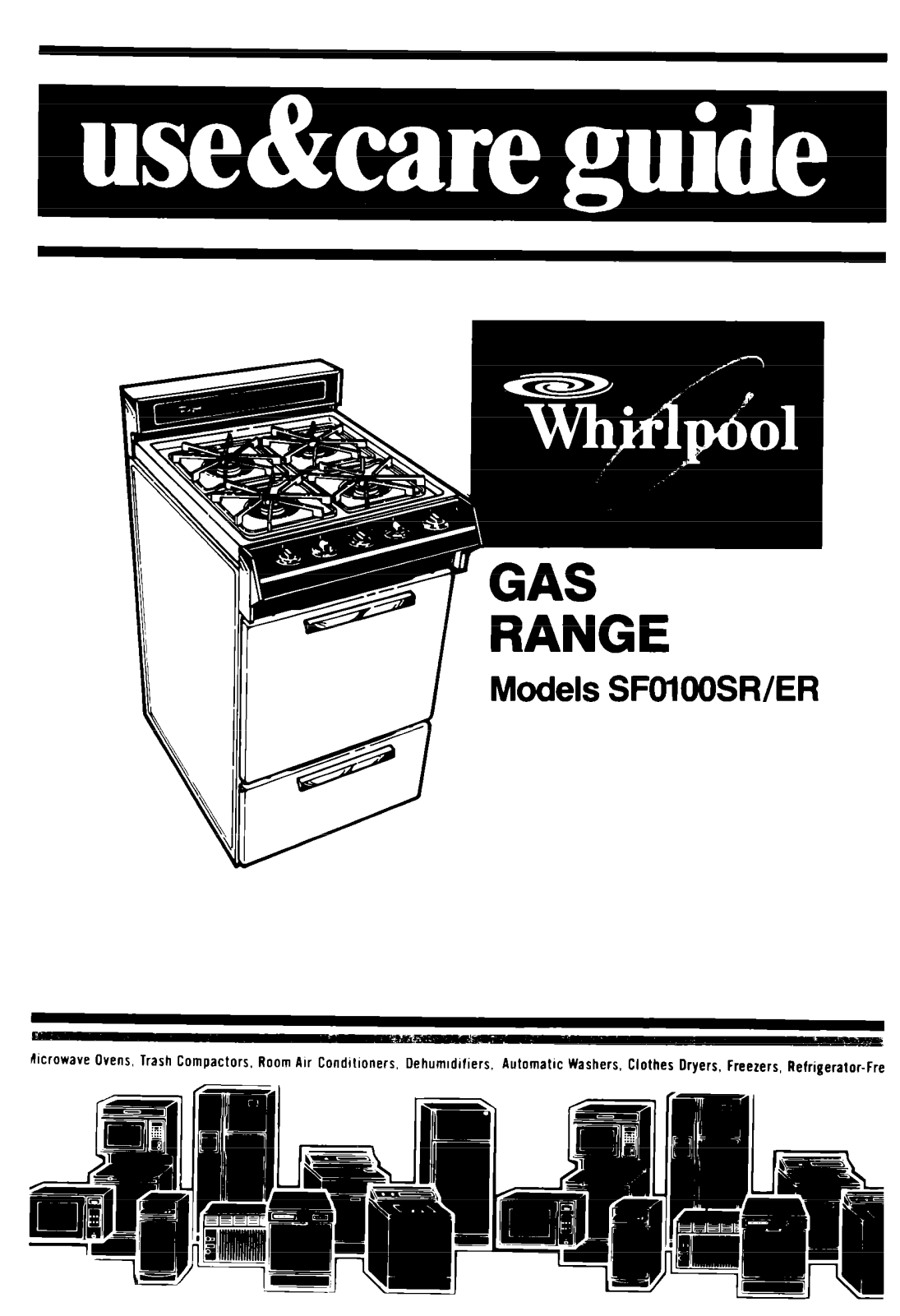

Whirlpool SFOlOOSR-ER User Manual

Models SFOlOOSR/ER

llcrowave Ovens, Trash Compactors, Room AM Condltloners. Dehumldlfwrs. Automatw Washers. Clothes Dryers. Freezers, Refrigerator-Fre

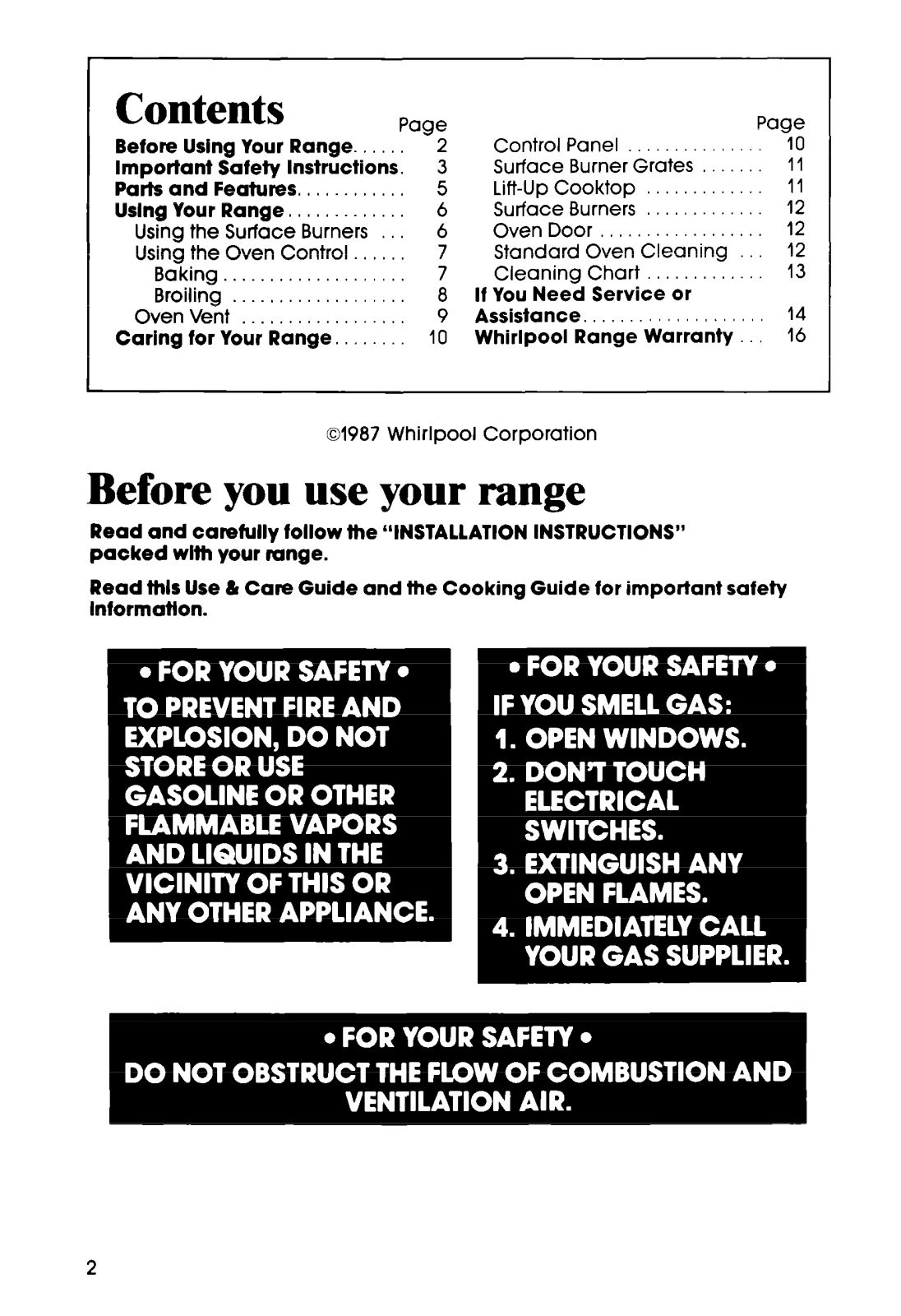

Contents

Before Using Your Range. ..... 2

important Safety instructions. 3

Parts and Features. ........... 5

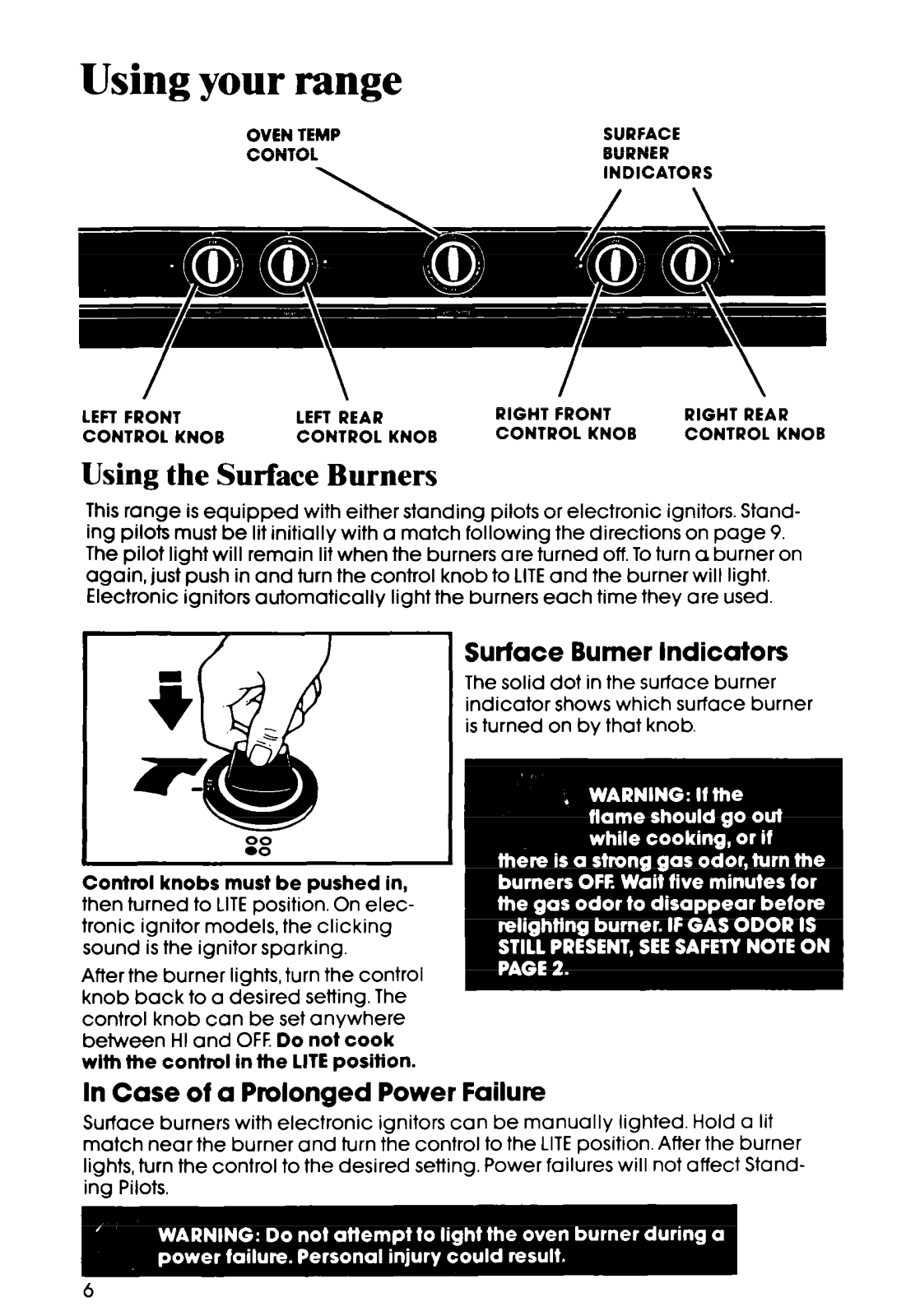

Using Your Range ............. 6

Using the Surface Burners ... 6

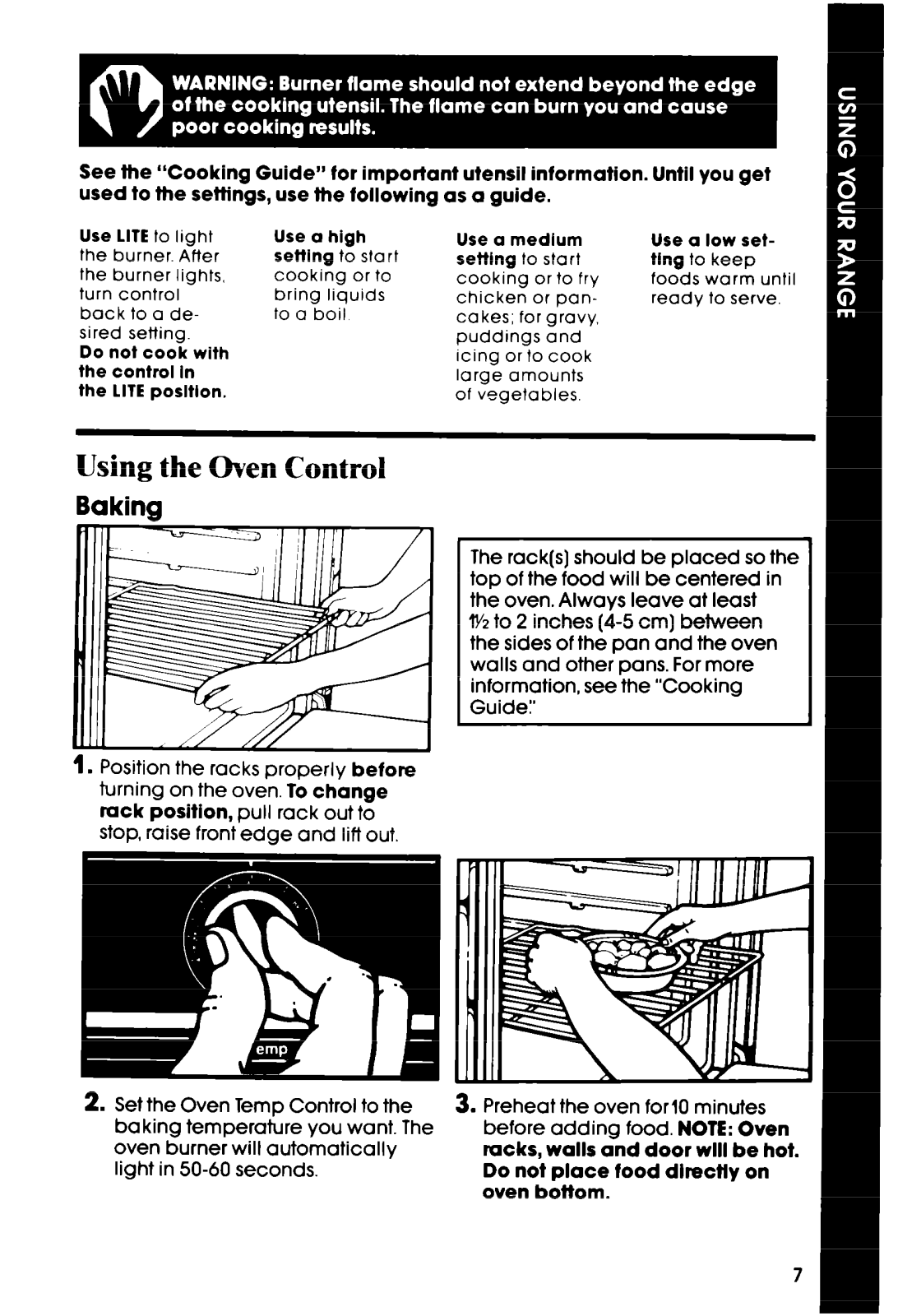

Using the Oven Control ...... 7

Baking .................... 7

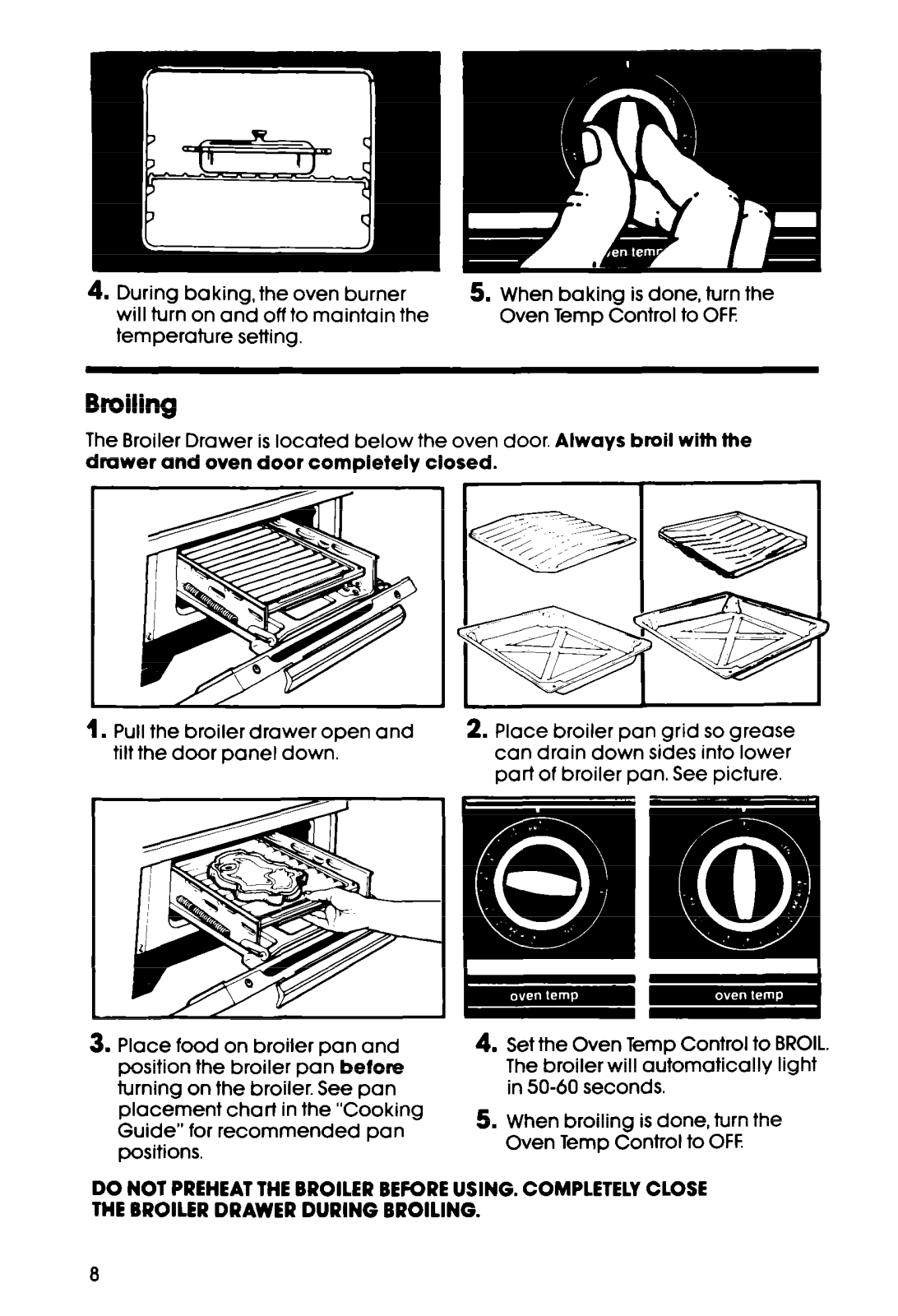

Broiling ................... 8

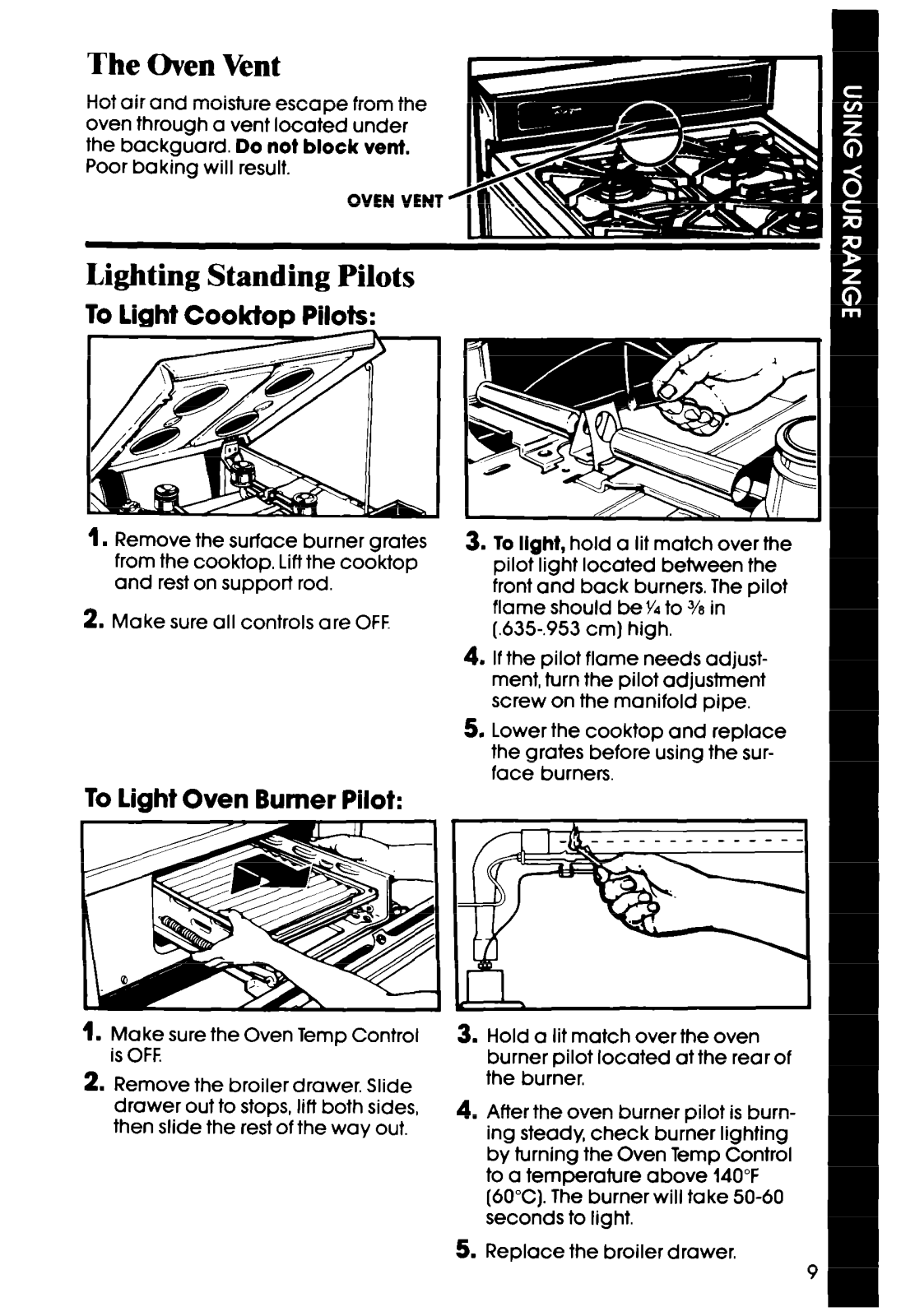

Oven Vent .................. 9

Caring for Your Range. ....... 10

01987 Whirlpool Corporation

Page

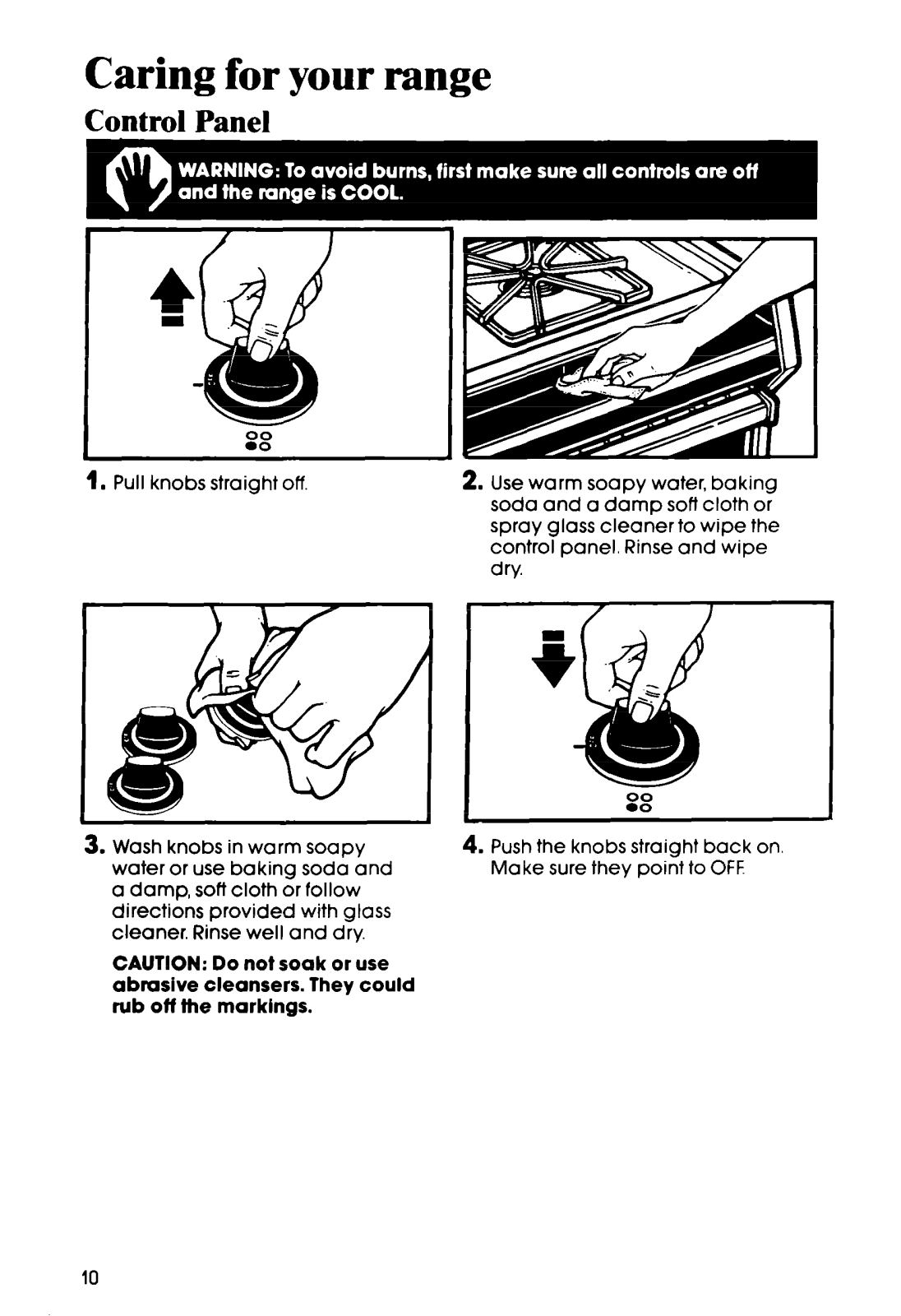

Control Panel

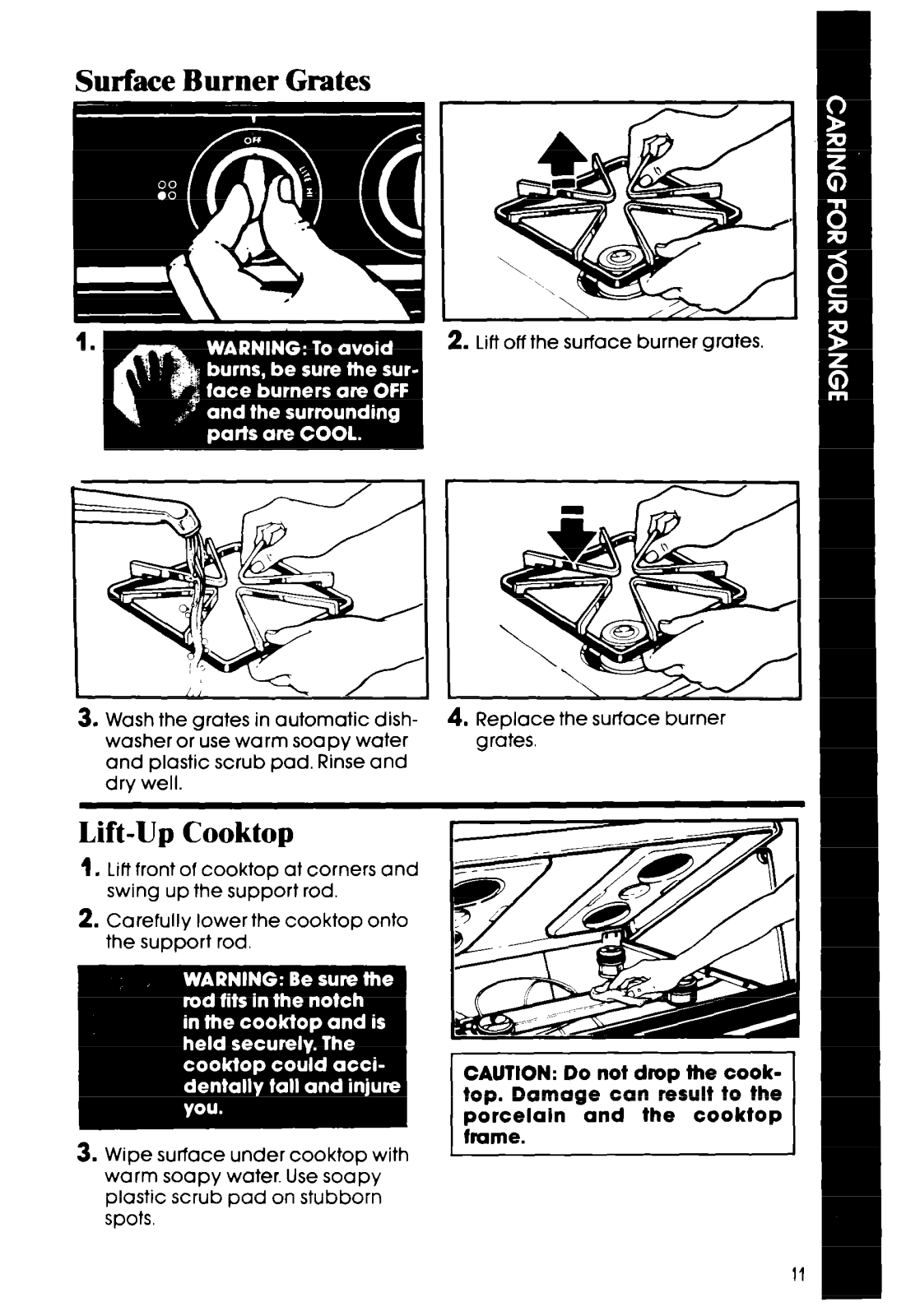

Surface Burner Grates
Lift-Up Cooktop

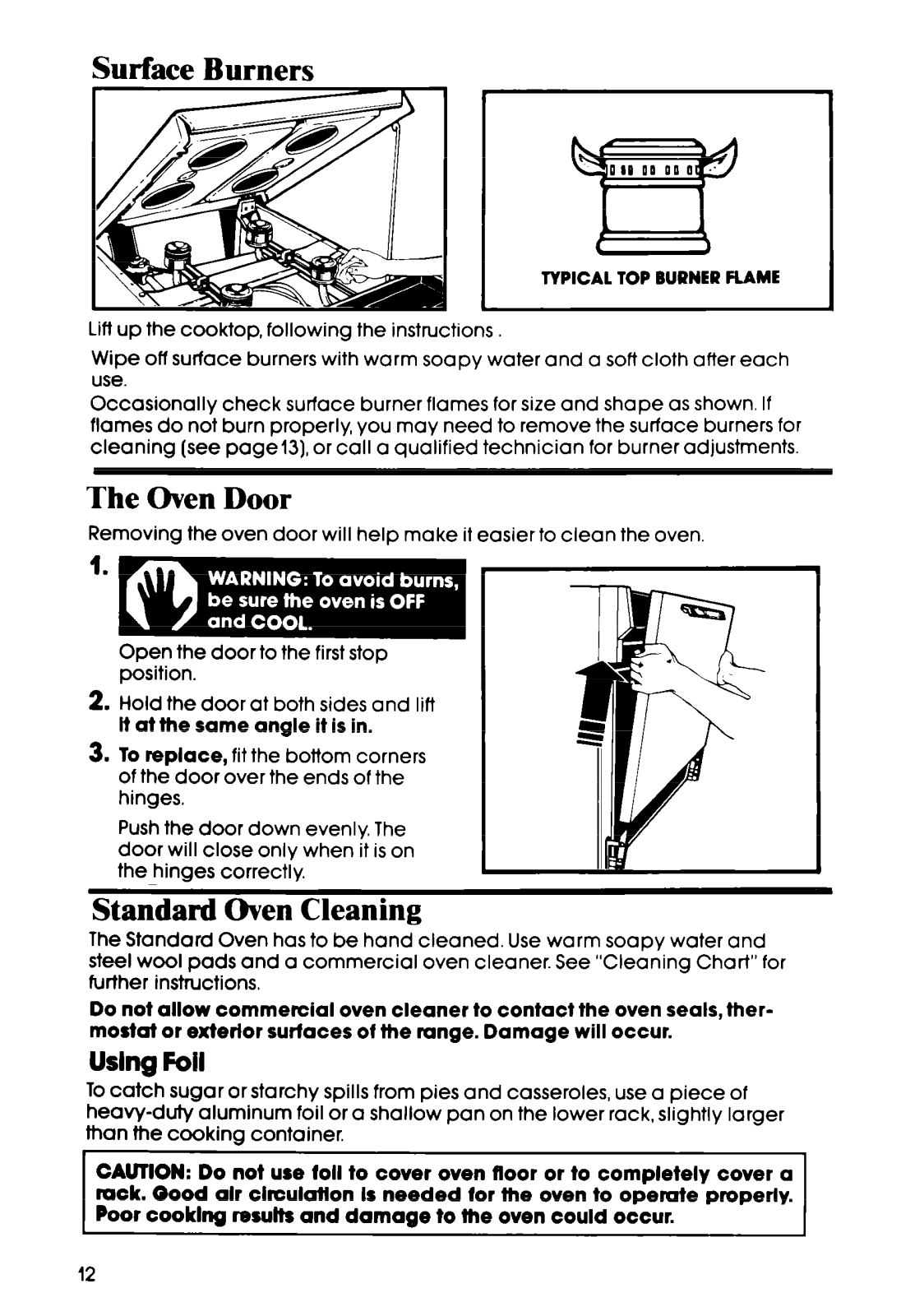

Surface Burners
Oven Door
Standard Oven Cleaning

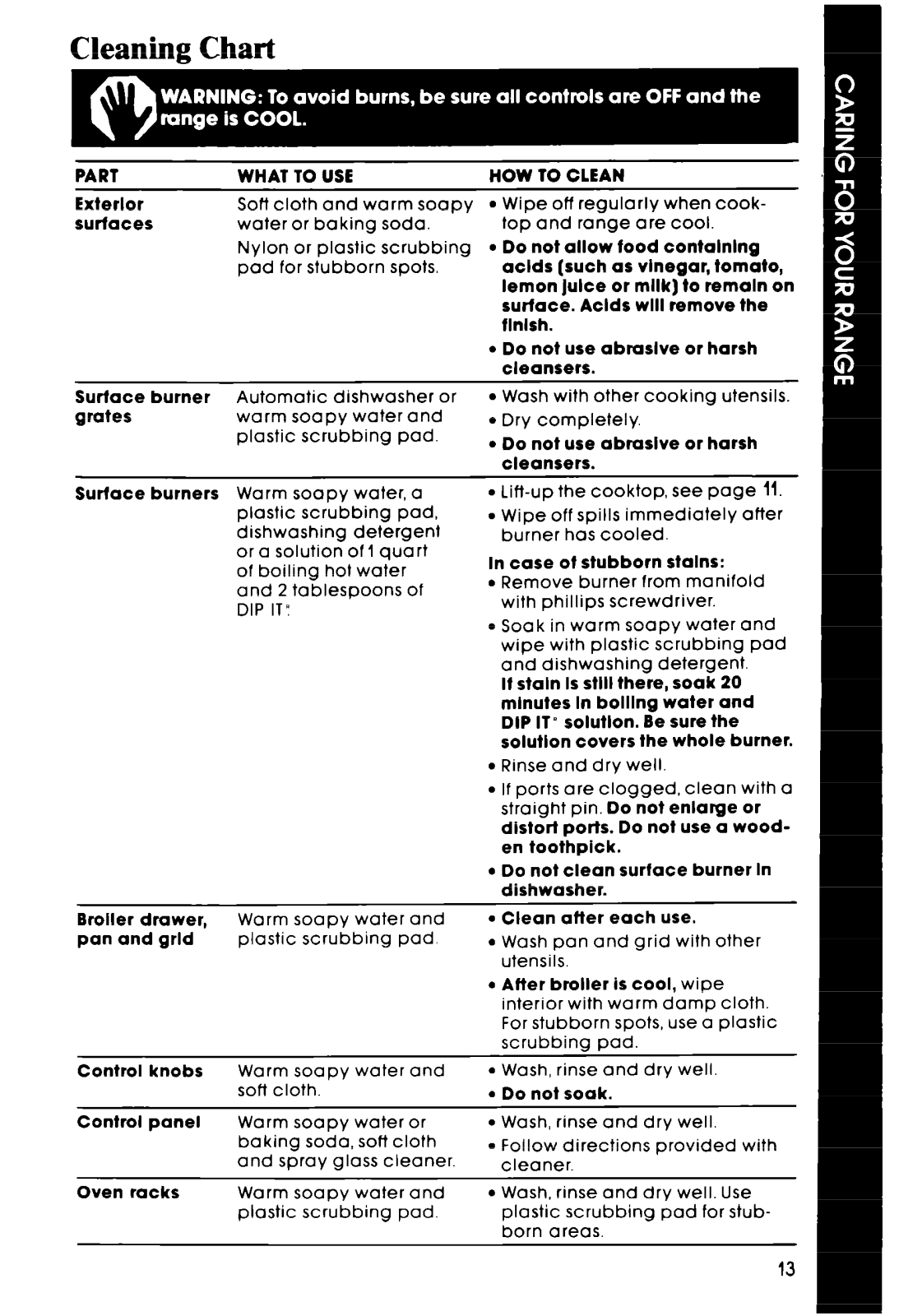

Cleaning Chart

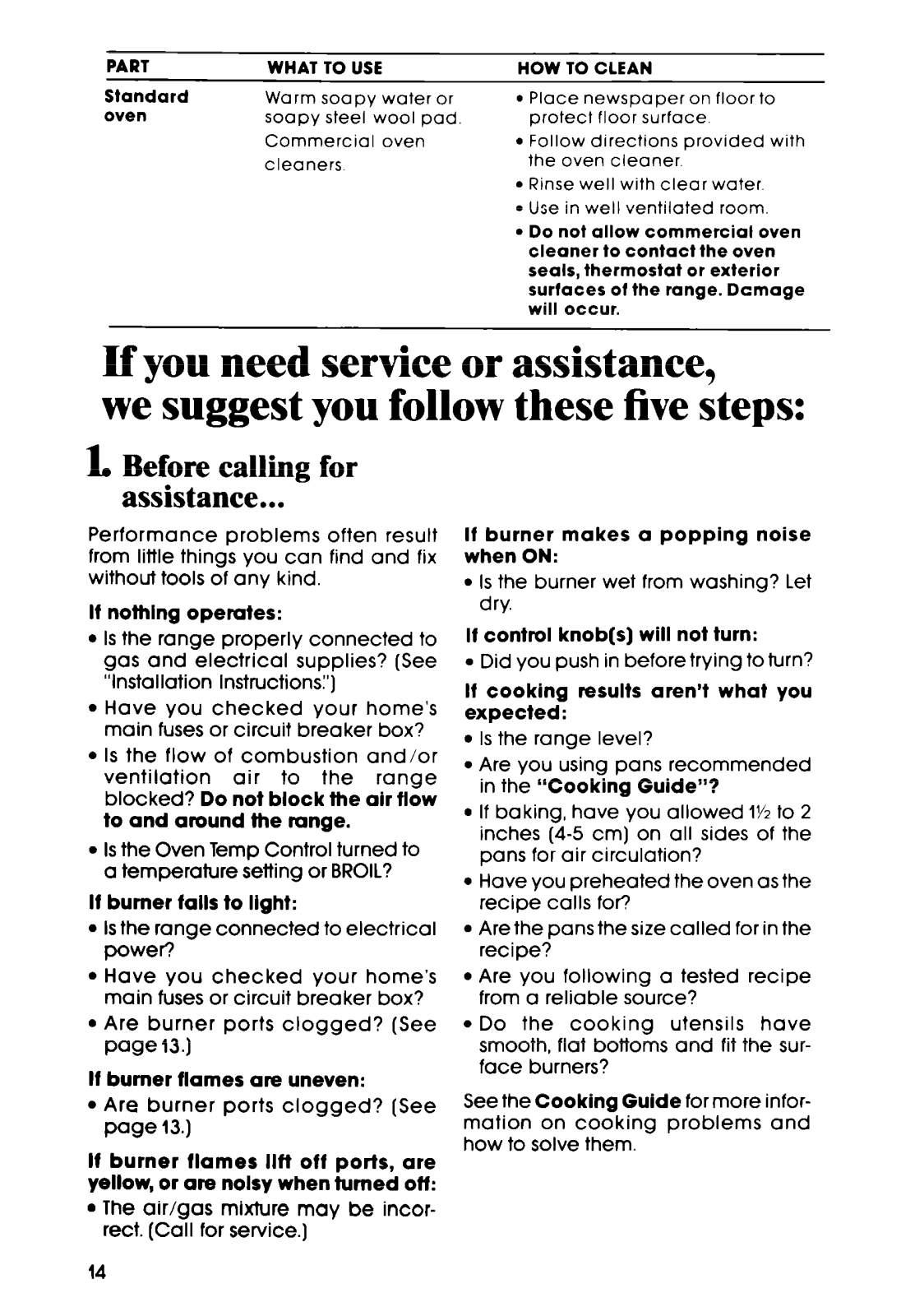

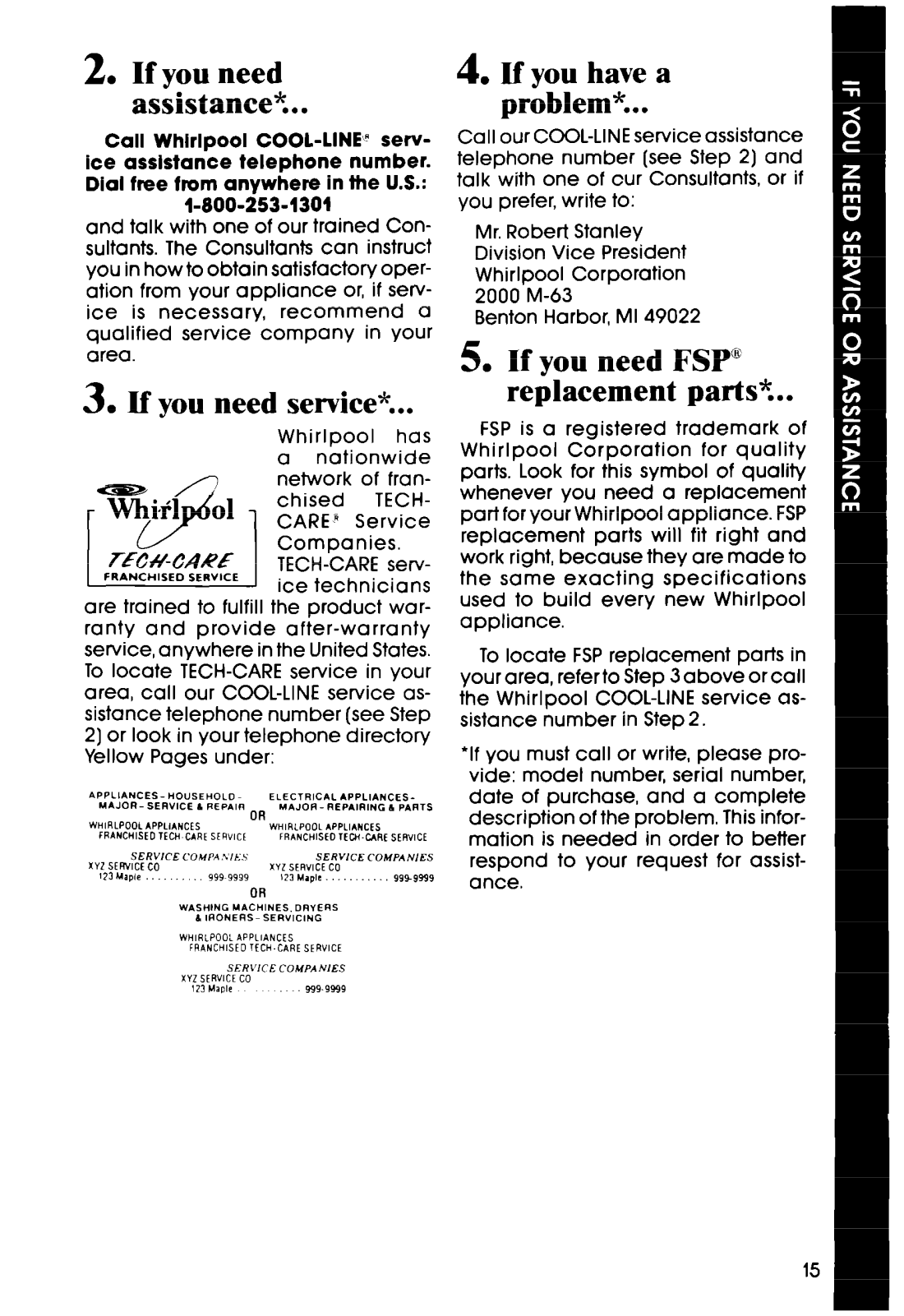

if You Need Service or
Assistance.

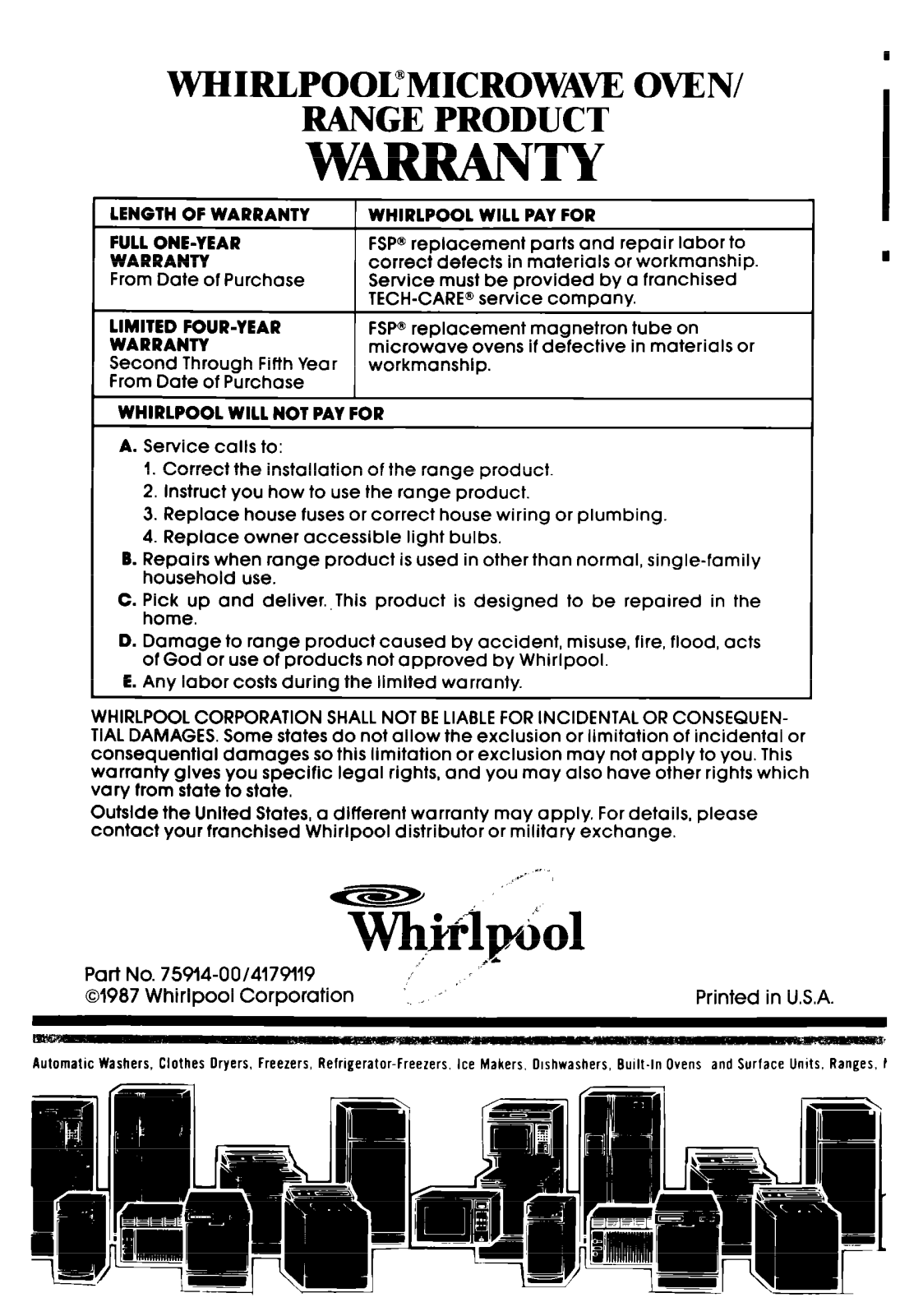

Whirlpool Range Warranty

., 16

Before you use your range

Read and carefully follow the ~‘INSTALLATION INSTRUCTIONS”
packed with your range.

Read fhls Use & Care Guide and the Cooking Guide for important safety
Information.

Page

10
11
11
12
12
12
13

14

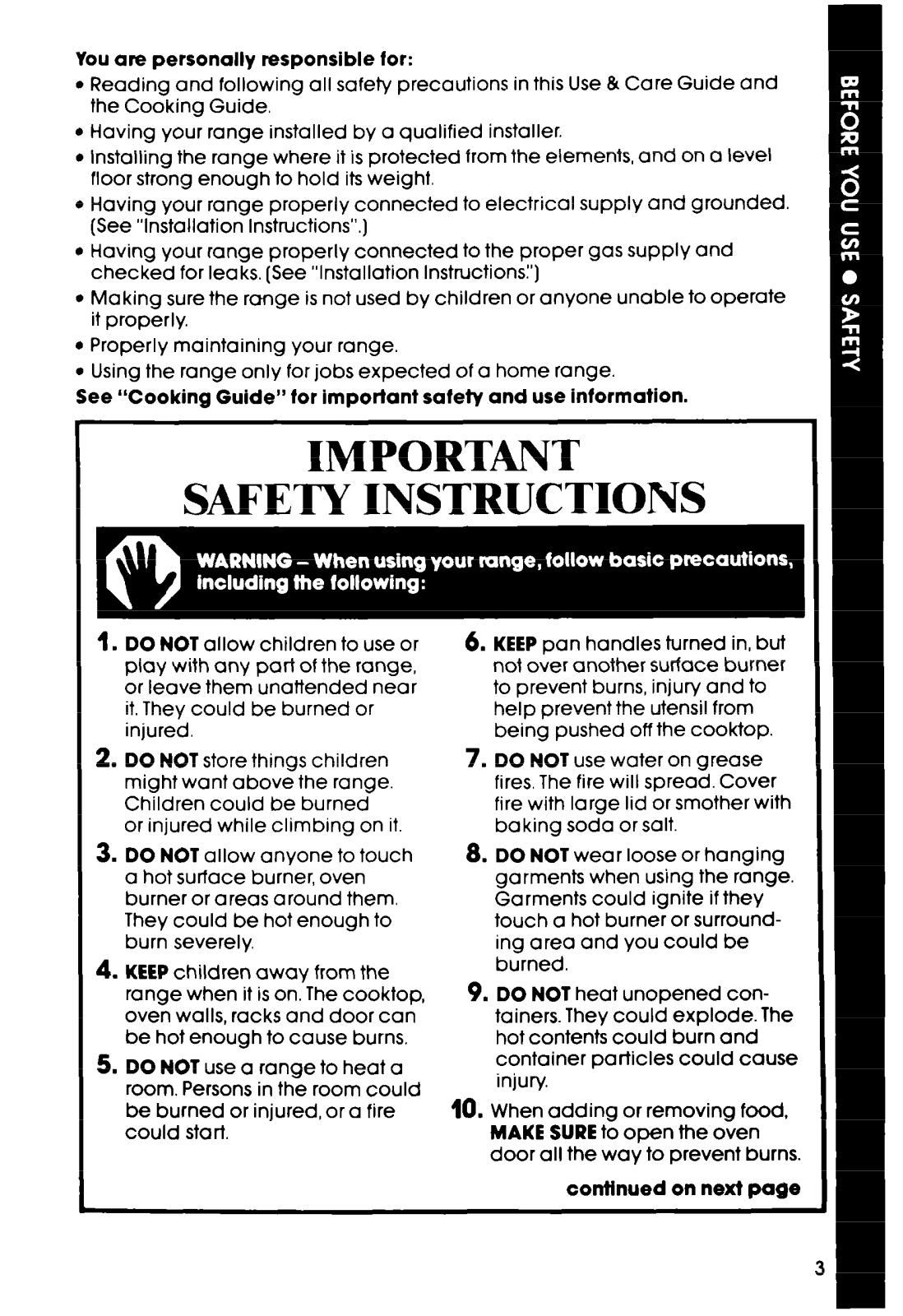

You are personally responsible for:

l

Reading and following all safety precautions in this Use & Care Guide and
the Cooking Guide.

l

Having your range installed by a qualified installer.

l

Installing the range where it is protected from the elements, and on a
floor strong enough to hold its weight.

l

Having your range properly connected to electrical supply and grounded.
(See “Installation Instructions”.)

l

Having your range properly connected to the proper gas supply and
checked for leaks. (See “Installation Instructions:‘)

l

Making sure the range is not used by children or anyone unable to operate

it properly.

l

Properly maintaining your range.

l

Using the range only for jobs expected of a home range.

See “Cooking Guide” for important safety and use information.

level

IMPORTANT

SAFETY INSTRUCTIONS

1. DO NOT allow children to use or

play with any part of the range,
or leave them unattended near
it. They could be burned or
injured. being pushed off the cooktop.

2. DO NOT store things children
might want above the range.
Children could be burned
or injured while climbing on it.

3. DO NOT allow anyone to touch
a hot surface burner, oven
burner or areas around them.
They could be hot enough to
burn severely.

4. KEEP children away from the
range when it is on. The cooktop,
oven walls, racks and door can
be hot enough to cause burns.

5. DO NOT use a range to heat a
room. Persons in the room could
be burned or injured, or a fire
could start.

6. KEEP pan handles turned in, but

not over another surface burner
to prevent burns, injury and to

help prevent the utensil from

7. DO NOT use water on grease
fires. The fire will spread. Cover
fire with large lid or smother with
baking soda or salt.

8. DO NOT wear loose or hanging
garments when using the range.
Garments could ignite if they
touch a hot burner or surround-

ing area and you could be
burned.

9. DO NOT heat unopened con­tainers. They could explode. The

hot contents could burn and
container particles could cause
injury.

10. When adding or removing food,

MAKE SURE to open the oven
door all the way to prevent burns.

continued on next page

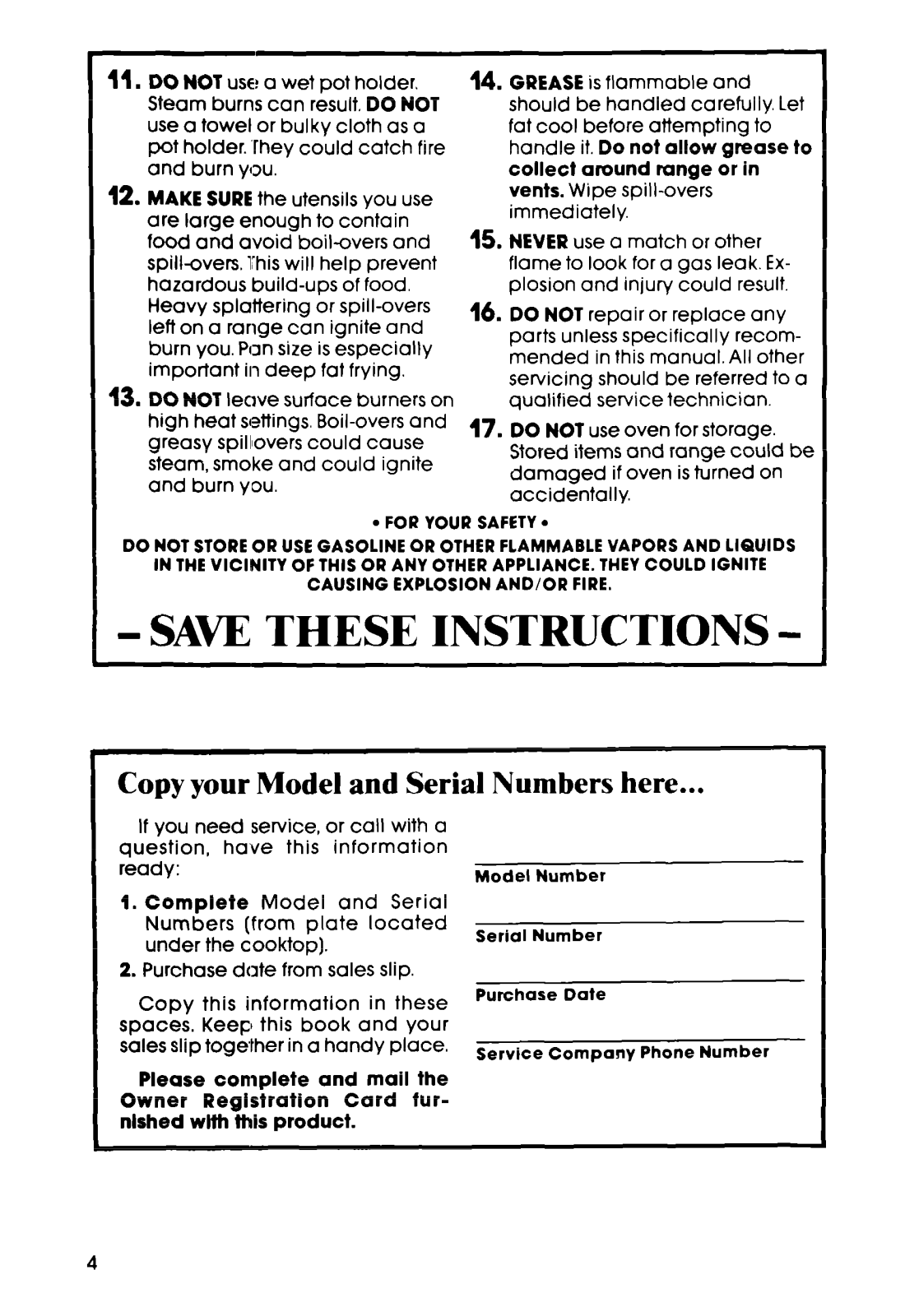

11. DO NOT use a wet pot holder.

Steam burns can result. DO NOT
use a towel or bulky cloth as a
pot holder.‘fhey could catch fire
and burn you.

12. MAKE SURE the utensils you use
are large enough to contain
food and avoid boil-overs and
spill+%ers. This will help prevent
hazardous build-ups of food.
Heavy splattering 6r spill-overs
left on a range can ignite and
burn you. Pan size is especially
important in deep fat frying.

13. DO NOT leave surface burners on
high heat
greasy spilllovers could cause
steam, smoke and could ignite
and burn you.

DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND LIQUIDS

IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE. THEY COULD IGNITE

SdtingS.

Boil-overs and

l

FOR YOUR SAFETY

CAUSING

EXPLOSION AND/OR FIRE.

14. GREASE is flammable and
should be handled carefully. Let
fat cool before attempting to
handle it. Do not allow grease to
collect around range or in
vents. Wipe spill-overs
immediately.

15. NEVER use a match or other

flame to look for a gas leak. Ex­plosion and injury could result.

16. DO NOT repair or replace any

parts unless specifically recom­mended in this manual. All other
servicing should be referred to a
Qualified service technician.

17. DO NOT use Oven for storage,
Stored items and range could be

damaged if oven is turned on
accidentally.

l

- SAW THESE INSTRUCTIONS -

Copy your Model and Serial Numbers here...

If you need service, or call with a
question, have this information
ready:

1. Complete Model and Serial
Numbers (from plate located
under the cooktop).

2. Purchase date from sales slip.
Copy this information in these Purchase Date

spaces. Keep this book and your
sales slip together in a handy place.

Please complete and mail the

Owner Registratlon Card fur­nlshed with this product.

Model Number

Serial Number

Service Company Phone Number

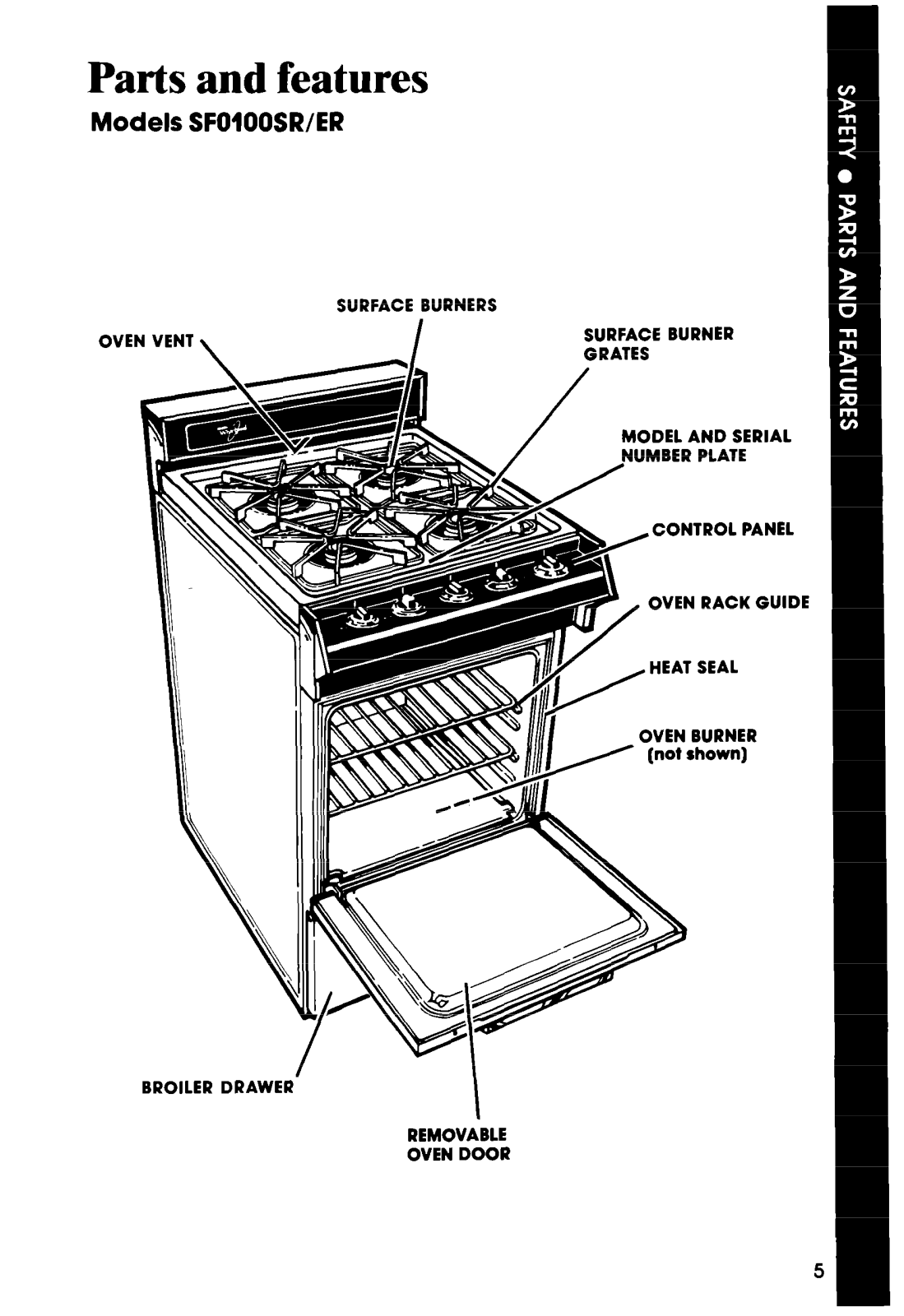

Parts and features

Models SFOlOOSR/ER

SURFACE BURNERS

OVE

SURFACE BURNER
GRATES

IUUYEL ANY 3EKIAL

NUMBER PLATE

/

, CONTROL PANEL

OVEN RACK GUID

BROILER DRAWER-

OVEN BURNER

\

REMOVABLE
OVEN DOOR
