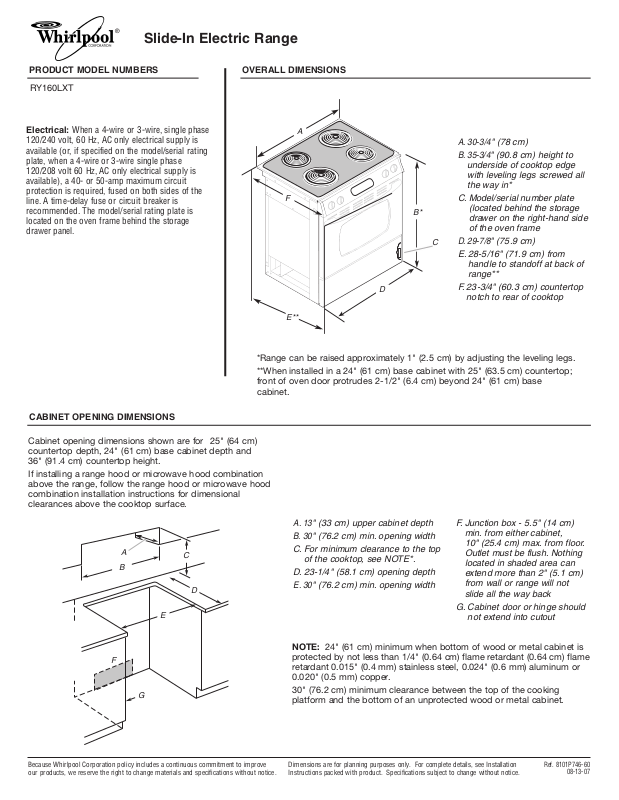

Whirlpool RY160LXTS, RY160LXTQ, RY160LXTB Dimension Guide
®
Slide-In Electric Range
PRODUCT MODEL NUMBERS
RY160LXT
Electrical: When a 4-wire or 3-wire, single phase 120/240 volt, 60 Hz, AC only electrical supply is available (or, if specified on the model/serial rating plate, when a 4-wire or 3-wire single phase 120/208 volt 60 Hz, AC only electrical supply is available), a 40or 50-amp maximum circuit protection is required, fused on both sides of the line. A time-delay fuse or circuit breaker is recommended. The model/serial rating plate is located on the oven frame behind the storage drawer panel.
CABINET OPENING DIMENSIONS
OVERALL DIMENSIONS
A
|
A. 30-3/4" (78 cm) |
|
|
B. 35-3/4" (90.8 cm) height to |
|
|
underside of cooktop edge |
|
|
with leveling legs screwed all |
|
|
the way in* |
|
F |
C. Model/serial number plate |
|
B* |
(located behind the storage |
|
drawer on the right-hand side |
||
|
||
|
of the oven frame |
|
C |
D. 29-7/8" (75.9 cm) |
|
|
E. 28-5/16" (71.9 cm) from |
|
|
handle to standoff at back of |
|
|
range** |
|
D |
F. 23-3/4" (60.3 cm) countertop |
|
|
notch to rear of cooktop |
|
E** |
|
*Range can be raised approximately 1" (2.5 cm) by adjusting the leveling legs.
**When installed in a 24" (61 cm) base cabinet with 25" (63.5 cm) countertop; front of oven door protrudes 2-1/2" (6.4 cm) beyond 24" (61 cm) base cabinet.
Cabinet opening dimensions shown are for 25" (64 cm) countertop depth, 24" (61 cm) base cabinet depth and 36" (91.4 cm) countertop height.
If installing a range hood or microwave hood combination above the range, follow the range hood or microwave hood combination installation instructions for dimensional clearances above the cooktop surface.
A |
C |
|
|
B |
|
D
E
F
G
A.13" (33 cm) upper cabinet depth
B.30" (76.2 cm) min. opening width
C.For minimum clearance to the top of the cooktop, see NOTE*.
D.23-1/4" (58.1 cm) opening depth
E.30" (76.2 cm) min. opening width
F.Junction box - 5.5" (14 cm) min. from either cabinet,
10" (25.4 cm) max. from floor. Outlet must be flush. Nothing located in shaded area can extend more than 2" (5.1 cm) from wall or range will not slide all the way back
G.Cabinet door or hinge should not extend into cutout
NOTE: 24" (61 cm) minimum when bottom of wood or metal cabinet is protected by not less than 1/4" (0.64 cm) flame retardant (0.64 cm) flame retardant 0.015" (0.4 mm) stainless steel, 0.024" (0.6 mm) aluminum or 0.020" (0.5 mm) copper.
30" (76.2 cm) minimum clearance between the top of the cooking platform and the bottom of an unprotected wood or metal cabinet.
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation |
Ref. 8101P746-60 |
Instructions packed with product. Specifications subject to change without notice. |
08-13-07 |
