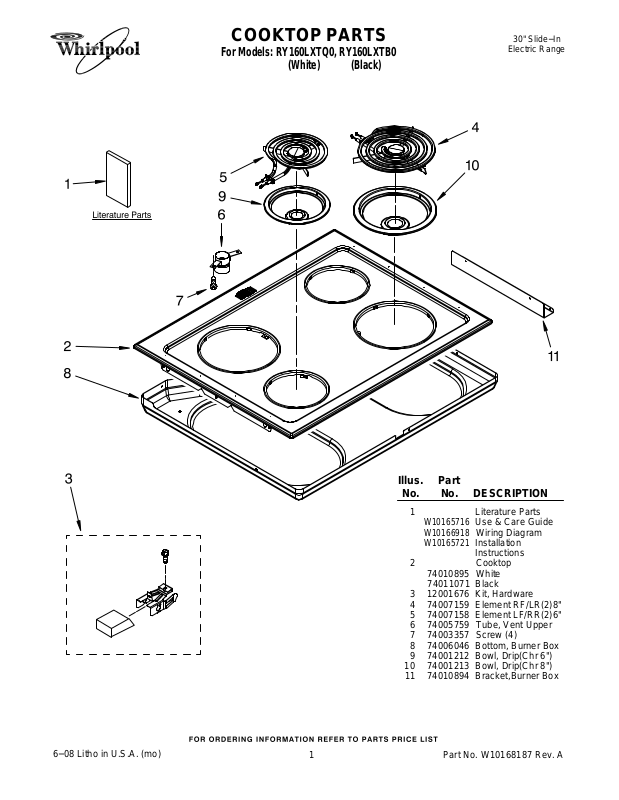

Page 1
COOKTOP PARTS
For Models: RY160LXTQ0, RY160LXTB0
(White) (Black)
30" Slide−In
Electric Range
6−08 Litho in U.S.A. (mo)
Illus. Part
No. No. DESCRIPTION
1 Literature Parts
W10165716
W10166918
W10165721
2 Cooktop
74010895 White
74011071 Black
3 12001676 Kit, Hardware
4 74007159 Element RF/LR(2)8"
5 74007158 Element LF/RR(2)6"
6 74005759 Tube, Vent Upper
7 74003357 Screw (4)
8 74006046 Bottom, Burner Box
9 74001212 Bowl, Drip(Chr 6")
10 74001213 Bowl, Drip(Chr 8")
11 74010894 Bracket,Burner Box
1
Part No. W10168187 Rev. A
Use & Care Guide
Wiring Diagram
Installation
Instructions
Page 2
CONTROL PANEL PARTS
For Models: RY160LXTQ0, RY160LXTB0
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1
7730P011−60
2 Panel, Control
W10169863
W10169864
7101P309−60
3
4 Switch, Infinte
7403P239−60
7403P238−60
5 Control W/Overlay
W10169864
W10169863
Lens
Black
White
Screw, Switch (10)
8" (RF/LR)(2)
6" (LF/RR) (2)
White
Black
Illus. Part
No. No. DESCRIPTION
6 End Cap
74010835 Left Black
74004822 Left White
74010834 Right Black
74004821 Right White
7 Screw, End Cap
74009537 Black
74009540 White
8 Switch, Rocker
74008718 Black
74008717 White
2
Illus. Part
No. No. DESCRIPTION
9 74004288 Screw, Control
10 74004785 Support,
Control Panel
7101p338−60
11
12 Shield, Heat
74001337 Black
74001338 White
13 74004153 Light, Indicator
14 Knob (4)
74003612 Black
74003611 White
Screw, Support (4)
W10168187
Page 3
CHASSIS PARTS
For Models: RY160LXTQ0, RY160LXTB0
(White) (Black)
W10168187
3
Page 4
CHASSIS PARTS
For Models: RY160LXTQ0, RY160LXTB0
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1 Panel, Shield
74010821 Left
74010822 Right
2 74010897 Latch Assembly
3 Lever, Lock
74002974 Gray
74001075 Black
4 74011465 Main Back
5 74006096 Cover, Main Wire
6 74010815 Extension, Back
7 Y700502 Screw
8 74006364 Insulator, Cord
9 74005264 Panel, Access
11 74010823 Fan, Cooling
12 74008298 Block, Bare Wire
13 74004223 Connector, Cable
14 74003040 Element, Broil
15 74004943 Sensor, Oven
W10165822
16
17 74010886 Tube, Vent Upper
Tube, Vent Lower
Illus. Part
No. No. DESCRIPTION
18 71001394 Screw (4)
19 74010817 Holder, Vent Tube
20 74008597 Smoke Eliminator
W10165724
21
22 74010885 Light Assembly
23 74004180 Bracket,Pwr Supply
7407P103−60
24
25 Trim, Side
74010832 White (2)
74010831 Black (2)
26 74003976 Screw,Shoulder (4)
27 74010883 Element, Bake
28 74010884 Support, Oven Rear
29 71001394 Screw
30 74011142 Hinge (2)
7101P112−60
31
32 74010818 Switch, Hi−Limit
33 74003975 Screw, Lever (2)
34 74010820 Extention, Shield
35 74003386 Support, Element
Plate, Smoke Elm.
Bulb, Oven
Screw, Hinge (4)
Illus. Part
No. No. DESCRIPTION
36 74010805 Leg, Leveling
37 74010899 Pedestal, Bottom
38 74010882 Pedestal, Front
39 74007129 Support
40 74003565 Runner, Drawer (2)
41 74004078 Roller, Drawer (2)
42 74005231 Shaft, Roller (2)
43 74005230 Nut, Lock (2)
44 74006522 Retainer, Bottom
45 74005564 Bracket, Anti−Tip
7101P124−60
46
47 74010812 Support, Ov Bottom
48 74003976 Screw,Shoulder (2)
49 74010807 Cover, Front
Screw, w/Washer
INSULATION
74010987 Insulation, Wrap
W10165725
74011207 Insulation,
Insulation, Back
Oven Bottom
4
W10168187
Page 5

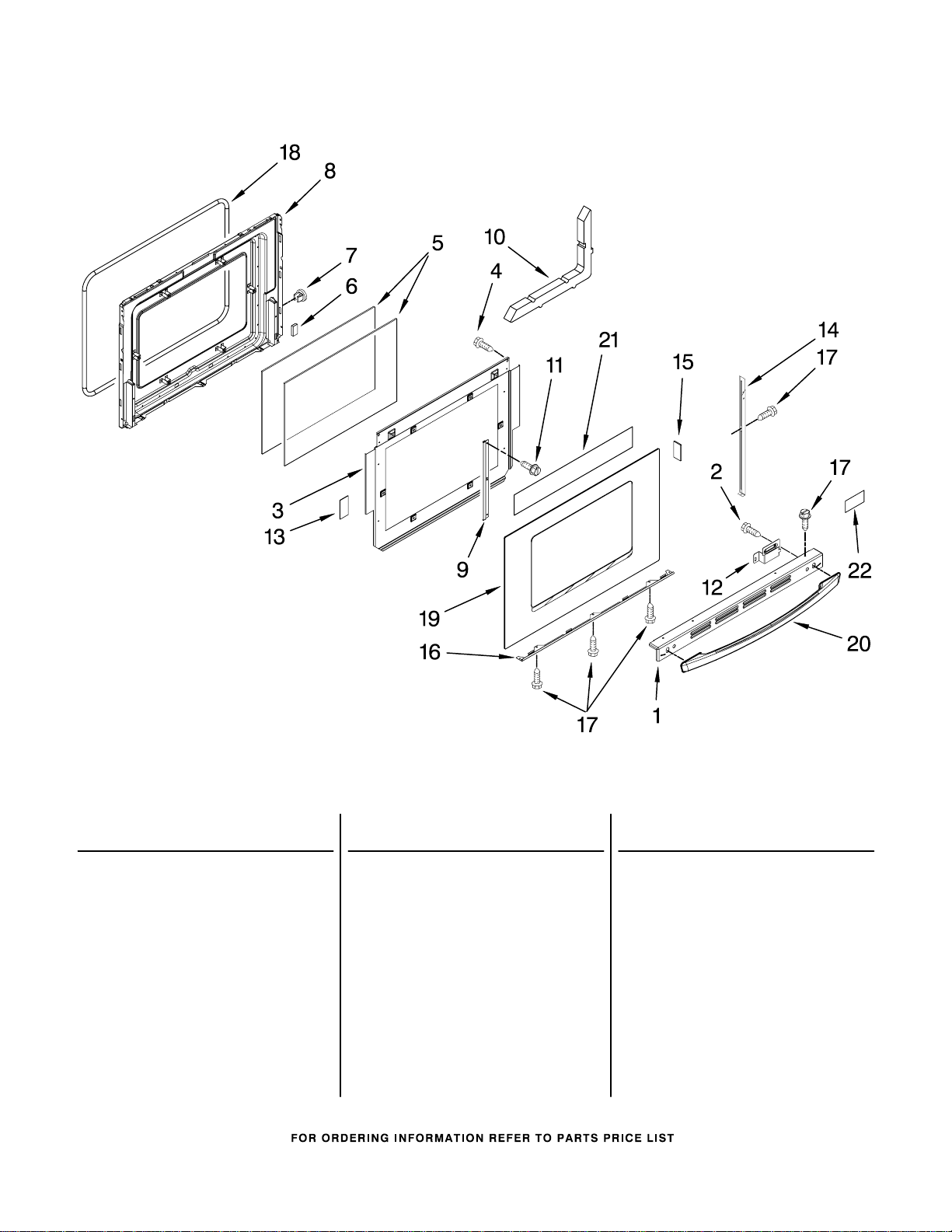

DOOR PARTS
For Models: RY160LXTQ0, RY160LXTB0
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1 Trim, Door Top
W10165729
W10165726
2 74011674 Screw, Handle (2)
3 74011457 Baffel, Retainer
4 74001530 Screw 8AB 1/2
5 74003645 Glass, Inner (2)
6 74005546 Spacer, Rubber
7 74001574 Nut, Snap (4)
8 74011456 Lining, Door
9 74011458 Bracket, Glass (2)
10 74003647 Insulation, Door
11 Y700502 Screw
W10168187
Black
White
Illus. Part
No. No. DESCRIPTION
12 Bracket, Handle
74009699 Left
74009698 Right
13 74004224 Tape, White
14 Trim, Door Side
74009693 Black, Left
74009695 White, Left
74009692 Black Right
74009694 White, Right
15 Tape, Double Sided
74009014 White
74009025 Black
16 Trim, Door Bottom
74009687 White
74009686 Black
5
Illus. Part
No. No. DESCRIPTION
17 Screw, Trim
74009540 White
74009539 Black
7201P046−60
18
19 Glass, Door
W10165730
W10165731
20 Handle, Door
74008322 White
74008318 Black
21 74003664 Tape, Foil
22 8303811 Nameplate, Logo
Seal, Door
White
Black
(Order Items 13 &
21 When Replacing
Door Glass)
Page 6

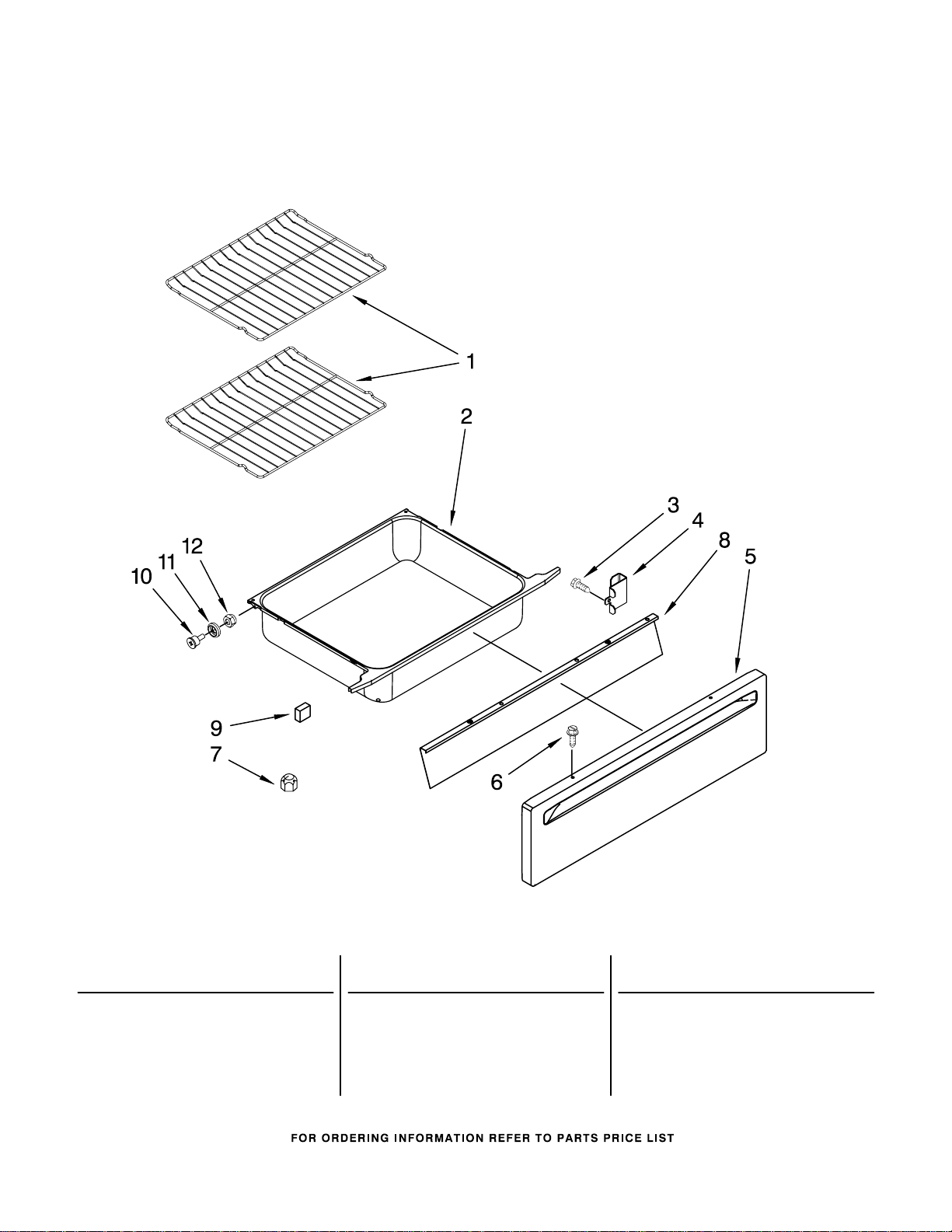

DRAWER AND RACK PARTS
For Models: RY160LXTQ0, RY160LXTB0
(White) (Black)
Illus. Part
No. No. DESCRIPTION
1 74001757 Rack, Oven (2)
2 74008333 Drawer, Storage
3 74004310 Screw, Panel
4 74010896 Bracket, Drawer
Illus. Part
No. No. DESCRIPTION
5 Panel, Drawer
74003407 White
74003701 Black
6 Screw, Panel
74009540 White
74009539 Black
6
Illus. Part
No. No. DESCRIPTION
7 74005230 Nut, Lock
2404F030−51
8
9 74005546 Spacer, Rubber
10 74004078 Roller, Drawer (2)
11 74005231 Shaft, Roller (2)
7103P082−60
12
Lining, Drawer
Nut
W10168187
Page 7
OPTIONAL PARTS (NOT INCLUDED)
For Models: RY160LXTQ0, RY160LXTB0
(White) (Black)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
Illus. Part
No. No. DESCRIPTION
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
4392899 Biscuit
511873 White Porcelain
(2 Oz.)
Illus. Part
No. No. DESCRIPTION
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
4392901 Biscuit
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
4392900 Biscuit(Uncut)
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3191048 Cleaner, Glass
WIRING HARNESS PARTS
74010890 Harness, Sensor
74010891 Coil, Harness (Rt)
74010893 Coil,Harness (Lt)
W10166773
74011206 Cable, Assy.(Flex)
74006811 Clip, Wire
7101P027−60
Harness, Main
Screw, Ground
W10168187
7
