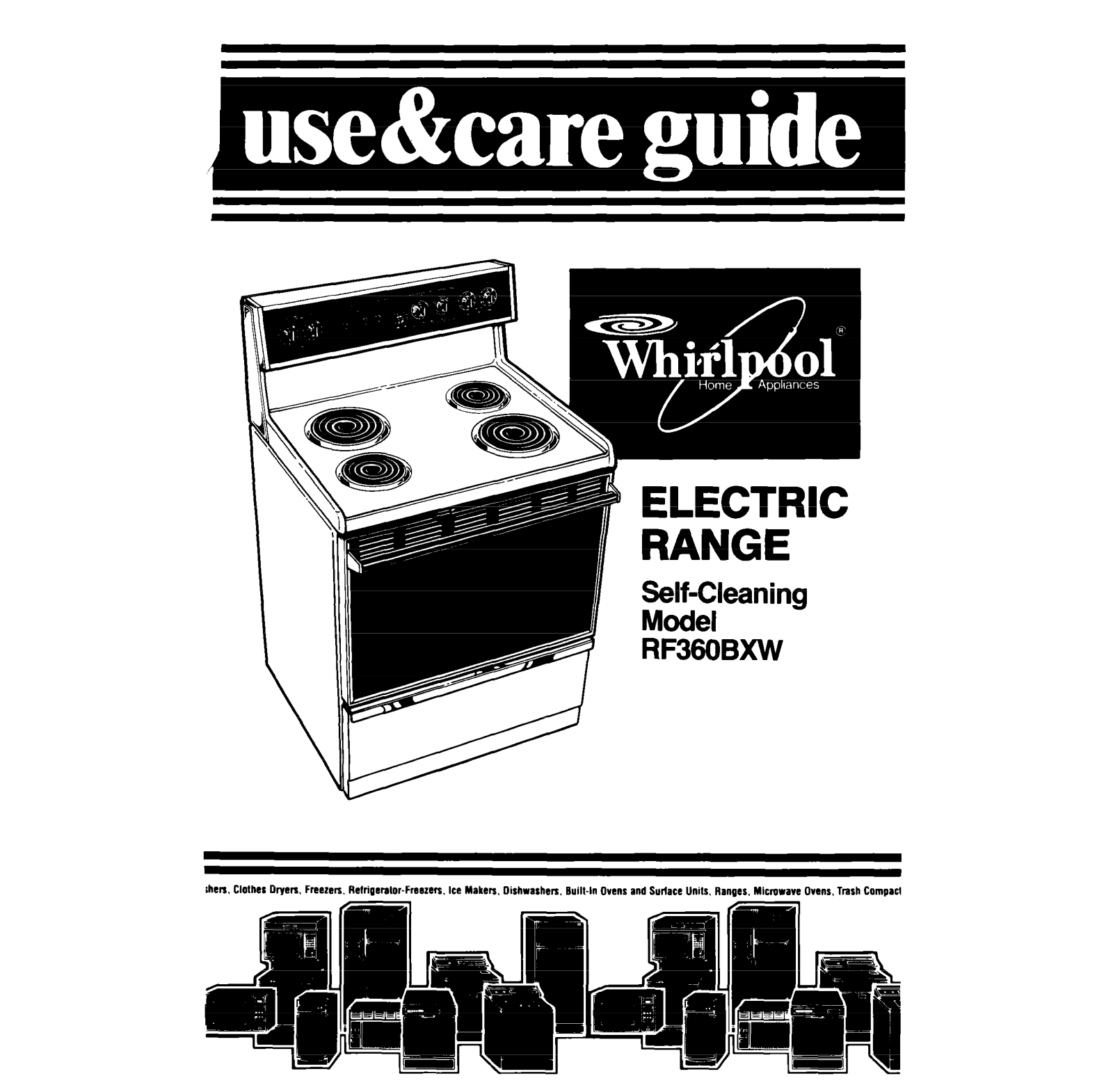

Whirlpool RF360BXW User Manual
ihen. Clalhec Dryers. Freezen. Relrigamlor-Frsszen. Ice
Makers.
Dirhwashem. Built-In Ovens and Sudace Units. Ranges. Micmwave Ovens. Trash Camuacl

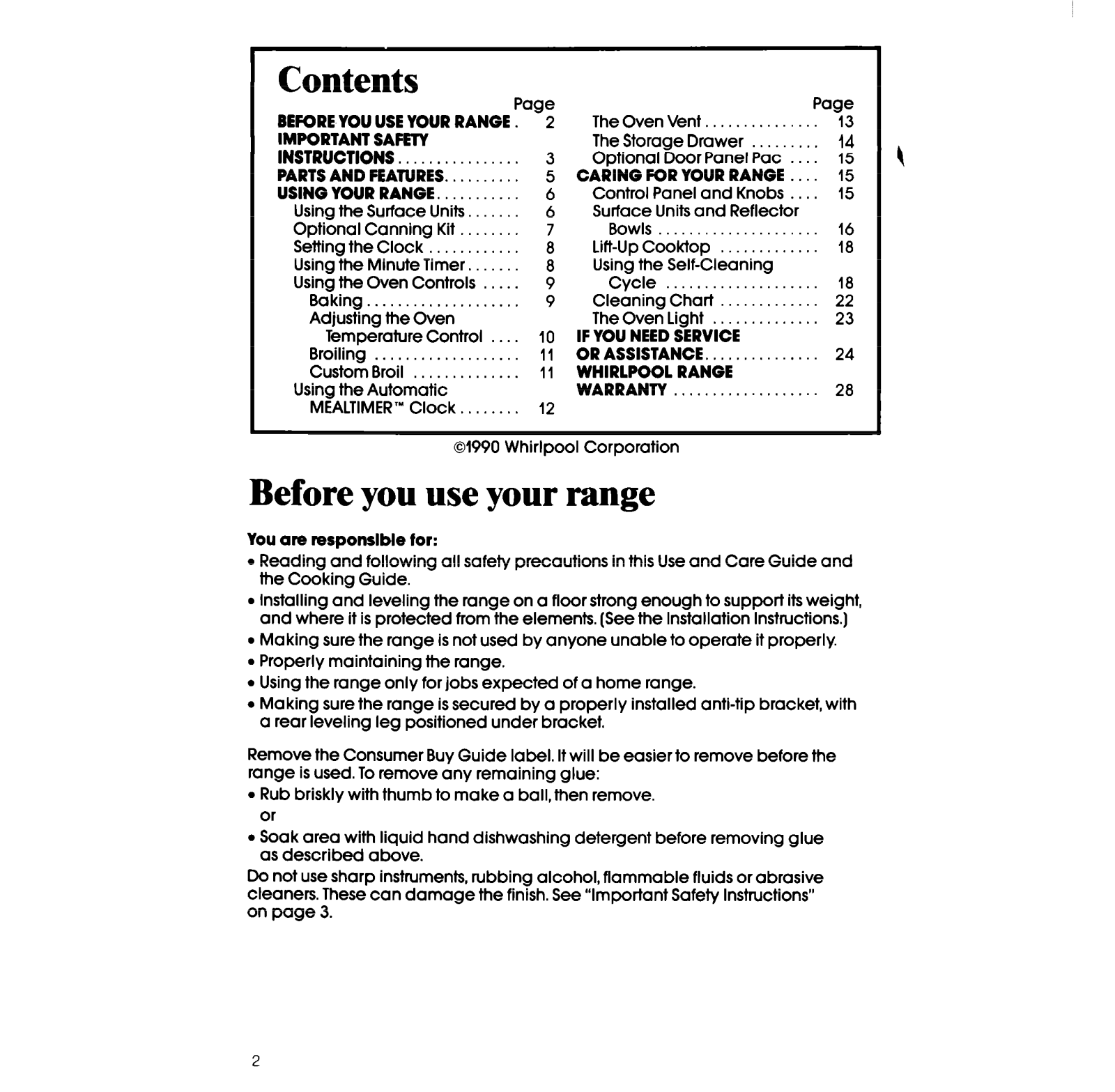

Contents
Page
BEFORE YOU USE YOUR RANGE. 2
IMPORTANT SAFETY
INSTRUCTIONS . . . . . . . .
PARTS AND FEATURES. . . .
USING YOUR RANGE. . .
Using the Surface Units.
Optional Canning Kit

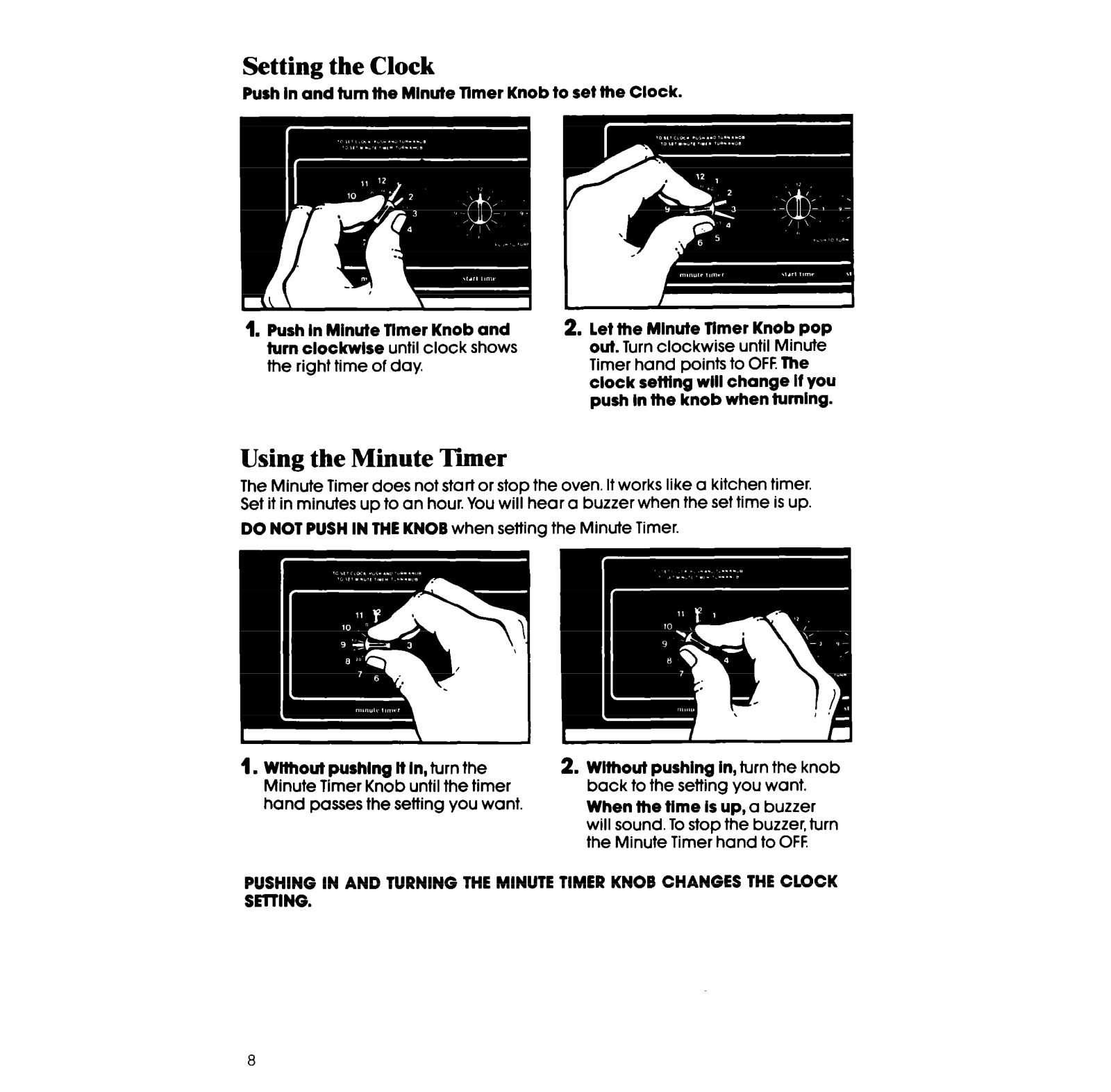

Setting the Clock . . . . . . . .
Using the Minute Timer.

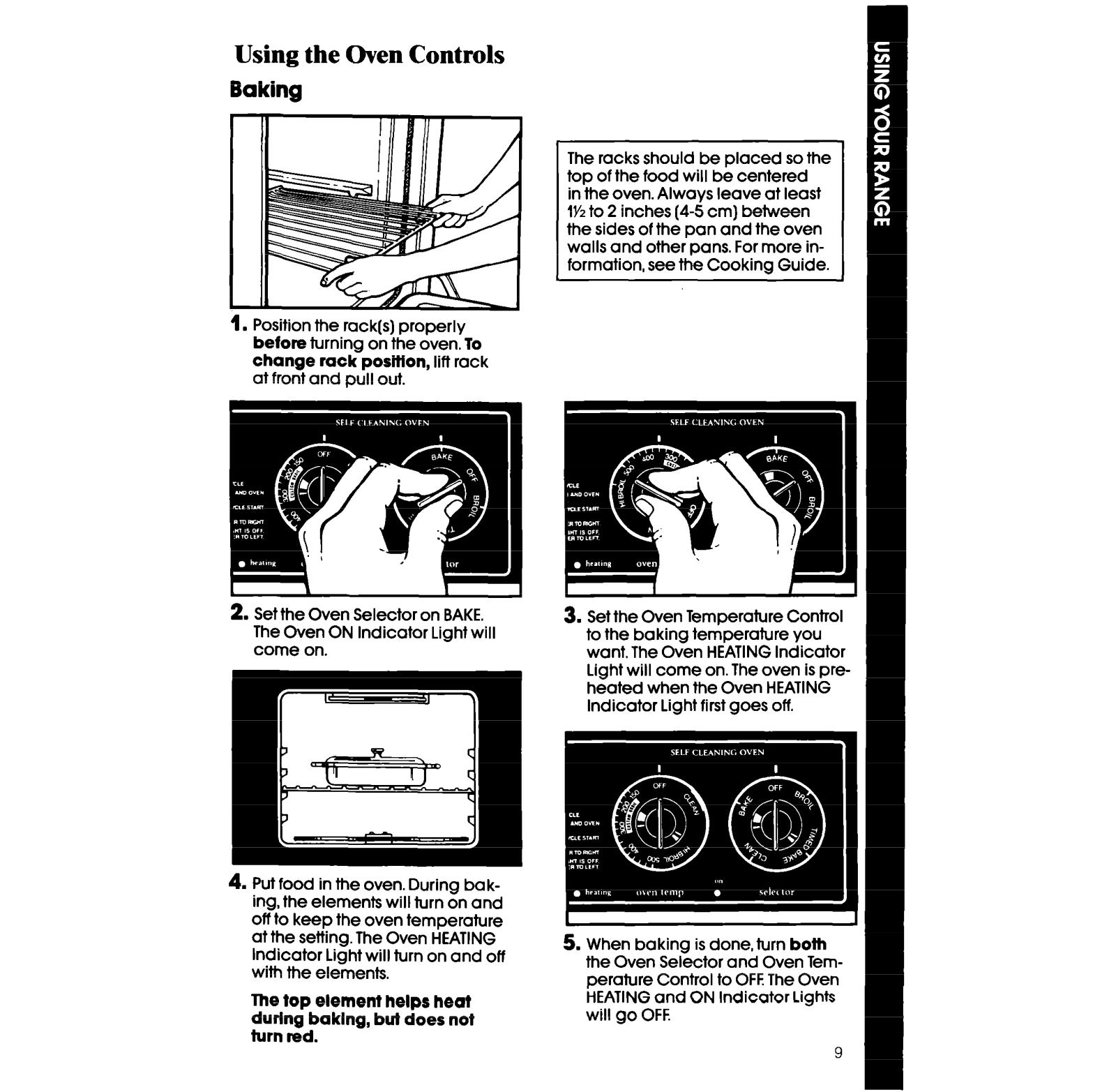

Using the Oven Controls .
Baking . . . . . . . , . . . . . .
. .
. .

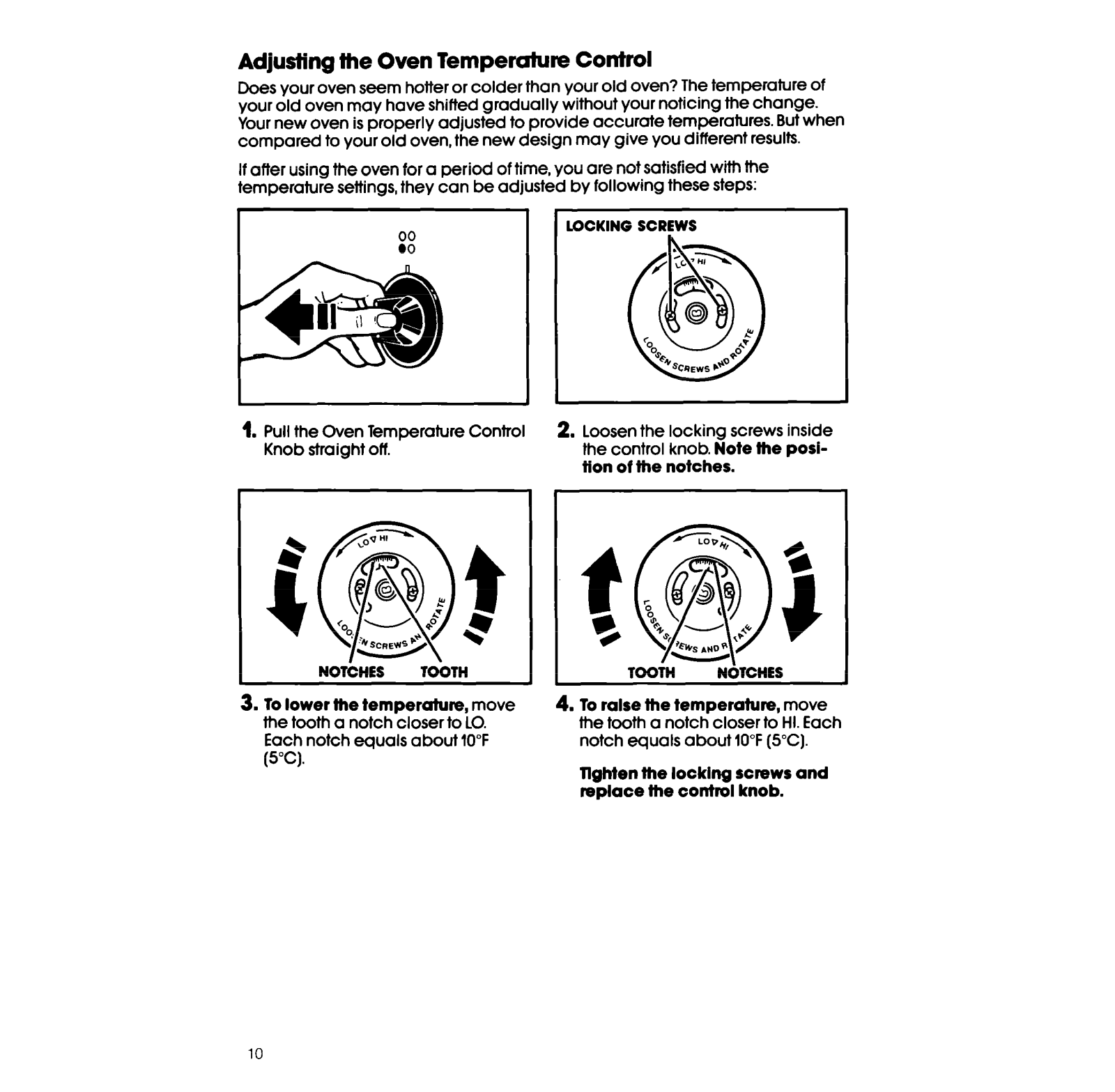

Adjusting the Oven
Temperature Control

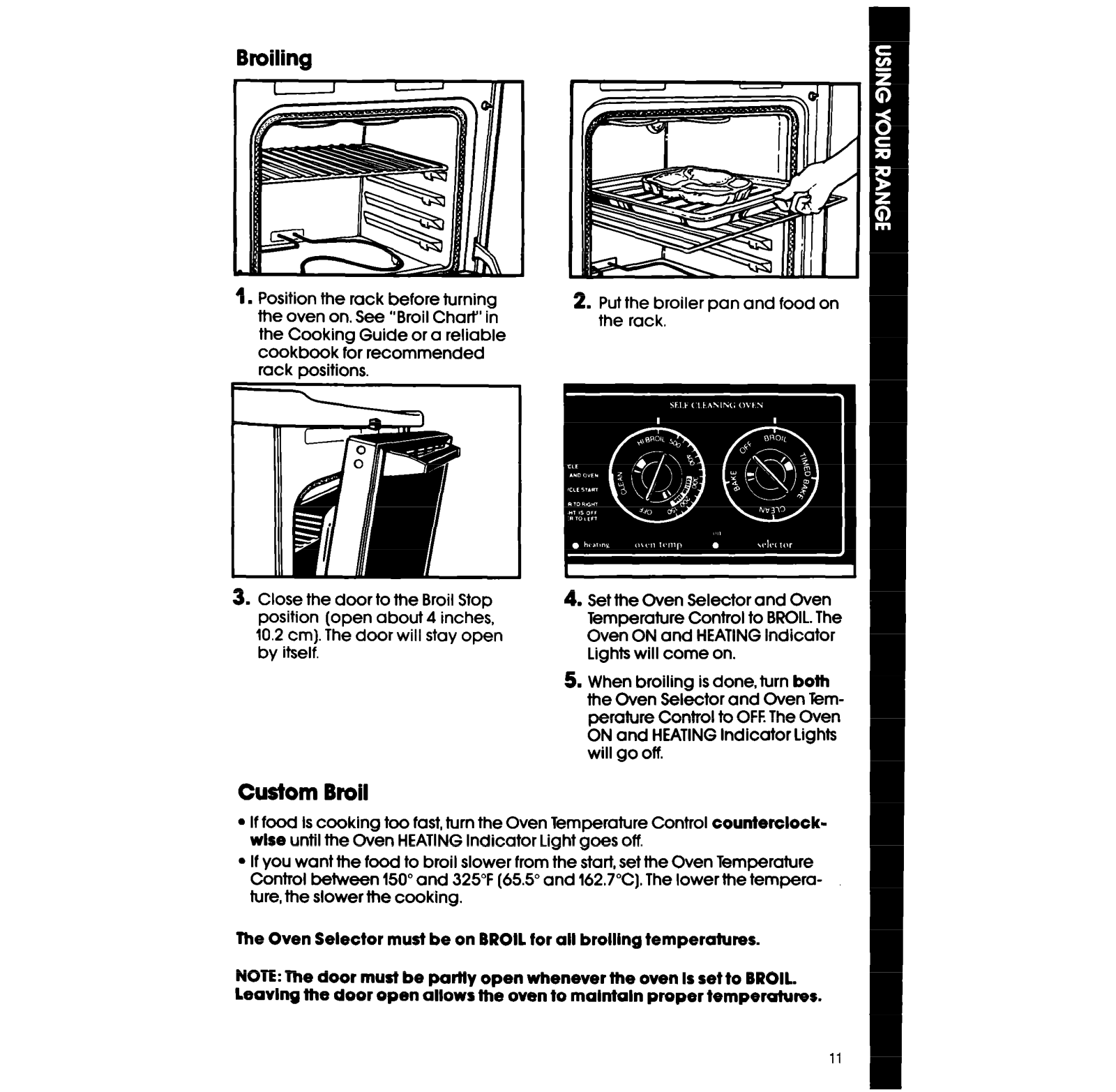

Broiling . . . . . . . . . .
Custom Broil . . . . . . . . . .
. .
10
11
11

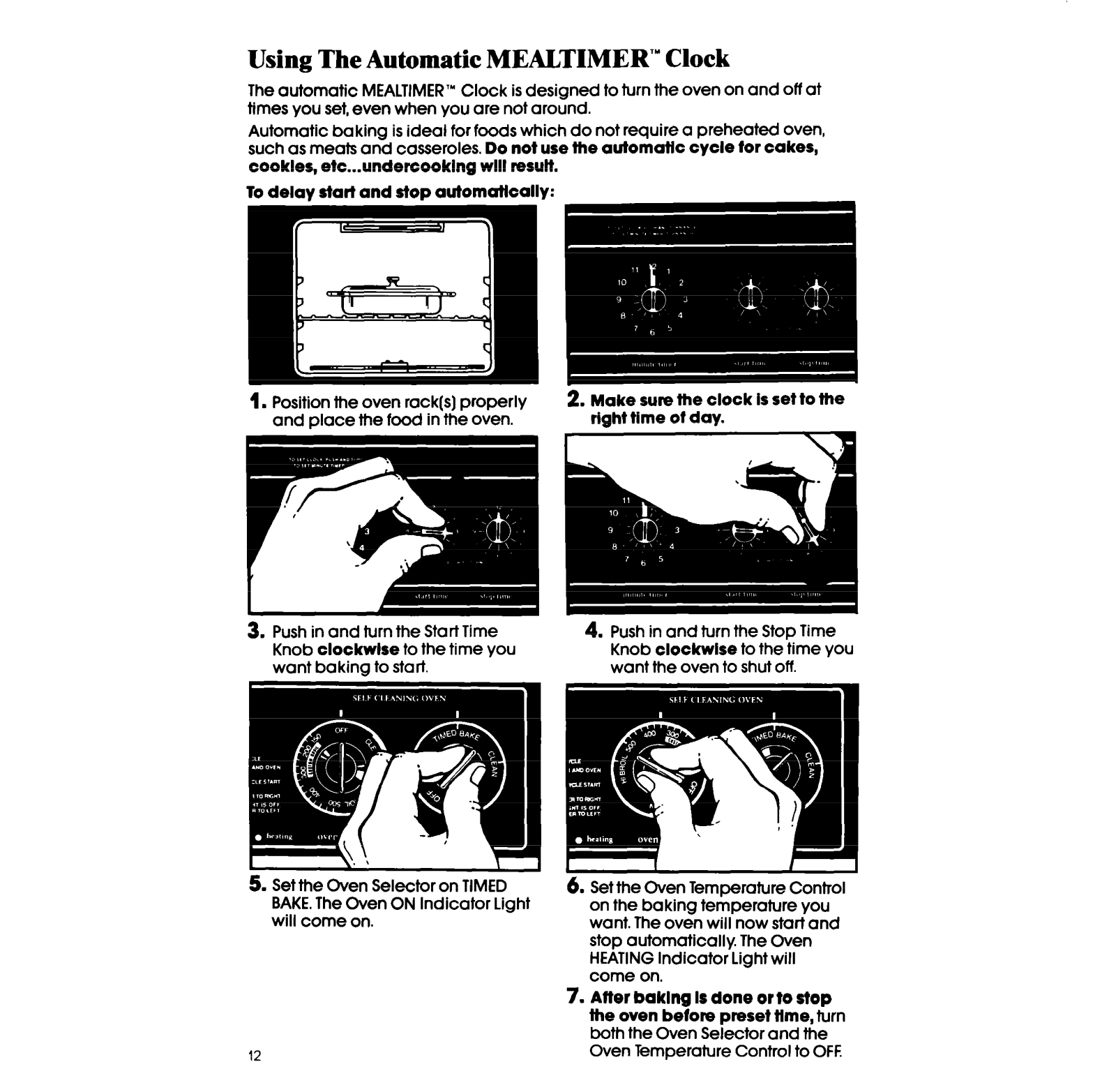

Using the Automatic
MEALTIMER’” Clock.. . .
. .
12
01990 Whirlpool Corporation

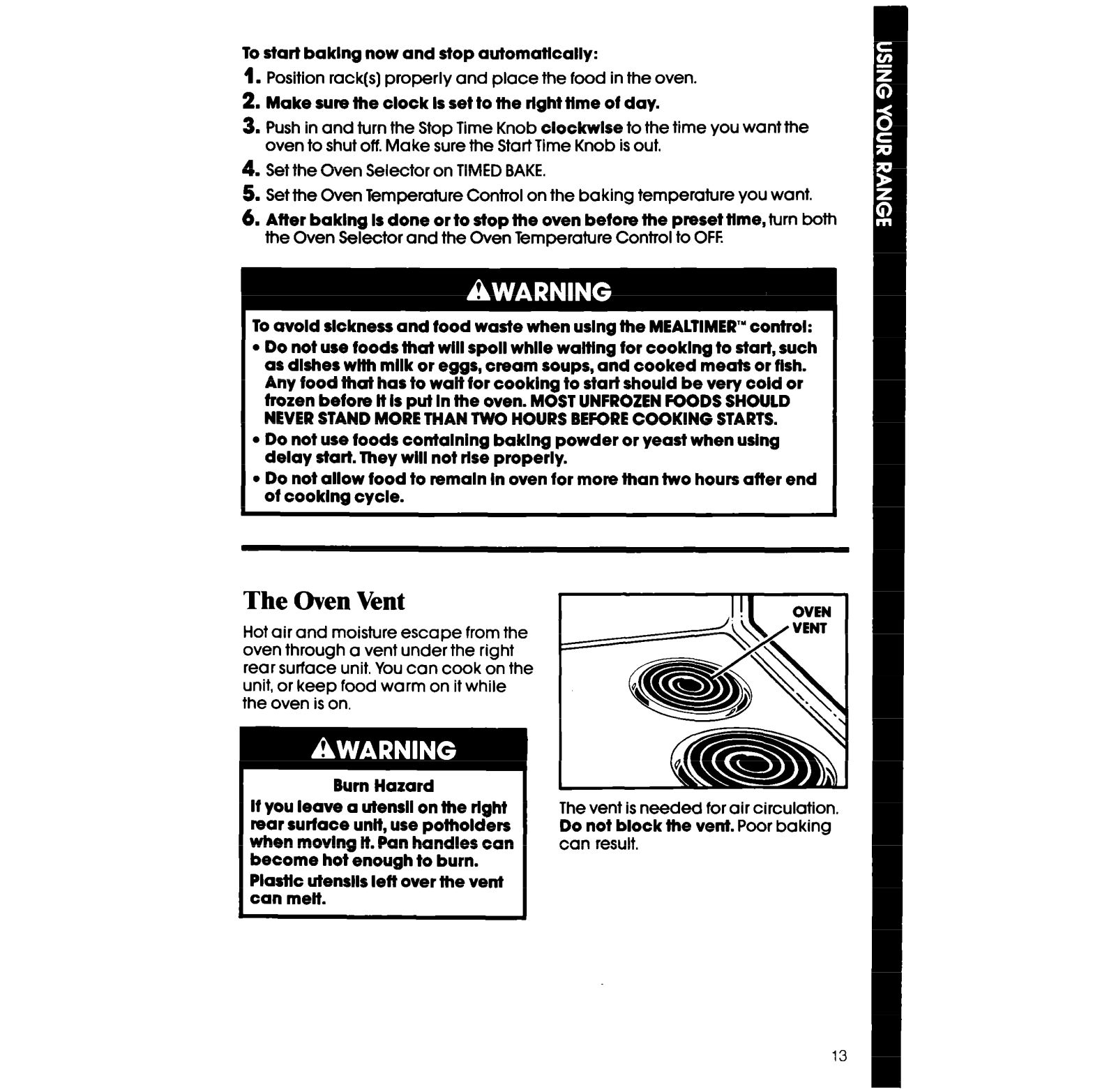

The Oven Vent. . . . . . . .

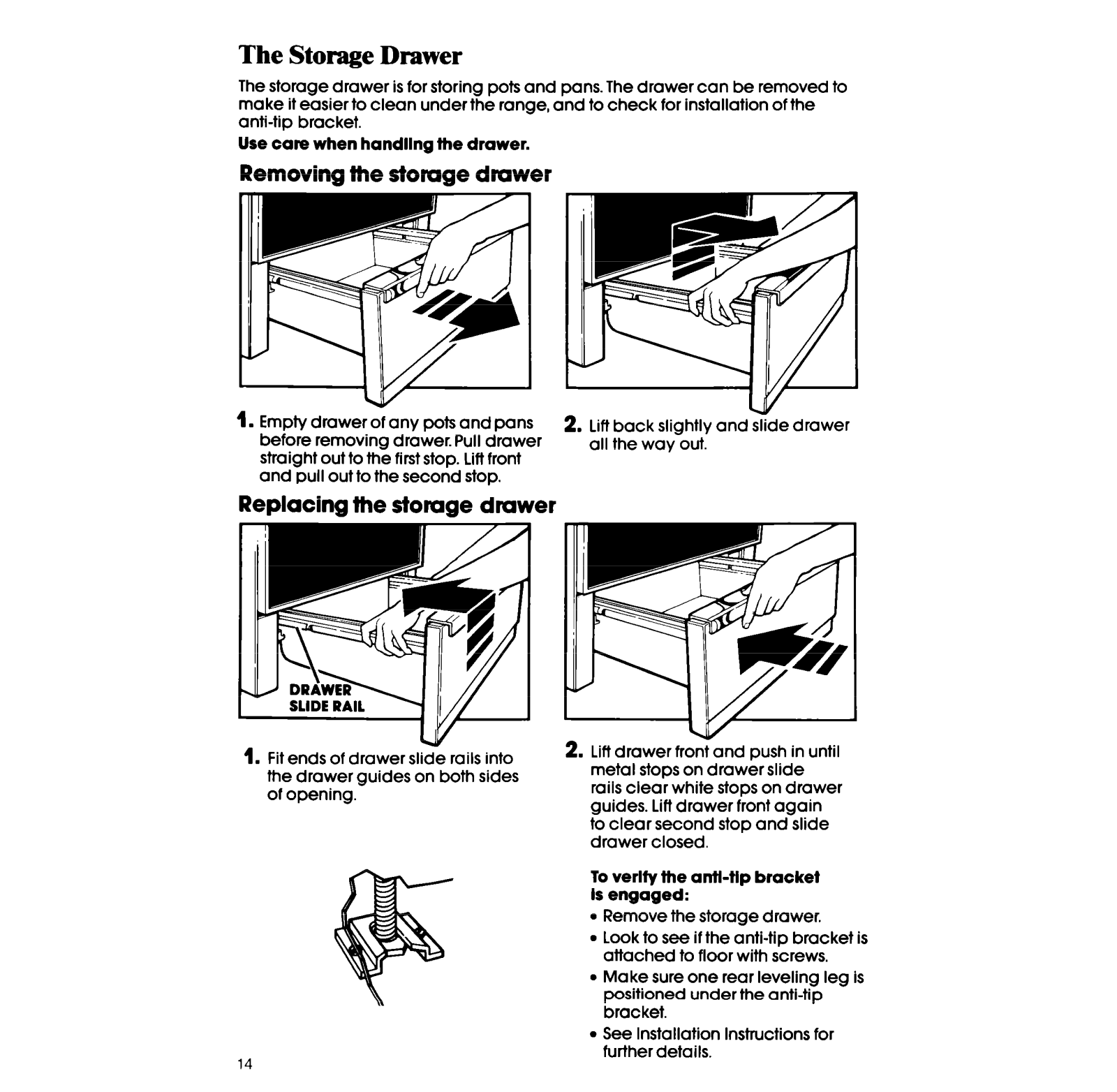

The Storage Drawer . . . . . .

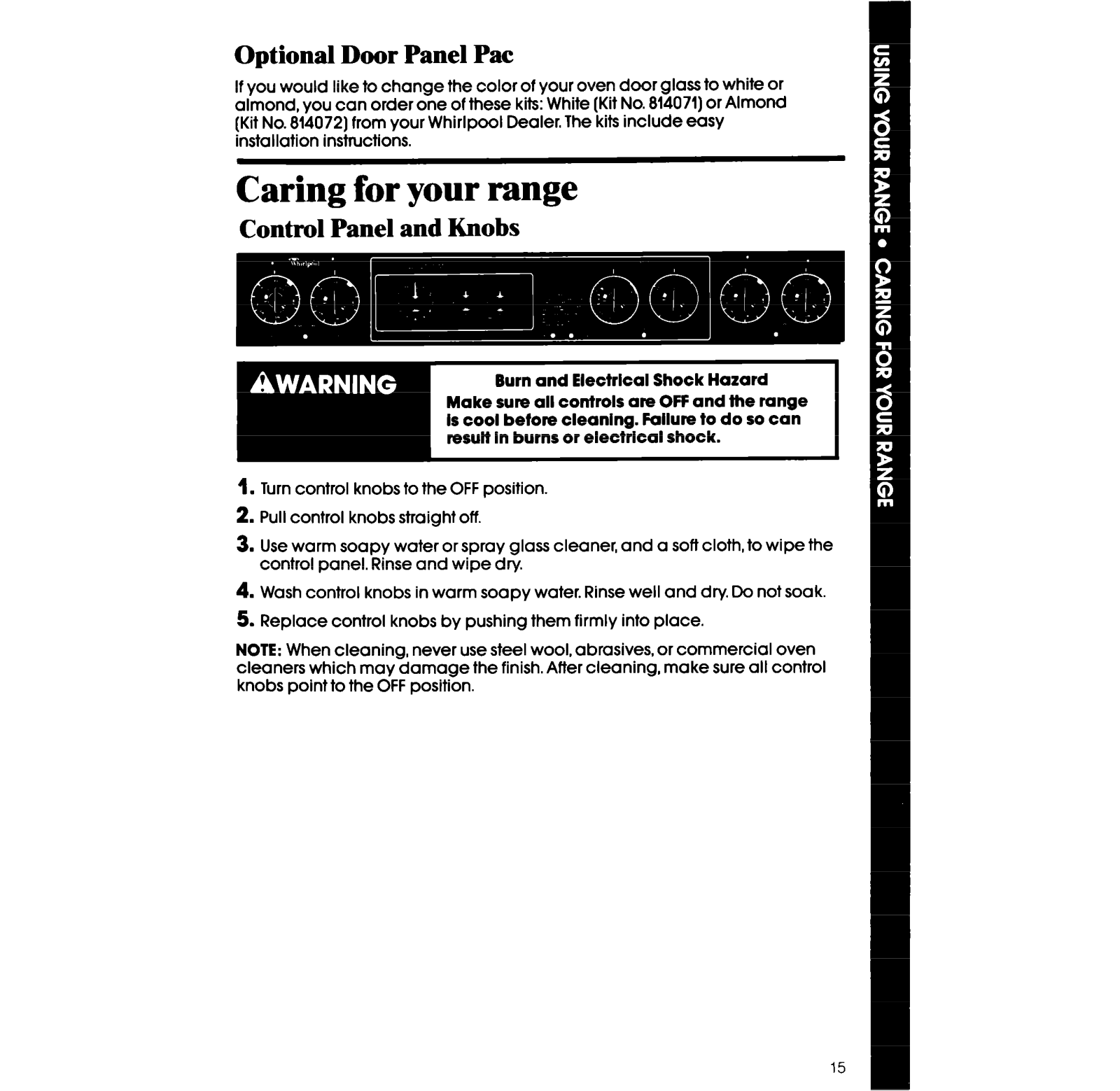

Optional Door Panel Pat . . . .
CARING FOR YOUR RANGE . .
Control Panel and Knobs . . . .

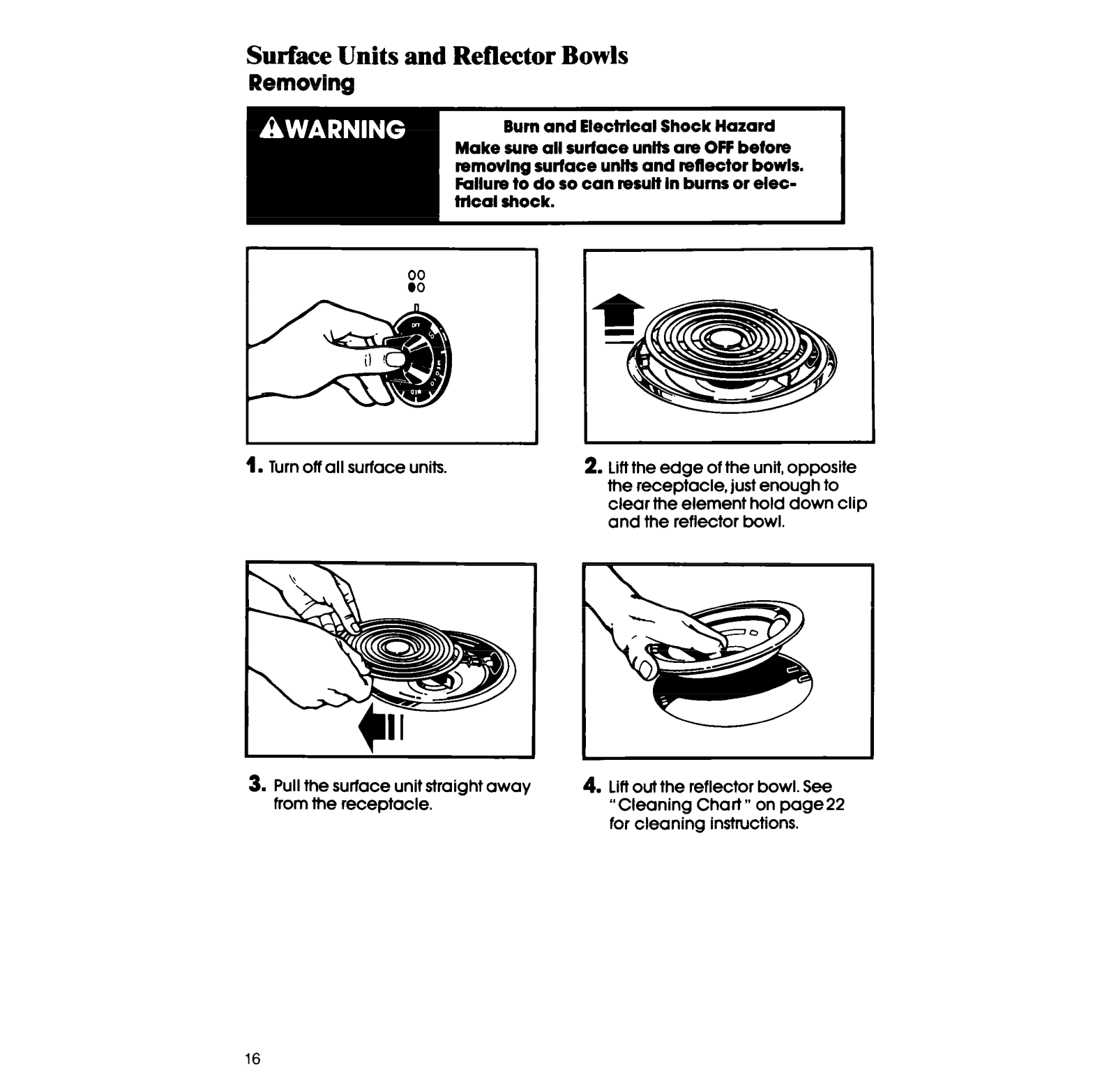

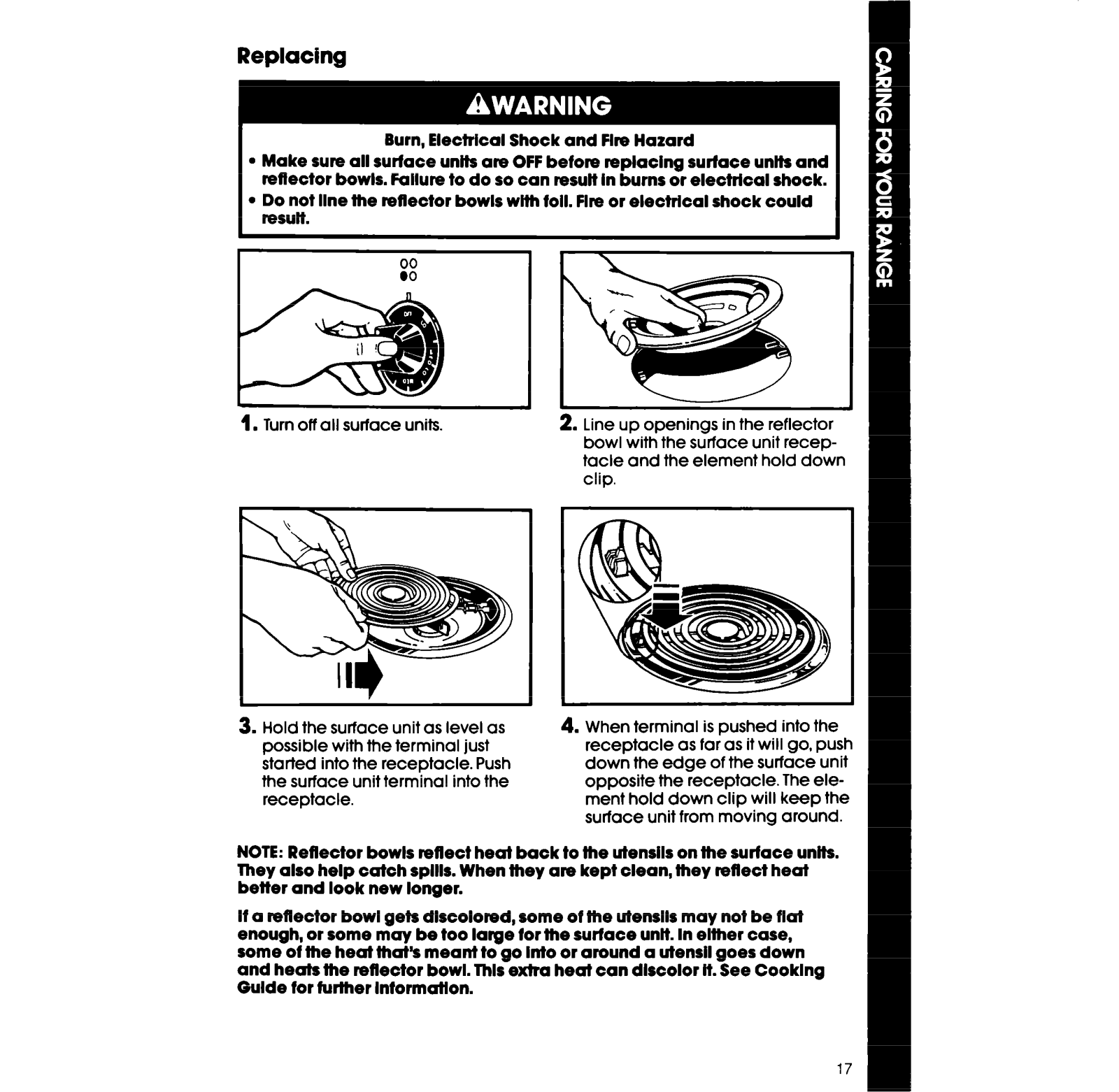

Surface Units and Reflector
Bowls

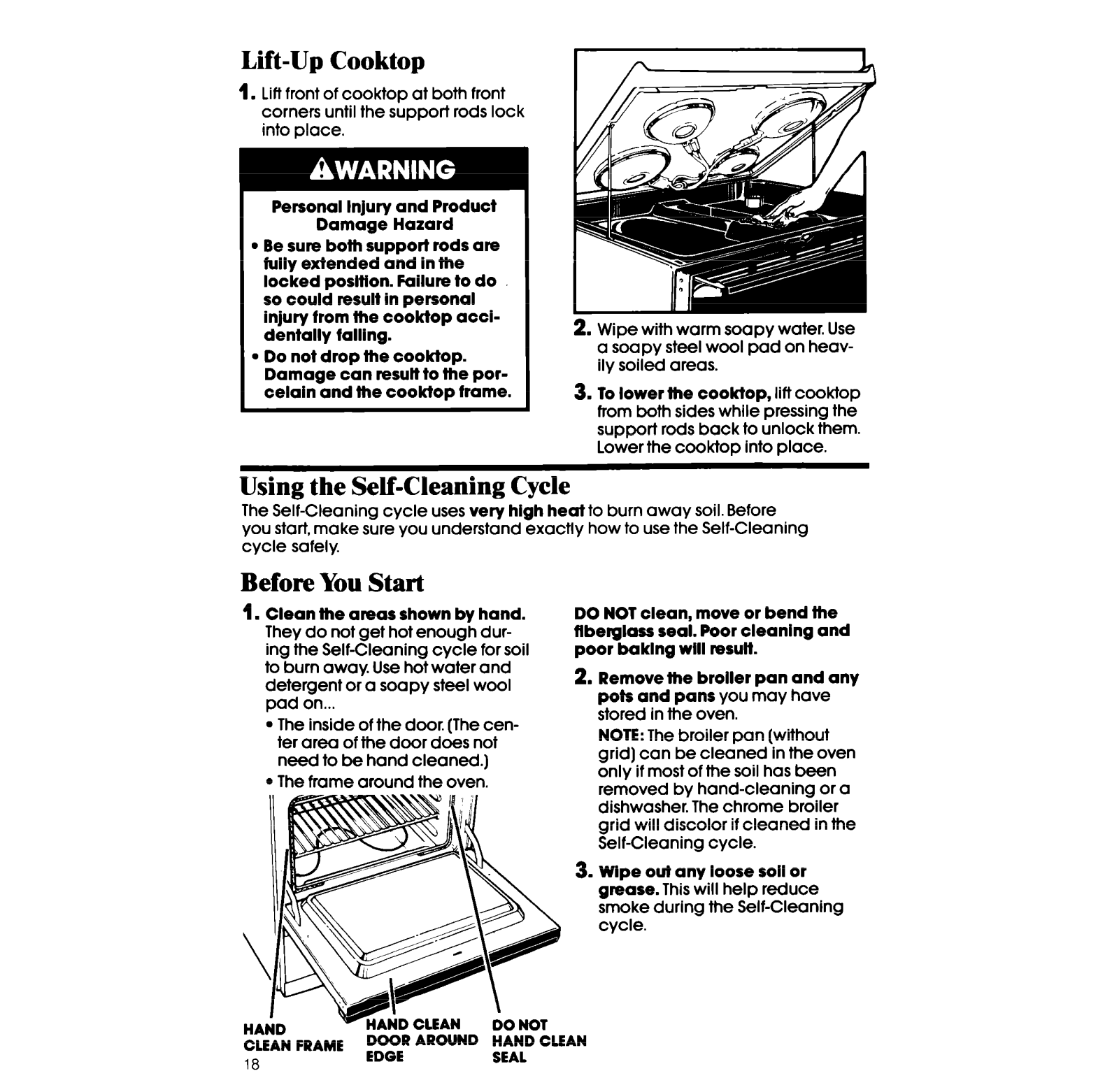

Lift-Up Cooktop . . . . . . . . . .

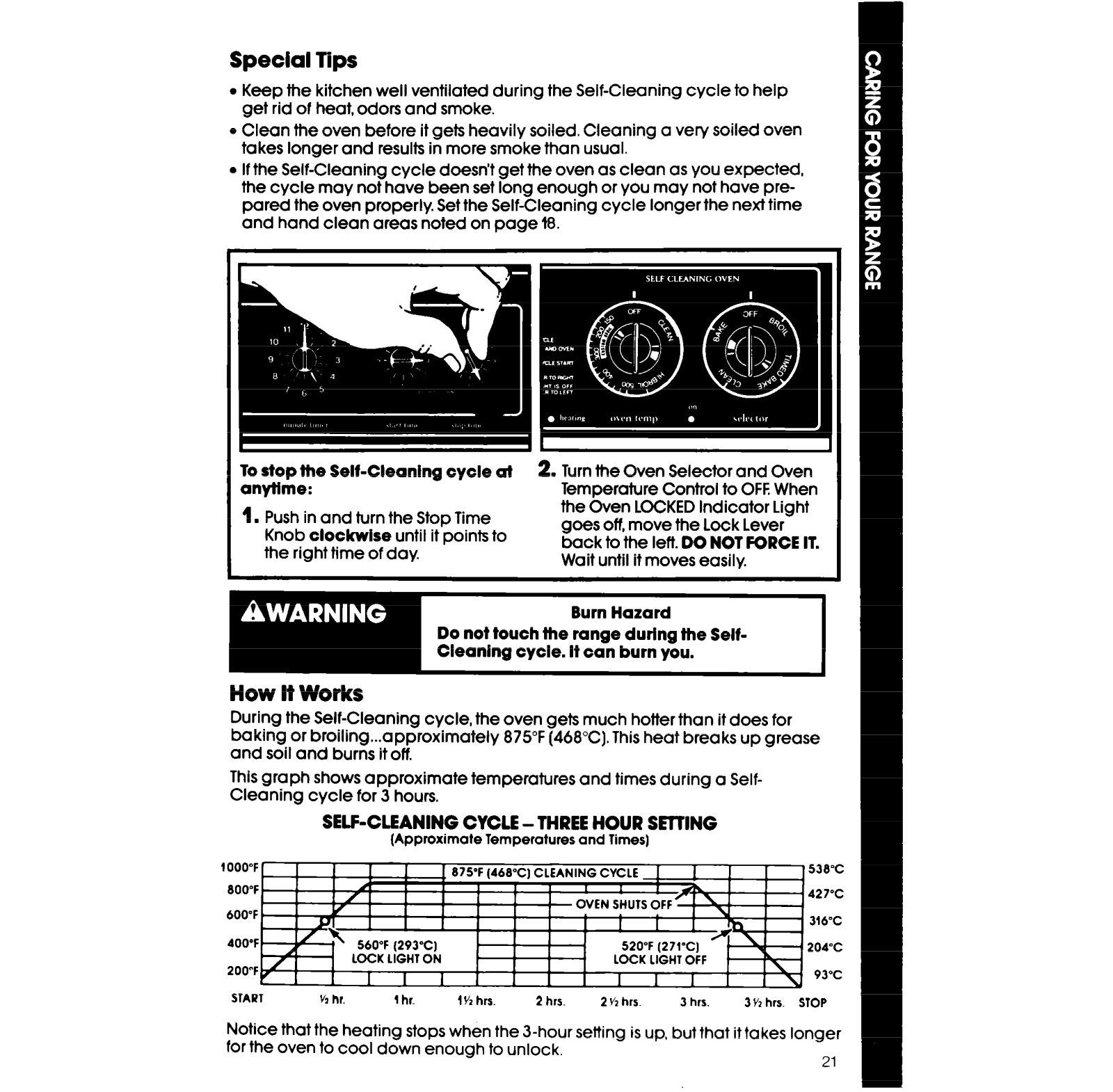

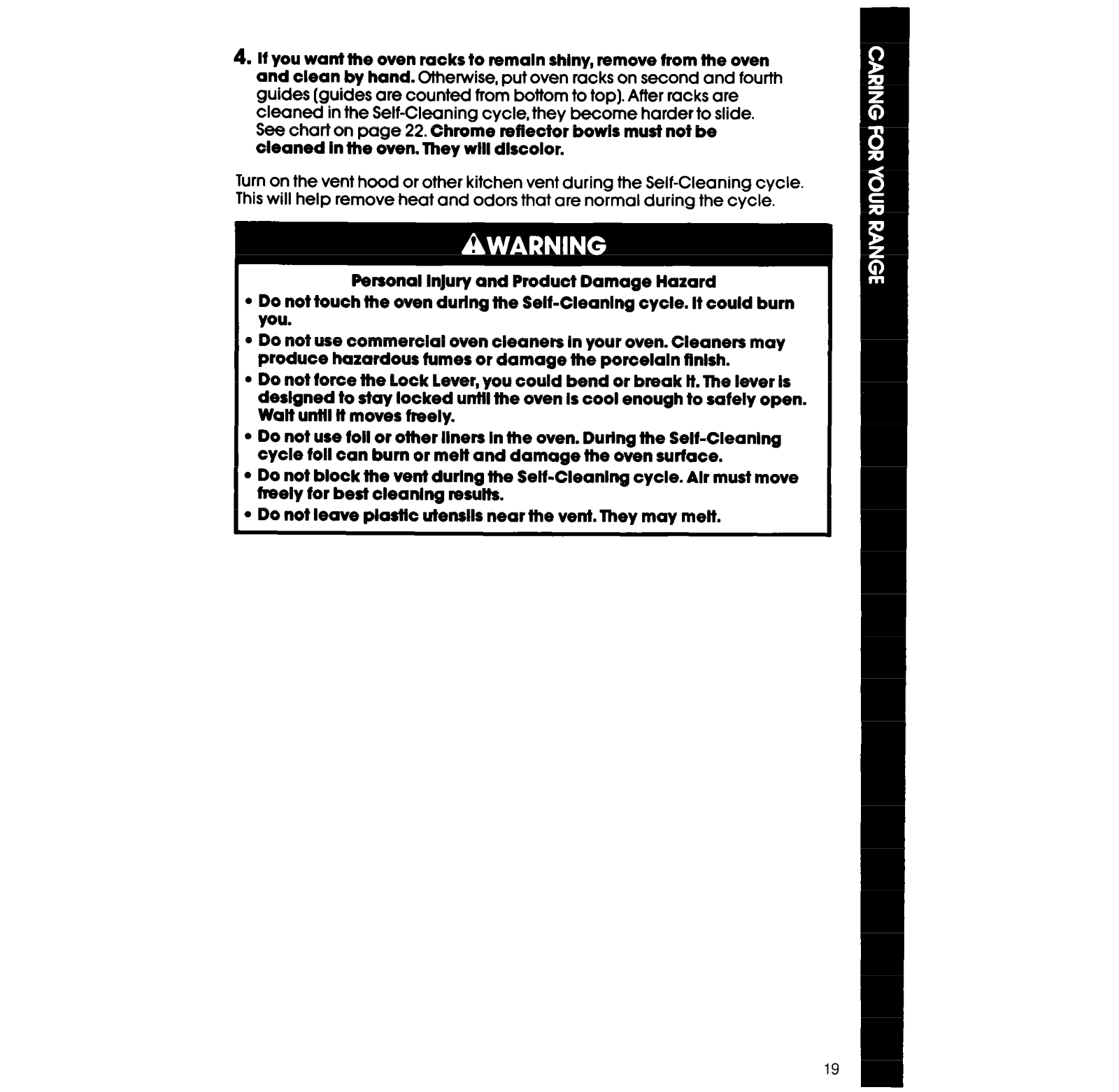

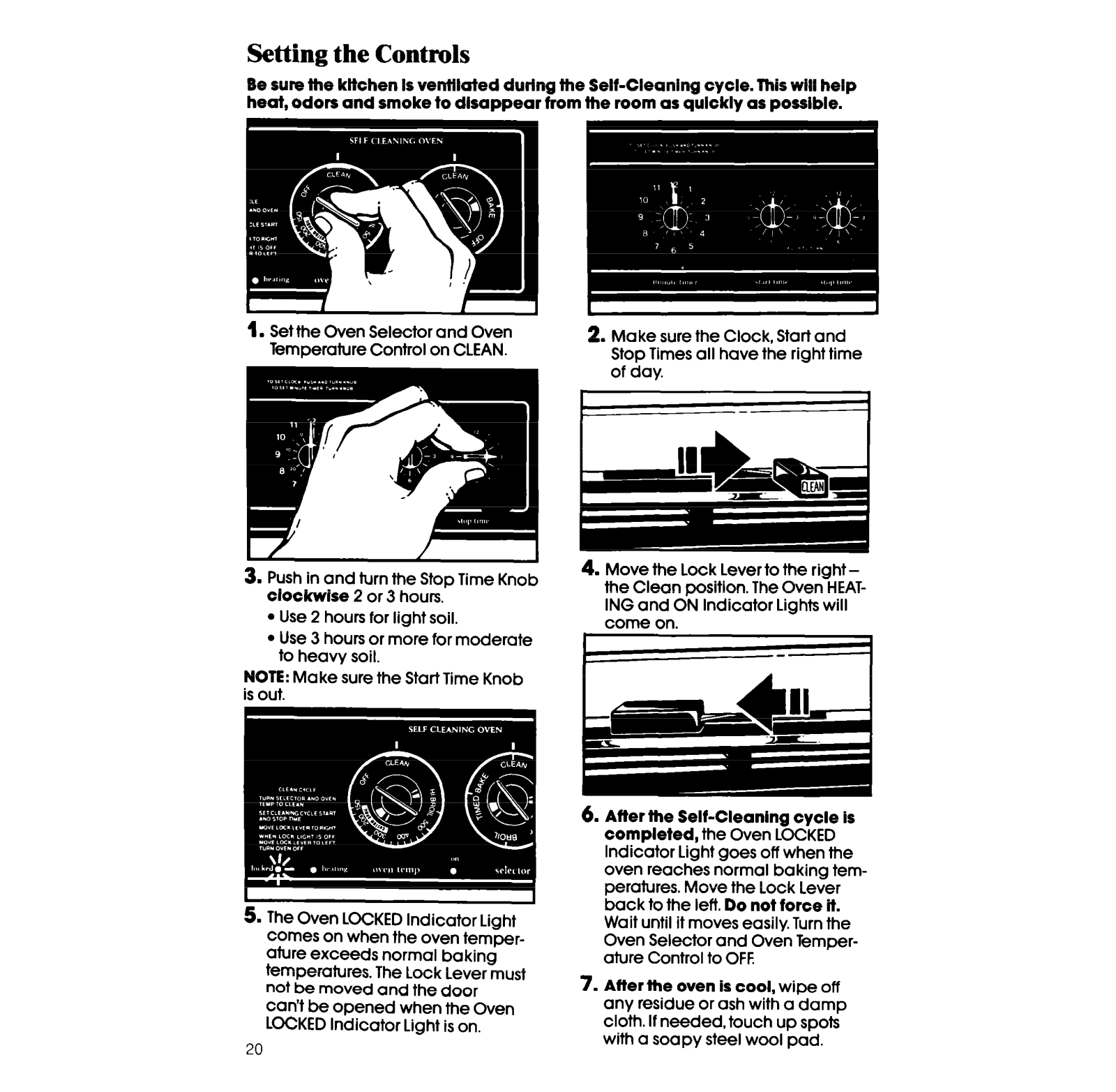

Using the Self-Cleaning
Cycle . .

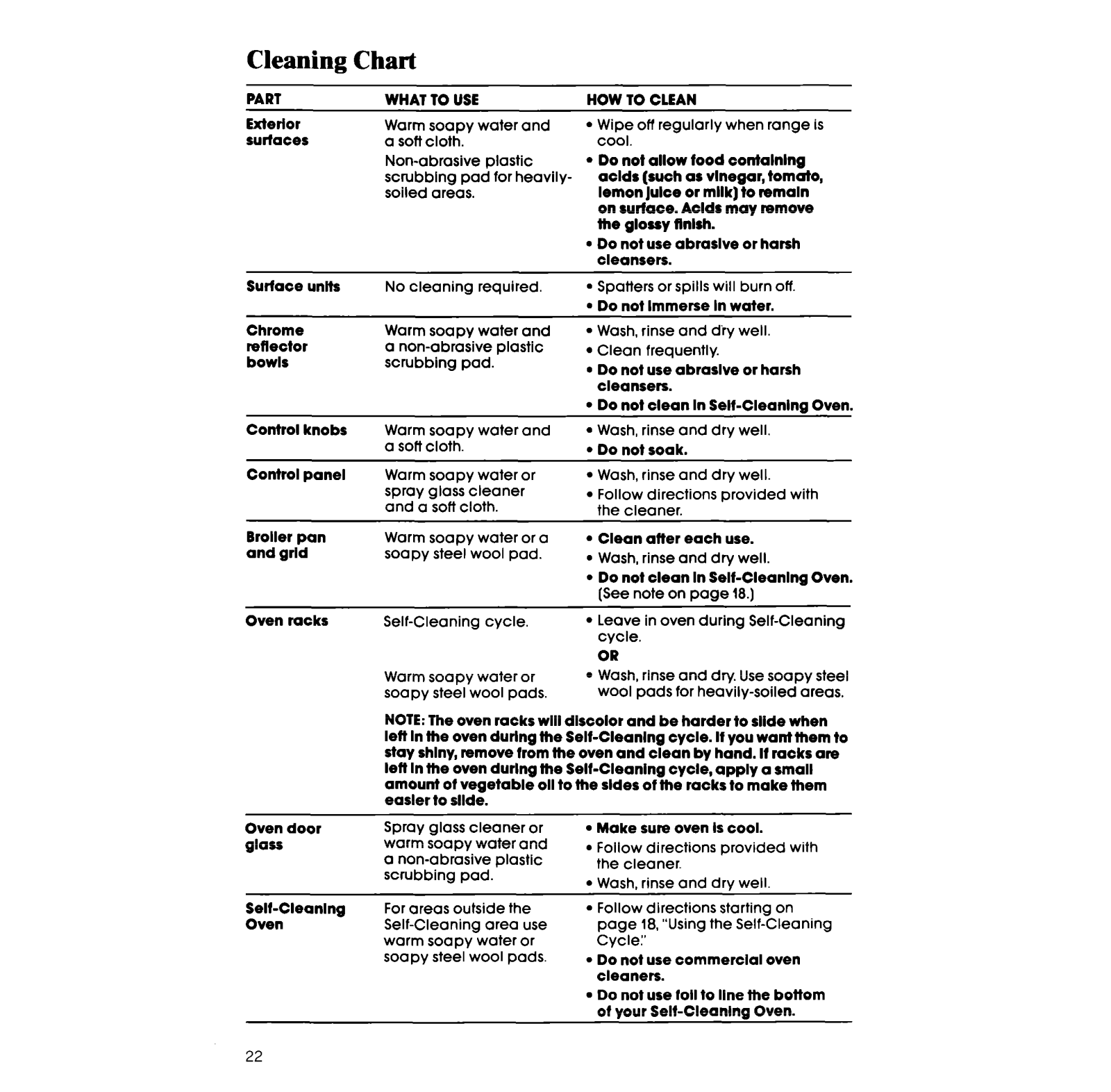

Cleaning Chart . .

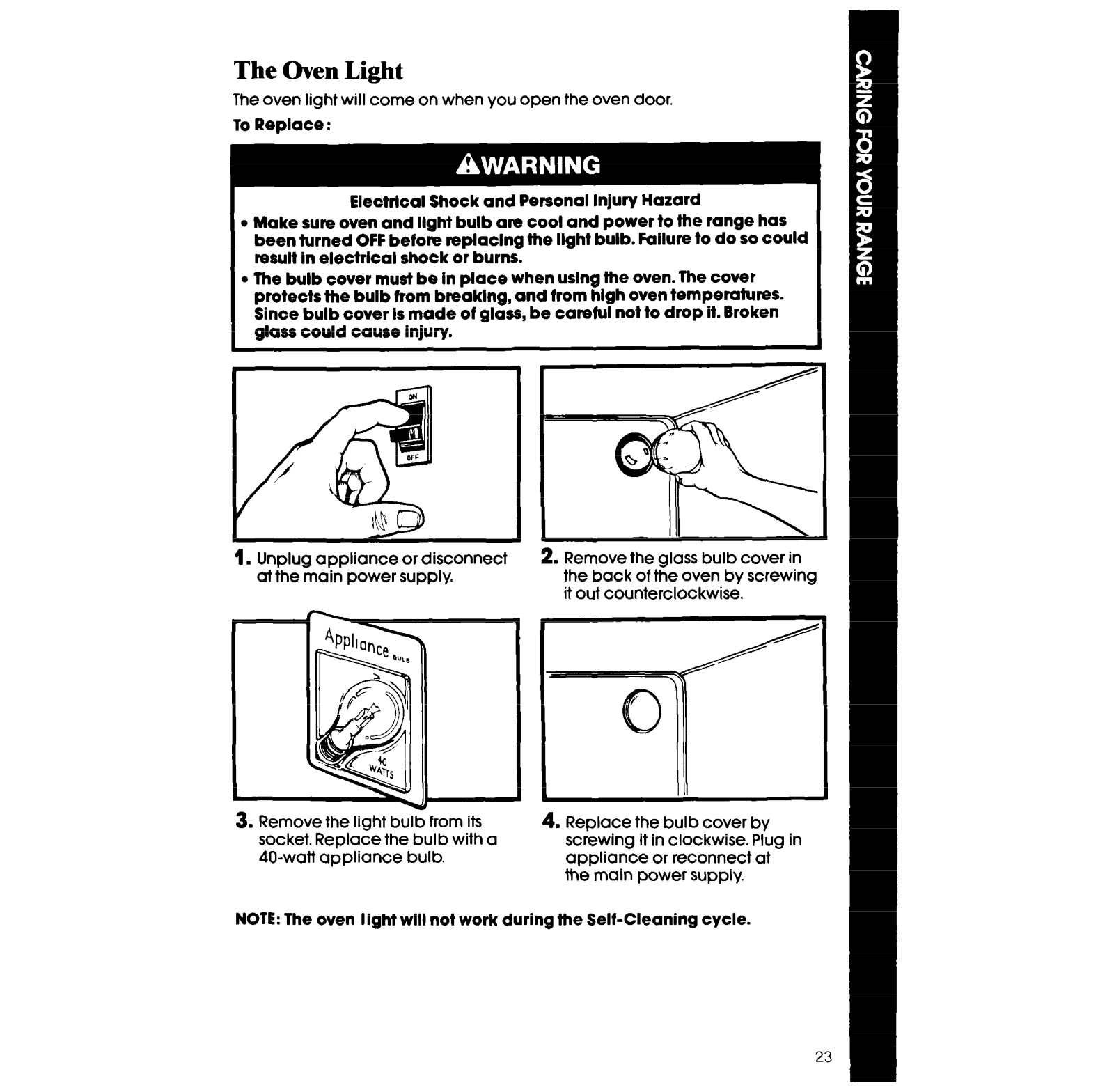

The Oven Light . . . . . . . . . . . . .

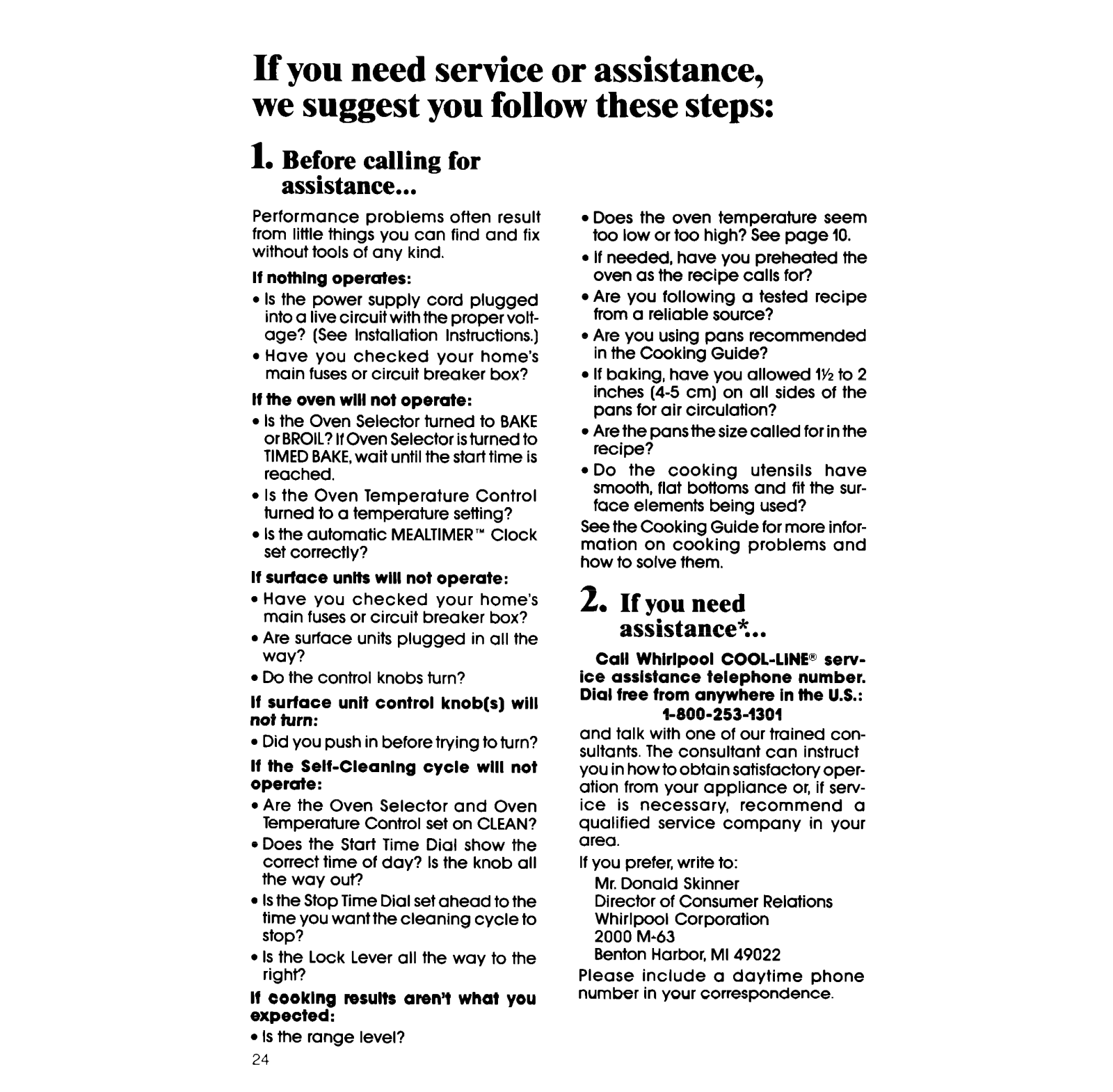

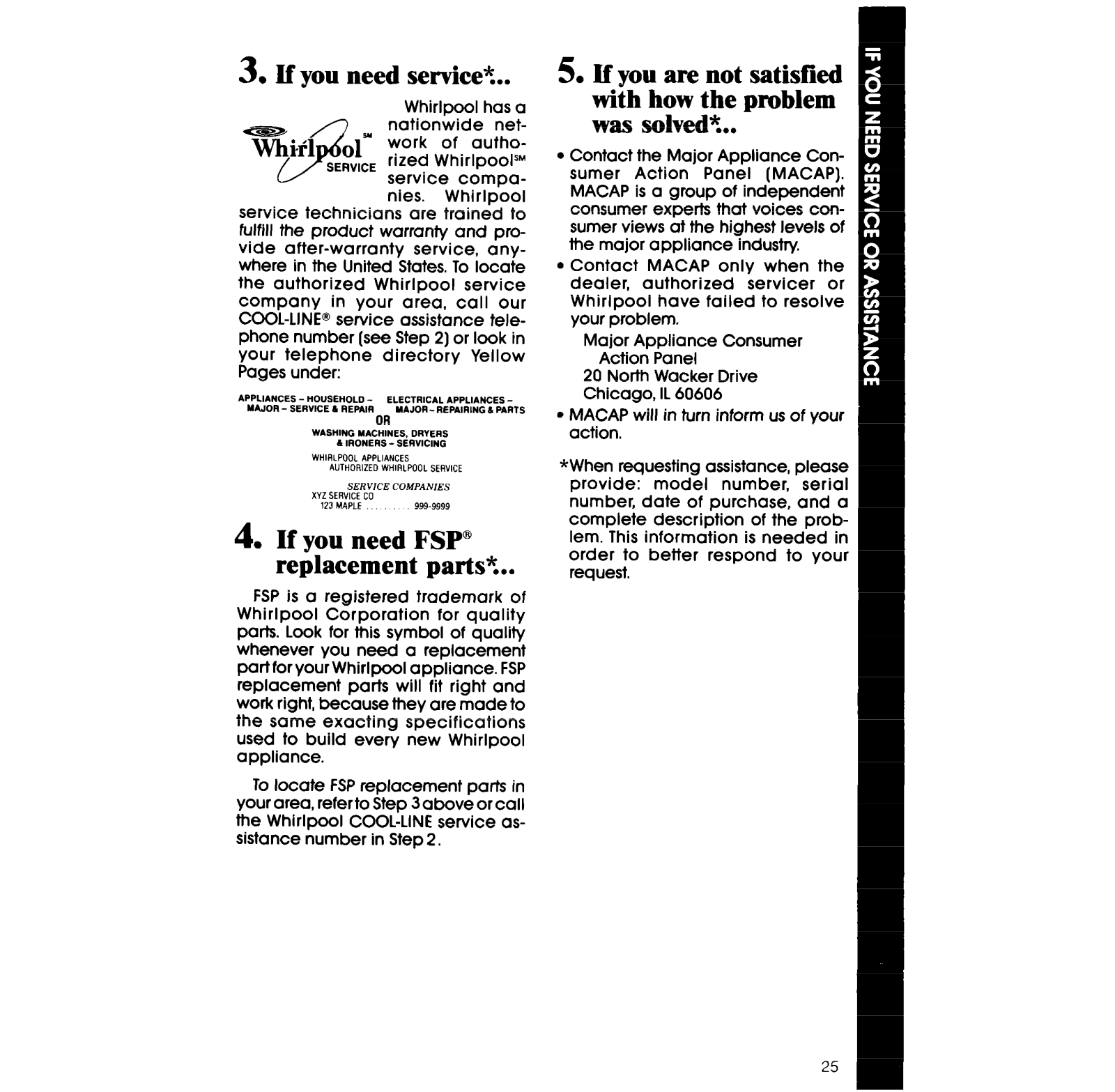

IF YOU NEED SERVICE
OR ASSISTANCE. . . . . . . . .

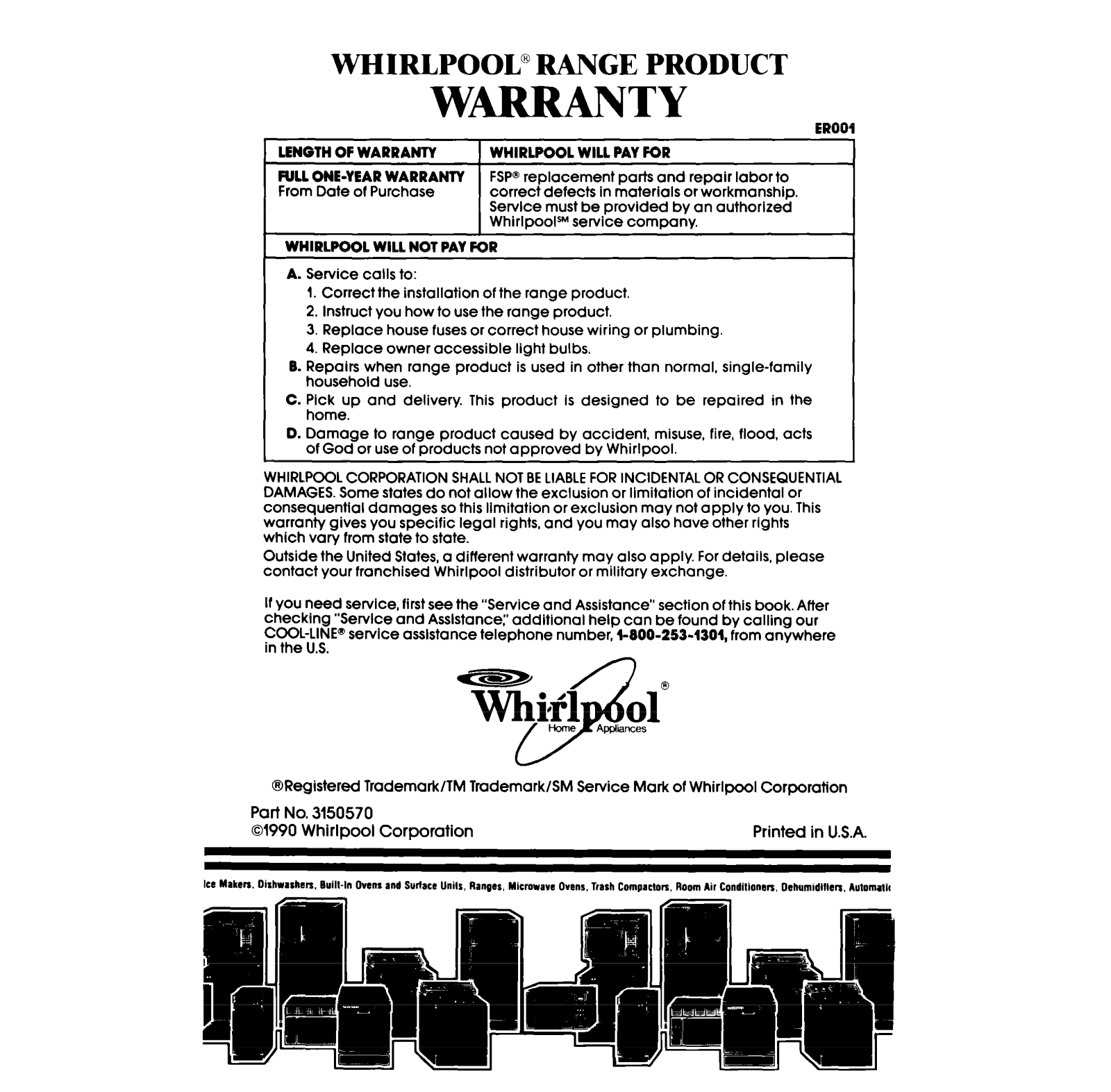

WHIRLPOOL RANGE
WARRANTY
. . . . . . . . . . . . . . . .
Page
13
14
15
15
15
16
18
18
22
23
24
28
Before you use your range
You are responsible for:
l Reading and following all safety precautions in this Use and Care Guide and
the Cooking Guide.
l Installing and leveling the range on a floor strong enough to support its weight,
and where it is protected from the elements. (See the Installation Instructions.)
l Making sure the range is not used by anyone unable to operate it properly.
0 Properly maintaining the range.
l Using the range only for jobs expected of a home range.
l Making sure the range is secured by a properly installed anti-tip bracket, with
a rear leveling leg positioned under bracket.
Remove the Consumer Buy Guide label. It will be easier to remove before the
range is used. To remove any remaining glue:
l Rub briskly with thumb to make a balLthen remove.
or
l Soak area with liquid hand dishwashing detergent before removing glue
as described above.
Do not use sharp instruments, rubbing alcohol, flammable fluids or abrasive
cleaners. These can damage the finish. See “Important Safety Instructions”
on page 3.
2

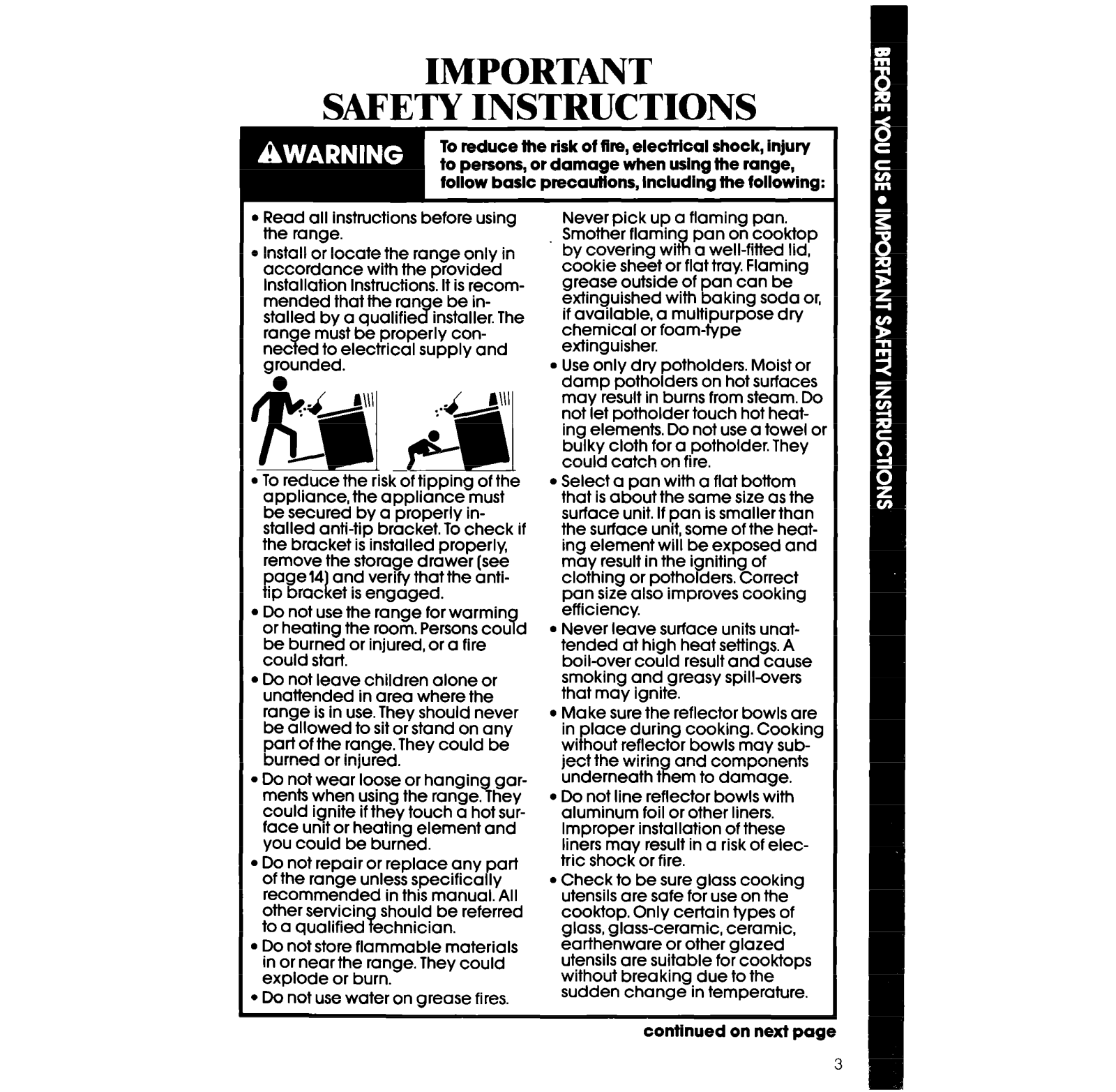

IMPORTANT
SAFETY INSTRUCTIONS
To reduce fhe risk of ffre, electrical shock, injury
to persons, or damage when uslng the range,
follow basic precaulfons, Including the following:
l Read all instructions before using
the range.
l Install or locate the range only in
accordance with the provided
Installation Instructions. It is recommended that the ran
stalled by a qualifie 3
l To reduce the risk of tipping of the
e be ininstaller. The
appliance, the appliance must
be secured by a properly installed anti-tip bracket. To check if
the bracket is installed properly,
remove the storage drawer (see
page14
tip brat
l Do not use the range for warmin
or heating the room. Persons cou
and verify that the anti-
I
et is engaged.
9
be burned or injured, or a fire
could start.
l Do not leave children alone or
unattended in area where the
range is in use. They should never
be allowed to sit or stand on any
part of the range. They could be
burned or injured.
l Do not wear loose or hangin
ments when using the range.
B
gar-
hey
could ignite if they touch a hot surface unit or heating element and
you could be burned.
l Do not repair or replace any part
of the range unless specifically
recommended in this manual. All
other servicin 9 should be referred
to a qualified echnician.
l Do not store flammable materials
in or near the range. They could
explode or burn.
l Do not use water on grease fires.
Never pick up a flaming pan.
Smother flamin
by covering wrt a well-fitted lid,
pan on cooktop
.3,
cookie sheet or flat tray. Flaming
grease outside of pan can be
extinguished with baking soda or,
if available, a multipurpose dry
chemical or foam-type
extinguisher.
l Use only dry potholders. Moist or
damp potholders on hot surfaces
may result in burns from steam. Do
not let potholder touch hot heating elements. Do not use a towel or
bulky cloth for a potholder. They
could catch on fire.
l Select a pan with a flat bottom
that is about the same size as the
surface unit. If pan is smaller than
the surface unit, some of the heating element will be exposed and
may result in the i
clothing or potho ders. Correct
niting of
B
pan size also improves cooking
efficiency
d
l Never leave surface units unat-
tended at high heat settings. A
boil-over could result and cause
smoking and greasy spillovers
that may ignite.
l Make sure the reflector bowls are
in place during cooking. Cooking
without reflector bowls may subject the wirin f and components
underneath t em to damage.
l Do not line reflector bowls with
aluminum foil or other liners.
Improper installation of these
liners may result in a risk of electric shock or fire.
l Check to be sure glass cooking
utensils are safe for use on the
cooktop. Only certain types of
glass, glass-ceramic, ceramic,
earthenware or other glazed
utensils are suitable for cooktops
without breaking due to the
sudden change in temperature.
continued on next page
3

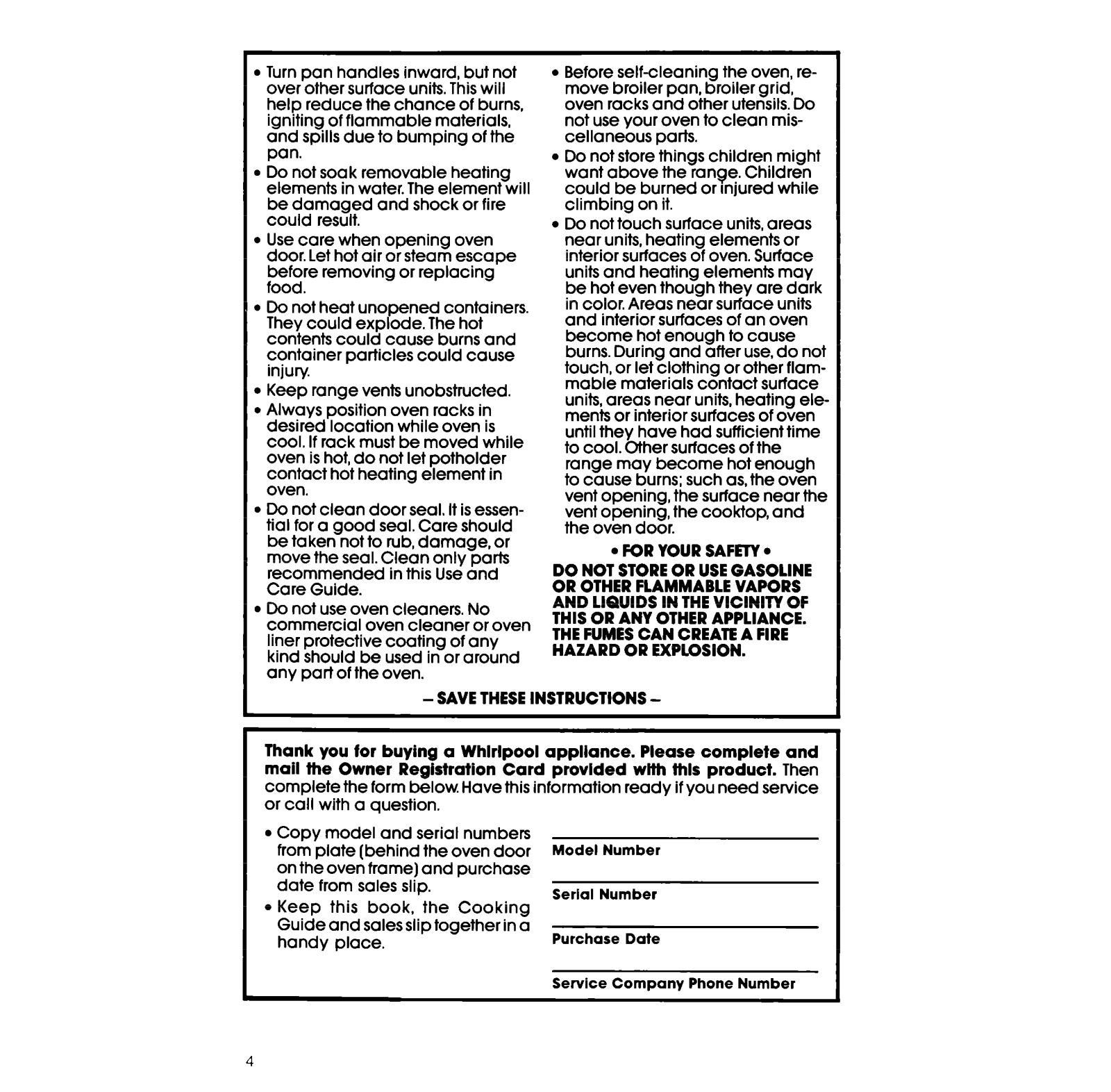

) Turn pan handles inward, but not
over other surface units. This will
help reduce the chance of burns,
igniting of flammable materials,
and spills due to bumping of the
pan.
) Do not soak removable heating
elements in water. The element will
be damaged and shock or fire
could result.
) Use care when opening oven
door. Let hot air or steam escape
before removing or replacing
food.
B Do not heat unopened containers.
They could explode. The hot
contents could cause burns and
container particles could cause
injury
B Keep range vents unobstructed.
b Always position oven racks in
desired location while oven is
cool. If rack must be moved while
oven is hot, do not let potholder
contact hot heating element in
oven.
n Do not clean door seal. It is essen-
tial for a good seal. Care should
be taken not to rub, damage, or
move the seal. Clean only parts
recommended in this Use and
Care Guide.
B Do not use oven cleaners. No
commercial oven cleaner or oven
liner protective coating of any
kind should be used in or around
any part of the oven.
- SAVE THESE INSTRUCTIONS -
l Before self-cleaning the oven, re-
move broiler pan, broiler grid,
oven racks and other utensils. Do
not use your oven to clean miscellaneous parts.
l Do not store things children might
want above the range. Children
could be burned or Injured while
climbing on it.
l Do not touch surface units, areas
near units, heating elements or
interior surfaces of oven. Surface
units and heating elements may
be hot even though they are dark
in color. Areas near surface units
and interior surfaces of an oven
become hot enough to cause
burns. During and after use, do not
touch, or let clothing or other flammable materials contact surface
units, areas near units, heating elements or interior surfaces of oven
until they have had sufficient time
to cool. Other surfaces of the
range may become hot enough
to cause burns; such as, the oven
vent opening, the surface near the
vent opening, the cooktop, and
the oven door.
l
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE
OR OTHER FLAMMABLE VAPORS
AND LIQUIDS IN THE VICINITY OF
THIS OR ANY OTHER APPLIANCE.
THE FUMES CAN CREATE A FIRE
HAZARD OR EXPLOSION.
l
Thank you for buying a Whlrlpool appliance. Please complete and
mall the Owner Registration Card provlded wtth thls product.
complete the form below. Have this information ready if you need service
or call with a question.
l Copy model and serial numbers
from plate (behind the oven door
Model Number
on the oven frame) and purchase
date from sales slip.
l Keep this book, the Cooking
Guide and sales slip together in a
handy place.
4
Serial Number
Purchase Date
Service Company Phone Number
Then

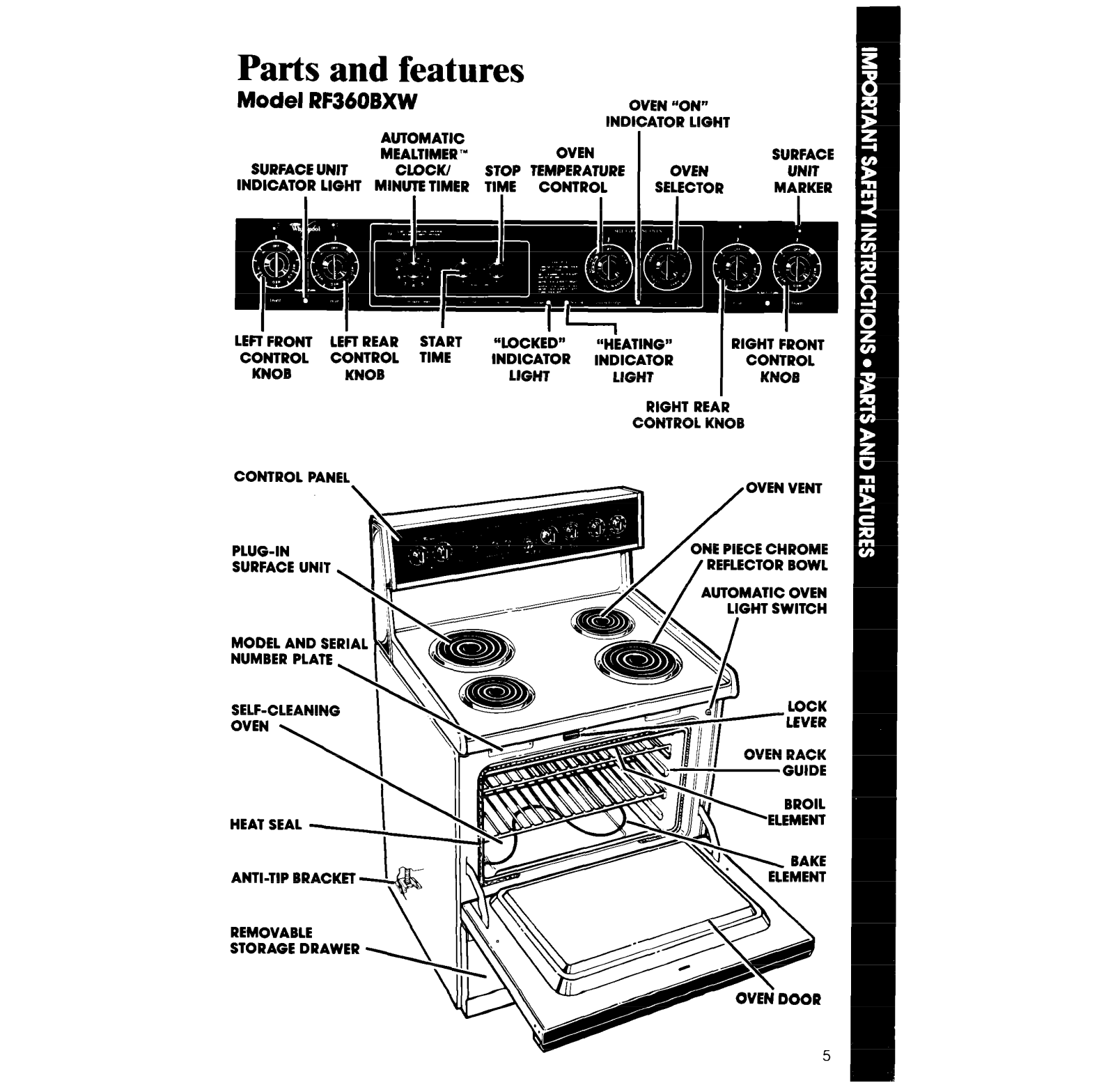

Parts and features
Model RF360BXw OVEN ‘ON”
AUTOMATIC
MEALTIMER’”
SURFACE UNIT
INDICATOR LIGHT MINUTE TIMER
CLOCK/
STOP TEMPERATURE
TIME CONTROL
INDICATOR LIGHT
OVEN SURFACE
OVEN
SELECTOR
UNIT
MARKER
LEFT- FRONT
CONTROL CONTROL TIME
KNOB KNOB
CONTROL PANEL
PLUG-IN
SURFACE UNIT _
SELF-CLEANING
HEAT SEAL
LEA REAR START
\
I \?A-
“LOCKED” RIGHT FRONT
INDICATOR
LIGHT
INDICATOR
LIGHT
RIGHT REAR
CONTROL KNOB
CONTROL
KNOB
OVEN VENT
/
OVEN RACK
GUIDE
ANTI-TIP BRACKET
REMOVABLE
STORAGE DRAWE
w-

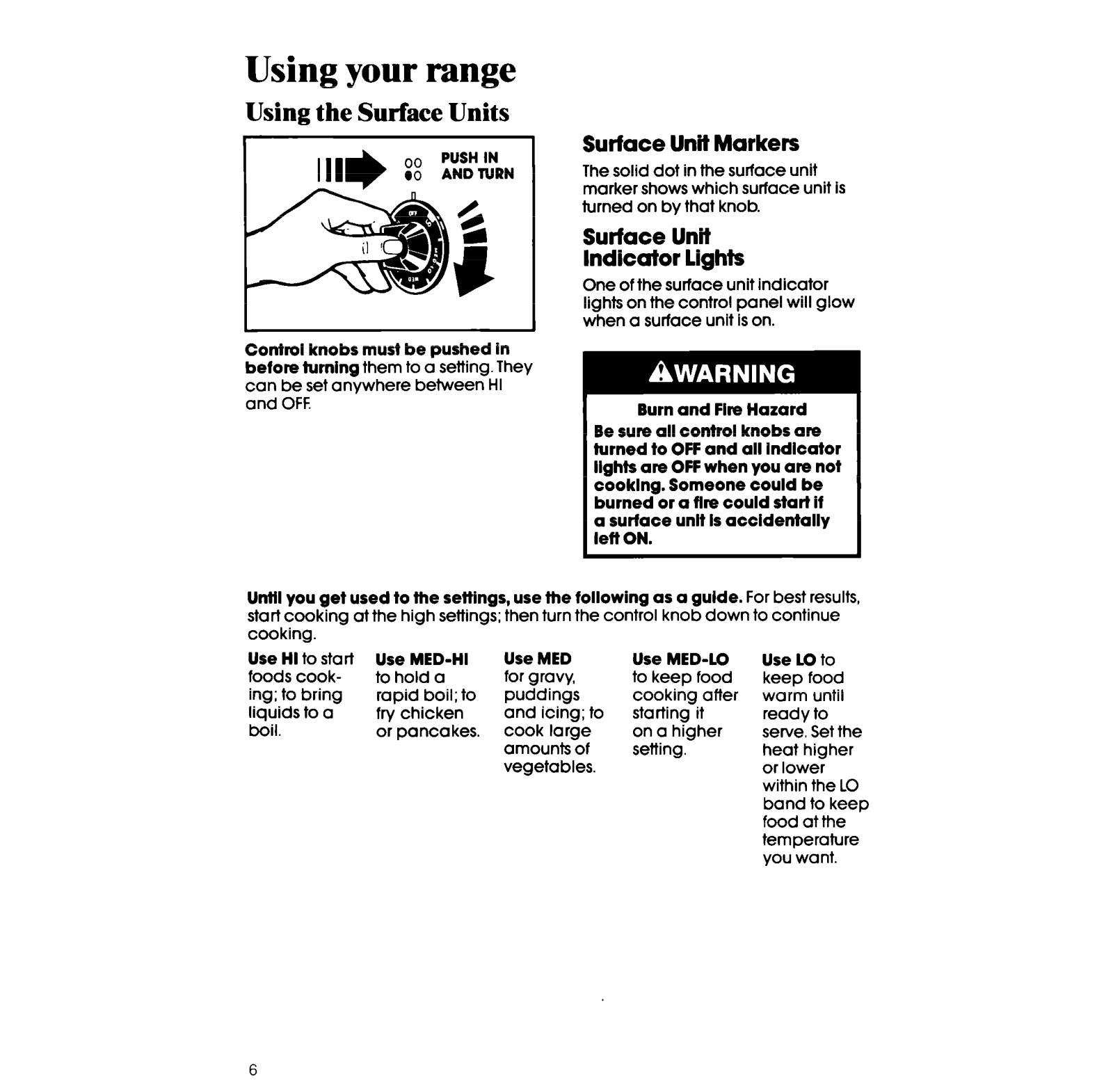

Using your range
Using the Surface Units
Control knobs must be pushed in
before turning
can be set anywhere between HI
and OFF.
them to a setting. They
Surface Unit Markers
The solid dot in the surface unit
marker shows which surface unit is
turned on by that knob.
Surface Unit
Indicator lights
One of the surface unit indicator
lights on the control panel will glow
when a surface unit is on.
Burn and Fire Hazard
Be sure ail control knobs are
turned to OFF and all indicator
lights are OFF when you are not
cooking. Someone could be
burned or a flre could start if
a surface unit is accidentally
leff ON.
Until you get used to the settings, use the following as a gulde.
start cooking at the high settings; then turn the control knob down to continue
cooking.
Use HI to
foods cooking; to bring
liquids to a
boil.
6
start
Use MED-HI Use MED
to hold a
rapid boil; to
fry chicken
or pancakes.
for gravy,
puddings
and icing; to
cook large
amounts of
vegetables.
Use MED-LO
to keep food
cooking after
starting it
on a higher
setting.
For best results,
Use LO
keep food
warm until
ready to
serve. Set the
heat higher
or lower
within the LO
band to keep
food at the
temperature
you want.
to

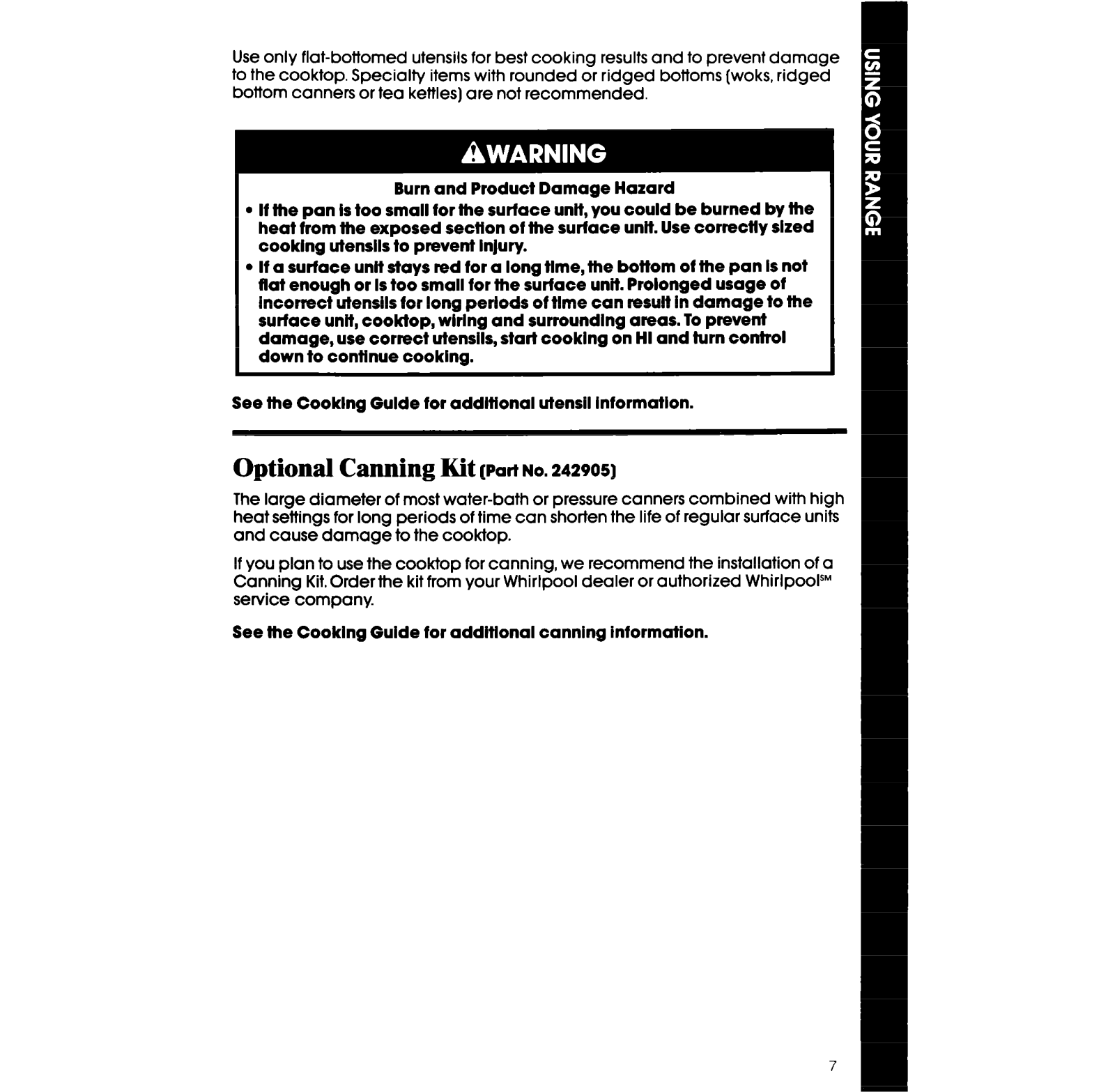

Use only flat-bottomed utensils for best cooking results and to prevent damage
to the cooktop. Specialty items with rounded or ridged bottoms (woks, ridged
bottom canners or tea kettles) are not recommended.
Burn and Product Damage Hazard
l
If fhe pan Is too small for the surface unlt, you could be burned by the
heat from the exposed section of the surface unit. Use correctly sized
cooklng utensils to prevent injury.
l
If a surface unit stays red for a long time, the bottom of fhe pan is not
flat enough or is too small for the surface unlt. Prolonged usage of
incorrect utensils for long periods of time can result in damage to the
surface unit, cooktop, wlrlng and surrounding areas. To prevent
damage, use correct utensils, start cooklng on HI and turn control
down to continue cooking.
See the Cooklng Gulde for additional utensil Information.
Optional Canning Kit
(Part NO. 242905)
The large diameter of most water-bath or pressure canners combined with high
heat settings for long periods of time can shorten the life of regular surface units
and cause damage to the cooktop.
If you plan to use the cooktop for canning, we recommend the installation of a
Canning Kit. Order the kit from your Whirlpool dealer or authorized WhirlpooP
service company.
See the Cooking Guide for additional canning information.
Setting the Clock
Push In and fum the Mlnute Timer Knob to set the Clock.
1. Push In Minute Timer Knob and
turn ciockwlse
the right time of day.
until clock shows
2. let the Mlnufe Timer Knob pop
out. Turn clockwise until Minute
Timer hand points to OFF. The
clock sefflng will change If you
push In fhe knob when turning.
Using the Minute Timer
The Minute Timer does not start or stop the oven. It works like a kitchen timer.
Set it in minutes up to an hour. You will hear a buzzer when the set time is up.
DO NOT PUSH IN THE KNOB
1. Without pushlng lt In,
Minute Timer Knob until the timer
hand passes the setting you want.
when setting the Minute Timer.
I
turn the
2. Wlthout pushing in,
back to the setting you want.
When the time is up,
will sound. To stop the buzzer, turn
the Minute Timer hand to OFF.
I I (
turn the knob
a buzzer
PUSHING IN AND TURNING THE MINUTE TIMER KNOB CHANGES THE CLOCK
SETTING.
8
Using the Oven Controls
Baking
.
Position the rack(s) properly
before
change rack positton,
at front and pull out.
turning on the oven. To
lift rack
The racks should be placed so the
top of the food will be centered
in the oven. Always leave at least
1Yz to 2 inches (4-5 cm) between
the sides of the pan and the oven
walls and other pans. For more in-
formation, see the Cooking Guide.
2. Set the Oven Selector on BAKE.
The Oven ON Indicator Light will
come on.
4. Put food in the oven. During ba king, the elements will turn on and
off to keep the oven temperature
at the setting. The Oven HEATING
Indicator Light will turn on and off
with the elements.
The top element helps heat
during baking, but does not
turn red.
I
,
3. Set the Oven Temperature Control
to the baking temperature you
want, The Oven HEATING Indicator
Light will come on. The oven is preheated when the Oven HEATING
Indicator Light first goes off.
5. When baking is done, turn
both
the Oven Selector and Oven Temperature Control to OFF. The Oven
HEATING and ON Indicator Lights
will go OFF.
I
Loading...
