Whirlpool RF362LXT User Manual

Download

Page 1

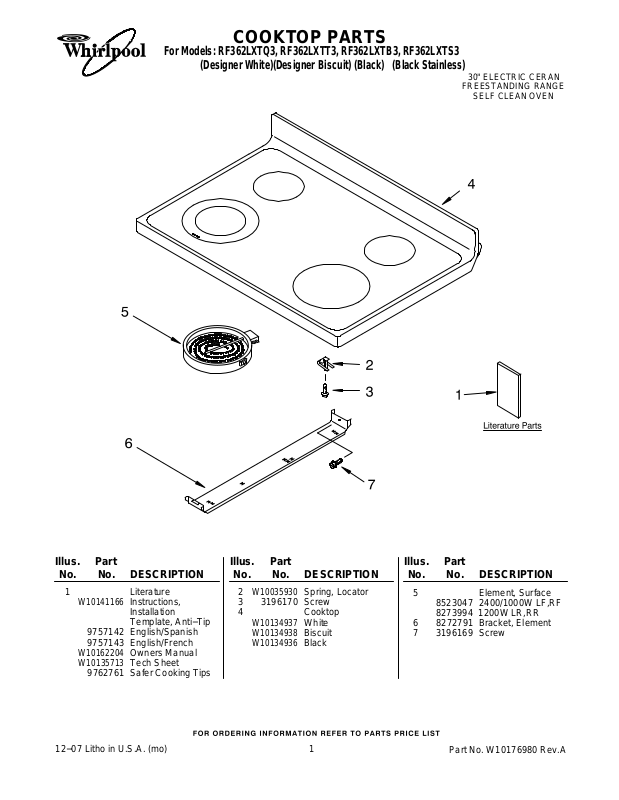

COOKTOP PARTS

For Models: RF362LXTQ3, RF362LXTT3, RF362LXTB3, RF362LXTS3

(Designer White)(Designer Biscuit) (Black) (Black Stainless)

30" ELECTRIC CERAN

FREESTANDING RANGE

SELF CLEAN OVEN

Illus. Part

No. No. DESCRIPTION

1 Literature

W10141166

9757142 English/Spanish

9757143 English/French W10162204 W10135713

9762761 Safer Cooking Tips

12−07 Litho in U.S.A. (mo)

Instructions, Installation

Template, Anti−Tip

Owners Manual

Tech Sheet

Illus. Part

No. No. DESCRIPTION

W10035930

2 3 3196170 Screw 4 Cooktop

W10134937 W10134938 W10134936

Spring, Locator

White Biscuit Black

Illus. Part

No. No. DESCRIPTION

5 Element, Surface

8523047 2400/1000W LF,RF

8273994 1200W LR,RR 6 8272791 Bracket, Element 7 3196169 Screw

Part No. W10176980 Rev.A

Page 2

CONTROL PANEL PARTS

For Models: RF362LXTQ3, RF362LXTT3, RF362LXTB3, RF362LXTS3

(Designer White)(Designer Biscuit) (Black) (Black Stainless)

Illus. Part

No. No. DESCRIPTION

1 Endcap

W10009080 W10009090 W10009040 W10009050 W10009060

W10009070 2 9757609 Nameplate 3 Panel, Control

W10117602

W10117601

W10117600

W10117603

Black Left Black Right

White Left

White Right Biscuit Left Biscuit Right

Black Biscuit

White Stainless

Illus. Part

No. No. DESCRIPTION

4 Switch, Infinite

9758060 Front (LF,RF)

3148951 Rear (RR,LR) 5 8523265 Light, Ind. (2) 6 3196068 Lens, Light (2) 7 Knob, Infinite (4)

9761964 Black

9761962 White

9761963 Biscuit

W10134247

8 9 Screw

3196166 White

8281194 Biscuit

3196168 Black

Shield, Heat

Illus. Part

No. No. DESCRIPTION

10 8272473 Cover, Upper 11 9762095 Brkt−Mntg, Console 12 Control, Range

W10108100 W10108090

W10108110 13 3196178 Screw 14 9762078 Brkt−Mntg, EOC 15 3400882 Screw 16 8273564 Clip

Black

White

Biscuit

W10176980

Page 3

CHASSIS PARTS

For Models: RF362LXTQ3, RF362LXTT3, RF362LXTB3, RF362LXTS3

(Designer White)(Designer Biscuit) (Black) (Black Stainless)

W10176980

Page 4

CHASSIS PARTS

For Models: RF362LXTQ3, RF362LXTT3, RF362LXTB3, RF362LXTS3

(Designer White)(Designer Biscuit) (Black) (Black Stainless)

Illus. Part

No. No. DESCRIPTION

1 9760407 Brkt−Mntg,Dr Hnge 2 8273905 Support, Corner LR 3 Panel, Side (2)

8053830 White−Textured 8272519 Biscuit−Textured 8053832 Black−Textured

4 9761013 Latch, Door

W10078380

W10107820

6 8 9757340 Element, Broil 9 9758541 Element, Bake

10 8522416 Seal, Oven Door

11 9758701 Spacer, Door

12 3196560 Screw

W10114344

13 14 3196037 Foot, Front (2) 15 9761517 Clip,Door Mntg(2) 16 8054068 Tray, Insulation 17 3196576 Clip, Panel (6)

Rod, Latch Latch Asy, Rear

Glide, Drawer (2)

Illus. Part

No. No. DESCRIPTION

18 9760314 Rail, Base (2)

W10058460

19 20 9761490 Insulation 21 9761512 Clip− Mounting 22 9758238 Retainer, Side (2) 23 8273902 Sensor, Oven 24 3195736 Support, Front (2) 25 3195987 Support, Corner RR 26 3196548 Fuse, Thermal 27 3196172 Screw 28 3186116 Support, Oven (2) 29 3186034 Bracket, Service 30 9761958 Block, Terminal 31 8274034 Back, Main 32 112432 Nut (3) 33 9761299 Vent Tube Asm 34 3196701 Light Socket Assy 35 311255 Bulb, Oven Light 36 9758283 Cover, Box 38 3196165 Screw

Foot, Rear (2)

Illus. Part

No. No. DESCRIPTION

39 3196168 Screw 40 3196178 Screw 41 3196174 Screw 42 3196179 Screw

W10031780

W10067840

45 46 3400016 Screw 47 3196566 Screw 48 9757262 Switch − Door 49 9757239 Rod − Door Switch

50 9761301 Screen − Catalyst

Screw Screw

Rear Mount

INSULATION

8272616 Insulation, Wrap 8272612 Insulation, Back 8272613 Insulation, Vent

W10176980

Page 5

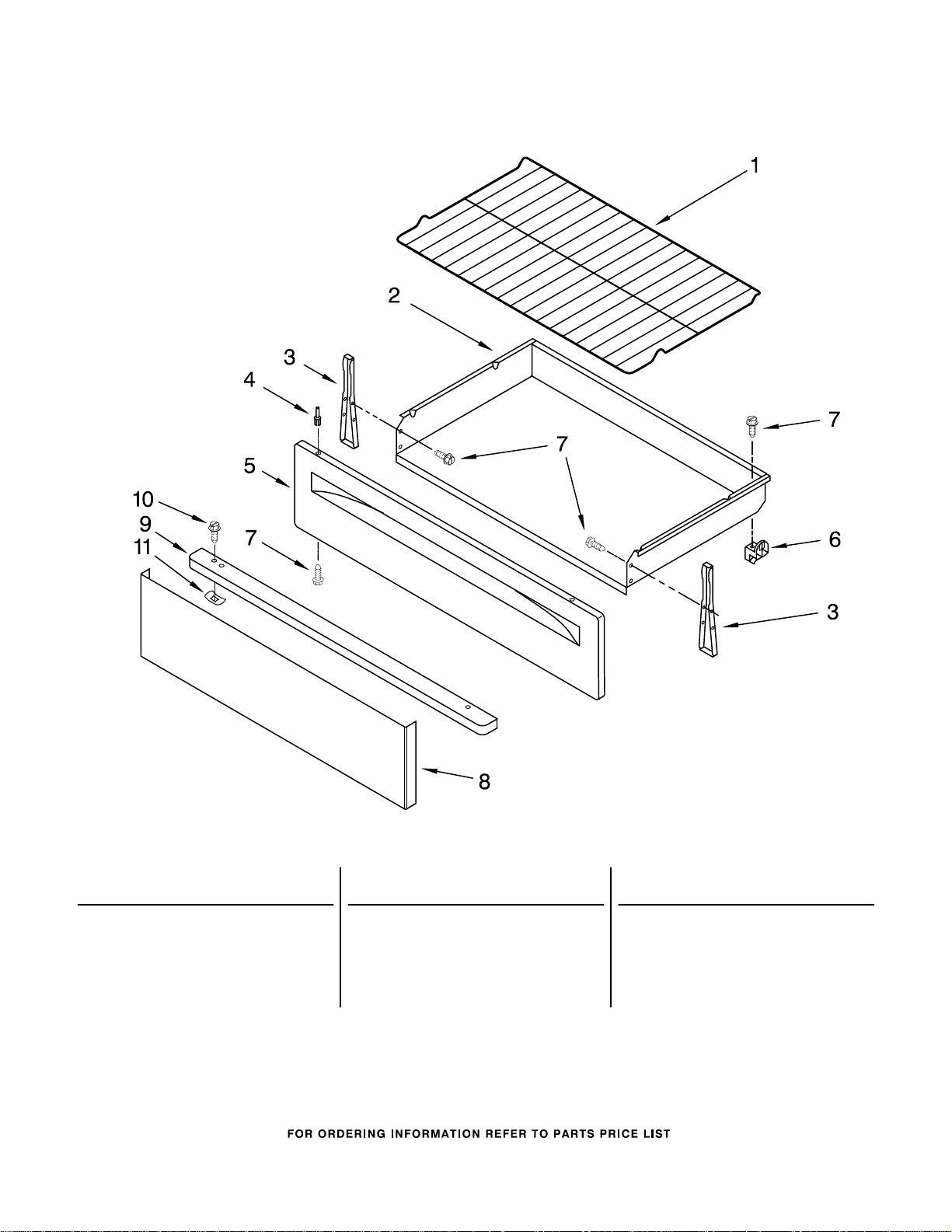

DRAWER & BROILER PARTS

For Models: RF362LXTQ3, RF362LXTT3, RF362LXTB3, RF362LXTS3

(Designer White)(Designer Biscuit) (Black) (Black Stainless)

Illus. Part

No. No. DESCRIPTION

W10138079 2 9761031 Drawer, Storage 3 9758200 Bracket, Drawer(2) 4 Rivet, Push (2)

3196814 White 3196813 Black

W10176980

Rack, Oven (2)

Illus. Part

No. No. DESCRIPTION

5 Drawer Front

8053339 White 8272501 Biscuit 8053341 Black

6 8053334 Glide, Drawer (2)

Illus. Part

No. No. DESCRIPTION

7 3196168 Screw

W10133363

8 9 9757219 Handle(Stls.Model)

W10031790

10 11 9781235 Clip(Stls. Model)

Panel(Stls. Model)

Screw(Stls. Model)

Page 6

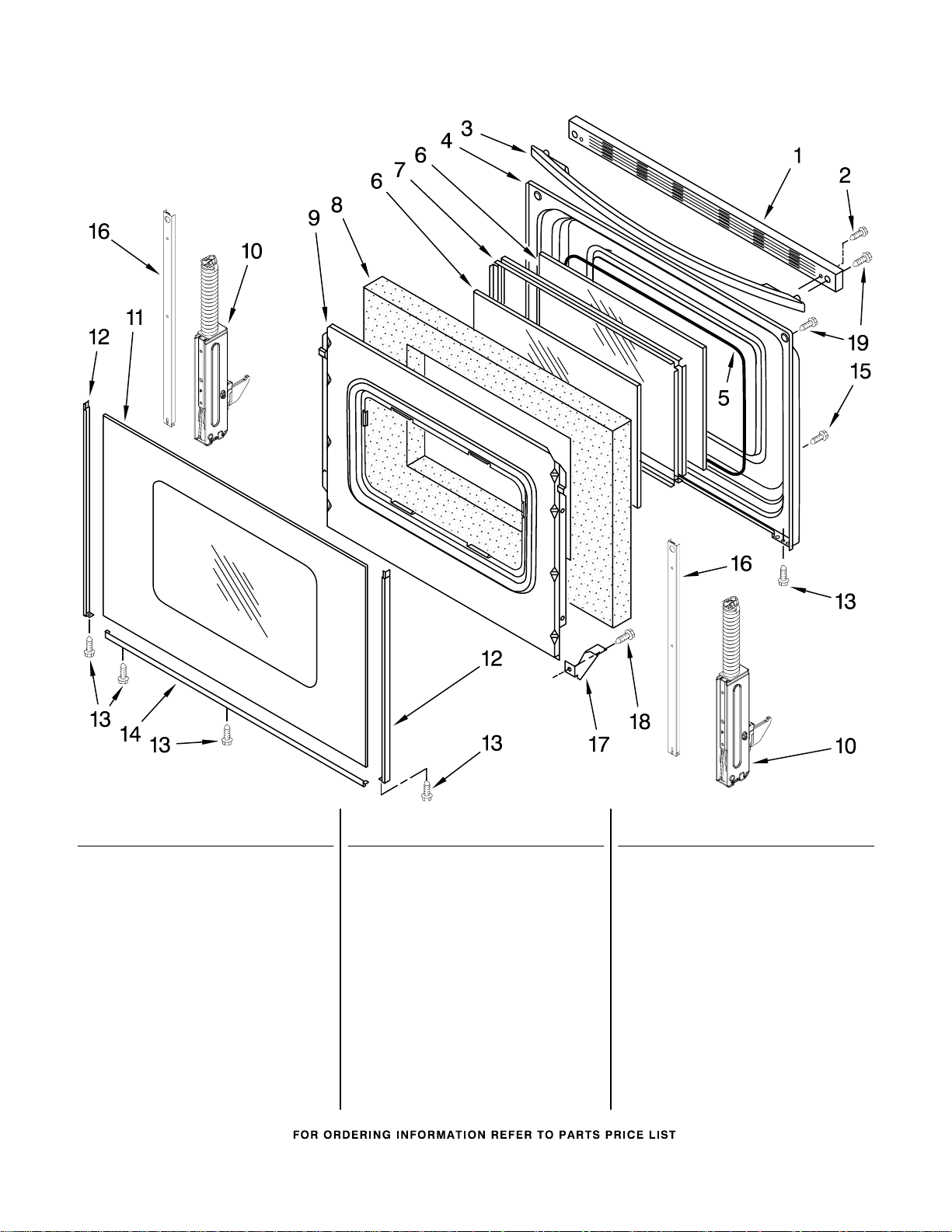

DOOR PARTS

For Models: RF362LXTQ3, RF362LXTT3, RF362LXTB3, RF362LXTS3

(Designer White)(Designer Biscuit) (Black) (Black Stainless)

Illus. Part

No. No. DESCRIPTION

1 Trim, Top

9762391 Black 9761976 Biscuit 9761975 White 9762394 Black/Stainless

Model 2 3196164 Screw 3 Handle, Door

9761983 Black 9761984 Biscuit

9761982 White 4 9761344 Liner, Door 5 8522414 Seal, Window 6 9758162 Glass, Inner (2) 7 3186289 Frame, Glass 8 8272618 Insulation, Door

Illus. Part

No. No. DESCRIPTION

9 9761357 Retainer, Insltn

10 Hinge, Door (2)

9761493 White/Biscuit Mdl. 9761496 Stainless Model

11 Glass, Outer Door

W10075990 W10075980 W10076000 W10154806

12 Trim, Side

8523171 Black Left 8523165 Black Right 8523173 Biscuit Left 8523167 Biscuit Right 8523172 White Left 8523166 White Right

Black

White Biscuit Stainless Mdl.

Illus. Part

No. No. DESCRIPTION

13 3196160 Screw 14 Trim, Bottom

8523177 Black 8523178 Biscuit 8523175 White 8523180 Stainless

W10031790

W10113759

16 17 3196794 Bracket, Window(2) 18 3196165 Screw

W10031780

Screw Strap, Door

Screw

W10176980

Page 7

OPTIONAL PARTS (NOT INCLUDED)

For Models: RF362LXTQ3, RF362LXTT3, RF362LXTB3, RF362LXTS3

(Designer White)(Designer Biscuit) (Black) (Black Stainless)

Illus. Part

No. No. DESCRIPTION

Parts Not Illustrated and

Optional Parts (Not Included)

SPLICING WIRES−−25FT. LENGTH

242828 Wire, Black

12 Ga. 150

242821 Wire, Blue

14 Ga. 150

242822 Wire, Brown

14 Ga. 150

242830 Wire, Brown

14 Ga. 200

242823 Wire, Green

14 Ga. 150

242824 Wire, Orange

14 Ga. 150

242825 Wire, Red

14 Ga. 150

242831 Wire, Red

14 Ga. 200

242827 Wire, Yellow

14 Ga. 150

c c c c c c c c c

Illus. Part

No. No. DESCRIPTION

REFINISHING MATERIAL

799832 Kit, Porcelain

Repair (White)

242756 Touch−Up

Self−Clean(1/2 Pt)

261582 Grease

INSULATION

261514 Insulation,

Fiberglass (1−1/2"

x 24" x 120")

240132 Insulation,

Fiberglass (2−1/2"

x 22" x 120")

PAINT, TOUCH−UP (1/2oz.)

72017 White 72107 Almond

511873 White Porcelain

(2 Oz.)

PAINT, PRESSURIZED SPRAY (12 oz.)

350930 White 350956 Almond 285006 Superior Black 206922 Primer (White)

Illus. Part

No. No. DESCRIPTION

PAINT, BULK (1 qt.)

799344 White (Uncut) 978883 Almond (Uncut)

ACCESSORY PARTS

241430 Foil, Aluminum

Oven (18" x 25’)

3191048 Cleaner, Glass

ANTI−TIP KIT

W10017440

Anti−Tip Kit

WIRING HARNESS PARTS

W10111767 W10111791 W10084660 W10111796 W10144763

8523279 Wire, Ground

313660 Clip, Ground Wire 3196173 Screw 3196154 Screw, Ground

Harness, Wire (Cooktop Left) Harness, Wire (Cooktop Right) Harness, Wire (Sensor) Harness, Wire (Main)

Tie, Wire

W10176980
