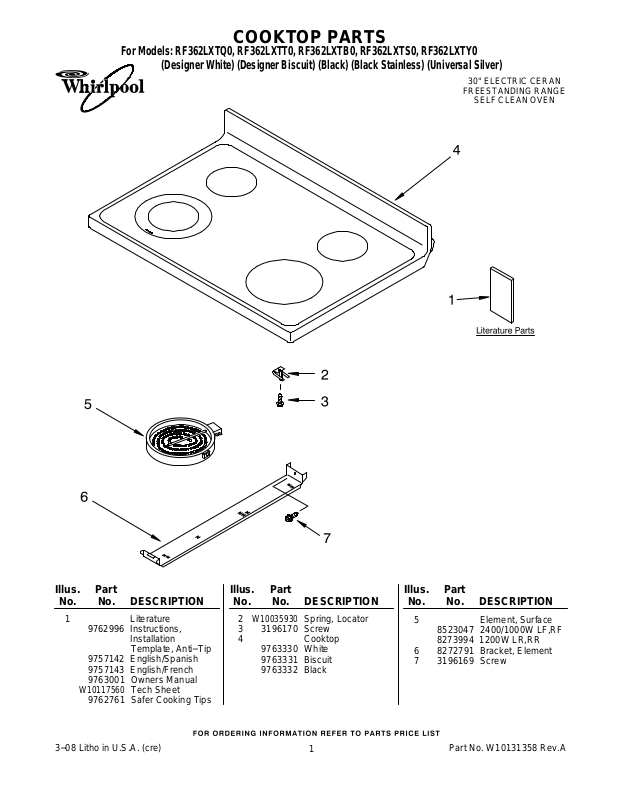

COOKTOP PARTS
For Models: RF362LXTQ0, RF362LXTT0, RF362LXTB0, RF362LXTS0, RF362LXTY0
(Designer White) (Designer Biscuit) (Black) (Black Stainless) (Universal Silver)
30" ELECTRIC CERAN
FREESTANDING RANGE
SELF CLEAN OVEN
Illus. Part
No. No. DESCRIPTION
1 Literature
9762996 Instructions,
Installation
Template, Anti−Tip
9757142 English/Spanish
9757143 English/French
9763001 Owners Manual
W10117560
9762761 Safer Cooking Tips
3−08 Litho in U.S.A. (cre)
Tech Sheet
Illus. Part
No. No. DESCRIPTION
W10035930
2 3 3196170 Screw 4 Cooktop
9763330 White
9763331 Biscuit
9763332 Black
Spring, Locator
1
Illus. Part
No. No. DESCRIPTION
5 Element, Surface
8523047 2400/1000W LF,RF
8273994 1200W LR,RR
6 8272791 Bracket, Element
7 3196169 Screw
Part No. W10131358 Rev.A
Page 2
CONTROL PANEL PARTS
For Models: RF362LXTQ0, RF362LXTT0, RF362LXTB0, RF362LXTS0, RF362LXTY0
(Designer White) (Designer Biscuit) (Black) (Black Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Endcap
W10009080
W10009090
W10009040
W10009050
W10009060
W10009070
2 9757609 Nameplate
3 Panel, Control
W10117577
W10117875
W10117576
W10117578
Black Left
Black Right
White Left
White Right
Biscuit Left
Biscuit Right
Black
Biscuit
White
Stainless
Illus. Part
No. No. DESCRIPTION
4 Switch, Infinite
9758060 Front (LF,RF)
3148951 Rear (RR,LR)
5 8523265 Light, Ind. (2)
6 3196068 Lens, Light (2)
7 Knob, Infinite (4)
9761964 Black
9761962 White
9761963 Biscuit
8 8523280 Shield, Heat
9 3196166 Screw
2
Illus. Part
No. No. DESCRIPTION
10 8272473 Cover, Upper
11 9762095 Brkt−Mntg, Console
12 Control, Range
W10114377
W10114376
W10114378
13 3196178 Screw
14 9762078 Brkt−Mntg, EOC
15 3400882 Screw
16 8273564 Clip
Black
White
Biscuit
W10131358
Page 3
CHASSIS PARTS
For Models: RF362LXTQ0, RF362LXTT0, RF362LXTB0, RF362LXTS0, RF362LXTY0
(Designer White) (Designer Biscuit) (Black) (Black Stainless) (Universal Silver)
W10131358
3
Page 4
CHASSIS PARTS
For Models: RF362LXTQ0, RF362LXTT0, RF362LXTB0, RF362LXTS0, RF362LXTY0
(Designer White) (Designer Biscuit) (Black) (Black Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 9760407 Brkt−Mntg,Dr Hnge
2 8273905 Support, Corner LR
3 Panel, Side (2)
8053830 White−Textured
8272519 Biscuit−Textured
8053832 Black−Textured
4 9761013 Latch, Door
W10078380
5
W10107820
6
W10010350
7
8 9757340 Element, Broil
9 9758541 Element, Bake
10 8522416 Seal, Oven Door
11 9758701 Spacer, Door
12 3196560 Screw
13 9759785 Glide, Drawer (2)
14 3196037 Foot, Front (2)
15 Frame, Front
Rod, Latch
Latch Asy, Rear
Seal, Oven Flange
(Not Serviced)
Illus. Part
No. No. DESCRIPTION
16 8054068 Tray, Insulation
17 3196576 Clip, Panel (6)
18 9760314 Rail, Base (2)
W10058460
19
20 9761490 Insulation
21 9761512 Clip− Mounting
22 9758238 Retainer, Side (2)
23 8273902 Sensor, Oven
24 3195736 Support, Front (2)
25 3195987 Support, Corner RR
26 3196548 Fuse, Thermal
27 3196172 Screw
28 3186116 Support, Oven (2)
29 3186034 Bracket, Service
30 9761958 Block, Terminal
31 8274034 Back, Main
32 112432 Nut (3)
33 9761300 Vent Tube Asm
34 3196701 Light Socket Assy
35 311255 Bulb, Oven Light
Foot, Rear (2)
Illus. Part
No. No. DESCRIPTION
36 9758283 Cover, Box
38 3196165 Screw
39 3196168 Screw
40 3196178 Screw
41 3196174 Screw
42 3196179 Screw
W10031780
44
46 3400016 Screw
47 3196566 Screw
48 9757262 Switch − Door
49 9757239 Rod − Door Switch
50 9761301 Screen − Catalyst
Screw
Rear Mount
INSULATION
8272616 Insulation, Wrap
8272612 Insulation, Back
8272613 Insulation, Vent
4
W10131358
Page 5

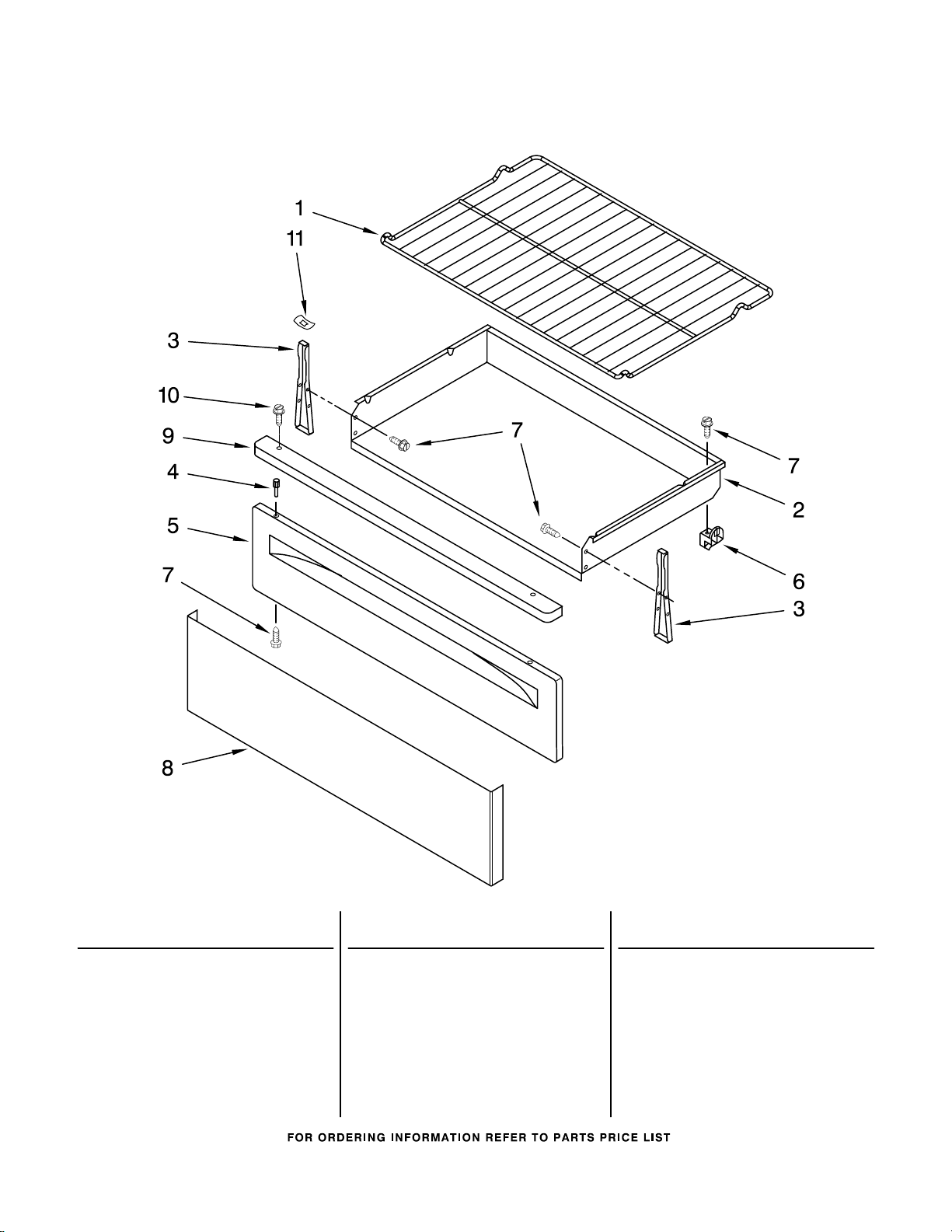

DRAWER & BROILER PARTS
For Models: RF362LXTQ0, RF362LXTT0, RF362LXTB0, RF362LXTS0, RF362LXTY0
(Designer White) (Designer Biscuit) (Black) (Black Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 3195710 Rack, Oven (2)
2 9761030 Drawer, Storage
3 9758200 Bracket, Drawer(2)
4 Rivet, Push (2)
3196814 White
3196813 Black
3196815 Almond
W10131358
Illus. Part
No. No. DESCRIPTION
5 Drawer Front
8053339 White
8272501 Biscuit
8053341 Black
6 8053334 Glide, Drawer (2)
7 3196168 Screw
8 9755798 Panel
(Stainless Model)
5
Illus. Part
No. No. DESCRIPTION
9 Handle
9757219 (Stainless Model)
9762251 Univ. Slvr. Mdl.
W10031790
10
11 9781235 Clip
Screw
(Stainless Model)
Page 6

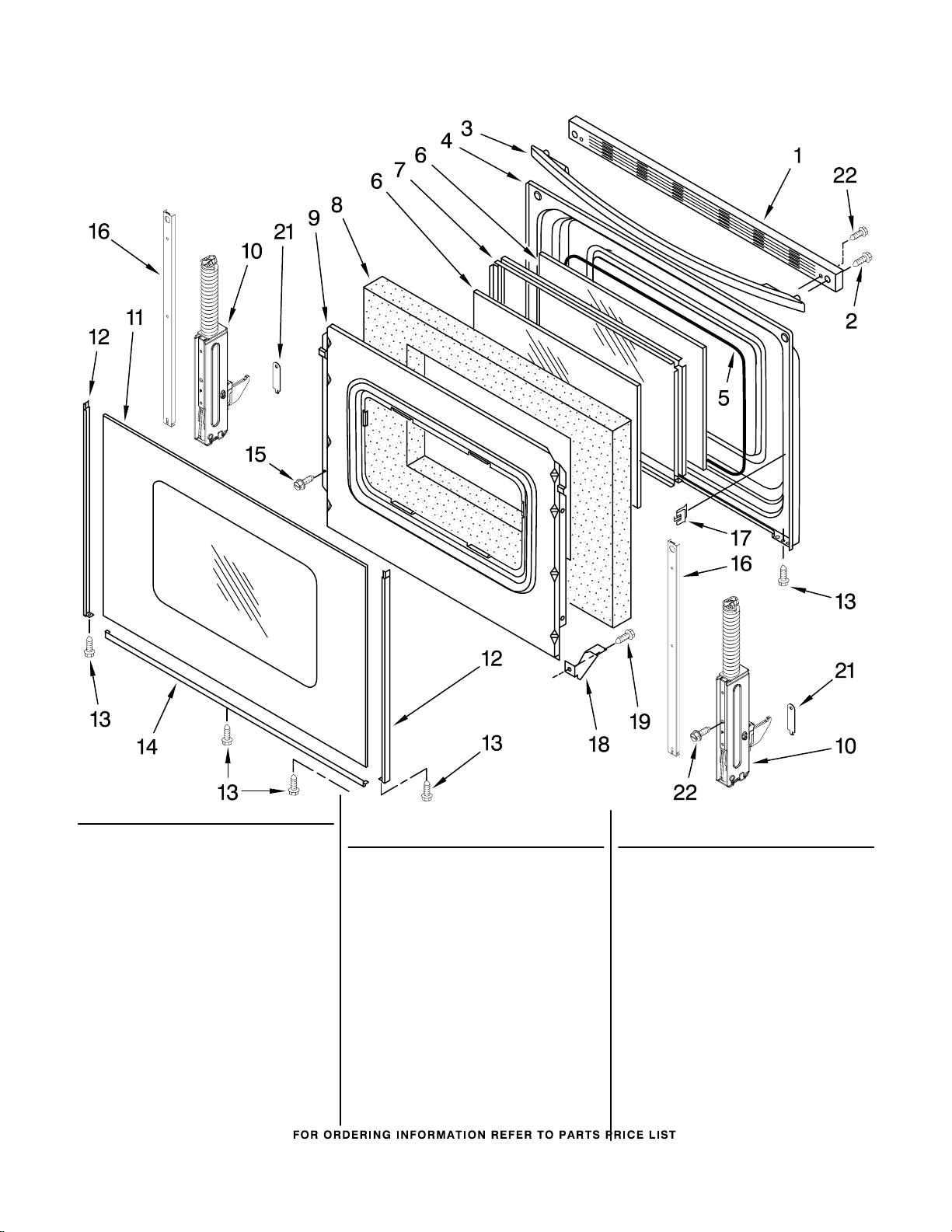

DOOR PARTS
For Models: RF362LXTQ0, RF362LXTT0, RF362LXTB0, RF362LXTS0, RF362LXTY0
(Designer White) (Designer Biscuit) (Black) (Black Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
1 Trim, Top
9762391 Black
9761976 Biscuit
9761975 White
9762394 Black/Stainless
Model
W10067560
2 3196164 Screw
3 Handle, Door
9761983 Black
9761984 Biscuit
9761982 White
9761985 S.Steel
4 9761344 Liner, Door
5 8522414 Seal, Window
6 9758162 Glass, Inner (2)
7 3186289 Frame, Glass
8 8272618 Insulation, Door
Univ. Slvr. Model
Illus. Part
No. No. DESCRIPTION
9 9761357 Retainer, Insltn
10 9761493 Hinge, Door (2)
11 Glass, Outer Door
W10075990
W10075980
W10076000
9756417 Black/Stainless
12 Trim, Side
8523171 Black Left
8523165 Black Right
8523173 Biscuit Left
8523167 Biscuit Right
8523172 White Left
8523166 White Right
W10113925
W10113926
Black
White
Biscuit
Gray Right
Gray Left
6
Illus. Part
No. No. DESCRIPTION
13 3196160 Screw
14 Trim, Bottom
8523177 Black
8523178 Biscuit
8523175 White
8523180 Black/Stainless
Model
W10067550
W10031790
15
W10113759
16
17 3196025 Clip, Door Glass
18 3196794 Bracket, Window(2)
19 3196165 Screw
21 9761517 Clip, Dr Mntg (2)
W10031780
22
Univ. Slvr. Model
Screw
Strap, Door
Screw
W10131358
Page 7
OPTIONAL PARTS
For Models: RF362LXTQ0, RF362LXTT0, RF362LXTB0, RF362LXTS0, RF362LXTY0
(Designer White) (Designer Biscuit) (Black) (Black Stainless) (Universal Silver)
Illus. Part
No. No. DESCRIPTION
Parts Not Illustrated and
Optional Parts (Not Included)
SPLICING WIRES−−25FT.
LENGTH
242828 Wire, Black
12 Ga. 150
242821 Wire, Blue
14 Ga. 150
242822 Wire, Brown
14 Ga. 150
242830 Wire, Brown
14 Ga. 200
242823 Wire, Green
14 Ga. 150
242824 Wire, Orange
14 Ga. 150
242825 Wire, Red
14 Ga. 150
242831 Wire, Red
14 Ga. 200
242827 Wire, Yellow
14 Ga. 150
c
c
c
c
c
c
c
c
c
REFINISHING MATERIAL
799832 Kit, Porcelain
Repair (White)
242756 Touch−Up
Self−Clean(1/2 Pt)
261582 Grease
Illus. Part
No. No. DESCRIPTION
INSULATION
261514 Insulation,
Fiberglass (1−1/2"
x 24" x 120")
240132 Insulation,
Fiberglass (2−1/2"
x 22" x 120")
PAINT, TOUCH−UP (1/2oz.)
72017 White
72107 Almond
511873 White Porcelain
(2 Oz.)
PAINT, PRESSURIZED SPRAY
(12 oz.)
350930 White
350956 Almond
285006 Superior Black
206922 Primer (White)
PAINT, BULK (1 qt.)
799344 White (Uncut)
978883 Almond (Uncut)
Illus. Part
No. No. DESCRIPTION
ACCESSORY PARTS
241430 Foil, Aluminum
Oven (18" x 25’)
3191048 Cleaner, Glass
ANTI−TIP KIT
W10017440
Anti−Tip Kit
WIRING HARNESS PARTS
W10115055
W10115056
9762428 Harness, Wire
W10121263
8523279 Wire, Ground
8524132 Shield, Wiring
313660 Clip, Ground Wire
3196173 Screw
3196154 Screw, Ground
Harness, Wire
(Cooktop Left)
Harness, Wire
(Cooktop Right)
(Sensor)
Harness, Wire
(Main)
Miscellaneous
814381 Pin Kit−Dr Removal
W10131358
7
