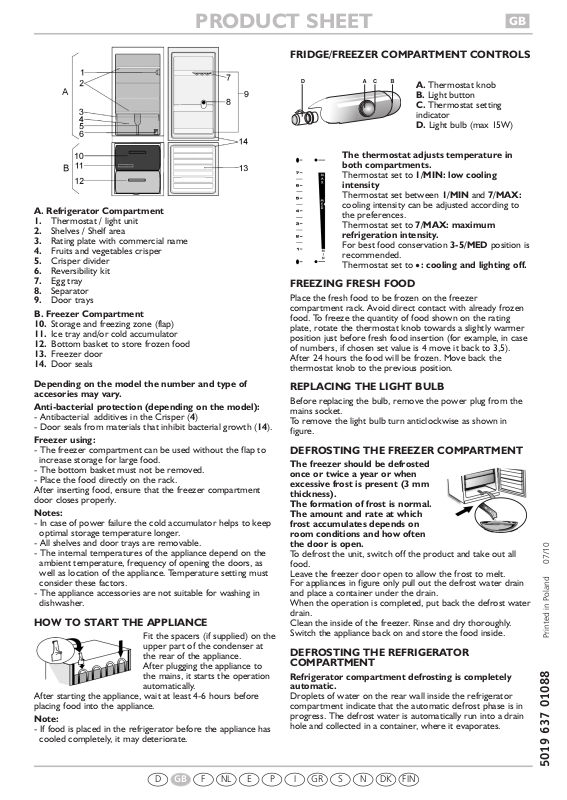

Whirlpool KG 271 A IO PRODUCT SHEET

A. Refrigerator Compartment

1. Thermostat / light unit

2. Shelves / Shelf area

3. Rating plate with commercial name

4. Fruits and vegetables crisper

5. Crisper divider

6. Reversibility kit

7. Egg tray

8. Separator

9. Door trays B. Freezer Compartment

10. Storage and freezing zone (flap)

11. Ice tray and/or cold accumulator

12. Bottom basket to store frozen food

13. Freezer door

14. Door seals

Depending on the model the number and type of accesories may vary.

Anti-bacterial protection (depending on the model):

- Antibacterial additives in the Crisper (4)

- Door seals from materials that inhibit bacterial growth (14).

Freezer using:

- The freezer compartment can be used without the flap to increase storage for large food.

- The bottom basket must not be removed.

- Place the food directly on the rack.

After inserting food, ensure that the freezer compartment door closes properly.

Notes:

- In case of power failure the cold accumulator helps to keep optimal storage temperature longer.

- All shelves and door trays are removable.

- The internal temperatures of the appliance depend on the ambient temperature, frequency of opening the doors, as well as location of the appliance. Temperature setting must consider these factors.

- The appliance accessories are not suitable for washing in dishwasher.

HOW TO START THE APPLIANCE

Fit the spacers (if supplied) on the upper part of the condenser at the rear of the appliance. After plugging the appliance to the mains, it starts the operation

automatically. After starting the appliance, wait at least 4-6 hours before placing food into the appliance.

Note:

- If food is placed in the refrigerator before the appliance has

cooled completely, it may deteriorate.

FRIDGE/FREEZER COMPARTMENT CONTROLS

A. Thermostat knob B. Light button C. Thermostat setting

indicator

D. Light bulb (max 15W)

The thermostat adjusts temperature in both compartments. Thermostat set to 1/MIN: low cooling intensity

Thermostat set between 1/MIN and 7/MAX: cooling intensity can be adjusted according to the preferences. Thermostat set to 7/MAX: maximum

refrigeration intensity.

For best food conservation 3-5/MED position is recommended. Thermostat set to

•

: cooling and lighting off.

FREEZING FRESH FOOD

Place the fresh food to be frozen on the freezer compartment rack. Avoid direct contact with already frozen food. To freeze the quantity of food shown on the rating plate, rotate the thermostat knob towards a slightly warmer position just before fresh food insertion (for example, in case of numbers, if chosen set value is 4 move it back to 3,5). After 24 hours the food will be frozen. Move back the thermostat knob to the previous position.

REPLACING THE LIGHT BULB

Before replacing the bulb, remove the power plug from the mains socket. To remove the light bulb turn anticlockwise as shown in figure.

DEFROSTING THE FREEZER COMPARTMENT

The freezer should be defrosted once or twice a year or when excessive frost is present (3 mm thickness). The formation of frost is normal. The amount and rate at which frost accumulates depends on room conditions and how often the door is open.

To defrost the unit, switch off the product and take out all food. Leave the freezer door open to allow the frost to melt. For appliances in figure only pull out the defrost water drain and place a container under the drain. When the operation is completed, put back the defrost water drain. Clean the inside of the freezer. Rinse and dry thoroughly. Switch the appliance back on and store the food inside.

DEFROSTING THE REFRIGERATOR COMPARTMENT

Refrigerator compartment defrosting is completely automatic.

Droplets of water on the rear wall inside the refrigerator compartment indicate that the automatic defrost phase is in progress. The defrost water is automatically run into a drain hole and collected in a container, where it evaporates.

5019 637 01088 Printed in Poland 07/10
