Whirlpool HB D10 S, HOB 480 B PROGRAM CHART

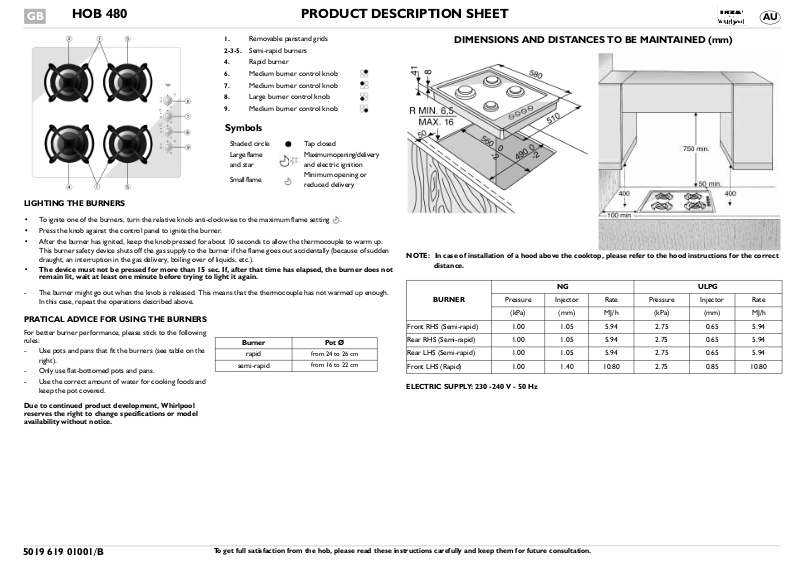

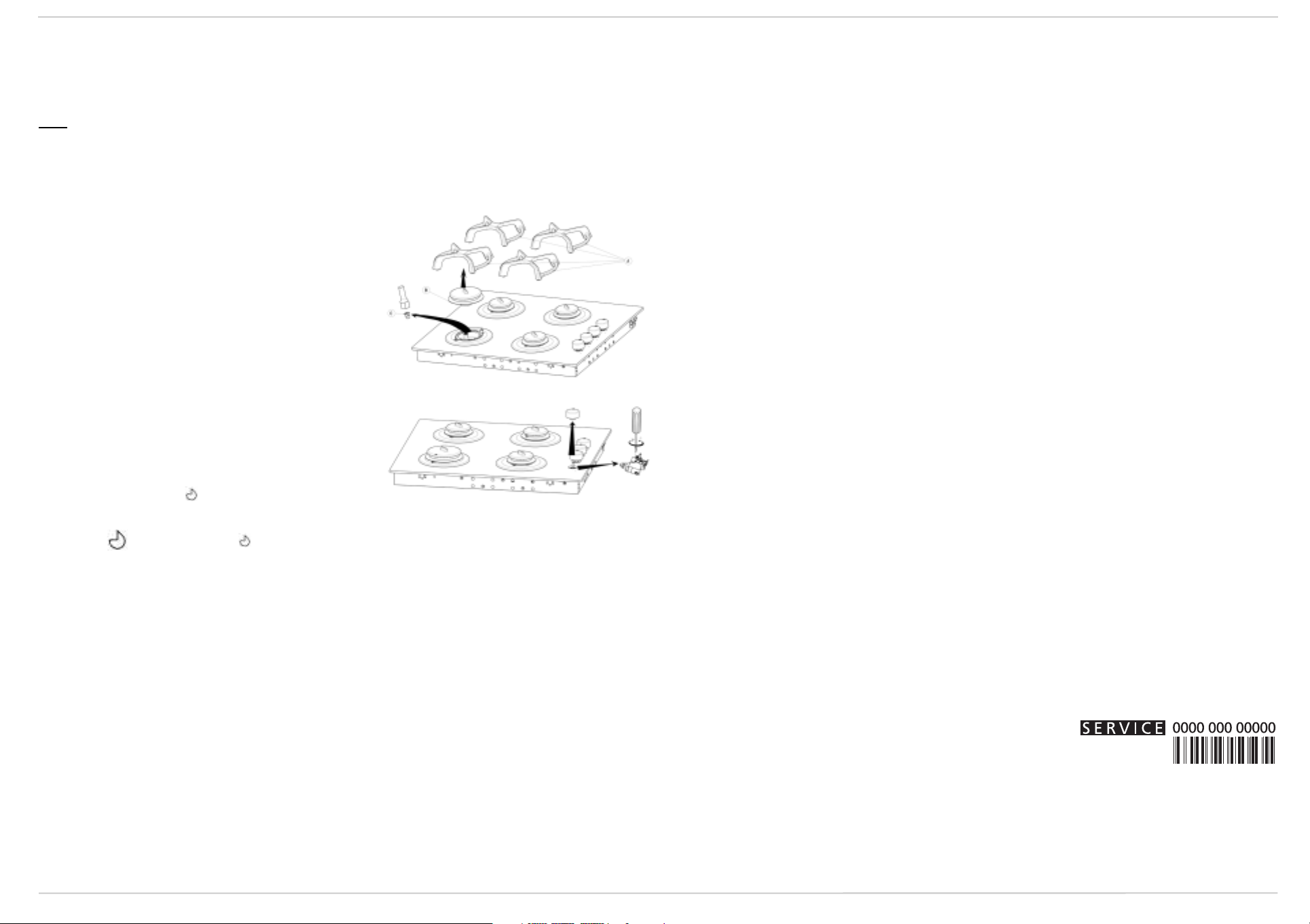

HOB 480 PRODUCT DESCRIPTION SHEET

1. 2-3-5.

Removable panstand grids Semi-rapid burners Rapid burner Medium burner control knob Medium burner control knob Large burner control knob Medium burner control knob

Symbols

Shaded circle Tap closed Large flame

and star

Small flame

LIGHTING THE BURNERS

• To ignite one of the burners, turn the relative knob anti-clockwise to the maximum flame setting .

• Press the knob against the control panel to ignite the burner.

• After the burner has ignited, keep the knob pressed for about 10 seconds to allow the thermocouple to warm up. This burner safety device shuts off the gas supply to the burner if the flame goes out accidentally (because of sudden draught, an interruption in the gas delivery, boiling over of liquids, etc.).

• The device must not be pressed for more than 15 sec. If, after that time has elapsed, the burner does not remain lit, wait at least one minute before trying to light it again.

- The burner might go out when the knob is released. This means that the thermocouple has not warmed up enough.

In this case, repeat the operations described above.

PRATICAL ADVICE FOR USING THE BURNERS

For better burner performance, please stick to the following rules:

- Use pots and pans that fit the burners (see table on the

right).

- Only use flat-bottomed pots and pans.

- Use the correct amount of water for cooking foods and

keep the pot covered.

Burner Pot Ø

rapid

semi-rapid

Maximum opening/delivery and electric ignition

Minimum opening or reduced delivery

from 24 to 26 cm from 16 to 22 cm

DIMENSIONS AND DISTANCES TO BE MAINTAINED (mm)

NOTE: In case of installation of a hood above the cooktop, please refer to the hood instructions for the correct

distance.

NG ULPG

BURNER

Front RHS (Semi-rapid) 1.00 1.05 5.94 2.75 0.65 5.94 Rear RHS (Semi-rapid) 1.00 1.05 5.94 2.75 0.65 5.94 Rear LHS (Semi-rapid) 1.00 1.05 5.94 2.75 0.65 5.94 Front LHS (Rapid) 1.00 1.40 10.80 2.75 0.85 10.80

ELECTRIC SUPPLY: 230 -240 V - 50 Hz

Pressure Injector Rate Pressure Injector Rate

(kPa) (mm) MJ/h (kPa) (mm) MJ/h

Due to continued product development, Whirlpool reserves the right to change specifications or model availability without notice.

5019 619 01001/B

To get full satisfaction from the hob, please read these instructions carefully and keep them for future consultation.

PRECAUTIONS AND GENERAL ADVICE

To get full satisfaction from your hob, please read these instructions carefully and keep them for future consultation

• These instructions are only valid for those Countries where the destination abbreviations are mentioned on the product description sheet and on the hob.

• Keep the packaging material (plastic bags, polystyrene parts, etc.) out of the reach of children, as they are potentially dangerous.

• Check whether the hob has been damaged during transport and remove any protective film from the appliance parts.

• This hob is designed solely for household use for cooking food. Any other use (such as heating rooms) is to be considered improper and, as a consequence, dangerous.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given initial supervision or instruction concerning use of the appliance by a person responsible for their safety

• Ensure that the installation and gas/electrical connections are performed by a qualified technician in compliance with current local safety regulations.

• This appliance should only be installed and used in well-ventilated rooms, in accordance with current regulations. Carefully read the instructions before installing and using this appliance.

• Gas adjustment and supply pressure are indicated on the rating plate located under the hob. If the appliance is arranged for a type of gas different from that available, refer to the paragraph “Ajustment to different types of gas”.

• WARNING: Do not spray aerosols in the vicinity of this appliance while it is in operation.

• WARNING: Where this appliance is installed in marine craft or caravans, it shall not be used as a space heater.

PROVISION FOR VENTILATION

ROOM VENTILATION

To ensure correct operation of the appliance, the room size in which it is to be installed shall be in accordance with AS5601. This room must also be continuously ventilated, fresh air should flow through permanent openings in walls to outside or to an adjacent non-inhabitable room as detailed is AS 5601. These permanent openings must be made in such a way that it cannot be obstructed from either side of the wall, also they should be protected by plastic grids, metallic mesh, etc., taking care not to reduce the air vent effective area mentioned above and located near floor level and positioned so as not to interfere with the operation of the exhaust system, the minimum cross section of these permanent openings is set by AS5601.

OVERHEAD CLEARANCE

Range hoods and exhaust fans shall be installed in accordance with the manufactures instructions. However, in no case shall the clearance between the top of the highest burner of the cooking appliance and the range hood be less than 600mm or, for an overhead exhaust fan, 750mm Any downward facing combustible surface less than 600mm above the top of the highest burner shall be protected for the full width and depth of the cooking surface area in accordance with Clauses 5.12.1.2 of AS 5601 However, in no case shall this clearance to any surface be less than 450mm.

PROTECTING THE ENVIRONMENT

Packaging

The packaging material is entirely recyclable, and is marked with the recycling symbol , which identifies it as a type of material that must be sent to local waste-disposal centres.

Product

The hob is made out of recyclable material. Before disposing of it, cut its power cable off in order to render it inoperative and shut off the gas supply. Dispose of it in a waste-disposal centre in compliance with local regulations.

NOTES

• Improper use of the grids can result in damage to the hob surface. Do not position the grids upside down or drag them across the hob.

• In case of prolonged use, additional ventilation may be needed (opening a window or increasing the extraction force of the hood).

• Keep children away from the hob when it is in use and do not let them play with the controls or any other appliance parts.

Warning

grids, please ensure that all the feet are correctly fitted.

INSTALLATION

: the protective rubber feet on the grids represent a chocking hazard for young children. After removing the

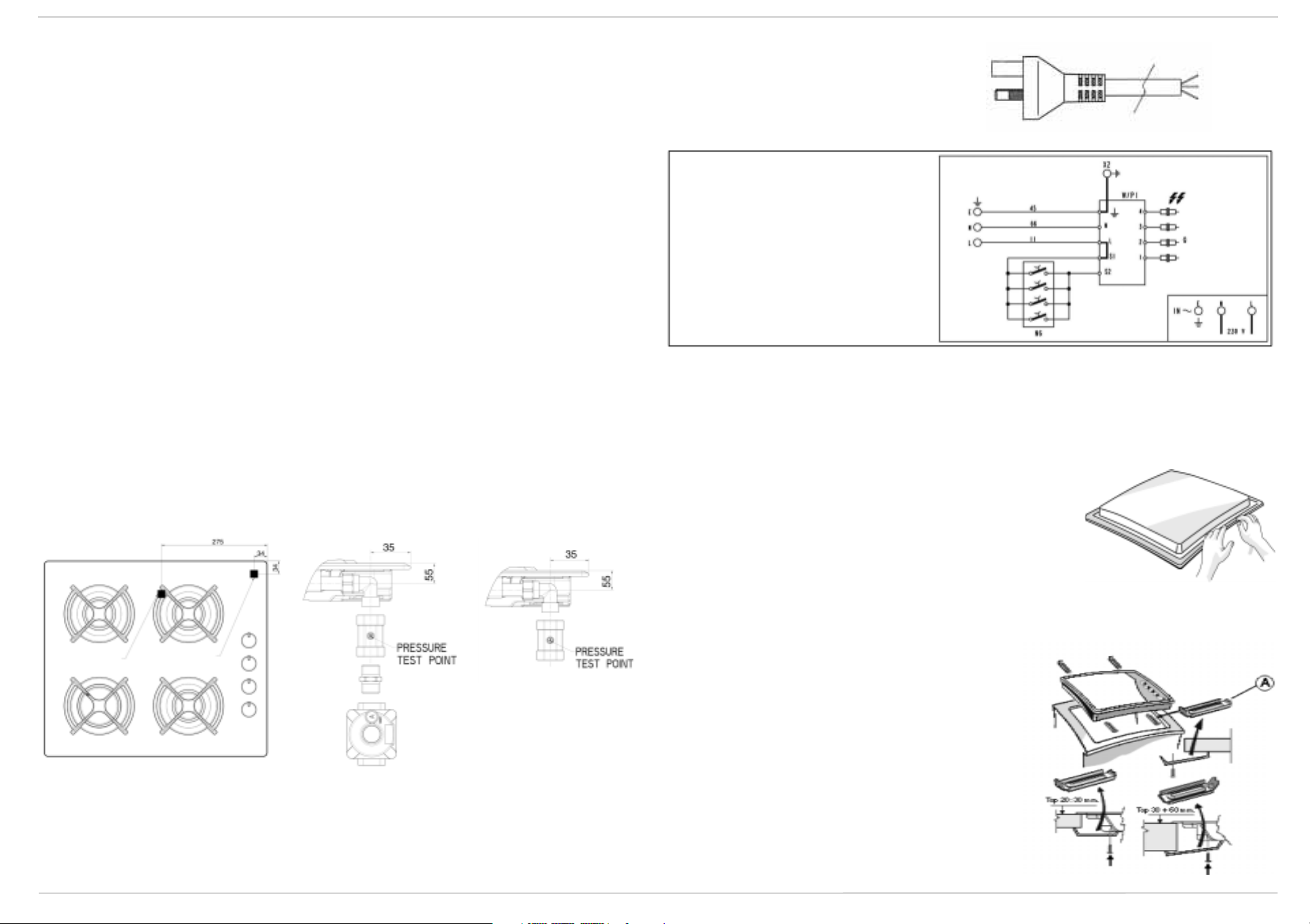

TECHNICAL INFORMATION FOR THE INSTALLER

• This product can be embedded in a worktop 20 to 60 mm thick.

• If there is no oven beneath the hob, insert a separator panel that has a surface at least equal to the opening

in the work surface. This panel must be positioned at a maximum distance of 150 mm below the upper surface of the work surface but, in no case less than 20 mm from the bottom of the hob. In the case that you intend to install an oven beneath the hob, make sure that it is manufactured by Whirlpool and equipped with a cooling system. The manufacturer declines all liability if another brand oven is installed beneath the hob.

• Before installation, make sure that:

- the local gas delivery conditions (nature and pressure) are compatible with the settings of the hob (see the

rating plate and injector table).

- The outer surfaces of the furniture or appliances adjacent to the hob are heat resistant according to local regulations.

- Combustion products are discharged outdoors through specific hoods or wall and/or window mounted electrical fans.

SIDE CLEARANCE

Where the distance measured between the periphery of the burner and any vertical combustible surface is less than 200mm, the surface shall be protected in accordance with Clause 5.12.1.2 of AS5601 to a height of not less than 150mm above the hotplate top surface for the full length and width of the cooking surface area. Note: the cooking surface area is defined as the part of the appliance where the cooking normally takes place and does not include those parts of the appliance containing the control knobs.

Do not place anything, eg. flame tamer, asbestos mat, between pan and pan support as serious damage to the appliance may result.

Do not remove the pan support and enclose the burner with a wok stand as this will concentrate and deflect heat onto the hotplate.

Do not use large pots or heavy weights which can bend the pan support or deflect flame onto the hotplate.

Locate pan centrally over the burner so that it is stable and does not overhang the appliance.

Use only a wok support supplied or recommended by the manufacturer of the appliance.
