Whirlpool GU3100XTVB0, GU3100XTVQ0, GU3100XTVS0 Installation Guide

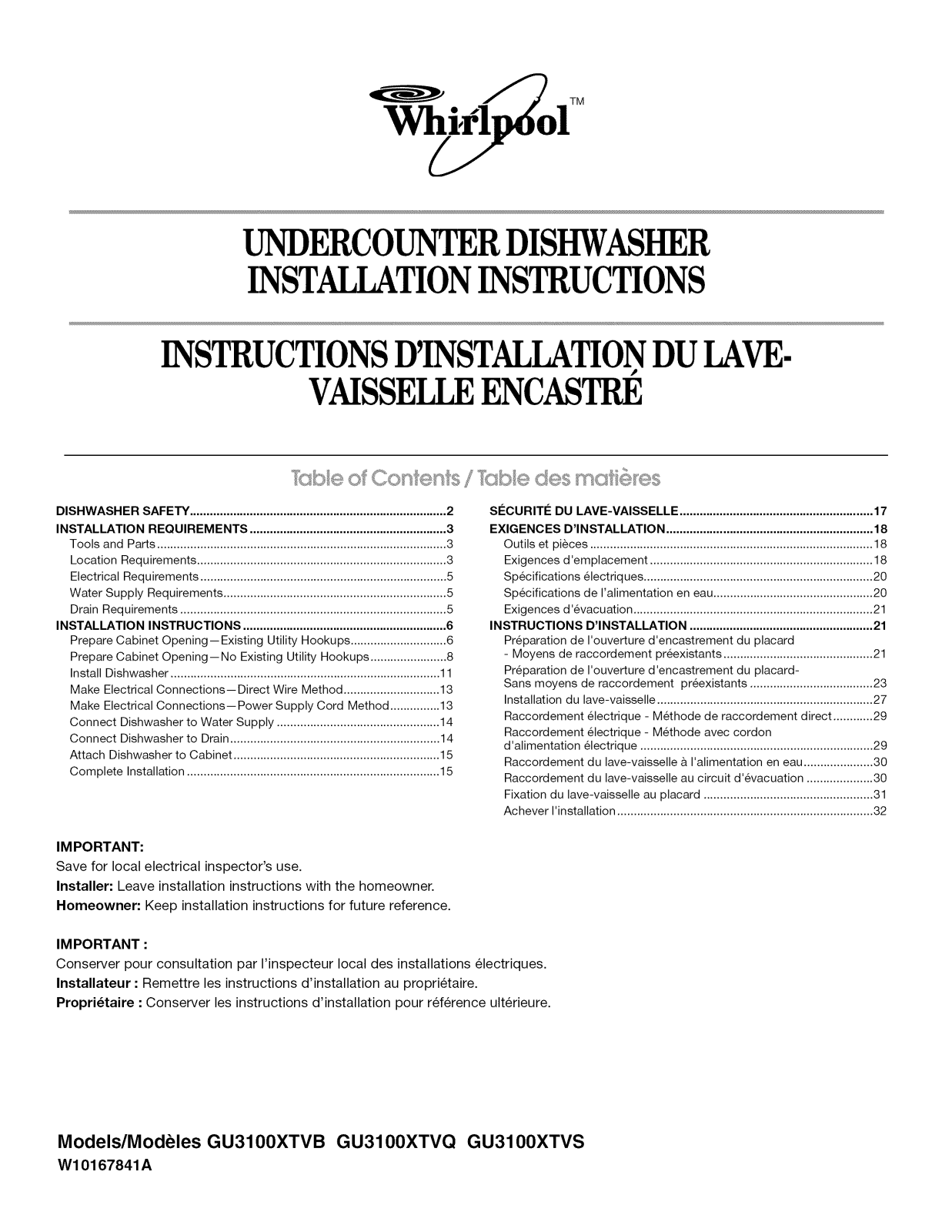

UNDERCOUN R DISHWASHER
INST TION INSTRUCTIONS
INSTRUCTIONSD'INSTALIATIONDU[AVE.
VAISSEILE ENCASTRE
_be of ........_o_ " ksDe des mcs et_es
DISHWASHER SAFETY ............................................................................. 2
INSTALLATION REQUIREMENTS ........................................................... 3
Tools and Parts ....................................................................................... 3
INSTALLATION INSTRUCTIONS ............................................................. 6
Install Dishwasher ................................................................................. 11

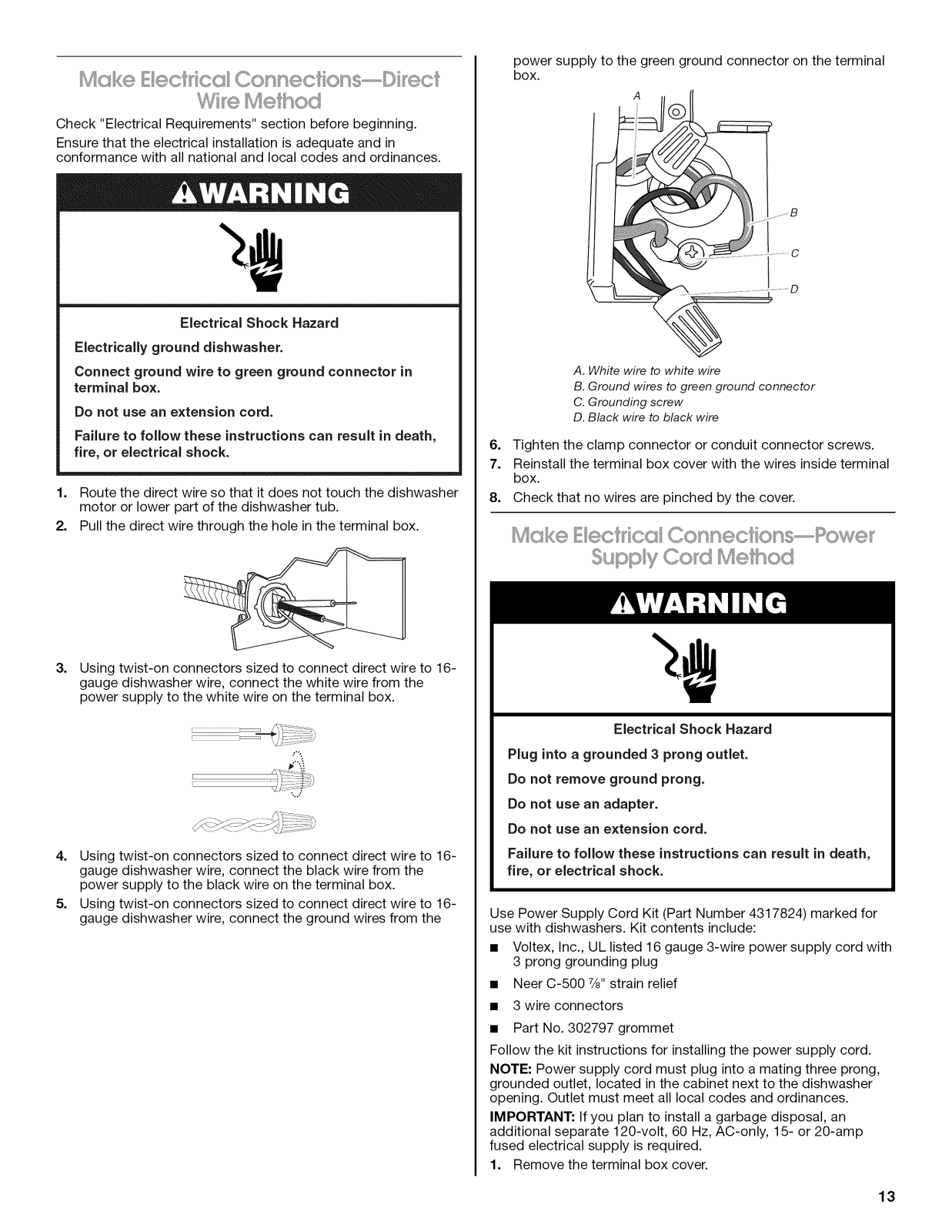

Make Electrical Connections--Direct Wire Method ............................. 13

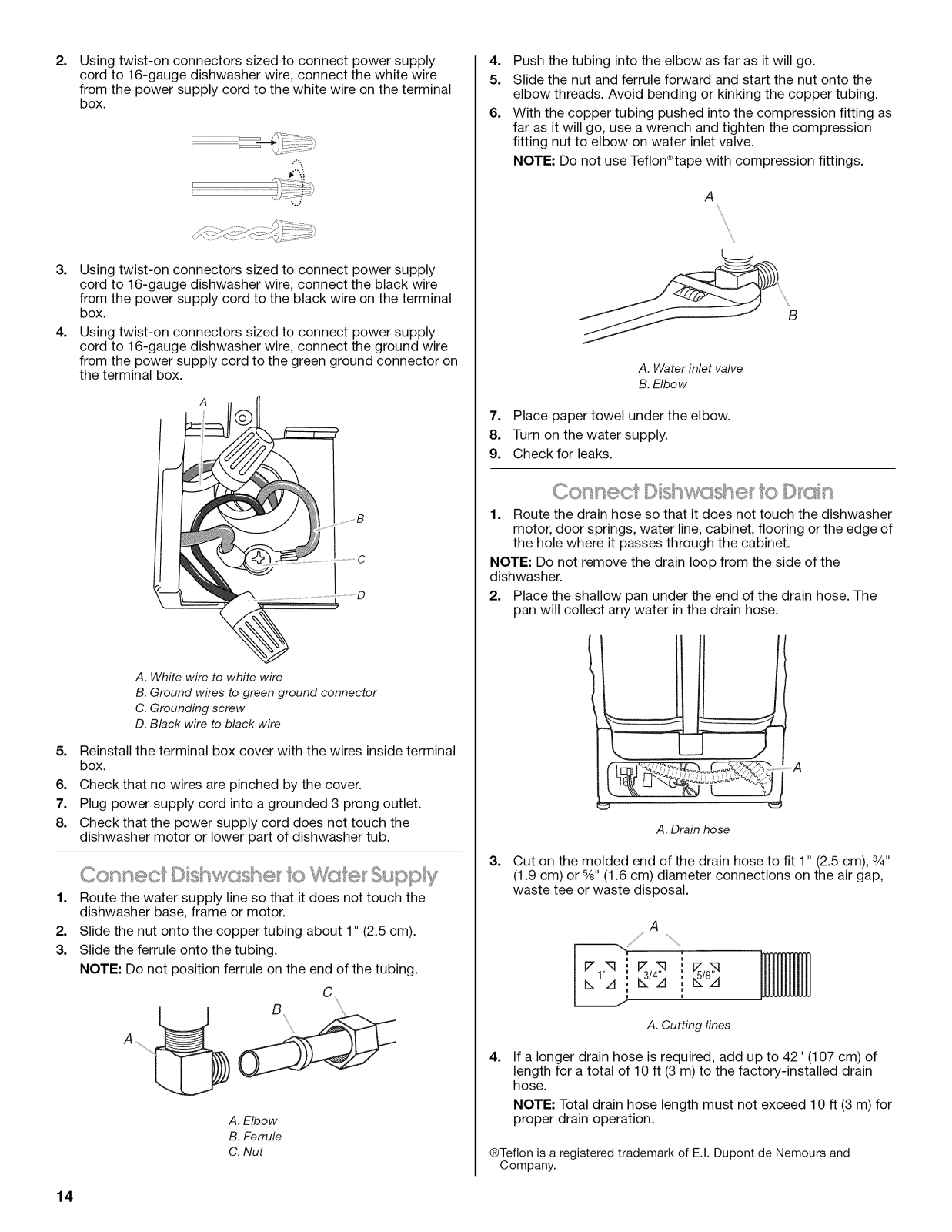

Make Electrical Connections-- Power Supply Cord Method ............... 13
Connect Dishwasher to Water Supply ................................................. 14
Connect Dishwasher to Drain ............................................................... 14

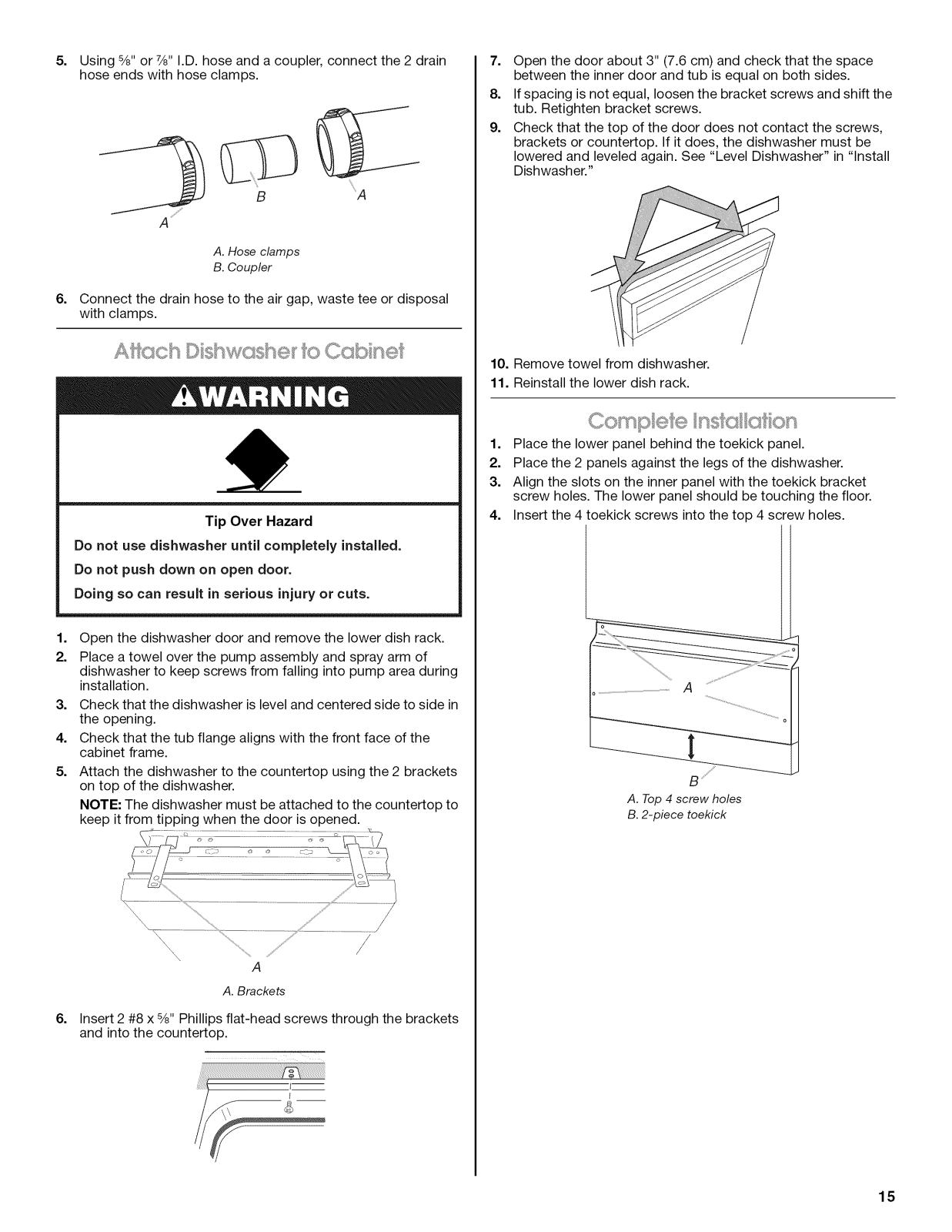

Attach Dishwasher to Cabinet .............................................................. 15
Complete Installation ............................................................................ 15
IM PORTANT: Save for local electrical inspector's use.
Installer: Leave installation instructions with the homeowner. Homeowner: Keep installation instructions for future reference.
C,o__es s / __,_ _, _,o,,

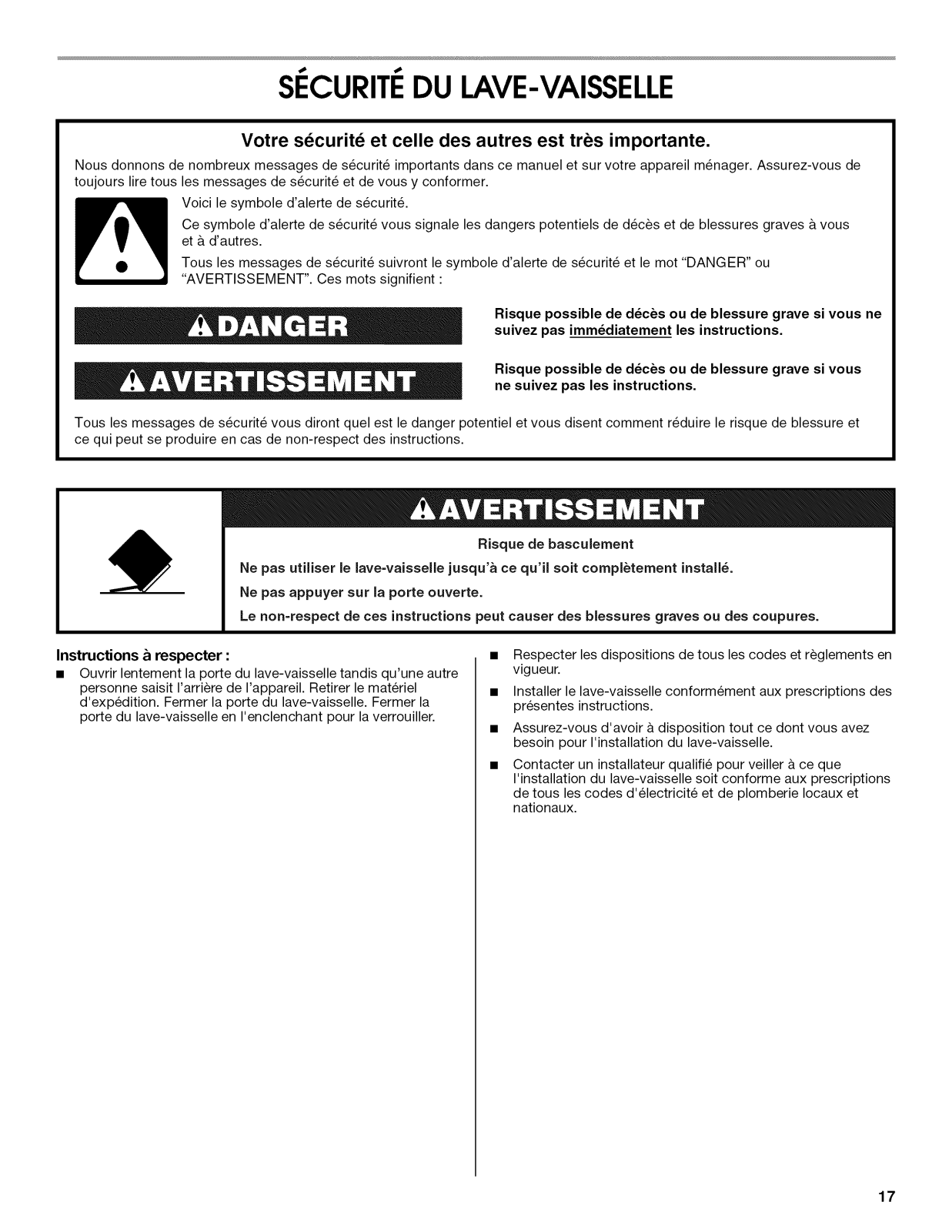

SI_CURITI_ DU LAVE-VAISSELLE .......................................................... 17

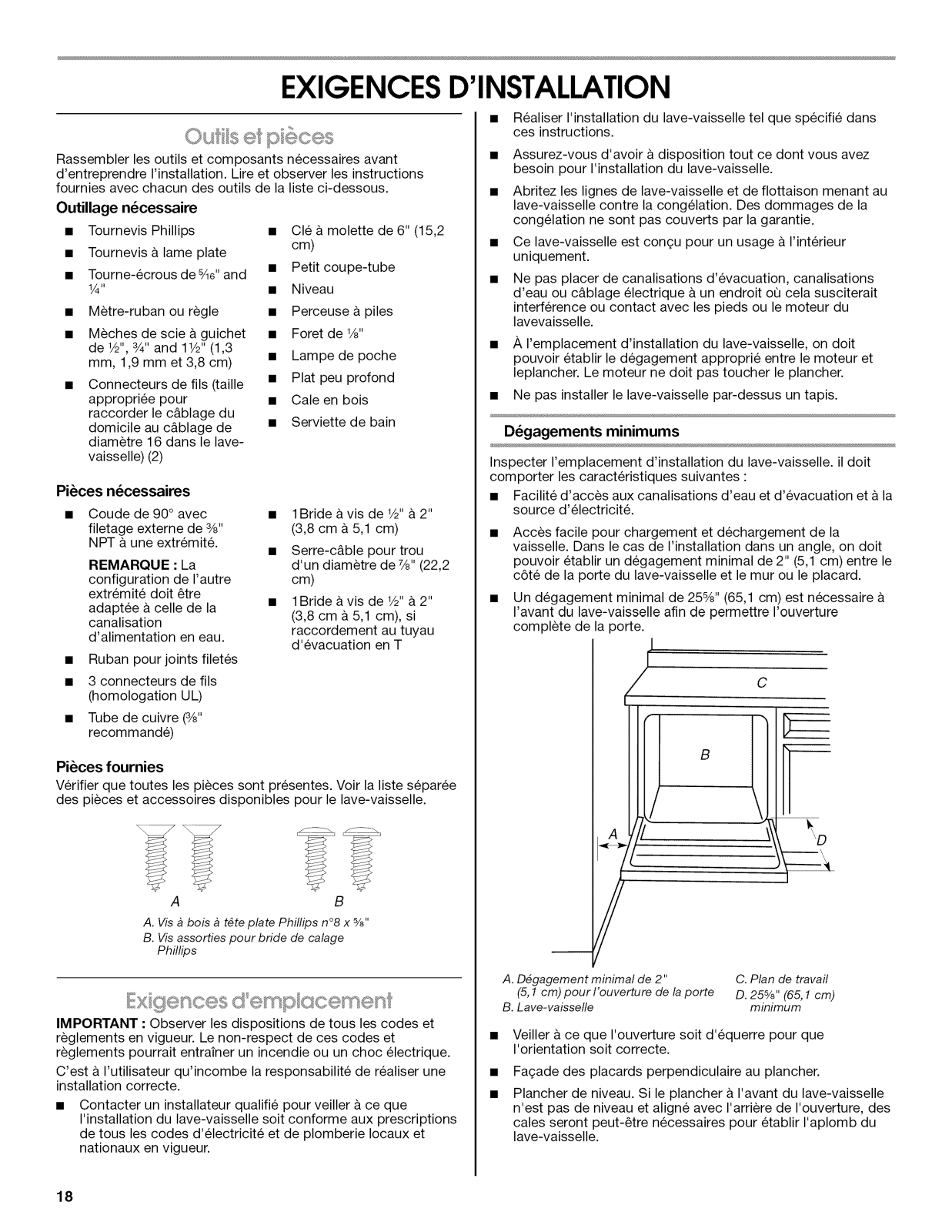

EXIGENCES D'INSTALLATION .............................................................. 18
Outils et pieces ..................................................................................... 18

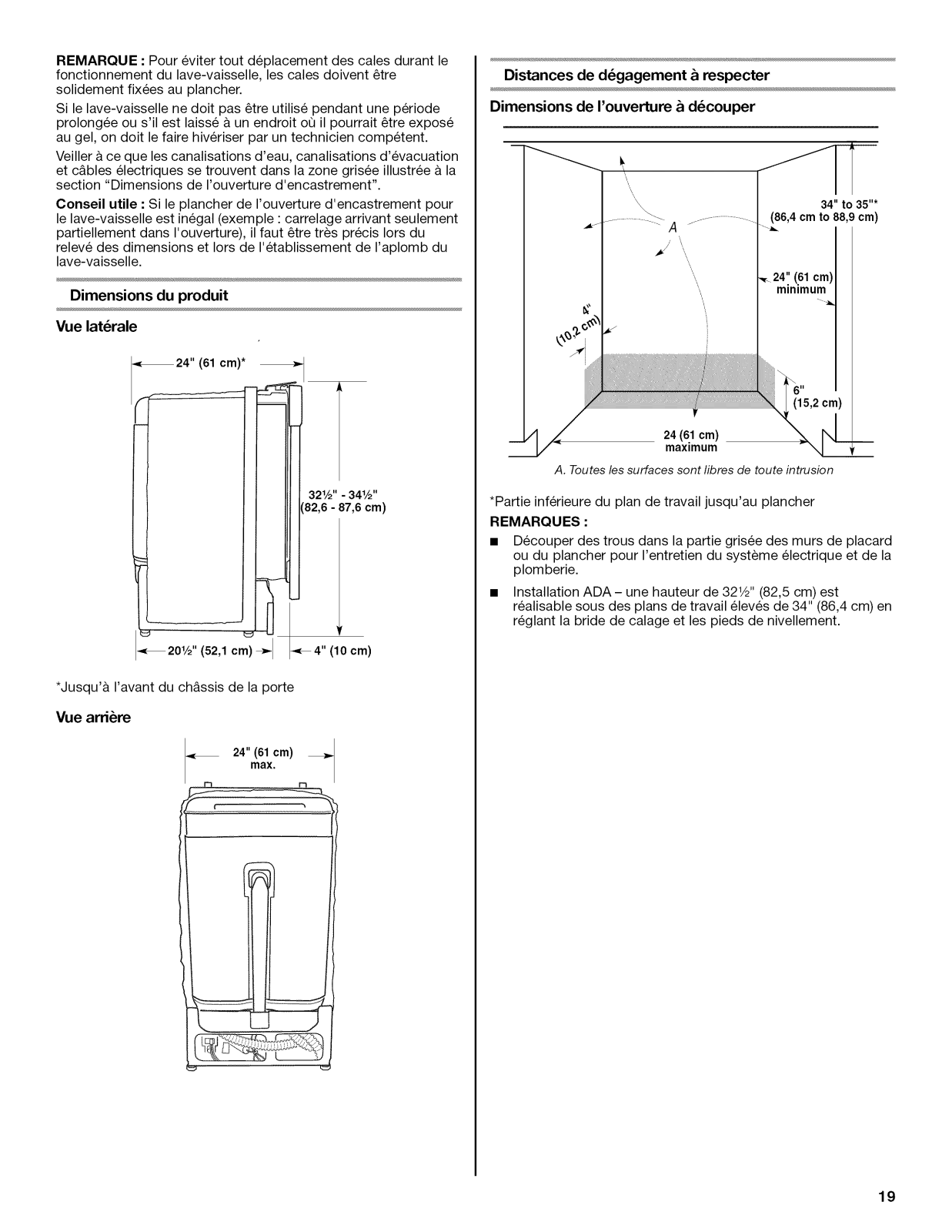

Exigences d'emplacement ................................................................... 18

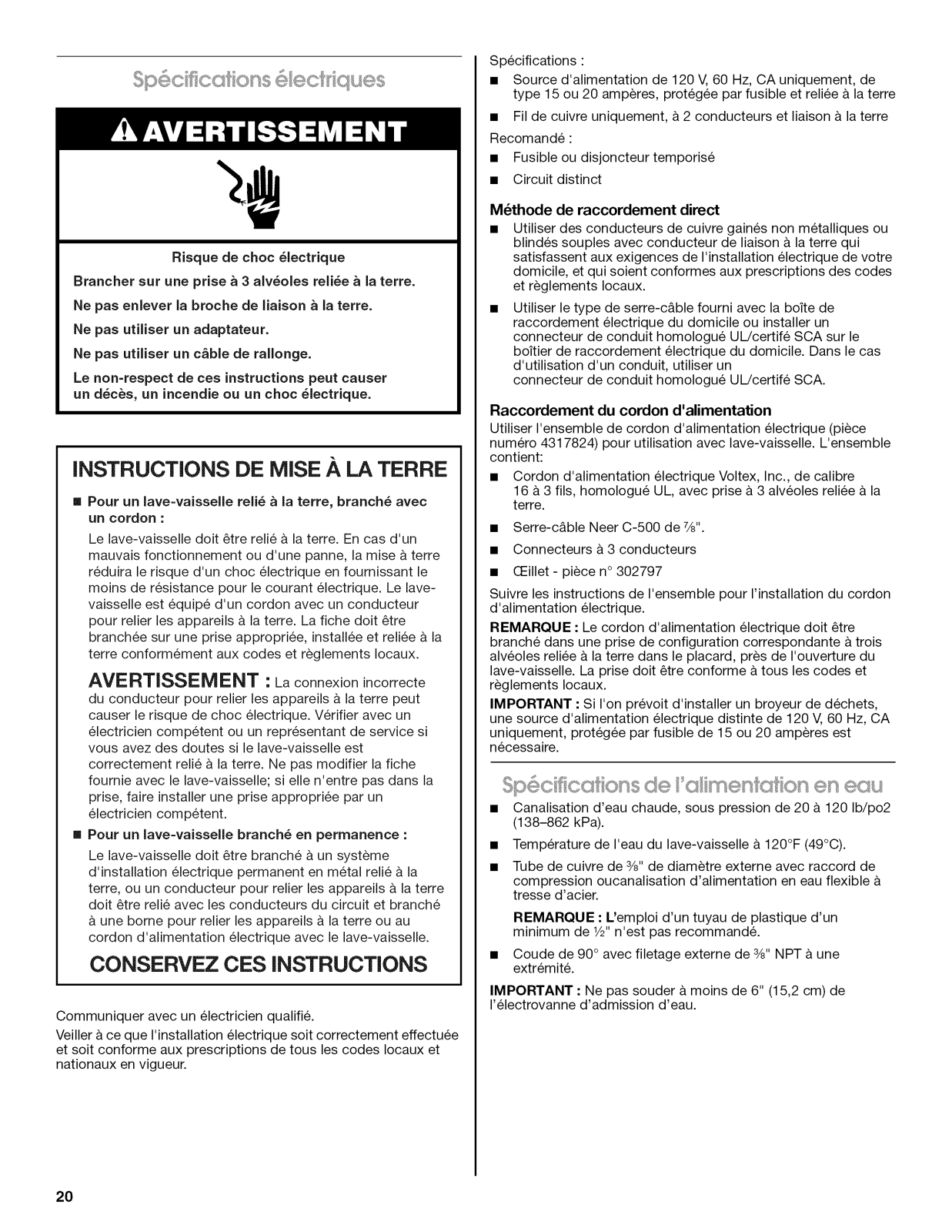

Specifications _lectriq ues ..................................................................... 20
Specifications de I'alimentation en eau ................................................ 20

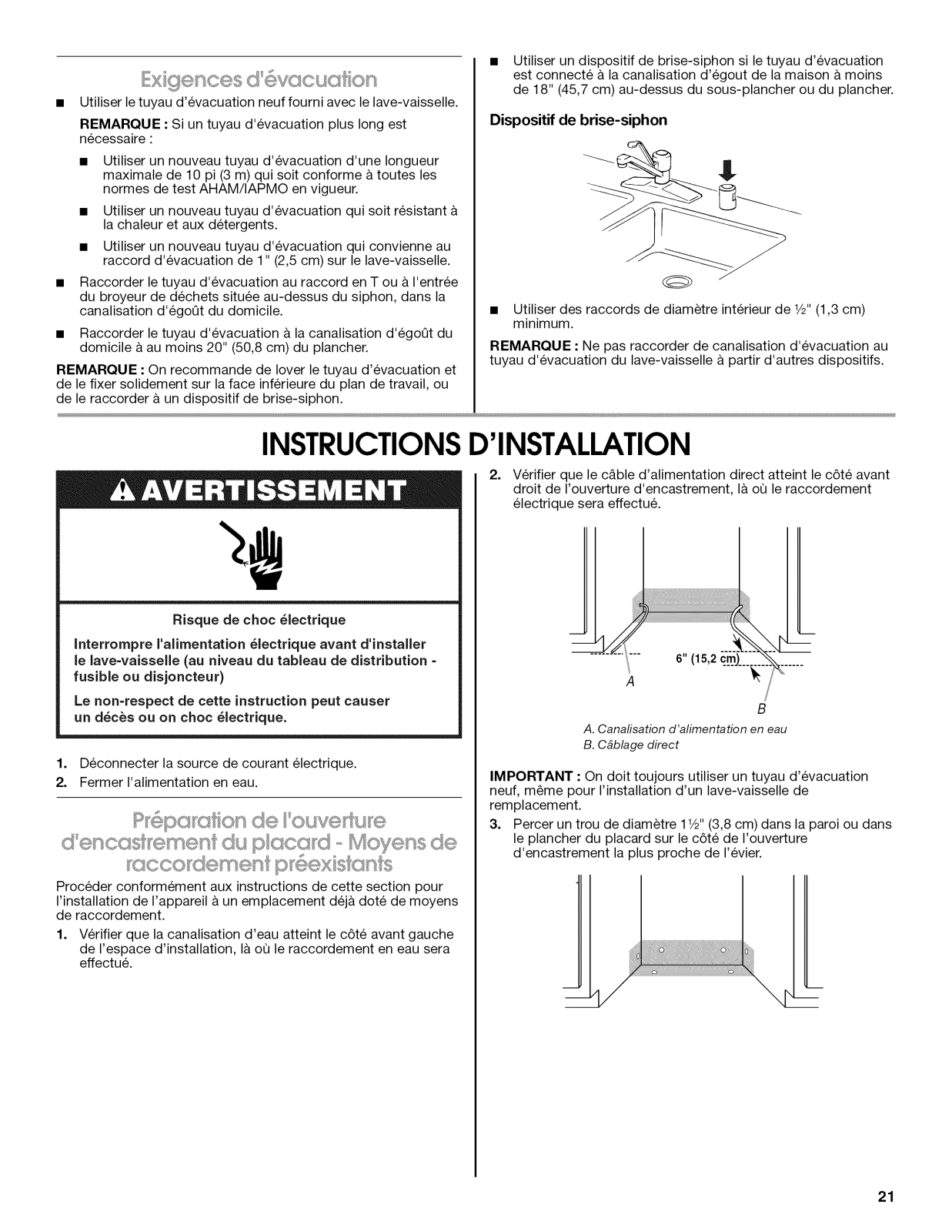

Exigences d'evacuation ........................................................................ 21
INSTRUCTIONS D'INSTALLATION ....................................................... 21
Preparation de I'ouverture d'encastrement du placard
- Moyens de raccordement preexistants ............................................. 21

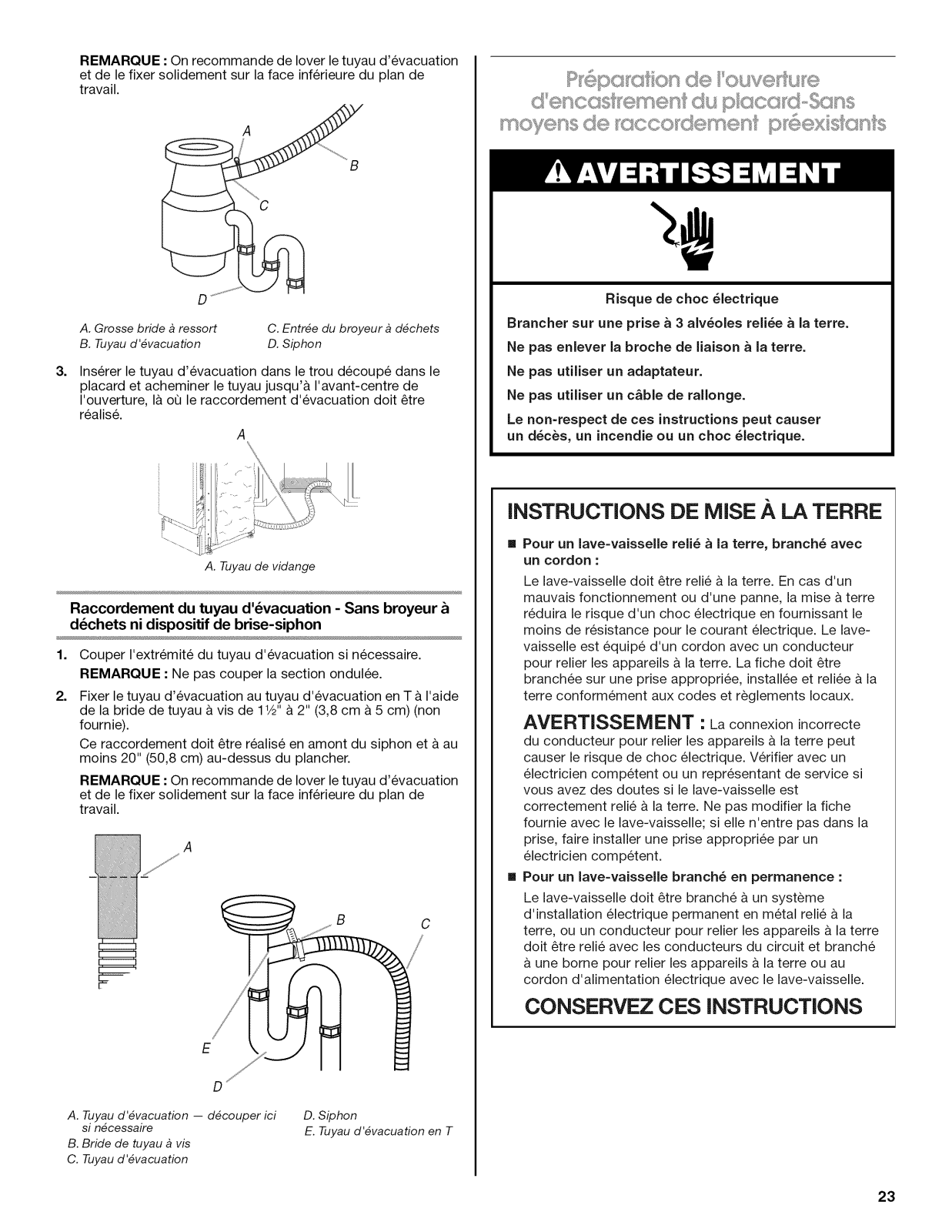

Preparation de I'ouverture d'encastrement du placard-
Sans moyens de raccordement preexistants ..................................... 23

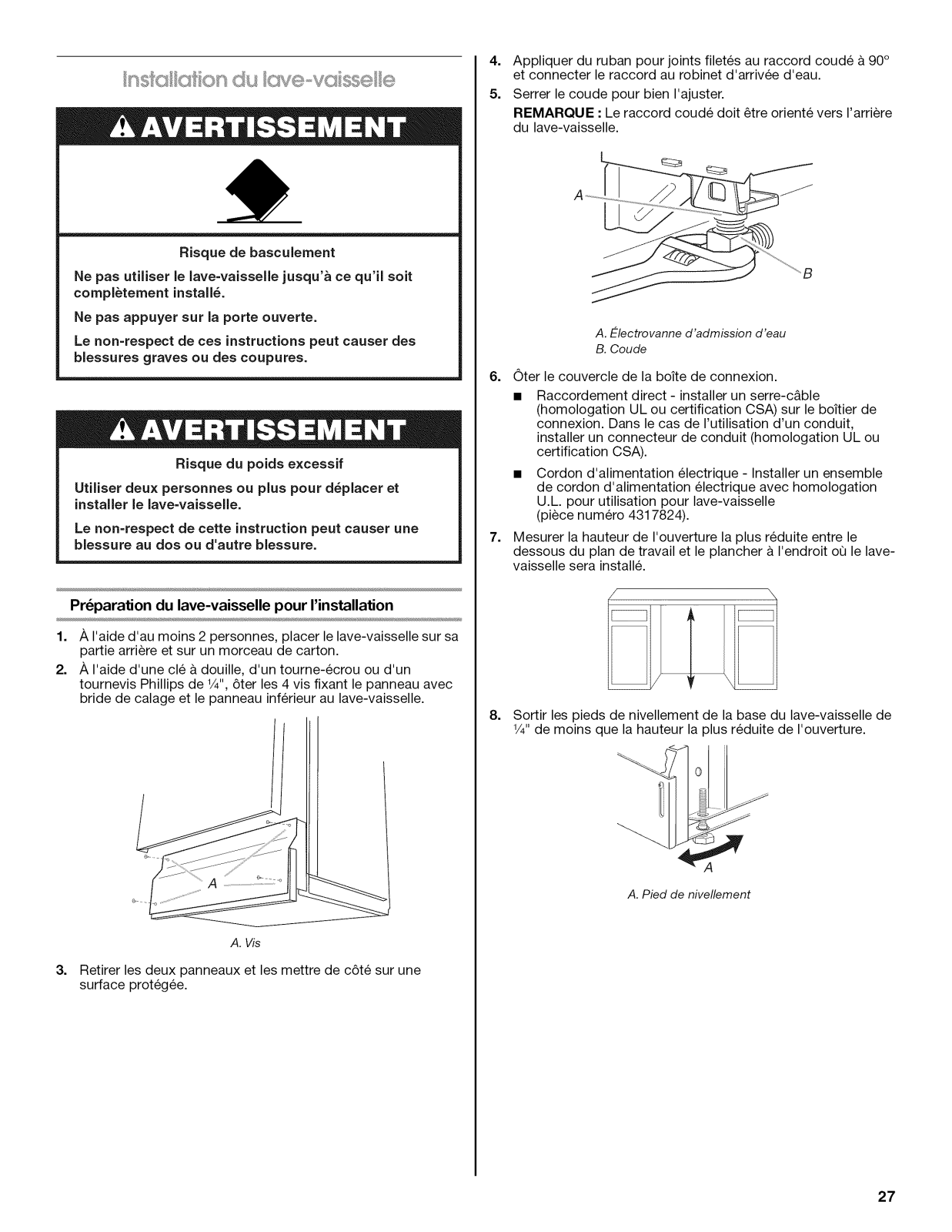

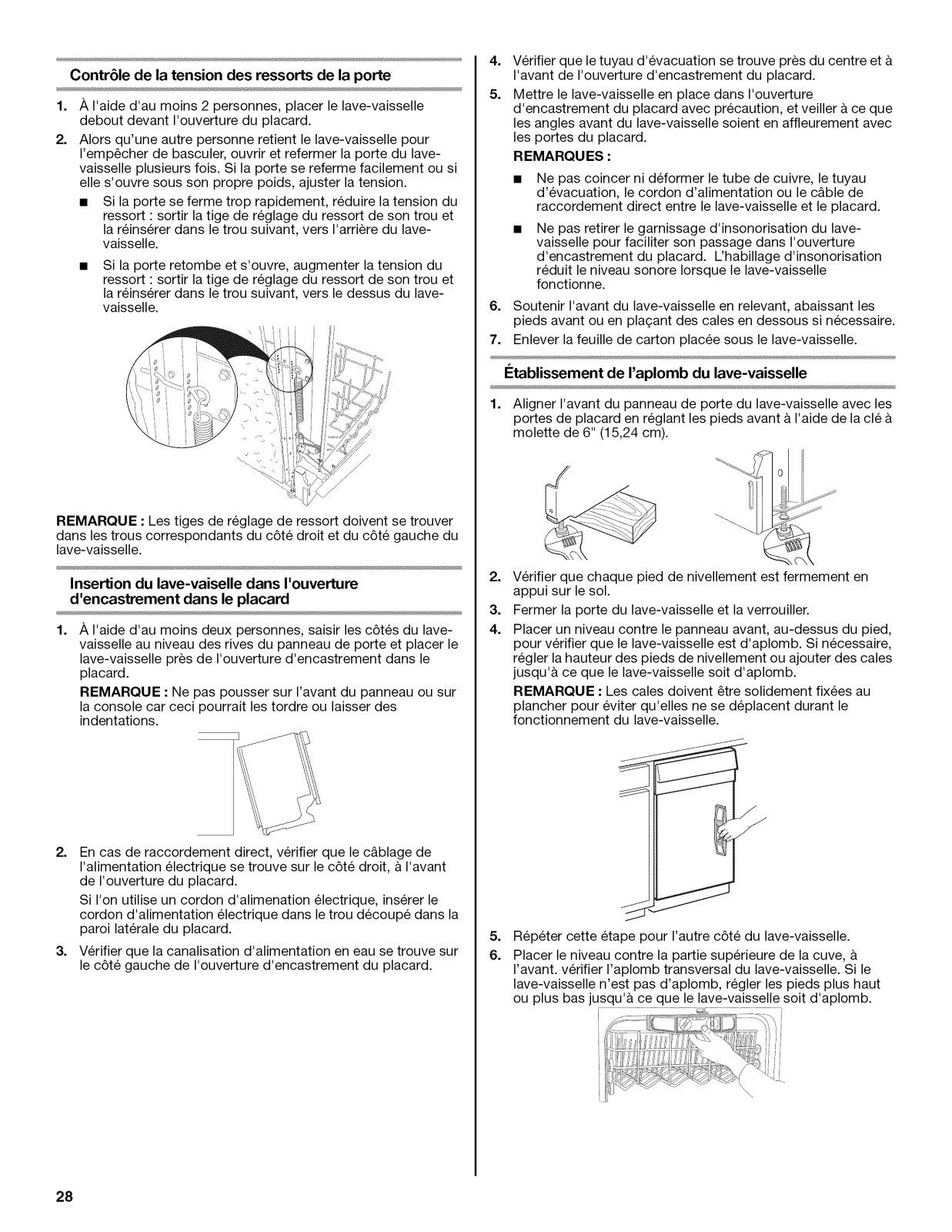

Installation du lave-vaisselle ................................................................. 27

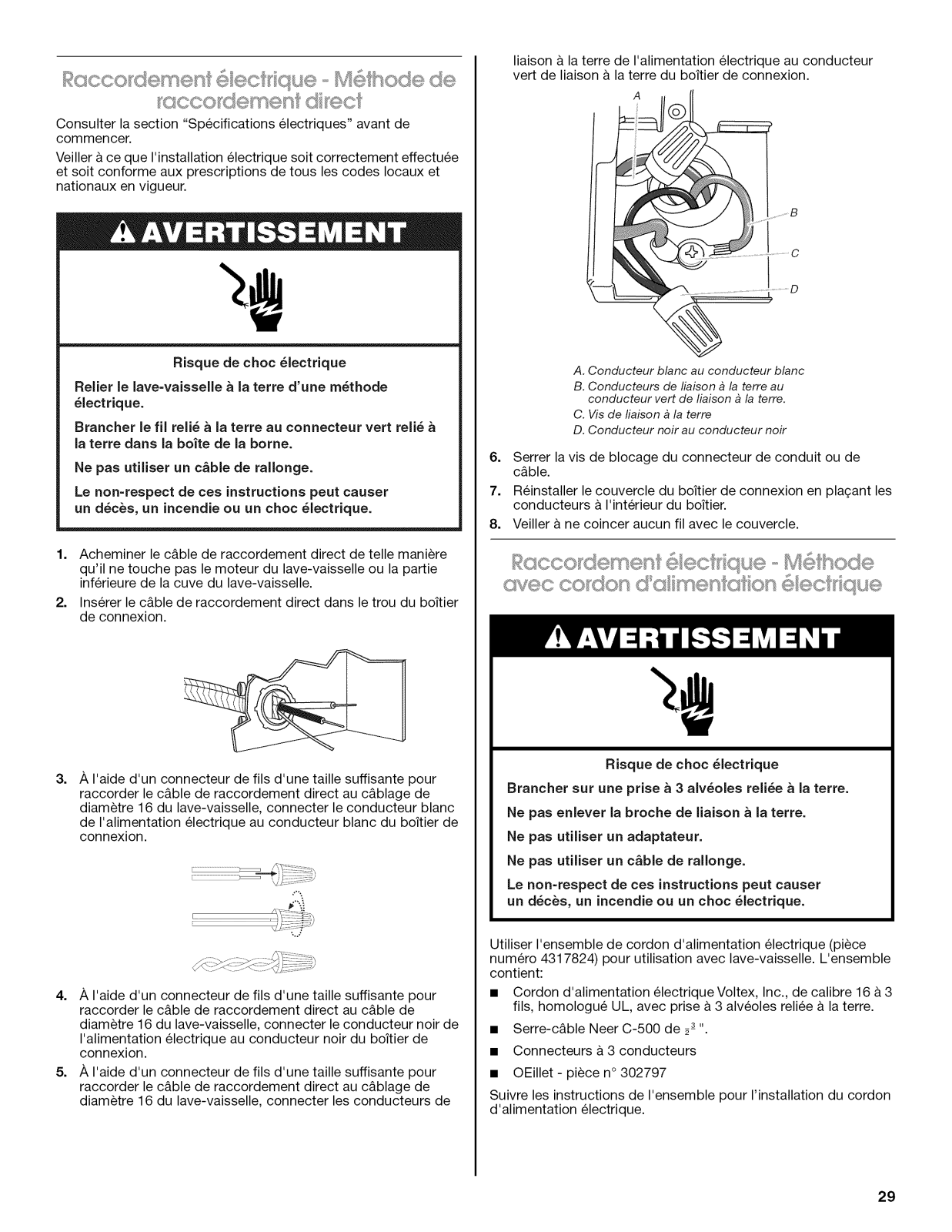

Raccordement _lectrique - Methode de raccordement direct ............ 29
Raccordement 61ectrique - Methode avec cordon
d'alimentation _lectrique ...................................................................... 29

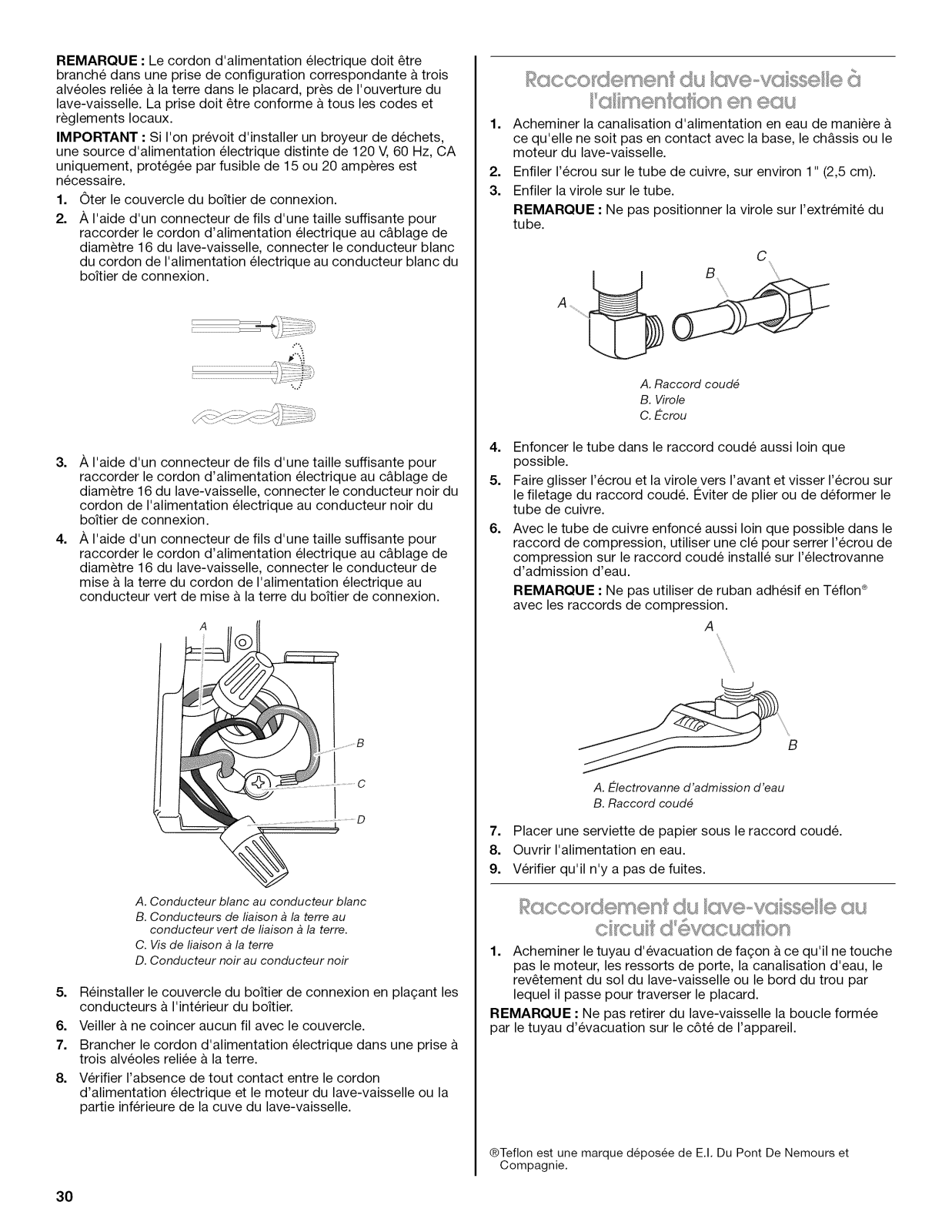

Raccordement du lave-vaisselle &I'alimentation en eau ..................... 30
Raccordement du lave-vaisselle au circuit d'evacuation .................... 30

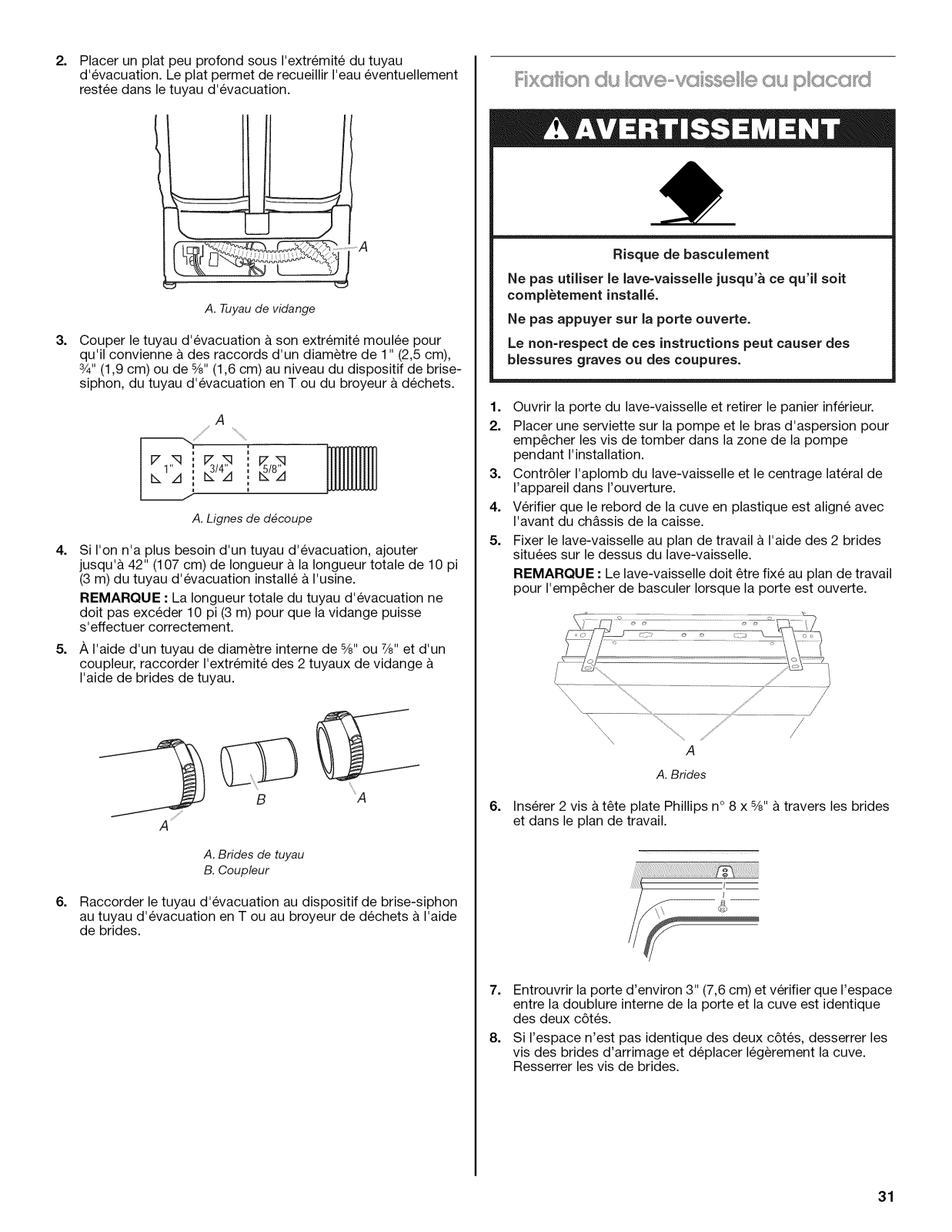

Fixation du lave-vaisselle au placard ................................................... 31
Achever I'installation ............................................................................. 32
IMPORTANT :
Conserver pour consultation par I'inspecteur local des installations electriques. Installateur : Remettre les instructions d'installation au proprietaire.
Propri_taire : Conserver les instructions d'installation pour ref6rence ulterieure.
Models/Modeles GU3100XTVB GU3100XTVQ GU3100XTVS
W10167841A

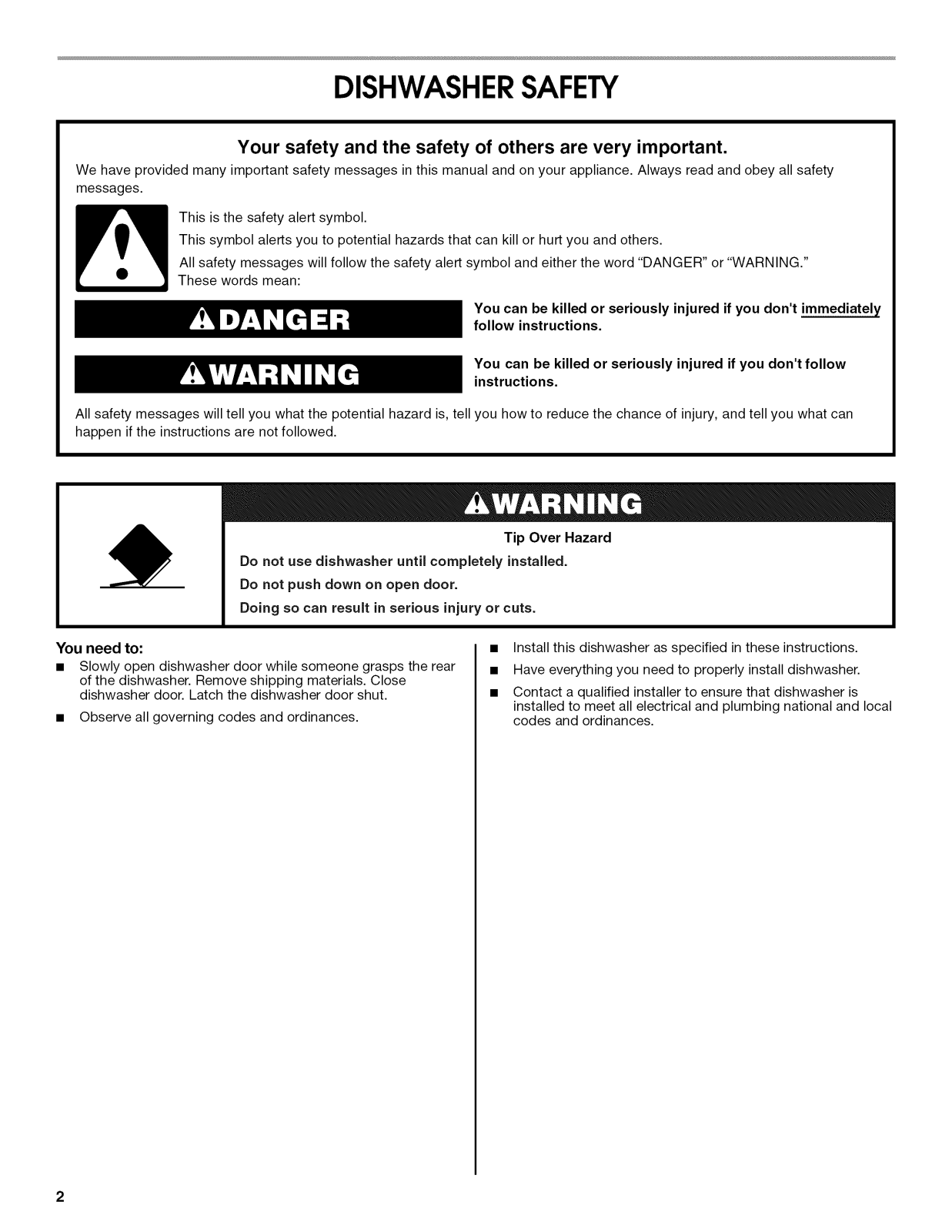

DISHWASHERSAFETY
Your safety and the safety of others are very important.
We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety
messages.
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others.
All safety messages will follow the safety alert symbol and either the word "DANGER" or "WARNING."
These words mean:
You can be killed or seriously injured if you don't immediately
follow instructions.
You can be killed or seriously injured if you don't follow instructions.
All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can happen if the instructions are not followed.
Tip Over Hazard
Do not use dishwasher until completely installed. Do not push down on open door. Doing so can result in serious injury or cuts.
You need to:
• Slowly open dishwasher door while someone grasps the rear of the dishwasher. Remove shipping materials. Close
dishwasher door. Latch the dishwasher door shut.
• Observe all governing codes and ordinances.
• Install this dishwasher as specified in these instructions.
• Have everything you need to properly install dishwasher.
• Contact a qualified installer to ensure that dishwasher is installed to meet all electrical and plumbing national and local
codes and ordinances.
2

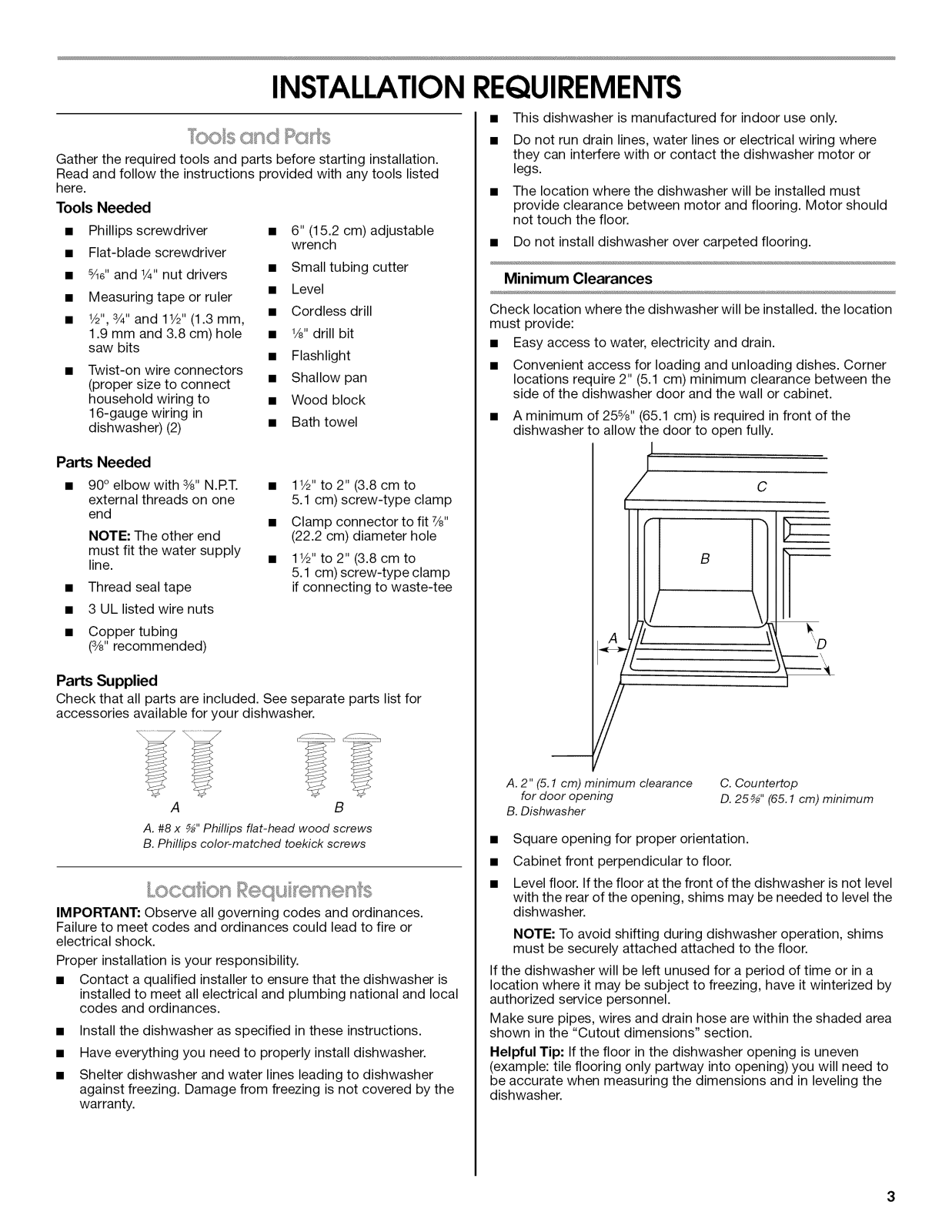

INSTALLATIONREQUIREMENTS
Gather the required tools and parts before starting installation. Read and follow the instructions provided with any tools listed
here.
Tools Needed
Phillips screwdriver Flat-blade screwdriver
8/16"and 1¼.nut drivers Measuring tape or ruler
1/2",3/4"and 11/2"(1.3 mm,
1.9 mm and 3.8 cm) hole saw bits
Twist-on wire connectors
(proper size to connect household wiring to
16-gauge wiring in dishwasher) (2)
Parts Needed
• 90° elbow with 3/8"N.P.T. external threads on one end
NOTE: The other end must fit the water supply
line.
• Thread seal tape
• 3 UL listed wire nuts
• Copper tubing (3/8"recommended)
• 6" (15.2 cm) adjustable wrench
• Small tubing cutter
• Level
• Cordless drill
• 1/8"drill bit
• Flashlight
• Shallow pan
• Wood block
• Bath towel
1V2"to 2" (3.8 cm to
5.1 cm) screw-type clamp Clamp connector to fit 7/8"
(22.2 cm) diameter hole
1V2"to 2" (3.8 cm to
5.1 cm) screw-type clamp
if connecting to waste-tee
This dishwasher is manufactured for indoor use only. Do not run drain lines, water lines or electrical wiring where
they can interfere with or contact the dishwasher motor or legs.
The location where the dishwasher will be installed must provide clearance between motor and flooring. Motor should
not touch the floor.
• Do not install dishwasher over carpeted flooring.
Minimum Clearances
Check location where the dishwasher will be installed, the location must provide:
• Easy access to water, electricity and drain.
• Convenient access for loading and unloading dishes. Corner locations require 2" (5.1 cm) minimum clearance between the
side of the dishwasher door and the wall or cabinet. A minimum of 25%" (65.1 cm) is required in front of the
dishwasher to allow the door to open fully.
I c
A
' . k D
Parts Supplied
Check that all parts are included. See separate parts list for accessories available for your dishwasher.
A B
A. #8 x _" Phillips flat-head wood screws B. Phillips color-matched toekick screws
Locc on eme sis
IMPORTANT: Observe all governing codes and ordinances. Failure to meet codes and ordinances could lead to fire or
electrica( shock. Proper installation is your responsibility.
• Contact a qualified installer to ensure that the dishwasher is installed to meet all electrical and plumbing national and local
codes and ordinances.
• Install the dishwasher as specified in these instructions.
• Have everything you need to properly install dishwasher.
• Shelter dishwasher and water lines leading to dishwasher against freezing. Damage from freezing is not covered by the
warranty.
A. 2" (5.1 cm) minimum clearance
for door opening
B. Dishwasher
• Square opening for proper orientation.
• Cabinet front perpendicular to floor.
• Level floor. If the floor at the front of the dishwasher is not level with the rear of the opening, shims may be needed to level the
dishwasher. NOTE: To avoid shifting during dishwasher operation, shims
must be securely attached attached to the floor.
If the dishwasher will be left unused for a period of time or in a location where it may be subject to freezing, have it winterized by
authorized service personnel. Make sure pipes, wires and drain hose are within the shaded area
shown in the "Cutout dimensions" section. Helpful Tip: If the floor in the dishwasher opening is uneven
(example: tile flooring only partway into opening) you will need to be accurate when measuring the dimensions and in leveling the
dishwasher.
C. Countertop D. 25 _" (65.1 cm) minimum

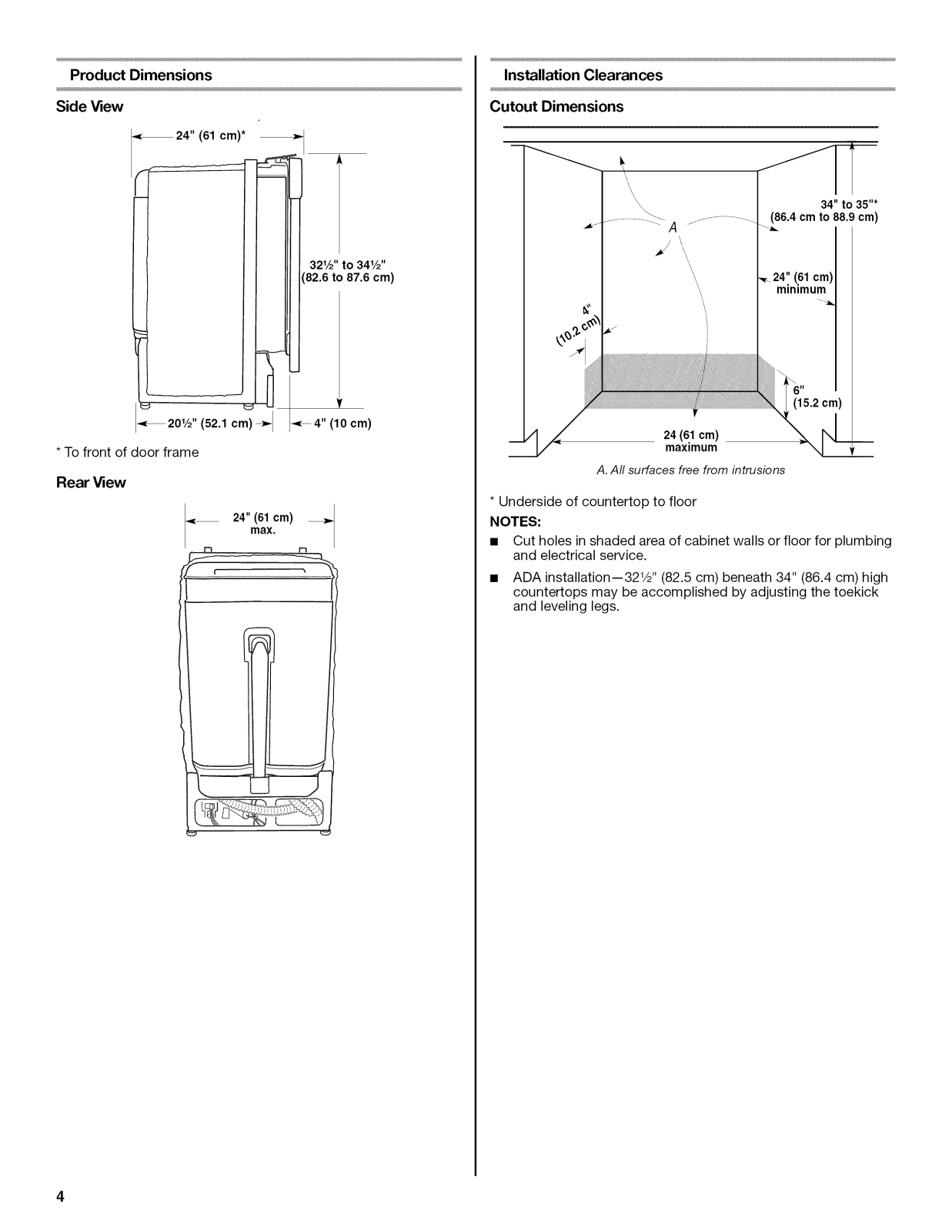

Product Dimensions
Installation Clearances
Side View
_, 24" (61 cm)*
_ 201/£' (52.1 cm) _'_1
* To front of door frame Rear View
U
24" (61 cm)
max.
321,_'' to 341/2''
82.6 to 87.6 cm)
Cutout Dimensions
(61cm)
minimum
(15.2cm)
34"to 35"*
A
24 (61 cm)
maximum
A. All surfaces free from intrusions
(86.4 cm to88.9cm
* Underside of countertop to floor
NOTES:
• Cut holes in shaded area of cabinet walls or floor for plumbing and electrical service.
• ADA installation--321W ' (82.5 cm) beneath 34" (86.4 cm) high countertops may be accomplished by adjusting the toekick
and leveling legs.

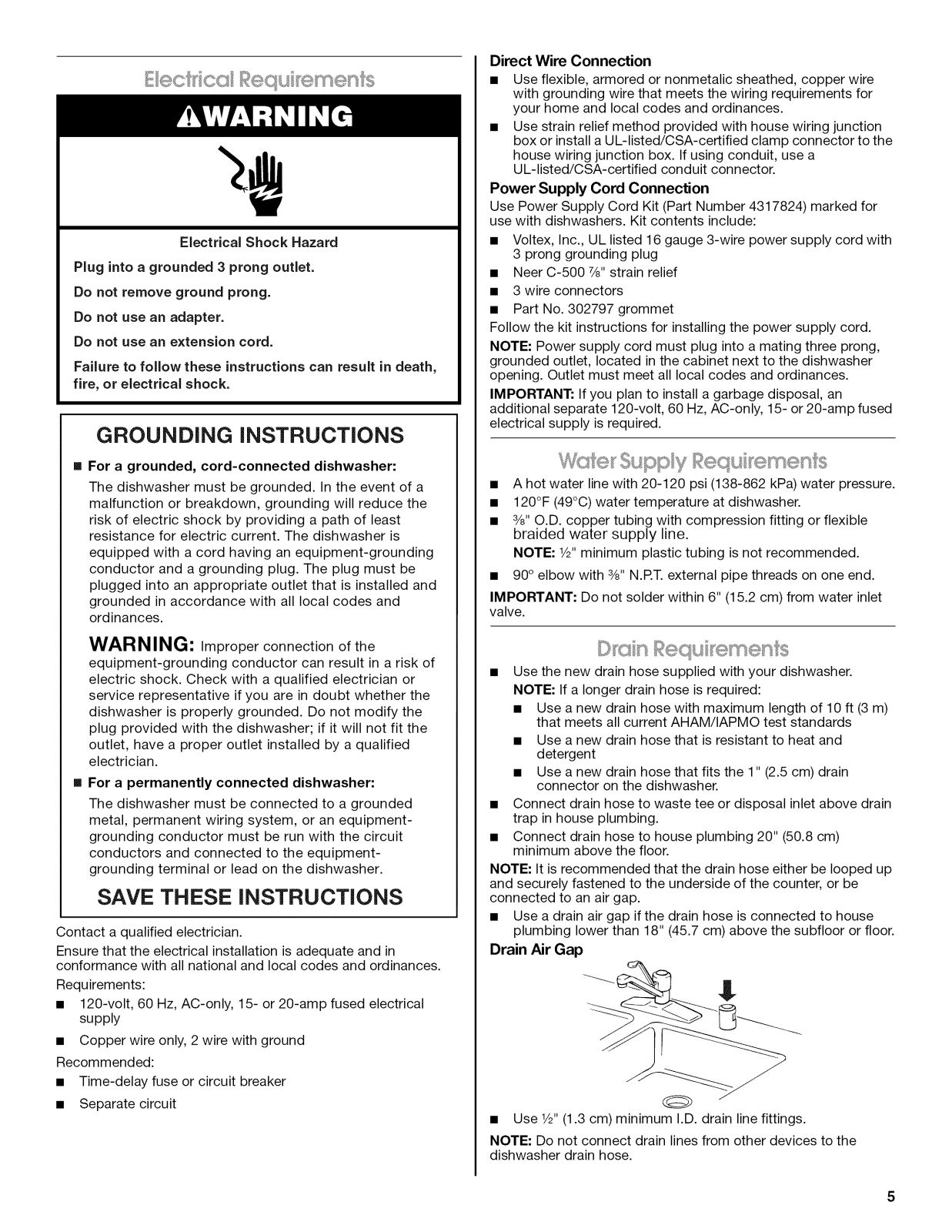

Electrical Shock Hazard
Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter.
Do not use an extension cord. Failure to folow these instructions can result in death,
fire, or electrical shock.

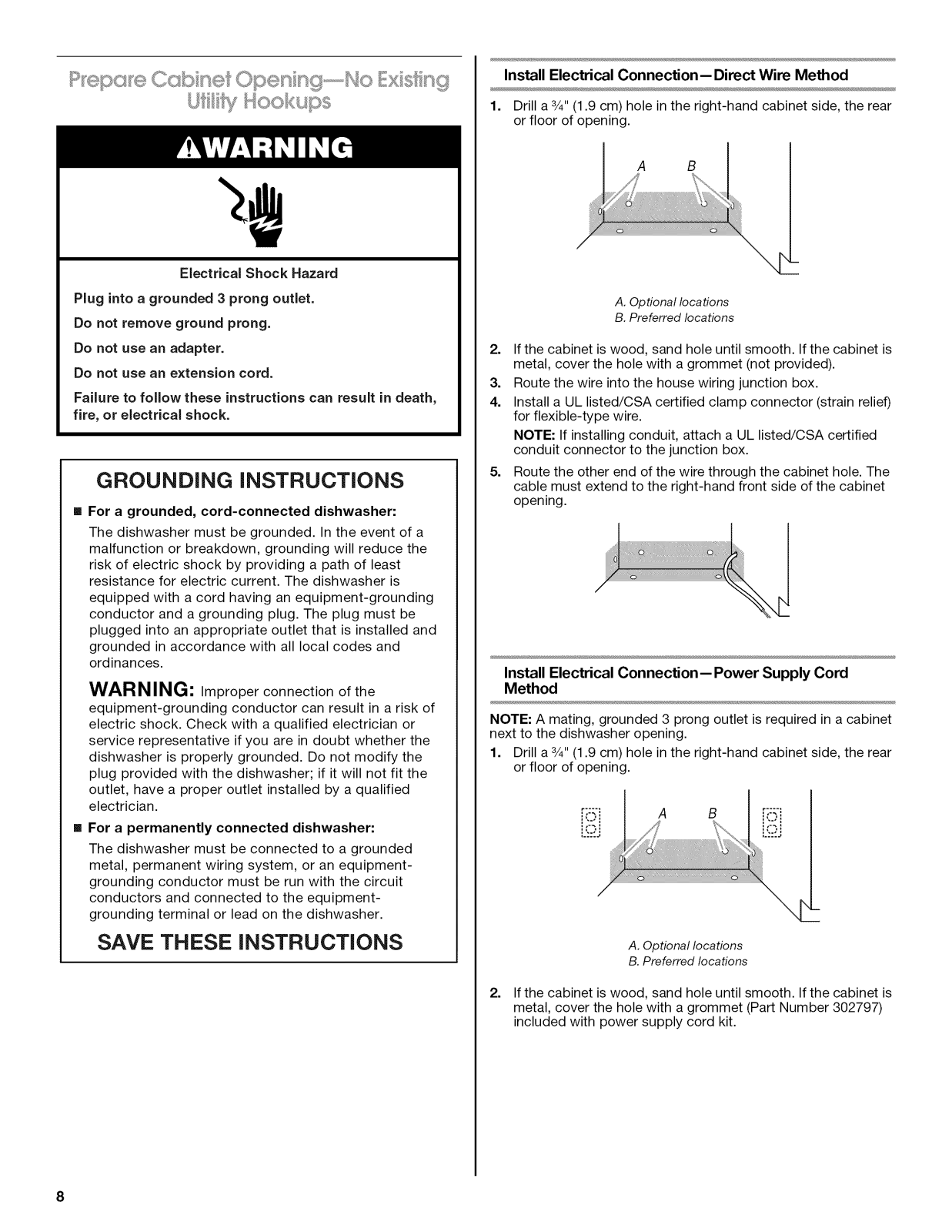

GROUNDING iNSTRUCTiONS
m
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least resistance for electric current. The dishwasher is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
Direct Wire Connection
• Use flexible, armored or nonmetalic sheathed, copper wire with grounding wire that meets the wiring requirements for
your home and local codes and ordinances.
• Use strain relief method provided with house wiring junction box or install a UL-listed/CSA-certified clamp connector to the
house wiring junction box. If using conduit, use a UL-listed/CSA-certified conduit connector.
Power Supply Cord Connection
Use Power Supply Cord Kit (Part Number 4317824) marked for use with dishwashers. Kit contents include:
• Voltex, Inc., UL listed 16 gauge 3-wire power supply cord with 3 prong grounding plug
• Neer C-500 7/8"strain relief
• 3 wire connectors
• Part No. 302797 grommet
Follow the kit instructions for installing the power supply cord. NOTE: Power supply cord must plug into a mating three prong,
grounded outlet, located in the cabinet next to the dishwasher opening. Outlet must meet all local codes and ordinances.
IMPORTANT: If you plan to install a garbage disposal, an additional separate 120-volt, 60 Hz, AC-only, 15- or 20-amp fused electrical supply is required.
• A hot water line with 20-120 psi (138-862 kPa) water pressure.
• 120°F (49°0) water temperature at dishwasher.
• 3/8"O.D. copper tubing with compression fitting or flexible braided water supply line.
NOTE: Y2"minimum plastic tubing is not recommended.
• 90° elbow with %" N.RT. external pipe threads on one end.
IMPORTANT: Do not solder within 6" (15.2 cm) from water inlet valve.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the
plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified
electrician.
m
For a permanently connected dishwasher: The dishwasher must be connected to a grounded
metal, permanent wiring system, or an equipment- grounding conductor must be run with the circuit conductors and connected to the equipment-
grounding terminal or lead on the dishwasher.
SAVE THESE iNSTRUCTiONS
Contact a qualified electrician. Ensure that the electrical installation is adequate and in
conformance with all national and local codes and ordinances. Requirements:
• 120-volt, 60 Hz, AC-only, 15- or 20-amp fused electrical supply
• Copper wire only, 2 wire with ground
Recommended:
• Time-delay fuse or circuit breaker
• Separate circuit
• Use the new drain hose supplied with your dishwasher. NOTE: If a longer drain hose is required:
• Use a new drain hose with maximum length of 10 ft (3 m)
that meets all current AHAM/IAPMO test standards
• Use a new drain hose that is resistant to heat and
detergent
• Use a new drain hose that fits the 1" (2.5 cm) drain
connector on the dishwasher.
• Connect drain hose to waste tee or disposal inlet above drain trap in house plumbing.
• Connect drain hose to house plumbing 20" (50.8 cm) minimum above the floor.
NOTE: It is recommended that the drain hose either be looped up and securely fastened to the underside of the counter, or be connected to an air gap.
• Use a drain air gap if the drain hose is connected to house plumbing lower than 18" (45.7 cm) above the subfloor or floor.
Drain Air Gap
• Use V2"(1.3 cm) minimum I.D. drain line fittings.
NOTE: Do not connect drain lines from other devices to the dishwasher drain hose.

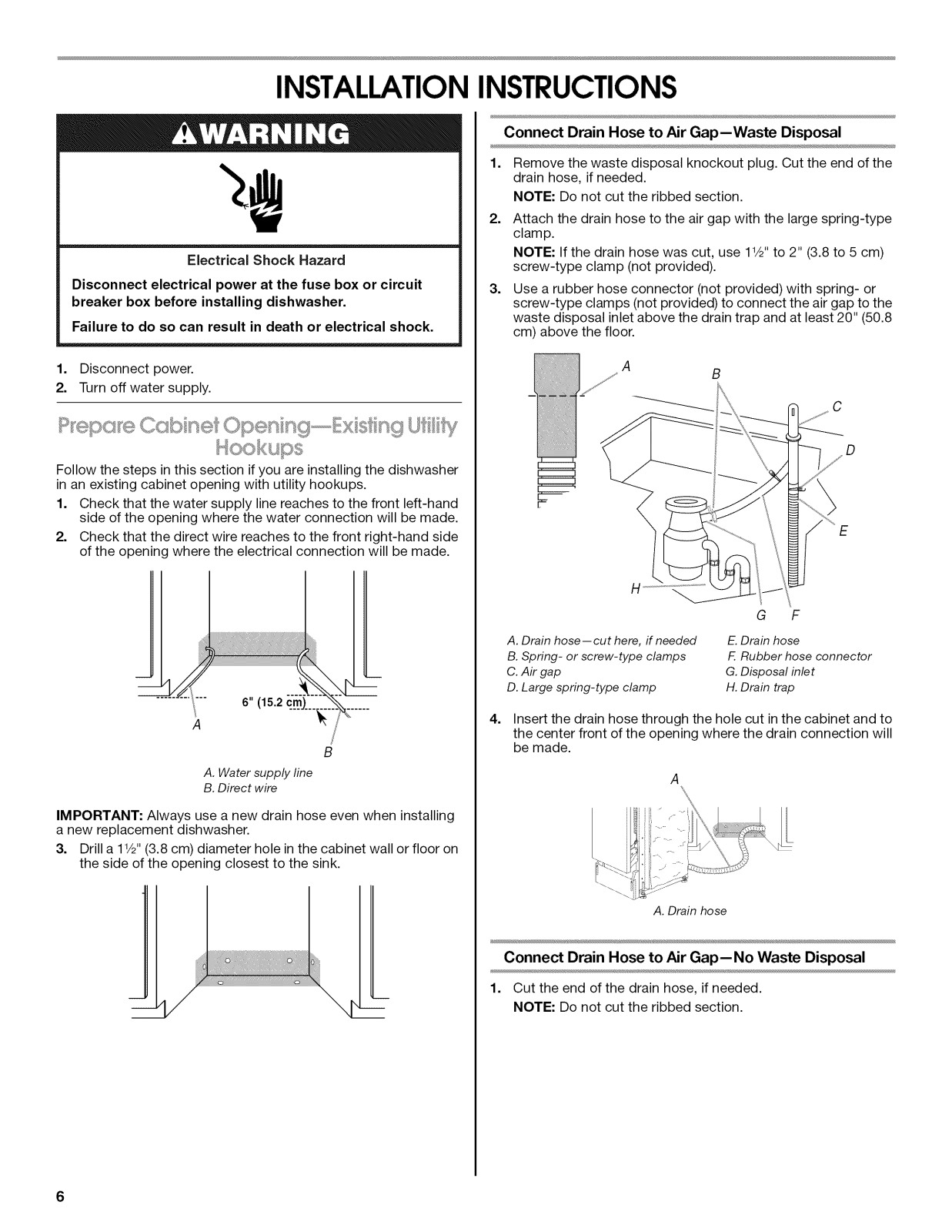

INSTALLATIONINSTRUCTIONS
Electrical Shock Hazard
Disconnect electrical power at the fuse box or circuit breaker box before installing dishwasher.
Failure to do so can result in death or electrical shock.

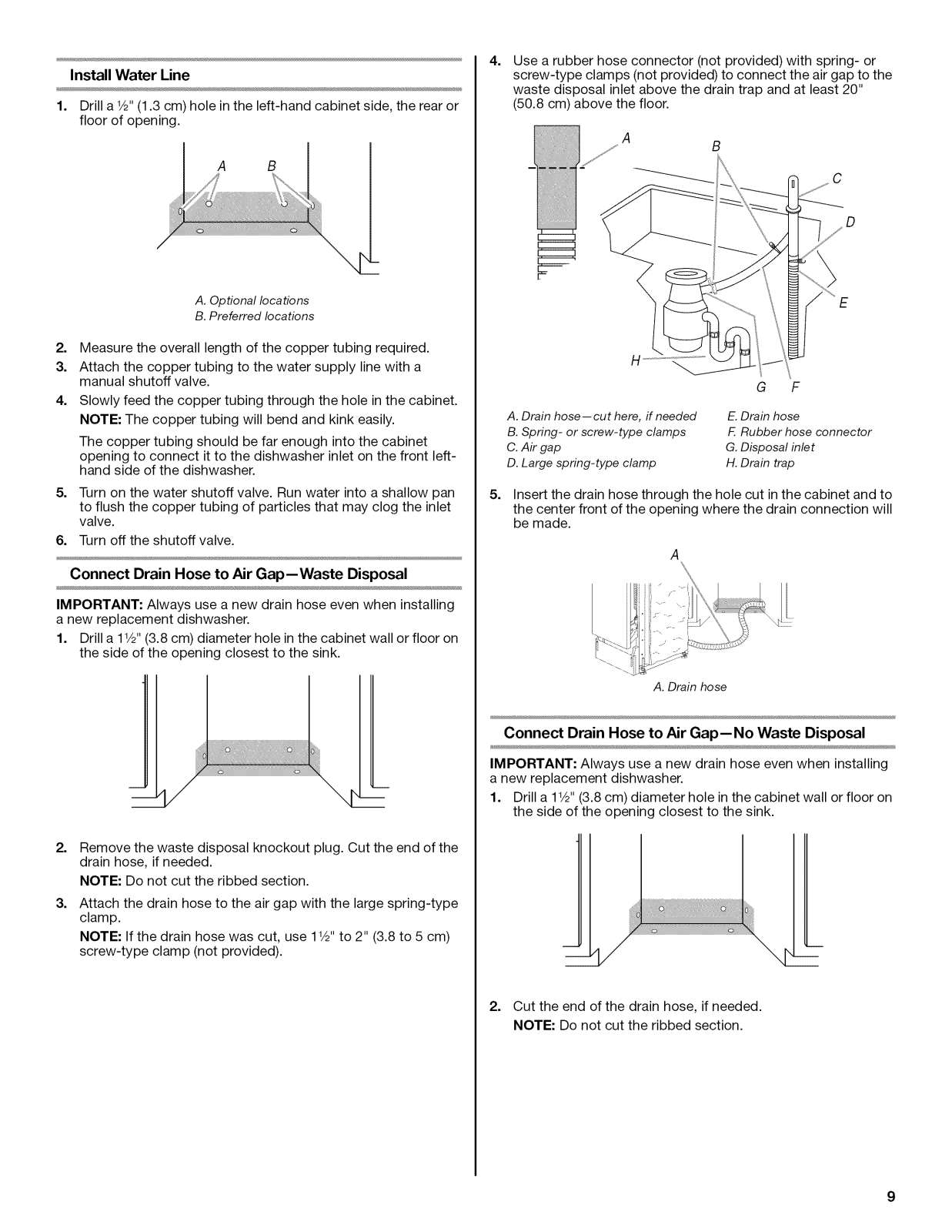

Connect Drain Hose to Air Gap--Waste Disposal
1. Remove the waste disposal knockout plug. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.

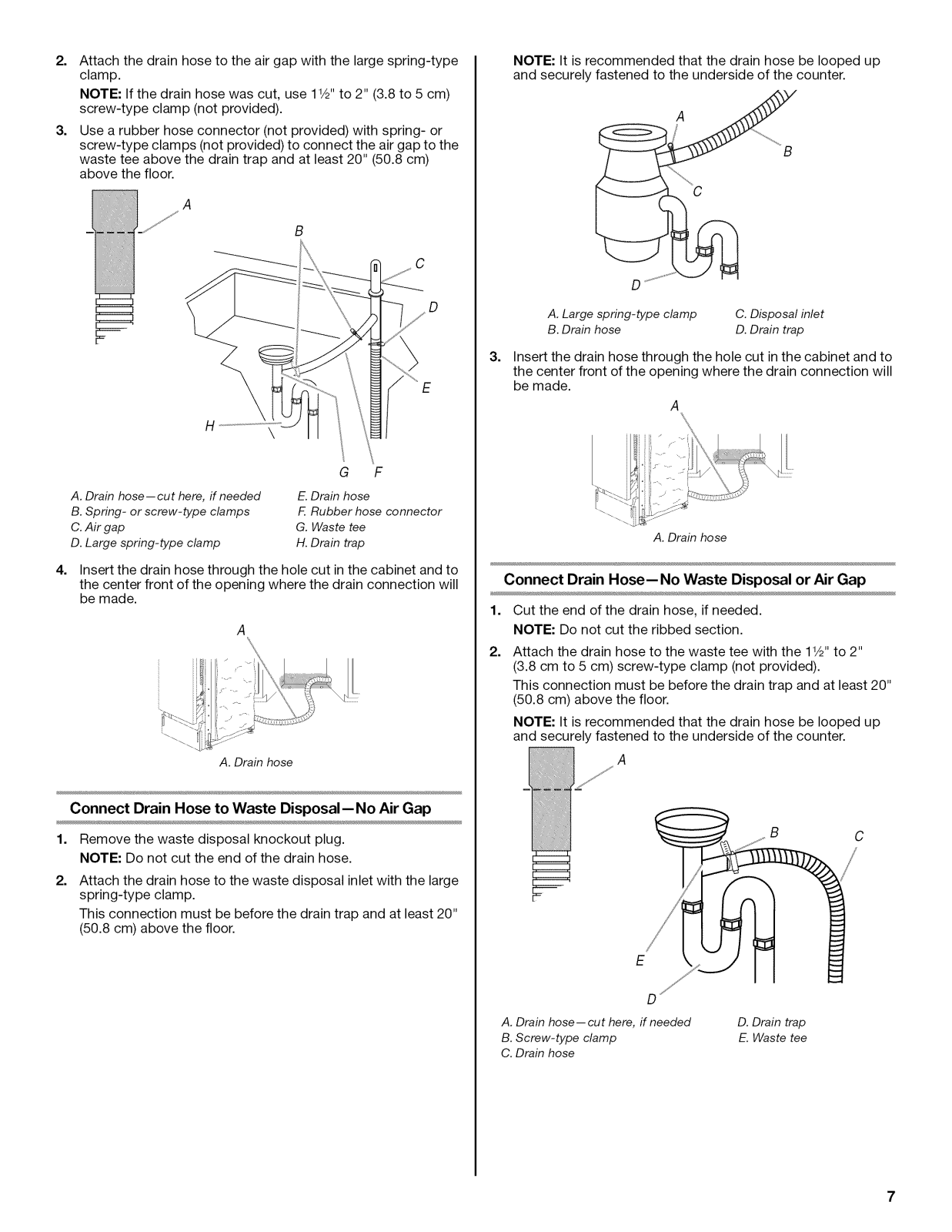

2=
Attach the drain hose to the air gap with the large spring-type clamp.
NOTE: If the drain hose was cut, use 11/2"to 2" (3.8 to 5 cm) screw-type clamp (not provided).
3=
Use a rubber hose connector (not provided) with spring- or screw-type clamps (not provided) to connect the air gap to the waste disposal inlet above the drain trap and at least 20" (50.8 cm) above the floor.
1. Disconnect power.
2. Turn off water supply.
Follow the steps in this section ifyou are installingthe dishwasher in an existing cabinet opening with utility hookups.
1. Check that the water supply line reaches to the front left-hand side of the opening where the water connection will be made.
2. Check that the direct wire reaches to the front right-hand side of the opening where the electrical connection will be made.
1
A
B
A. Water supply line B. Direct wire
A
H
A. Drain hose--cut here, if needed B. Spring- or screw-type clamps
C. Air gap D. Large spring-type clamp
4=
Insert the drain hose through the hole cut in the cabinet and to the center front of the opening where the drain connection will
be made.
B
G F
E.Drain hose F. Rubber hose connector
G. Disposal inlet H. Drain trap
A
E
IMPORTANT: Always use a new drain hose even when installing a new replacement dishwasher.
3. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on the side of the opening closest to the sink.
6
A. Drain hose
Connect Drain Hose to Air Gap--No Waste Disposal
1. Cut the end of the drain hose, if needed. NOTE: Do not cut the ribbed section.
2=
Attach the drain hose to the air gap with the large spring-type clamp.
NOTE: If the drain hose was cut, use 1W' to 2" (3.8 to 5 cm) screw-type clamp (not provided).
3=
Use a rubber hose connector (not provided) with spring- or screw-type clamps (not provided) to connect the air gap to the
waste tee above the drain trap and at least 20" (50.8 cm) above the floor.
A
B
NOTE: It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.
A
B
C
C
E
H \
G F
A. Drain hose-- cut here, if needed
B. Spring- or screw-type clamps C. Air gap D. Large spring-type clamp
4. Insert the drain hose through the hole cut in the cabinet and to the center front of the opening where the drain connection will
be made.
A. Drain hose
E.Drain hose
F.Rubber hose connector G.Waste tee H.Drain trap
A. Large spring-type clamp B. Drain hose
3=
Insert the drain hose through the hole cut in the cabinet and to
C. Disposal inlet D. Drain trap
the center front of the opening where the drain connection will be made.
A
A. Drain hose
Connect Drain Hose-- No Waste Disposal or Air Gap
1. Cut the end of the drain hose, if needed. NOTE: Do not cut the ribbed section.
2. Attach the drain hose to the waste tee with the 11/2"to 2" (3.8 cm to 5 cm) screw-type clamp (not provided).
This connection must be before the drain trap and at least 20" (50.8 cm) above the floor.

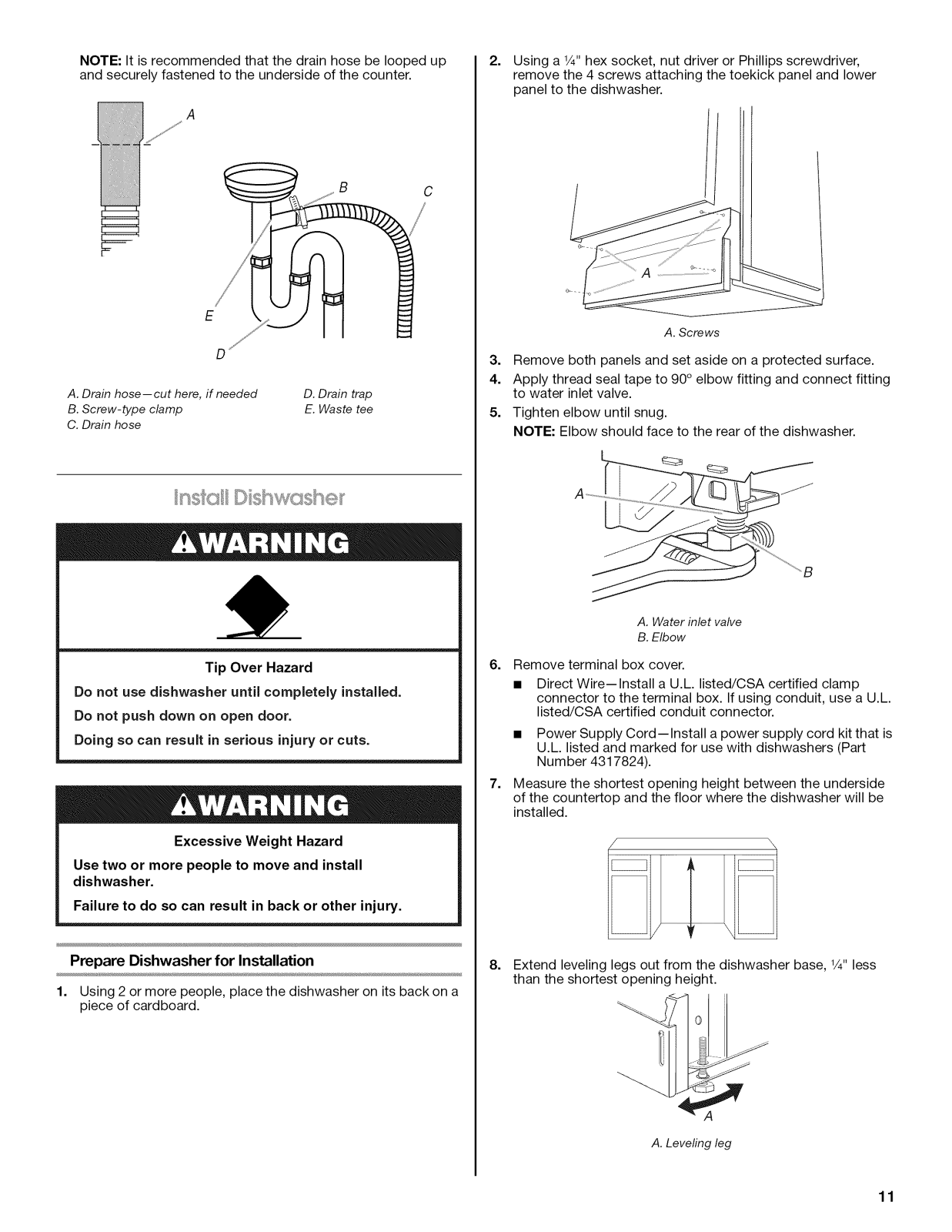

NOTE: It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.
A

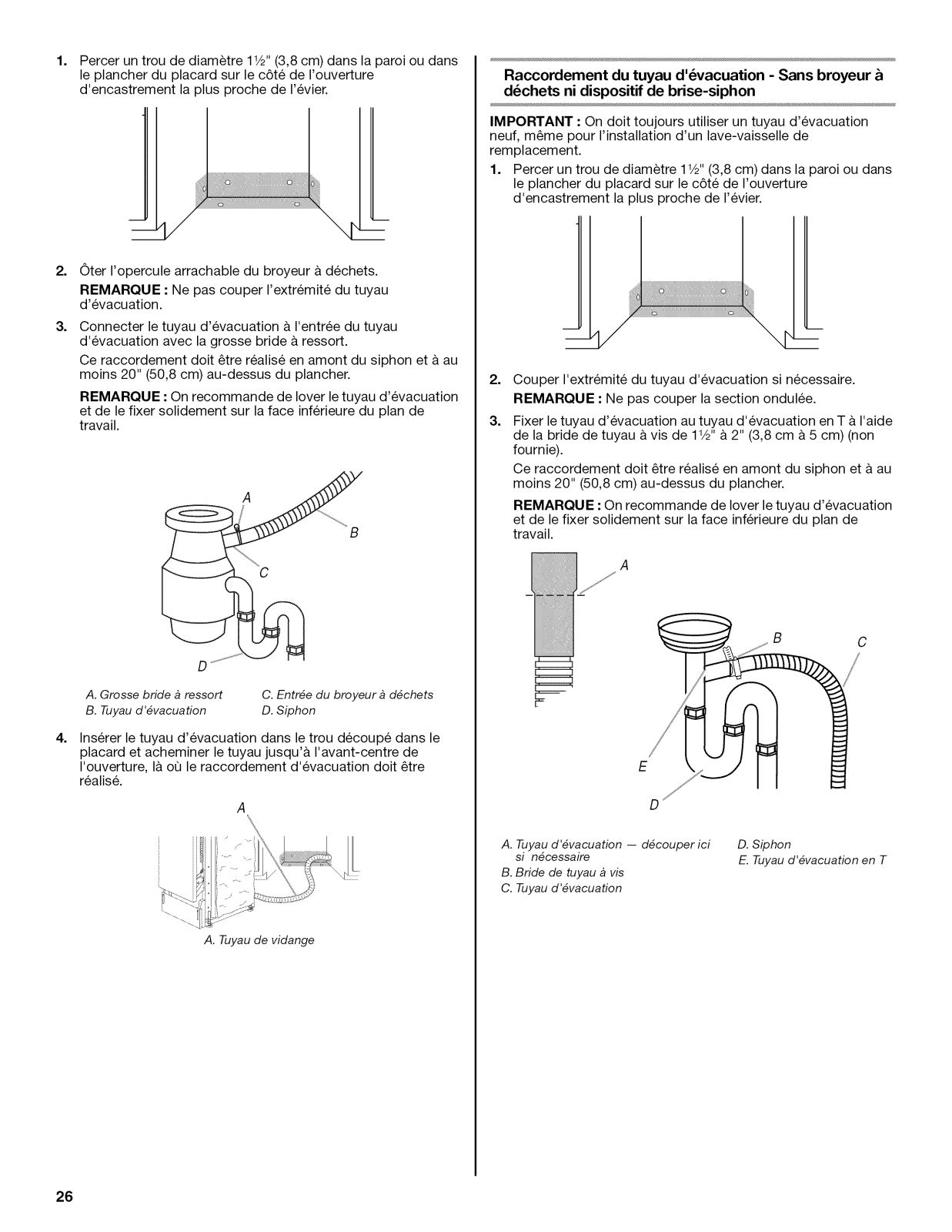

Connect Drain Hose to Waste Disposal--No Air Gap
1. Remove the waste disposal knockout plug. NOTE: Do not cut the end of the drain hose.
2. Attach the drain hose to the waste disposal inlet with the large spring-type clamp.
This connection must be before the drain trap and at least 20" (50.8 cm) above the floor.
D
A. Drain hose--cut here, if needed B. Screw-type clamp
C. Drain hose
B C
D. Drain trap
E. Waste tee
Electrical Shock Hazard
Plug into a grounded 3 prong outlet. Do not remove ground prong. Do not use an adapter.
Do not use an extension cord. Failure to follow these instructions can result in death,
fire, or electrical shock.
GROUNDING iNSTRUCTiONS
m
For a grounded, cord-connected dishwasher:
The dishwasher must be grounded. In the event of a malfunction or breakdown, grounding will reduce the
risk of electric shock by providing a path of least resistance for electric current. The dishwasher is
equipped with a cord having an equipment-grounding conductor and a grounding plug. The plug must be
plugged into an appropriate outlet that is installed and
grounded in accordance with all local codes and ordinances.
WARNING: Improper connection of the
equipment-grounding conductor can result in a risk of electric shock. Check with a qualified electrician or
service representative if you are in doubt whether the dishwasher is properly grounded. Do not modify the
plug provided with the dishwasher; if it will not fit the outlet, have a proper outlet installed by a qualified
electrician.
m
For a permanently connected dishwasher:
The dishwasher must be connected to a grounded metal, permanent wiring system, or an equipment-
grounding conductor must be run with the circuit conductors and connected to the equipment-
grounding terminal or lead on the dishwasher.
Install Electrical Connection--Direct Wire Method
1. Drill a3/4"(1.9 cm) hole in the right-hand cabinet side, the rear or floor of opening.
A B
A. Optional locations B. Preferred locations
2. If the cabinet is wood, sand hole until smooth. If the cabinet is metal, cover the hole with a grommet (not provided).
3. Route the wire into the house wiring junction box.
4. Install a UL listed/CSA certified clamp connector (strain relief) for flexible-type wire.
NOTE: If installing conduit, attach a UL listed/CSA certified conduit connector to the junction box.
5=
Route the other end of the wire through the cabinet hole. The cable must extend to the right-hand front side of the cabinet
opening.
Install Electrical Connection-- Power Supply Cord Method
NOTE: A mating, grounded 3 prong outlet is required in a cabinet next to the dishwasher opening.
1. Drill a3/4"(1.9 cm) hole in the right-hand cabinet side, the rear or floor of opening.
A B
SAVE THESE iNSTRUCTiONS
8
A. Optional locations B. Preferred locations
2=
If the cabinet is wood, sand hole until smooth. If the cabinet is metal, cover the hole with a grommet (Part Number 302797)
included with power supply cord kit.
Install Water Line
1. Drill a 1/2"(1.3 cm) hole in the left-hand cabinet side, the rear or floor of opening.
A B
4=
Use a rubber hose connector (not provided) with spring- or screw-type clamps (not provided) to connect the air gap to the
waste disposal inlet above the drain trap and at least 20" (50.8 cm) above the floor.
A
B
A. Optional locations B. Preferred locations
2. Measure the overall length of the copper tubing required.
3. Attach the copper tubing to the water supply line with a manual shutoff valve.
4=
Slowly feed the copper tubing through the hole in the cabinet. NOTE: The copper tubing will bend and kink easily.
The copper tubing should be far enough into the cabinet opening to connect it to the dishwasher inlet on the front left-
hand side of the dishwasher.
5=
Turn on the water shutoff valve. Run water into a shallow pan to flush the copper tubing of particles that may clog the inlet
valve.
6. Turn off the shutoff valve.

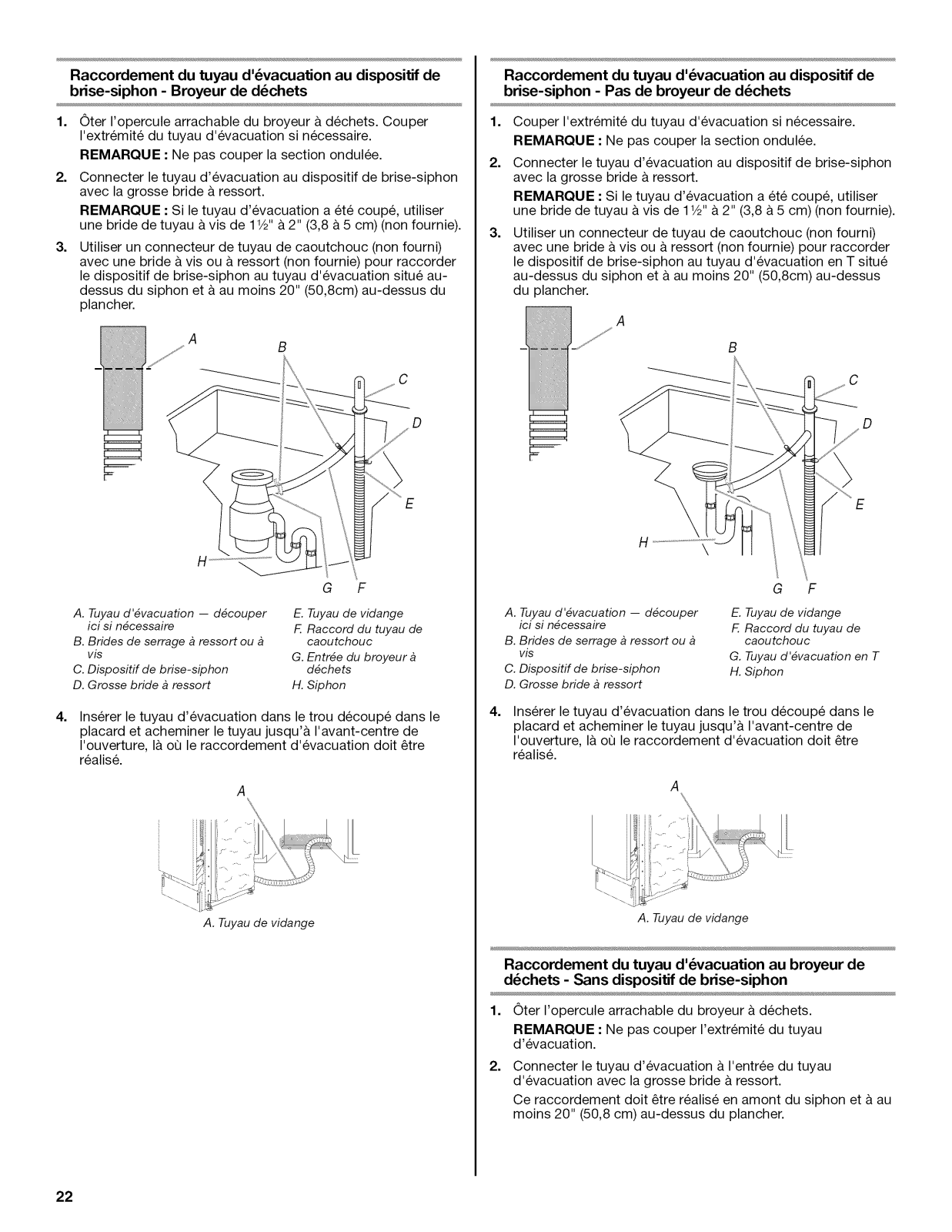

Connect Drain Hose to Air Gap--Waste Disposal
IMPORTANT: Always use a new drain hose even when installing
a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on the side of the opening closest to the sink.
H
G
A. Drain hose--cut here, if needed B. Spring- or screw-type clamps
C. Air gap D. Large spring-type clamp
5=
Insert the drain hose through the hole cut in the cabinet and to
E.Drain hose F. Rubber hose connector
G. Disposal inlet H. Drain trap
the center front of the opening where the drain connection will be made.
A
A. Drain hose
Connect Drain Hose to Air Gap--No Waste Disposal
E
2=
Remove the waste disposal knockout plug. Cut the end of the drain hose, if needed.
NOTE: Do not cut the ribbed section.
3=
Attach the drain hose to the air gap with the large spring-type clamp.
NOTE: If the drain hose was cut, use 1V2"to 2" (3.8 to 5 cm) screw-type clamp (not provided).
IMPORTANT: Always use a new drain hose even when installing a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on the side of the opening closest to the sink.
2. Cut the end of the drain hose, if needed. NOTE: Do not cut the ribbed section.

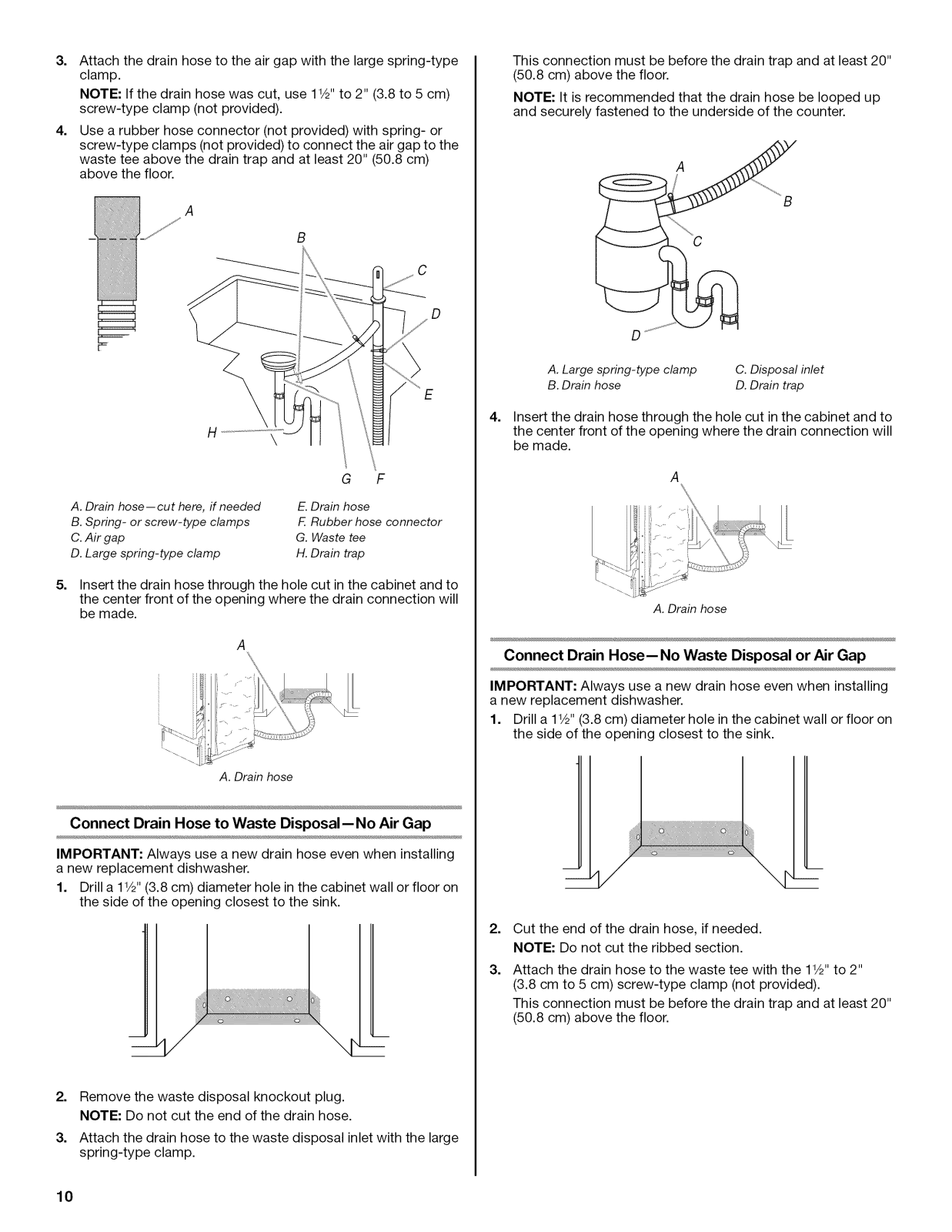

3=
Attach the drain hose to the air gap with the large spring-type clamp.
NOTE: If the drain hose was cut, use 1V2"to 2" (3.8 to 5 cm) screw-type clamp (not provided).
4=
Use a rubber hose connector (not provided) with spring- or screw-type clamps (not provided) to connect the air gap to the
waste tee above the drain trap and at least 20" (50.8 cm) above the floor.
This connection must be before the drain trap and at least 20" (50.8 cm) above the floor.
NOTE: It is recommended that the drain hose be looped up and securely fastened to the underside of the counter.
A
B
B
E
A. Drain hose-- cut here, if needed
B. Spring- or screw-type clamps C. Air gap D. Large spring-type clamp
E. Drain hose F. Rubber hose connector
G. Waste tee H. Drain trap
5. Insert the drain hose through the hole cut in the cabinet and to the center front of the opening where the drain connection will
be made.
C
A. Large spring-type clamp B. Drain hose
4=
Insert the drain hose through the hole cut in the cabinet and to
C. Disposal inlet D. Drain trap
the center front of the opening where the drain connection will be made.
A
A. Drain hose
Connect Drain Hose-- No Waste Disposal or Air Gap
IMPORTANT: Always use a new drain hose even when installing a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on the side of the opening closest to the sink.
A. Drain hose
Connect Drain Hose to Waste Disposal--No Air Gap
IMPORTANT: Always use a new drain hose even when installing a new replacement dishwasher.
1. Drill a 11/2"(3.8 cm) diameter hole in the cabinet wall or floor on the side of the opening closest to the sink.
2. Remove the waste disposal knockout plug. NOTE: Do not cut the end of the drain hose.
3. Attach the drain hose to the waste disposal inlet with the large spring-type clamp.
10
2. Cut the end of the drain hose, if needed. NOTE: Do not cut the ribbed section.
3. Attach the drain hose to the waste tee with the 11/2"to 2" (3.8 cm to 5 cm) screw-type clamp (not provided).
This connection must be before the drain trap and at least 20" (50.8 cm) above the floor.
Loading...
+ 22 hidden pages
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
