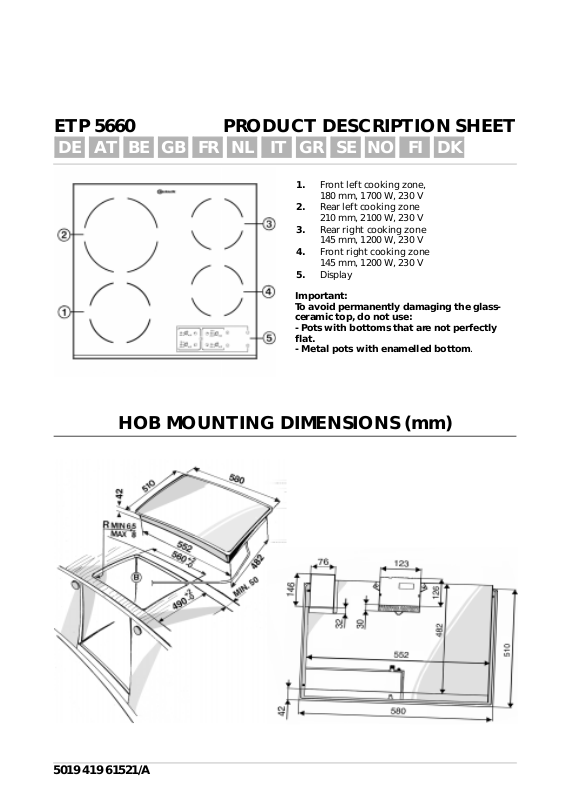

ETP 5660

PRODUCT DESCRIPTION SHEET

DE AT BE GB FR

NL	IT GR SE NO FI DK

1.Front left cooking zone, 180 mm, 1700 W, 230 V

2.Rear left cooking zone 210 mm, 2100 W, 230 V

3.Rear right cooking zone 145 mm, 1200 W, 230 V

4.Front right cooking zone 145 mm, 1200 W, 230 V

5.Display

Important:

To avoid permanently damaging the glassceramic top, do not use:

-Pots with bottoms that are not perfectly flat.

-Metal pots with enamelled bottom.

HOB MOUNTING DIMENSIONS (mm)

5019 419 61521/A

USING THE HOB

A B D

The button must be pressed for about 2 sec. to switch the hob on.

The indication “0” appears in area A on the 4 displays. If within about 25 sec. none of the cooking zones is activated, the hob switches itself off automatically on safety grounds.

Choose the button for the desired cooking area and press it.

The display of the chosen cooking area becomes brighter.

Press the +/- buttons in area B within 5 sec. to adjust the required cooking setting. The first two cooking steps correspond to the Gentle heat function and the Keep hot

functions (if provided). The other selectable cooking settings go from 1 - 10. The highest selectable cooking setting equates to the TURBO setting (if provided). The special functions GENTLE HEAT, KEEP HOT and TURBO HEAT are indicated in the display by a red arrow. All selections are stopped and cancelled by simultaneously pressing the + and - buttons.

IMPORTANT: For safety reasons, the hob is equipped with an automatic cut-off function, which, depending on the set power output, switches off the cooking zone at maximum power at the earliest after one hour or after 6 hours at minimum power, if no setting change takes place.

The Dual ring and Auto fast boil SPECIAL FUNCTIONS of each cooking area can be switched on or off with this button. The appropriate cooking area must be switched on for the special functions to be selected. The following special functions are available (if provided):

FAST BOILING FUNCTION	With this function the cooking zone is heated to the
	hottest setting for a specified time for bringing to
	the boil. It is then automatically switched back to
	selected cooking setting to continue cooking
	(e.g. selected high setting 5 + fast boil = 5 min. at the
	highest setting + then switching back automatically
	to setting 5).
