Whirlpool EH 919/IX, EH 919/WH, EH 919/BR PROGRAM CHART
6gb61371.fm5 Page 1 Friday, September 14, 2001 10:45 AM

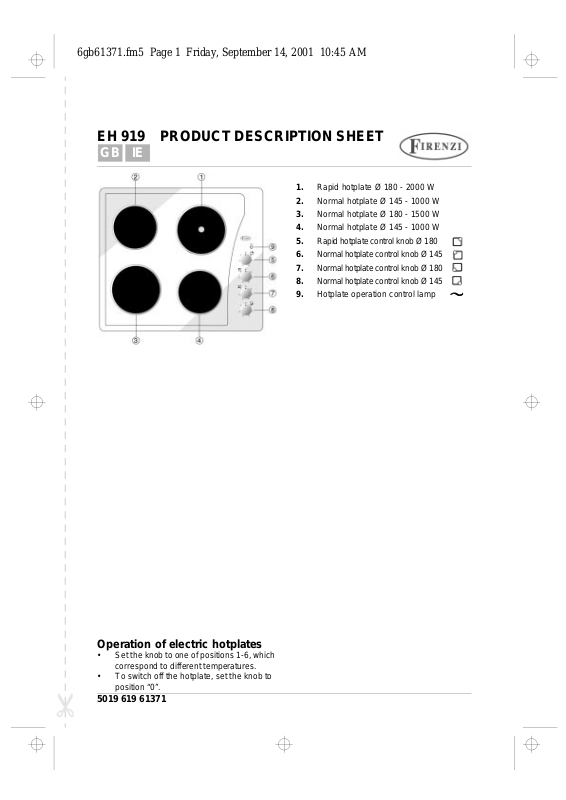

EH 919 PRODUCT DESCRIPTION SHEET
GB IE |
1. Rapid hotplate Ø 180 - 2000 W
2. Normal hotplate Ø 145 - 1000 W
3. Normal hotplate Ø 180 - 1500 W
4. Normal hotplate Ø 145 - 1000 W
5. Rapid hotplate control knob Ø 180
6. Normal hotplate control knob Ø 145
7. Normal hotplate control knob Ø 180
8. Normal hotplate control knob Ø 145
9. Hotplate operation control lamp
Operation of electric hotplates
•Set the knob to one of positions 1-6, which correspond to different temperatures.
•To switch off the hotplate, set the knob to position “0”.
5019 619 61371
6gb61371.fm5 Page 2 Friday, September 14, 2001 10:45 AM
DIMENSIONS OF COOKTOP AND WORKTOP
SUPPLY VOLTAGE |
CONDUCTORS: |
|
|
ELECTRICAL |
||
NUMBER AND SIZE |
|
|
CONNECTION |
|||
|
|
|
||||
|
|
|
|
|
|
|
230 V ~ + |
3 x 2.5 mm 2 |
|
|
|
|
|
|
|
|
|
|
||
|
|
|
|
|
||
|
|
|
|
|
|
|
