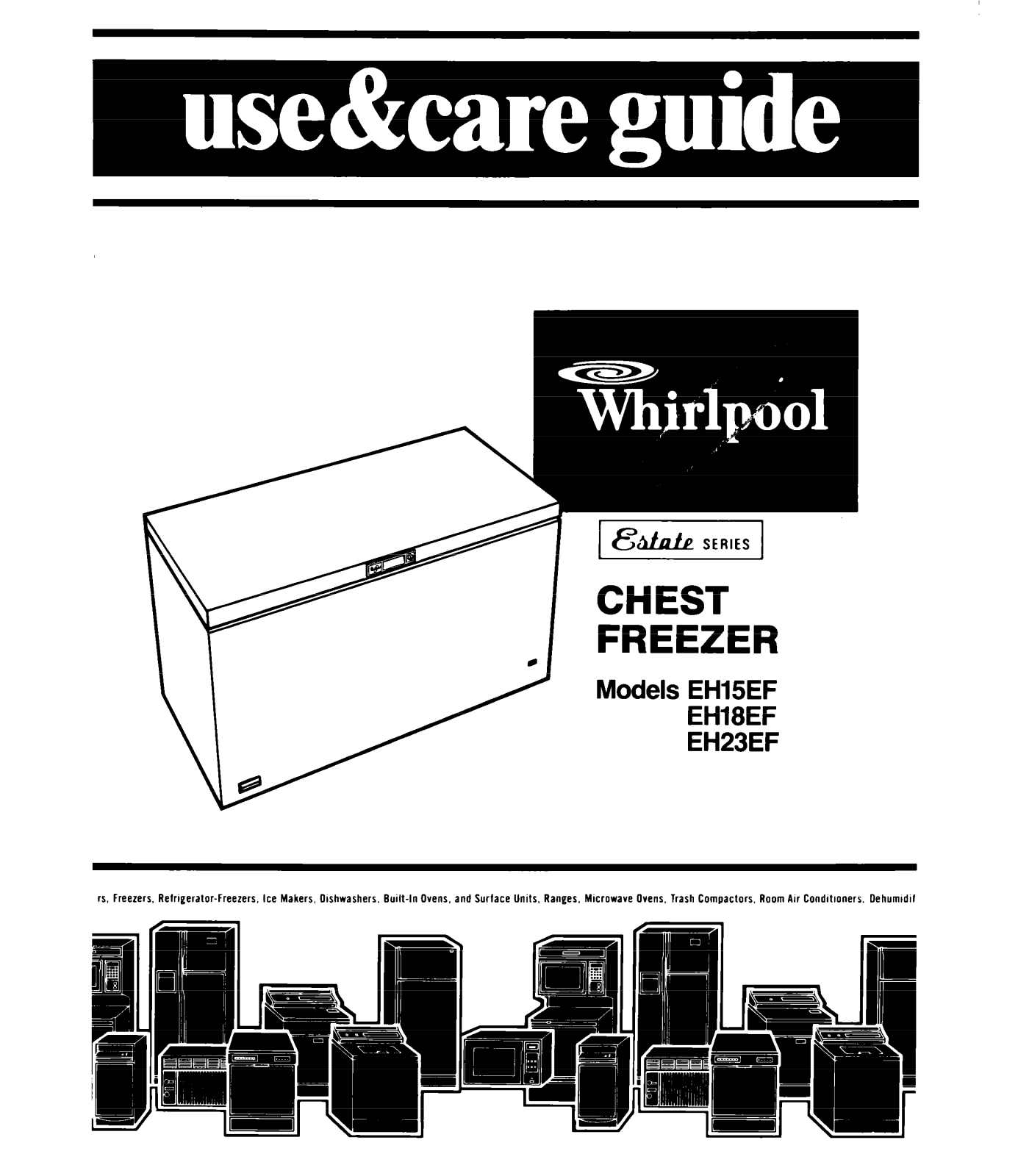

Whirlpool EHl5EF, EH18EF, EH23EF User Manual

/ Models EHlSEF
EH18EF EH23EF
IS. Freezers. Relrrgerator-Freezers, Ice Makers, Olshwashers. Built-In Ovens, and Surlace Units, Ranges, MIcrowave Ovens. Trash Compactors. Room Arr Condrtroners. Oehumldrf

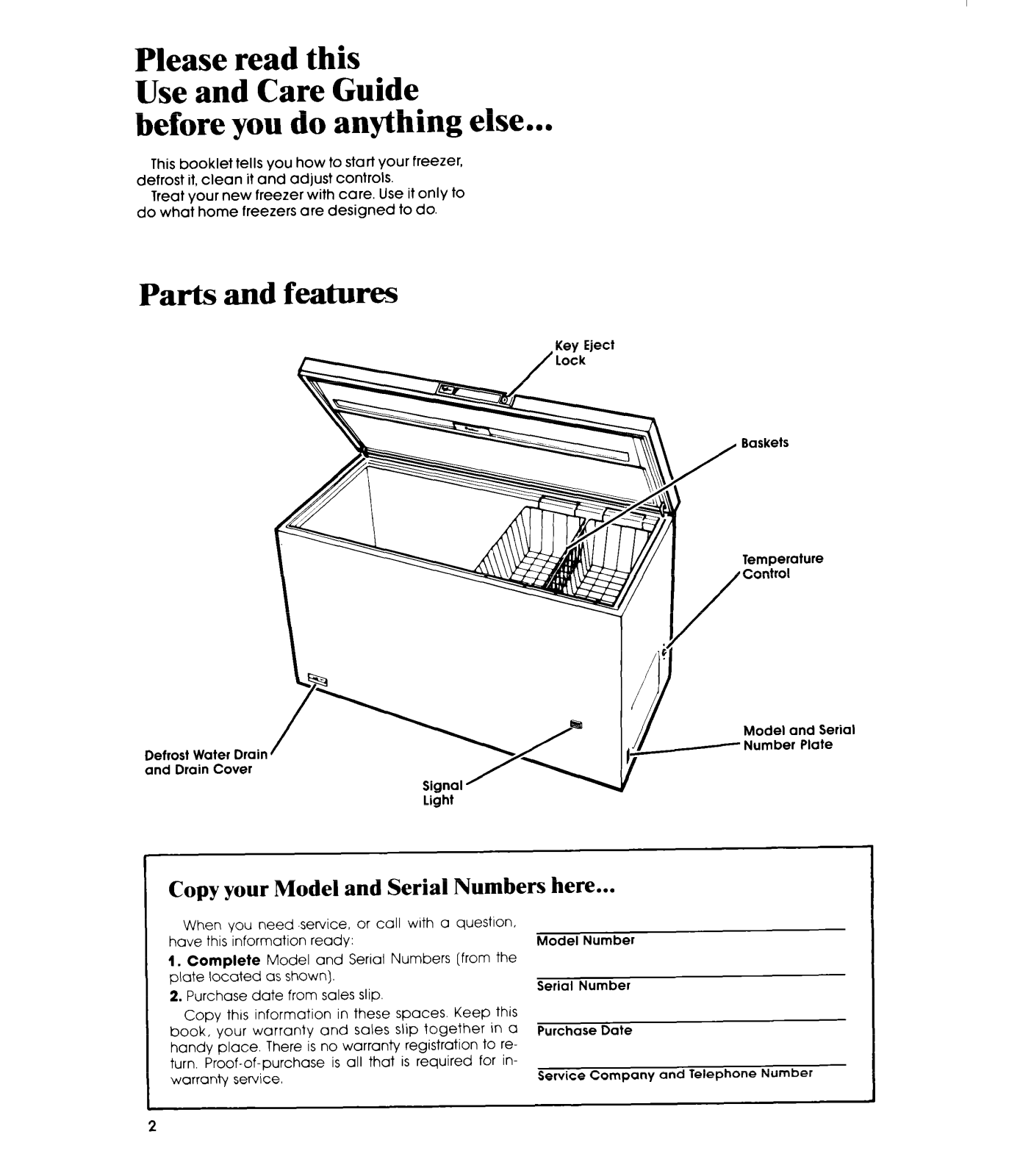

Please read this Use and Care Guide before you do anything else...
defrost it, clean it and adjust controls.
Treat your new freezer with care. Use it only to
do what home freezers are designed to do.

Parts and features

.Key Eject
- _ . ..* . uerrosr waler uraln r
and Drain Cover
L--.-
Signal 7v Light
I
Copy your Model and Serial Numbers here...
I
When you need -service. or call with a questlon.
have this information ready:
1. Complete
plate located as shown).
2. Purchase date from sales slip. Copy this information in these spaces. Keep this
book, your warranty and sales slip together in a handy place. There is no warranty registration to re­turn. Proof-of-purchase is all that is required for in­warranty service.
1
Model and Serial Numbers [from the
I
2
Model Number
Serial
Purchase Date
Service Company and Telephone Number
-ia
Number
, Baskets
Temperature Control
Model and Serial Number Plate
SAFETY FIRST BEFORE YOU PLUG IT IN.
Install Properly Level Chest Freezer Remove Sales Labels Install Defrost Drain Cover Clean It Plug It In

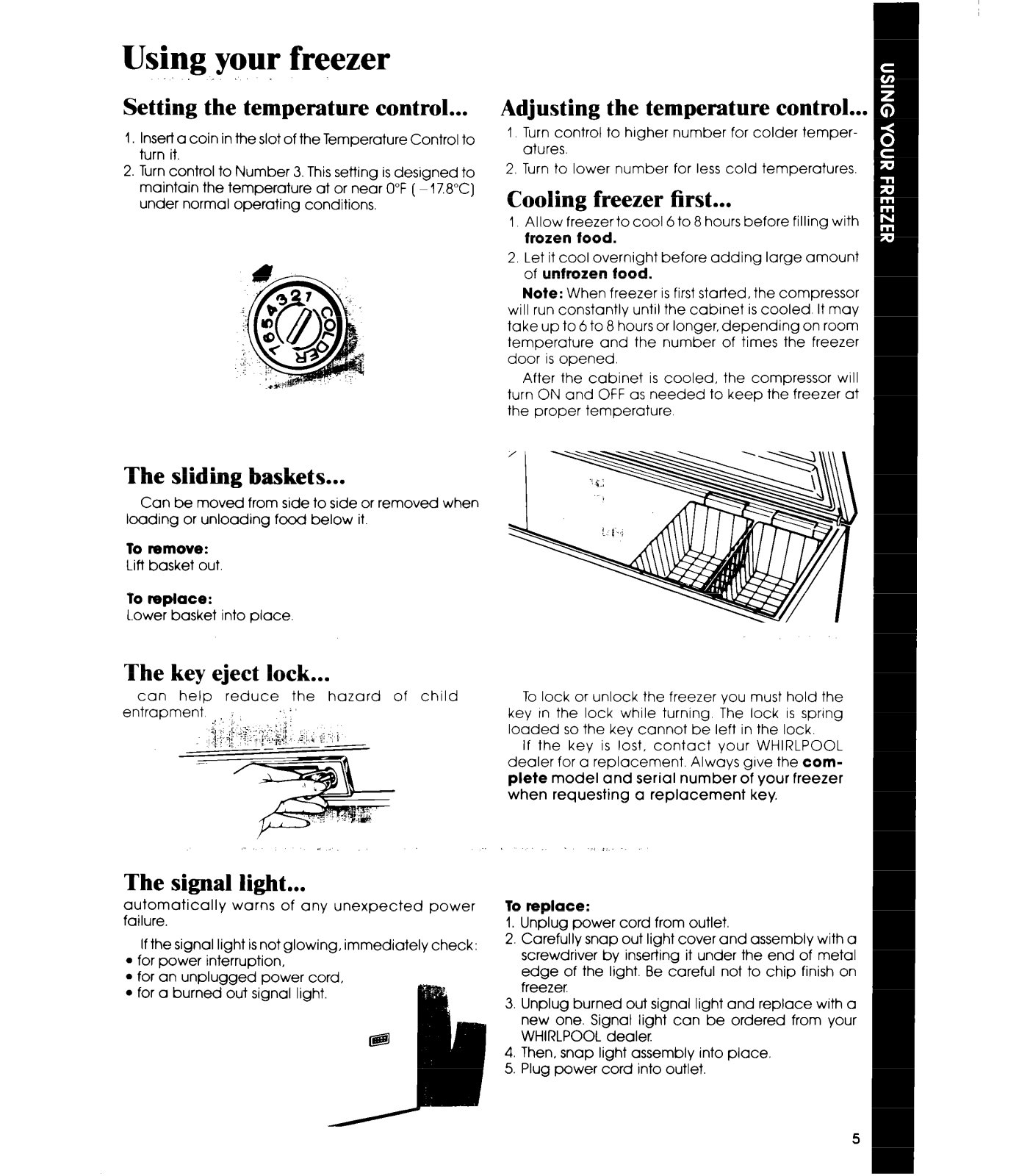

USING YOUR FREEZER
Setting the Temperature Control Adjusting the Temperature Control Cooling Freezer First
The Sliding Baskets. The Key Eject Lock The Signal Light Energy Saving Tips

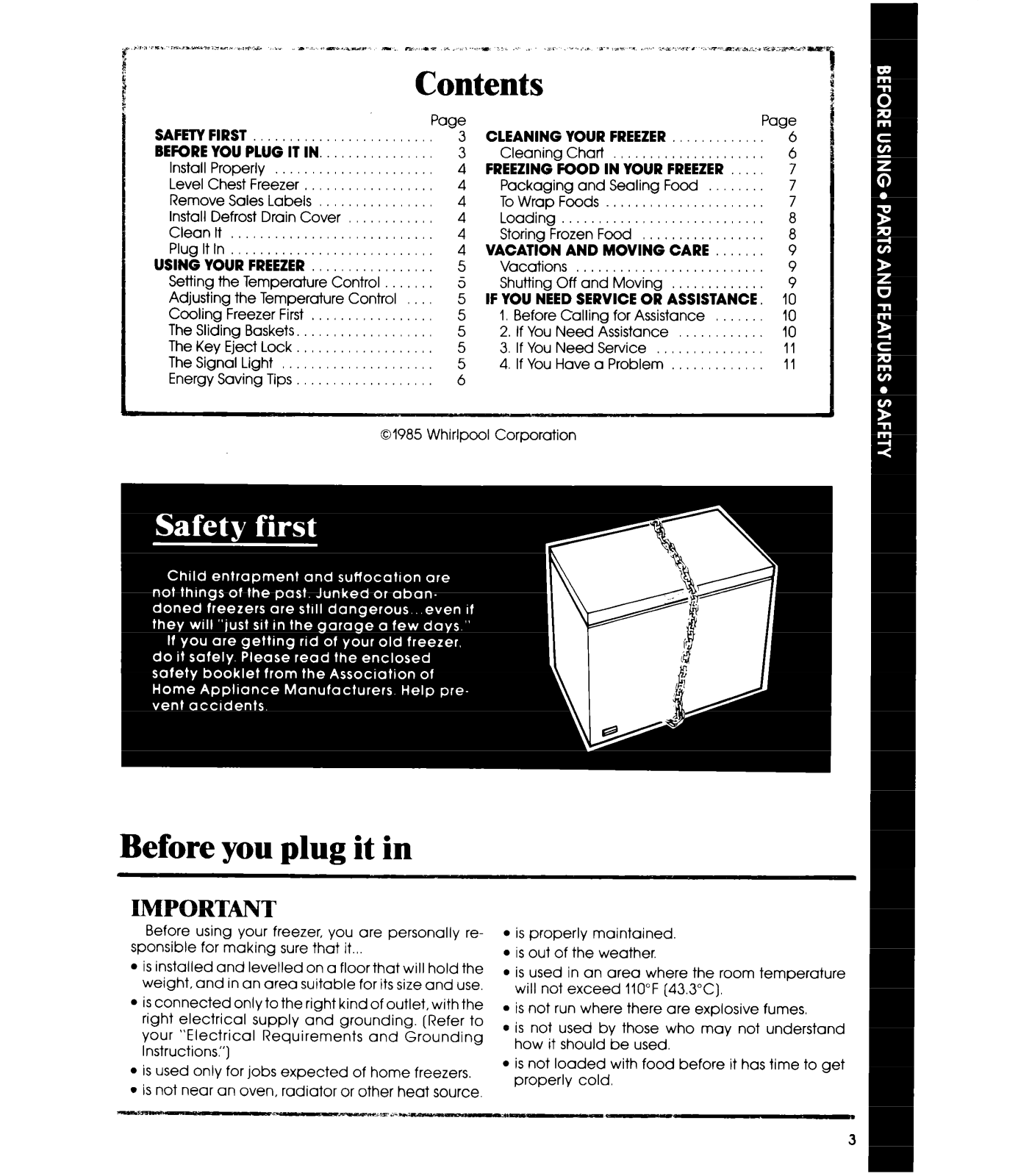

Contents

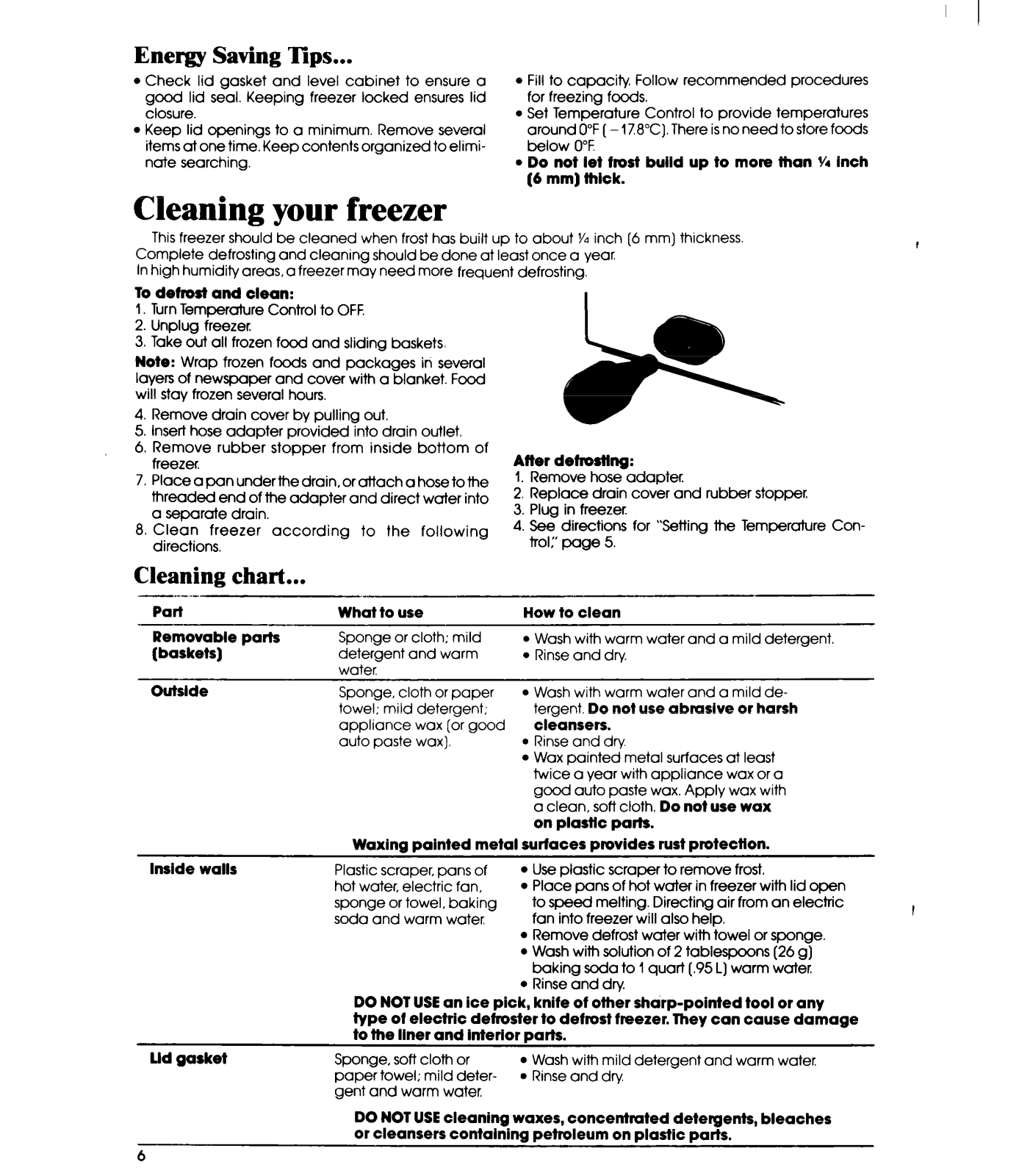

CLEANING YOUR FREEZER
Cleaning Chart

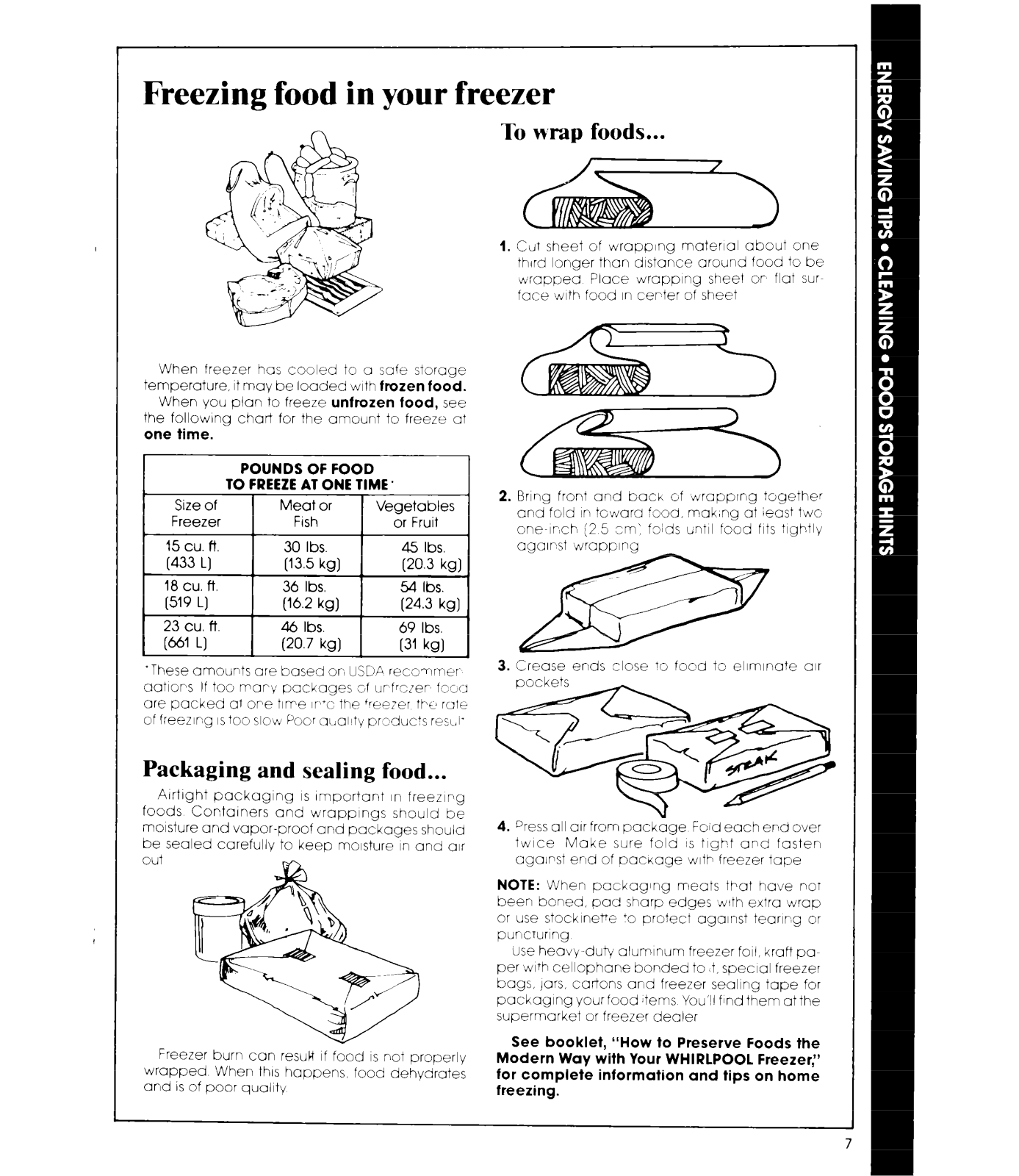

FREEZING FOOD IN YOUR FREEZER
Packaging and Sealing Food To Wrap Foods Loading Storing Frozen Food

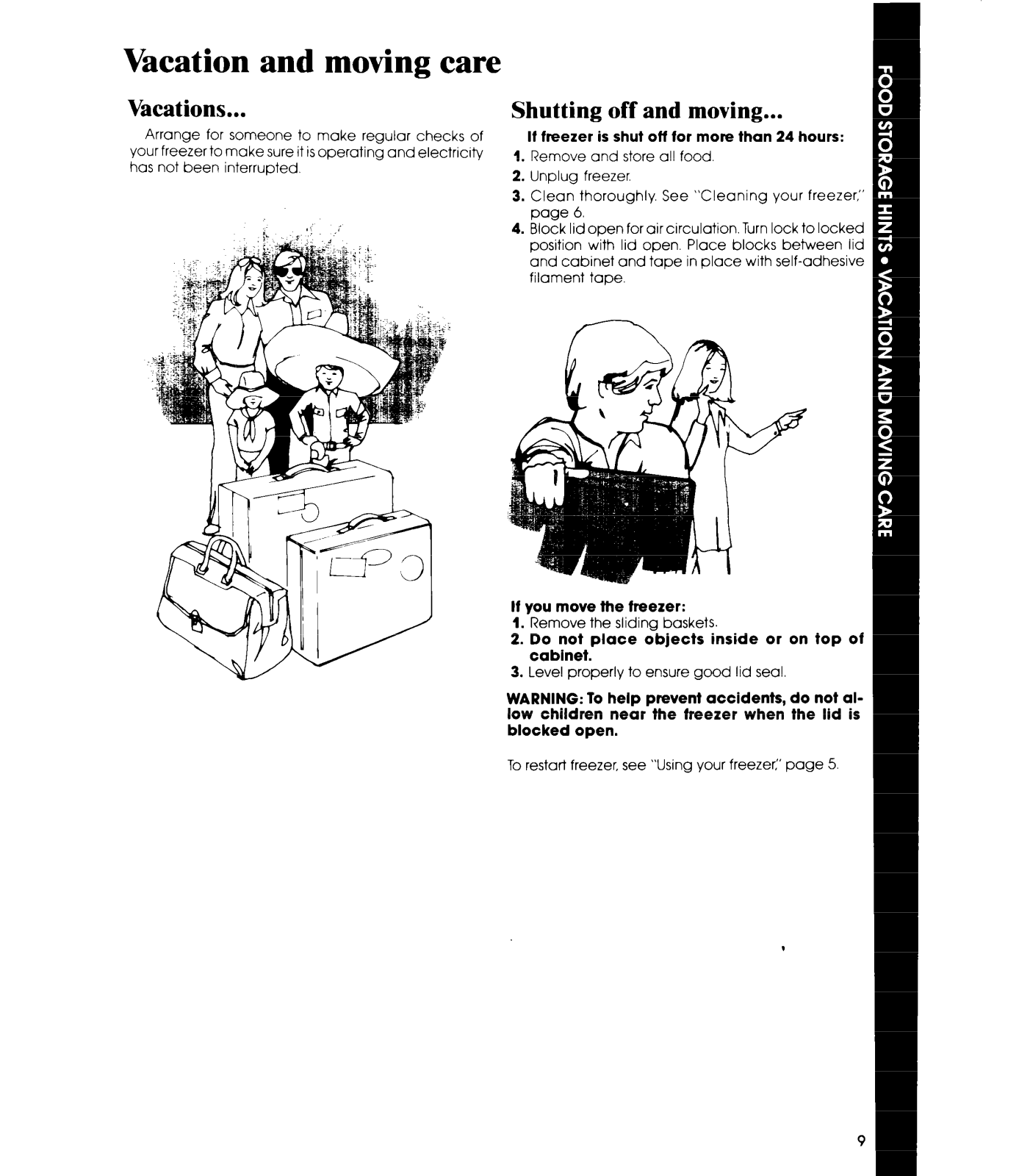

VACATION AND MOVING CARE
Vacations Shutting Off and Moving

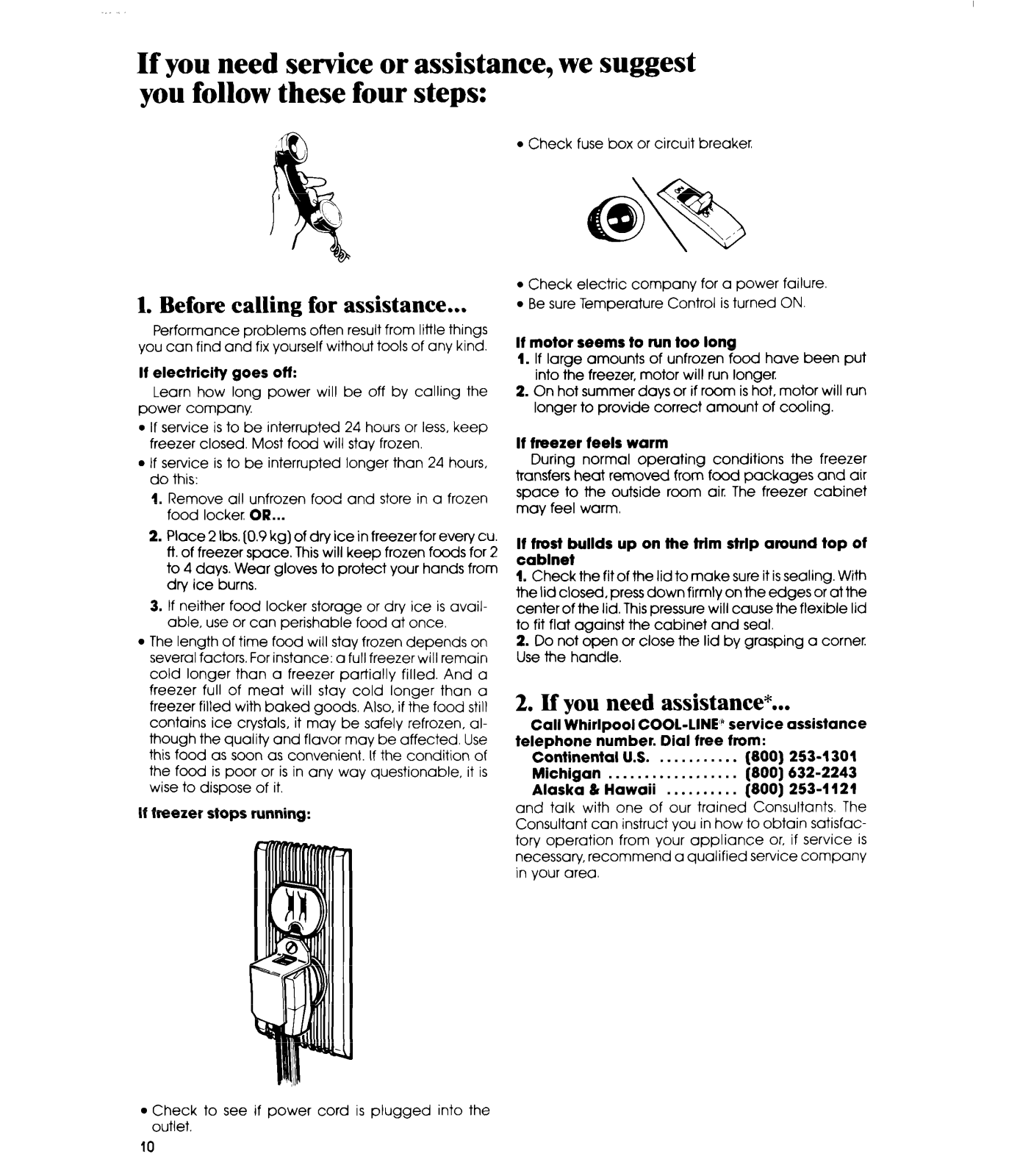

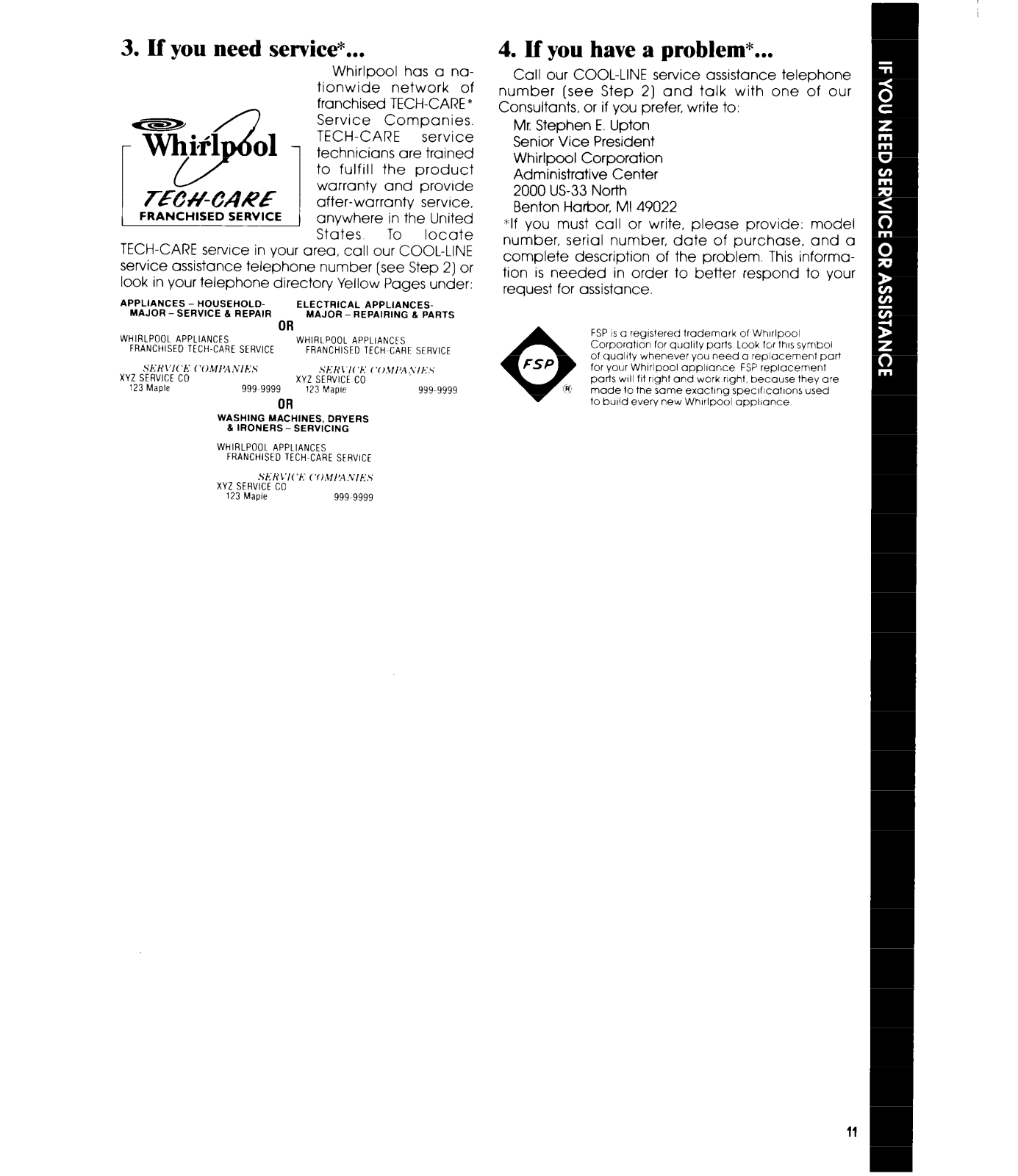

IF YOU NEED SERVICE OR ASSISTANCE.
1. Before Calling for Assistance
2. If You Need Assistance
3. If You Need Service 4,IfYouHaveaProblem
01985 Whirlpool Corporation
Page
6
6
7
7 7 8 8
9
9
9 10 10 10
11 11

Before you plug it in

IMPORTANT
Before using your freezer, you are personally re-
sponsible for making sure that it.,.
l
is installed and levelled on a floor that will hold the
weight, and in an area suitable for its size and use.
l
is connected only to the right kind of outlet, with the right electrical supply and grounding. (Refer to your “Electrical Requirements and Grounding Instructions,“)
l
is used only for jobs expected of home freezers,
l
is not near an oven, radiator or other heat source.
l
is properly maintained
l
is out of the weather.
l
is used in an area where the room temperature
will not exceed 110°F (433°C).
l
is not run where there are explosive fumes
l
is not used by those who may not understand how it should be used.
l
is not loaded with food before it has time to get properly cold.

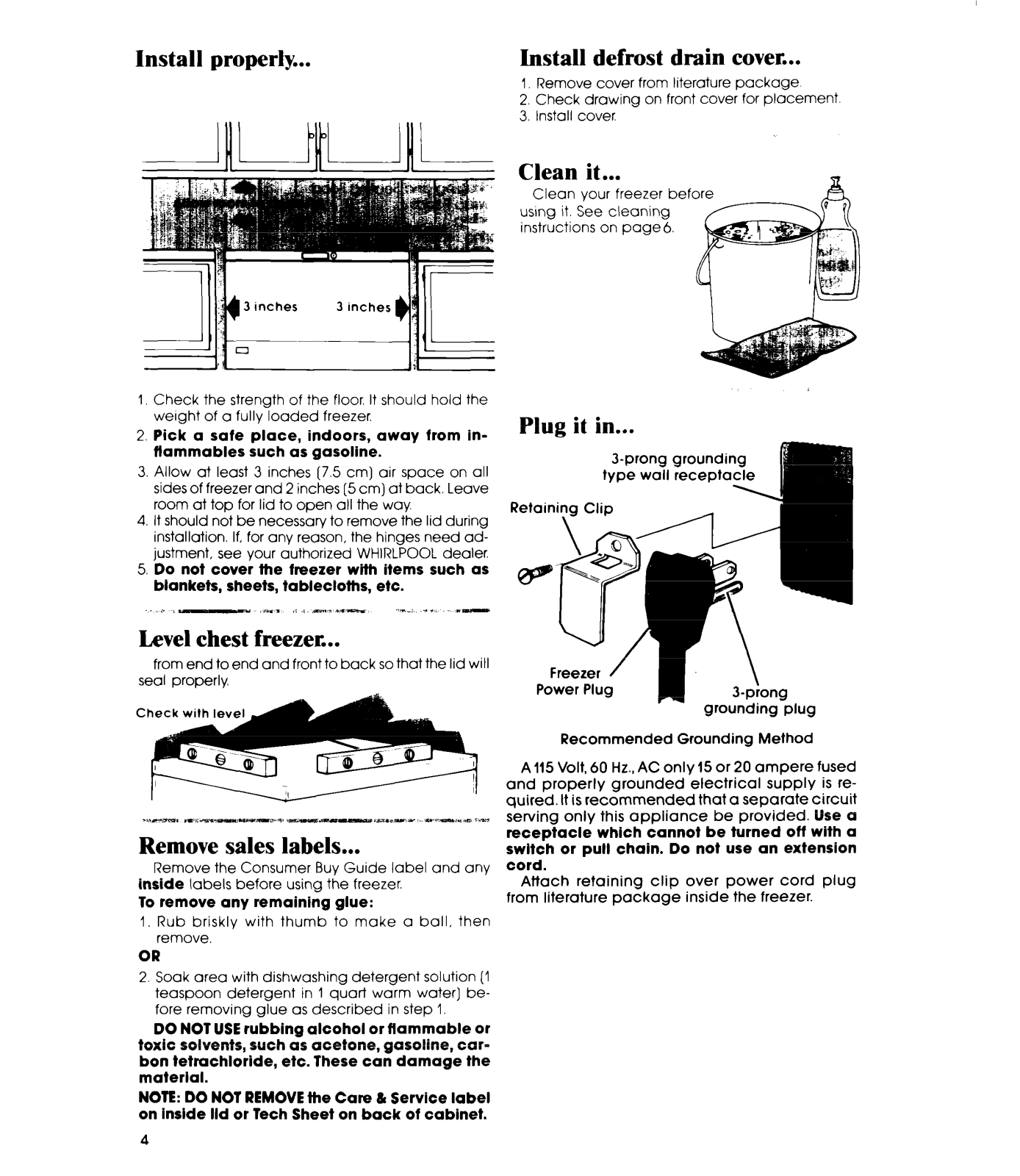

Install properly..
I. Check the strength of the floor. It should hold the
weight of a fully loaded freezer.
2. Pick a safe place, indoors, away from in­flammables such as gasoline.
3. Allow at least 3 inches (7.5 cm) air space on all sides of freezer and 2 inches [5 cm) at back. Leave room at top for lid to open all the way.
4. It should not be necessary to remove the lid during installation. If, for any reason, the hinges need ad-
justment, see your authorized WHIRLPOOL dealer.
5. Do not cover the freezer with items such as blankets, sheets, tablecloths, etc.
,i .I mUn*,rm,- ~llm.2 a*. “1111
.ISW,
Install defrost drain cover...
1. Remove cover from literature package
2. Check drawing on front cover for placement
3. Install cover.
Clean it . . .
Clean your freezer before
usrng it. See cleaning instructions on page6.
Plug it in...
3-prong grounding
type wall receptacle
Retaining Clip
Level chest freezer...
from end to end and front to back so that the lid will
seal properly.
Remove sales labels...
Remove the Consumer Buy Guide label and any
inside To remove any remaining glue:
1. Rub briskly with thumb to make a ball, then
OR
2. Soak area with dishwashing detergent solution (1
toxic solvents, such as acetone, gasoline, car-
bon tetrachloride, etc. These can damage the materlal.
NOTE: DO NOT REMOVE the Care 81 Service label on Inside Ild or Tech Sheet on back of cabinet.
4
labels before using the freezer.
remove.
teaspoon detergent in 1 quart warm water] be­fore removing glue as described in step 1.
DO NOT USE rubbing alcohol or flammable or
Freezer 1
Power Plug
Recommended Grounding Method
A 115 Volt, 60 Hz., AC only 15 or 20 ampere fused and properly grounded electrical supply is re­quired. It is recommended that a separate circuit serving only this appliance be provided.
I
. -
grounding plug
‘9
Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord.
Attach retaining clip over power cord plug
from literature package inside the freezer.

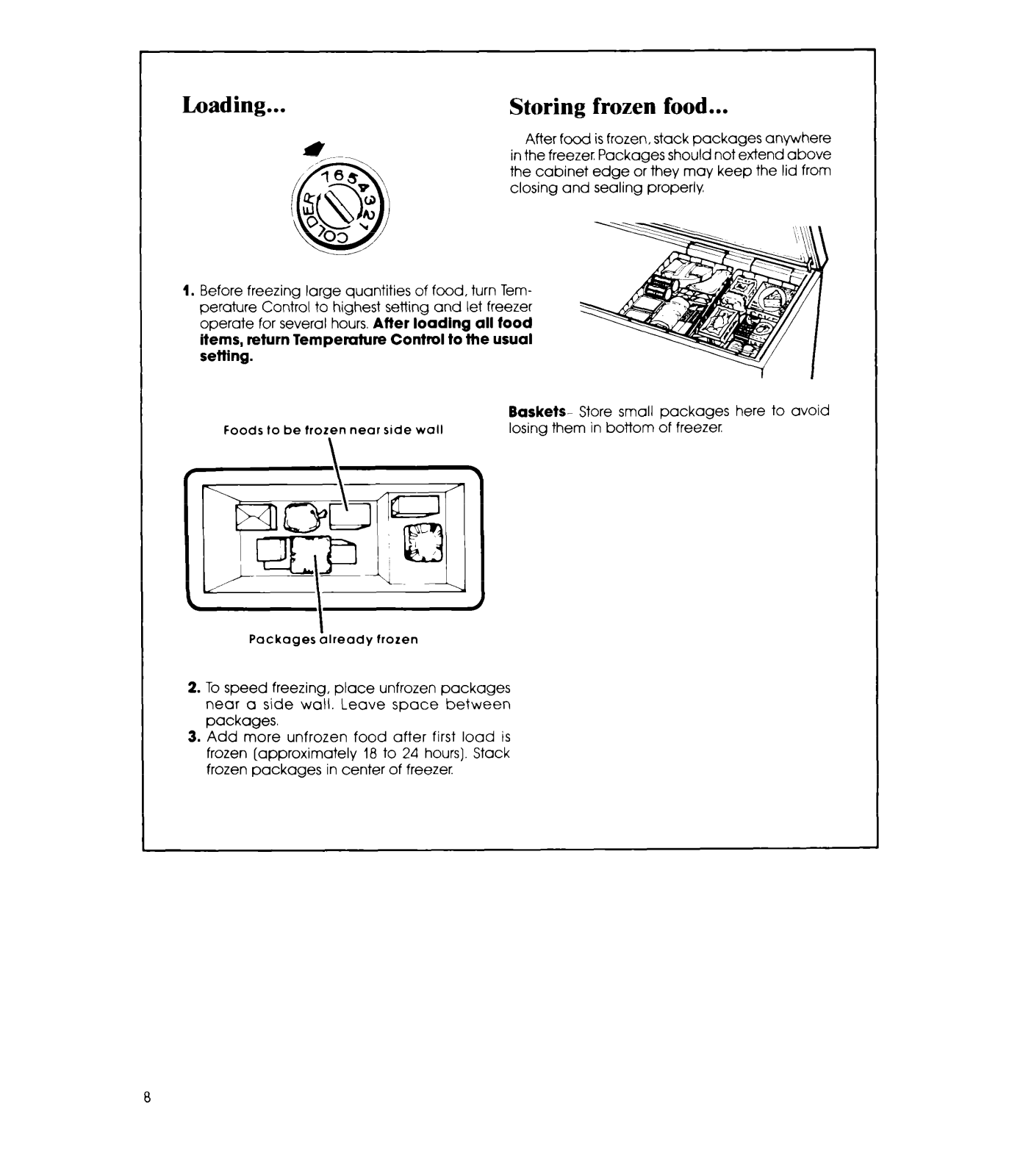

Loading...
