Whirlpool DW 950, HOB 495/S, ADL 347 INSTRUCTION FOR USE

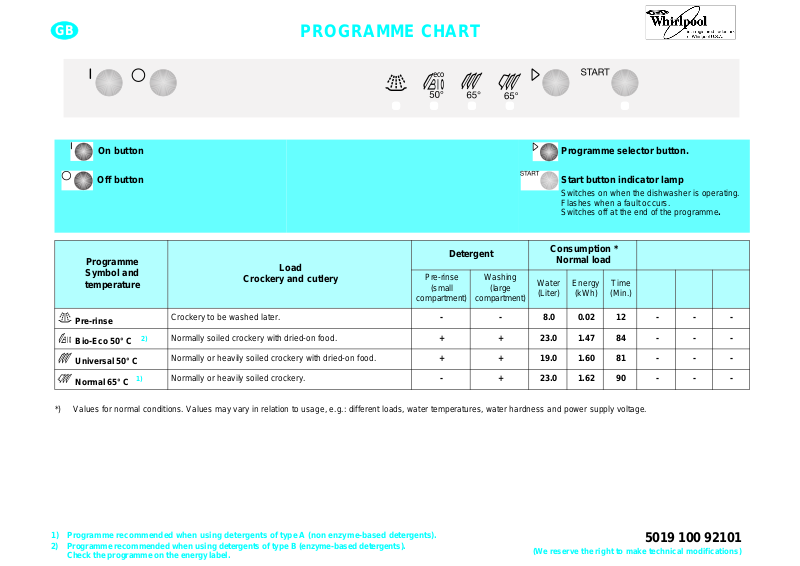

PROGRAMME CHART

On button

Off button

Detergent

Programme Symbol and

temperature

Pre-rinse

Bio-Eco 50° C

Universal 50° C

Normal 65° C

*) Values for normal conditions. Values may vary in relation to usage, e.g.: different loads, water temperatures, water hardness and power supply voltage.

Crockery to be washed later. Normally soiled crockery with dried-on food. Normally or heavily soiled crockery with dried-on food. Normally or heavily soiled crockery.

Crockery and cutlery

Load

Pre-rinse

(small

compartment)

--8.00.0212---

+ + 23.0 1.47 84 - - -

+ + 19.0 1.60 81 - - -

- + 23.0 1.62 90 - - -

Washing

(large

compartment)

Programme selector button.

Start button indicator lamp

Switches on when the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme

Consumption *

Normal load

Water (Liter)

Energy

(kWh)

Time

(Min.)

1) Programme recommended when using detergents of type A (non enzyme-based detergents).

2) Programme recommended when using detergents of type B (enzyme-baseddetergents). Check the programme on the energy label.

5019 100 92101

(We reserve the right to make technical modifications)

Quick Reference Guide

Daily check list

1. Arrange crockery so that items do not touch each other.

2. Load cups at an angle to facilitate water circulation.

3. In general, place the cutlery in the basket with the handles positioned downwards, but ensure that sharp knives and forks that might cause injury are placed in the basket with the handles positioned upwards.

4. Make sure the water jet can reach all loaded items and that the spray arms rotate freely.

5. Turn on the water supply tap before starting the dishwasher.

Important:

• Switch off the dishwasher once the “Start” indicator lamp has

switched off. If you switch off the dishwasher during a wash cycle, when switched on again the dishwasher resumes the cycle from where it was interrupted.

• If a fault occurs or you wish to change the current programme, press the “START” button for about 5 seconds until the Start indicator lamp switches off! Refer to the “Troubleshooting Guide” in these user instructions to remedy any problems.

• If regeneration salt is to be added, IMMEDIATELY washing programme, to eliminate any residual salt.

start a

Crockery holders:

• Down: cups and long-stemmed glasses.

• Up: plates.

Upper rack

Lower rack

Cutlery basket:

The cutlery basket can be removed to increase available space.
