Whirlpool DW 930 INSTRUCTION FOR USE

DW 930

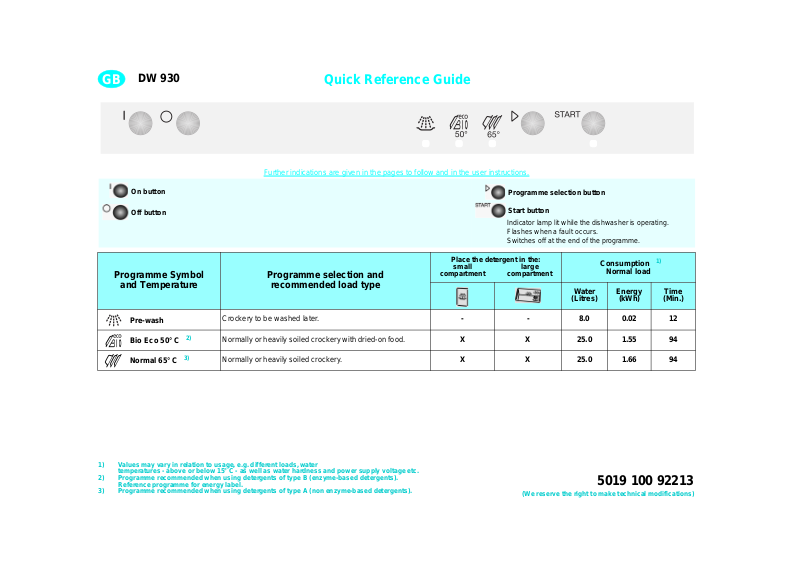

Quick Reference Guide

Further indications are given in the pages to follow and in the user instructions.

On button

Off button

Programme Symbol

and Temperature

Pre-wash

Bio Eco 50° C

Normal 65° C

1) Values may vary in relation to usage, e.g. different loads, water temperatures - above or below 15° C - as well as water hardness and power supply voltage etc.

2) Programme recommended when using detergents of type B (enzyme-based detergents). Reference programme for energy label.

3) Programme recommended when using detergents of type A (non enzyme-based detergents).

Crockery to be washed later.

Normally or heavily soiled crockery with dried-on food.

Normally or heavily soiled crockery.

Programme selection and

recommended load type

Programme selection button

Start button

Indicator lamp lit while the dishwasher is operating. Flashes when a fault occurs. Switches off at the end of the programme.

Place the detergent in the:

small large

compartment compartment

(Litres)

- - 8.0 0.02 12

X X 25.0 1.55 94

X X 25.0 1.66 94

Water

Consumption

Normal load

Energy

(kWh)

5019 100 92213

(We reserve the right to make technical modifications)

Time

(Min.)

How to use the dishwasher

1. After loading the dishwasher, turn on the water supply tap and open the dishwasher door.

2. Press the ON button to switch the dishwasher on.

indicator lamps will switch on.

3. Press the programme selector button until the corresponding indicator lamp switches on. If necessary, select options (if supplied).

4. Press the Start button to start the selected programme.

corresponding indicator lamp switches on.

programmed data cannot be altered by pressing the programme selector button.

once the Start button has been

Note:

pressed, the dishwasher memorises the last programme selected. This information remains in the memory even during interruption of the power supply.

To change the selected programme, open the door

(caution: danger of scalding from steam!)

button for about 5 seconds,

the Start indicator lamp switches off.

press the Start button again.

if the dishwasher is switched off

Note:

during a wash programme, when switched on again it will resume the wash cycle from where it was interrupted.

Only open the dishwasher door if strictly necessary during a wash cycle and exercise maximum caution. Danger of scalding from steam.

5. To indicate the end of a programme, an acoustic signal is act ivated 4 times, the Start indicator lamp switches off and

the End indicator lamp (if fitted)

lights up

One of the programme

The

Once set, the

and press the Start

Select a new programme and

(for about 30 min.)

until

6. Only open the door once the wash cycle has terminated (caution: danger of scalding from steam) and press the OFF button to switch the dishwasher off.

All the indicator lamps switch

off.

7. Unload the lower rack before the uppe r one. Close the water tap.

Upper rack

Upper and lower rack

Crockery holders:

• Down: cups and long-stemmed glasses.

• Up: plates.

Lower rack

Cutlery basket (C):

• With or without handle (depending on model).

• The cutlery basket can be removed to increase available spa ce.

Please read the user instructions carefully.
