WHIRLPOOL DW60 User Manual [fr]

RENLIG

DW60

ENGLISH 4 DEUTSCH 24 FRANÇAIS 46 ITALIANO 68

ENGLISH 4

Contents

Safety information 4 Product description 5 Control panel 6 Washing programmes 8 Use of the appliance 9 Setting the water softener 9 Use of dishwasher salt 10 Use of rinse aid 11 Loading cutlery and dishes 12 Use of detergent 13

Subject to change without notice

Setting and starting a washing programme

14 Care and cleaning 15 What to do if… 17 Technical data 18 Installation 19 Water connection 19 Electrical connection 20 Environment concerns 21 IKEA GUARANTEE 21

Safety information

For your safety and correct operation of

the appliance, read this manual carefully before installation and use. Always keep these instructions with the appliance even if you move or sell it. Users must fully know the operation and safety features of the appliance.

Correct use

• The appliance is designed exclusively for

domestic use.

• Only use the appliance to clean household

utensils that are applicable for dishwashers.

• Do not put solvents in the appliance. Risk of

explosion.

• Put the knives and all items with sharp points

in the cutlery basket with their points down. If not, put in a horizontal position in the upper basket.

• Use only branded products for dishwashers

(detergent, salt, rinse aid).

• If you open the door while the appliance is

in operation, hot steam can escape. Risk of skin burns.

• Do not remove dishes from the dishwasher

before the end of the washing programme.

• When the washing programme is comple-

ted, disconnect the mains plug from the mains socket and close the water tap.

• Only an authorised service engineer can re-

pair this appliance. Use only original spare parts.

• Do not do repairs yourself to prevent injury

and damage to the appliance. Always contact your local After Sales Service.

General safety

• Persons (including children) with reduced physical sensory, mental capabilities or lack of experience and knowledge must not use the appliance. They must have supervision or instruction for the operation of the appliance by a person responsible for their safety.

• Obey the safety instructions from the manufacturer of the dishwasher detergent to prevent burns to eyes, mouth and throat.

• Do not drink the water from the dishwasher. Detergent residues can stay in your appliance.

• Always close the door when you do not use the appliance to prevent injury and not to stumble over the open door.

• Do not sit or stand on the open door.

Child safety

• Only adults can use this appliance. Children must get supervision to make sure that they do not play with the appliance.

• Keep all the packaging away from children. There is a risk of suffocation.

• Keep all detergents in a safe area. Do not let children touch the detergents.

• Keep children away from the appliance when the door is open.

ENGLISH 5

Installation

• Make sure that the appliance is not damaged because of transport. Do not connect a damaged appliance. If necessary, contact the supplier.

• Remove all packaging before first use.

• A qualified and competent person must do the electrical installation.

• A qualified and competent person must do the plumbing installation.

• Do not change the specifications or modify this product. Risk of injury and damage to the appliance.

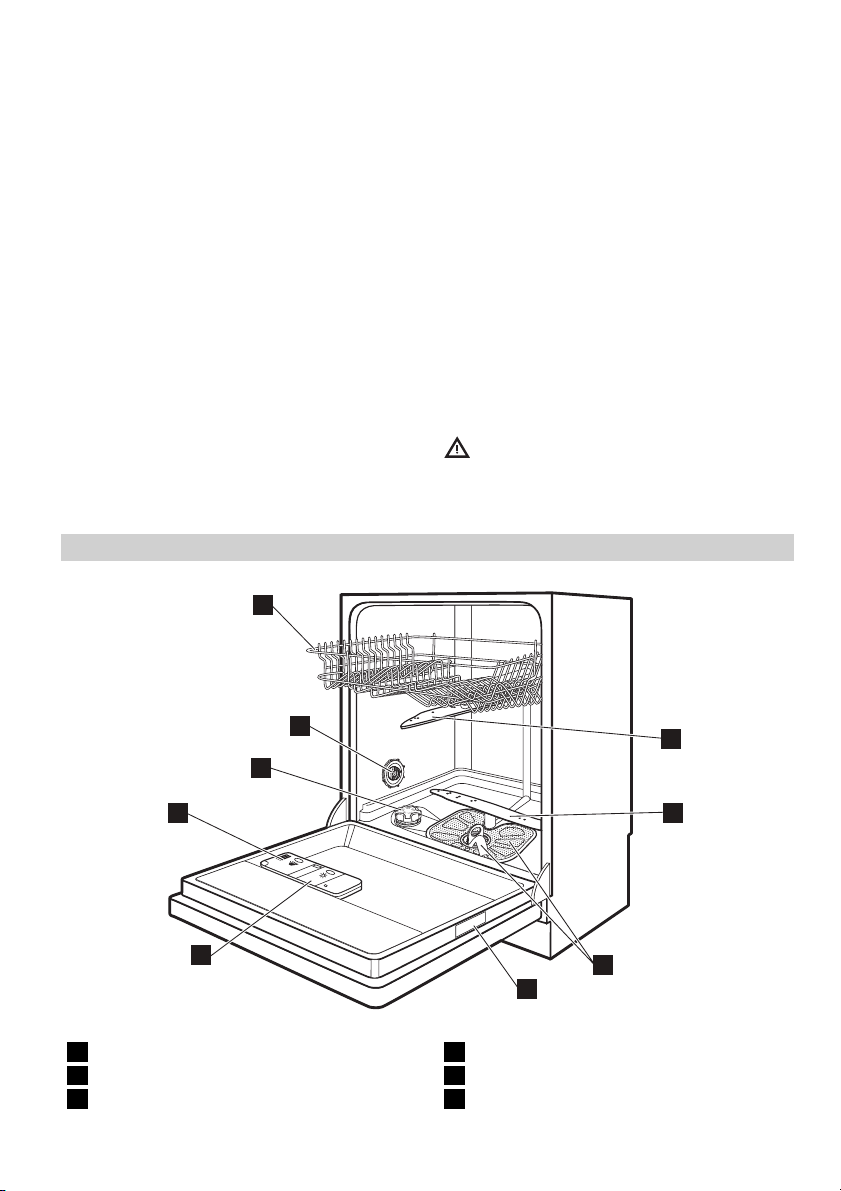

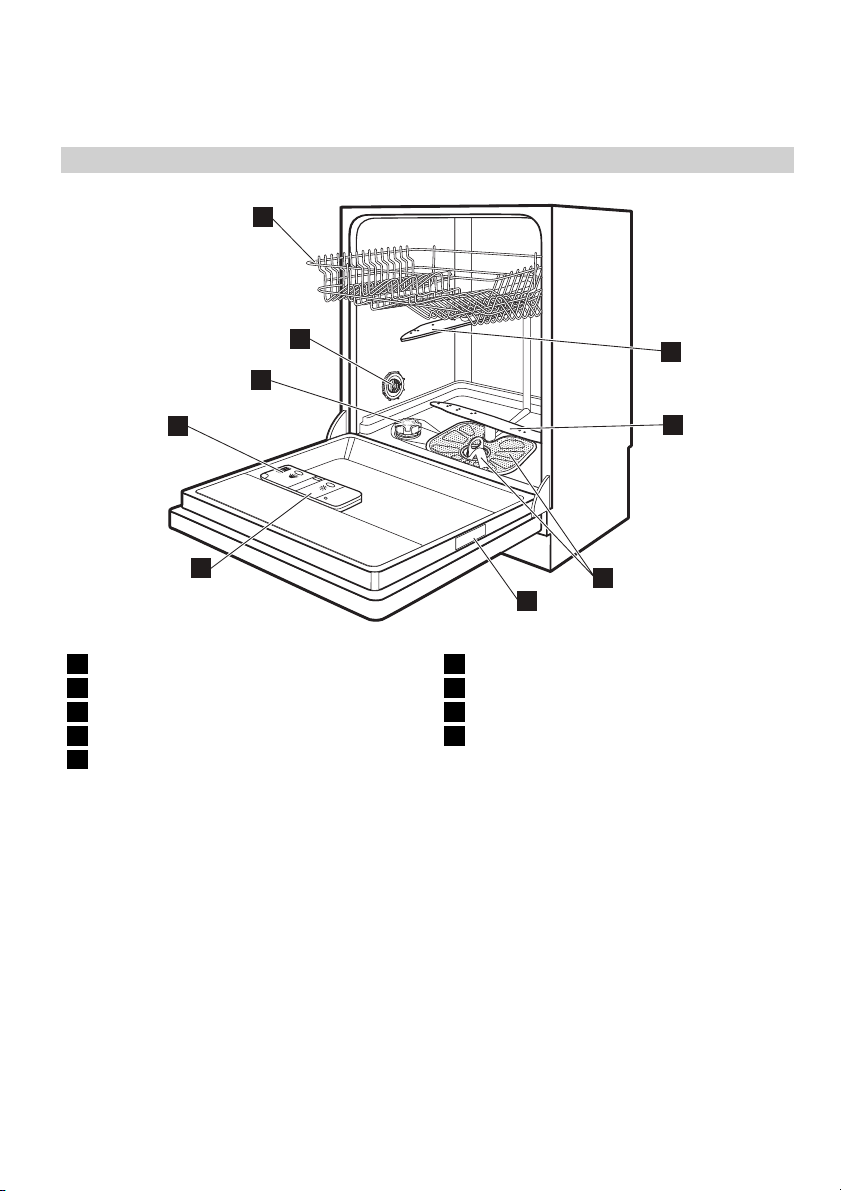

Product description

• Do not use the appliance: – if the mains cable or water hoses are

damaged,

– if the control panel, worktop or plinth area

are damaged, that you can get access to

the inner side of the appliance. If you have any doubts, please contact your After Sales Service. Refer to the list of the After Sales Services at the end of user manual.

• Do not drill into the sides of the appliance to prevent damage to hydraulic and electrical components.

Warning! Carefully obey the instructions for electrical and water connections.

1 Upper basket 2 Water hardness dial 3 Salt container 4 Detergent dispenser 5 Rinse aid dispenser

6 Rating plate 7 Filters 8 Lower spray arm 9 Upper spray arm

ENGLISH 6

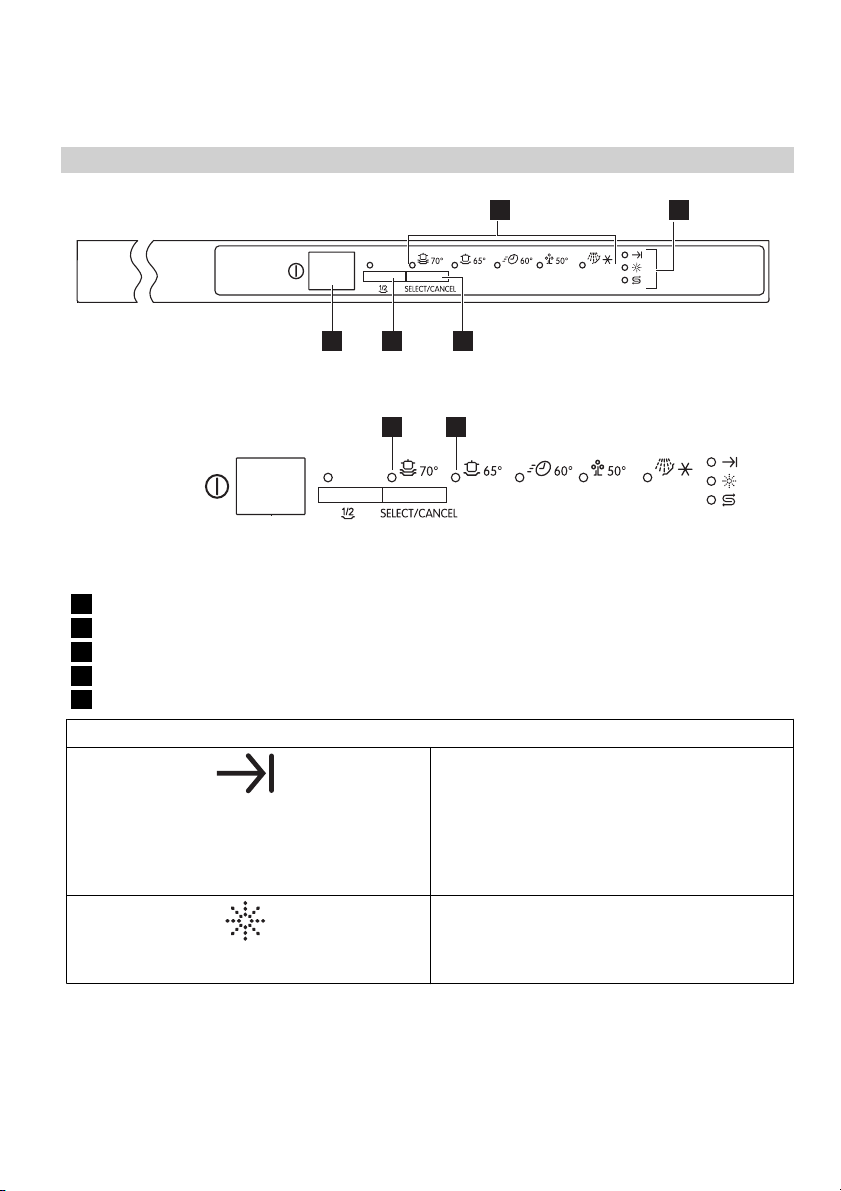

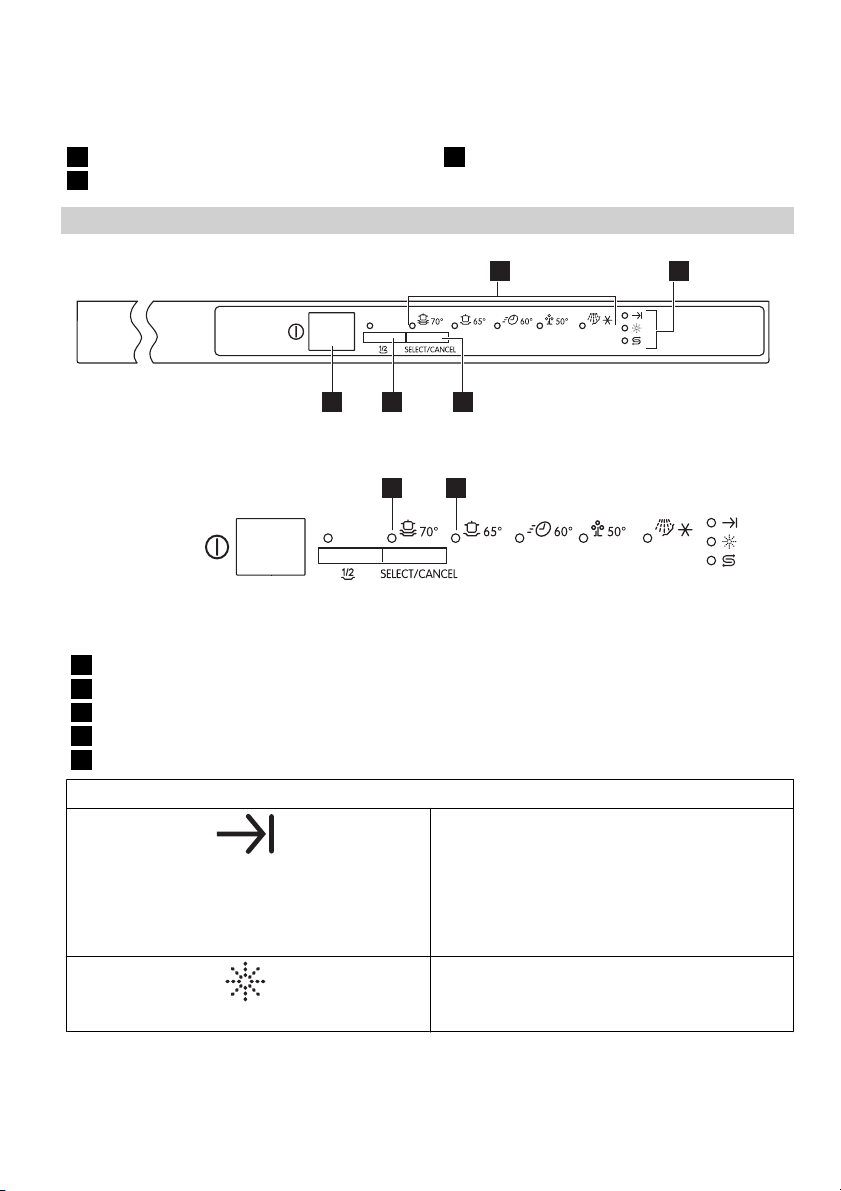

Control panel

5 4

1 2 3

A B

1 On/off button 2 Half-load button 3 Programme selection/cancel button (SELECT/CANCEL) 4 Indicator lights 5 Programme indicator lights

Indicator lights

The indicator light comes on when the washing programme is completed. Auxiliary functions:

• Level of the water softener.

• Activation/deactivation the audible signals.

• An alarm if the appliance has a malfunction. The indicator light comes on when it is neces-

sary to fill the rinse aid. Refer to the chapter

'Use of rinse aid'.

The indicator light comes on when it is necessary to fill the salt container. Refer to the chap-

ter 'Use of dishwasher salt'. The salt indicator light can stay on for some hours, but it does not have an unwanted effect on the operation of the appliance.

1) The indicator light is off while a washing programme operates.

ENGLISH 7

Programme selection/cancel button

Use the programme selection/cancel button for these operations:

• To set the washing programme. Refer to the chapter 'Setting and starting a washing programme'.

• To set the water softener. Refer to the chapter 'Setting the water softener'.

• To deactivate/activate the audible signals. Refer to the section 'Audible signals'.

• To cancel a washing programme in progress. Refer to the chapter 'Setting and starting a washing programme'.

Half-load button

The half-load option is not available for all washing programmes. Refer to the chapter 'Washing programmes'.

• Load dishes in the upper and lower basket.

• Decrease the detergent dosage when you use the half-load option.

• Press the half-load button to set the option. – The half-load indicator light comes on,

when the half-load option is selectable. With the half-load button pressed the

time duration and the consumption of wa-

ter and energy are reduced.

Setting mode

The appliance is in setting mode when all the programme indicator lights are off and the end indicator light flashes. The appliance must be in setting mode for these operations: – To set a washing programme. – To set the water softener level. – To deactivate/activate the audible signals. If a programme indicator light is on, cancel the programme to go back to the setting mode. Refer to the chapter "Setting and starting a washing programme".

Programme indicator lights A and B

Apart the selection of the corresponding washing programme, these lights have an auxiliary functions:

• The adjustment of the water softener level.

• Deactivation/activation of the audible signals.

Audible signals

You can hear an audible signal:

• At the end of the washing programme.

• When the appliance has a malfunction.

The activation of the audible signals is set at the factory. Do these steps to deactivate the audible signals:

1. Switch on the appliance.

2. Make sure that the appliance is in setting

mode.

3. Press and hold the programme selection/

cancel button until programme indicator light A flashes and programme indicator light B comes on.

4. Press the programme selection/cancel

button again. – Programme indicator light A comes on. – Programme indicator light B starts to

flash.

5. Wait until programme indicator light A

goes off. – Programme indicator light B continues to

flash. – The end indicator light comes on. The audible signals are activated.

6. Press the programme selection/cancel button again. – The end indicator light goes off. The audible signals are deactivated.

7. Switch off the appliance to save the operation.

Do these steps to activate the audible signals:

1. Do the above procedure until the end indicator light comes on.

ENGLISH 8

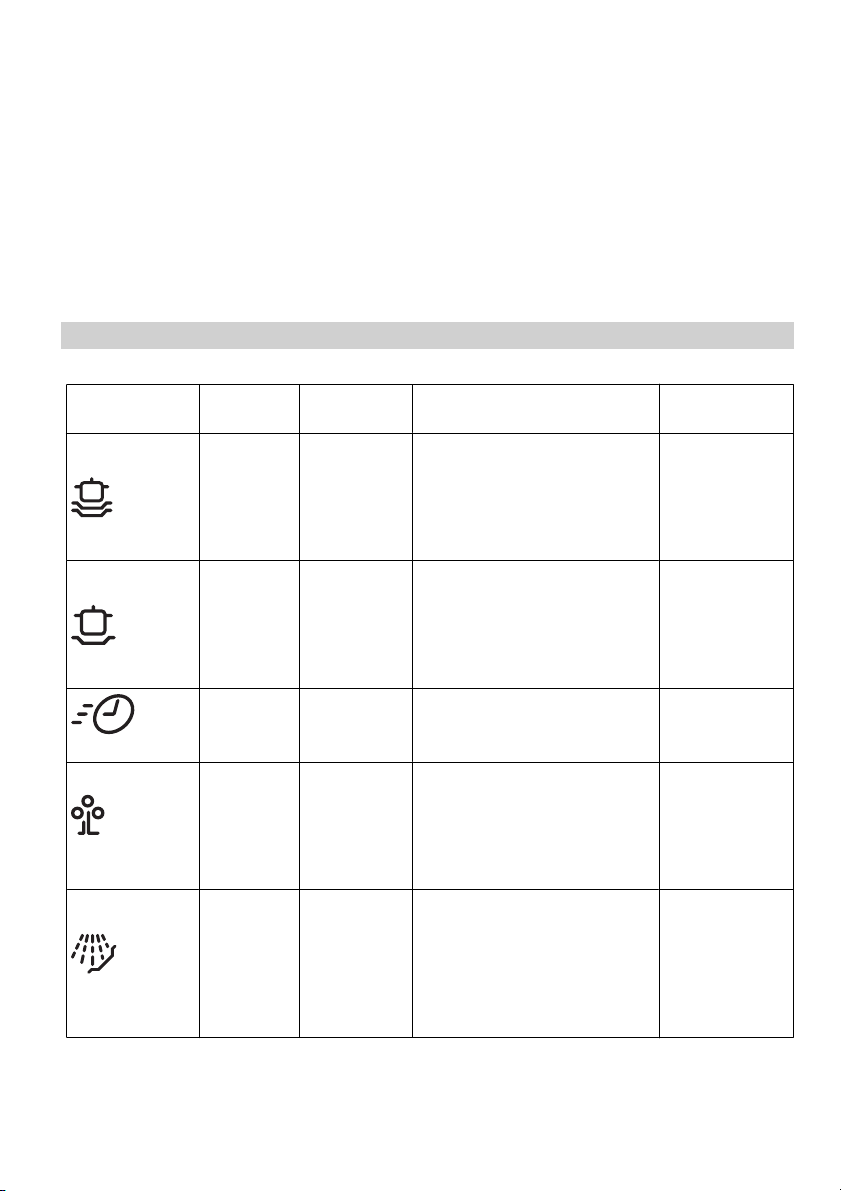

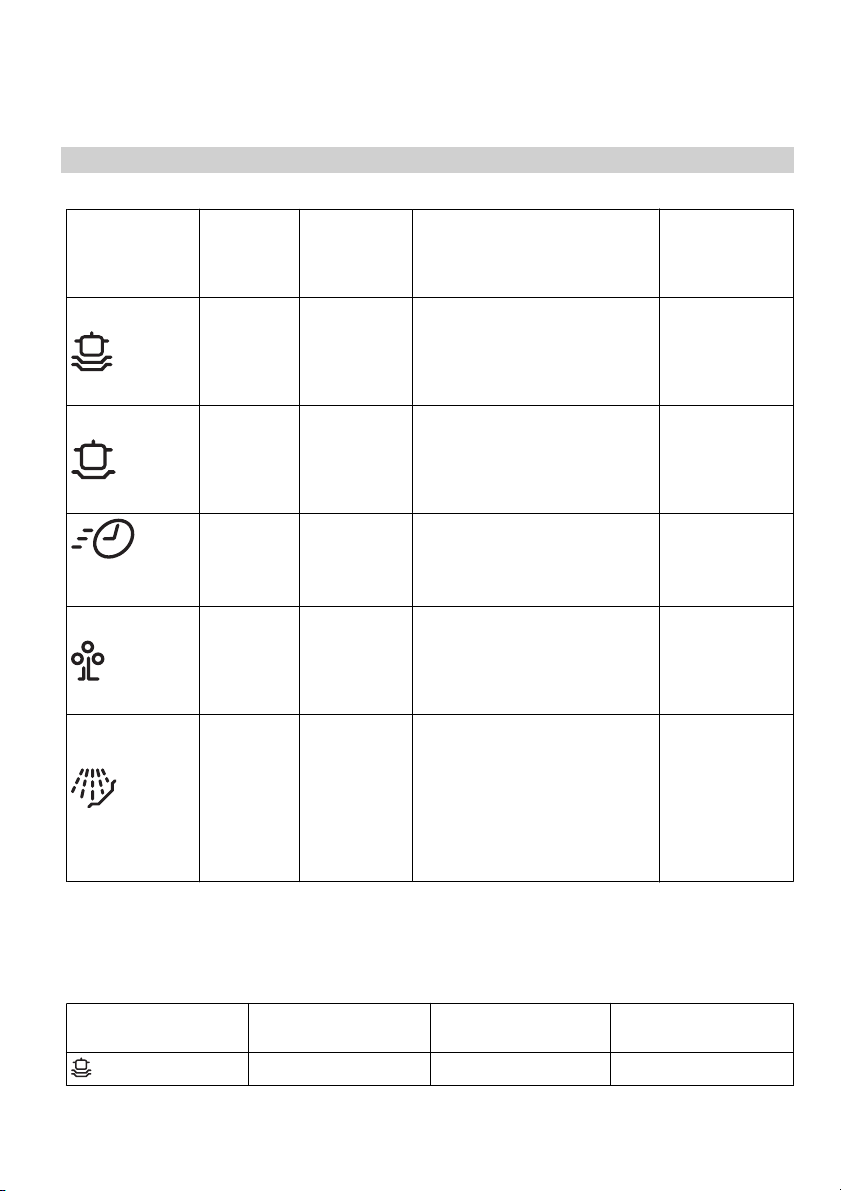

Washing programmes

Programme

Intensive

Normal

Quick

Degree of

soil

Heavy soil

Normal soil

Normal or

light soil

Type of load Programme description

Prewash

Crockery,

cutlery, pots

and pans

Main wash up to 70°C 2 intermediate rinses Final rinse Drying

Prewash

Crockery,

cutlery, pots

and pans

Main wash up to 65°C 2 intermediate rinses Final rinse Drying

Crockery

and cutlery

Main wash up to 60°C Final rinse

Half-load op-

tion

yes

Eco

Prewash

Normal soil

Crockery

and cutlery

Main wash up to 50°C 1 intermediate rinse Final rinse

yes

Drying

Partial load

Rinse &

Any

Hold

1) This is the perfect daily programme to clean a not fully load. Ideal for a family of 4 persons who only want to load breakfast and dinner crockery and cutlery.

2) Test programme for test institutes. This is the economy washing programme. Please refer to separate leaflet supplied, for test data. Available only in 3 languages (English, French, German) just for test institutes purpose.

(to be completed later

in the day)

1 cold rinse (to prevent food scraps to bond). Detergent is not necessary with this programme.

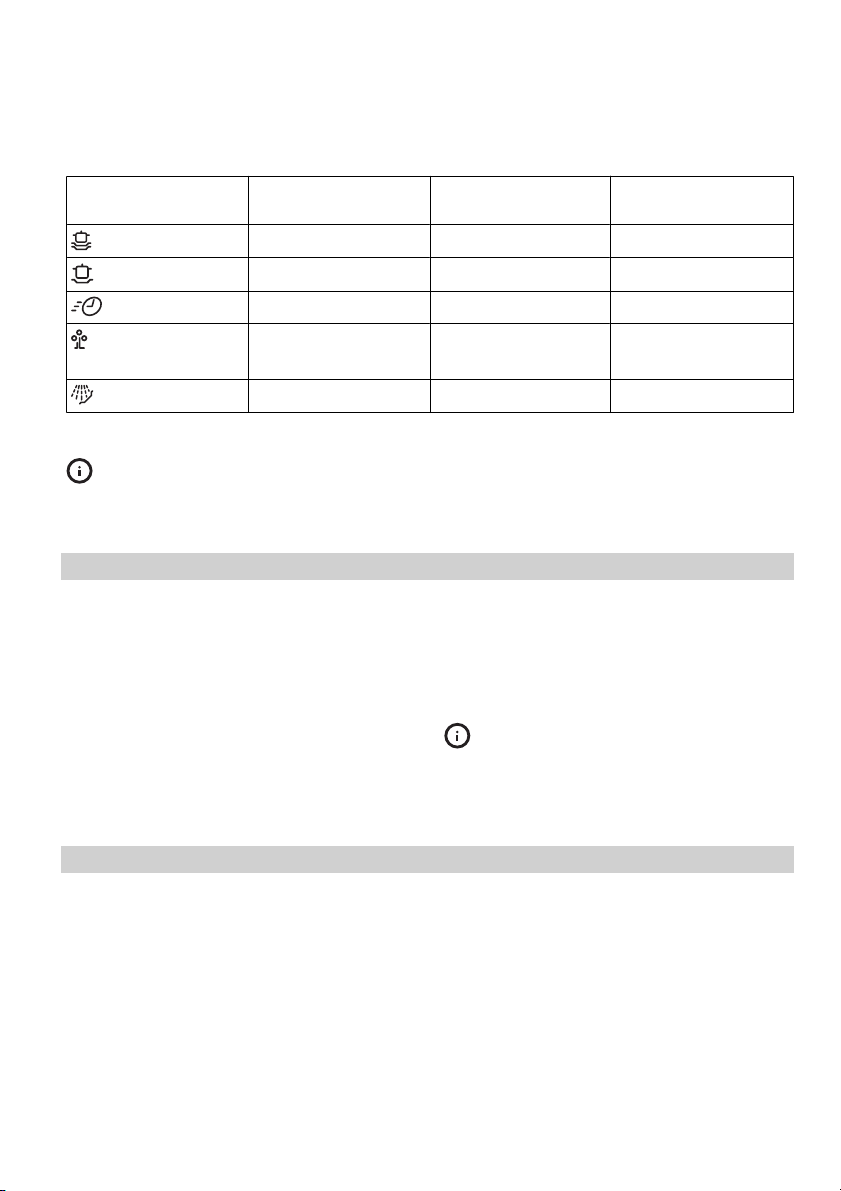

Consumption values (for full washing cycle)

Programme Programme duration

(minutes)

Energy consumption (kWh)

Water consumption (litres)

120-130 1,8-2,0 22-24 105-115 1,5-1,7 23-25 30 0,9 9

130-140 1,0-1,2 14-16

ENGLISH 9

Programme Programme duration

(minutes)

12 0,1 5

1) The duration of this washing programme is prefixed (longer) than the others due to a prolonged drying and washing phases.

The pressure and temperature of the water, the variations of power supply and

the quantity of dishes can change these values.

Energy consumption (kWh)

Water consumption (litres)

Use of the appliance

Refer to the following instructions for each step of procedure:

1. Make a check if the water softener level is

correct for the water hardne ss in you r are a. If necessary set the water softener.

2. Fill the salt container with dishwasher salt.

3. Fill the rinse aid dispenser with rinse aid.

4. Load cutlery and dishes into the dishwash-

er.

5. Set the correct washing programme for the type of load and soil.

6. Fill the detergent dispenser with the correct quantity of detergent.

7. Start the washing programme.

If you use detergent tablets, refer to the chapter 'Use of detergent'.

Setting the water softener

The water softener removes minerals and salts from the water supply. Minerals and salts can have bad effect on the operation of the appliance. Water hardness is measured in equivalent scales:

• German degrees (dH°).

• French degrees (°TH).

• mmol/l (millimol per litre - international unit for the hardness of water).

•Clarke.

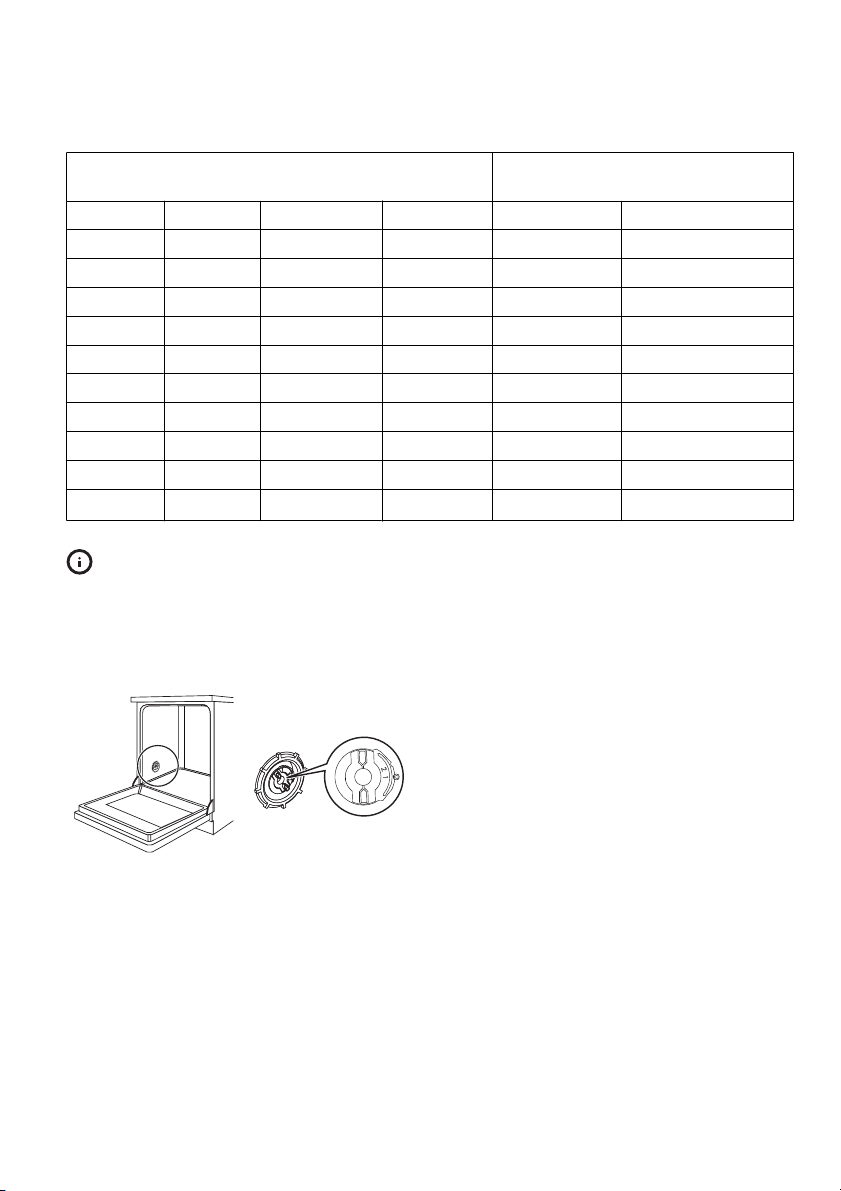

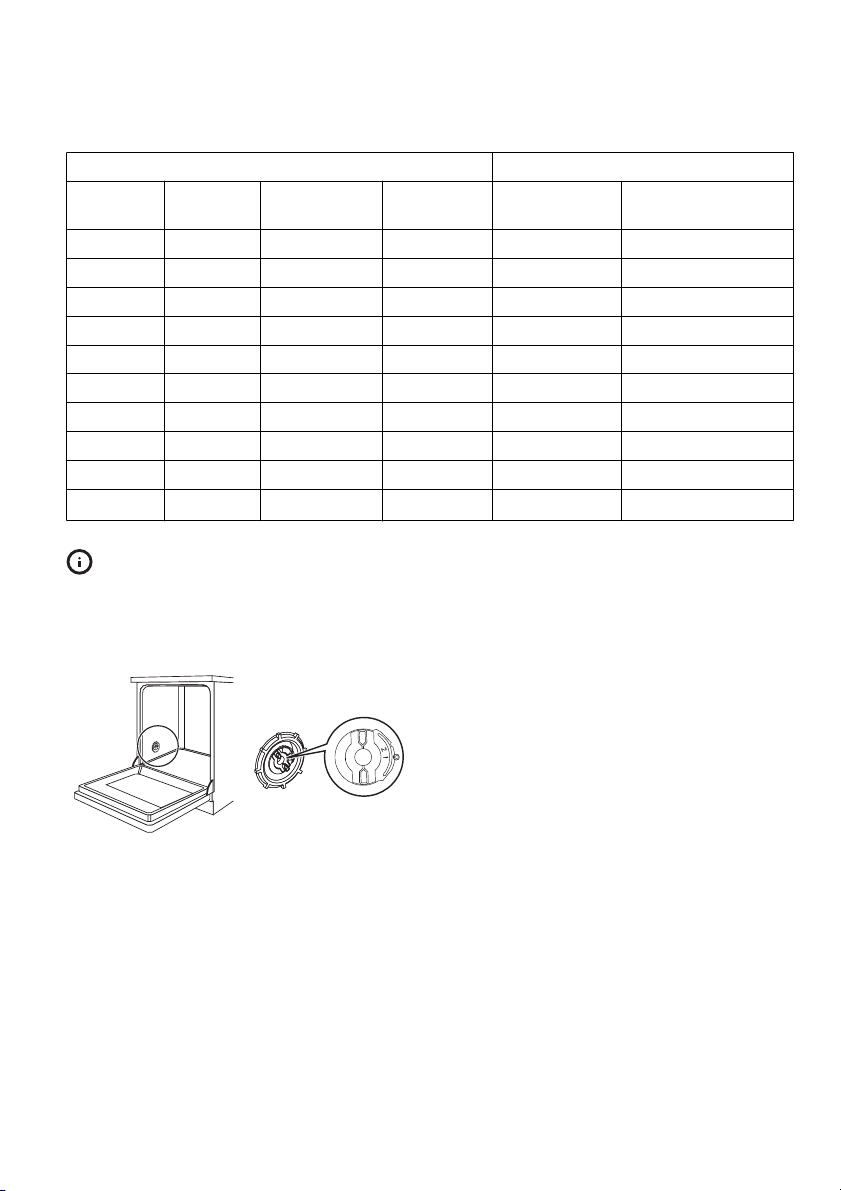

Water hardness Water hardness setting

°dH °TH mmol/l Clarke manually electronically

51 - 70 91 - 125 9,1 - 12,5 64 - 88 2 10 43 - 50 76 - 90 7,6 - 9,0 53 - 63 2 9 37 - 42 65 - 75 6,5 - 7,5 46 - 52 2 8 29 - 36 51 - 64 5,1 - 6,4 36 - 45 2 7 23 - 28 40 - 50 4,0 - 5,0 28 - 35 2 6 19 - 22 33 - 39 3,3 - 3,9 23 - 27 2 5 15 - 18 26 - 32 2,6 - 3,2 18 - 22 1 4

Adjust the water softener to the water hardness in your area. If necessary, contact your local water authority.

ENGLISH 10

Water hardness Water hardness setting

°dH °TH mmol/l Clarke manually electronically

11 - 14 19 - 25 1,9 - 2,5 13 - 17 1 3

4 - 10 7 - 18 0,7 - 1,8 5 - 12 1 2

< 4 < 7 < 0,7 < 5

1) No use of salt required.

You must set the water softener manually and electronically.

Manual adjustment

The appliance is set at the factory at position

Electronic adjustment The water softener is set at the factory at

level 5.

1. Switch on the appliance.

2. Make sure that the appliance is in setting

mode.

3. Press and hold the programme selection/

cancel button.

Set switch to position 1 or 2.

4. Release the programme selection/cancel button when programme indicator light A starts to flash and programme indicator light B comes on.

5. Wait until programme indicator light B goes off. – Programme indicator light A starts to

flash.

– The end indicator light starts to flash.

6. Press the programme selection/cancel button one time. – Programme indicator light A starts to

flash.

– The setting function of the water softener

is activated.

– The end indicator light flashes to show

the level of the water softener. Example: 5 flashes, pause, 5 flashes, pause, etc... = level 5.

7. Press the programme selection/cancel button one time to increase the water softener level by one step.

8. Press the on/off button to save the operation.

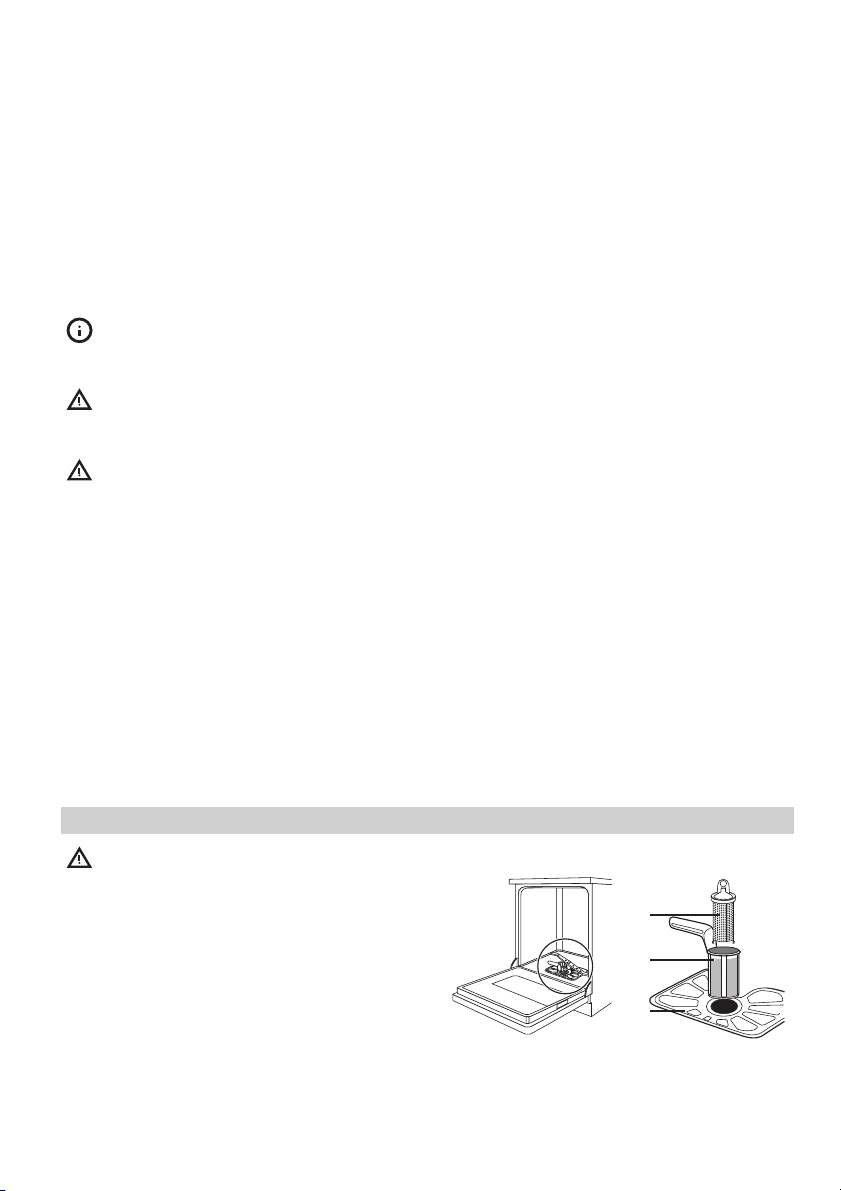

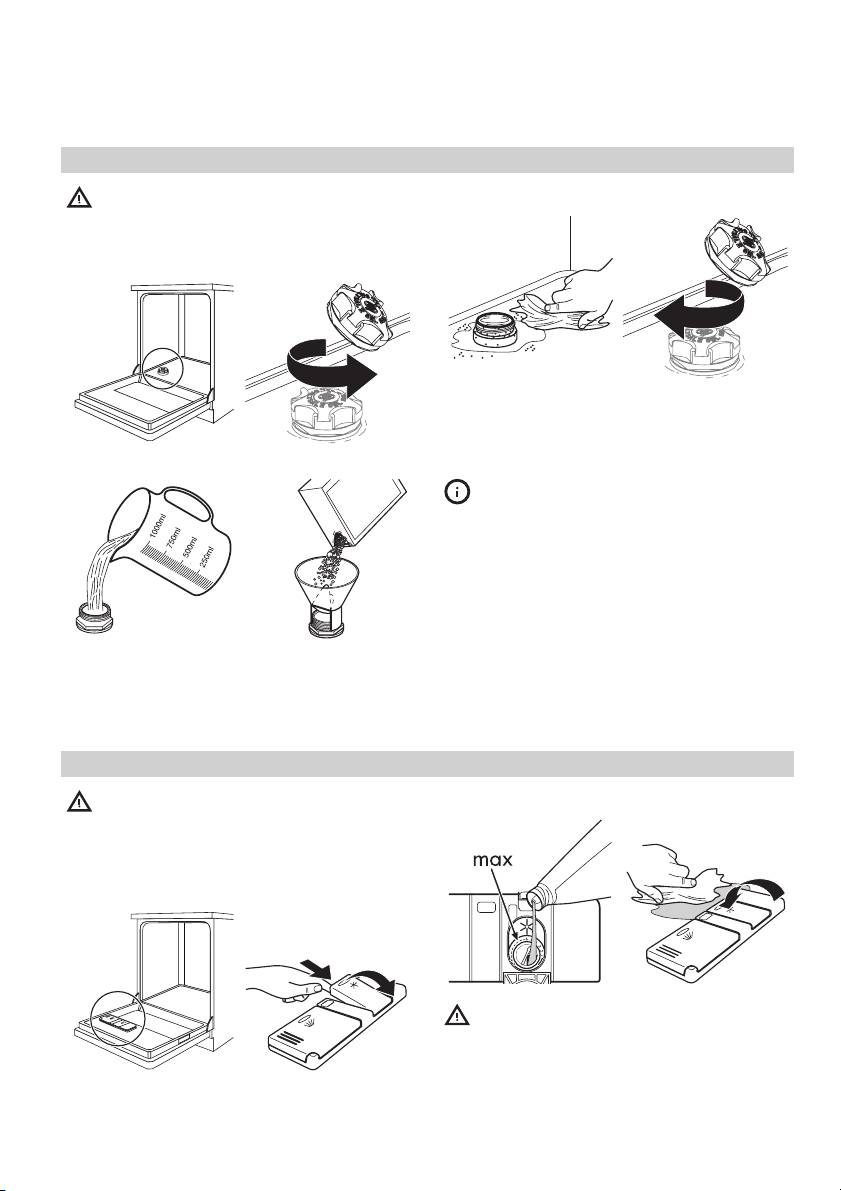

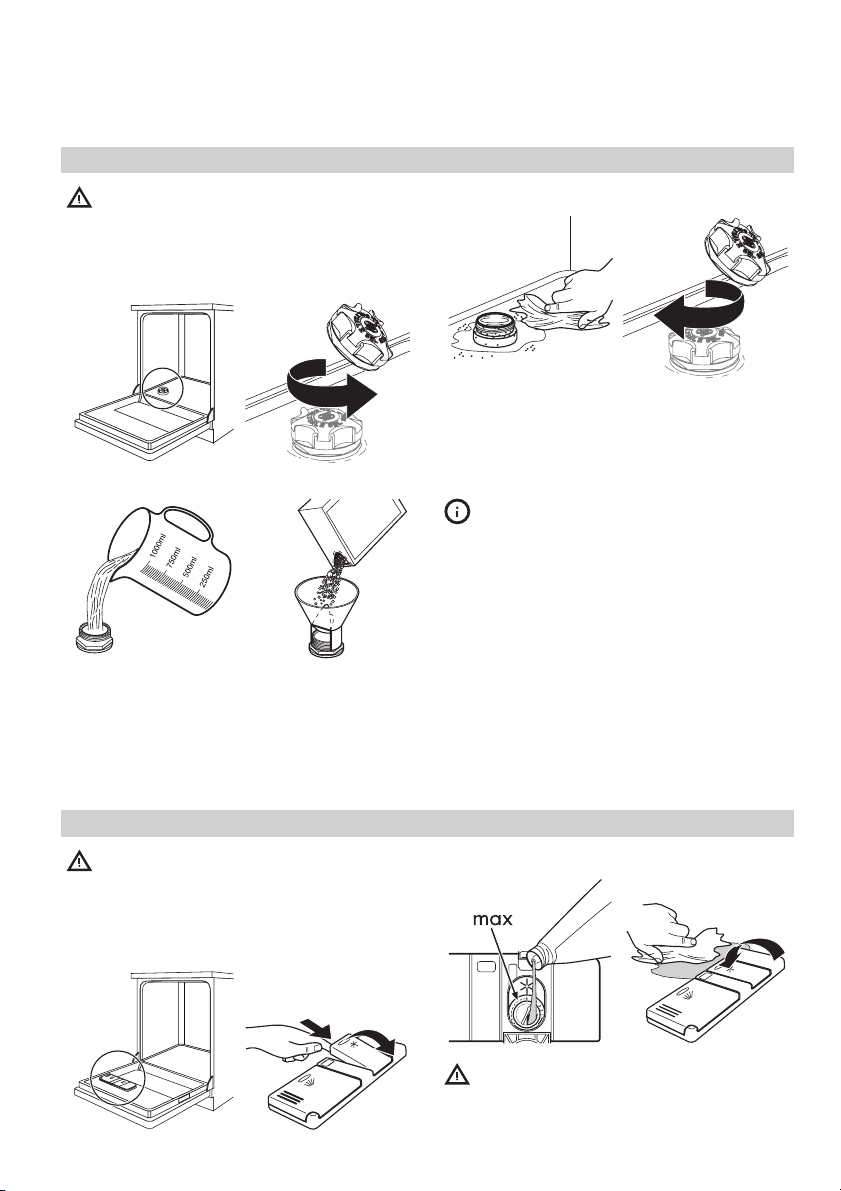

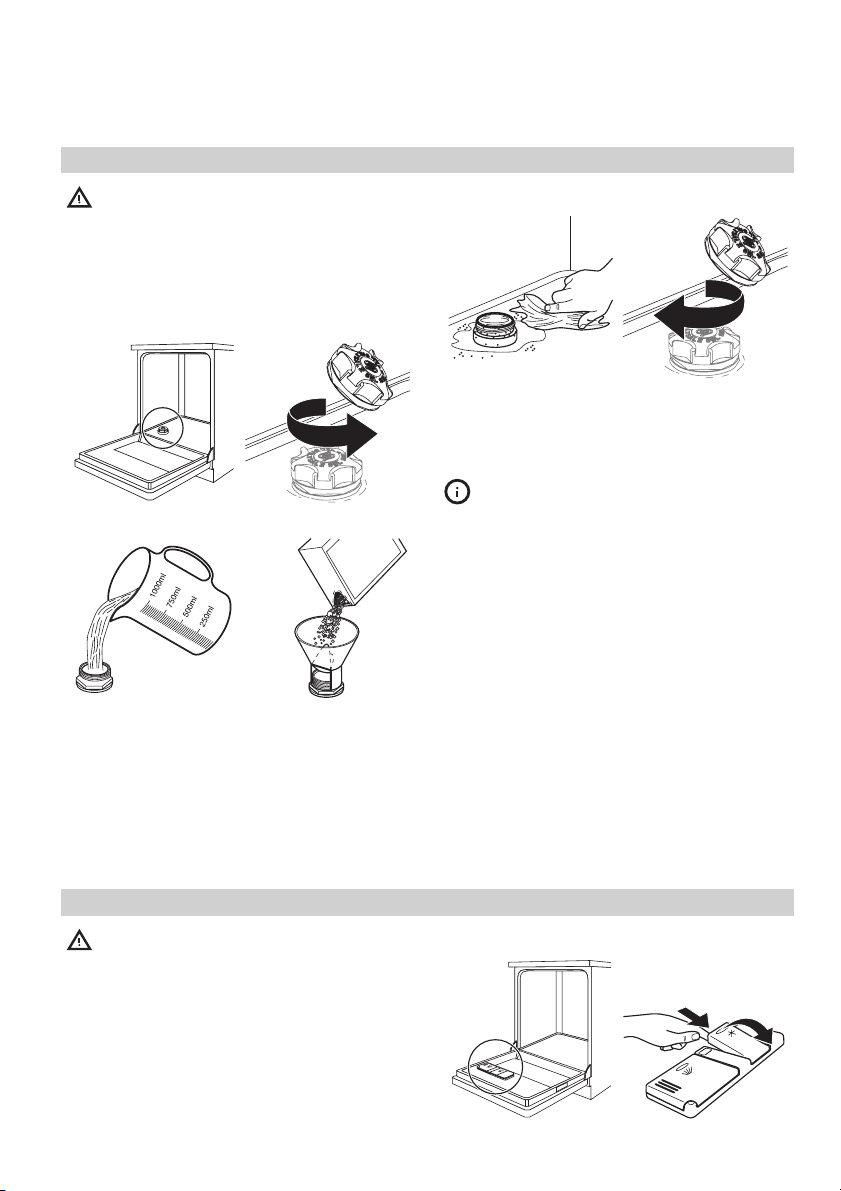

Use of dishwasher salt

Caution! Only use dishwashers salt.

Types of salt that are not applicable for dishwashers cause damage to the water softener.

1 2

ENGLISH 11

Fill the salt container with 1 litre of water (only the first operation).

Make sure that there is no grain of salt outer of the salt compartment.

Fill the salt container with 1,5-2,0 kg of salt. Use the salt funnel supplied.

It is normal that water overflows from the salt container when you fill it with salt.

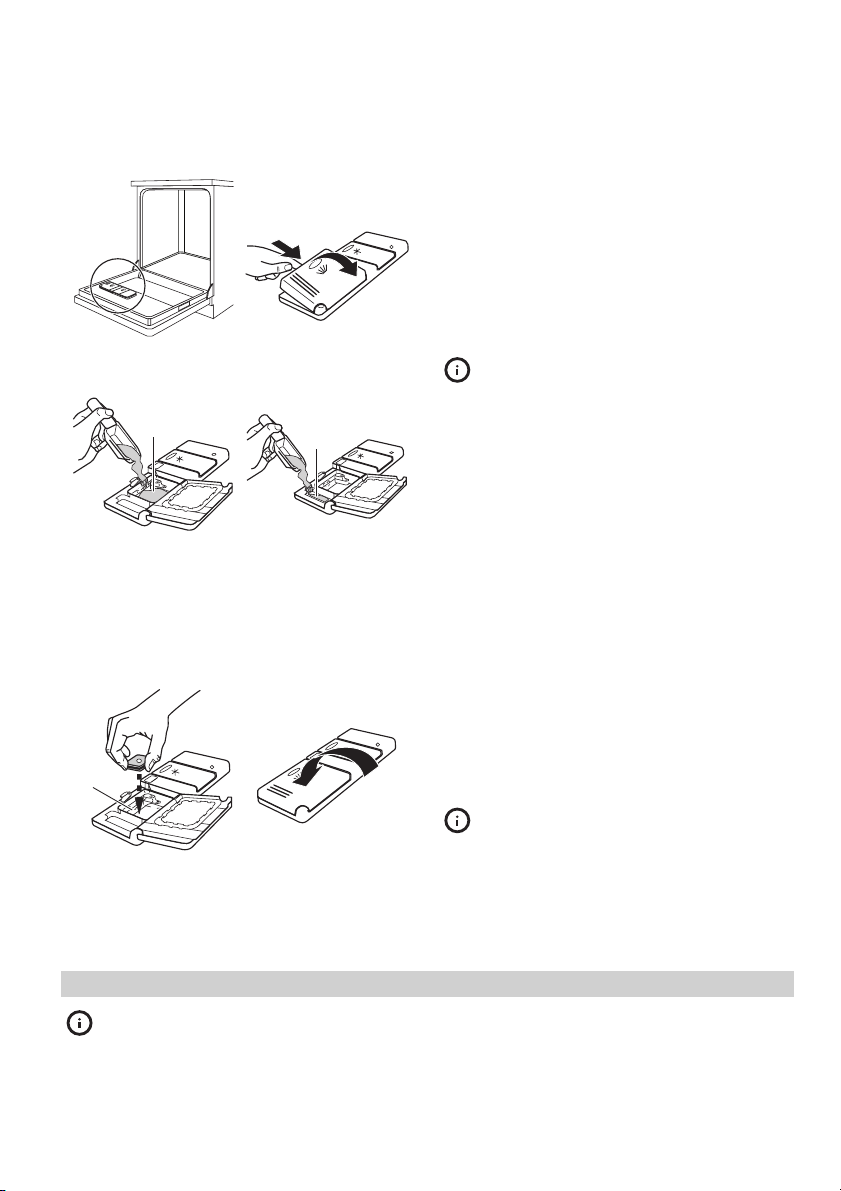

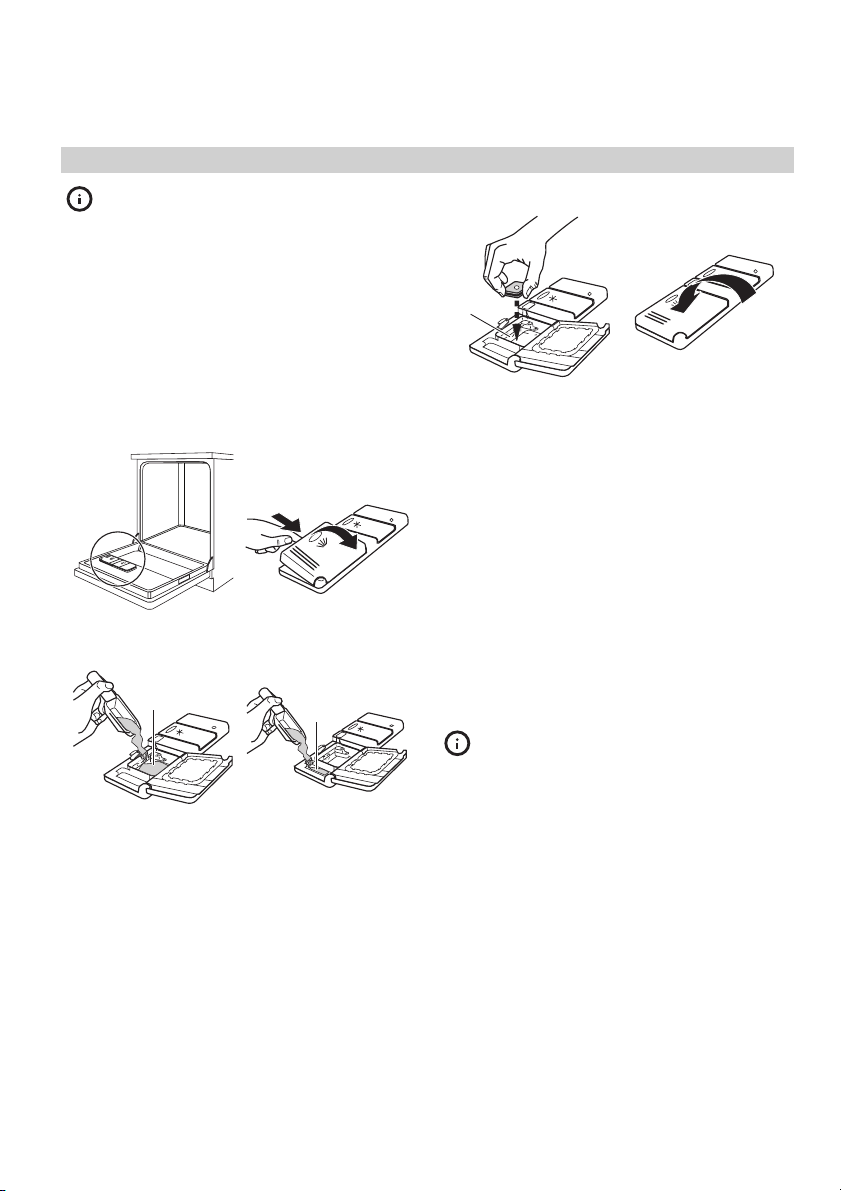

Use of rinse aid

Caution! Only use branded rinse aid for

dishwashers. Do these steps to fill the rinse aid dispenser:

3 4

Caution! Do not fill the rinse aid

dispenser with other products (e.g. dishwasher cleaning agent, liquid detergent). There is a risk of damage to the appliance.

ENGLISH 12

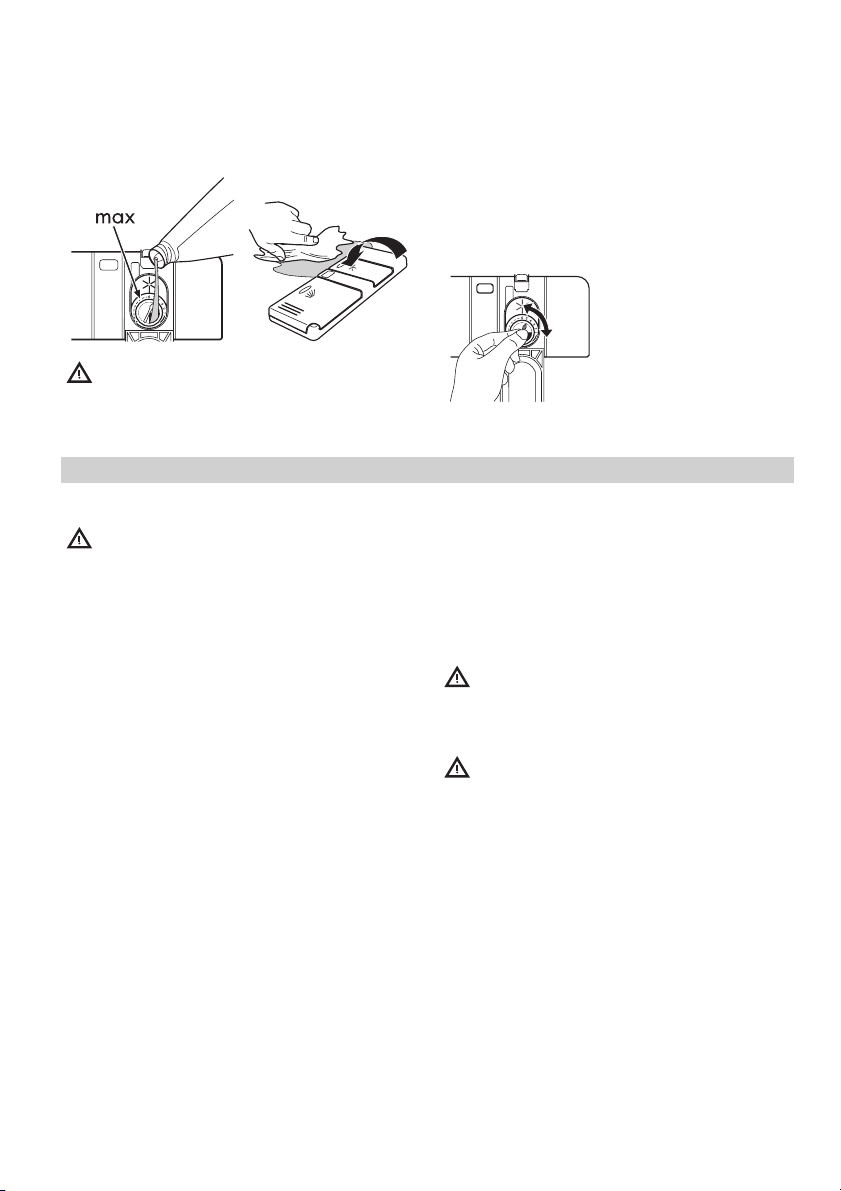

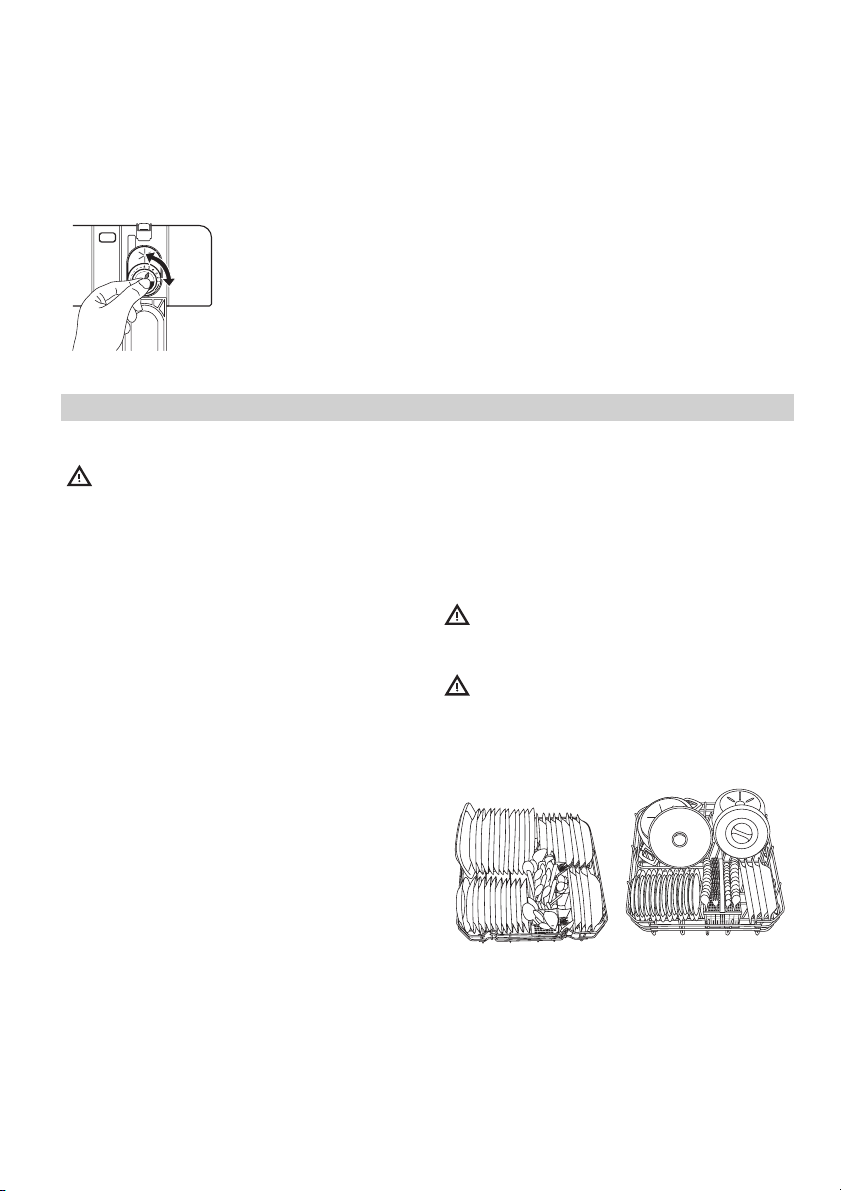

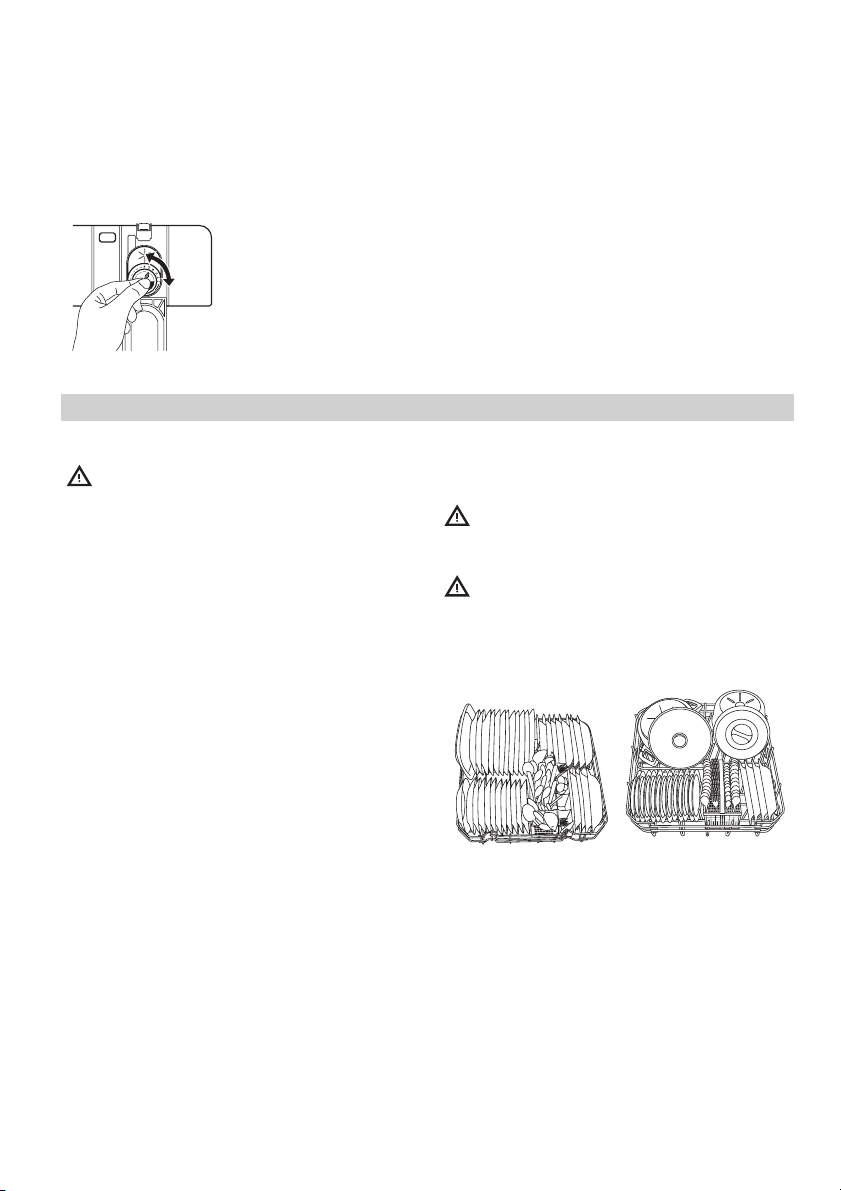

Adjusting the dosage of rinse aid

The rinse aid dial is set at the factory at position 4. To increase or decrease the dosage refer to 'What to do if...'

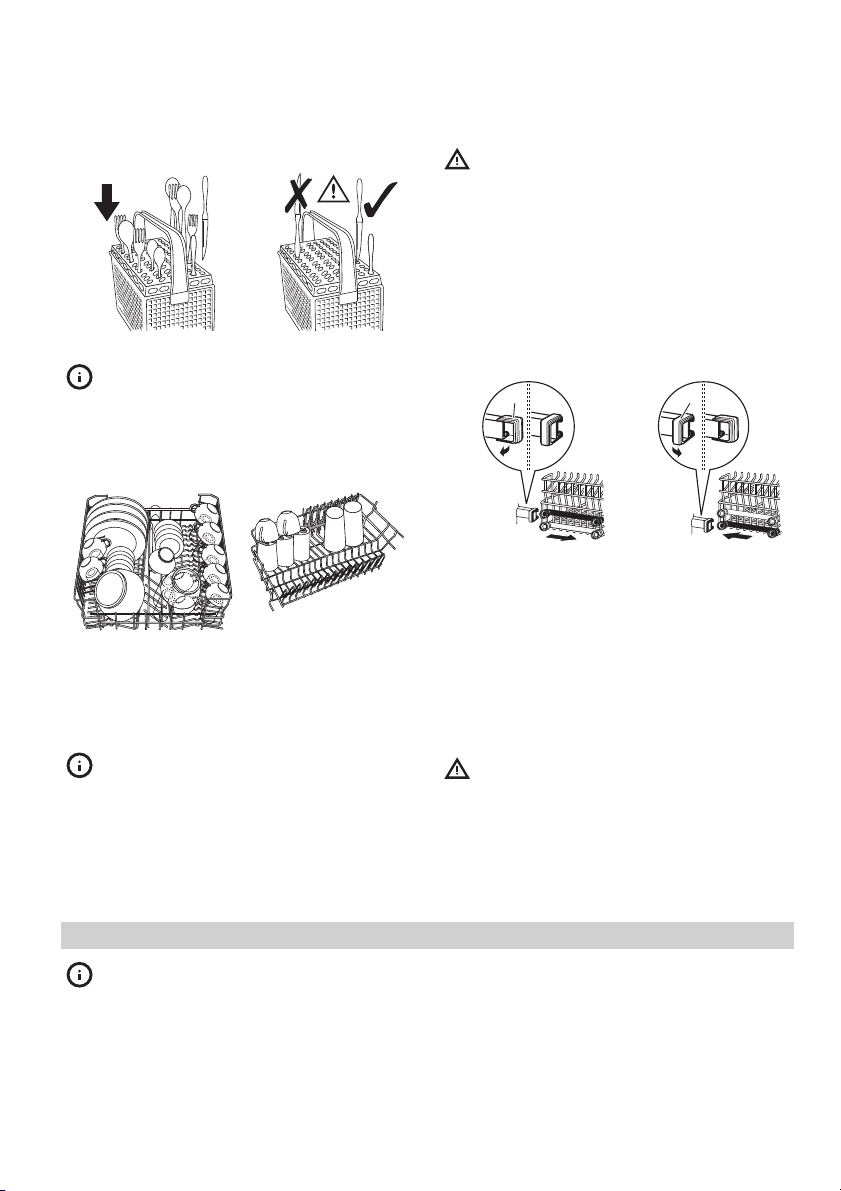

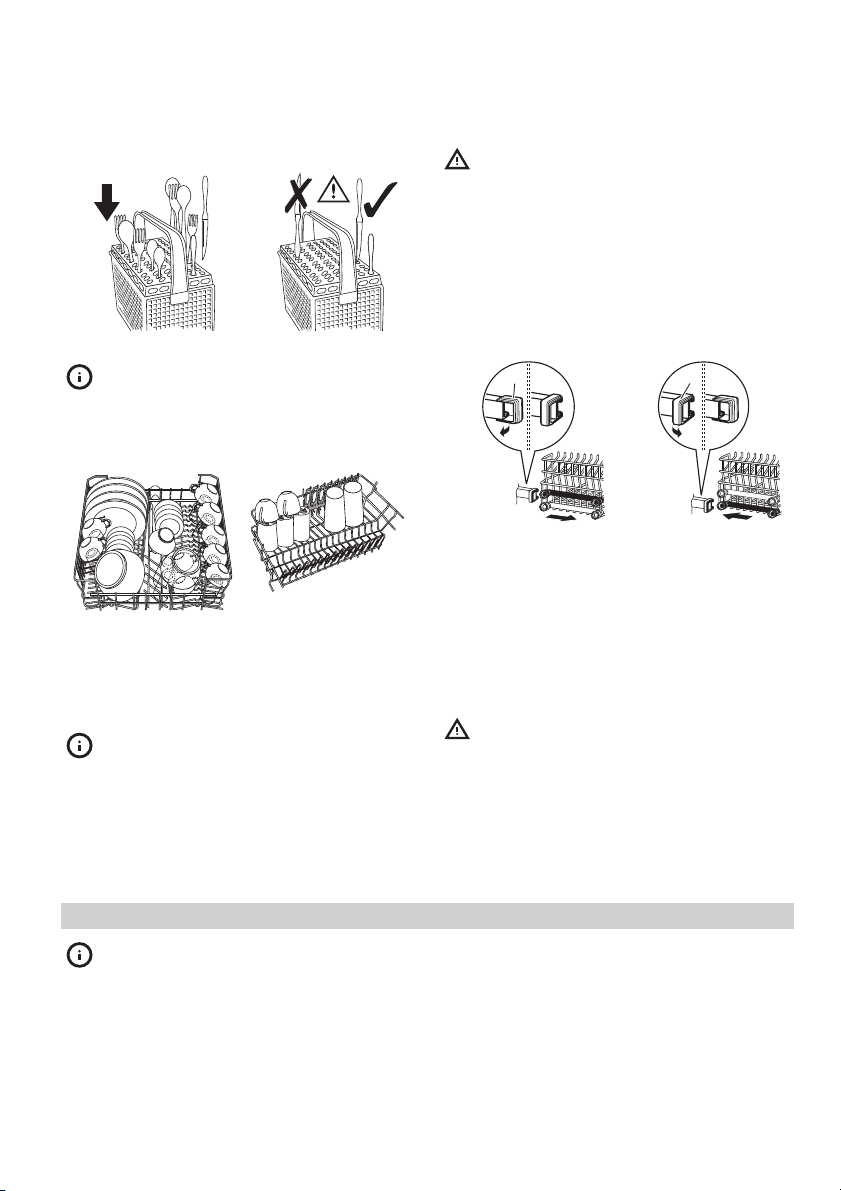

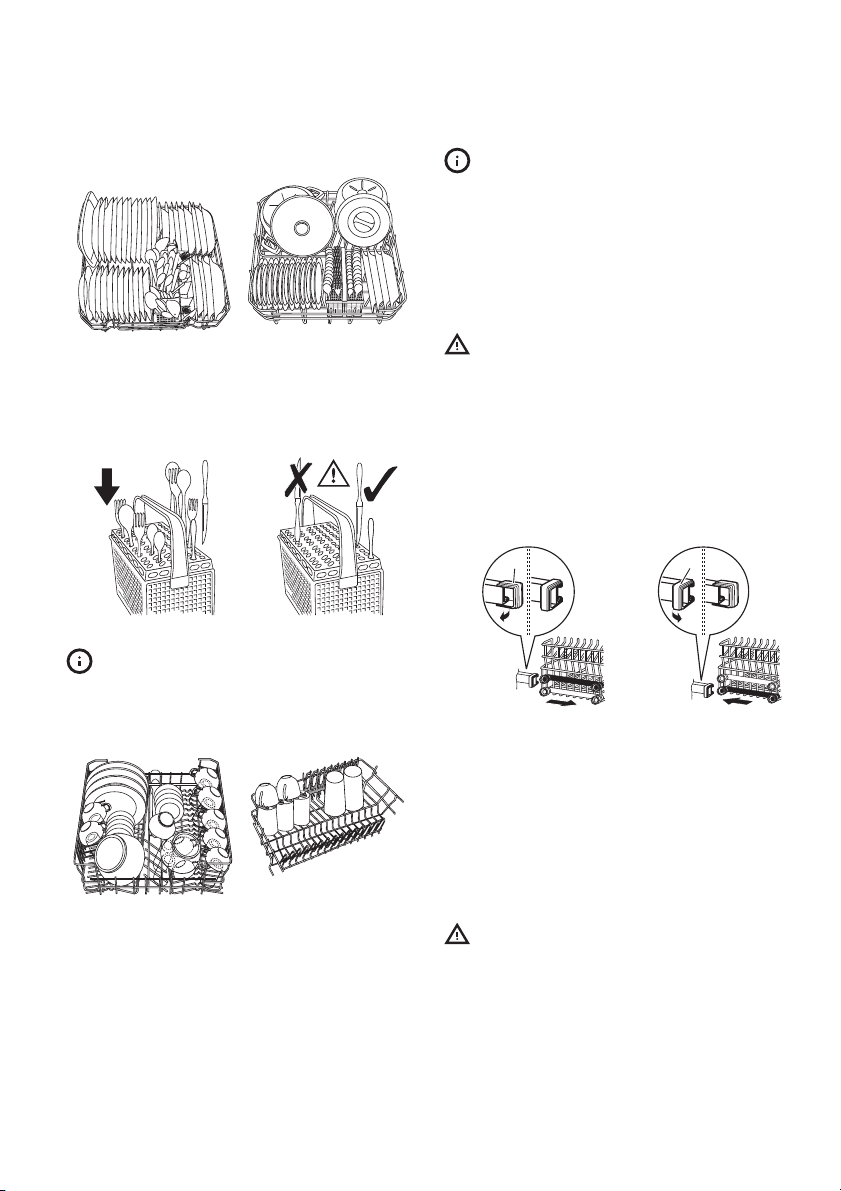

Loading cutlery and dishes

Helpful hints and tips

Caution! Only use the appliance for

household utensils that are applicable for

dishwashers. Do not use the appliance to clean objects that

can absorb water (sponges, household cloths, etc.).

• Before you load cutlery and dishes, do these steps: – Remove all food remainings and debris. – Make burnt, remaining food in pans soft.

• While you load cutlery and dishes, do these steps: – Load hollow items (e.g. cups, glasses and

pans) with the opening down.

– Make sure that water does not collect in

the container or in a deep base.

– Make sure that cutlery and dishes do not

lie inside one another.

– Make sure that cutlery and dishes do not

cover other cutlery and dishes.

– Make sure that glasses do not touch other

glasses.

– Put small objects in the cutlery basket.

• Plastic items and pans with non-stick coatings can keep water droplets. Plastic items do not dry as well as porcelain and steel items.

• Put light items in the upper basket. Make sure that the items do not move.

Caution! Make sure that the spray arms can move freely before you start a

washing programme.

Warning! Always close the door after you load or unload the appliance. An

open door can be dangerous.

Arrange service dishes and large lids around the edge of the lower basket.

Use the cutlery grid. If the dimensions of the cutlery prevent use of the cutlery grid,

remove it.

ENGLISH 13

– Lower position: 24 cm.

•Lower basket. – Upper position: 31 cm. – Lower position: 27 cm.

Arrange the items to let water touch all surfaces (left). For longer items fold the cup racks up (right).

Put plates in the rear part of the upper basket. Tilt them forward.

Adjustment of the height of the upper basket

If you put large plates in the lower basket, first move the upper basket to a upper position.

Warning! Adjust the height before you load the upper basket.

Maximum height of the dishes in :

• Upper basket. – Upper position: 20 cm.

Use of detergent

Only use detergents (powder, liquid or

tablet) that are applicable for dishwashers. Follow the data on the packaging:

• Dosage recommended by the manufactur-

er.

• Storage recommendations. Do not use more than the correct quantity of

detergent to save an environment.

Do these steps to move the upper basket to the upper or lower position:

1. Move the front runner stops (A) out.

2. Pull the basket out.

3. Put the basket in the upper or lower position.

4. Replace the front runner stops (A) in their initial position.

Caution! If the basket is in the upper position, do not put cups on the cup racks.

1 2

ENGLISH 14

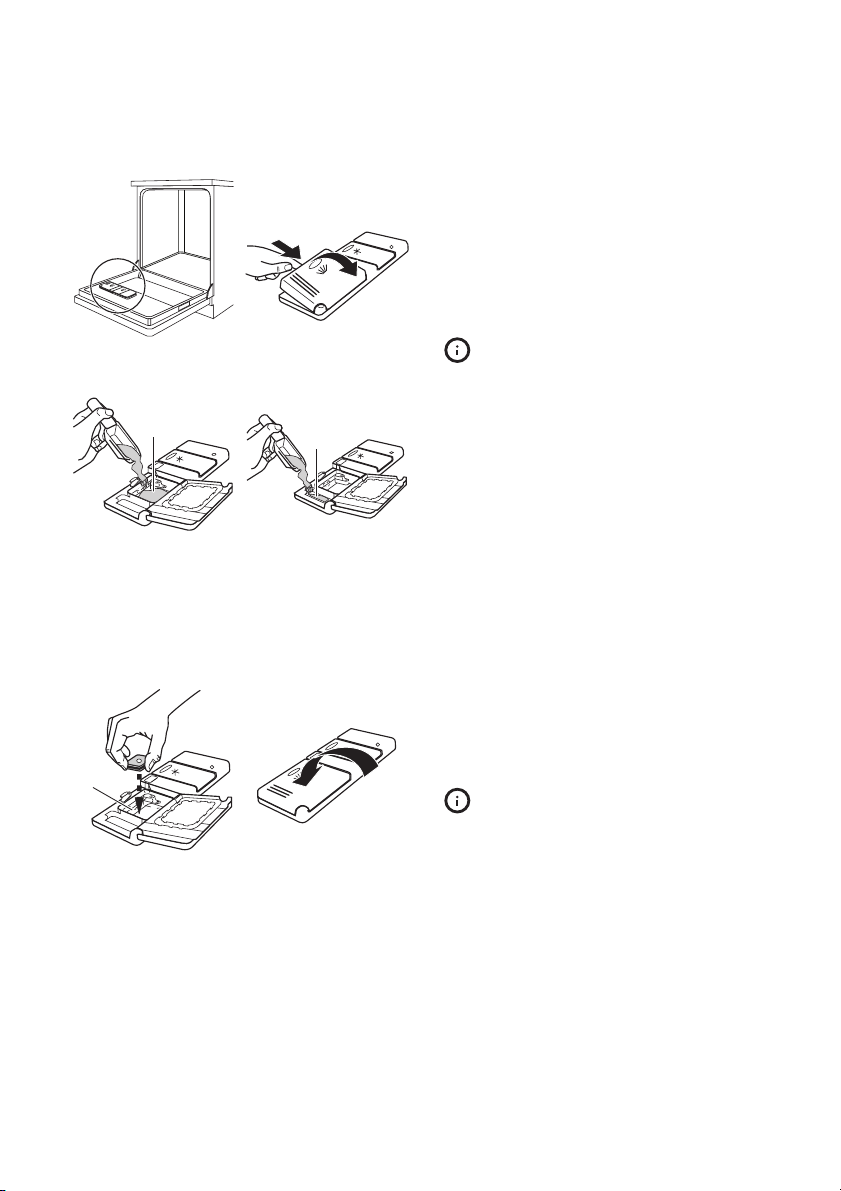

Fill the detergent dispenser (A) with detergent.

If you use a washing programme with prewash phase, put more detergent in the prewash detergent compartment (B).

Use of detergent tablets

Put the detergent tablet in the detergent dispenser (A). Detergent tablets contain:

•detergent

•rinse aid

• other cleaning agents.

Do these steps to use detergent tablets:

1. Make sure that the detergent tablets are applicable for your water hardness. Refer to the instructions from the manufacturer.

2. Set the lowest levels of water hardness and rinse aid dosage.

It is not necessary to fill the salt container and the rinse aid dispenser.

Do these steps when the drying results are not satisfactory:

1. Fill the rinse aid dispenser with rinse aid.

2. Set the rinse aid dosage to position 2.

Do these steps to use the detergent powder again:

1. Fill the salt container and the rinse aid dispenser.

2. Set the water softener to the highest level.

3. Do a washing programme without dishes.

4. Adjust the water softener. Refer to the chapter 'Setting the water softener'.

5. Adjust the rinse aid dosage.

Different brands of detergent dissolve in

different times. Some detergent tablets do not have the best cleaning results during short washing programmes. Use long washing programmes when you use detergent tablets to fully remove the detergent.

Setting and starting a washing programme

Set the washing programme with the

door ajar. The washing programme only starts after you close the door. Until then it is possible to modify the settings.

Do these steps to set and start a washing programme:

1. Switch on the appliance.

2. Make sure that the appliance is in setting

mode.

3. Press the programme selection/cancel button again and again to set the washing programme. Refer to the chapter 'Washing programmes'. – The programme indicator light comes

on.

4. Close the door. – The washing programme starts auto-

matically.

When the washing programme operates, you cannot change the programme. Can-

cel the washing programme.

ENGLISH 15

Warning! Only interrupt or cancel a

washing programme if necessary. Caution! Open the door carefully. Hot

steam can come free.

Cancelling a washing programme

1. Press and hold the programme selection/ cancel button for approximately 3 seconds. – The programme indicator light goes off. – The end indicator light starts to flash.

2. Release the programme selection/cancel button to cancel the washing programme.

At this time you can do these steps:

1. Switch off the appliance.

2. Set a new washing programme.

Fill the detergent dispenser with detergent before you set a new washing programme.

Interrupting a washing programme

Open the door.

• The programme stops.

Close the door.

• The programme continues from the point of

interruption.

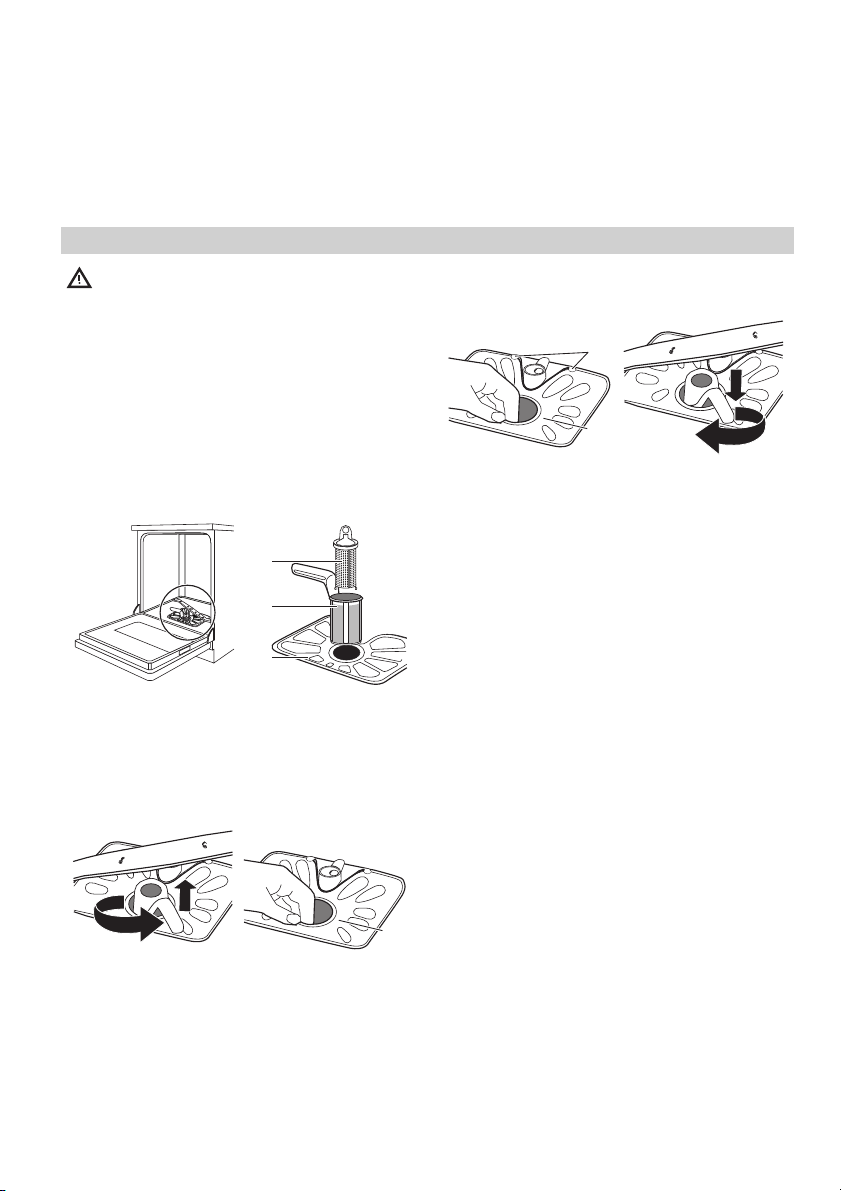

Care and cleaning

Warning! Switch the appliance off before

you clean the filters.

Cleaning the filters Important! Do not use the appliance without

the filters. Make sure that the installation of the filters is correct. Incorrect installation will cause unsatisfactory washing results and damage to the appliance.

End of the washing programme

Switch off the appliance in these conditions:

• The appliance stops automatically.

• The audible signals for the end of the programme operate.

1. Open the door.

– The end indicator light comes on. – The programme indicator light stays on.

2. Press the on/off button.

3. For better drying results, keep the door

ajar for some minutes before you remove

the dishes. Let the dishes cool down before you remove them from the appliance. Hot dishes are easily damaged.

Removing the load

• First remove items from the lower basket,

then from the upper basket.

• There can be water on the sides and door

of the appliance. Stainless steel becomes cool more quickly than the dishes.

1 2

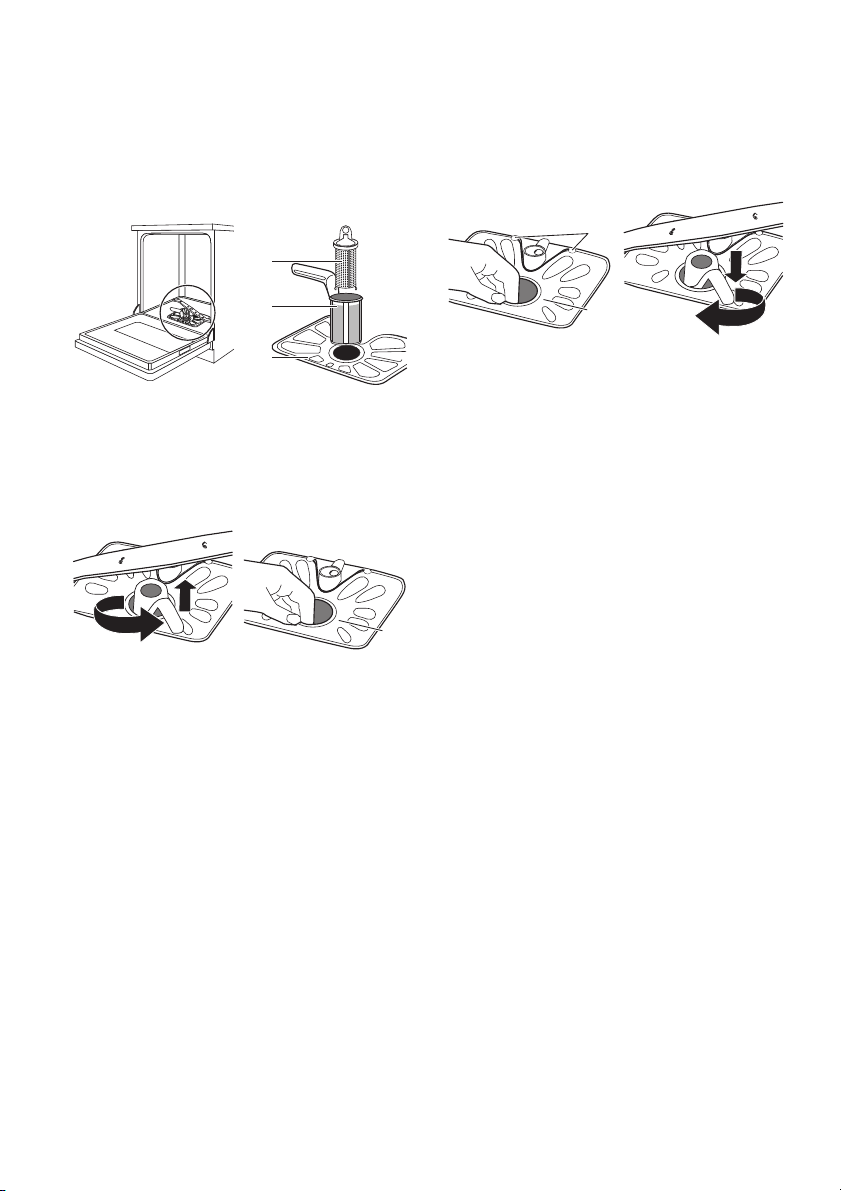

Fully clean the filters A, B and C below running water.

ENGLISH 16

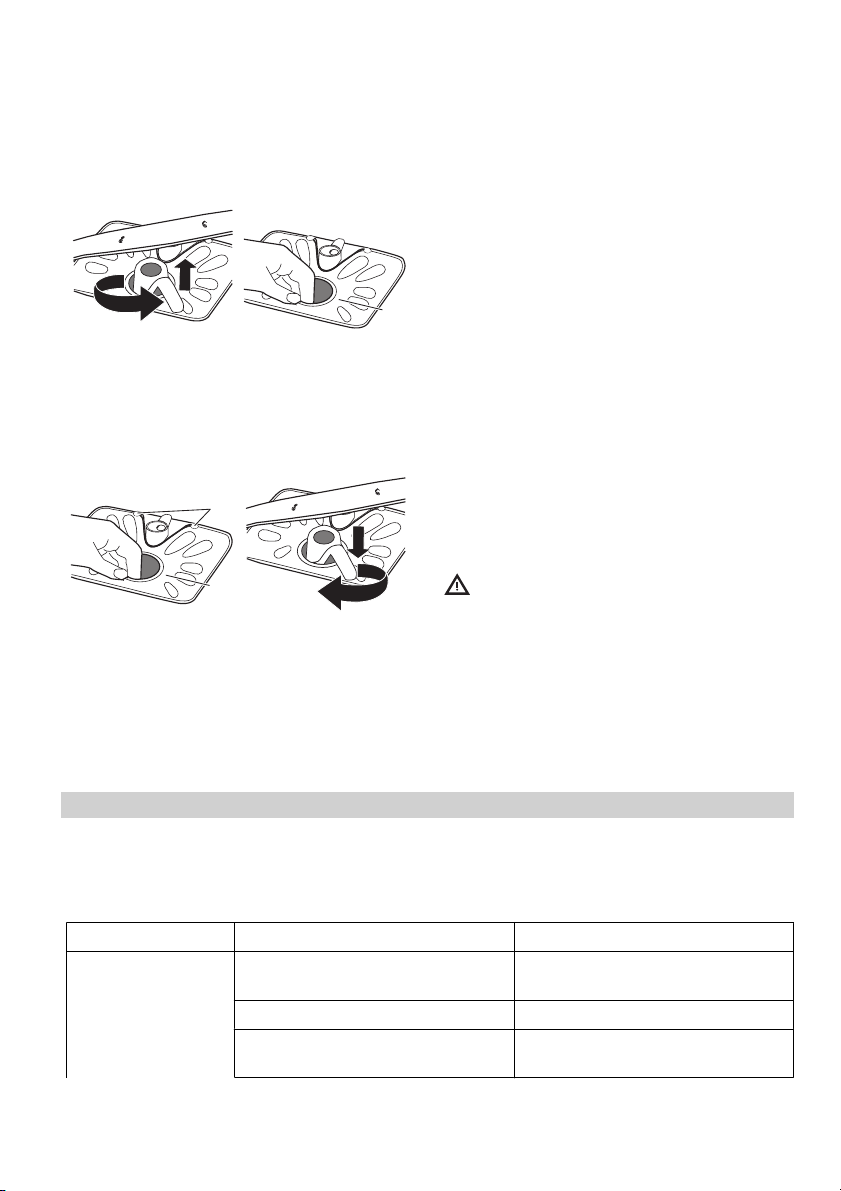

To remove filters B and C, turn the handle approximately 1/4 anticlockwise.

Remove the flat filter A from the bottom of the appliance.

Put the flat filter A in the bottom of the appliance. Install the flat filter correctly under the two guides D.

Important! Do not remove the spray arms.

Put the filter system in position. To lock the filter system, turn the handle clockwise until it locks in position.

If the holes in the spray arms become clogged, remove remaining parts of soil with a cocktail stick.

Long periods of non-operation

Do these steps when you do not use the appliance for a long period:

1. Disconnect the mains plug from the mains

socket.

2. Close the water tap.

3. Keep the door open to prevent unpleasant

smells.

4. Keep the inner side of the appliance clean

(filters especially).

External cleaning

Clean the external surfaces of the appliance and control panel with a damp soft cloth. Only use neutral detergents. Do not use abrasive products, scouring pads or solvents (acetone, trichloroethylene etc...).

Frost precautions

Caution! Do not install the appliance

where the temperature is below 0 °C. The manufacturer is not responsible for damage because of frost.

If not possible, empty the appliance and close the door. Disconnect the water inlet hose and remove water from the water inlet hose.

ENGLISH 17

What to do if…

The appliance does not start or stops during operation. If there is a fault, first try to find a solution to the problem yourself. If you cannot find a solution to the problem yourself, contact your dealer or the After Sales Service.

Problem Possible cause Solution

• Continuous flash of the light of the running programme.

• Intermittent audible signal.

• 1 flash of the end indicator light.

Malfunction: The dishwasher does not fill with water.

• Continuous flash of the light of the running programme.

• Intermittent audible signal.

• 2 flashes of the end indicator light.

Malfunction: The dishwasher will not drain.

• Continuous flash of the light of the running programme.

• Intermittent audible signal.

• 3 flashes of the end indicator light.

Malfunction: The anti-flood device operates.

Malfunction: The programme does not start.

The water tap is blocked or furred with limescale.

The water tap is closed. Open the water tap. The filter in the water inlet hose is

blocked. The connection of the water inlet

hose is not correct. The hose can be kinked or squashed.

There is a blockage in the sink spigot.

The connection of the water drain hose is not correct. The hose can be kinked or squashed.

Close the water tap and Contact your local After Sales Service.

The appliance door is not closed. Close the door. Mains plug is not connected in. Put in the mains.

Clean the water tap.

Clean the filter.

Make sure that the connection is correct.

Clean the sink spigot.

Make sure that the connection is correct.

ENGLISH 18

Problem Possible cause Solution

The fuse has blown out in the household fuse box.

After the check, switch on the appliance. The programme continues from the point of interruption. If the malfunction shows again, contact your After Sales Service.

When the cleaning results are not satisfactory:

Problem Possible cause Solution

The dishes are not clean

Limescales particles on the dishes

The dishes are wet and dull

There are streaks, milky spots or a bluish coating on glasses and dishes

Dry water drop signs on glasses and dishes

The selected washing programme is not applicable for the type of load and soil.

The baskets are loaded incorrectly so that water cannot reach all surfaces.

Spray arms do not turn freely because of incorrect arrangement of the load.

The filters are dirty or not correctly installed.

The quantity of detergent is too little or missing.

The salt container is empty. Fill the salt container with salt. The water softener is adjusted on a

wrong level. The salt container cap is not closed

correctly. No rinse aid has been used. Set the rinse aid dosage. The rinse aid dispenser is empty. Fill the rinse aid dispenser. Wrong dosage of rinse aid. Decrease the rinse aid dosage.

Wrong dosage of rinse aid. Increase rinse aid dosage. The detergent can be the cause. Use different type of detergent.

Replace the fuse.

Set different washing programme.

Load the baskets correctly.

Make sure that the cutlery and dishes do not block the spray arms.

Make sure that the filters are clean and installed correctly.

Make sure that the quantity of detergent in detergent dispenser is correct.

Set the water softener.

Make sure that the salt container is closed correctly.

Technical data

Dimensions Width (cm) 59,6

Height (cm) 81,8-87,8

ENGLISH 19

Depth (cm) 55,5

Water supply pressure

Capacity (place settings) 12 Energy class A Washing class A Drying class A Noise (dB(A)) 49 Average annual energy con-

sumption (kWh) Average annual water con-

sumption (litres)

1) If the pressure in your area is lower or higher, please contact your After Sales Service.

2) The data is based on the washing programme for test institutes assuming 220 cycles per a year.

Information on the electrical connection, voltage and overall power is given on the rating plate on the inner edge of the dishwasher door.

Minimum Maximum

231

3520

0,5 bar (0,05 MPa) 8 bar (0,8 MPa)

Installation

Caution! Refer to the assembly

instructions, in order to proceed with the

installation.

Warning! Make sure that mains plug is disconnected from the mains socket

during installation. Place the appliance on the floor and install it

under a counter (kitchen worktop or sink).

If a repair is necessary, the appliance must be easily accessible for the engineer. Put the appliance adjacent to a water tap and a drain. For the venting of the dishwasher only water fill, water drain and power supply cable openings are necessary.

Water connection

This appliance has a special inlet hose for water stop later defined as aqualock.

Water inlet hose

Connected the appliance to a hot (max. 60°) or cold water supply. If the hot water comes from alternative sources of energy that are more environmentally friendly (e.g. solar or photovoltaic panels and aeolian), use a hot water supply to decrease energy consumption. Connect the inlet hose to a water tap with an external thread of 3/4".

Caution! Do not use connection hoses from an old appliance.

Caution! If you connect the appliance to

new pipes or pipes that are not used for a long time, we recommend to run the water for some minutes before you connect the inlet hose.

ENGLISH 20

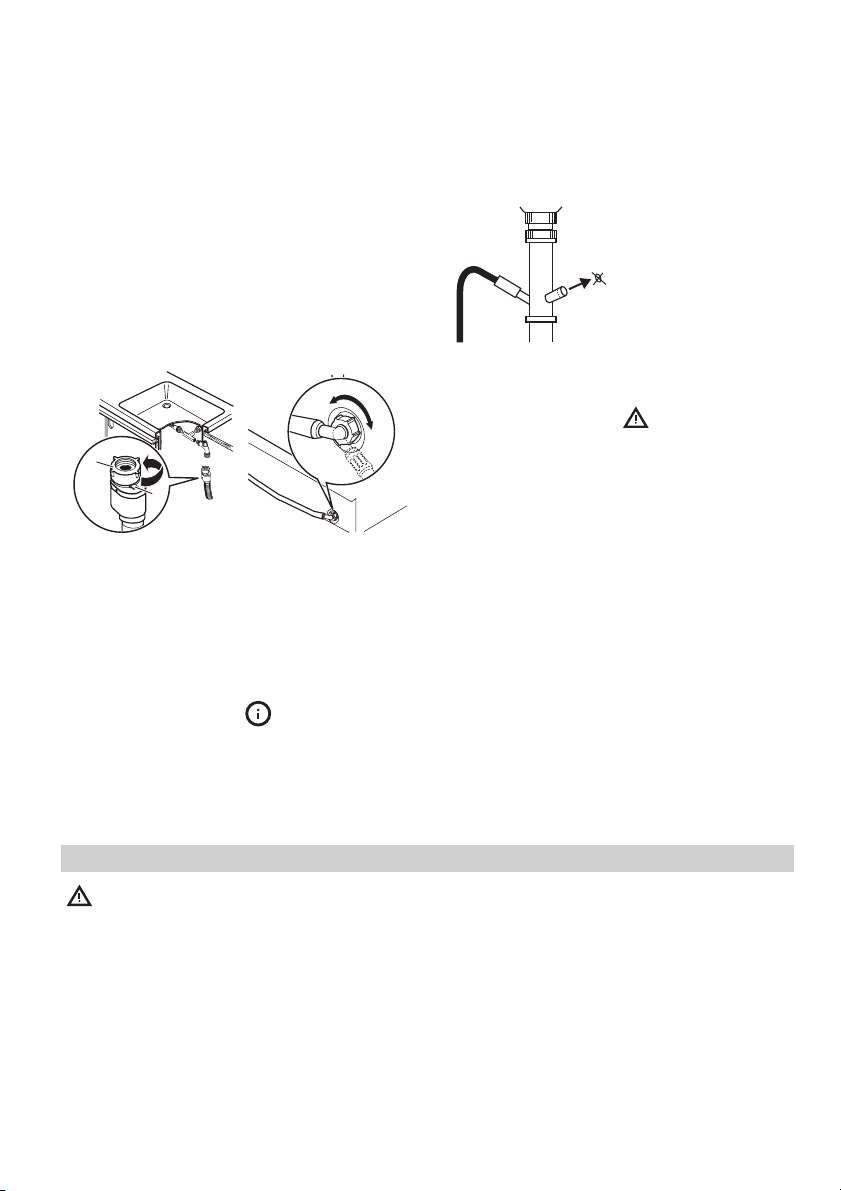

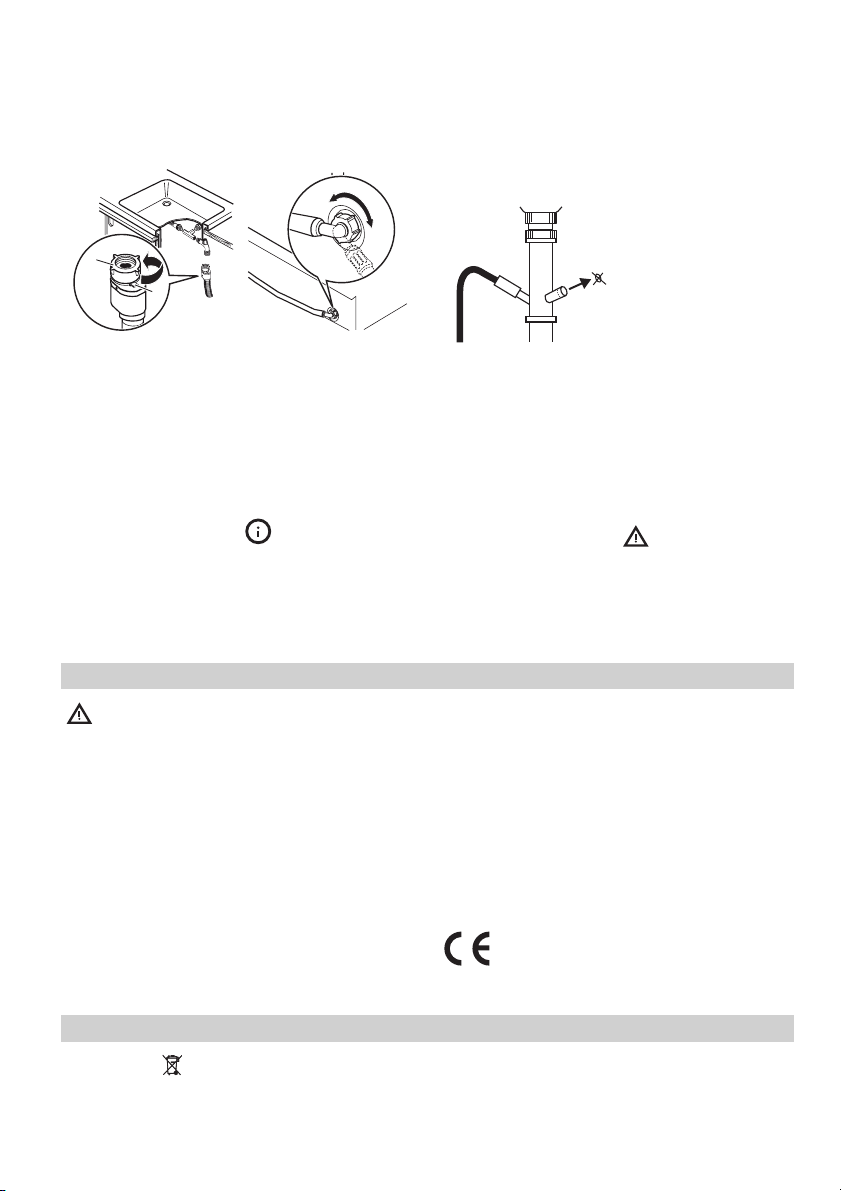

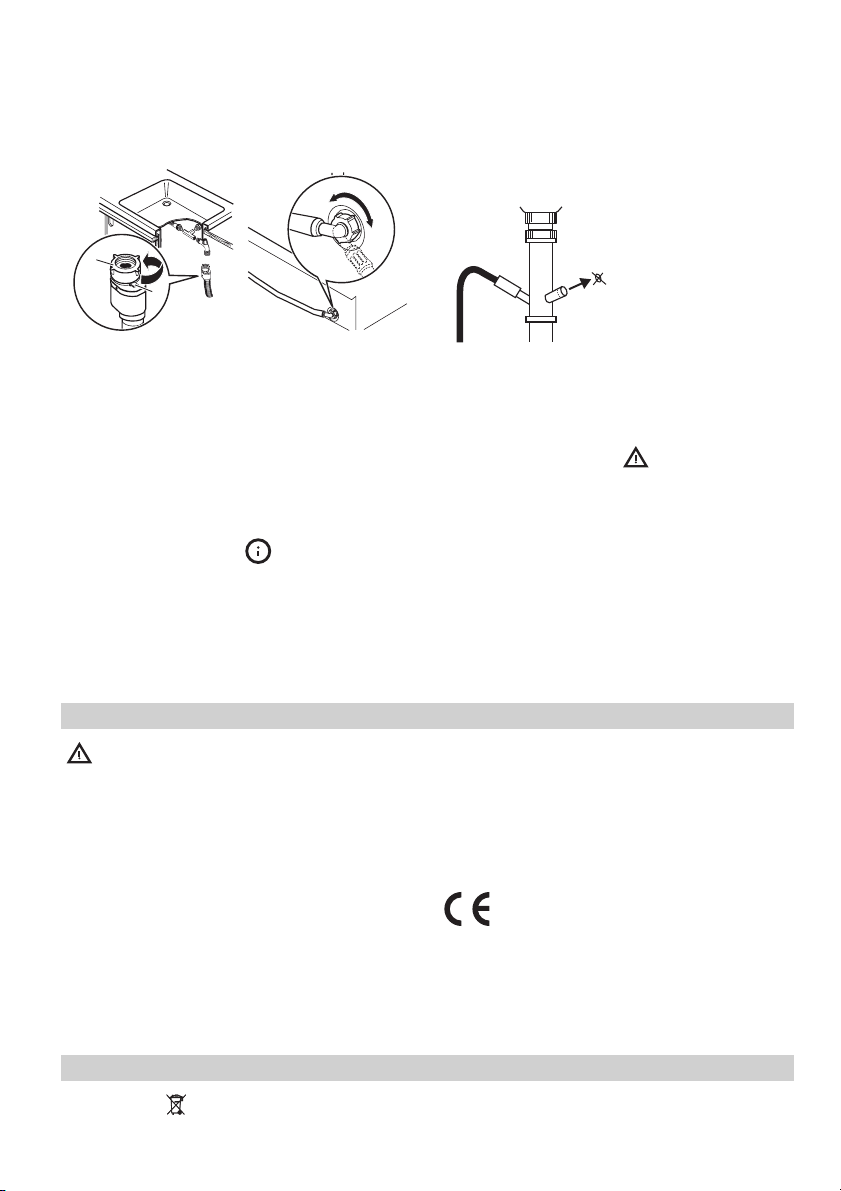

Aqualock inlet hose

The inlet hose is a high pressure resistant. It can hold pressure at maximum 6 MPa. From external the inlet hose has a sheathing against eventual damages. If the inner hose breaks, the water that is in the hose will became dark. You can see it across the special transparent sheathing. Turn off the water tap immediately and contact the After Sales Service.

The aqualock inlet hose is installed with a safety device to prevent accidental loosening. To disconnect the hose:

• Press the lever ( B ).

• Turn the retaining ring ( A ) anticlockwise.

Turn the inlet hose to the left or the right to suit the installation. Tight the locknut correctly to prevent water leaks.

If you use a inlet

hose extension the total reached length must be no longer than 4 metres.

Drain hose

If you connect the water drain hose to a water trap under the sink, remove the

plastic membrane (A). If you do not remove the membrane, remaining food can cause a blockage in the drain hose spigot.

Caution! Make

sure that the water couplings are tight to prevent water leakage.

Electrical connection

Warning! The manufacturer is not

responsible if you do not follow these safety precautions. Ground the appliance according to safety precautions. Make sure that the rated voltage and type of power on the rating plate agree with the voltage and the power of the local power supply. Always use a correctly installed shockproof socket. Do not use multi-way plugs, connectors and extension cables. There is a risk of fire.

Do not replace the mains cable yourself. Contact the After Sales Service. Make sure that the mains plug is accessible after installation. Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.

This appliance complies with the E.E.C. Directives.

ENGLISH 21

Environment concerns

The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging materials

The materials with the symbol ble. Dispose the packaging in a suitable collection containers to recycle it.

are recycla-

Before disposal of appliance

Warning! Do these steps to dispose the

appliance:

• Pull the mains plug out of the mains socket.

• Cut off the mains cable and discard it.

• Discard the door catch. This prevents the children to close themselves inside the appliance. Risk of suffocation.

IKEA GUARANTEE

How long is the IKEA guarantee valid?

This guarantee is valid for five (5) years from the original date of purchase of Your appliance at IKEA, unless the appliance is named LAGAN in which case two (2) years of guarantee apply. The original sales receipt is required as proof of purchase. If service work is carried out under guarantee, this will not extend the guarantee period for the appliance,

Which appliances are not covered by the IKEA five (5) years guarantee?

The range of appliances named LAGAN and all appliances purchased in IKEA before 1st of August 2007

Who will execute the service?

IKEA service provider will provide the service through its own service operations or authorized service partner network.

What does this guarantee cover?

The guarantee covers faults of the appliance, which have been caused by faulty construction or material faults from the date of purchase from IKEA. This guarantee applies to domestic use only. The exceptions are specified under the headline “What is not covered under this guarantee?” Within the guarantee period, the costs to remedy the fault e.g. repairs, parts, labour and travel will be covered, provided that the appliance is accessible for repair without special expenditure. On these conditions the EU guidelines (Nr. 99/44/EG) and the respective local regulations are applicable. Replaced parts become the property of IKEA.

ENGLISH 22

What will IKEA do to correct the problem?

IKEA appointed service provider will examine the product and decide, at its sole discretion, if it is covered under this guarantee. If considered covered, IKEA service provider or its authorized service partner through its own service operations, will then, at its sole discretion, either repair the defective product or replace it with the same or a comparable product.

What is not covered under this guarantee?

• Normal wear and tear.

• Deliberate or negligent damage, damage caused by failure to observe operating instructions, incorrect installation or by connection to the wrong voltage, damage caused by chemical or electro-chemical reaction, rust, corrosion or water damage including but not limited to damage caused by excessive lime in the water supply, damage caused by abnormal environmental conditions.

• Consumable parts including batteries and lamps.

• Non-functional and decorative parts which do not affect normal use of the appliance, including any scratches and possible color differences.

• Accidental damage caused by foreign objects or substances and cleaning or unblocking of filters, drainage systems or soap drawers.

• Damage to the following parts: ceramic glass, accessories, crockery and cutlery baskets, feed and drainage pipes, seals, lamps and lamp covers, screens, knobs, casings and parts of casings. Unless such damages can be proved to have been caused by production faults.

• Cases where no fault could be found during a technician’s visit.

• Repairs not carried out by our appointed service providers and/or an authorized service contractual partner or where nonoriginal parts have been used.

• Repairs caused by installation which is faulty or not according to specification.

• The use of the appliance in a non-domestic environment i.e. professional use.

• Transportation damages. If a customer transports the product to their home or other address, IKEA is not liable for any damage that may occur during transport. However, if IKEA delivers the product to the customer's delivery address, then damage to the product that occurs during this delivery will be covered by this guarantee.

• Cost for carrying out the initial installation of the IKEA appliance. However, if an IKEA service provider or its authorized service partner repairs or replaces the appliance under the terms of this guarantee, the service provider or its authorized service partner will re-install the repaired appliance or install the replacement, if necessary.

This restriction do not apply to fault-free work carried out by a qualified specialist using our original parts in order to adapt the appliance to the technical safety specifications of another EU country.

How country law applies

The IKEA guarantee gives You specific legal rights, which covers or exceed local demands. However these conditions do not limit in any way consumer rights described in the local legislation

Area of validity

For appliances which are purchased in one EU country and taken to another EU country, the services will be provided in the framework of the guarantee conditions normal in the new country. An obligation to carry out services in the framework of the guarantee exists only if the appliance complies and is installed in accordance with:

• the technical specifications of the country in which the guarantee claim is made;

• the Assembly Instructions and User Manual Safety Information;

The dedicated After Sales Service for IKEA appliances:

Please do not hesitate to contact IKEA After Sales Service to:

1. make a service request under this guaran-

tee;

ENGLISH 23

2. ask for clarification on installation of the IKEA appliance in the dedicated IKEA kitchen furniture. The service won’t provide clarifications related to: – the overall IKEA kitchen installation; – connections to electricity (if machine

comes without plug and cable), to water and to gas since they have to be executed by an authorized service engineer.

3. ask for clarification on user manual contents and specifications of the IKEA appliance.

To ensure that we provide you with the best assistance, please read carefully the Assembly Instructions and/or the User Manual section of this booklet before contacting us.

How to reach us if You need our service

Please refer to the last page of this manual for the full list of IKEA appointed contacts and relative national phone numbers.

Important! In order to provide You with a quicker service, we recommend that You use the specific phone numbers listed at the end of this manual. Always refer to the numbers listed in the booklet of the specific appliance You need an assistance for. Before calling us, assure that You have to hand the IKEA article number (8 digit code) for the appliance of which you need our assistance.

Important! SAVE THE SALES RECEIPT! It is Your proof of purchase and required for the guarantee to apply. Note that the receipt reports also the IKEA article name and number (8 digit code) for each of the appliances you have purchased.

Do You need extra help?

For any additional questions not related to After Sales of your appliances, please contact our nearest IKEA store call centre. We recommend you read the appliance documentation carefully before contacting us.

DEUTSCH 24

Inhalt

Sicherheitshinweise 24 Gerätebeschreibung 26 Bedienblende 27 Spülprogramme 29 Verwendung des Geräts 30 Einstellen des Wasserenthärters 30 Gebrauch von Salz für Geschirrspüler 32 Gebrauch von Klarspülmittel 32 Laden von Besteck und Geschirr 33 Gebrauch von Spülmittel 34

Änderungen vorbehalten

Auswählen und Starten eines Spülprogramms

36 Reinigung und Pflege 36 Was tun, wenn … 38 Technische Daten 40 Gerät aufstellen 41 Wasseranschluss 41 Elektrischer Anschluss 42 Umwelttipps 42 IKEA GARANTIE 43

Sicherheitshinweise

Lesen Sie diese Bedienungsanleitung bit-

te sorgfältig durch, bevor Sie das Gerät anschließen und benutzen, um Gefahren zu vermeiden und einen korrekten Betrieb des Geräts zu gewährleisten. Bewahren Sie diese Bedienungsanleitung in der Nähe des Geräts auf, auch wenn Sie dieses anderswo aufstellen. Wenn Sie das Gerät verkaufen, geben Sie dem Käufer die Bedienungsanleitung mit. Jeder, der dieses Gerät benutzt, sollte mit der Bedienung und den Sicherheitsmerkmalen vertraut sein.

Bestimmungsgemäßer Gebrauch

• Dieses Gerät ist ausschließlich zur Verwen-

dung im Haushalt bestimmt.

• Spülen Sie in diesem Gerät ausschließlich

spülmaschinengeeignete Haushaltsutensilien.

• Geben Sie keine Lösungsmittel in das Gerät.

Andernfalls besteht Explosionsgefahr.

• Ordnen Sie Messer und andere spitze Ge-

genstände mit der Spitze nach unten in den Besteckkorb ein. Oder legen Sie sie horizontal in den Oberkorb.

• Verwenden Sie ausschließlich Markenreini-

gungsprodukte für Geschirrspüler (Spülmittel, Salz, Klarspüler).

• Wenn Sie die Tür öffnen, während das Ge-

rät in Betrieb ist, kann heißer Dampf austreten. In diesem Fall besteht die Gefahr von Hautverbrennungen.

• Nehmen Sie vor dem Ende des Spülpro-

gramms nichts aus dem Geschirrspüler.

• Wenn das Spülprogramm beendet ist, ziehen Sie den Netzstecker aus der Netzsteckdose und schließen Sie den Wasserhahn.

• Das Gerät darf nur von einem Servicetechniker einer autorisierten Kundendienststelle repariert werden. Dabei dürfen ausschließlich Originalersatzteile verwendet werden.

• Versuchen Sie nicht, selbst Reparaturen auszuführen. Andernfalls besteht Unfallgefahr und das Gerät könnte beschädigt werden. Wenden Sie sich stets an Ihren lokalen Kundendienst.

Allgemeine Sicherheitshinweise

• Das Gerät darf von Erwachsenen oder Kindern mit eingeschränkten physischen, sensorischen oder geistigen Fähigkeiten oder einem Mangel an Wissen und Erfahrung nicht benutzt werden. Solche Personen müssen von einer Person beaufsichtigt oder bei der Bedienung des Geräts angeleitet werden, die für ihre Sicherheit verantwortlich ist.

• Beachten Sie die Sicherheitsanweisungen des Reinigungsmittelherstellers, um Verätzungen an Augen, Mund oder Kehlkopf zu vermeiden.

• Trinken Sie kein Wasser aus dem Geschirrspüler. Es können Spülmittelrückstände darin zurückbleiben.

• Wenn Sie das Gerät nicht benutzen, halten Sie die Tür geschlossen, damit es nicht zu Unfällen kommt, weil jemand darüber stolpert.

DEUTSCH 25

• Setzen oder stellen Sie sich nie auf die offene Tür.

Kindersicherheit

• Nur Erwachsene dürfen dieses Gerät bedienen. Kinder müssen beaufsichtigt werden, so dass sie nicht mit dem Gerät spielen können.

• Halten Sie das Verpackungsmaterial von Kindern fern. Andernfalls besteht Erstickungsgefahr.

• Bewahren Sie alle Reinigungsmittel an einem sicheren Ort auf. Achten Sie darauf, dass Reinigungsmittel nicht in die Hände von Kindern gelangen.

• Halten Sie Kinder vom geöffneten Geschirrspüler fern.

Aufstellung

• Vergewissern Sie sich, dass das Gerät beim Transport nicht beschädigt wurde. Schließen Sie ein beschädigtes Gerät nicht an. Wenden Sie sich bei Bedarf an den Hersteller.

• Entfernen Sie vor dem ersten Gebrauch alle Verpackungsmaterialien.

• Der elektrische Anschluss muss von einer qualifizierten Fachkraft vorgenommen werden.

• Die Wasseranschlüsse müssen von einer qualifizierten Fachkraft vorgenommen werden.

• Nehmen Sie weder technische noch anderweitige Modifikationen am Gerät vor. Andernfalls besteht Unfallgefahr und das Gerät könnte beschädigt werden.

• Benutzen Sie das Gerät nicht: – wenn das Netzkabel oder die Wasser-

schläuche beschädigt sind,

– wenn die Bedienblende, die Abdeckung

oben oder der Sockel beschädigt sind, so

dass das Innere des Geräts freiliegt. Bei weiteren Fragen wenden Sie sich bitte an unseren Kundenservice. Eine Liste der Kundendienststellen finden Sie am Ende des Benutzerhandbuchs.

• Bohren Sie keine Löcher ins Gehäuse des Geräts. Andernfalls könnten hydraulische oder elektrische Bauteile beschädigt werden.

Warnung! Beachten Sie genau sämtliche Anweisungen zu den elektrischen und

den Wasseranschlüssen.

DEUTSCH 26

Gerätebeschreibung

1 Oberkorb 2 Anzeige der Wasserhärtestufe 3 Salzbehälter 4 Behälter für Reinigungsmittel 5 Dosiergerät für Klarspüler

6 Typenschild 7 Filter 8 Unterer Sprüharm 9 Oberer Sprüharm

DEUTSCH 27

Bedienblende

5 4

1 2 3

A B

1 Ein/Aus-Taste 2 Taste "Halbe Beladung 3 Programmauswahl/-abbruch-Taste (SELECT/CANCEL) 4 Kontrolllampen 5 Programmkontrolllampen

Kontrolllampen

Diese Kontrolllampe leuchtet auf, wenn das Spülprogramm zu Ende ist. Zusatzfunktionen:

• Einstellung des Wasserenthärters.

• Ein-/Abschalten der Töne.

• Alarm bei einer Störung des Geräts. Die Kontrolllampe leuchtet auf, wenn Klarspü-

ler nachgefüllt werden muss. Näheres hierzu

1) Die Kontrolllampe ist aus, während ein Spülprogramm läuft.

siehe den Abschnitt 'Verwendung von Klarspüler'.

Die Kontrollampe leuchtet auf, wenn der Salzbehälter aufgefüllt werden muss. Siehe Kapitel "Verwendung von Geschirrspülsalz". Die Salzkontrolllampe kann nach dem Nachfüllen von Salz noch einige Stunden leuchten. Dies hat jedoch keine unerwünschte Auswirkung auf den Gerätebetrieb.

DEUTSCH 28

Programmauswahl/-abbruch-Taste

Benutzen Sie die Programmauswahl-/-abbruch-Taste für folgende Vorgänge:

• Zum Einstellen des Spülprogramms. Siehe Kapitel "Auswahl und Start eines Spülprogramms".

• Zum Einstellen des Wasserenthärters. Siehe den Abschnitt 'Einstellung des Wasserenthärters.

• Zum Ein-/Ausschalten der akustischen Signale. Siehe den Abschnitt 'Akustische Signale'.

• Um ein laufendes Spülprogramm abzubrechen. Siehe Kapitel "Auswahl und Start eines Spülprogramms".

Taste "Halbe Beladung"

Die Funktion "Halbe Beladung" kann nicht bei allen Spülprogrammen gewählt werden. Siehe den Abschnitt 'Spülprogramme'.

• Ordnen Sie das Geschirr in den Ober- und den Unterkorb ein.

• Verringern Sie bei der Funktion "Halbe Beladung" die Spülmittelmenge.

• Schalten Sie die Funktion mit der Taste "Halbe Beladung" ein. – Die Kontrolllampe für "Halbe Beladung"

leuchtet, wenn die Funktion "Halbe Beladung" ausgewählt werden kann.

Wenn Sie die Taste "Halbe Beladung"

drücken, reduzieren sich die Programmdauer und der Verbrauch an Wasser und Energie.

Einstellmodus

Das Gerät befindet sich im Einstellmodus, wenn alle Programmkontrolllampen ausgeschaltet sind und die Kontrolllampe für das Programmende blinkt. Der Geschirrspüler muss sich im Einstellmodus befinden, damit die folgenden Vorgänge ausgeführt werden können: – Einstellen eines Spülprogramms. – Einstellen des Wasserenthärters. – Ein-/Ausschalten der Signaltöne. Falls eine Programmkontrolllampe leuchtet, müssen Sie das Programm abbrechen, um zum Einstellmodus zurückzukehren. Siehe Kapitel "Wählen und Starten eines Spülprogramms".

Programmkontrolllampen A und B

Neben der Anzeige des gewählten Spülprogramms haben diese Kontrolllampen auch noch Zusatzfunktionen:

• Einstellung des Härtegrads für den Wasserenthärter.

•Ein-/Ausschalten der Signaltöne.

Signaltöne

Signaltöne werden in folgenden Situationen ausgegeben:

• Am Ende des Spülprogramms.

• Bei einer Fehlfunktion des Geräts.

Die Signaltöne sind werkseitig aktiviert. Gehen Sie bitte wie folgt vor, um die Signaltöne auszuschalten:

1. Schalten Sie das Gerät ein.

2. Das Gerät muss sich im Einstellmodus be-

finden.

3. Halten Sie die Programmauswahl/-ab-

bruch-Taste so lange gedrückt, bis die Programmkontrolllampe A blinkt und die Programmkontrolllampe B leuchtet.

4. Drücken Sie erneut die Programmaus-

wahl/-abbruch-Taste. – Die Programmkontrolllampe A leuchtet

nun.

– Die Programmkontrolllampe B beginnt

zu blinken.

5. Warten Sie, bis die Programmkontrolllam-

pe A erlischt. – Die Programmkontrolllampe B blinkt

weiterhin.

– Die Kontrolllampe für das Programmen-

de leuchtet auf.

Die Signaltöne sind eingeschaltet.

6. Drücken Sie erneut die Programmaus-

wahl/-abbruch-Taste. – Die Kontrolllampe für das Programmen-

de erlischt.

Die Signaltöne sind ausgeschaltet.

7. Schalten Sie das Gerät aus, um diese Ein-

stellung zu speichern. Gehen Sie bitte wie folgt vor, um die Signaltöne einzuschalten:

1. Führen Sie erneut das obige Verfahren

durch, bis die Kontrolllampe für das Pro-

grammende aufleuchtet.

+ 64 hidden pages
