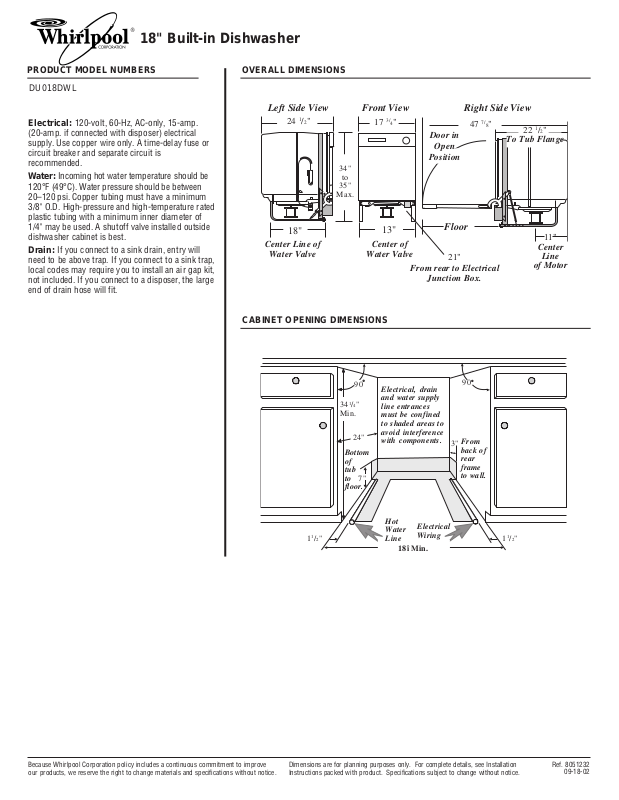

18" Built-in Dishwasher
PRODUCT MODEL NUMBERS
DU018DWL
Electrical: 120-volt, 60-Hz, AC-only, 15-amp. (20-amp. if connected with disposer) electrical supply. Use copper wire only. A time-delay fuse or circuit breaker and separate circuit is recommended.
Water: Incoming hot water temperature should be 120°F (49°C). Water pressure should be between 20–120 psi. Copper tubing must have a minimum 3/8" O.D. High-pressure and high-temperature rated plastic tubing with a minimum inner diameter of 1/4" may be used. A shutoff valve installed outside dishwasher cabinet is best.
Drain: If you connect to a sink drain, entry will need to be above trap. If you connect to a sink trap, local codes may require you to install an air gap kit, not included. If you connect to a disposer, the large end of drain hose will fit.
OVERALL DIMENSIONS
Left Side View |
Front View |
Right Side View |
24 1/2" |
17 3/4" |
47 |
7/8" |
1/2" |
|
|
Door in |
22 |
|
|
|
To Tub Flange |
||
|
|
Open |
||
|
|
|
|
|
|
|
Position |
|
|
|
34" |
|
|
|
|
to |
|
|
|
|
35" |
|
|
|
|
Max. |
|
|
|
18" |
13" |
Floor |
|
11" |
|
|
|||
Center Line of |
Center of |
|
|
|
|
|
Center |
||
Water Valve |
Water Valve |
|
|
|
21" |
|
Line |
||
|
From rear to Electrical |
of Motor |
||
|
|
|||
|
|
Junction Box. |
|
|
CABINET OPENING DIMENSIONS |
|
|
|
|
90 |
Electrical, drain |
90 |
||
|
|
|||
341/4" |
and water supply |
|
||
line entrances |
|
|||
Min. |
must be confined |
|
||
|
to shaded areas to |
|
||
24" |
avoid interference |
|
||
with components. |
3" From |
|||
|
||||
Bottom |
|
|
back of |
|
|
|
rear |
||
of |
|
|
||
|
|
frame |
||
tub |
|
|
||
|
|
to wall. |
||
to 7" |
|
|
||
floor. |
|
|
|
|
|
Hot |
Electrical |
|
|
|
Water |
|
||
|
Wiring |
|
||
11/2" |
Line |
11/2" |
||
18î Min.
Because Whirlpool Corporation policy includes a continuous commitment to improve our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation |
Ref. 8051232 |
Instructions packed with product. Specifications subject to change without notice. |
09-18-02 |
