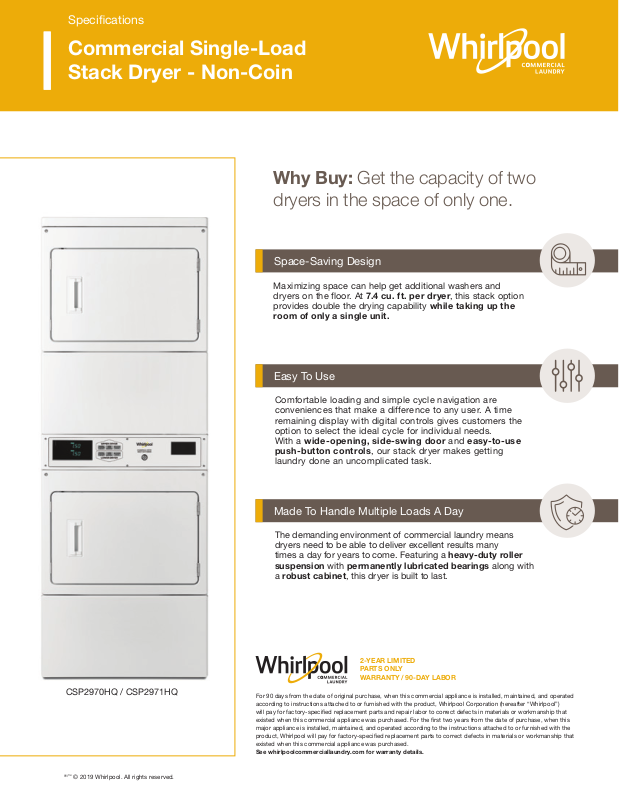

Whirlpool CSP2970HQ Specifications

Specications

Commercial Single-Load Stack Dryer - Non-Coin

Why Buy: Get the capacity of two

dryers in the space of only one.

Space-Saving Design

Maximizing space can help get additional washers and dryers on the floor. At 7.4 cu. ft. per dryer, this stack option provides double the drying capability while taking up the

room of only a single unit.

CSP2970HQ / CSP2971HQ

Easy To Use

Comfortable loading and simple cycle navigation are conveniences that make a difference to any user. A time remaining display with digital controls gives customers the option to select the ideal cycle for individual needs. With a wide-opening, side-swing door and easy-to-use push-button controls, our stack dryer makes getting laundry done an uncomplicated task.

Made To Handle Multiple Loads A Day

The demanding environment of commercial laundry means dryers need to be able to deliver excellent results many times a day for years to come. Featuring a heavy-duty roller suspension with permanently lubricated bearings along with a robust cabinet, this dryer is built to last.

2-YEAR LIMITED PARTS ONLY WARRANTY / 90-DAY LABOR

For 90 days from the date of original purchase, when this commercial appliance is installed, maintained, and operated according to instructions attached to or furnished with the product, Whirlpool Corporation (hereafter “Whirlpool”) will pay for factory-specied replacement parts and repair labor to correct defects in materials or workmanship that existed when this commercial appliance was purchased. For the rst two years from the date of purchase, when this major appliance is installed, maintained, and operated according to the instructions attached to or furnished with the product, Whirlpool will pay for factory-specied replacement parts to correct defects in materials or workmanship that existed when this commercial appliance was purchased.

See whirlpoolcommerciallaundry.com for warranty details.

®/™

Specications

Commercial Single-Load Stack Dryer - Non-Coin

Electric Dryer CSP2970HQ & Gas Dryer

Non-Coin, Card Ready

CSP2971HQ At A Glance:

• 7.4 cu. ft.

• Available in 60hz only

• Non-coin

• Wide-opening, side-swing door

• Push-button controls

• Four-roller suspension

MODEL

Fuel Type

SPECIFICATIONS

CAPACITY

Cylinder Volume — cu. ft. (liters) 7.4 (210) 7.4 (210) Cylinder Diameter Cylinder Depth

ELECTRICAL REQUIREMENTS

Number of Cords Required

Voltage 240V 120V Electrical Requirements / Frequency 60Hz 60Hz Breaker / Fuse

AIRFLOW (CFM) DRYER EXHAUST DUCT DIAMETER ELECTRIC HEATING ELEMENT (WATTS) 5,600 GAS RATING — BTU/HR. (KCAL/HR.) GAS INLET SIZE MOTOR SIZE — HP (KW) 1/3 (.25) 1/3 (.25)

DIMENSIONS

MACHINE DIMENSIONS

Width (with door closed) — in. (mm) 27 (686) 27 (686) Depth — in. (mm) 29" (737) 29" (737) Height — in. (mm) 74.25" (1,886) 74.25" (1,8 86) Door Opening — in. (mm) 20.25 (514) 20.25 (514)

CRATED DIMENSIONS

Crated Width — in. (mm) 28.7 (730) 28.7 (730) Crated Depth — in. (mm) 33.4 (848) 33.4 (848) Crated Height — in. (mm) 79.1 (2,008) 79.1 (2,008)

APPROXIMATE WEIGHT

Uncrated — lbs. (kg) 250 (113.4) 250 (113.4) Crated — lbs. (kg) 275 (124.7) 275 (124.7)

Dimensions are for planning purposes only. See specic instructions for proper installation. Because of continuous product improvement, Whirlpool reserves the right to change specications without notice.

—

in. (mm) 26.26 (667) 26.26 (667)

—

in. (mm) 23.2 (590) 23.2 (590)

†

—

amps

• Robust cabinet

• 1/3-HP motor with metal pulley

• Removable, door-mounted lint screen

• Card reader compatible*

• 2-Year Limited Parts Warranty/90-Day Labor**

CSP2970HQ CSP2971HQ

U.S. U.S.

Electric Gas

2 Cords / Purchased

Separately

30 15

178 183

4" (101.6) 4" (101.6)

N/A N/A

1 Cord Included

22,000 (5,544)

3/8 N.P.T

—

Non-Coin

IN. (MM)

††

N/A

Side ViewFront View

Back View

*Card readers are not supplied or sold by Whirlpool Corporation and must be purchased separately. **Visit whirlpoolcommerciallaundry.com for complete warranty details.

†

It is recommended that a separate circuit serving for this dryer be provided.

††

Use 4” (100mm) diameter rigid aluminum or galvanized steel duct. Never

use plastic, non-metal, or combustible duct.

Second cord required on electric model only.

See Installation Guide for complete dimension details.

®/™

WY18 0157 1/19
