AWZ 510 D

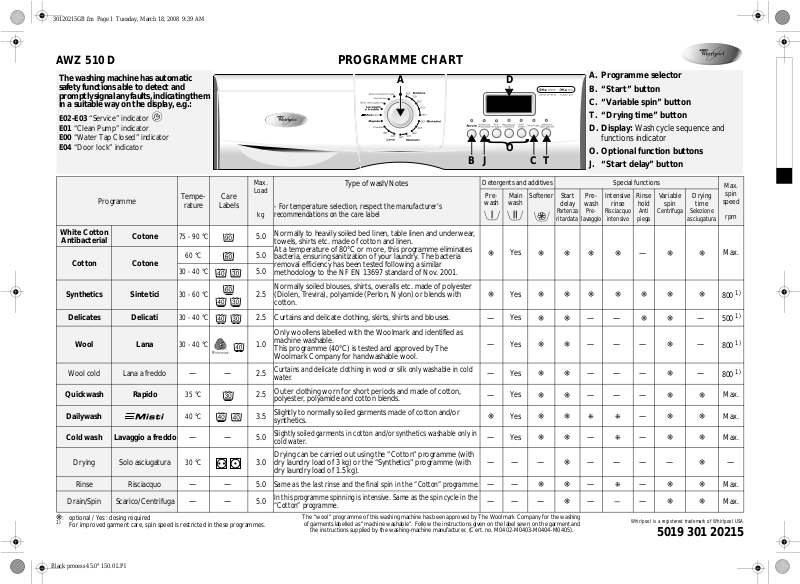

PROGRAMME CHART

The washing machine has automatic safety functions able to detect and promptly signal any faults, indicating them in a suitable way on the display, e.g.:

E02-E03 E01 E00 E04

White Cotton

Antibacterial

“Service” indicator “Clean Pump” indicator “Water Tap Closed” indicator “Door lock” indicator

Programme

Cotone

Cotton Cotone

Synthetics Sintetici

Delicates Delicati

W ool Lana

Wool cold Lana a freddo

Quickwash Rapido

Dailywash

Cold wash Lavaggio a freddo

Drying Solo asciugatura

Rinse Risciacquo

Drain/Spin Scarico/Centrifuga

: optional / Yes : dosing required

For improved garment care, spin speed is restricted in these programmes.

Tempe-

rature

75 - 90 °C

60 °C

30 - 40 °C

30 - 60 °C

30 - 40 °C

——

35 °C

40 °C

——

30 °C

—— ——

Care

Labels

Max. Load

- For temperature selection, respect the manufacturer’s

recommendations on the care label

Normally to heavily soiled bed linen, table linen and underwear,

5.0 towels, shirts etc. made of cotton and linen.

At a temperature of 80°C or more, this programme eliminates

5.0

bacteria, ensuring sanitization of your laundry. The bacteria removal efficiency has been tested following a similar

5.0

methodology to the NF EN 13697 standard of Nov. 2001. Normally soiled blouses, shirts, overalls etc. made of polyester

2.5

(Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

2.5 Curtains and delicate clothing, skirts, shirts and blouses. Only woollens labelled with the Woolmark and identified as

machine washable.

1.0

This programme (40°C) is tested and approved by The Woolmark Company for handwashable wool.

Curtains and delicate clothing in wool or silk only washable in cold

2.5

water.

Outer clothing worn for short periods and made of cotton,

2.5

polyester, polyamide and cotton blends. Slightly to normally soiled garments made of cotton and/or

3.5

synthetics.

Slightly soiled garments in cotton and/or synthetics washable only in

5.0

cold water.

Drying can be carried out using the “Cotton“ programme (with

3.0

dry laundry load of 3 kg) or the “Synthetics” programme (with dry laundry load of 1.5 kg).

5.0

Same as the last rinse and the final spin in the “Cotton” programme. In this programme spinning is intensive. Same as the spin cycle in the

5.0

“Cotton” programme.

The “wool” programme of this washing machine has been approved by The Woolmark Company for the washing

of garments labelled as “machine washable”. Follow the instructions given on the label sewn on the garment and

the instructions supplied by the washing-machine manufacturer. (Cert. no. M0402-M0403-M0404-M0405).

Type of wash/Notes

A. Programme selector B. “Start” button C. “Variable spin” button T. “Drying time” button

}

Main wash

Yes

Softener Start

delay

Partenza ritardata

LLLL

LLLLLL L

B T

Detergents and additives Special functions

Pre-

wash

—

— —

—

—— —

—— —— —

D. Display:

functions indicator

O. Optional function buttons J. “Start delay” button

Pre-

Intensive

wash

lavaggio

Pre-

rinse

Risciacquo

intensivo

——

———

——— ———

—

————

— —

—

Wash cycle sequence and

Rinse

Variable

hold

piega

Anti

spin

Centrifuga

—

Drying

time

Selezione

asciugatura

—

— —

5019 301 20215

Max.

spin

speed

rpm

Max.

800

500

800

Max.

—

Max. Max.

Black process 45.0° 150.0 LPI

Whirlpool is a registered trademark of Whirlpool USA

30120215GB.fm Page 2 Tuesday, March 18, 2008 9:39 AM

CONSUMPTION DATA

Programme

Temp e r a t u r e

(°C)

White Cotton / Antibacterial 90 5.0 52

Load

(kg)

Water

(l)

Energy

(kWh)

Approx. programme duration

(hours : minutes)

1.70 2:10

Cotton 75 5.0 52 1.33 2:05

Cotton with “Eco”

***

60 5.0 49 0.95 2:15

Cotton 40 5.0 62 0.51 2:00

Synthetics 60 2.5 46

0.80 1:40

Synthetics 40 2.5 46 0.46 1:35 Dailywash 40 3.5 52 0.30 1:25

Quickwash 35 2.5 30 0.40 0:40

Delicates 30 2.5 54 0.24 0:45

Wool 40 1.0 56 0.44 0:54

Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. In domestic use, consumption data may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The time indicated on the display (if present) can deviate from the values in the table, because it takes into account the household

conditions applicable at that time. To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

Reference programme for energy label.

***

ADD DETERGENTS, CLOSE THE DOOR AND SELECT THE PROGRAMME

Add detergent as indicated on the front page and as described in the chapter “Detergent and Additives” in the Instructions for Use.

1. Turn the

programme selector

to the desired

programme.

2. The indicator of the predefined

spin speed

lights up; in case you want to set another spin speed, press the “Variable spin” button.

SELECT ANY DESIRED OPTION

Press the button(s) of any required option(s) - the respective indicator lights up.

When the combination of programme and additional option(s) is not possible,

the indicators switch off automatically. Unsuitable combinations of options are deselected automatically.

“Prewash” button

• Only for heavily soiled loads (e.g. sand, granular dirt). Increases the cycle time by approx. 15 minutes.

• Do not use liquid detergent for the main wash when activating the prewash option.

“Intensive rinse” button

• More water is added and the rinse cycle is prolonged.

• This option is particularly suitable for areas with very soft water, washing baby linen, and helps people with allergies.

“Rinse hold” button

• The laundry remains in the last rinse water without the final spin cycle, to avoid creasing and prevent colours from changing.

• This option is particularly recommended for the “Synthetics”, “Dailywash” or “Delicates” programmes.

• It is particularly useful if you want to postpone spinning to a later time, or if you want to drain only .

• If you select “Rinse hold”, do not leave the laundry to soak for too long.

The programme stops to “Rinse hold” at

Note:

the time the “Rinse Hold” light in the programme sequence indicator is on. The indicator next to the

“Start”

button flashes.

To terminate the “Rinse hold” option:

•Press the

“Start”

button; the programme will terminate automatically with the final spin cycle for the preset wash programme.

“Variable spin” button

• Every programme has a predefined maximum spin speed.

• Press the button to set another spin speed.

• If spin speed “0” is selected, the final spin is cancelled but intermediate spin peaks remain during rinse. The water is drained out only.

DRYING TIME

Press the button to select the drying time, in automatic mode (at end of wash cycle) or in manual mode, selecting the “Drying” programme (with hand-washed laundry). In the latter case it is

necessary to spin at a speed of at least 800 rpm. The set time is shown on the display and varies from “00” to “180” minutes. Drying is not carried out with set time “00”.

START DELAY

The “Start Delay” option allows you to programme machine activation at a later stage, for example at night when electricity is cheaper. Do not use liquid detergent when activating the “Start delay”.

• Select the programme and options.

• Press the “Start Delay” button to select programme start a delay time of 1 to 16 hours;

•Press the

“Start”

The indicator next to the

button.

“Start delay”

button lights up, whereas the selection made is shown on the display. Its flashing indicates the countdown of the remaining time.

• At the end of the delay time the machine starts the set programme. The icon indicating the wash cycle step being carried out at that moment is displayed.

• After pressing the

“Start”

, the number of hours preselected can be reduced by pressing and holding the “Start Delay” button.

To cancel the “Start Delay”:

Press the

“Start delay”

button until the time indicated on the display is “00”; the selected programme will then start.

PROGRAMME START

Open the tap and press the next to the

“Start”

button lights up.

“Start”

. The indicator

“DOOR OPEN” INDICATOR

At the end of a programme, the message “End” appears on the display, indicating that the door can be opened. As long as a wash programme is running, the door remains locked and must not be forced open. In case you have an urgent need to open it during a running programme, refer to “Cancel (Reset) a running programme before the end”.

DISPLAY ALPHANUMERIC INDICATIONS

E02-E03 “Service”

The display of this “Service” code can be due to a faulty electrical component. Refer to the “Troubleshooting guide” in the Instructions for Use; If the fault persists, contact the After-Sales Service.

E01 “Pump cleaning”

The water is not discharged. Check if the drain hose is bent or if the filter requires cleaning; in the latter case, refer to the Instructions for Use (“Removing the filter”).

E00 “Water tap closed”

The washing machine water feed is insufficient or lacking. Open the tap; Turn the programme selector to “Off/O” and reset the programme. If the fault remains displayed, consult the “Troubleshooting guide” in the Instructions for Use.

E04 “Door lock”

The display of this code could be due to the door not being properly closed. Try closing it again. Turn the programme selector to “Off/O” and reset the programme. If the fault remains displayed, consult the “Troubleshooting guide” in the Instructions for Use.

END OF WASH CYCLE

• At the end of the wash cycle, the message “END” will appear on the display, indicating that the door is unlocked.

1. Turn the programme selector to the “Off/O” position.

2. Close the water tap.

3. Open the door and remove the washing.

4. Leave the door ajar to allow the drum to dry.

CHANGING PROGRAMME AND/OR OPTIONS AFTER PROGRAMME START

1. Turn the programme selector to “Off/O”.

2. Select the new programme, any options and another spin speed if you want.

3. Press the

“Start”

button again. The new programme resumes the wash programme from where the previous one was interrupted. Do not add detergent for this programme.

CANCEL (RESET) A RUNNING PROGRAMME BEFORE THE END

• Reset by turning the programme selector to “Off/O” and select the “Drain Spin” programme to remove the water remaining in the bowl before the door can be opened.
