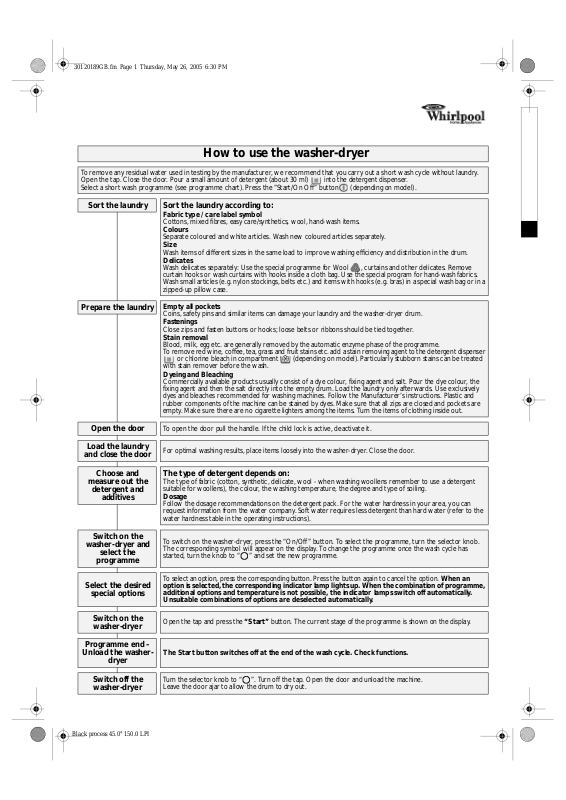

How to use the washer-dryer

To remove any residual water used in testing by the manufacturer, we recommend that you carry out a short wash cycle without laundry. Open the tap. Close the door. Pour a small amount of detergent (about 30 ml) into the detergent dispenser. Select a short wash programme (see programme chart). Press the ”Start/On Off” button (depending on model).

Sort the laundry Sort the laundry according to:

Fabric type / care label symbol

Cottons, mixed fibres, easy care/synthetics, wool, hand-wash items.

Colours

Separate coloured and white articles. Wash new coloured articles separately.

Size

Wash items of different sizes in the same load to improve washing efficiency and distribution in the drum.

Delicates

Wash delicates separately: Use the special programme for Wool , curtains and other delicates. Remove curtain hooks or wash curtains with hooks inside a cloth bag. Use the special program for hand-wash fabrics. Wash small articles (e.g. nylon stockings, belts etc.) and items with hooks (e.g. bras) in a special wash bag or in a zipped-up pillow case.

Prepare the laundry

Open the door

Load the laundry

and close the door

Choose and

measure out the

detergent and

additives

Empty all pockets

Coins, safety pins and similar items can damage your laundry and the washer-dryer drum.

Fastenings

Close zips and fasten buttons or hooks; loose belts or ribbons should be tied together.

Stain removal

Blood, milk, egg etc. are generally removed by the automatic enzyme phase of the programme. To remove red wine, coffee, tea, grass and fruit stains etc. add a stain removing agent to the detergent dispenser

or chlorine bleach in compartment (depending on model). Particularly stubborn stains can be treated

with stain remover before the wash.

Dyeing and Bleaching

Commercially available products usually consist of a dye colour, fixing agent and salt. Pour the dye colour, the fixing agent and then the salt directly into the empty drum. Load the laundry only afterwards. Use exclusively dyes and bleaches recommended for washing machines. Follow the Manufacturer’s instructions. Plastic and rubber components of the machine can be stained by dyes. Make sure that all zips are closed and pockets are empty. Make sure there are no cigarette lighters among the items. Turn the items of clothing inside out.

To open the door pull the handle. If the child lock is active, deactivate it.

For optimal washing results, place items loosely into the washer-dryer. Close the door.

The type of detergent depends on:

The type of fabric (cotton, synthetic, delicate, wool - when washing woollens remember to use a detergent suitable for woollens), the colour, the washing temperature, the degree and type of soiling.

Dosage

Follow the dosage recommendations on the detergent pack. For the water hardness in your area, you can request information from the water company. Soft water requires less detergent than hard water (refer to the water hardness table in the operating instructions).

Switch on the

washer-dryer and

select the

programme

Select the desired

special options

Switch on the

washer-dryer

Programme end –

Unload the washer-

dryer

Switch off the

washer-dryer

Black process 45.0° 150.0 LPI

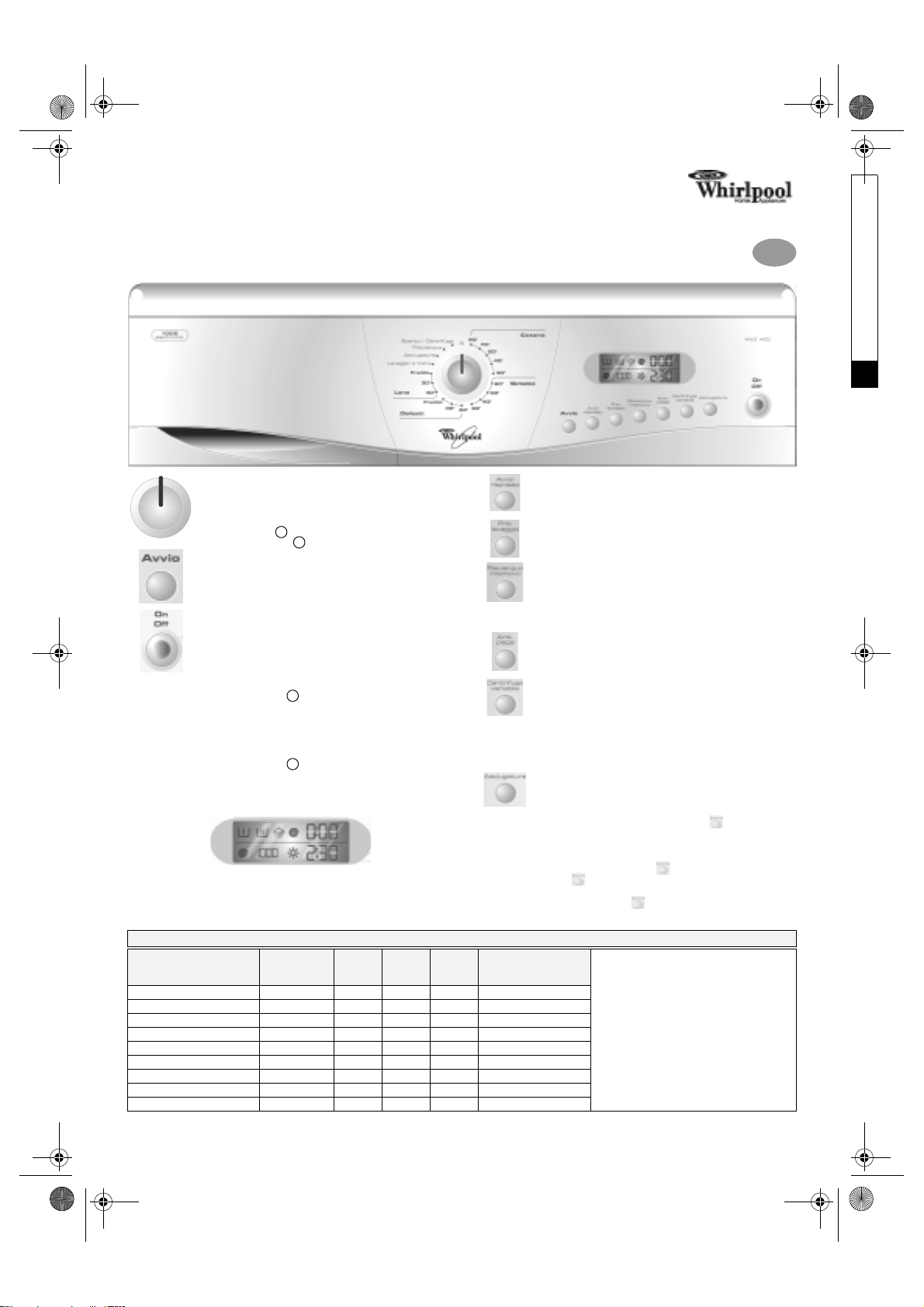

To switch on the washer-dryer, press the “On/Off” button. To select the programme, turn the selector knob. The corresponding symbol will appear on the display. To change the programme once the wash cycle has started, turn the knob to “ ” and set the new programme.

To select an option, press the corresponding button. Press the button again to cancel the option.

option is selected, the corresponding indicator lamp lights up. When the combination of programme, additional options and temperature is not possible, the indicator lamps switch off automatically. Unsuitable combinations of options are deselected automatically.

Open the tap and press the

The Start button switches off at the end of the wash cycle. Check functions.

Turn the selector knob to “ ”. Turn off the tap. Open the door and unload the machine. Leave the door ajar to allow the drum to dry out.

“Start”

button. The current stage of the programme is shown on the display.

When an

30120189GB.fm Page 2 Thursday, May 26, 2005 6:30 PM

Programme chart Detergent and additives Options

Programme

90°, 75°, 60°*,

Cotton

Synthetics

40°, 30°, cold

Delicates

40° **, 30°,

Wool

wash

Hand-

Drying

Rinse

Spin

Drain/

40°, 30°

60°, 50°,

40°, 30°

cold

Care

Labels

—

Type of w ash

Lightly to normally soiled bed linen, table linen, underwear, towels, shirts etc. (linen and cotton) etc.

For heavily soiled loads the “Pre-wash” option can also be selected.

Slightly to normally soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon, Nylon) or blends with cotton.

“Pre-wash” is not possible with this programme.

Curtains and delicate clothing, dresses skirts, shirts and blouses.

“Intensive Rinse” is not possible in this programme.

Only machine washable woollens with pure new wool label.

Textiles made of linen, silk, wool and viscose marked as “hand-washable”.

Drying can be carried out using the “Cotton” programme (with a dry laundry load of 4 kg) or the “Synthetics” programme (with a dry laundry load of 3.5 kg). Lightly to normally soiled bed linen, table linen, underwear, towels, shirts etc. (linen and cotton) etc.

To rinse and freshen up laundry.

Drain and spin.

LoadkgFabric

Softener

5.0

2.5

1.0

2.0

2.5

— — —

5.0

—

— — —

Recommended times for drying for washer-dryer 2.5 + 2.5

Programme

Cotton 2.5 120’ - 140’ - cupboard dry

Cotton 2.5 80’ - 90’ - for ironing Synthetics 1.5 60’ - 80’ - cupboard dry Synthetics 1.5 40’ - 60’ - for ironing

Recommended times are purely for guidance, and will vary depending on the type of fabric and user experience.

* Programmes in conformity with EN 60456; ** Reference programme for pure new wool

/C° = cold wash.

Main

Wash

Yes

— —

Load

(kg)

Pre-

wash

Start

Delay

Pre-wash

Intensive

Rinse

Easy

Ironing

Spin Drying

L L L L L L L

—

— —

— — —

L L

— — — — —

—

— —

—

L L

L L L

Drying times

(min.)

—

Max.

speed.

Spin

1000

800

5001.5

800

—

1000
