Whirlpool AWZ 3308, AWZ 3787 WP, AWZ 3797, AWZ 3418 WP, AWZ 3302 QUICK REFERENCE GUIDE
...

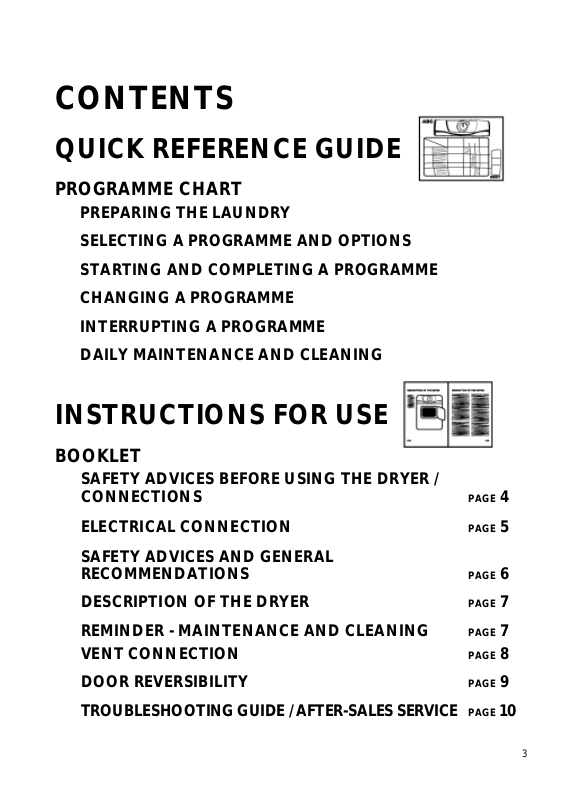

CONTENTS
QUICK REFERENCE GUIDE
PROGRAMME CHART
PREPARING THE LAUNDRY
SELECTING A PROGRAMME AND OPTIONS
STARTING AND COMPLETING A PROGRAMME
CHANGING A PROGRAMME
INTERRUPTING A PROGRAMME
DAILY MAINTENANCE AND CLEANING
INSTRUCTIONS FOR USE
BOOKLET
SAFETY ADVICES BEFORE USING THE DRYER /
CONNECTIONS
ELECTRICAL CONNECTION
SAFETY ADVICES AND GENERAL
RECOMMENDATIONS
DESCRIPTION OF THE DRYER
REMINDER - MAINTENANCE AND CLEANING
VENT CONNECTION
DOOR REVERSIBILITY
TROUBLESHOOTING GUIDE / AFTER-SALES SERVICE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
PAGE
4
5
6
7
7
8
9
10
3
SAFETY ADVICES BEFORE USING THE DRYER /
CONNECTIONS
1. Removing the packaging and check
After unpacking, make sure that the dryer is
•
undamaged. If in doubt, do not use the dryer.
Contact After-Sales Service or your local retailer.
Keep the packaging materials (plastic bags,
•
polystyrene parts, etc.) out of reach of children, as
they are potentially dangerous.
If the appliance was exposed to the cold prior to
delivery, keep it at room temperature for a few
hours before operating.
2. Electrical Connections
Electrical connections must be carried out by a
•
qualified technician in compliance with the
manufacturer’s instructions and current standard
safety regulations.
Electrical connection must comply with local
•
Electricity Board regulations.
Voltage information, power consumption and the
•
required fuse protection is shown on the rating
plate mounted at the rear of the dryer.
The manufacturer cannot accept any liability for
•
personal injury or damage to property resulting
from failure to adhere to these instructions.
The dryer must be earthed as prescribed by law.
•
Do not use extension leads or multiple adaptors.
•
Do not use electrical portable outlet devices.
•
Before any maintenance on the dryer disconnect it
•
from the mains supply.
Do not operate the dryer if it has been damaged
•
during transport. Contact one of our After-Sales
Service technicians.
Mains cable replacement is only to be carried out by
•
After-Sales Service.
After installation access to the mains plug has to be
•
guaranteed, or the all-pole disconnection has to be
possible with a switch.
3. Installation
Do not install your dryer where it can be subject to
•
extreme conditions, such as: poor ventilation,
temperatures below 5°C or above 35°C.
The appliance must not be installed behind a
•
lockable door, a sliding door or a door with a hinge
on the opposite side to that of the tumble dryer.
Take care not to install the dryer on a deep-pile
•
carpet.
Take care not to trap the mains cable between the
•
dryer and the wall.
The exhaust-air must not be leaded into a air-outlet
•
conduit which is used for heating appliances fired
with gas, oil or solid fuel.
Pay attention that the air-inlet openings are
•
unobstructed.
Stability:
When installing the dryer always carefully level the
dryer adjusting the two feet and check the correct
levelling with a spirit level.
To built in the dryer
For security reasons do not remove the worktop.
•
Connect the dryer to an external ventilation system
•
in order to prevent steam from damaging your
furniture during the years.
Stacking kit
Your dryer can be stacked on top of your front
loading washing machine. Please contact your
dealer or our After Sales Service.
Minimum housing dimensions:
Width: 600 mm
Height: 855 mm
Depth: 560 mm
4
ELECTRICAL CONNECTION
1) For Great Britain only
Warning - this appliance must be earthed
Fuse replacement
If the mains lead of this appliance is fitted with a BS 1363A 13amp
fused plug, to change a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 type and proceed as follows:
Remove the fuse cover (A) and fuse (B).
1.
Fit replacement 13A fuse into fuse cover.
2.
Refit both into plug.
3.
Important:
The fuse cover must be refitted when changing a fuse and if the fuse
cover is lost the plug must not be used until a correct replacement is
fitted.
Correct replacement are identified by the colour insert or the colour
embossed in words on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
2) For the Republic of Ireland only
The information given in respect of Great Britain will frequently
apply, but a third type of plug and socket is also used, the
2-pin, side earth type.
3) Socket outlet / plug (valid for both countries)
If the fitted plug is not suitable for your socket outlet, please contact
Whirlpool Service for further instruction. Please do not attempt to
change plug yourself. This procedure needs to be carried out by a
qualified Whirlpool technician in compliance with the manufactures
instructions and current standard safety regulations.
5
