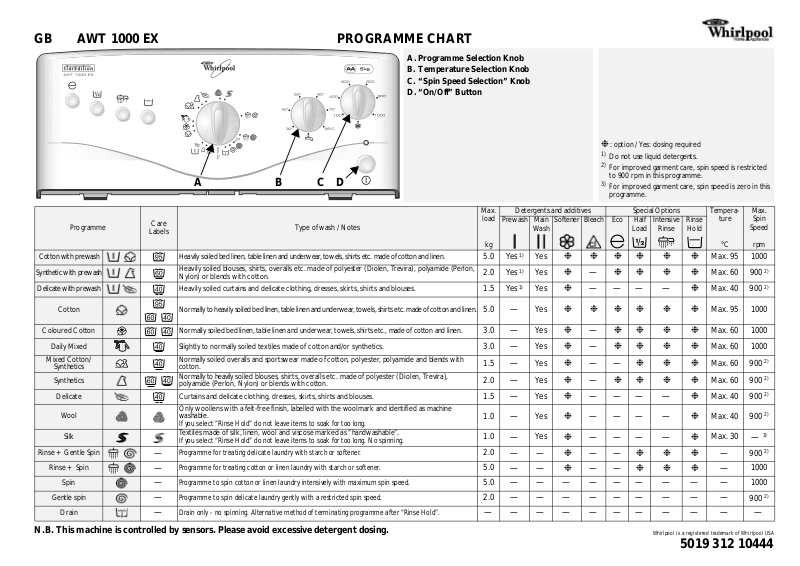

Whirlpool AWT 1000 EX PROGRAM CHART

GB AWT 1000 EX

PROGRAMME CHART

A. Programme Selection Knob

B. Temperature Selection Knob

C. “Spin Speed Selection” Knob

D. “On/Off” Button

A B C D

: option / Yes: dosing required

1)Do not use liquid detergents.

2)For improved garment care, spin speed is restricted to 900 rpm in this programme.

3)For improved garment care, spin speed is zero in this programme.

		Max.	Detergents and additives	Special Options			Tempera-	Max.
		load					ture	Spin
	Care		Prewash Main Softener Bleach Eco	Half	Intensive	Rinse
Programme		Type of wash / Notes	Wash	Load	Rinse	Hold		Speed
	Labels

kg

°C

rpm

Cotton with prewash

Heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.

5.0

Yes 1)

Yes

Max. 95

1000

Synthetic with prewash

Heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira), polyamide (Perlon,

2.0

Yes 1)

Yes

—

Max. 60

900 2)

Nylon) or blends with cotton.

Delicate with prewash

Heavily soiled curtains and delicate clothing, dresses, skirts, shirts and blouses.

1.5

Yes 1)

Yes

—

—

—

—

Max. 40

900 2)

Cotton														Normally to heavily soiled bed linen, table linen and underwear, towels, shirts etc. made of cotton and linen.	5.0	—	Yes							Max. 95	1000
Coloured Cotton														Normally soiled bed linen, table linen and underwear, towels, shirts etc., made of cotton and linen.	3.0	—	Yes		—					Max. 60	1000
Daily Mixed														Slightly to normally soiled textiles made of cotton and/or synthetics.	3.0	—	Yes		—					Max. 60	1000
Mixed Cotton/														Normally soiled overalls and sportswear made of cotton, polyester, polyamide and blends with	1.5	—	Yes		—	—				Max. 60	900 2)
Synthetics														cotton.
Synthetics														Normally to heavily soiled blouses, shirts, overalls etc. made of polyester (Diolen, Trevira),	2.0	—	Yes		—					Max. 60	900 2)
														polyamide (Perlon, Nylon) or blends with cotton.
Delicate														Curtains and delicate clothing, dresses, skirts, shirts and blouses.	1.5	—	Yes		—	—	—	—		Max. 40	900 2)
														Only woollens with a felt-free finish, labelled with the woolmark and identified as machine	1.0	—	Yes		—	—	—	—		Max. 40	900 2)
Wool														washable.
														If you select “Rinse Hold” do not leave items to soak for too long.
Silk														Textiles made of silk, linen, wool and viscose marked as “handwashable”.	1.0	—	Yes		—	—	—	—		Max. 30	— 3)
														If you select “Rinse Hold” do not leave items to soak for too long. No spinning.
											—				2.0	—	—		—	—				—	900 2)
Rinse + Gentle Spin														Programme for treating delicate laundry with starch or softener.
											—				5.0	—	—		—	—				—	1000
Rinse + Spin														Programme for treating cotton or linen laundry with starch or softener.
Spin											—			Programme to spin cotton or linen laundry intensively with maximum spin speed.	5.0	—	—	—	—	—	—	—	—	—	1000
Gentle spin											—			Programme to spin delicate laundry gently with a restricted spin speed.	2.0	—	—	—	—	—	—	—	—	—	900 2)
											—				—	—	—	—	—	—	—	—	—	—	—
Drain														Drain only - no spinning. Alternative method of terminating programme after “Rinse Hold”.

N.B. This machine is controlled by sensors. Please avoid excessive detergent dosing.

Whirlpool is a registered trademark of Whirlpool USA

5019 312 10444

CONSUMPTION DATA

	Temperature	Load	Water	Energy	Approx. Programme
Programme	Selector				Duration
	(°C)	(kg)	(l)	(kWh)	(hours : minutes)
Cotton	95	5.0	63*	1.80	2:05
Cotton	60	5.0	55	0.95	2:05
Cotton	40	5.0	55	0.55	2:05
Daily Mixed	40	3.0	49	0.48	1:00
Mixed Cotton / Synthetics	60	2.0	56	0.80	1:30
Synthetics	40	2.0	56	0.40	1:30
Delicate	40	1.5	60	0.55	0:45
Wool	40	1.0	60	0.50	0:40
Silk	30	1.0	60	0.30	0:50

Prewash cycle increases programme duration approximately 15 min. Consumption values were measured in normalized conditions in compliance with standard IEC/EN 60 456. Consumption data in the home may vary with respect to the values in the table in relation to the water supply pressure and temperature, the load and the type of wash.

The data on the “Energy Label” refer to the programme “Cotton 60°C”.

*To reduce the water temperature, some cold water is added at the end of the main wash cycle, before the pump drains the water out.

PREPARATION OF WASH CYCLE		SELECT THE DESIRED OPTION

1.Load the machine, close the drum doors and check that they are properly locked.

2.Add detergents and additives into the dispenser to no more then the “MAX” level mark, as follows:

• Programme with pre and main wash

• Main wash programme without prewash

• Fabric softeners and conditioners

• Chlorine bleach

• Stain remover agents

• Anti-scale agents (if necessary)

3.Turn the programme selector knob to the desired programme.

4.Turn the temperature selector knob to the desired temperature.

5.Turn the spin speed selector knob to the desired spin speed. If the spin speed “” is selected, the final spin is cancelled, but not the intermediate spins. The programme ends with a drain cycle.

Selecting or deselecting an option can be done at any time during the programme. The option will be applied as long as the corresponding programme phase has not been executed yet.

“Eco” button

•The duration of the wash is extended and the max temperature reduced to save up to 40% of energy compared to a normal wash but maintaining good washing results.

“Half Load” button

•Can be used for small loads and lightly soiled laundry.

•Reduces the water consumption especially during the rinses.

“Intensive Rinse” button

•The amount of water is increased to ensure a more intensive rinse.

•This option is particularly suitable for areas with very soft water or washing linen laundry for people with skin allergies.

“Rinse Hold” button

•The laundry remains in the last rinse water without progressing to the final spin cycle to avoid creasing and prevent colours from fading.

•This option is particularly recommended for the “Synthetics”, “Delicate” and “Daily Mixed” programmes.

•This function is particularly useful if you want to postpone spinning to a later time, or if you want to drain only.

Note: the programme selector knob stops on .

Appliance in “Rinse Hold”:

•Press the “Rinse Hold” button again: the programme will terminate automatically with the selected spin cycle.

•If you do not wish to spin the clothes, press the “On/Off” button, turn the programme selector knob to the “Drain” programme and press the “On/Off” button again.

PROGRAMME START

Turn on the tap and press the “On/Off” button. The indicator light of the “On/Off” button lights up. Note: If there is a power interruption or if the appliance is disconnected during the cycle, the programme will run again from the point where it was interrupted.

END OF WASH CYCLE

•The programme selector knob is in the Stop position.

1.Press the “On/Off” button to switch off the machine.

2.Cancel the options.

3.Turn the tap off.

4.Wait for the lid to unlock (about 1 minute).

5.Open the lid and the drum doors and unload the machine. Leave the lid open for some time to allow the inside of the appliance to dry.

CHANGE THE PROGRAMME DURING THE WASH CYCLE

1.Switch off the machine by pressing the “On/Off” button.

2.Select the new programme.

3.Start programme by pressing the “On/Off” button again.

PAUSE/INTERRUPT A PROGRAMME

If, for any reason, you wish to interrupt the programme for a certain time and continue it later:

1.Press the “On/Off” button.

2.After the desired pause, press again the

“On/Off” button.

CANCEL PROGRAMME

1.Switch off the machine by pressing the “On/Off” button.

2.Set the programme selector to “Drain”.

3.Press the “On/Off” button again to start the “Drain” programme.

Whirlpool is a registered trademark of Whirlpool USA

5019 312 10444
