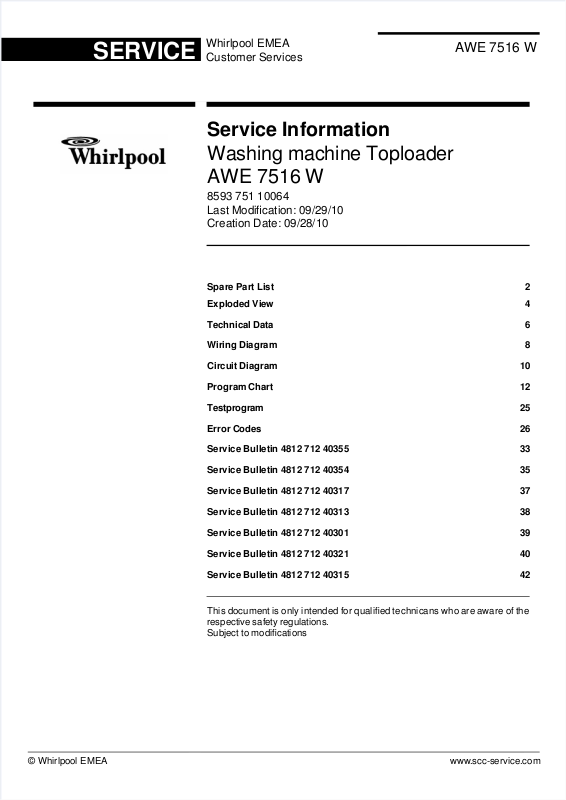

Whirlpool AWE7516-w Schematic
Whirlpool EMEA |
AWE 7516 W |
|
SERVICE Customer Services |
||
|
Service Information
Washing machine Toploader
AWE 7516 W
8593 751 10064
Last Modification: 09/29/10 Creation Date: 09/28/10
Spare Part List |
2 |
Exploded View |
4 |
Technical Data |
6 |
Wiring Diagram |
8 |
Circuit Diagram |
10 |

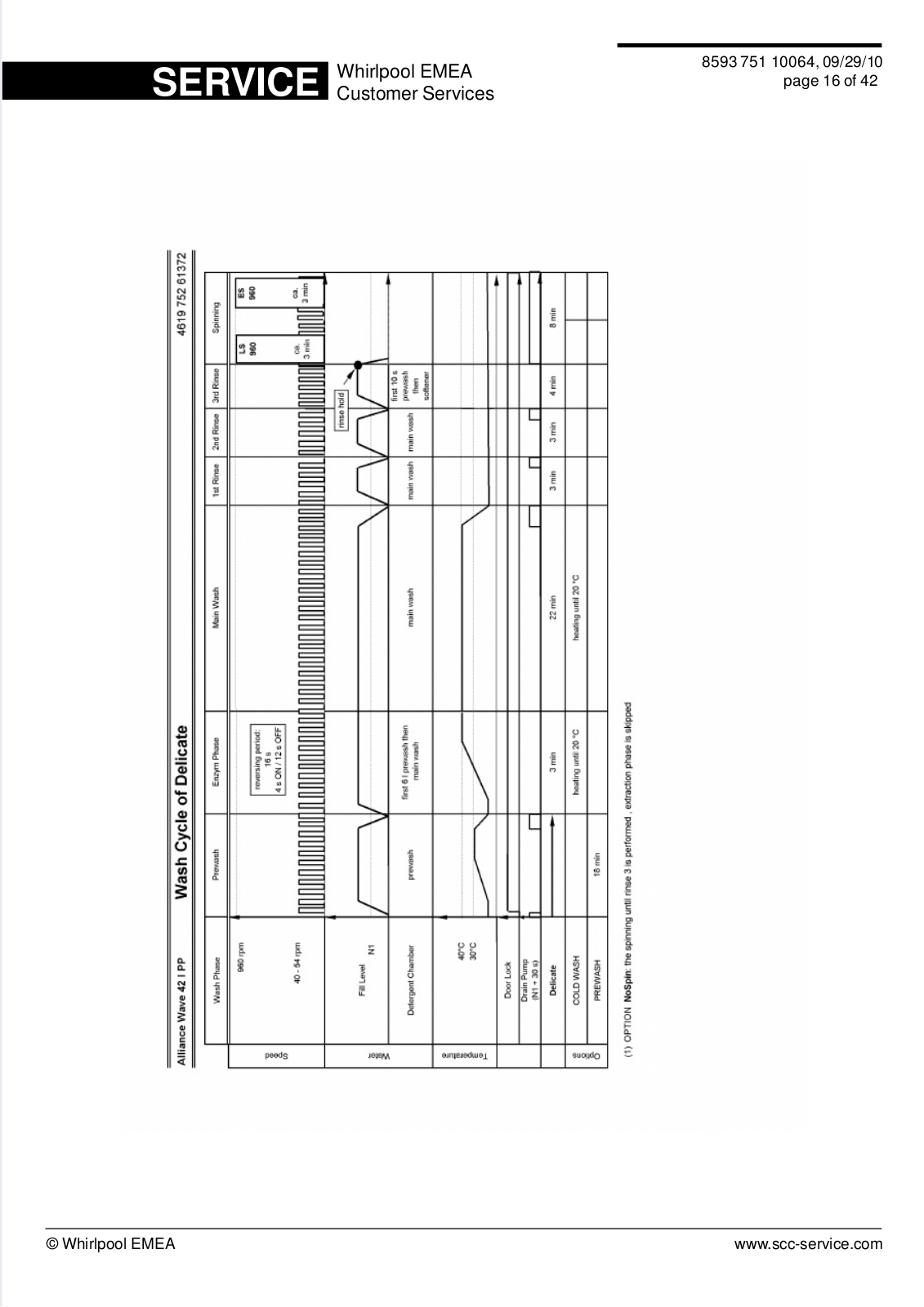

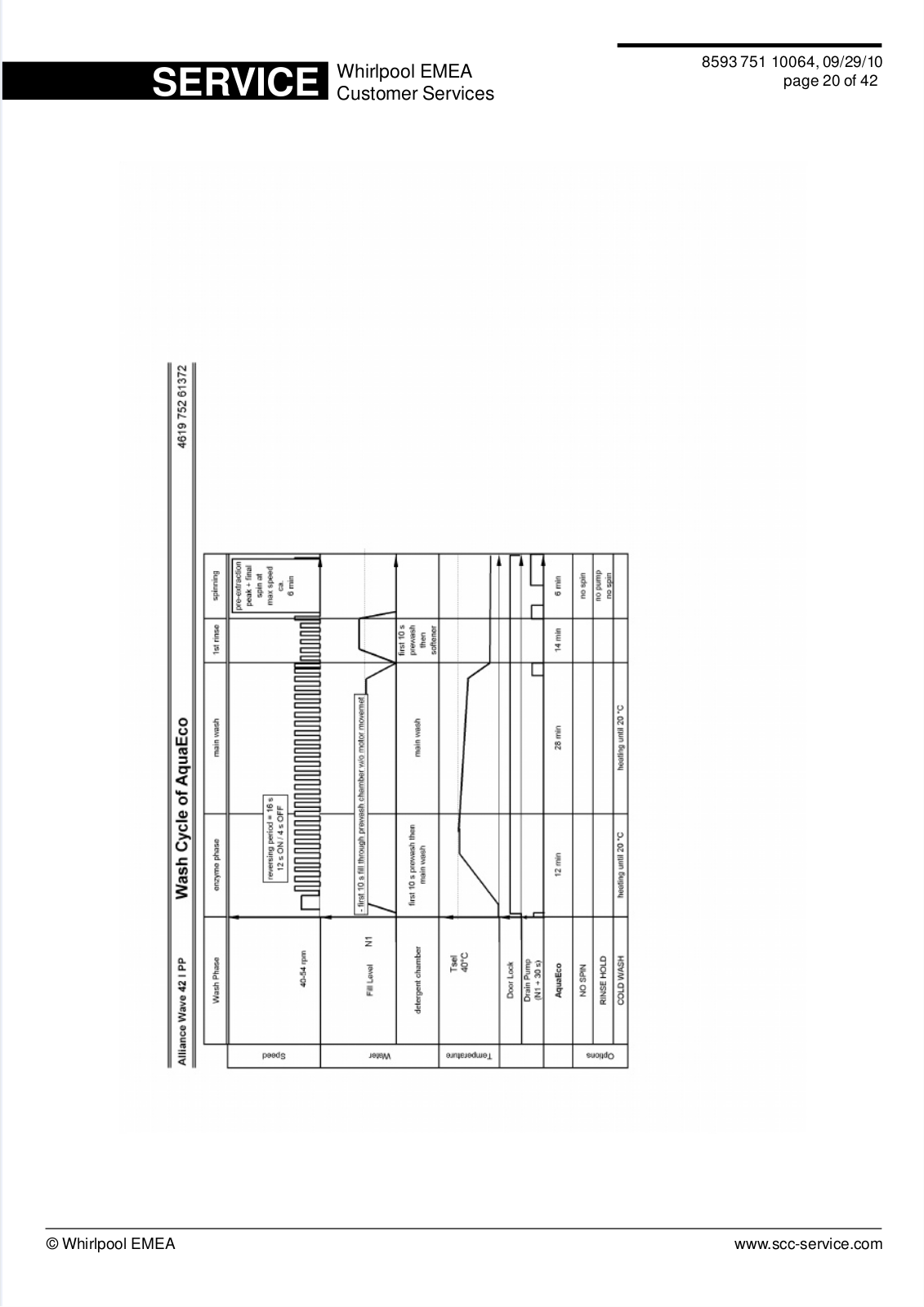

Program Chart |
12 |

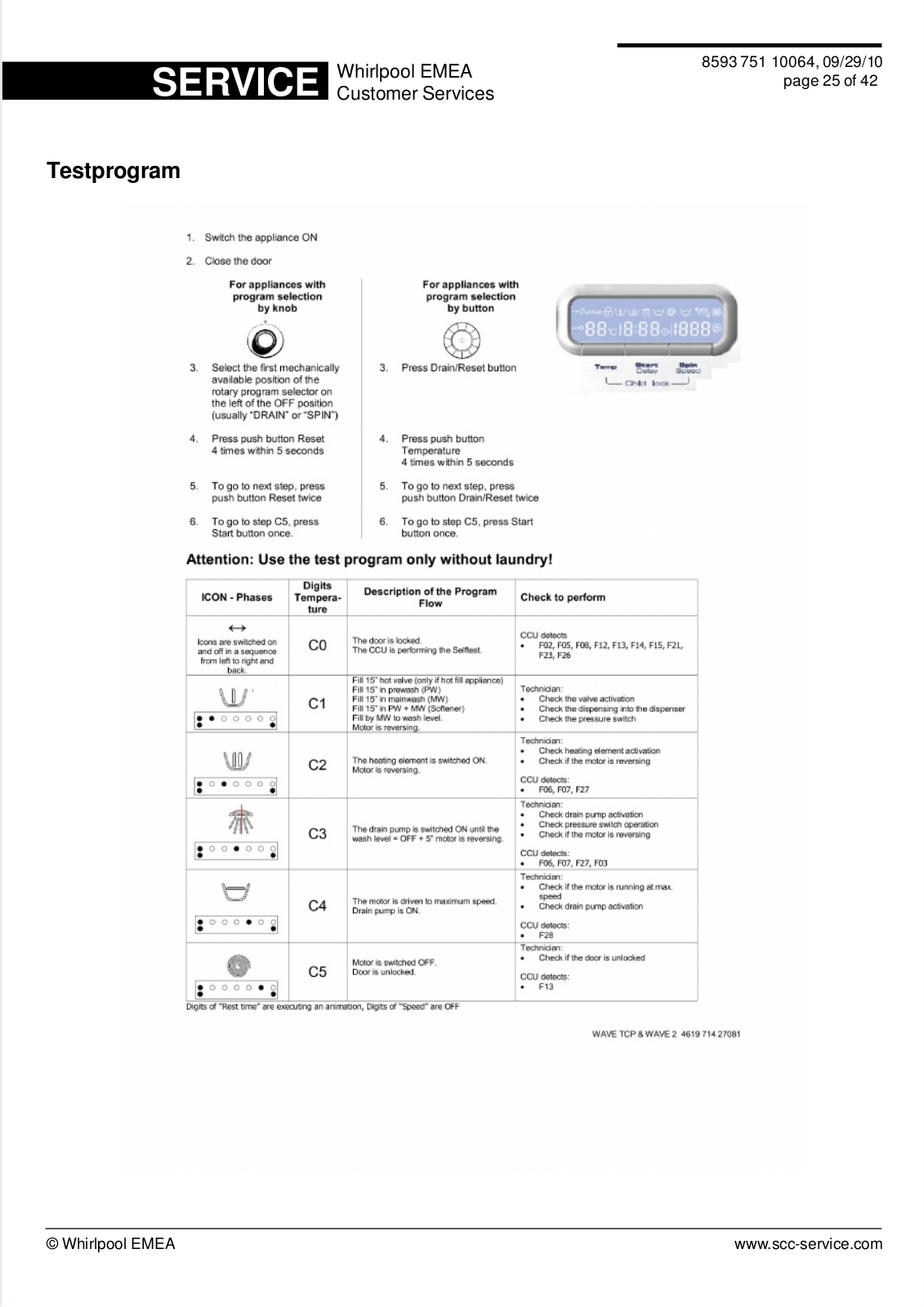

Testprogram |
25 |

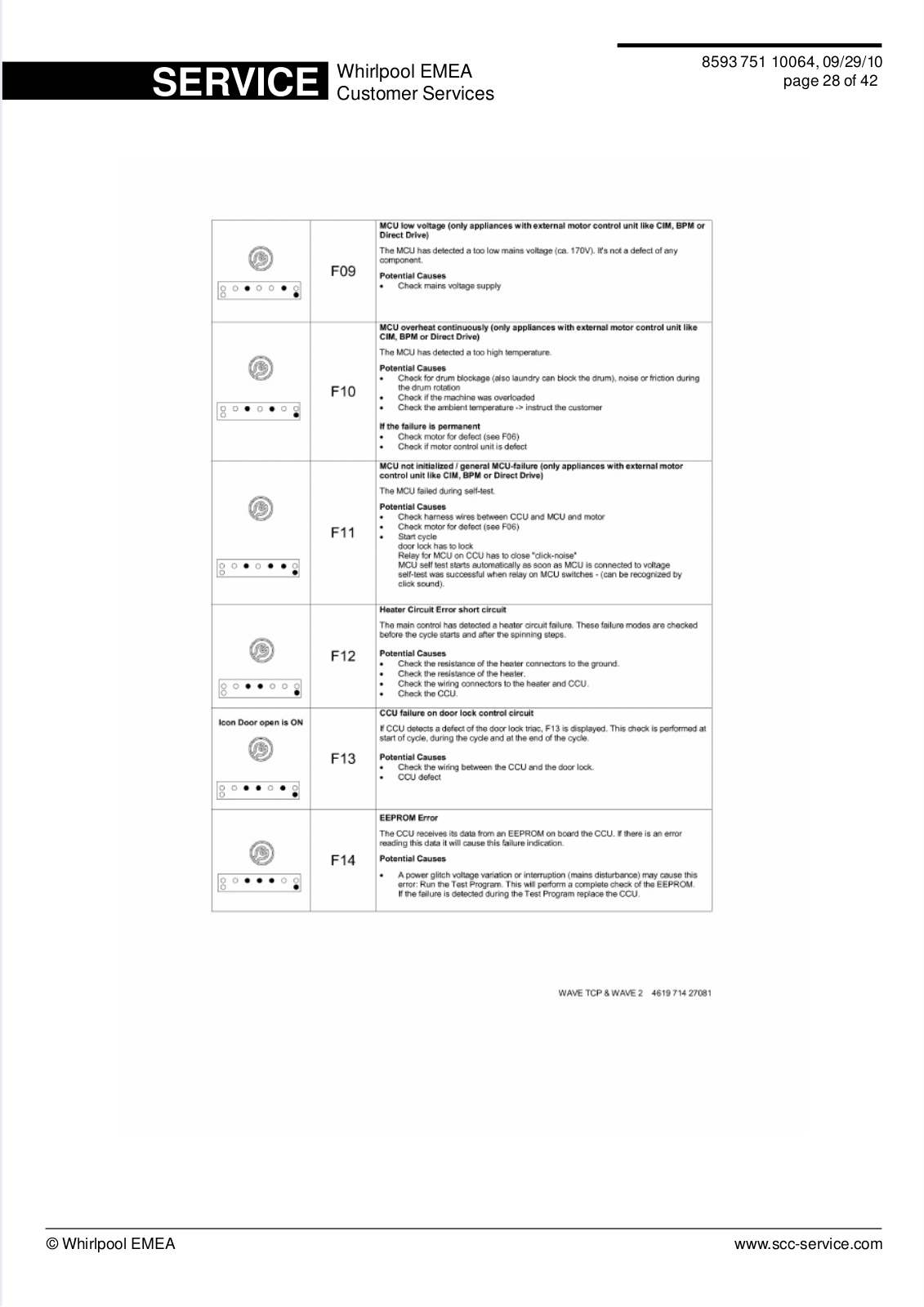

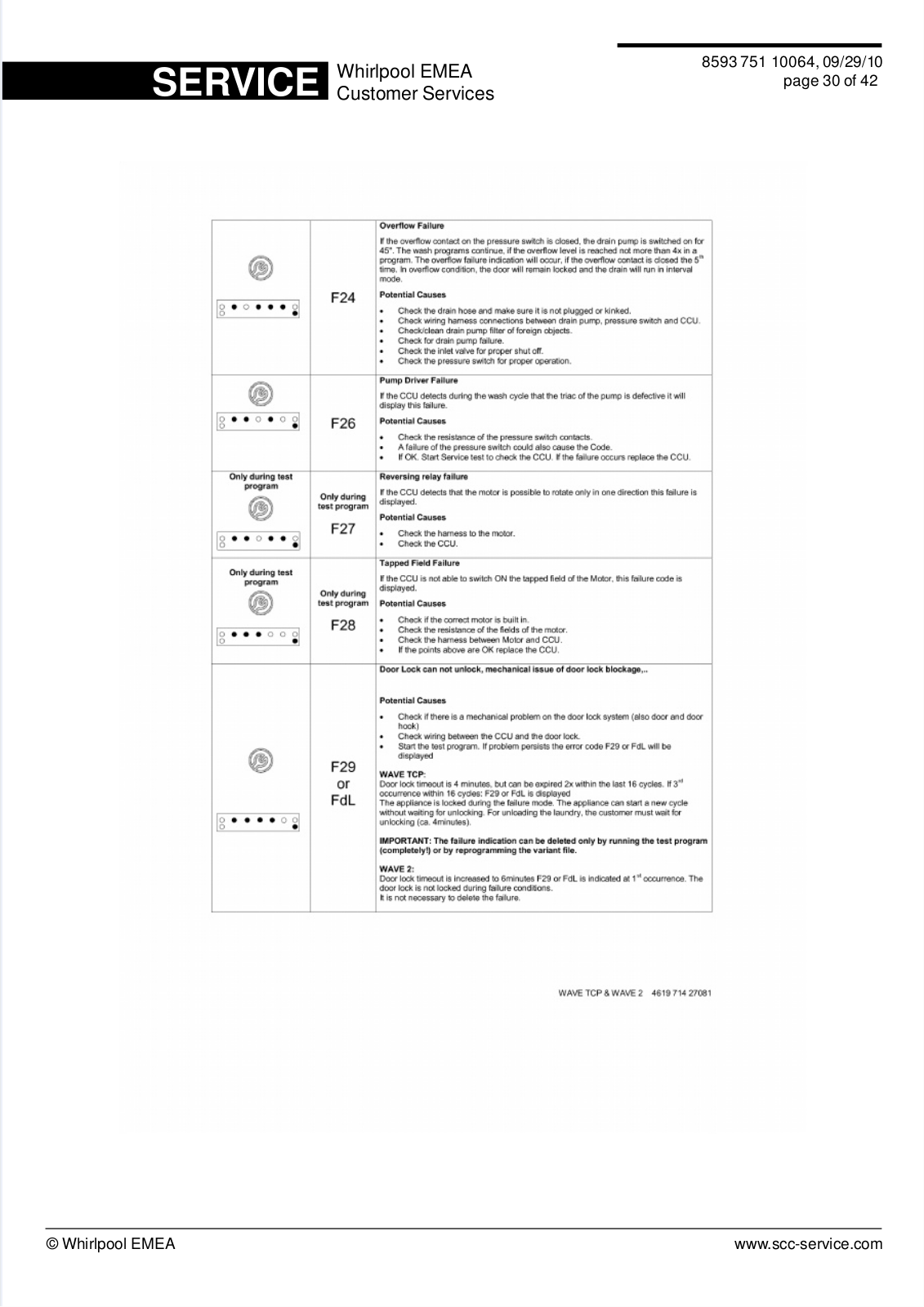

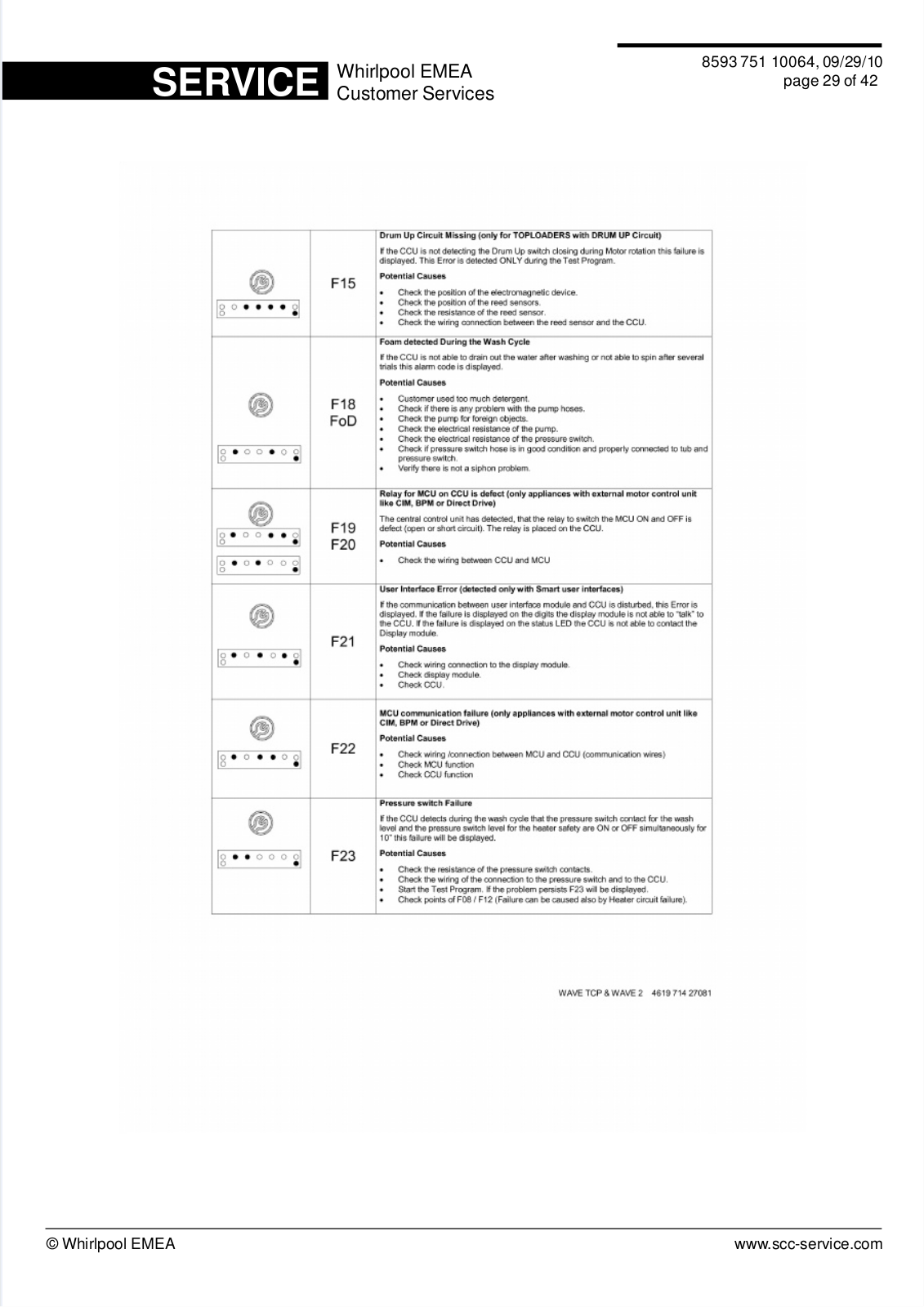

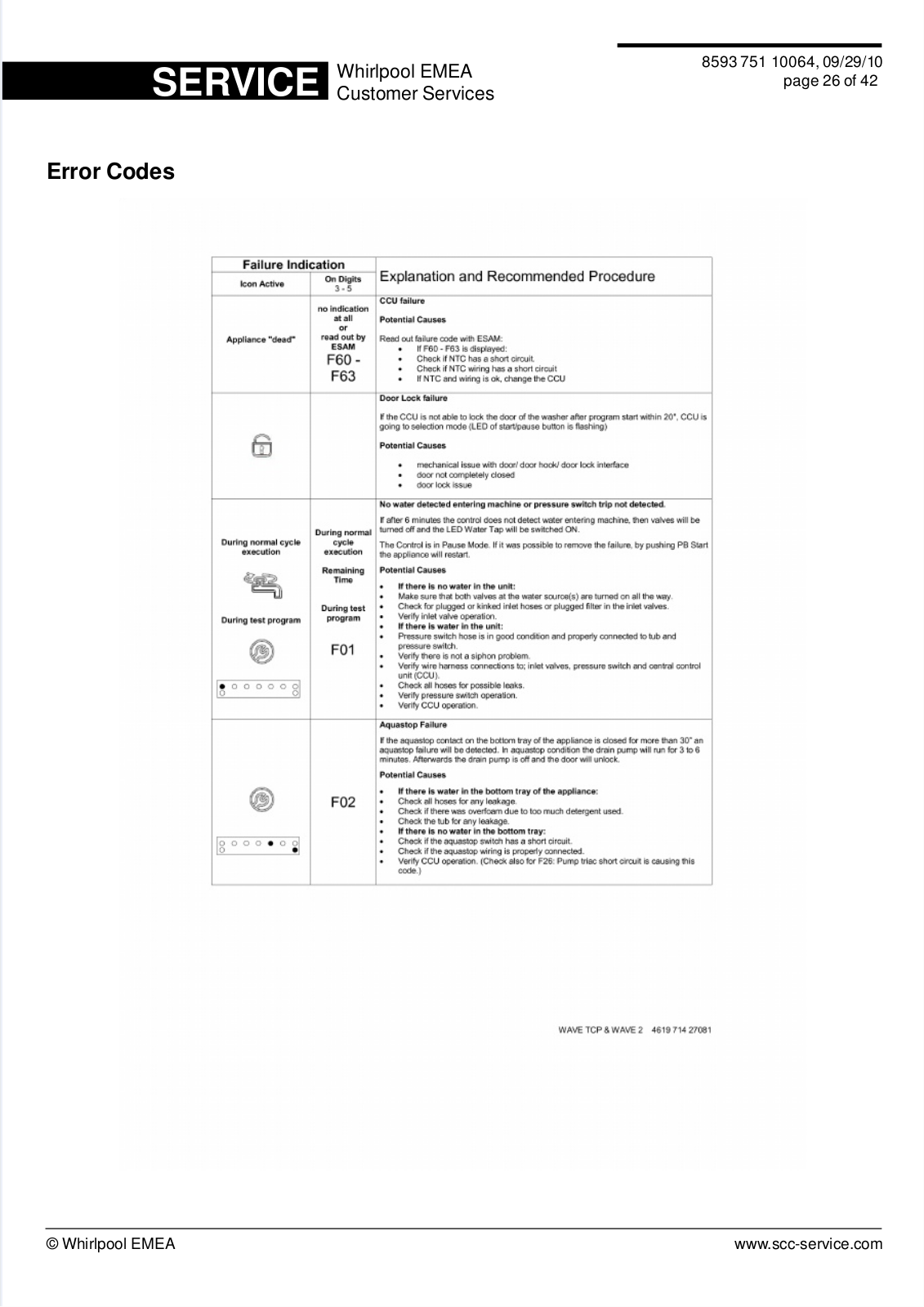

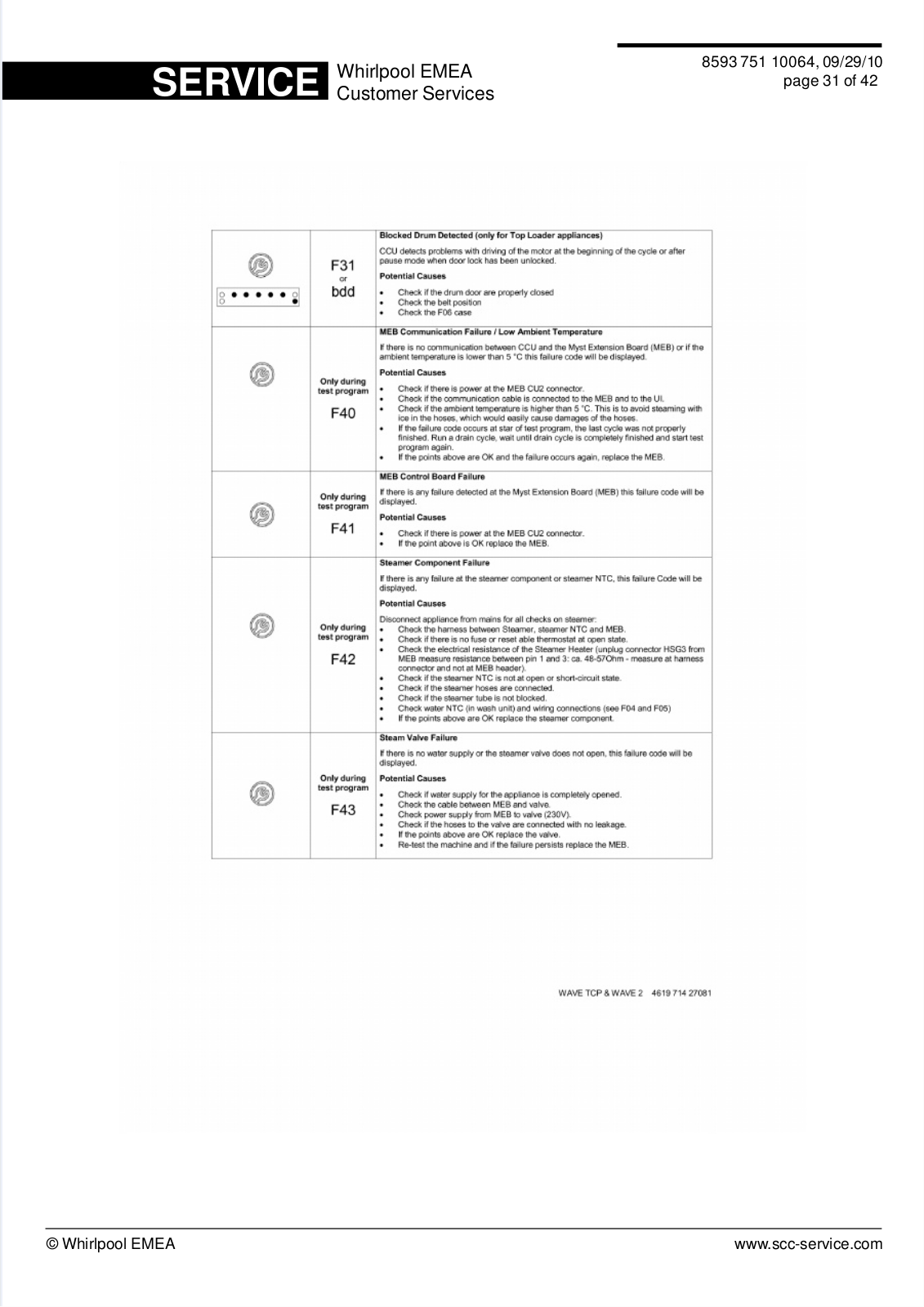

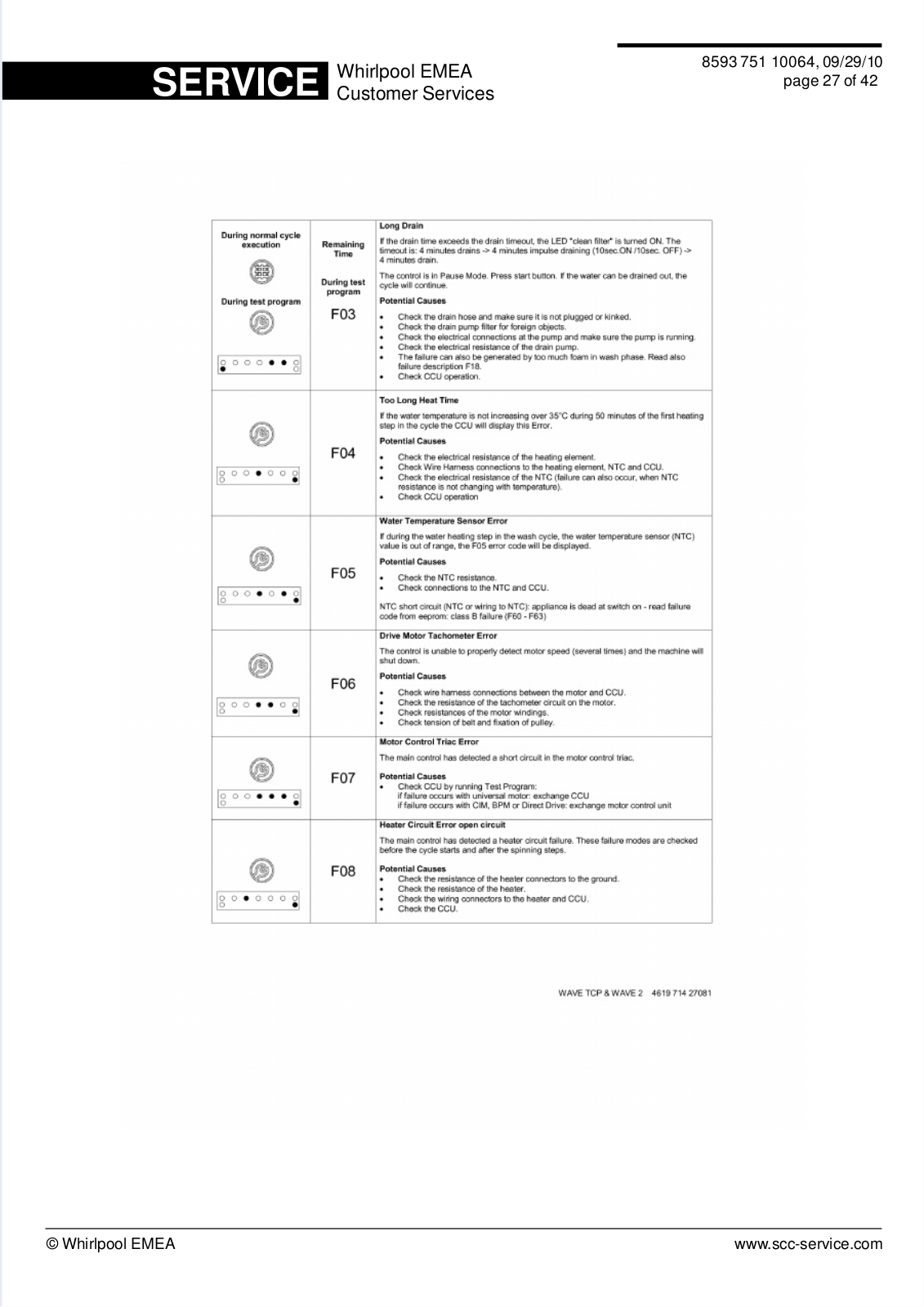

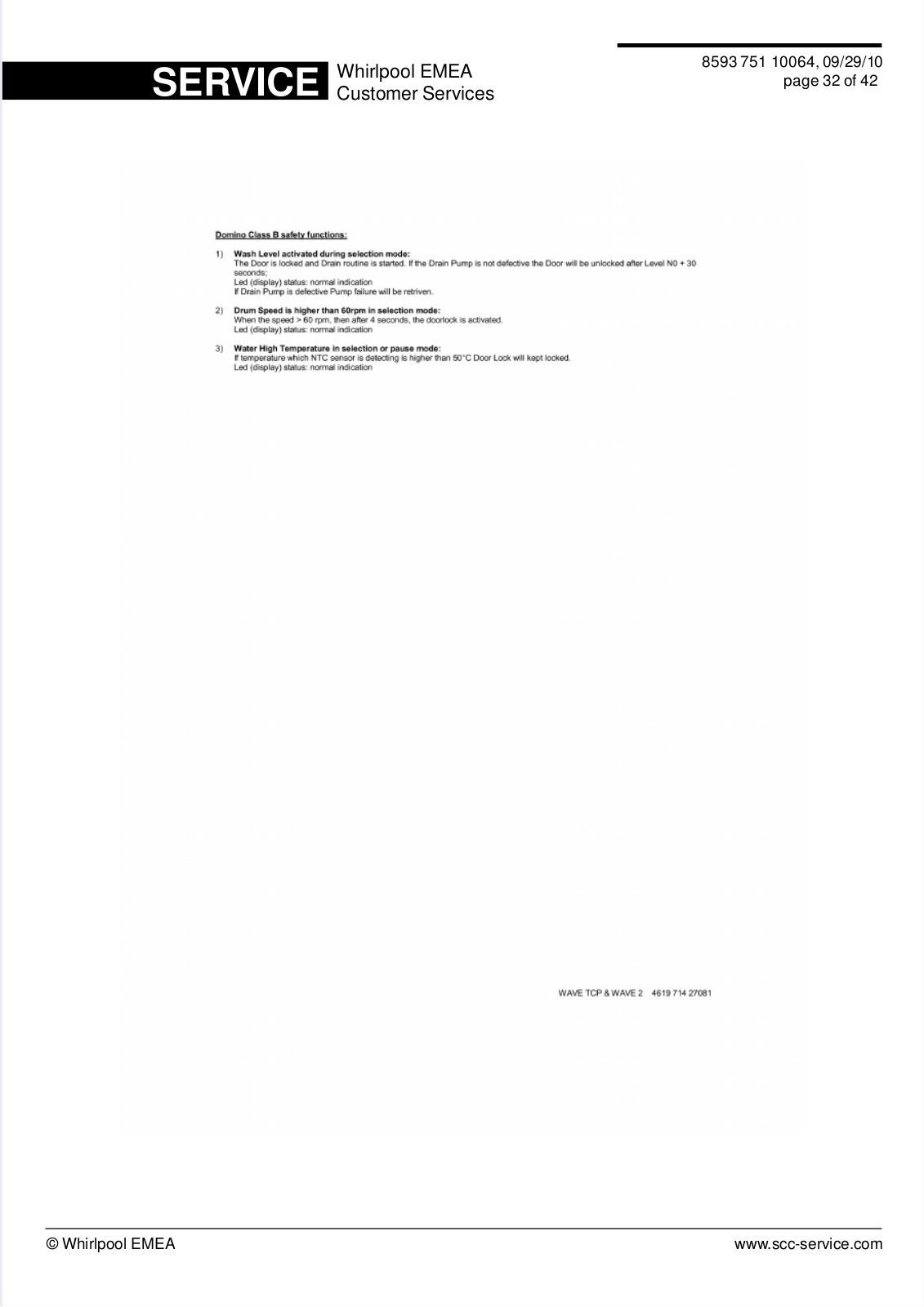

Error Codes |
26 |

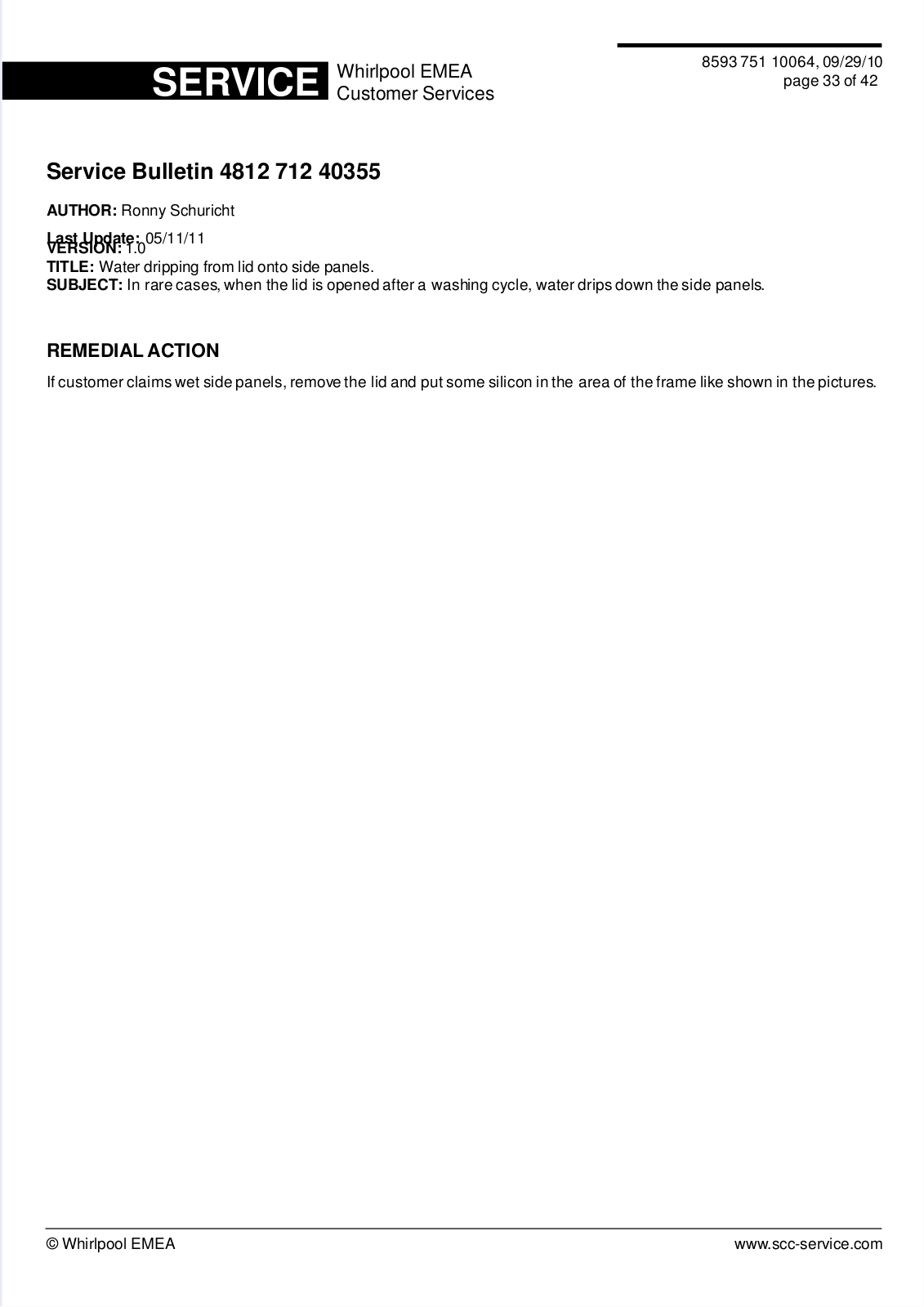

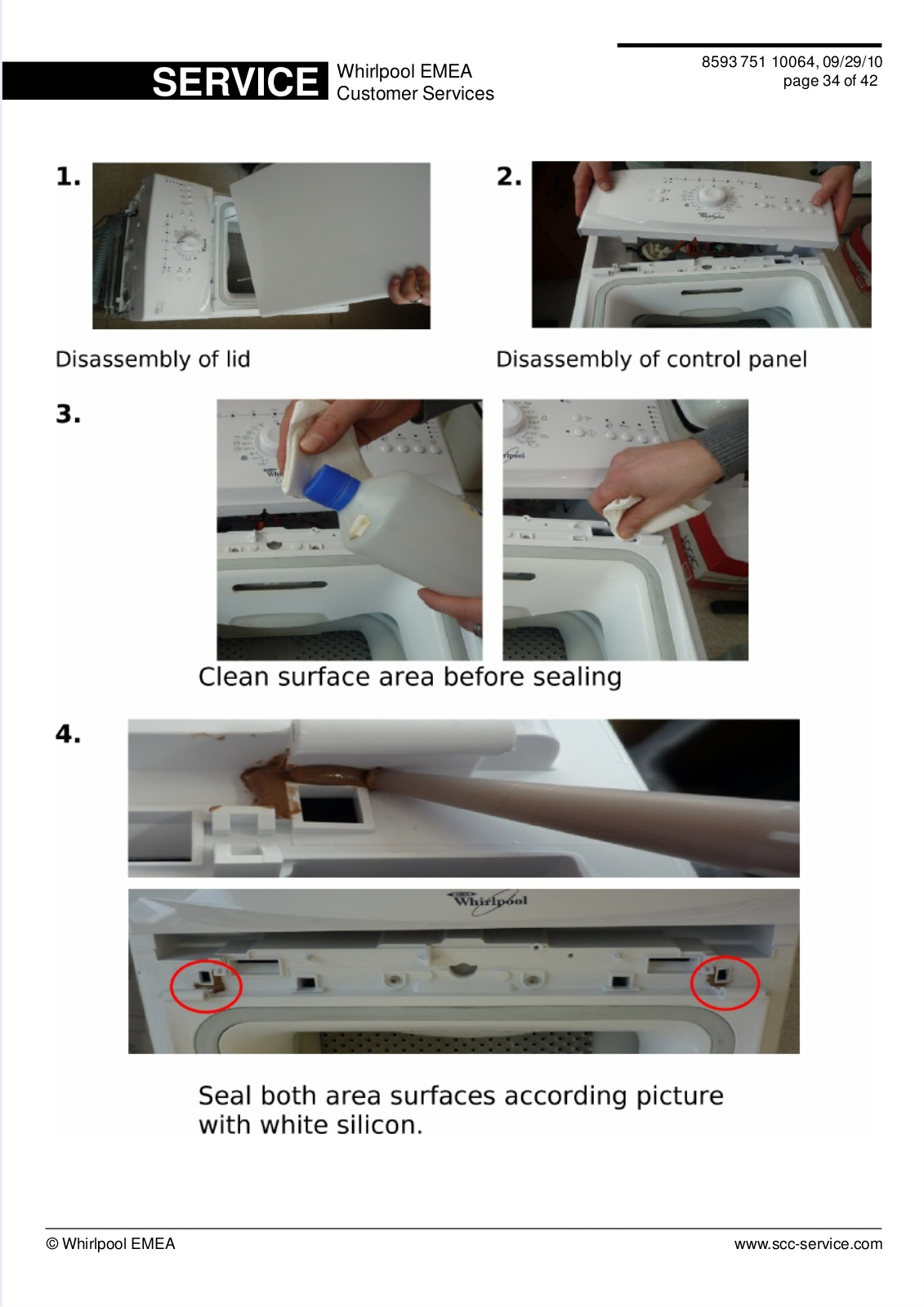

Service Bulletin 4812 712 40355 |
33 |

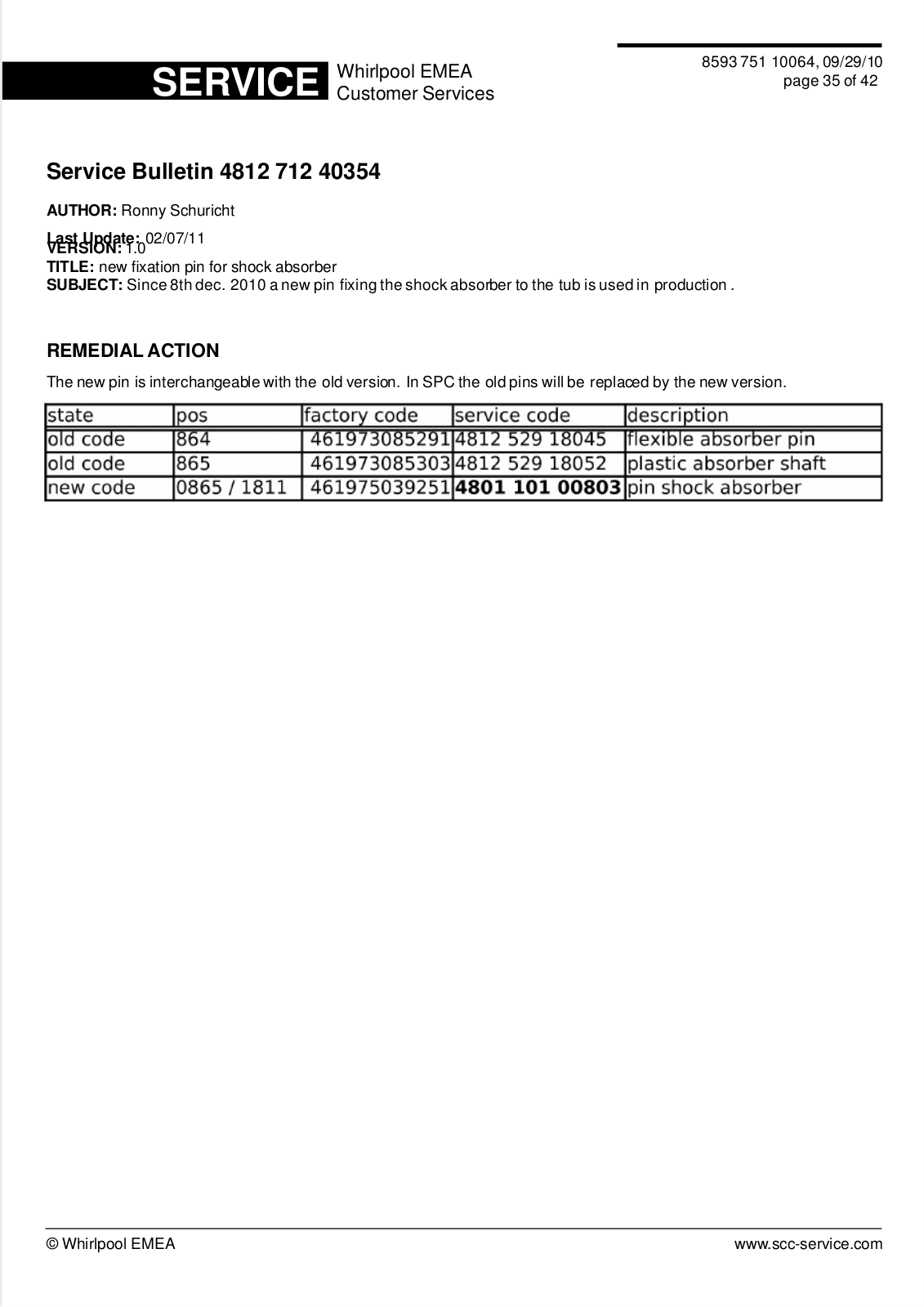

Service Bulletin 4812 712 40354 |
35 |

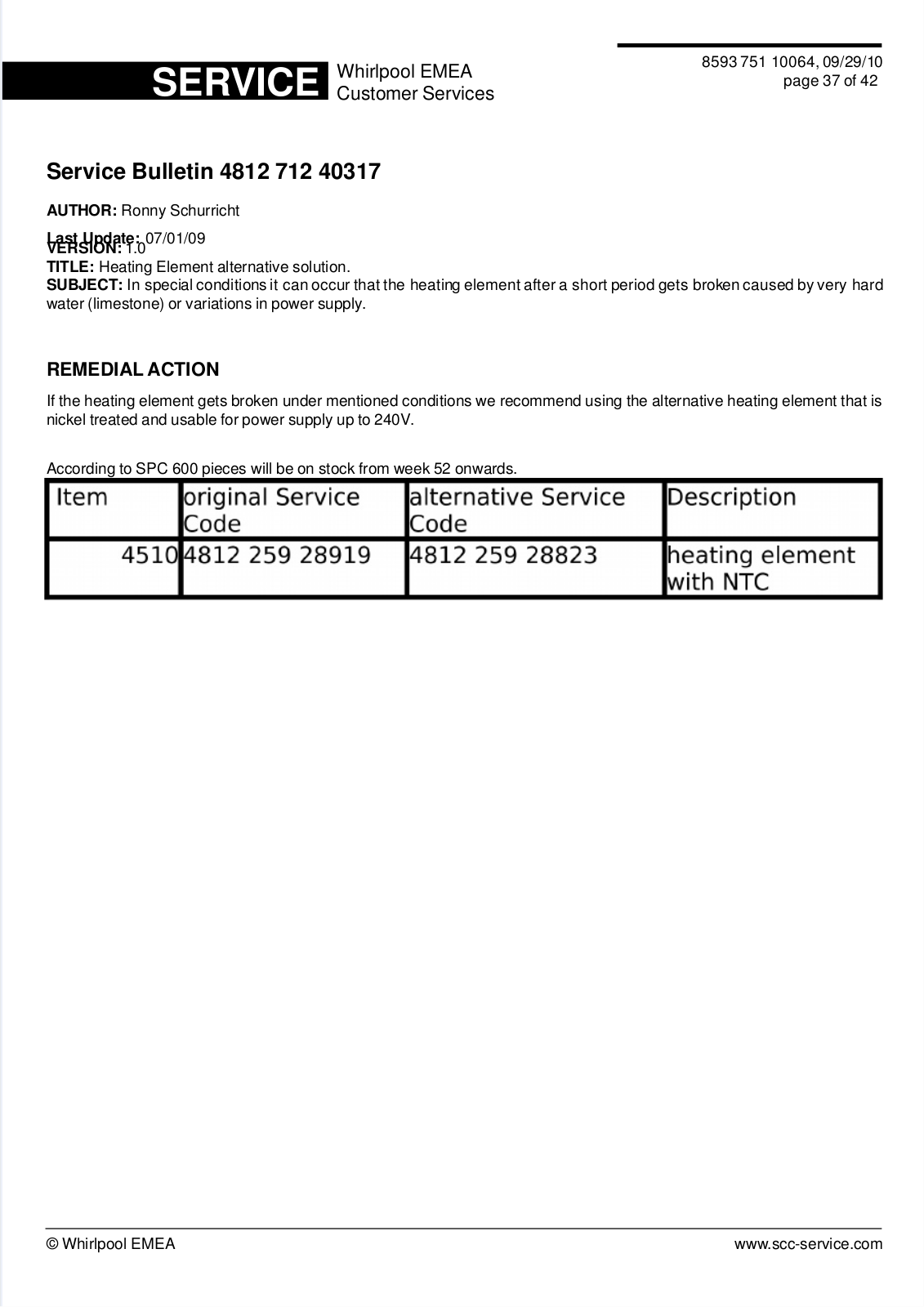

Service Bulletin 4812 712 40317 |
37 |

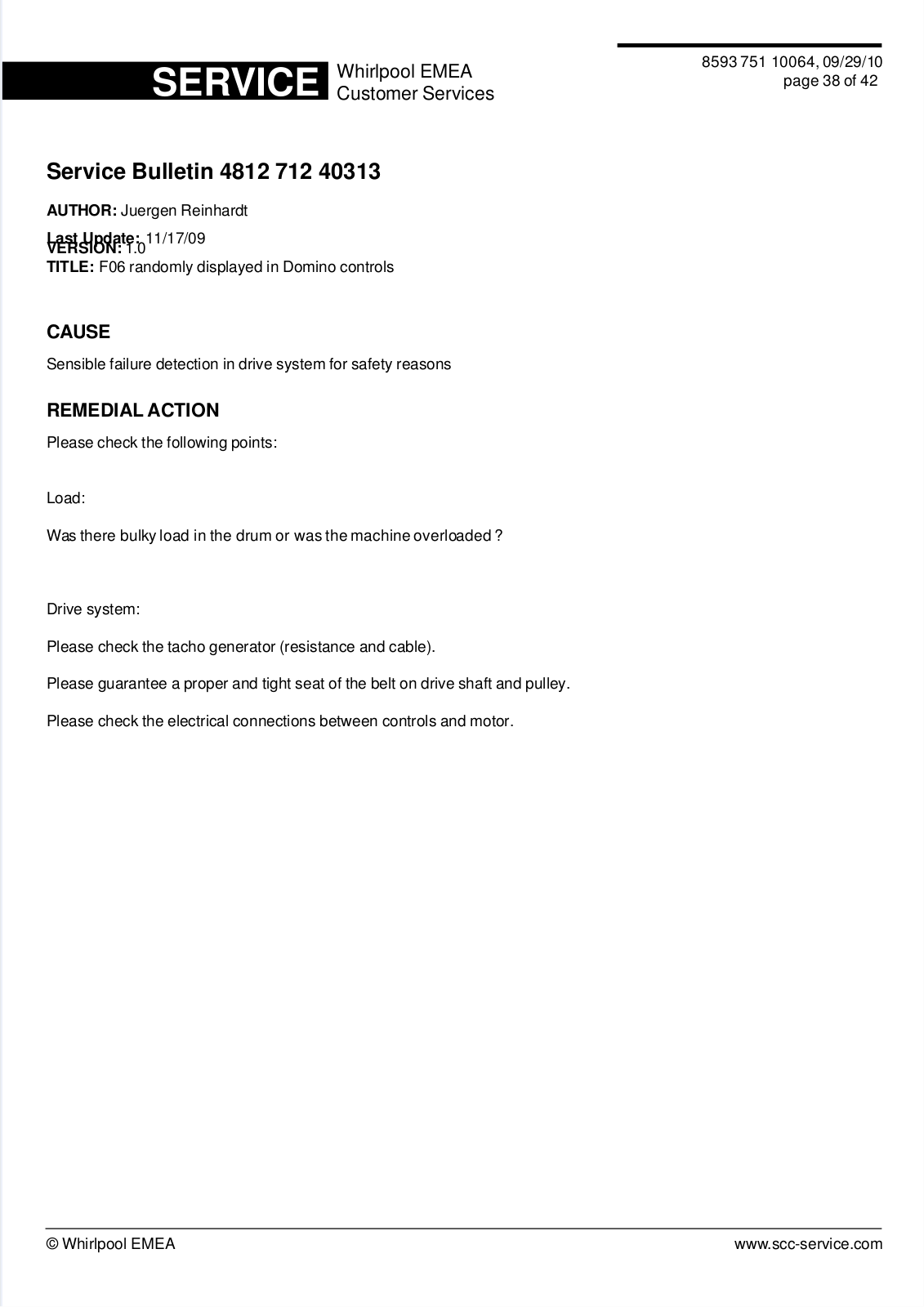

Service Bulletin 4812 712 40313 |
38 |

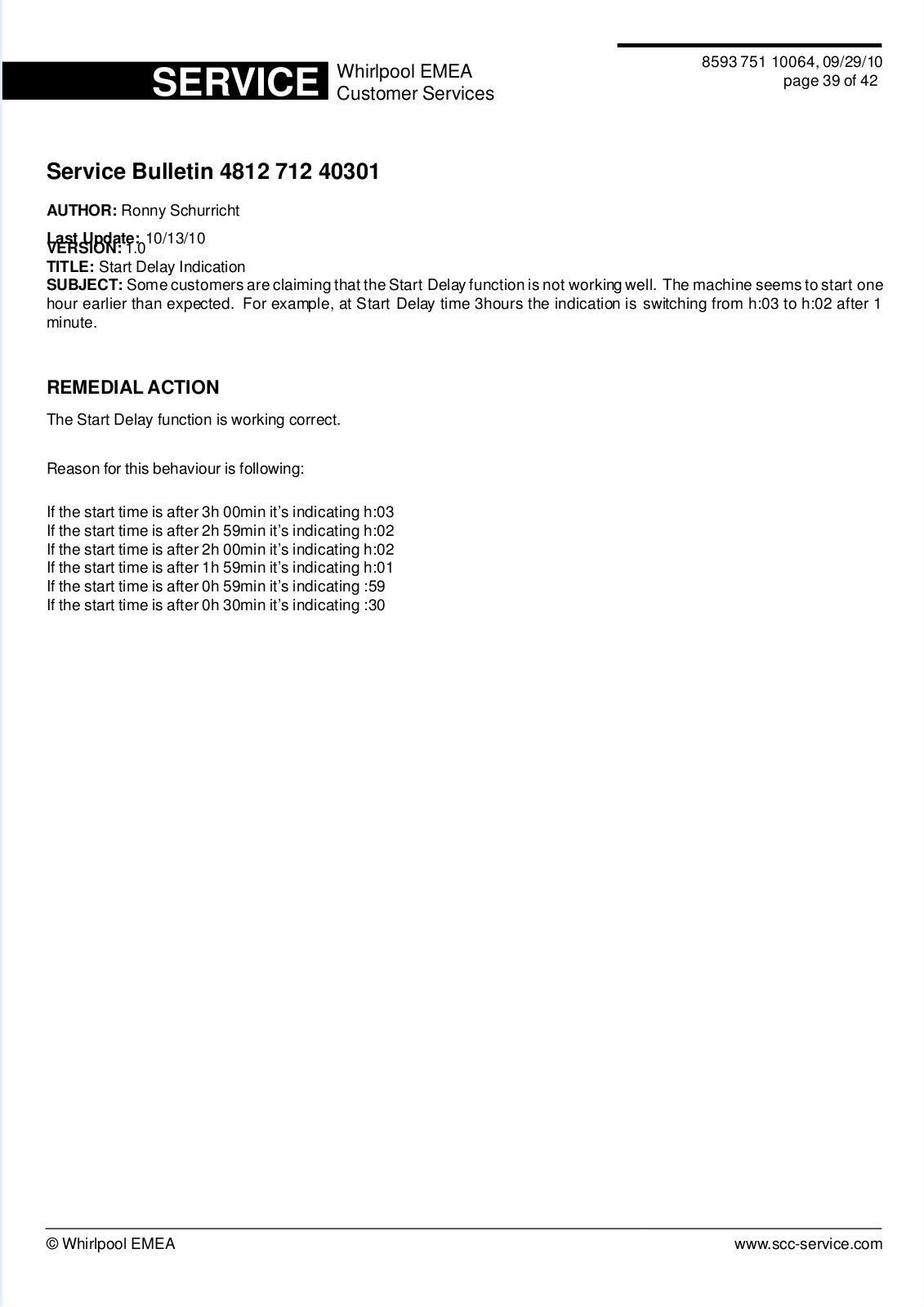

Service Bulletin 4812 712 40301 |
39 |

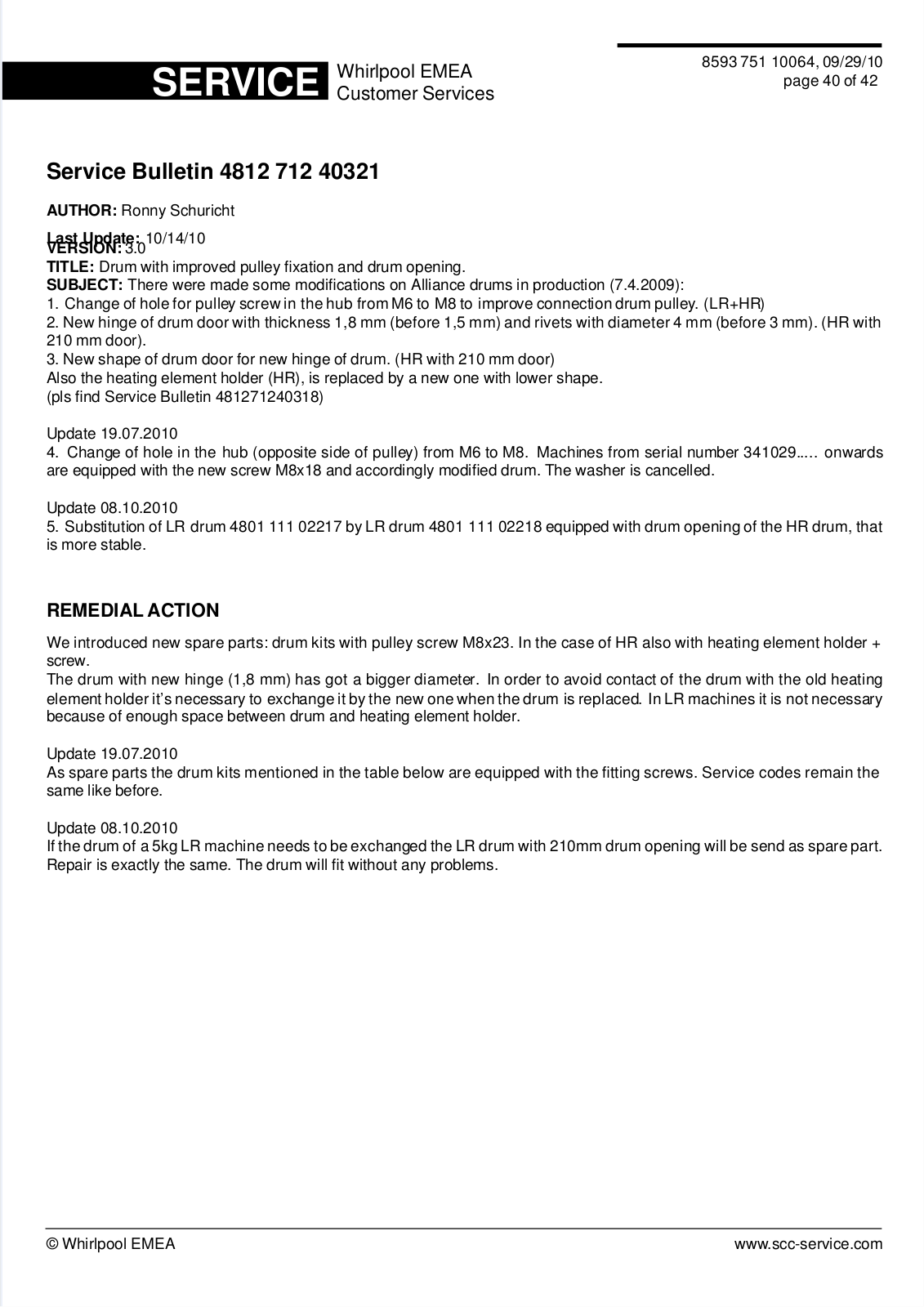

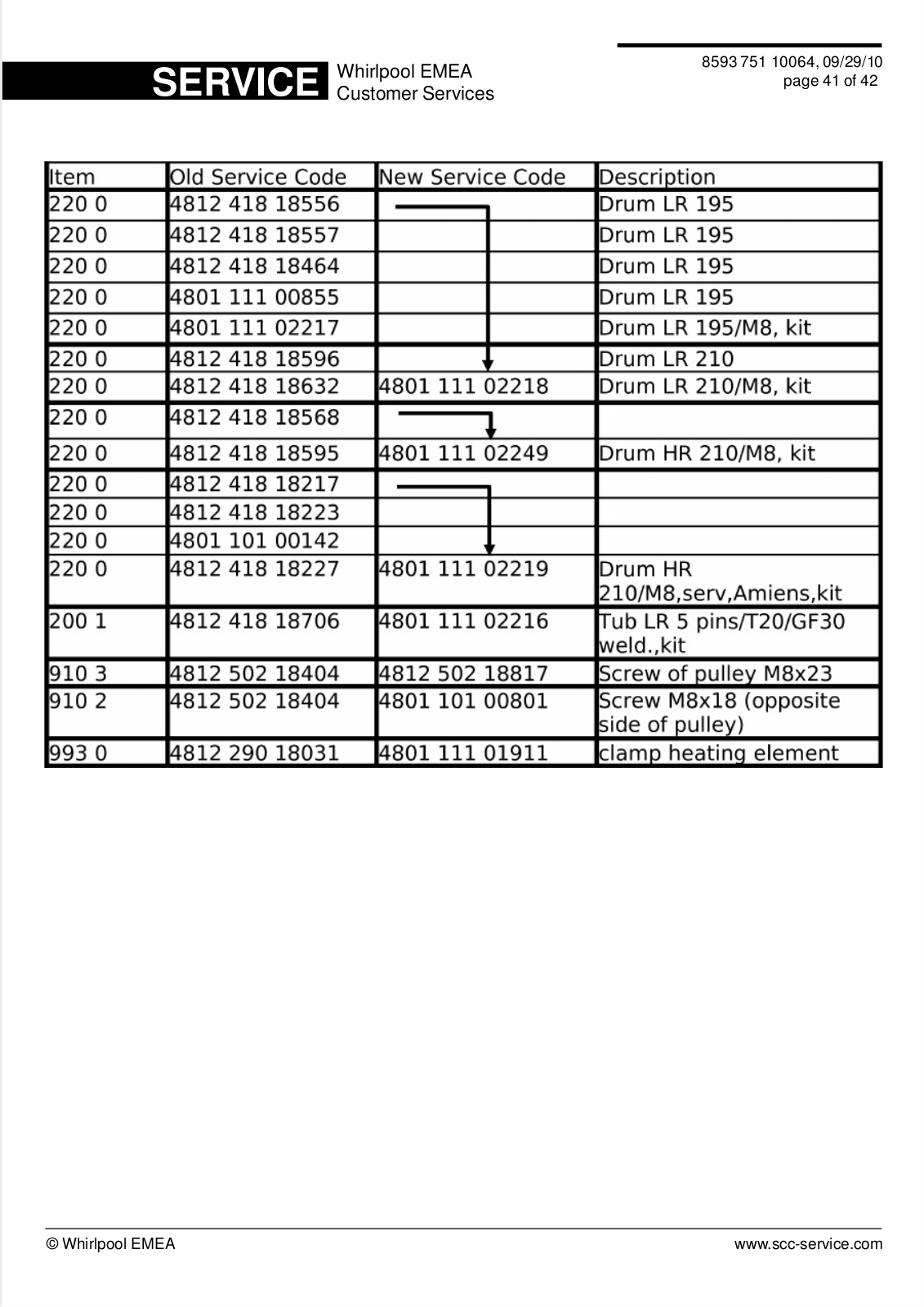

Service Bulletin 4812 712 40321 |
40 |

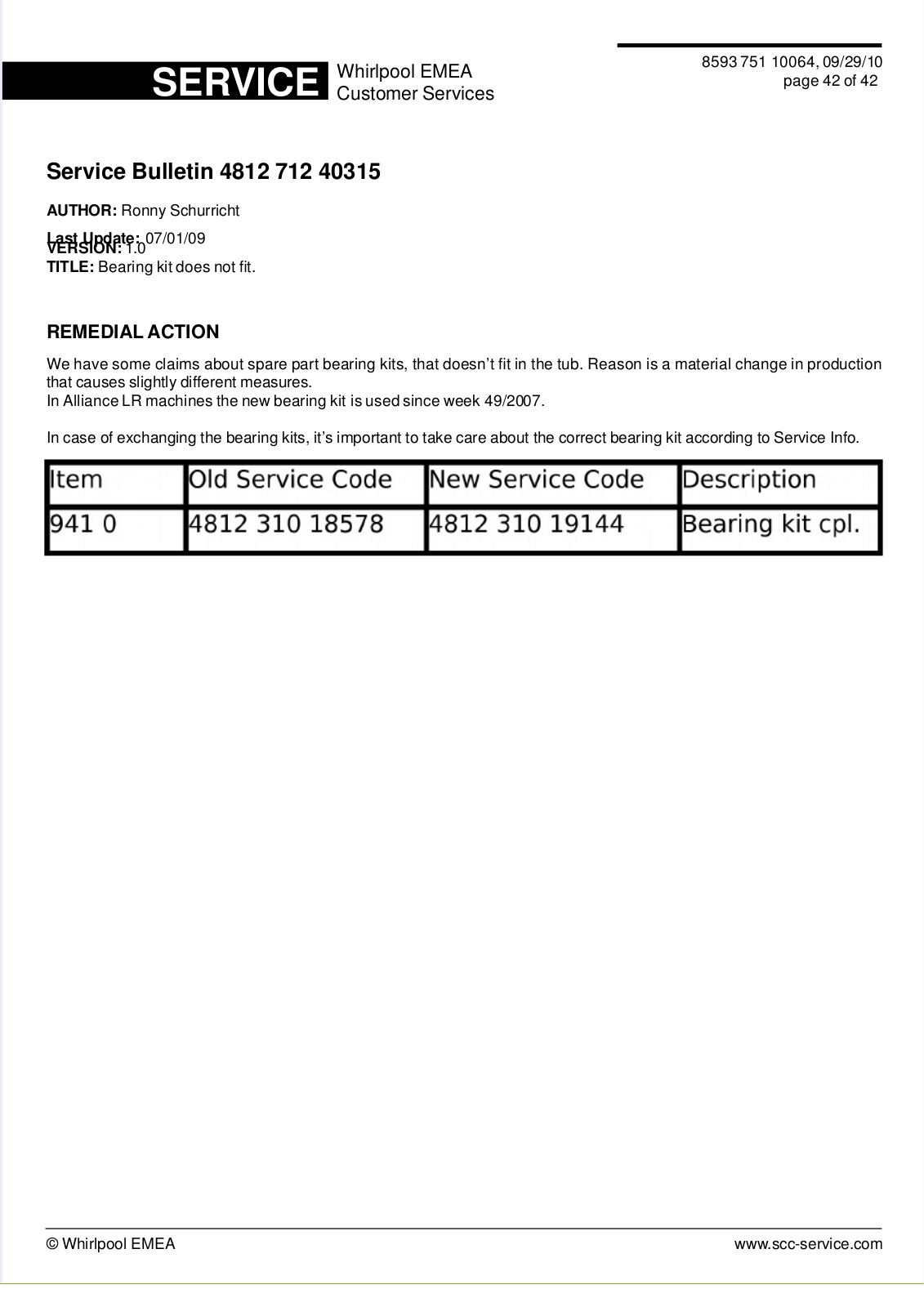

Service Bulletin 4812 712 40315 |
42 |
This document is only intended for qualified technicans who are aware of the respective safety regulations.
Subject to modifications
© Whirlpool EMEA |
www.scc-service.com |
SERVICE Whirlpool EMEA
Customer Services
Spare Part List
Pos |
12NC |
Description |
002 0 |
4812 459 38057 |
Flap round GW |
002 1 |
4812 459 38058 |
Hinge flap GW |
004 0 |
4812 440 19625 |
Drip tray assy |
010 0 |
4812 459 48175 |
Door frame inner GW |
010 1 |
4812 440 11637 |
Frame Top+nozzle box KIT |
011 0 |
4812 462 48054 |
Foot |
012 7 |
4812 310 18497 |
Trolley kit front |
012 8 |
4812 528 78075 |
Foot rear |
021 0 |
4812 440 10838 |
Front panel WH GW |
022 0 |
4812 440 10839 |
Side panel right GW |
022 1 |
4812 440 10841 |
Side panel left GW |
024 0 |
4812 440 11638 |
Rear panel |
040 0 |
4812 417 19155 |
Hinge bolt lid GW |
061 0 |
4812 466 88489 |
Counter weight |
061 1 |
4812 466 88491 |
Counter weight front |
061 2 |
4812 466 88492 |
Counter weight bottom |
081 4 |
4812 529 18043 |
Shock absorber |
086 4 |
4812 529 18045 |
Pin f. Shock absorber |
086 5 |
4812 529 18052 |
Damper f. Shock absorber |
100 1 |
4812 440 10842 |
Lid outer GW |
100 3 |
4812 440 10843 |
Lid inner GW |
100 5 |
4812 440 10845 |
Lid assembly WH GW |
110 4 |
4812 498 18249 |
Handle cpl. WH GW |
130 0 |
4812 417 19193 |
Door latch GW |
191 0 |
4812 466 68596 |
Door bellow |
191 1 |
4812 492 98037 |
Strap f. bellow |
200 0 |
4812 418 18692 |
Tub LR-5pins/4fix |
201 0 |
4812 440 19644 |
Cover cpl. |
220 0 |
4801 111 02217 |
Drum LR 195/M8, kit |
223 0 |
4801 101 00104 |
Drum lifter low |
271 0 |
4812 358 18204 |
Belt PV 1207 J4 EL |
272 0 |
4812 528 88083 |
Pulley 298 mm |
290 0 |
4812 532 68078 |
Gasket |
301 0 |
4812 452 17882 |
Control panel AWE 7516 |
321 1 |
4812 452 17694 |
Window DOMINO WH, Remaining time |
331 0 |
4812 414 58306 |
Knob timer |
331 2 |
4812 414 58307 |
Spring Knob timer |
332 0 |
4812 410 29501 |
Push button 4 Opt. |
332 1 |
4812 410 29502 |
Push button 3 Opt. left |
333 0 |
4812 410 29503 |
Push button start/reset |
400 0 |
4801 111 03472 |
Motor MCA 38/ALB4 |
0 |
121 1 285 |
Interf.filter |
421 2 |
4812 404 38679 |
Holder RFI |
430 0 |
4801 101 00001 |
Pump,draining |
451 0 |
4812 259 28919 |
Heating element 2050W, 230V + NTC |
490 0 |
4819 321 18136 |
Cable mains 2m SA |
490 1 |
4812 321 28367 |
Strain relief |
521 0 |
4801 111 04598 |
Control unit WAVE-TCP K1 (K0), basic |
521 0 |
4801 111 04726 |
Control unit WAVE, programmed |
571 0 |
4812 281 28468 |
Valve magnet 1 inlet, 2 outlets |
8593 751 10064, 09/29/10 page 2 of 42
© Whirlpool EMEA |
www.scc-service.com |
SERVICE Whirlpool EMEA
Customer Services
Pos |
12NC |
Description |
571 1 |
4812 281 18069 |
Cover for top frame |
581 0 |
4812 271 28585 |
Pressostat 50/25 INVENS. |
620 0 |
4812 239 58076 |
Module E4 4 Opt. w. Display |
620 1 |
4812 239 58046 |
Module E3/4 Opt. |
630 0 |
4801 111 04601 |
Door lock |
653 0 |
4812 134 18079 |
Light guide PR.FLOW-START/RST |
653 1 |
4812 134 18078 |
Light guide 4 Opt. |
653 2 |
4812 134 48375 |
Light guide 3 Opt. left |
691 0 |
4812 282 19485 |
Sensor NTC |
701 0 |
4819 530 28928 |
Hose inlet, hot, 2m |
702 2 |
4812 530 29453 |
Hose valve-dispenser |
707 0 |
4812 526 48242 |
Nozzle box cold cpl. |
707 1 |
4812 526 48049 |
Clamp f. nozzle box |
712 4 |
4812 418 68302 |
Siphon f. softener |
712 6 |
4812 418 68164 |
Clip soap dispenser |
712 9 |
4812 418 68404 |
Soap dispenser |
753 0 |
4812 418 68187 |
Chamber,air |
754 0 |
4812 530 28938 |
Drainhose |
754 1 |
4812 530 28832 |
Lock eco |
760 0 |
4812 480 58089 |
Filter, pump - 6257.69359 ( 69402) |
781 0 |
4819 530 29035 |
Hose draining |
782 0 |
4812 530 28941 |
Hose Pressostat |
787 0 |
4812 530 29309 |
Hose Air Exaust |
787 1 |
4812 530 29311 |
Cover of hose |
794 0 |
4801 111 01551 |
Gasket airtrap |
900 0 |
4819 401 18686 |
Clamp hose |
900 1 |
4812 401 18431 |
Clamp to pump |
900 2 |
4812 255 18304 |
Holder hose |
900 3 |
4819 401 18529 |
Clamp hose |
901 0 |
4819 401 18872 |
Clamp hose |
910 0 |
4812 502 48347 |
Screw,selftap 3,5x14 |
910 1 |
4812 502 38151 |
Screw 4x14 |
910 3 |
4812 502 18404 |
Hex flange bolt M6x16 |
910 4 |
4812 502 18423 |
Screw PT 7x15 |
910 5 |
4812 502 18705 |
Screw M8x35 |
910 6 |
4812 505 18367 |
Nut push in M 8 |
921 0 |
4812 400 18047 |
Washer |
930 1 |
4812 492 48171 |
Torsions spring |
930 2 |
4812 492 48162 |
Spring |
941 0 |
4812 310 18578 |
Bearing Kit |
953 0 |
4812 325 68001 |
Shaft seal |
962 0 |
4812 440 98142 |
Cover for Motor AC |
962 2 |
4812 440 11424 |
Spacer |
965 0 |
4812 462 79974 |
Cap Transport blocking |
990 0 |
4812 310 19224 |
Fixing mat.set Counter weight |
990 2 |
4812 310 18506 |
Fixing mat.set bottom |
993 0 |
4819 530 29028 |
U Curve for outlet hose |
993 1 |
4812 290 18025 |
Clamp heating element |
8593 751 10064, 09/29/10 page 3 of 42
© Whirlpool EMEA |
www.scc-service.com |
SERVICE
Exploded View
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 4 of 42 |
||
Customer Services |
||
|
© Whirlpool EMEA |
www.scc-service.com |
SERVICE
Exploded View
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 5 of 42 |
||
Customer Services |
||
|
© Whirlpool EMEA |
www.scc-service.com |
SERVICE
Technical Data
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 6 of 42 |
||
Customer Services |
||
|
Dimensions + Weight
Product dimensions |
|
|
H e i g h t . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
8 5 |
c m |
W i d t h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
4 0 |
c m |
D e p t h . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
6 0 |
c m |
Weight |
|
|
net . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . 63 kg |
|
Electrical base data
Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230 V ± 10% Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Hz Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 A Power Consumption ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .. ~2.3 kW
Drum data
Volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42 l Wash speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52 rpm Spinning
max. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1000 rpm
Pressostat
Level1Overflow. . ........................................................................................................................................................................ .11. . 1- 12/- 146
Door lock
Kind of switch .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. Switch with PTC heater of bimetal Nominal voltage ... .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .230 V +10 %, -15 % Locking time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 6 s Unlock time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40 - 220 s
Inlet valve
Nominal voltage .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 220 - 240 V / 50 Hz Rated flow ... ... ... ... ... ... ... ... ... ... ... ... ... .. (1.5 - 5 bar) .. . .. . . ... . . ... . . .. ... ... ... ... .. 8 l/min Pressure range . ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 0.3 - 10 bar Nominal resistance .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .(20 °C) .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .3.8 kΩ
Drain pump
Nominal voltage .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 220 - 240 V / 50 Hz Total power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26 W Resistor (coil) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 224 Ω C a p a c i t y . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 4 ± 2 l/min Position of draining hose outlet . .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. 0.9 - 1.25 m
© Whirlpool EMEA |
www.scc-service.com |
SERVICE |
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|||
page 7 of 42 |
|||||
Customer Services |
|||||
|
|||||
Heating element |
|
|
|
|
|
Nominal voltage |
... .. .. |
.. .. .. .. |
.. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. .. |
.. .. .. .230 V +10 %, -15 % |
|
Total power . . . . . |
. . . . . . . |
. . . . . . . . . |
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . |
. . . . . . . . . . . . . . . . . . 2050 W |
|
Resistance (20 °C) .... |
... ... ... |
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... |
... ... ... ... ... ... ... 25 Ω |
||
Leakage current |
... ... ... |
... ... ... |
... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... |
... ... ... ... .. < 0.8 mA |
|
NTC sensor |
|
|
|
|
|
Resistance NTC |
|
|
|
||
0 °C |
35.9 |
kΩ |
|
|
|
30 °C |
9.8 |
kΩ |
|
|
|
40 °C |
6.6 |
kΩ |
|
|
|
50 °C |
4.6 |
kΩ |
|
|
|
60 °C |
3.2 |
kΩ |
|
|
|
70 °C |
2.3 |
kΩ |
|
|
|
95 °C |
1.1 |
kΩ |
|
|
|
Motor
Resistance contacts ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... (20 °C) Stator (full field) ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... .. 2.48 Ω R o t o r . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 . 4 6 Ω Tacho generator ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... 68.70 Ω
Control unit
Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . WAVE Nominal voltage ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... ... . 230 V - 240 V Frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50 Hz Output control unit
Motor |
M7.6 - DSS3.2 |
>40 V |
Aquastop |
AQ2.2 - DSS3.2 |
230 V |
In pump step |
AQ2.1 - DSS3.3 |
230 V |
NTC |
Not measurable |
— |
Pump |
DP2.1 - DP2.2 |
230 V |
Doorlock |
DSS3.1 - DSS3.3 |
230 V |
Pressostat |
E4 - E2 |
230 V |
- empty |
PR2.1 - E2 |
230 V |
- full |
PR2.2 - E2 |
230 V |
Valve (Rast 2.5) |
V2.1 - V2.2 |
>170 V |
Options |
Not measurable |
— |
© Whirlpool EMEA |
www.scc-service.com |
SERVICE
Wiring Diagram
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 8 of 42 |
||
Customer Services |
||
|
© Whirlpool EMEA |
www.scc-service.com |
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 9 of 42 |
||
SERVICE Customer Services |
||
|
Legend
© Whirlpool EMEA |
www.scc-service.com |
SERVICE
Circuit Diagram
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 10 of 42 |
||
Customer Services |
||
|
© Whirlpool EMEA |
www.scc-service.com |
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 11 of 42 |
||
SERVICE Customer Services |
||
|
Legend
© Whirlpool EMEA |
www.scc-service.com |
SERVICE

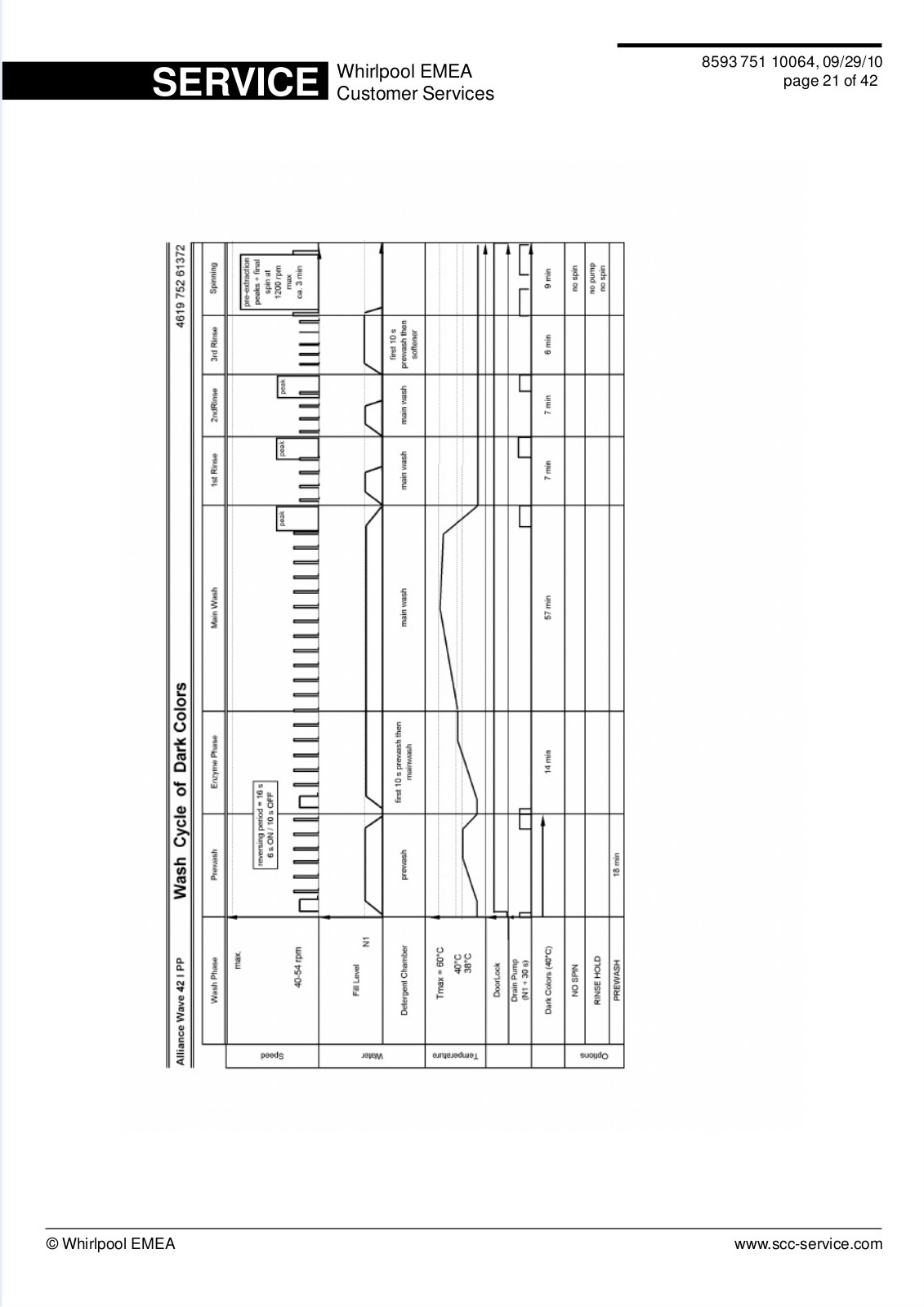

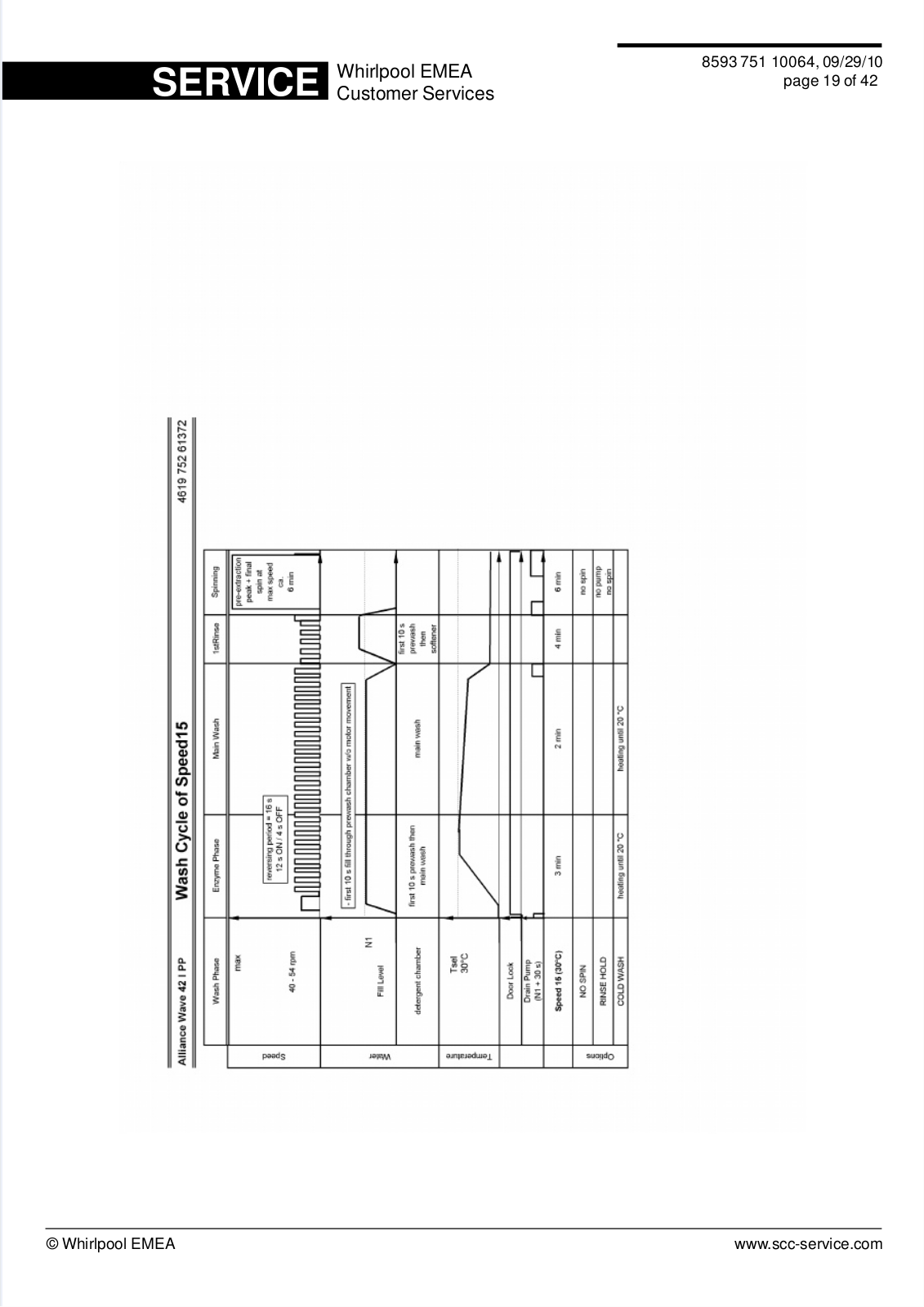

Program Chart
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 12 of 42 |
||
Customer Services |
||
|
© Whirlpool EMEA |
www.scc-service.com |
Whirlpool EMEA |
8593 751 10064, 09/29/10 |
|
page 13 of 42 |
||
SERVICE Customer Services |
||
|
© Whirlpool EMEA |
www.scc-service.com |
